WTB Binder Safety Vacuum Drying Oven with Chemical Membrane Pump VD 115 02249

Binder Safety Vacuum Drying Chamber

Here we offer a Binder Safety Vacuum Drying Chamber.

Air-cooled

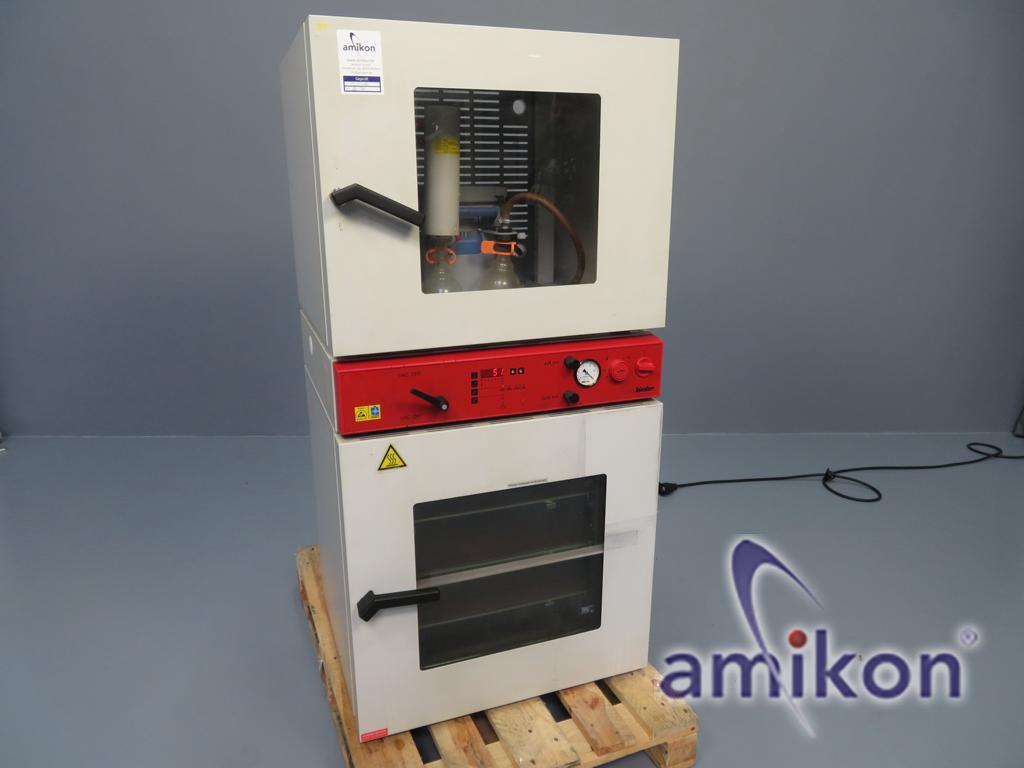

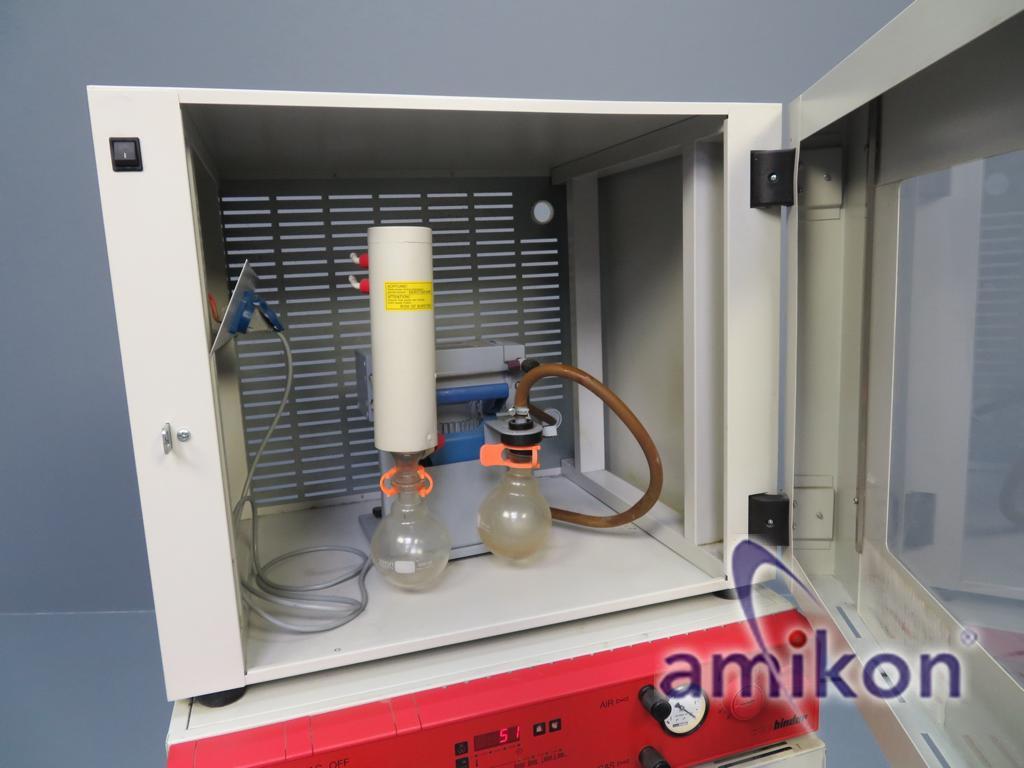

Safety Vacuum Drying Chamber with Chemical Membrane Pump

VD 115
External dimensions of the housing
Width (mm) 740
Height (including feet/wheels) (mm) 894
Total height VD and optional vacuum module (mm) 1516
Depth (excluding connections and attachments) (mm) 670

Wall distance at the back (mm) 100
Wall distance on the side (mm) 135

Internal dimensions:
Width (mm) 506
Height (mm) 506
Depth (mm) 450
Interior volume (l) 115

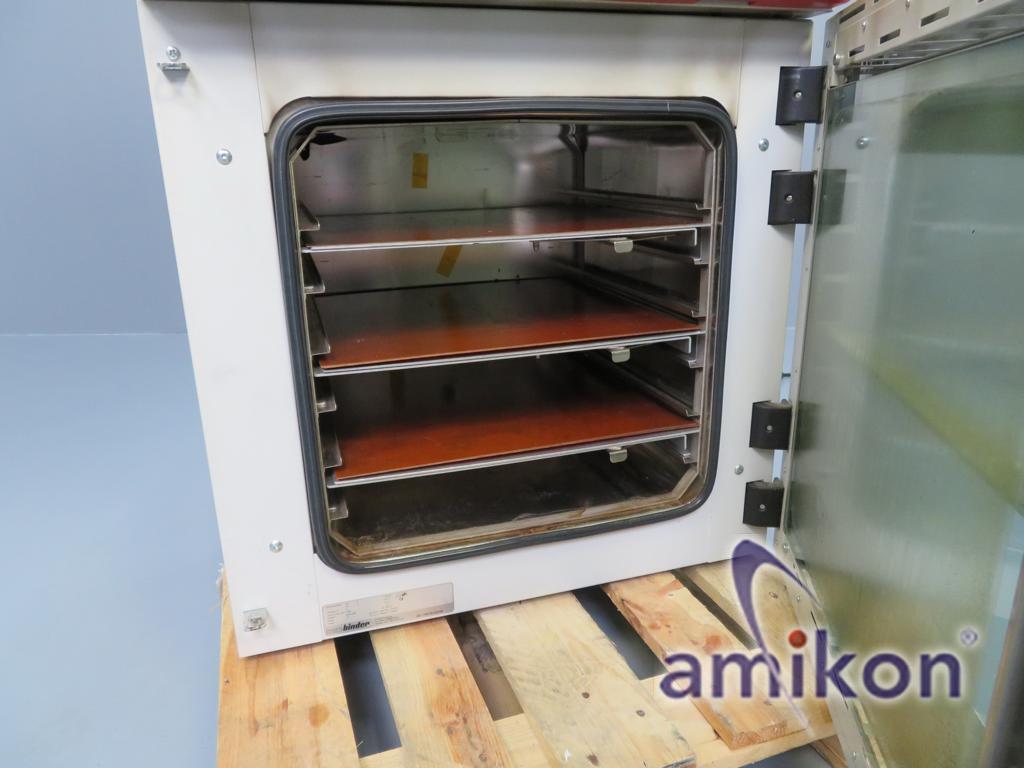

Span shelves (aluminum) (No. series / max.) 3 / 6
Distance between shelves (mm) 68
Usable area per shelf (Width x Depth) (mm) 455 x 440
Load per shelf (kg) 20
Permissible total load (kg) 65
Weight (empty) (kg) 150

Temperature data:
Temperature range approx. 5 °C above room temperature up to (°C) 200
Spatial temperature deviation 1)
at 100 °C (± K) 3.0
at 200 °C (± K) 6
Temporal temperature deviation (± K) 1) 0.1
Heating time 1), 2)
to 100 °C (Min.) 130
to 200 °C (Min.) 140

Vacuum data:

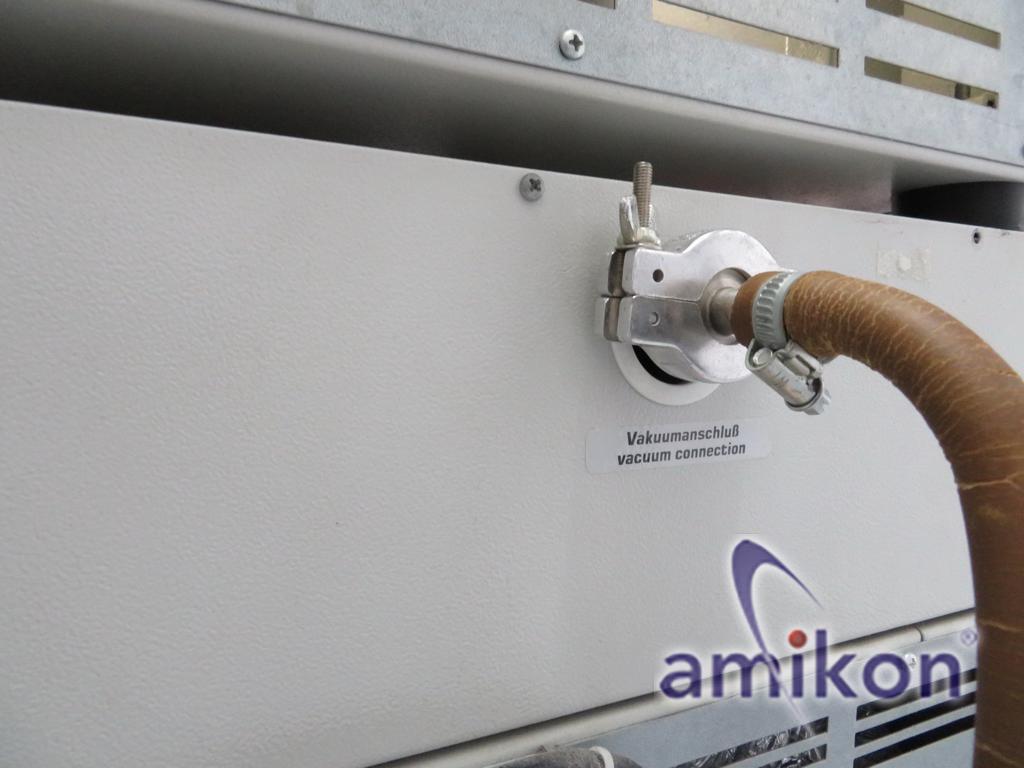

Vacuum connection with small flange (DN mm) 16

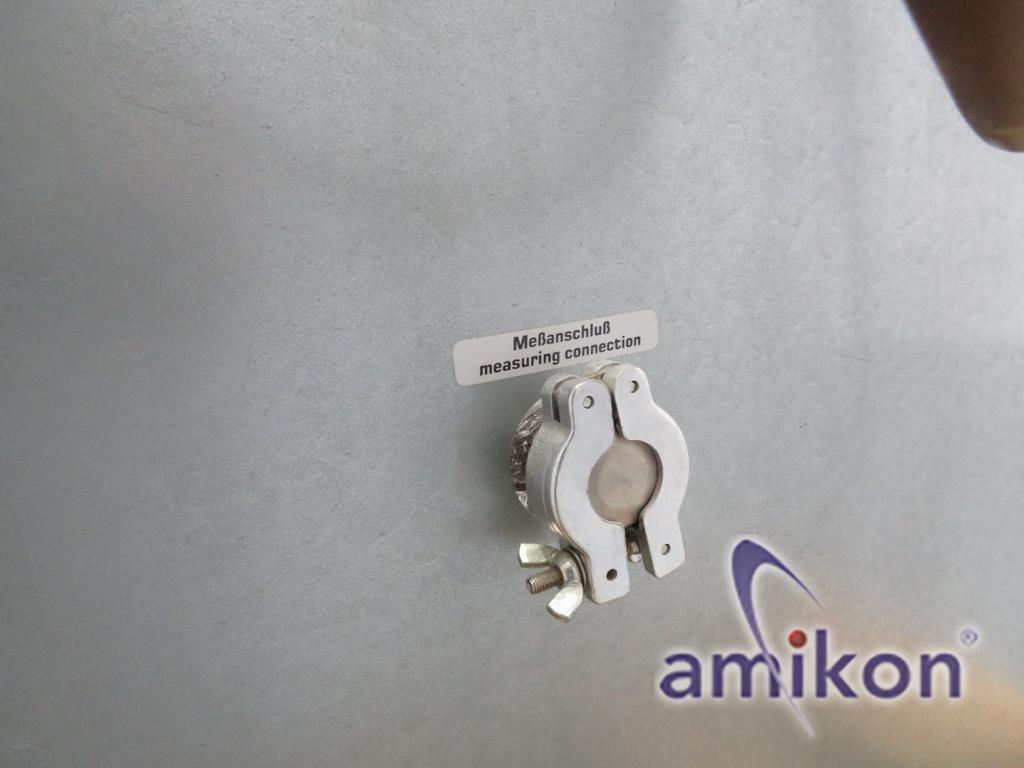

Measuring port with small flange (DN mm) 16
Inert gas connection with flow restrictor thread (RP) 3 / 8

Permissible final vacuum (mbar) 1x10
Leak rate (max. bar 1/h) 1x10

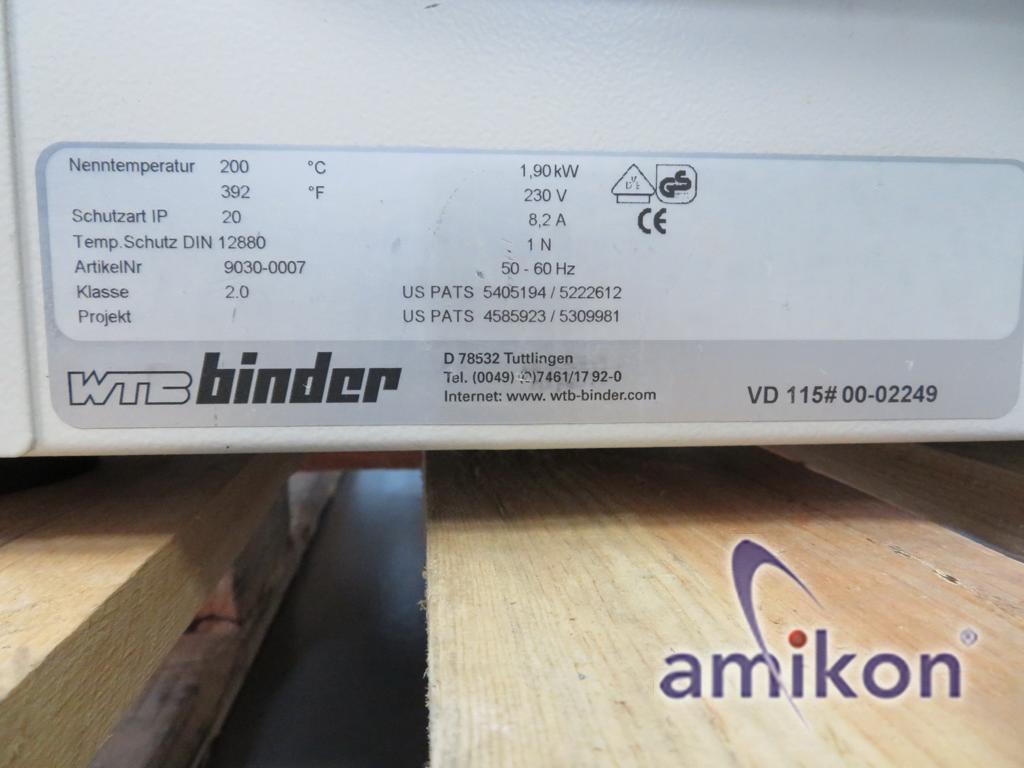

Electrical data:
IP protection class according to EN 40050  IP 20
Nominal voltage (±10 %) 50/60 Hz  230
Nominal power (kW) 1.9
Energy consumption
at 100 °C (W) 280
at 200 °C (W) 800

Item weight: 150 kg

Type VD 115

Condition: used

Scope of delivery: (See image)

(Changes and errors in technical data are reserved!)

We would be happy to answer any further questions by phone.
