CTS Climate Chamber CS-70/1000-5 -70°C to +180°C with Humidity 1000 Liters

CTS

Type: CS-70/1000-5

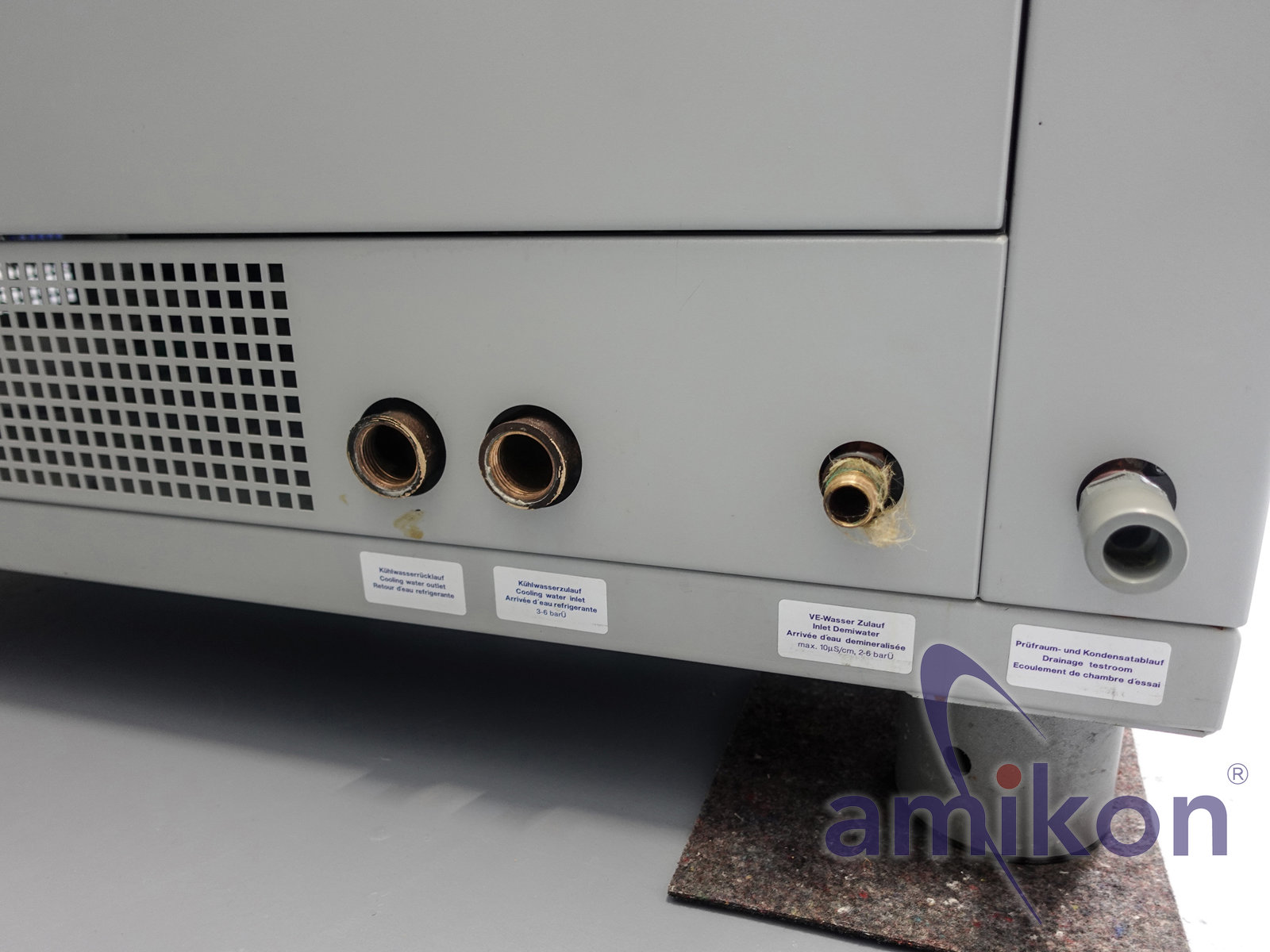

Water-cooled Condenser

For sale is a high-quality climate and temperature chamber / climate testing chamber from CTS
(Clima Temperatur Systeme), model CS-70/1000-5.
The device is used to simulate various environmental conditions and is typically employed in industry,
research, and quality assurance.
It allows for precise testing under extreme temperature and humidity conditions, e.g., for:

Material tests
Aging tests
Electronics and component testing
Climate and environmental simulations

Thanks to the large testing space (1000 liters) and powerful control technology, both rapid temperature changes
and constant long-term tests can be conducted.
The system is water-cooled, which enables stable and efficient operation.

Technical Data:

Control:

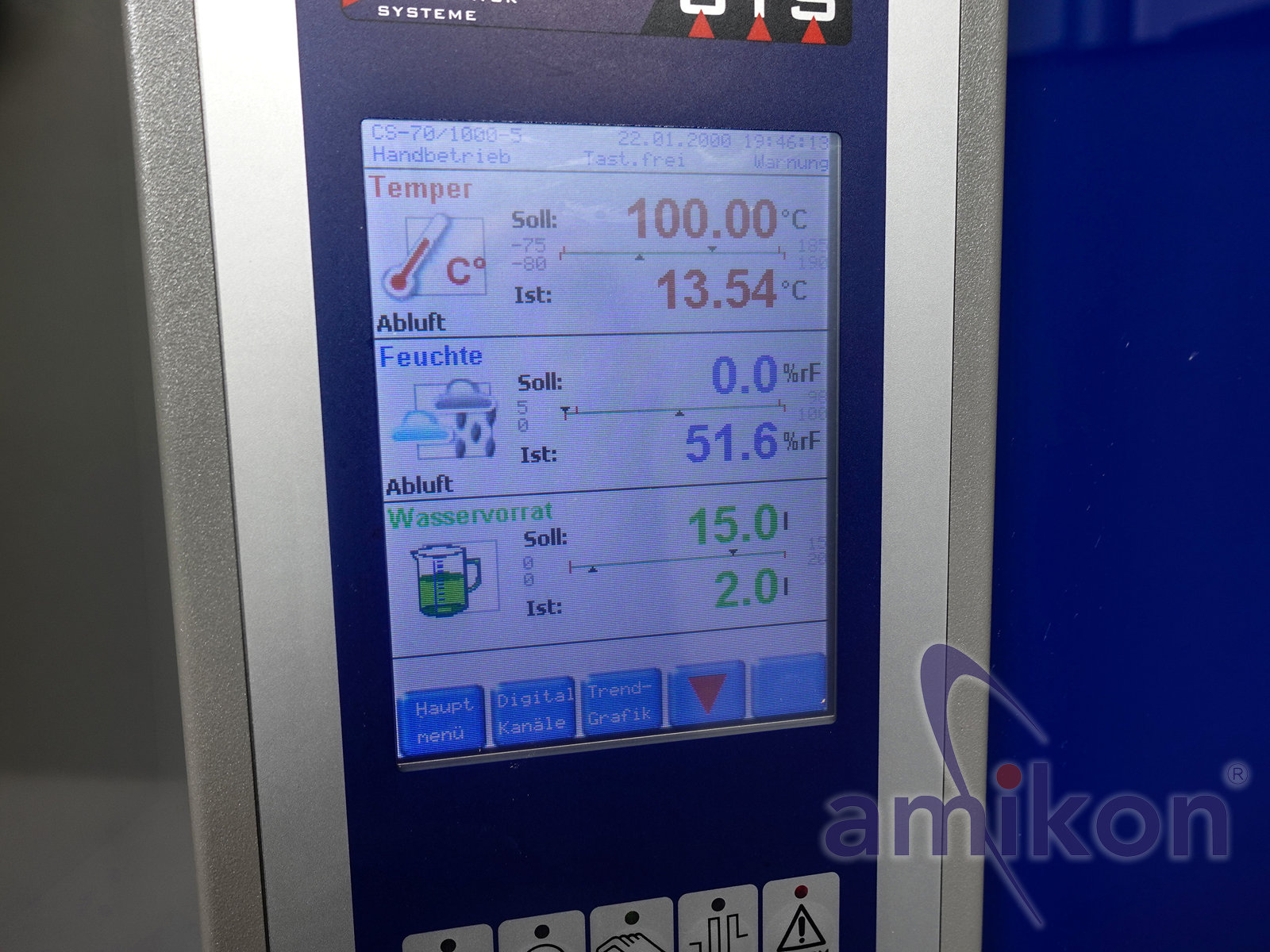

Multi-touch controller with integrated programmer
Programmable test sequences

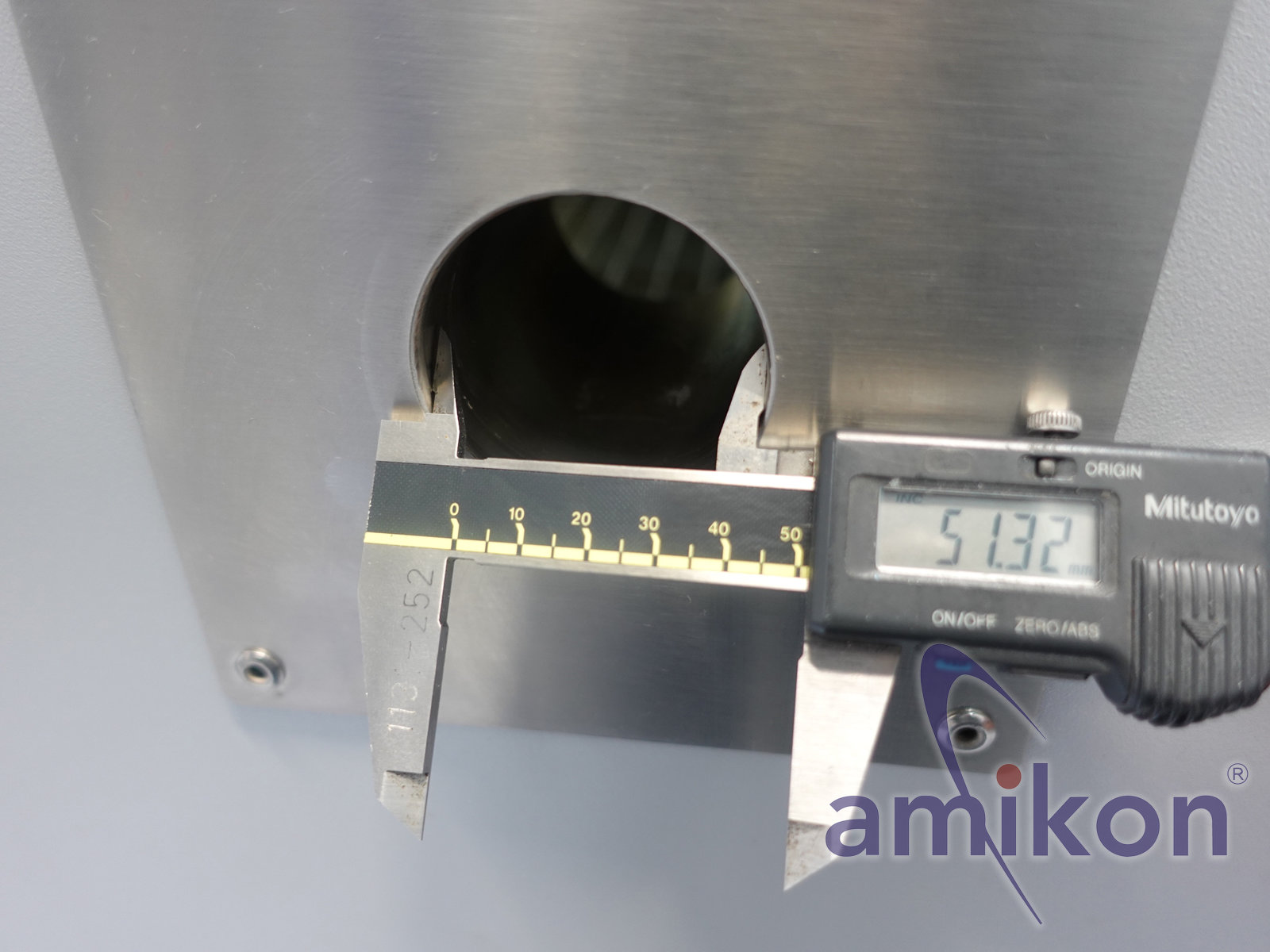

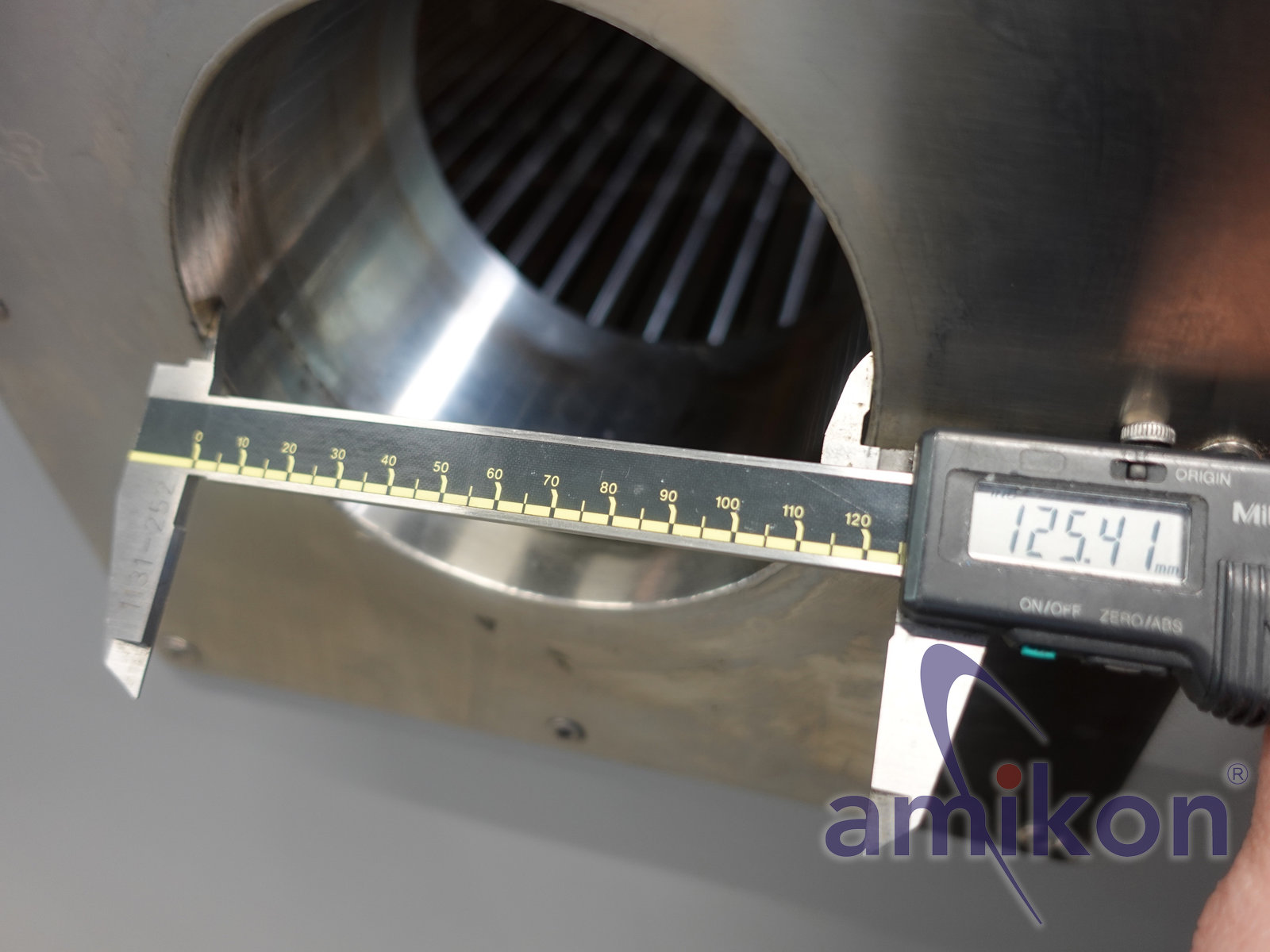

Side entry 50 cm / 125 cm

Temperature Range:
Temperature range: –70°C to +180°C
Heating rate: approx. 6 K/min
Cooling rate: approx. 5 K/min
Temperature stability: ± 0.3 K

Climate Data (Humidity):
Temperature range climate: +10°C to +95°C
Humidity range: 10% to 98% r. H.
Humidity stability:
Range I: ± 1.5 % r. H.
Range II: ± 3 % r. H.
Dew point range:
I: +7°C to +94°C
II: –10°C to +7°C

Dimensions:
External dimensions (HxWxD): 1950 x 1270 x 2245 mm

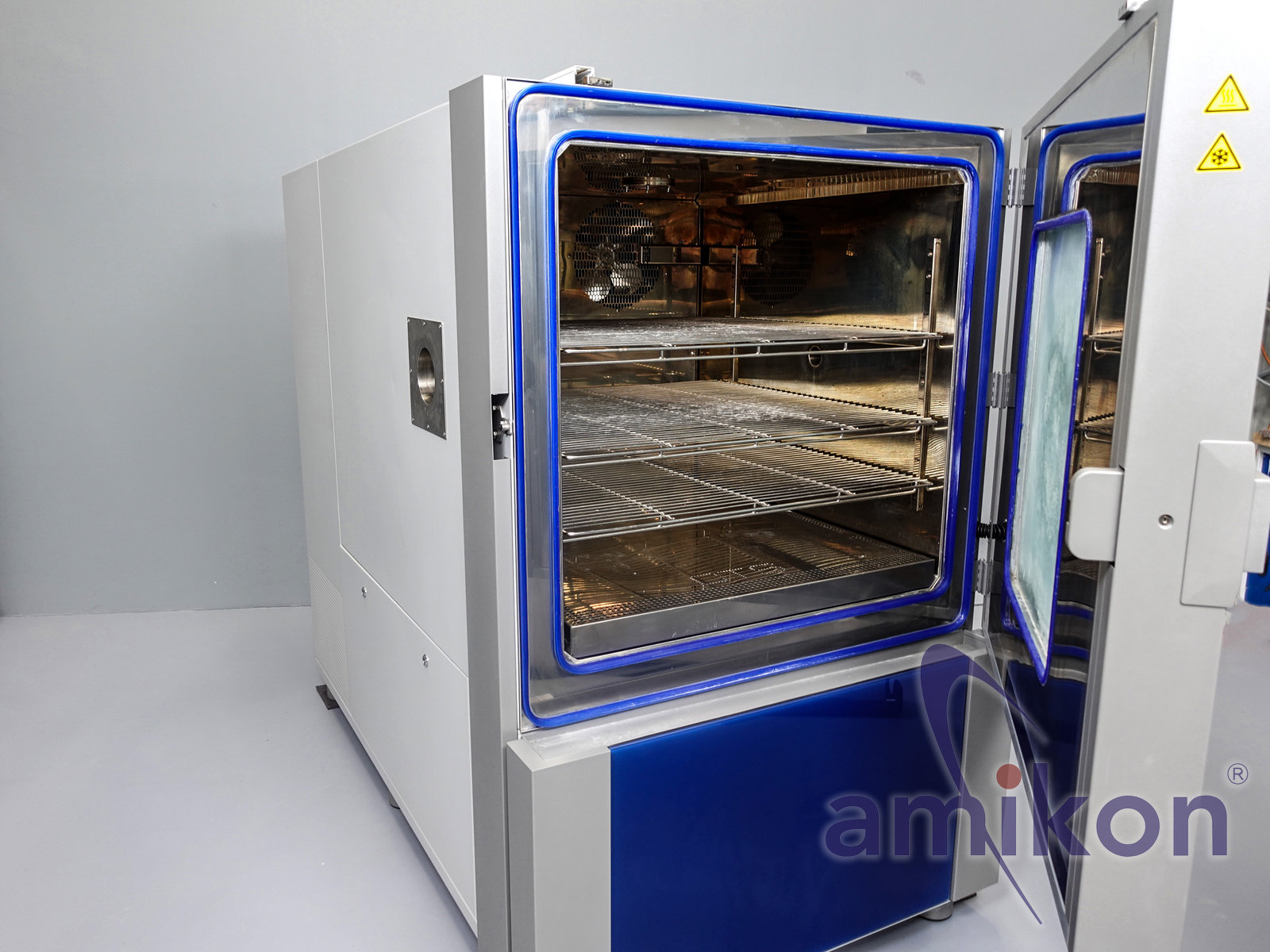

Internal dimensions (HxWxD): 900 x 1000 x 1100 mm
Test chamber volume: 1000 liters

Electrical Data:
Connection: 400 V, 3/N, 50 Hz
Tolerance: +6% / –10%
Connection power: approx. 16.4 kW
Rated current: approx. 26.8 A

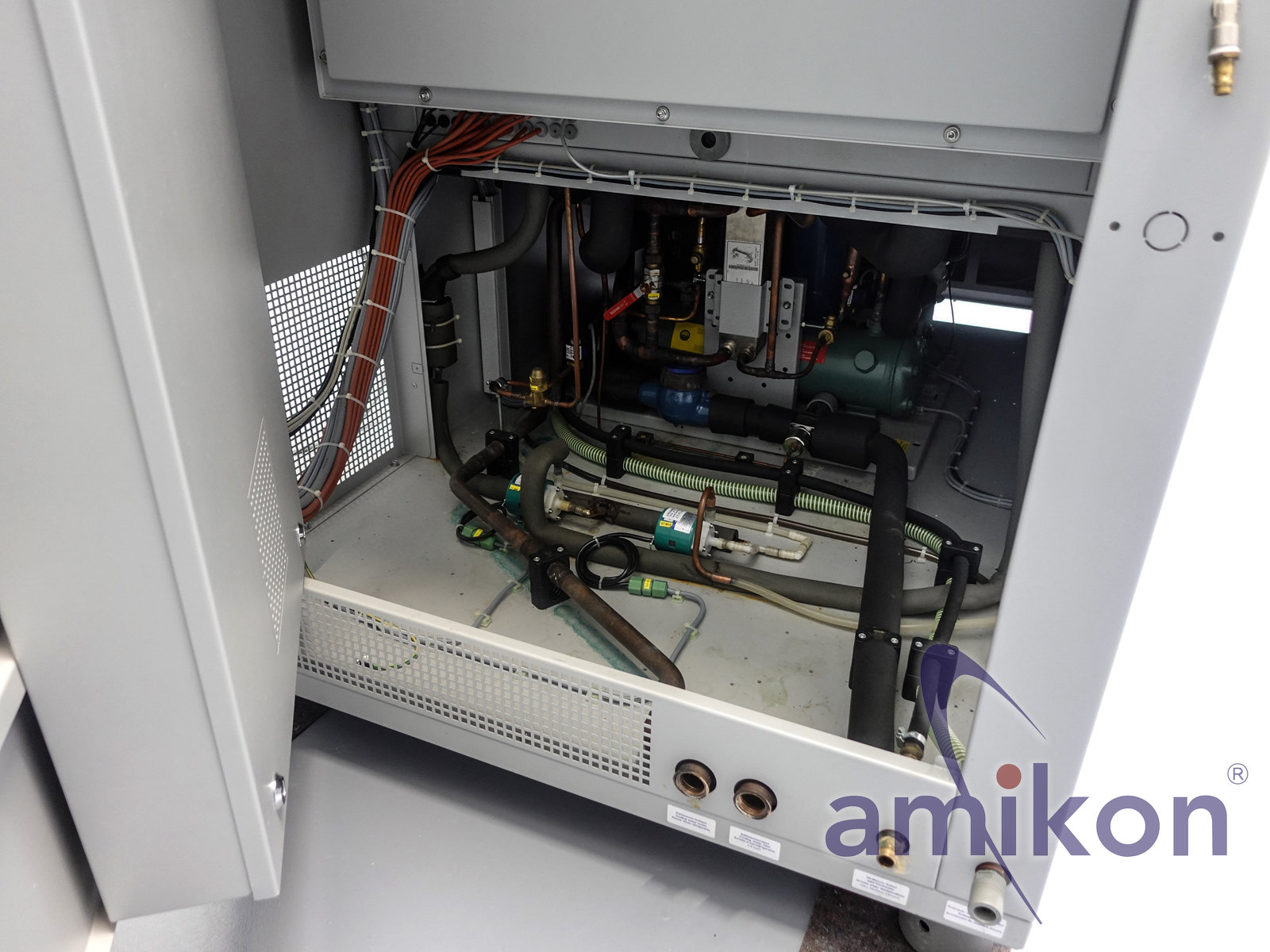

Refrigeration System:
Refrigerant: R404A & R23

Weight: approx. 900 kg

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. If necessary, new filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a documented test run.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

Further questions can be answered by phone.
