Weiss Temperature Test Chamber TempEvent T/1000/70/5 70°C to +180°C 1000 liters

Weiss

Type: TempEvent T/1000/70/5
Temperature testing chamber Water-cooled
1000 liters

Description:

For sale is a high-quality climate testing chamber from Vötsch Industrietechnik
(Weiss Technik), model TempEvent T/1000/70/5.

The device is used to simulate temperature conditions and is ideal for:
Material testing
Electronics testing
Environmental and aging tests
Quality and endurance testing

The chamber can generate very low temperatures down to approximately -70 °C as well as high temperatures up to +180 °C
and change these at a defined speed (temperature ramps).
Due to precise control, reproducible testing conditions can be achieved.

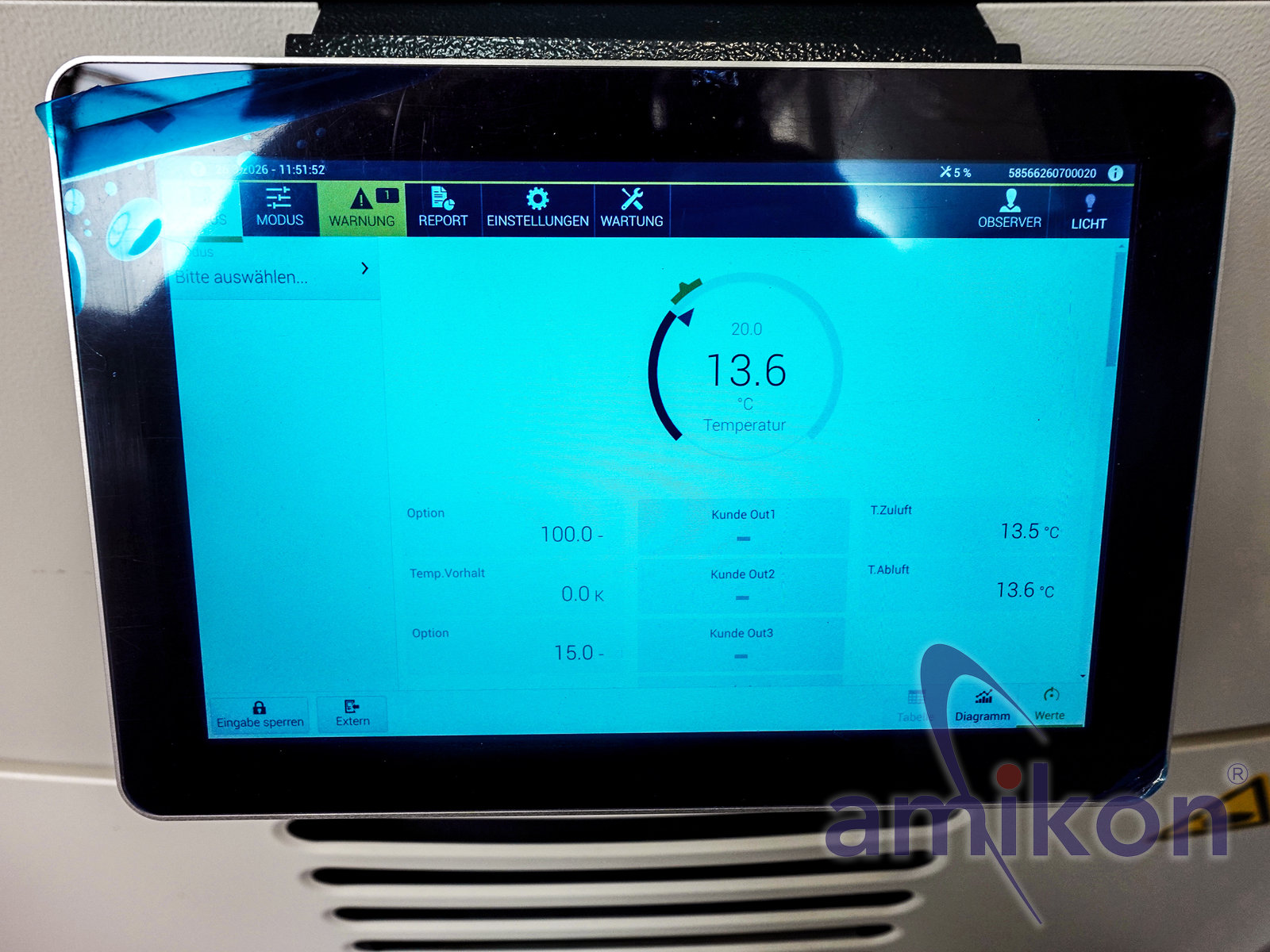

Operation is comfortably done via an integrated touch panel.

Features:
Fast temperature changes (up to 5 K/min)
Uniform temperature distribution in the test chamber

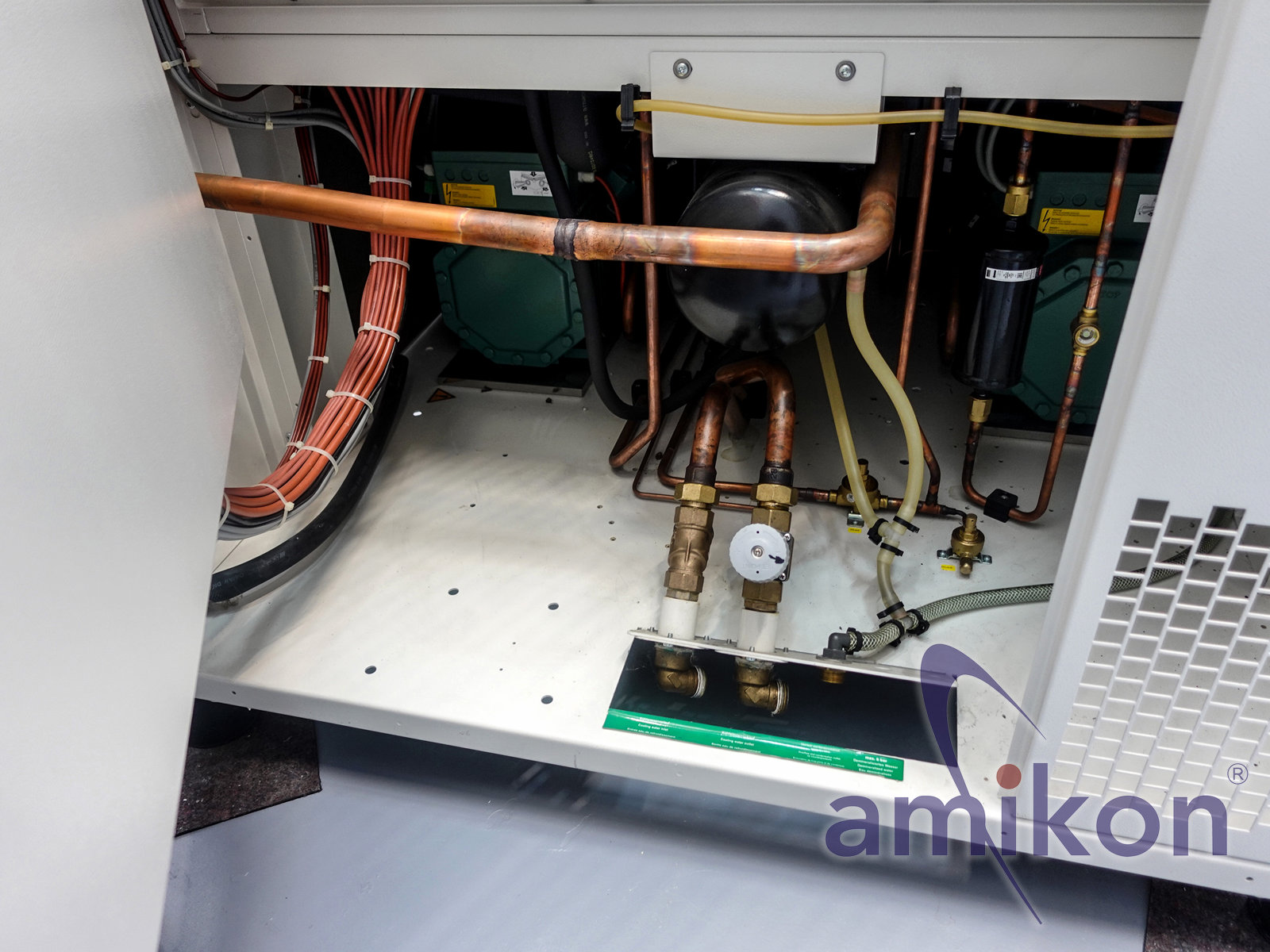

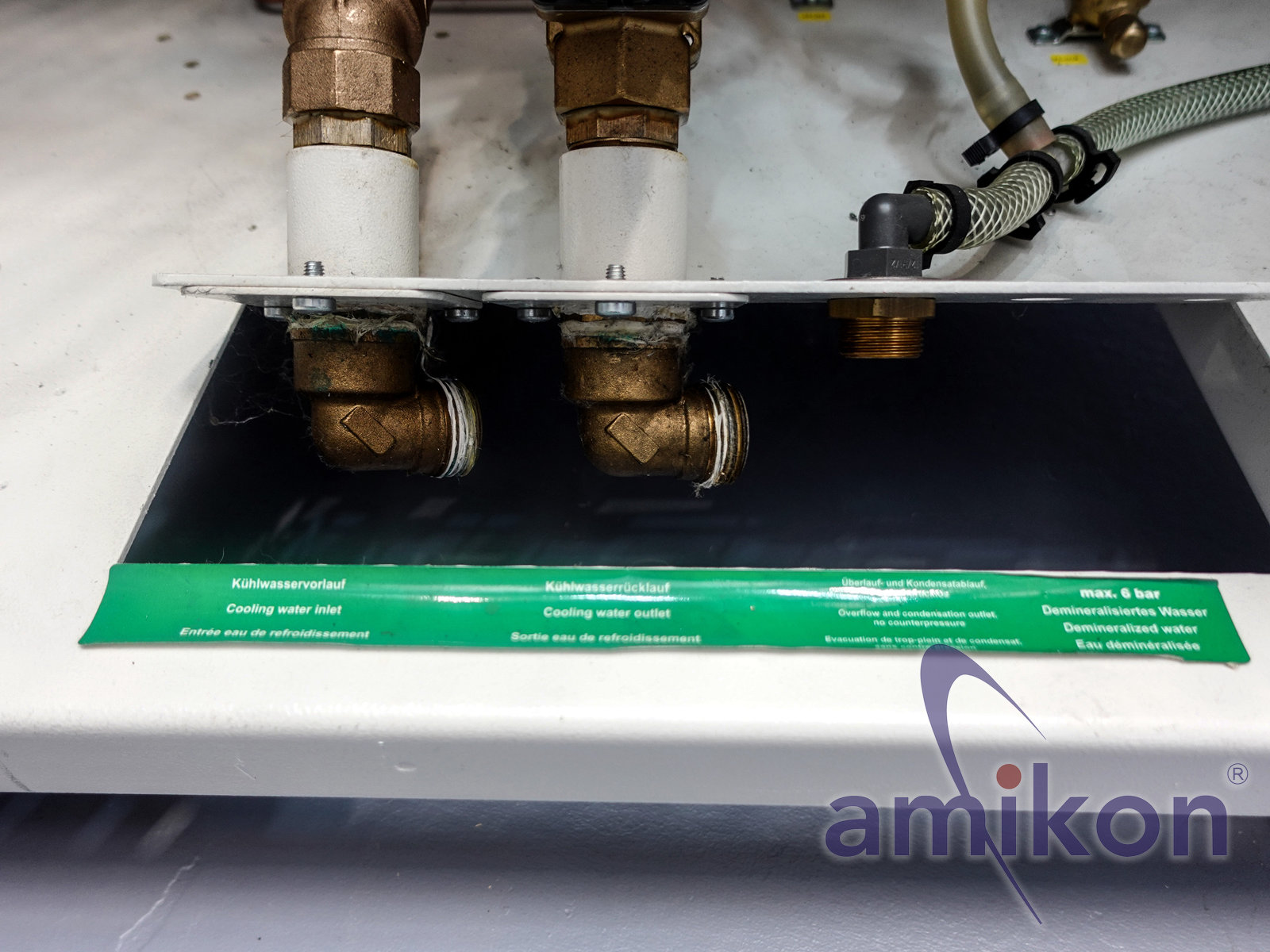

Water-cooled system
Industrial standard – robust construction
Maintenance indicator and operating hour counter available

Technical data:
Model: TempEvent T/1000/70/5
Temperature range: approx. -70 °C to +180 °C
Temperature change: up to 5 K/min

High precision & stability:
Temporal temperature deviation: ±0.1 to ±0.5 K
→ very stable temperature over time
Spatial deviation: ±0.5 to ±1.0 K
Temperature gradient: ≤ 2.0 K

Thus, the chamber is ideal for demanding testing processes
with high repeat accuracy

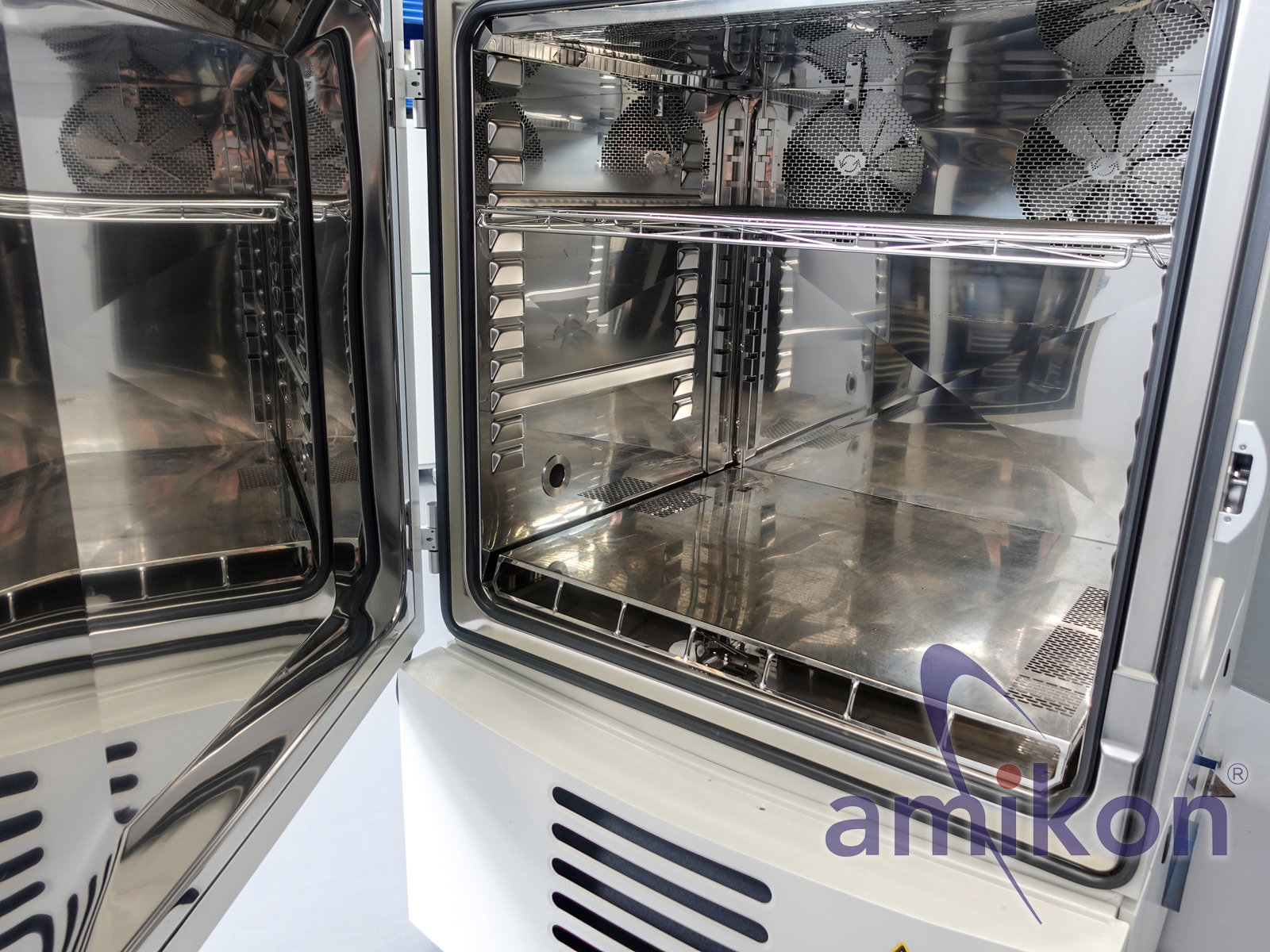

Test chamber: approx. 950 × 1100 × 950 mm (W × H × D)
External dimensions: approx. 2000 × 1415 × 2030 mm (W × H × D)

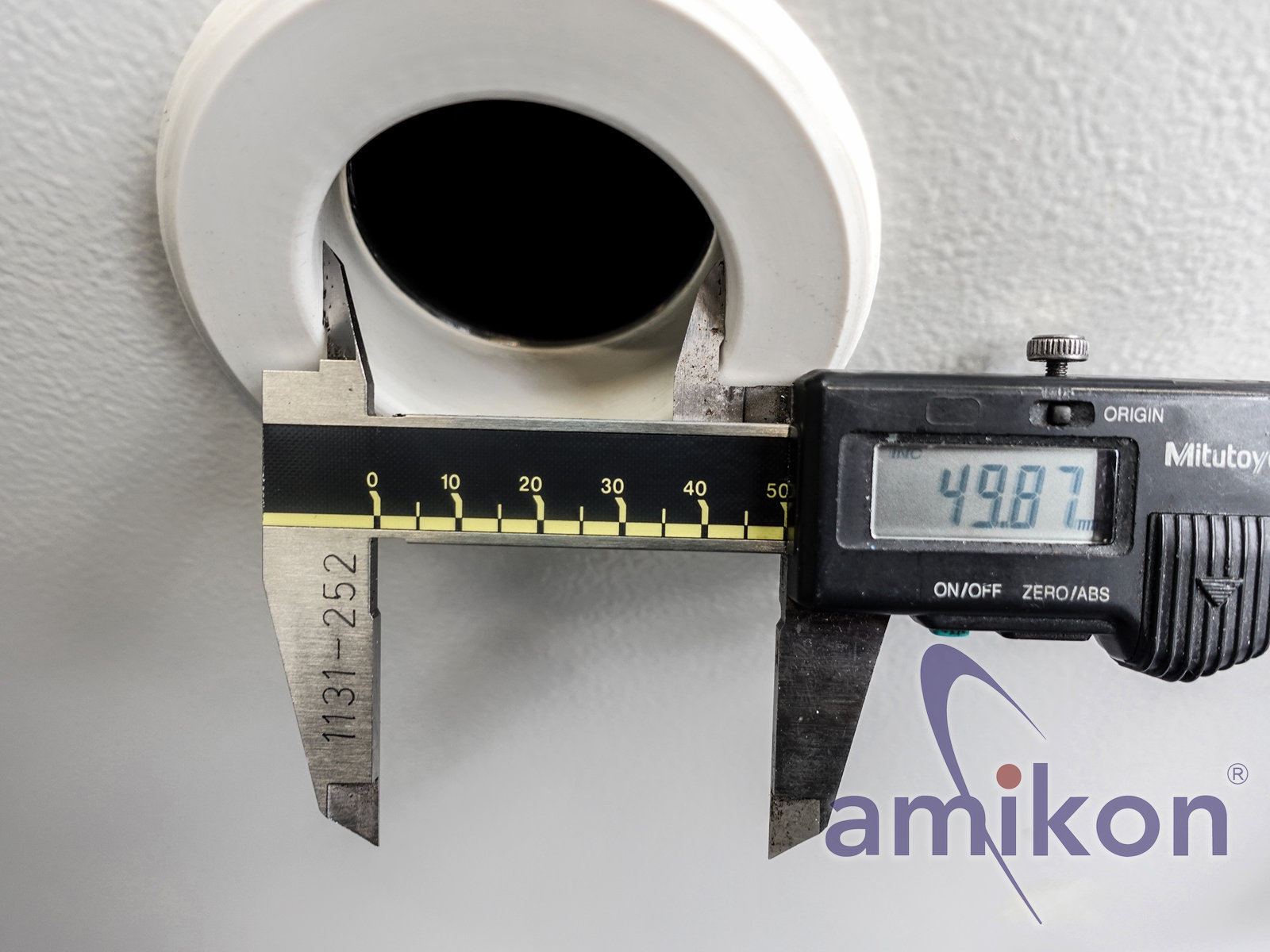

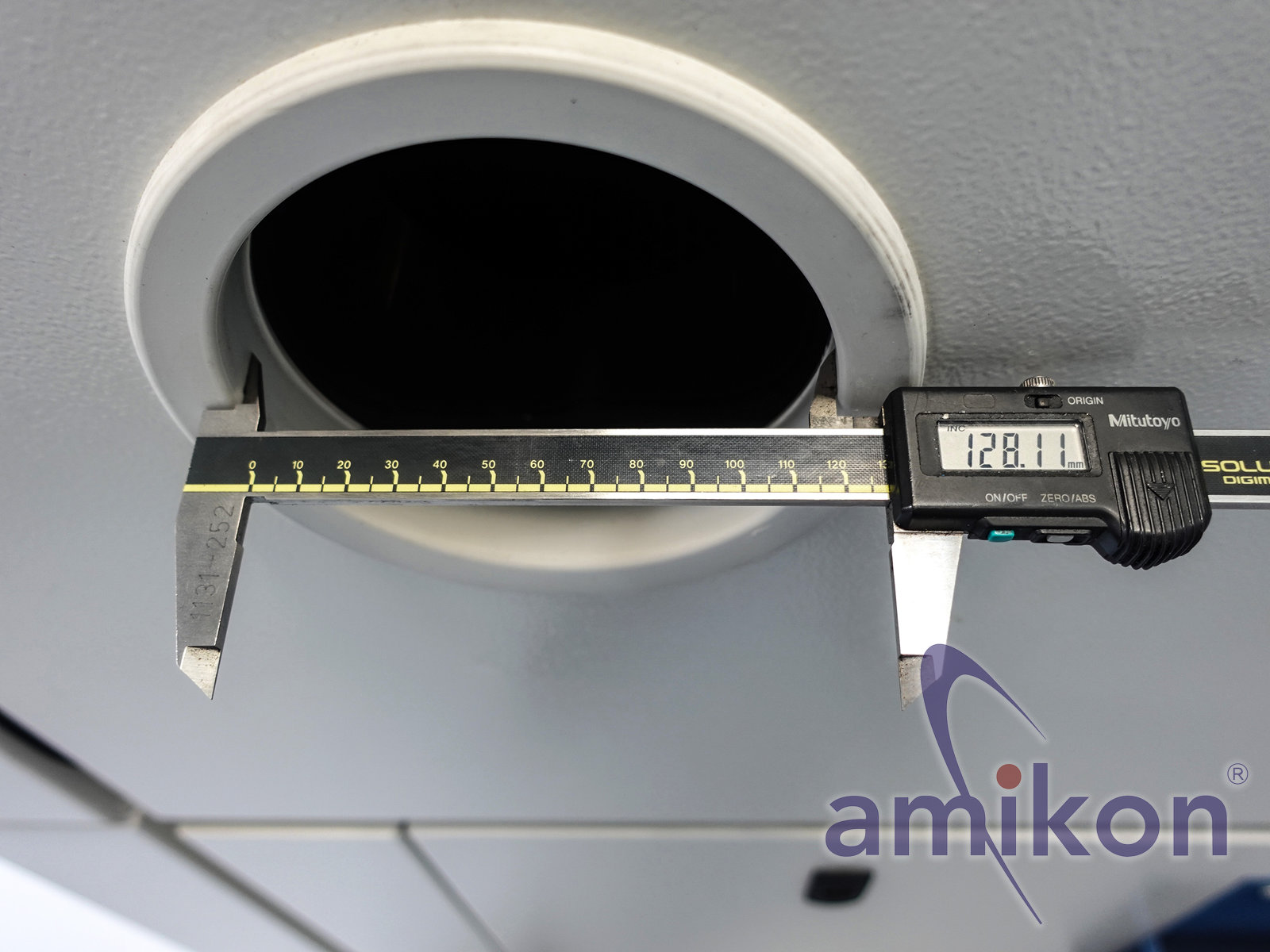

Side passage 50 cm / 125 cm

Electrical data:
400 V / 3~ / 50 Hz
Nominal current: approx. 34 A
Power: approx. 21 kW

Refrigerant:
R449A (approx. 2.9 kg)
R23 (approx. 1.3 kg)

Weight: approx. 1200 kg

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. If necessary, new filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a documented test run.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

Further questions can be answered by phone.
