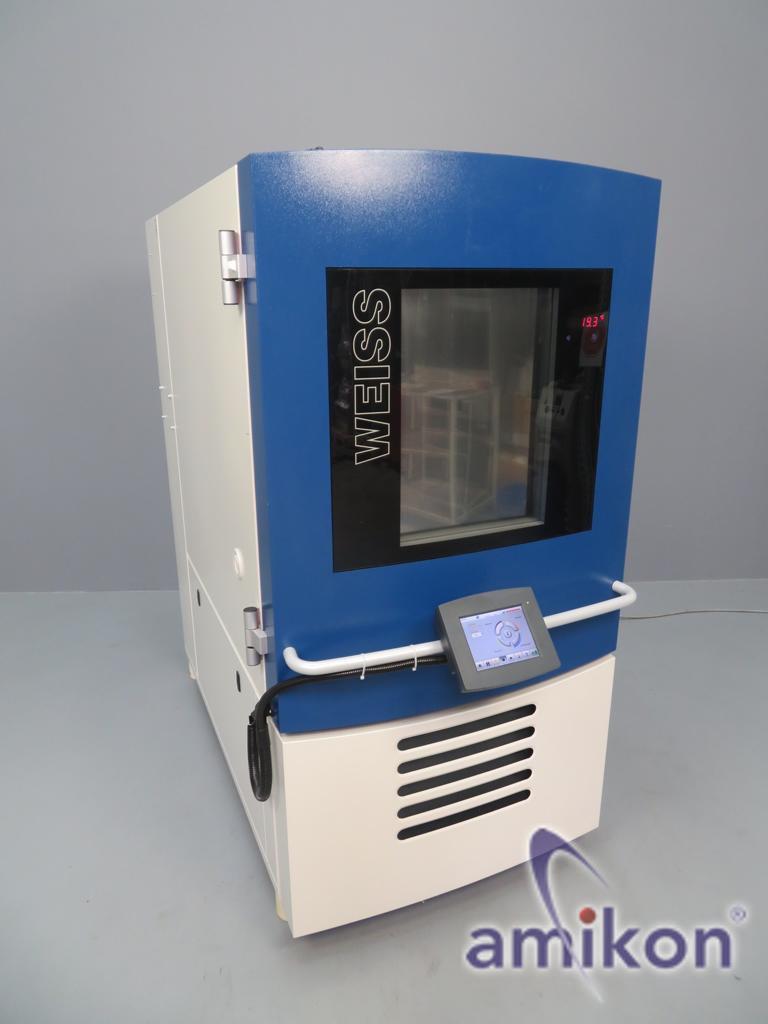

Weiss Temperature Test Chamber WT3-600/70 600 Liters -70°C to +180°C 58226111390010

Weiss Temperature Test Chamber

Here we offer you a Weiss temperature test chamber.

Weiss Temperature Test Chamber Water-Cooled

With temperature change rate of 3 K/min

Technical Data:
Test Chamber Designation: WT3-600/70

External dimensions with hinges and door lock
Height 1995 mm, Width 1090 mm, Depth 1660 mm

External dimensions without hinges and door lock
Height 1995 mm, Width 1000 mm, Depth 1660 mm

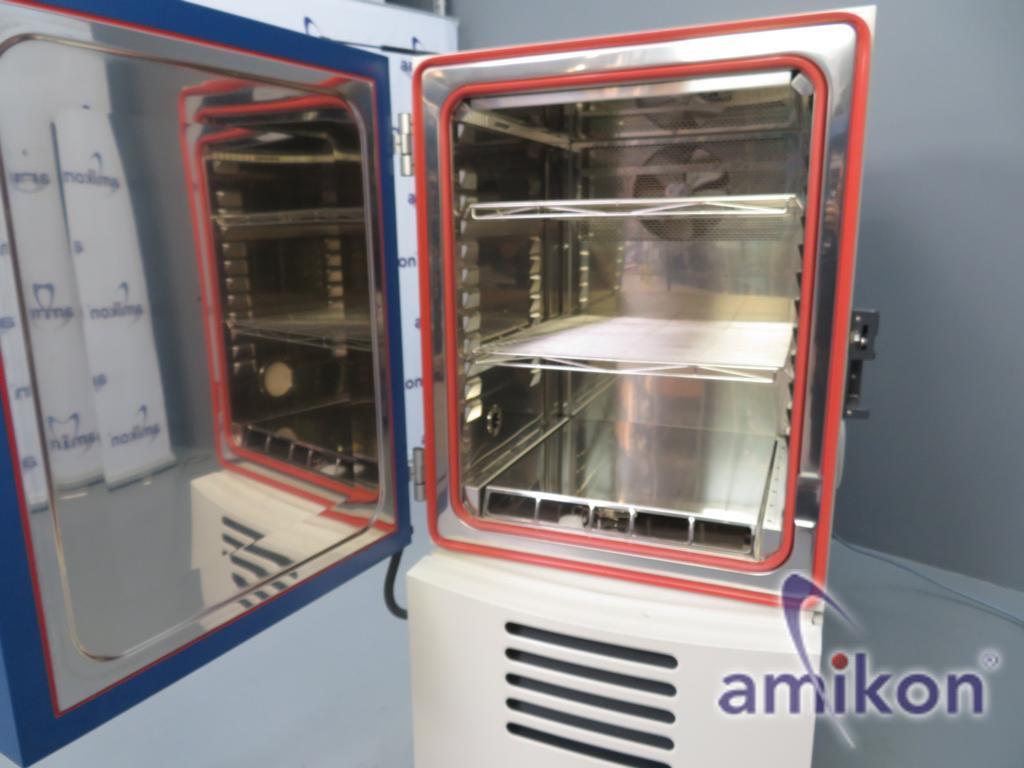

Internal dimensions: Height 950 mm, Width 800 mm, Depth 800 mm

Test chamber volume: approx. 600 liters

Cooling / Heating Operation -70°C to 180°C

Temperature change per time
Cooling down approx. 2.5 K/min
Heating up approx. 4 K/min

Temperature deviation time ± 0.1 to ± 0.5 K

3/N/PE AC 400V ±10% 50Hz
Rated power: 9.1 kW
Rated current: 19 A
Fuse on site: 32 A slow
Permissible test load weight
Total load test chamber floor 80kg, shelf 40kg

Shelf 2 pieces

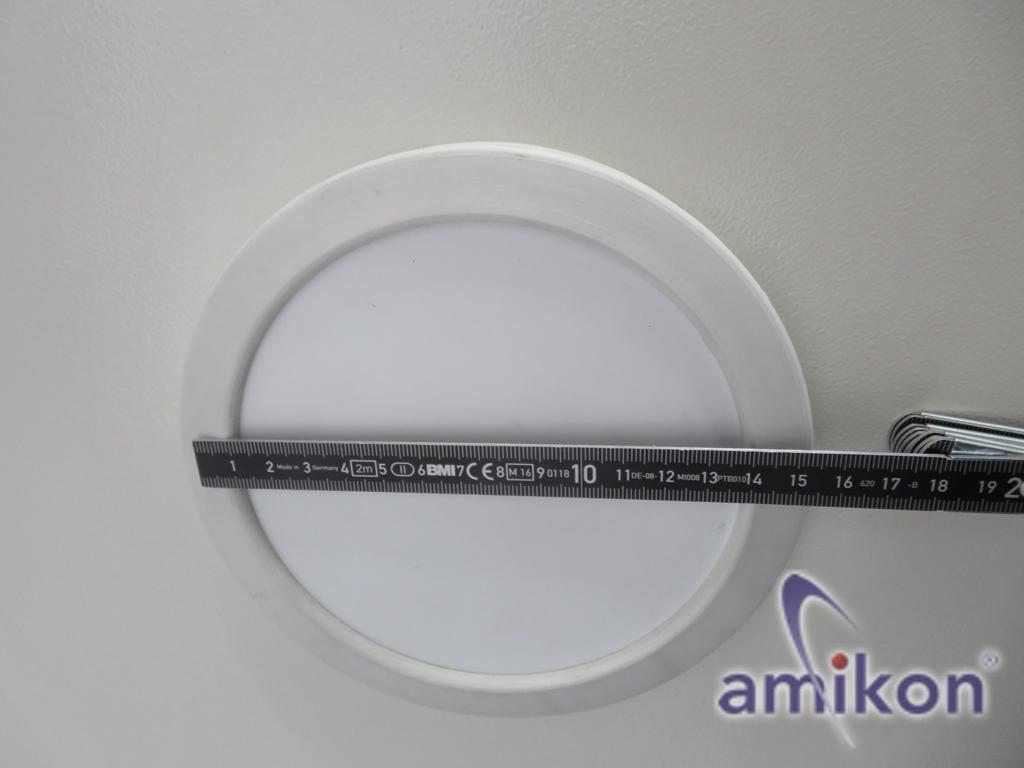

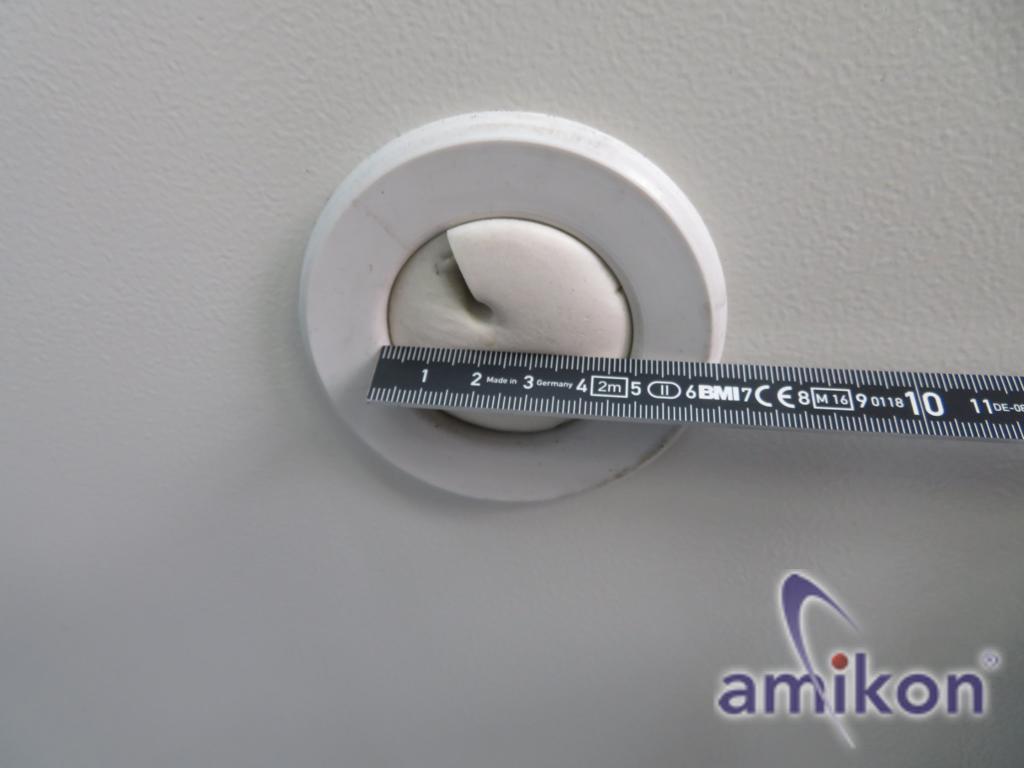

Pass-throughs: 130 mm ∅ / 50 mm ∅

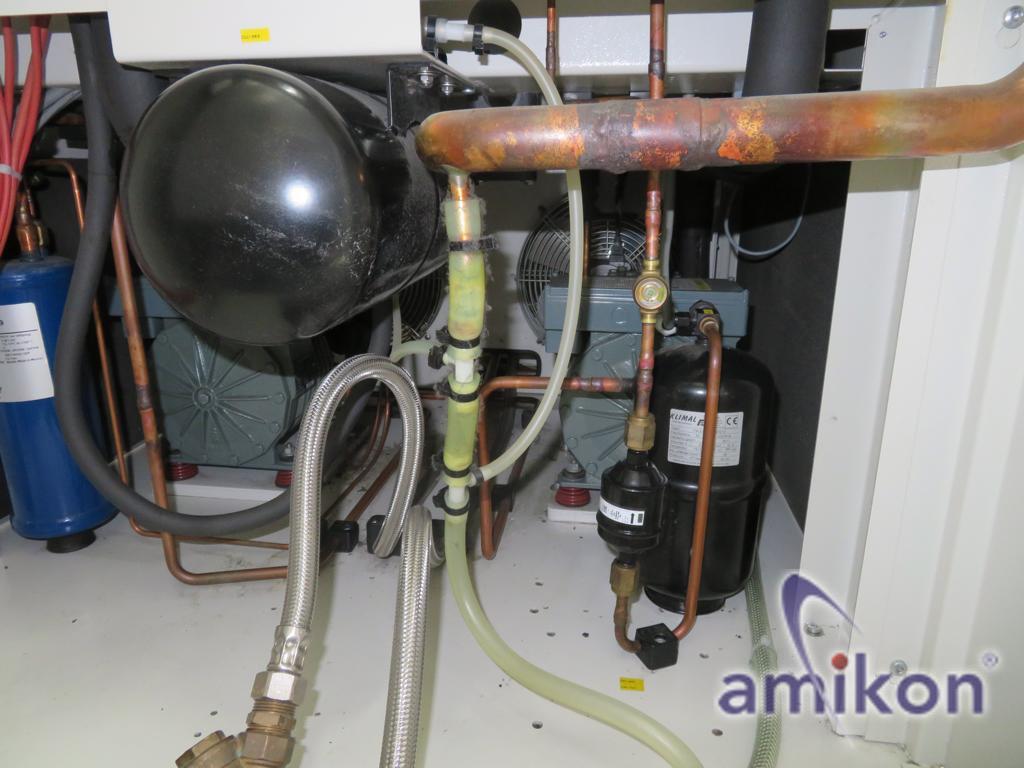

Refrigerant: R 404A / R23

Weight: 675 kg

Type: WT3-600/70 / 58226111390010

For you as a buyer, the following information for your safety!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)
