Angelantoni Walk-In Climate Chamber ACS WZH10-4080-2 BT – Optimized for Battery Testing (Li-Ion)

ACS Angelantoni

Type: ACS WZH10-4080-2 BT

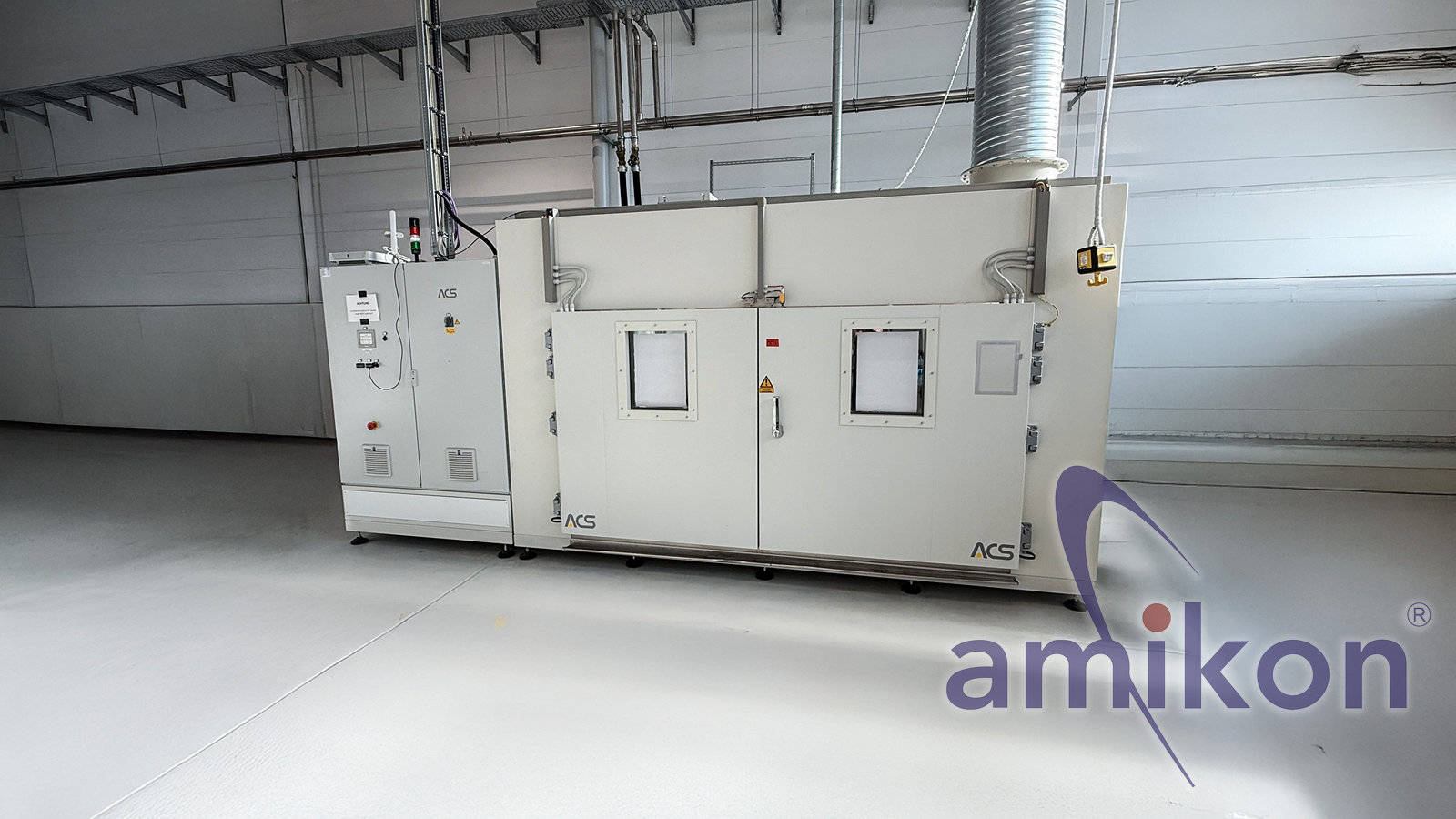

Angelantoni Walk-In Climate Chamber
ACS WZH10-4080-2 BT
Optimized for Battery Testing (Li-Ion)
-40°C to +80°C

Description:

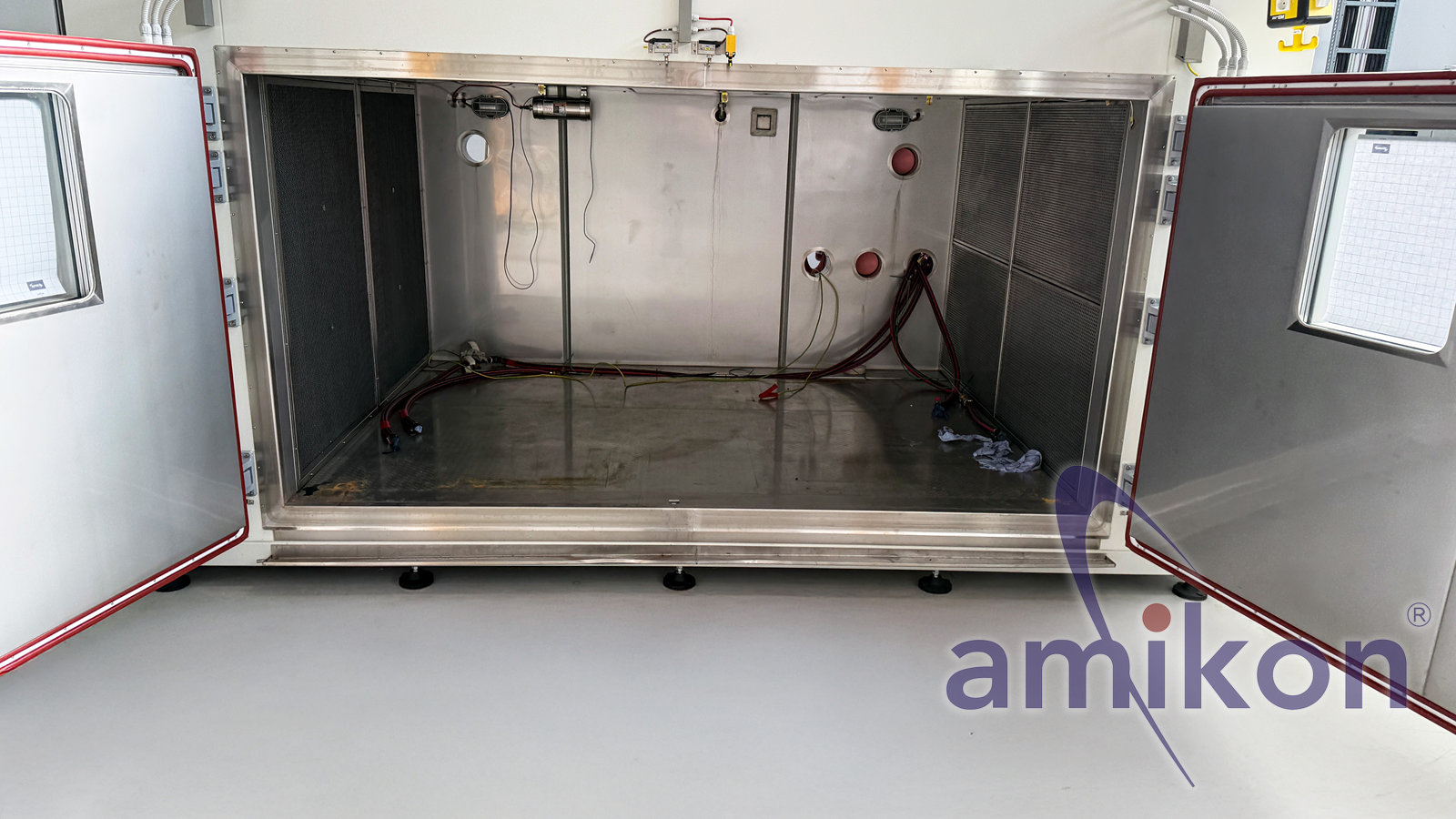

For sale is a walk-in climate and environmental test chamber from the renowned manufacturer Angelantoni
Test Technologies (ACS), model WZH10-4080-2 BT, year of manufacture 2019.

The system is designed for demanding industrial, development, and research testing and features
extended safety equipment specifically for battery and accumulator testing (e.g. lithium-ion).

Special feature: Safety equipment for battery testing:
The system is specifically equipped for battery and accumulator testing, including:

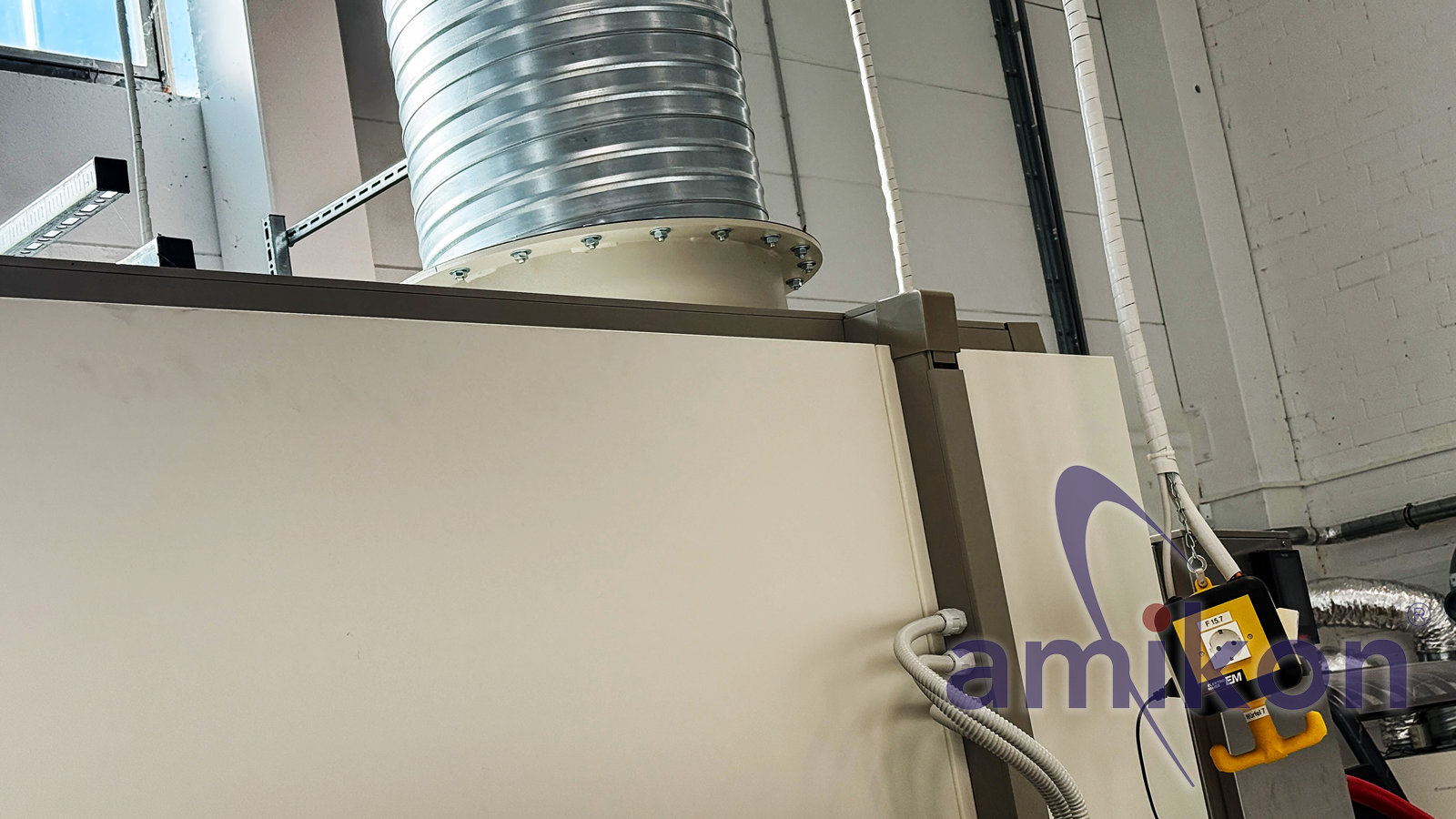

Pressure relief flap for controlled pressure release in case of malfunction
Gas detection system for early detection of critical gas concentrations
Aerosol fire suppression system (SalgroMAG)
→ ideal for lithium-ion testing

Suitable for:
Batteries & accumulators (including lithium-ion)
Electronics & control units
Automotive components
Industrial & research testing
Endurance, aging, and stress testing

Technical data (from nameplates & documentation)

General:
Model: WZH10-4080-2 BT
Year of manufacture: 2019
Standards: CE, IEC/EN 60204-1
Design: Walk-in climate chamber, double-door

Test range:
Temperature: −40 °C to +80 °C
Humidity: 10 % to 95 % r.H.

Electrical data:
Power supply:
400 V
Three-phase + N + PE
50 Hz
Rated power: approx. 37 kW
Full load current: approx. 115 A
Protection class: IP54
Short-circuit withstand rating: 10 kA

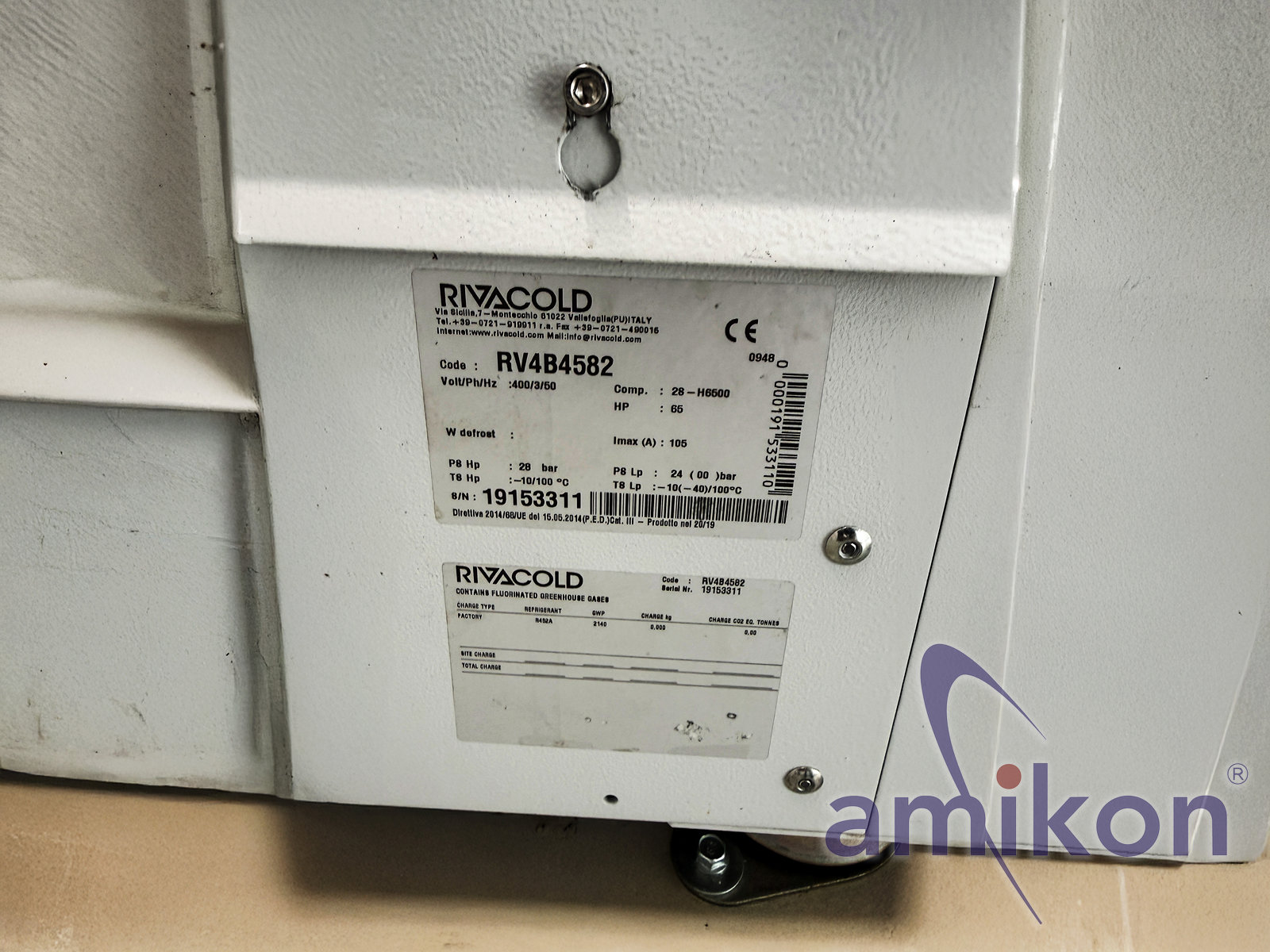

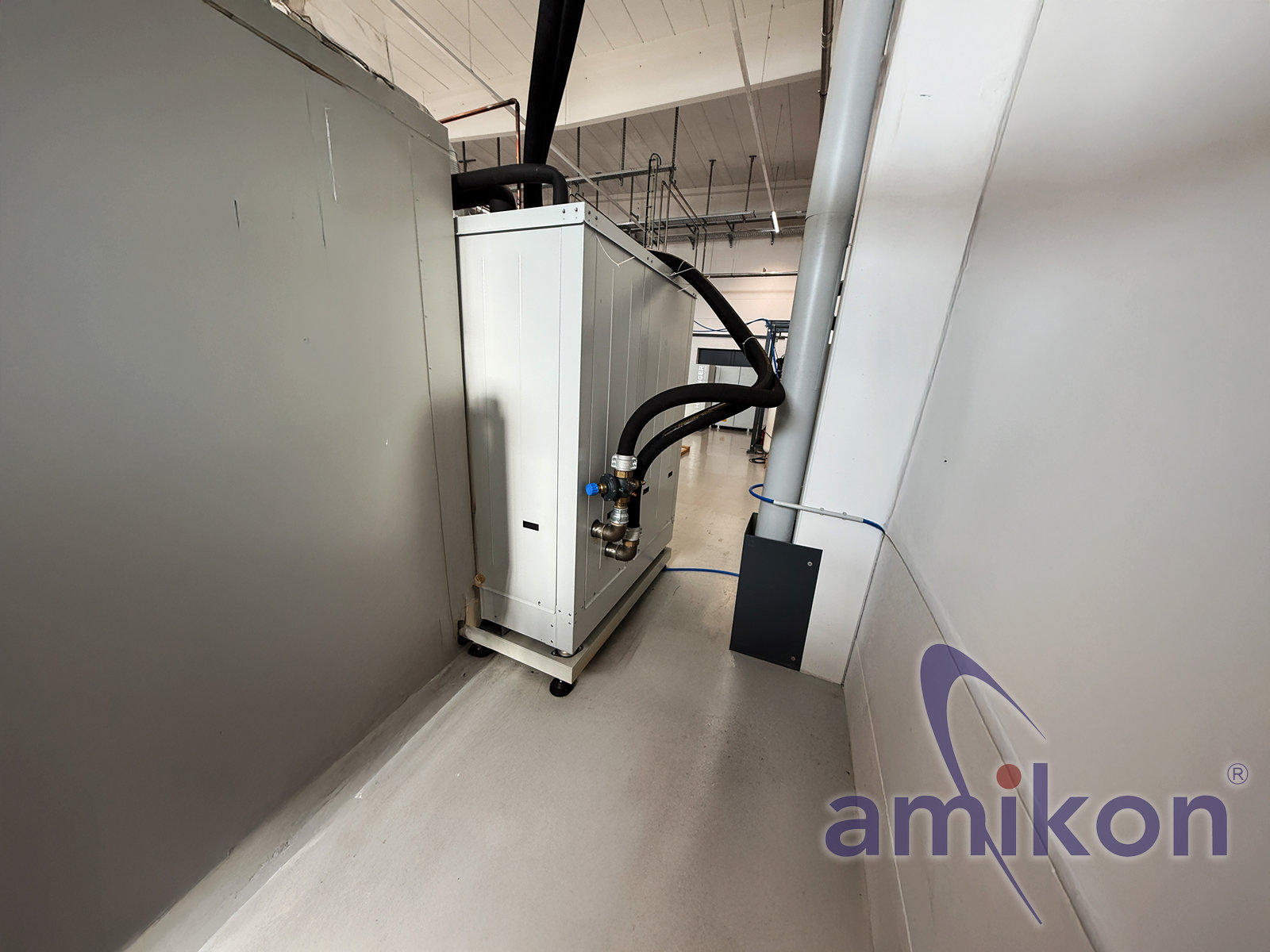

Refrigeration system
Refrigerant: R452A
Charge quantity: approx. 50 kg
CO₂ equivalent: approx. 107 t

Dimensions:
Dimensions (external, approx.):
Length: ~ 4.5 m
Width: ~ 2.2 m
Height: ~ 2.4 m

Weight: approx. 3,800 kg

Condition: used

Scope of delivery: (see pictures)

(Subject to changes and errors in technical data; all specifications without guarantee.)

If you have any further questions, please feel free to contact us by phone.
