Weiss Technik EmissionEvent VOC/240 Climate Test Chamber +20 to +130 °C, 240 Liters

Weiss

Type: EmissionEvent VOC/240

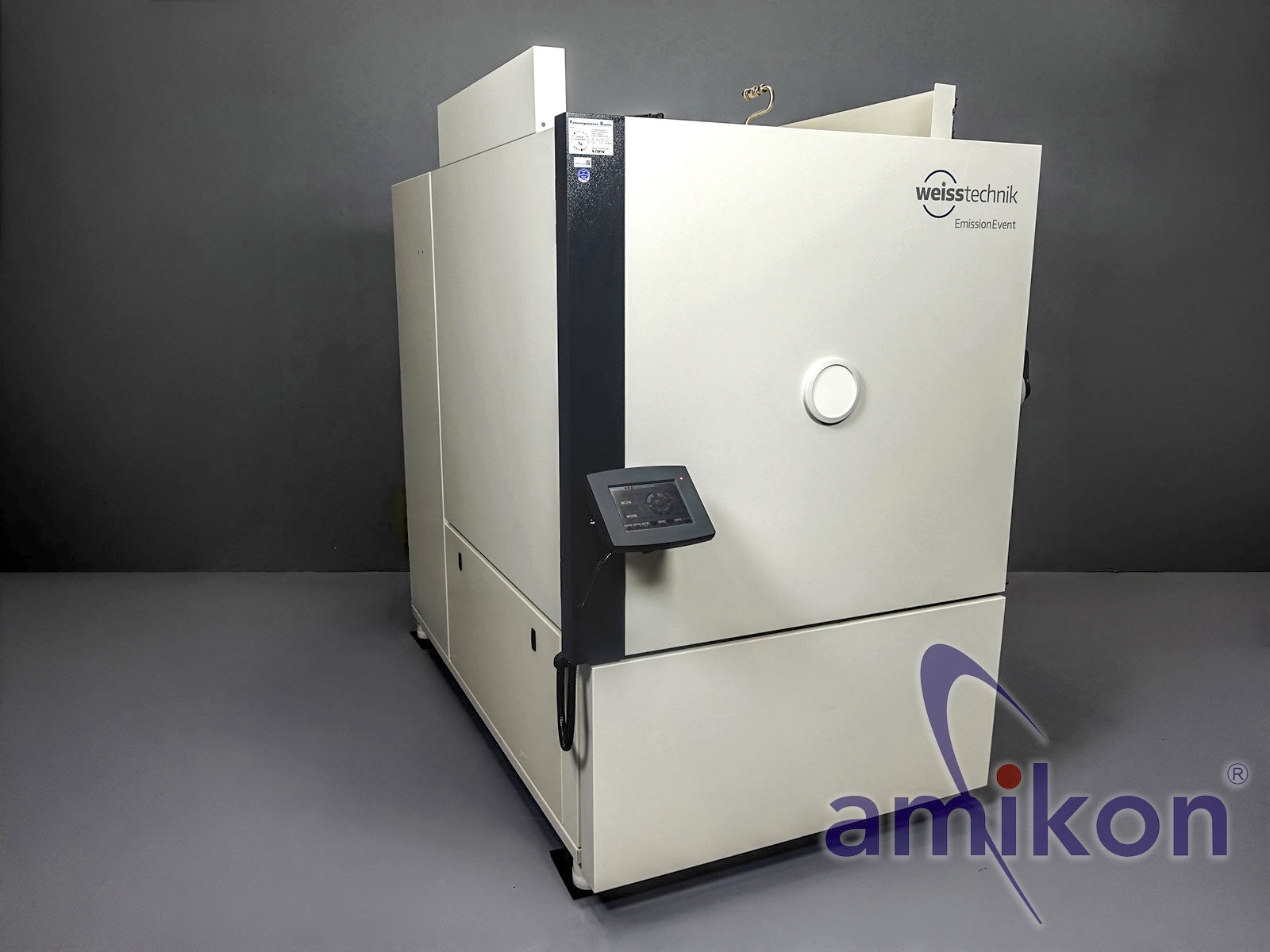

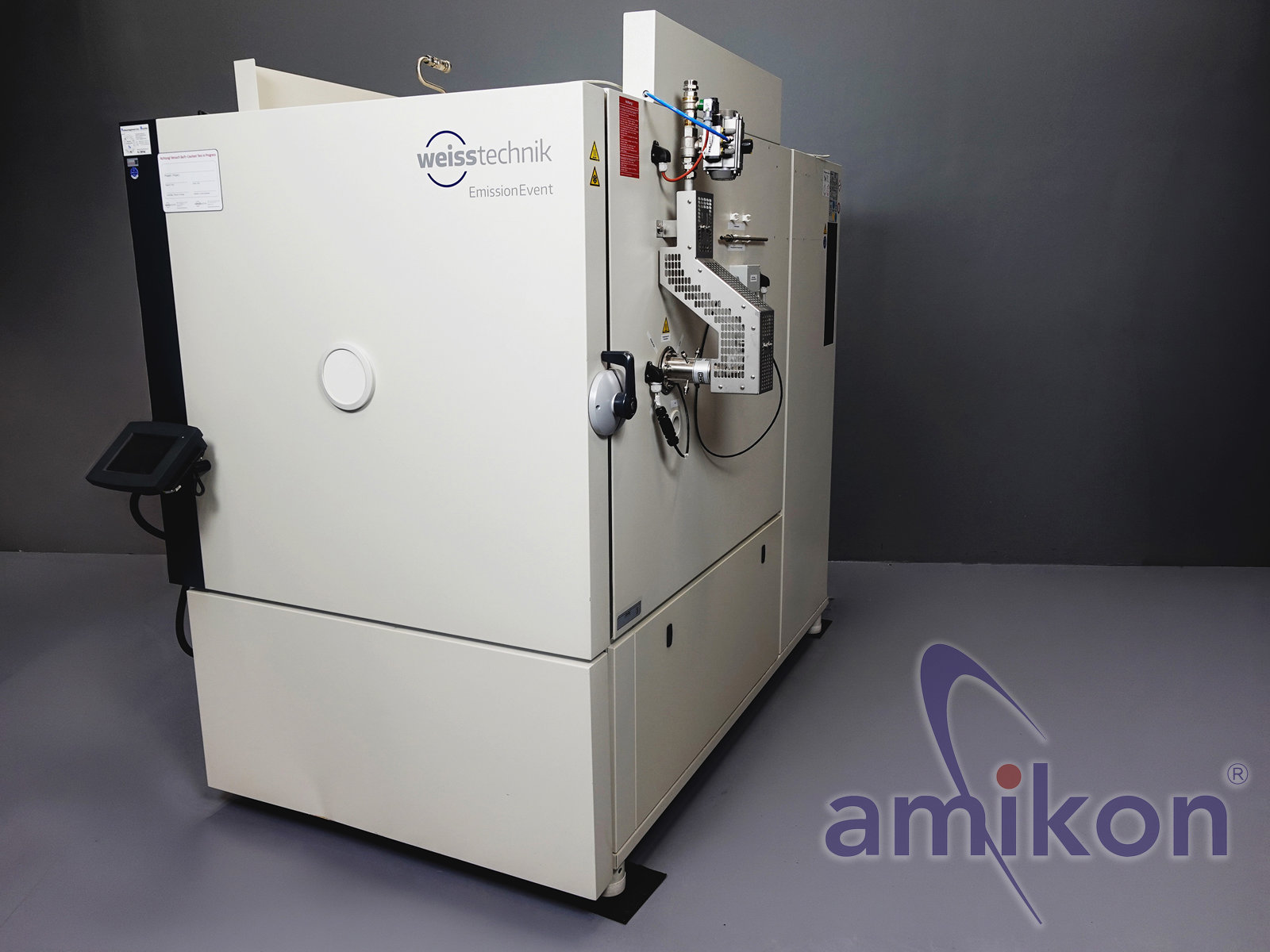

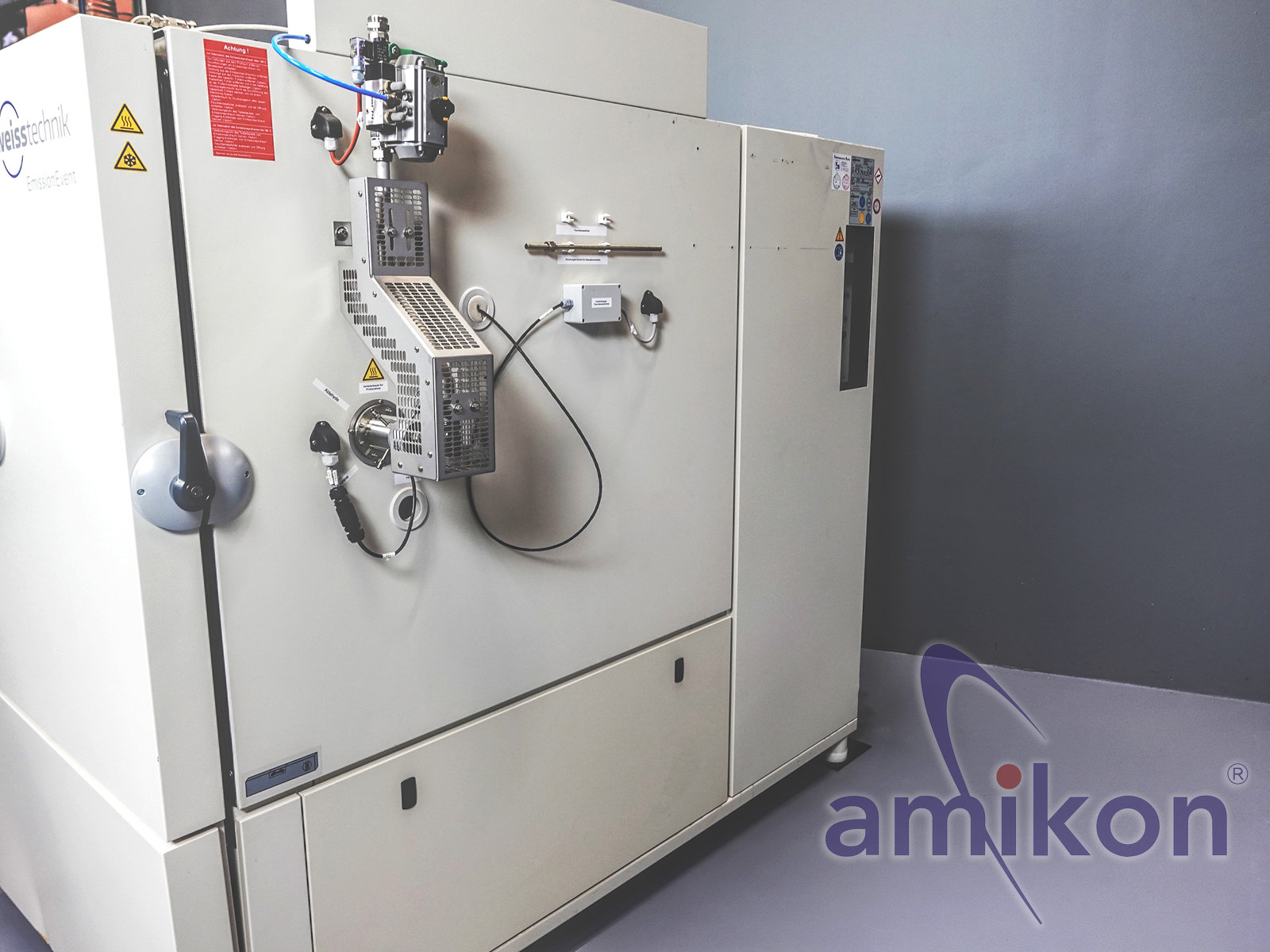

Weiss Technik EmissionEvent VOC/240
Industrial Emission Test Chamber / VOC Test Chamber / Climate Test Chamber

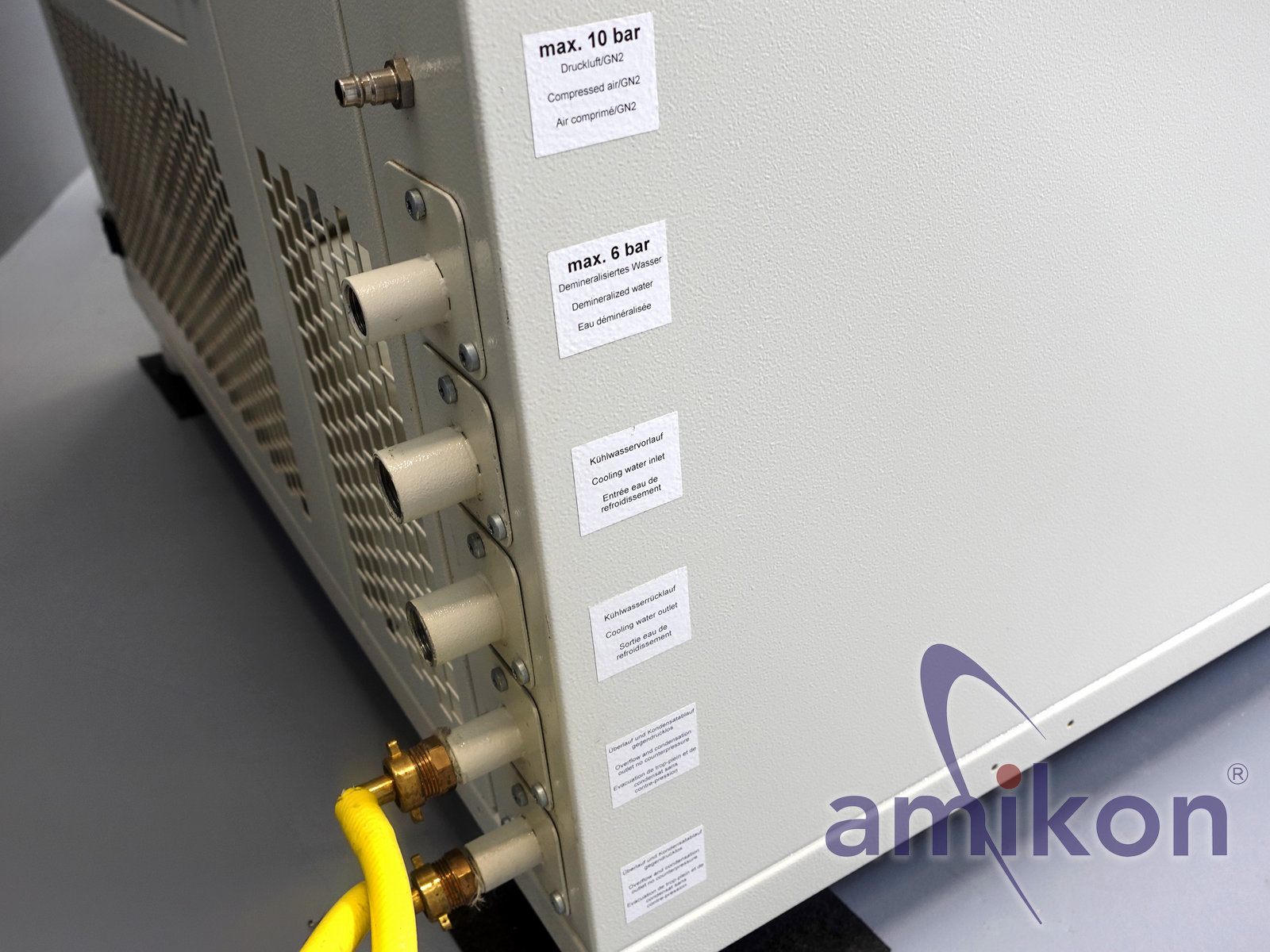

Water-cooled

For sale is a professional emission test chamber
Weiss Technik EmissionEvent VOC/240 (year of manufacture 2018)
from industrial laboratory and testing operation.
The unit is designed for standard-compliant emission testing under precisely controlled temperature,
climate, and process conditions and is built for continuous use in laboratory, industrial, and quality assurance environments.

What does VOC mean / What does the device do?
VOC = Volatile Organic Compounds
The device measures and analyzes the outgassing (emission) of materials under defined conditions.
It determines which substances a material releases into the air.

Typical applications:
Emission testing of plastics, components, and materials
Automotive interior material testing (odor / pollutants)
Building products & furniture emissions
Packaging, textiles, adhesives, coatings
Quality control and standard testing (e.g., ISO / VDA / DIN)

The test system generates precisely defined temperature, humidity, and air conditions.
Emissions are carried out of the test chamber via carrier gas (e.g., nitrogen or air)
and can subsequently be measured using analytical instruments.

Device functions / Features:

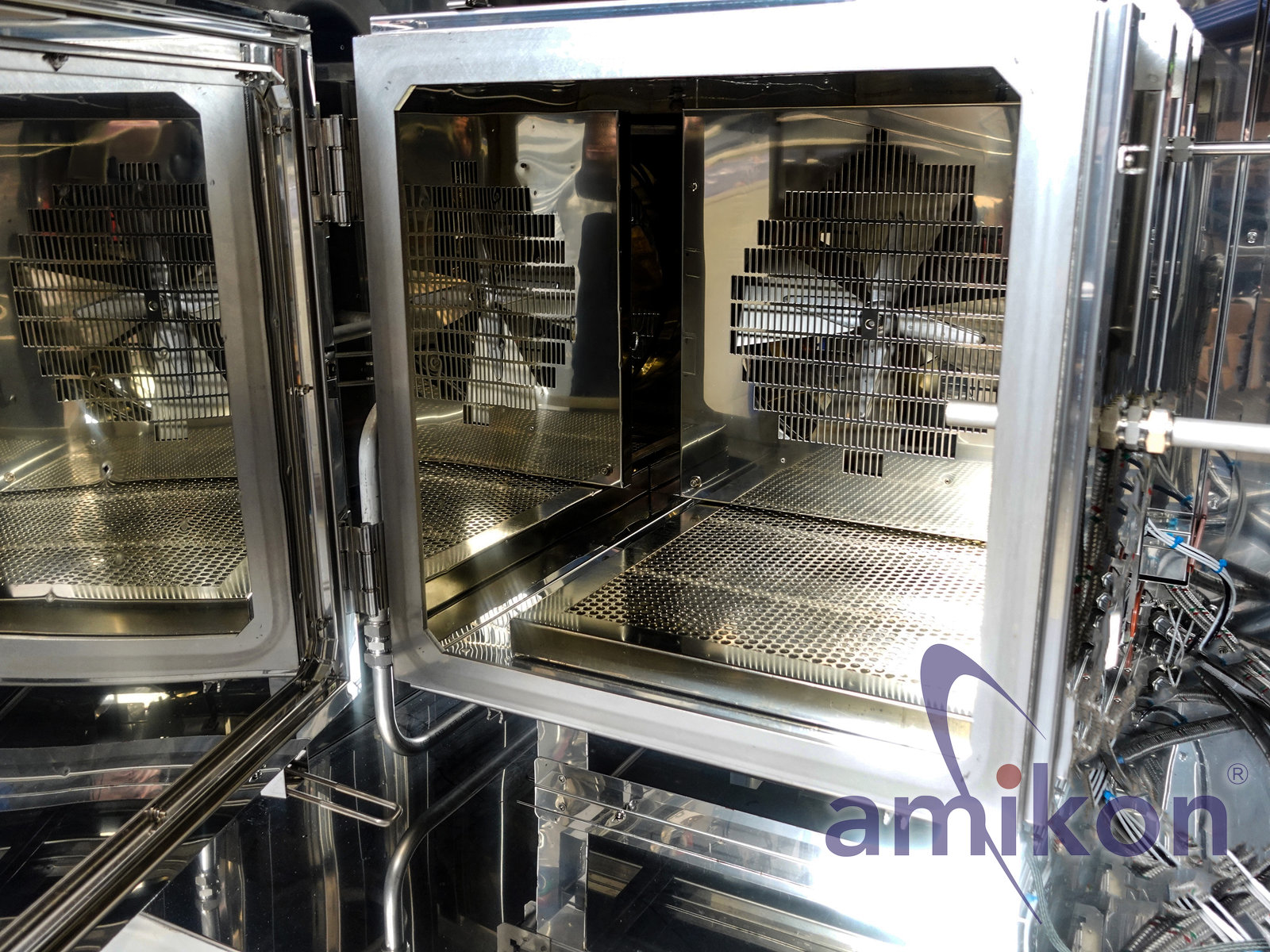

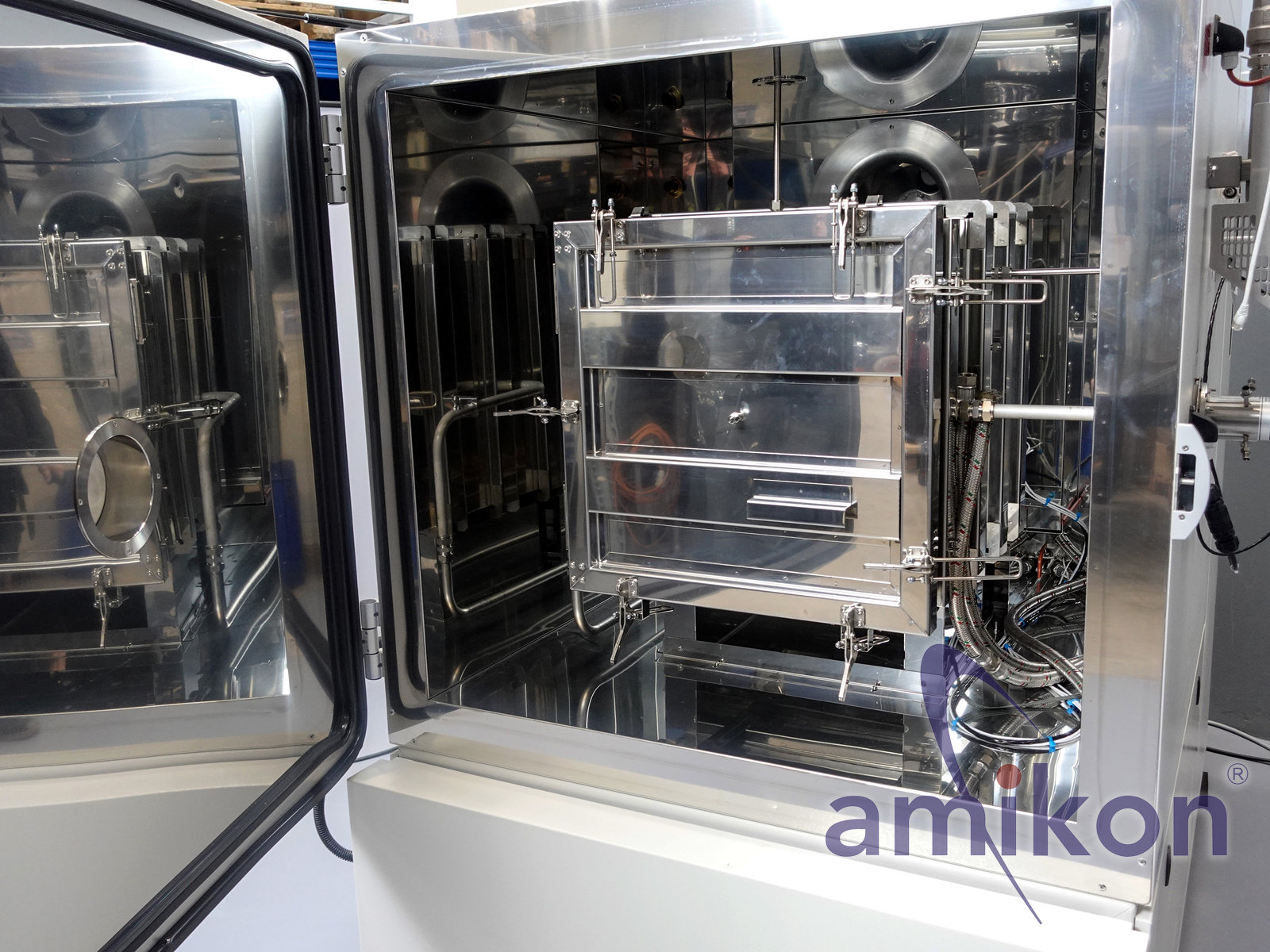

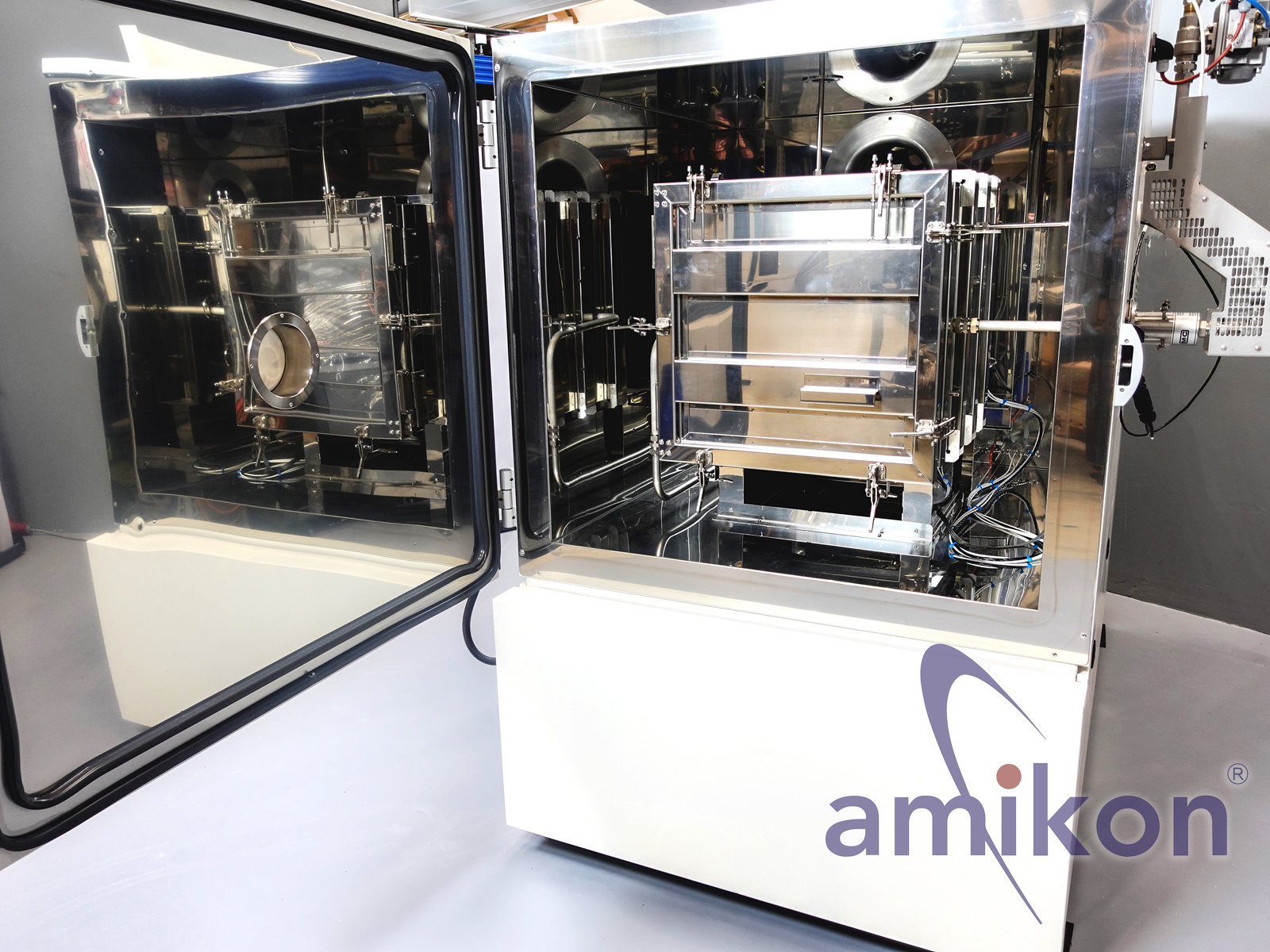

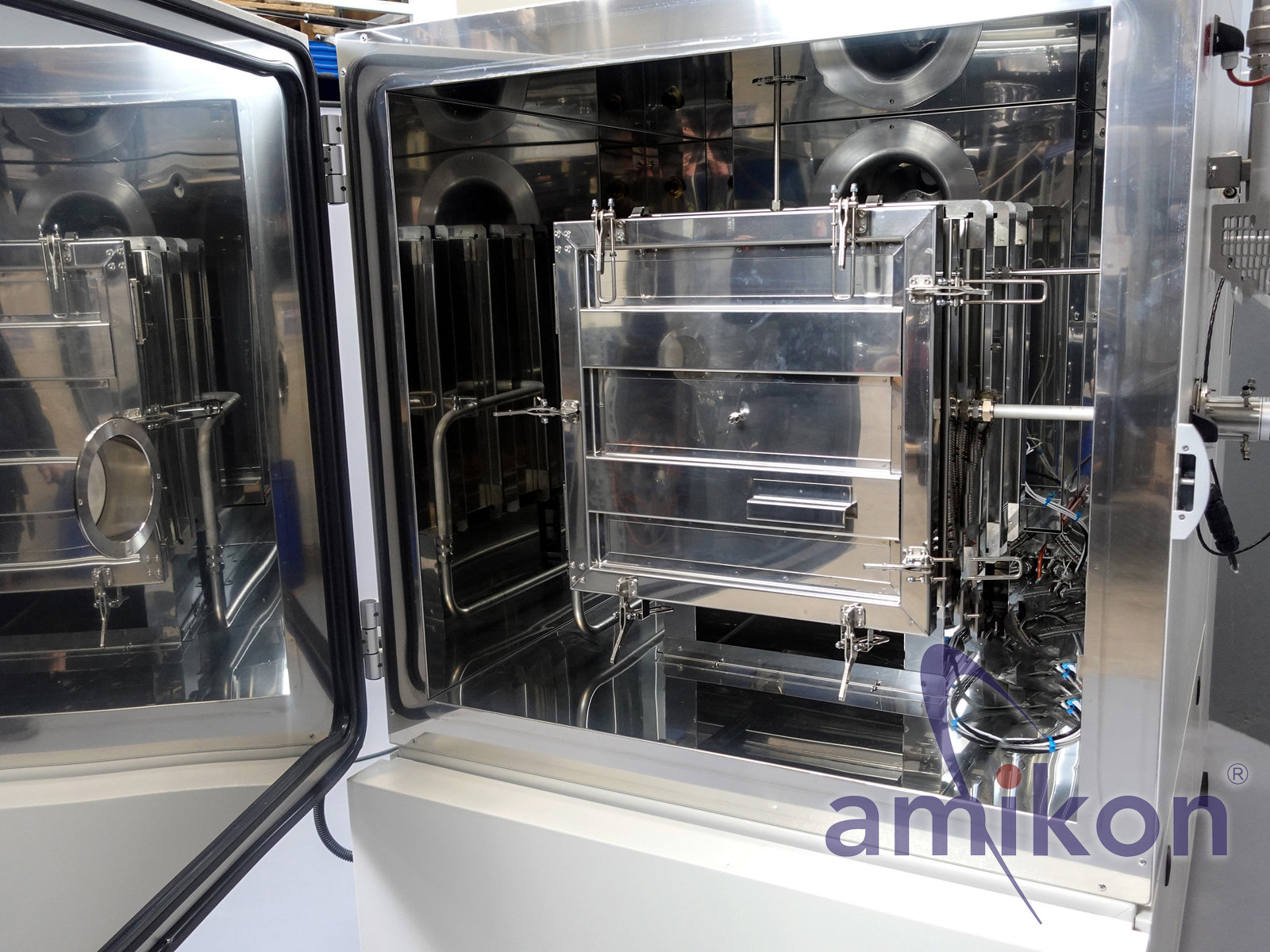

Stainless steel emission chamber (hermetically sealed)
Temperature and climate control

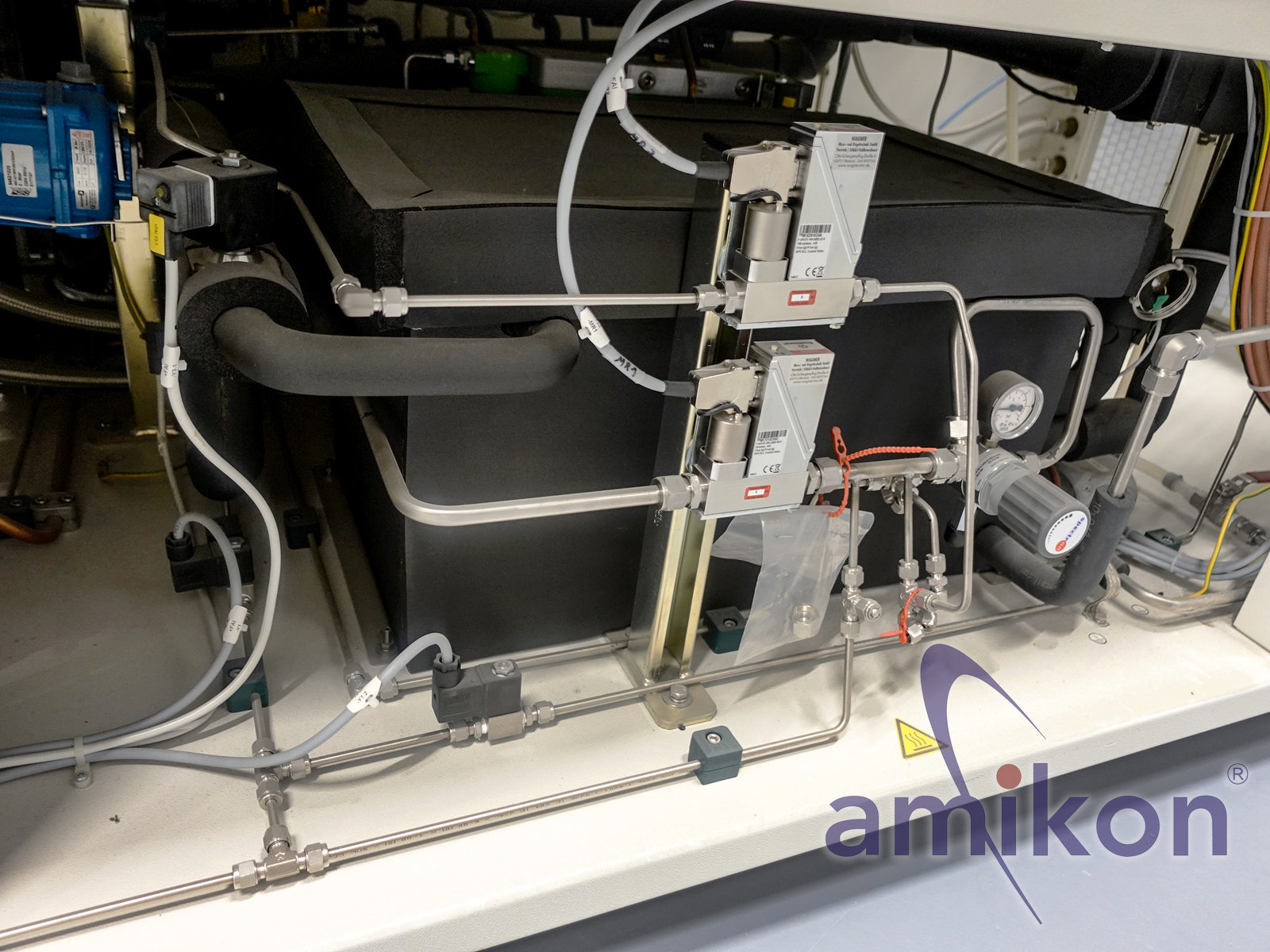

Carrier gas system for emission measurements

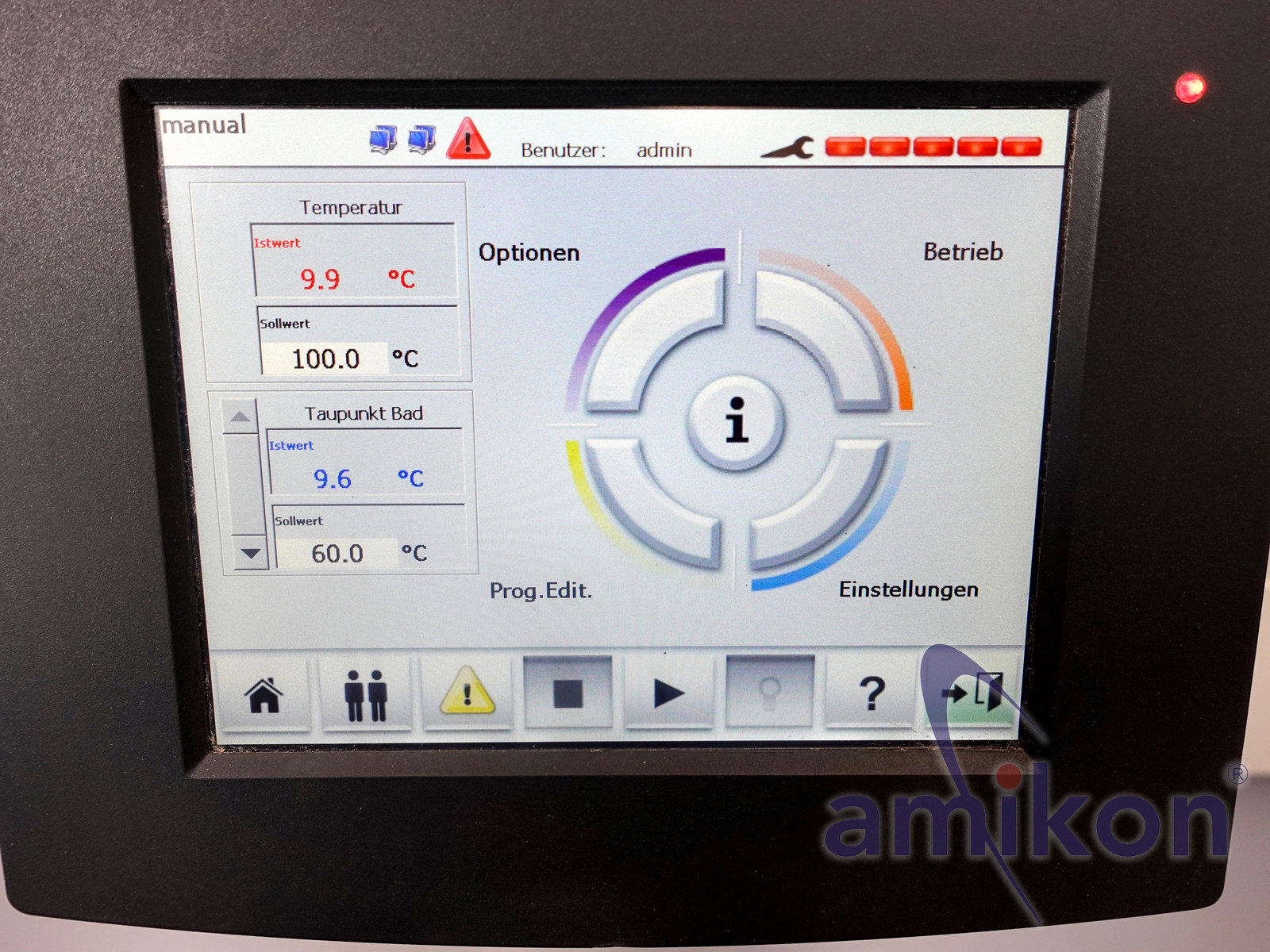

Automatic process control with touch panel
Programmable operation / continuous operation possible

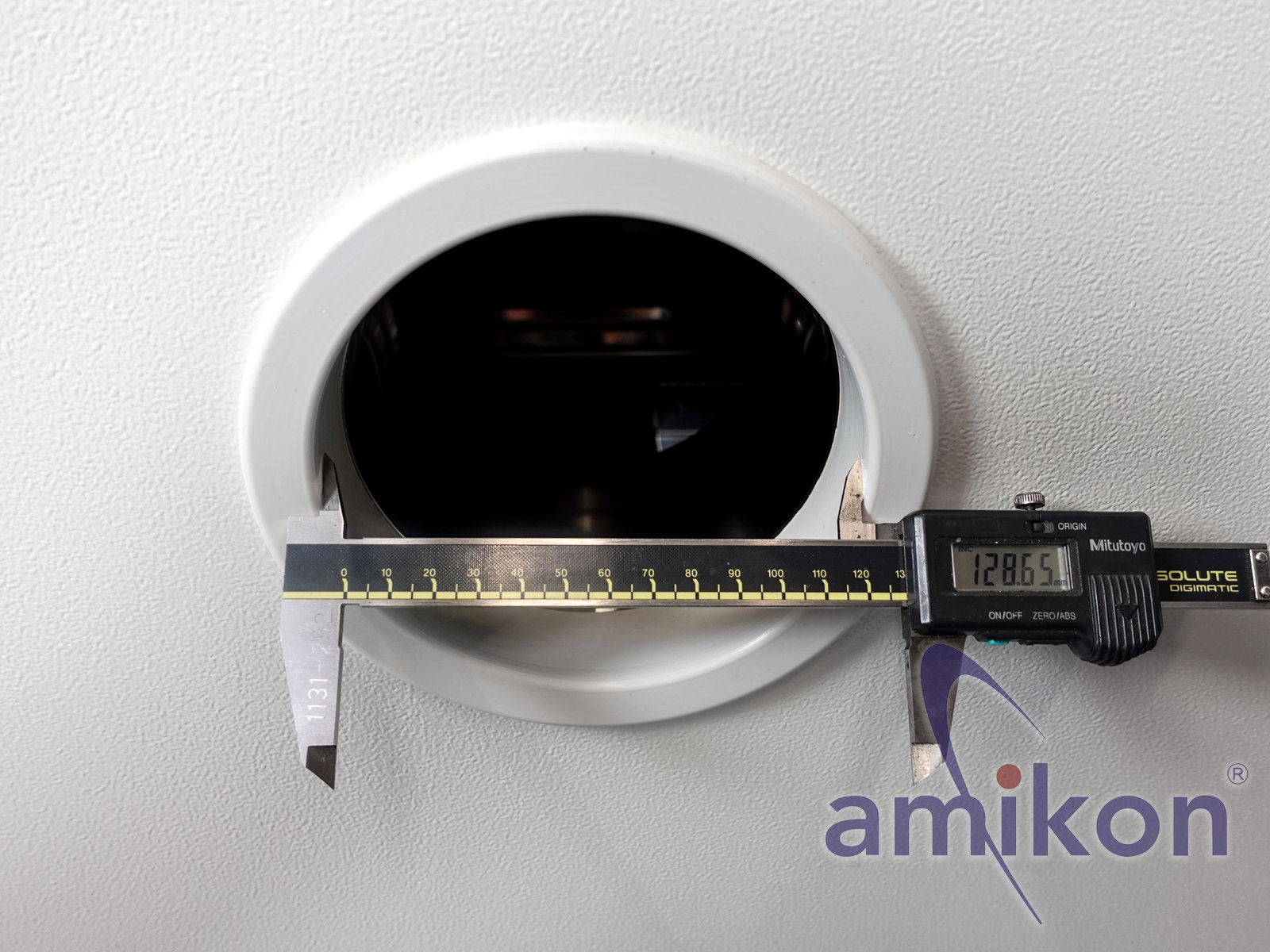

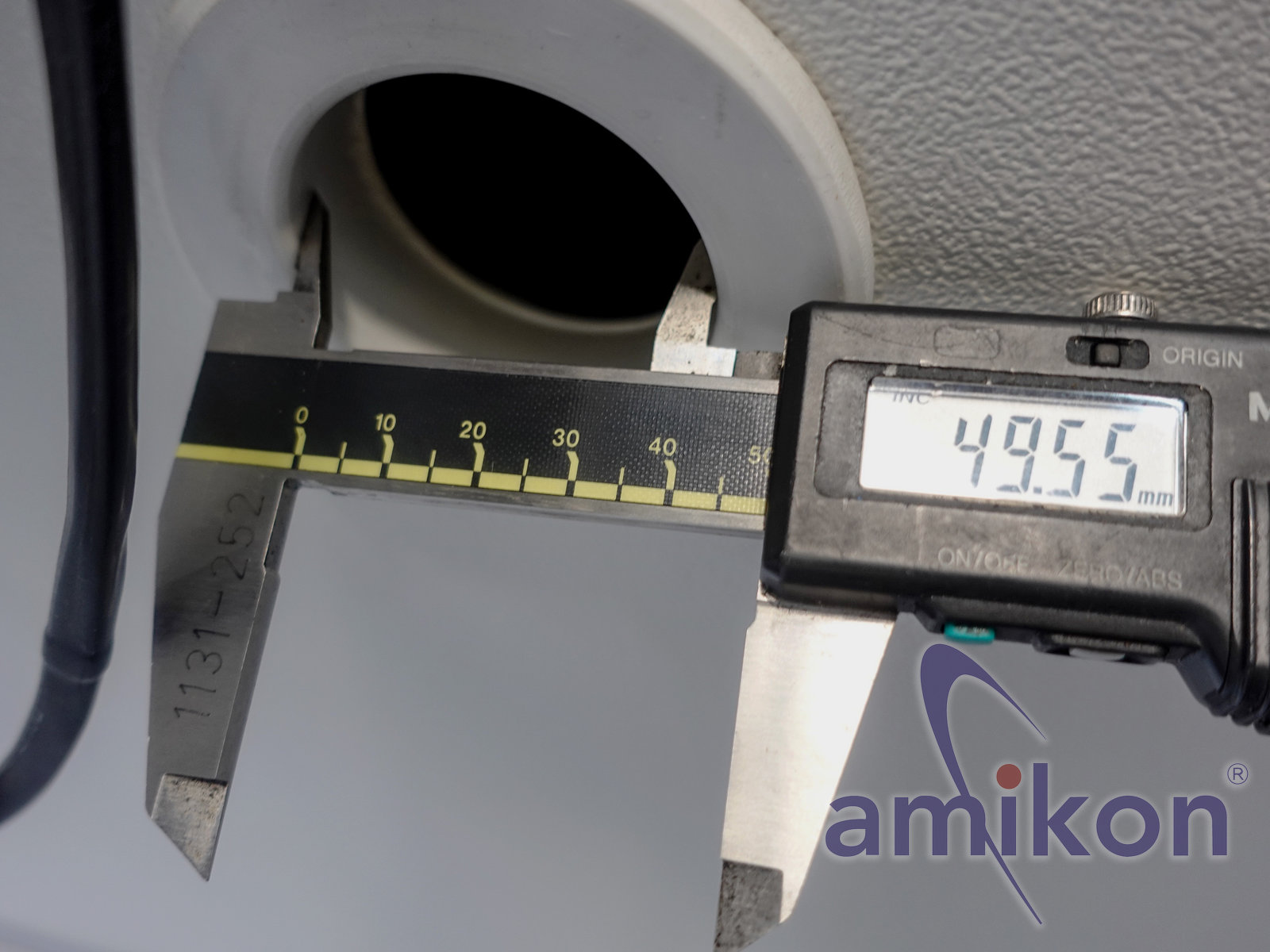

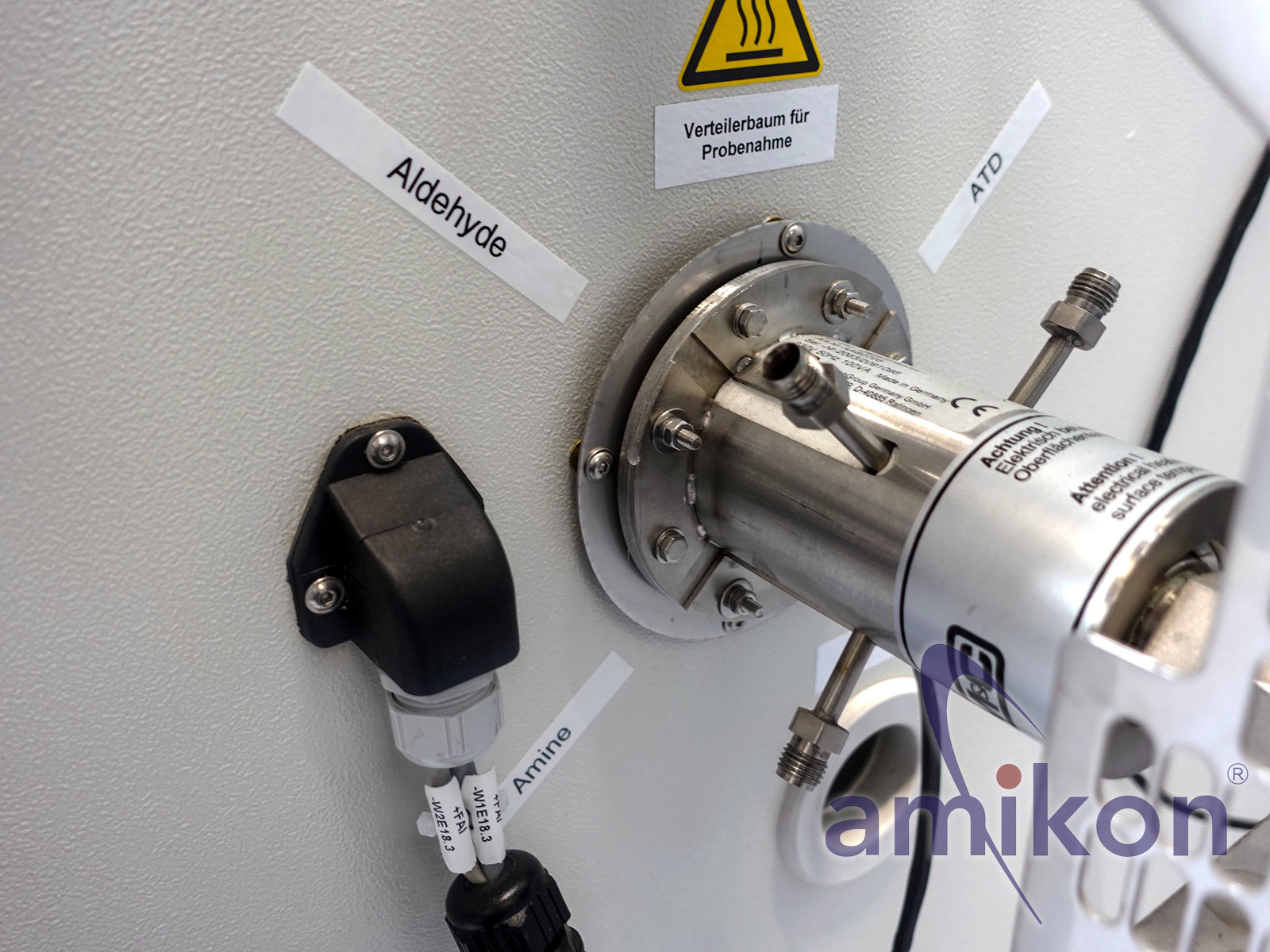

Sampling ports for VOC analysis
Industrial-grade construction (laboratory & continuous operation)

Temperature test data:
Temperature range +20 to +130 °C
Temperature deviation over time at chamber center ±0.1 to ±0.3 K
Temperature uniformity spatial ±0.1 to ±0.5 K
Temperature change rate (according to IEC 60068-3-5)
Heating 0.4 K/min
Cooling 0.3 K/min

Average temperature change rate (with enhanced heating and cooling capacity):
Heating up to +65 °C: 1.5 K/min
Cooling from +65 °C to +20 °C: 1.3 K/min

Climate test data:
Temperature range +20 to +130 °C
Dew point range +5 to +60 °C
Humidity range 5 to 95 % RH
Temperature deviation over time 0.1 to 0.3 K
Humidity deviation over time −3 to +3 % RH

Dimensions EmissionEvent VOC/240
External dimensions (unit)
Width: approx. 1350 mm, Depth: approx. 2500 mm, Height: approx. 1985 (2190) mm

Internal dimensions (test chamber)
Emission chamber: 200 l
Test chamber gross: 240 l
Test chamber net: 208 l
Max. test load: 80 kg

Internal size VOC/240
Width: approx. 600 mm, Depth: approx. 560 mm, Height: approx. 600 mm

Electrical:
Voltage: 3/N/PE AC 400 V ±10 % / 50 Hz
Rated power: 12.1 kW
Rated current: 30 A
Protection class: IP54

Refrigerant
R134a – 2.5 kg

Weight: approx. 1080 kg

For your safety as a buyer:
The following steps are carried out on our chambers in advance:
1. Functional test and replacement of necessary components
2. Refilling with legally compliant refrigerant if required
3. Leak test with certificate
4. After successful inspection, the chambers undergo a documented test run

Condition: used

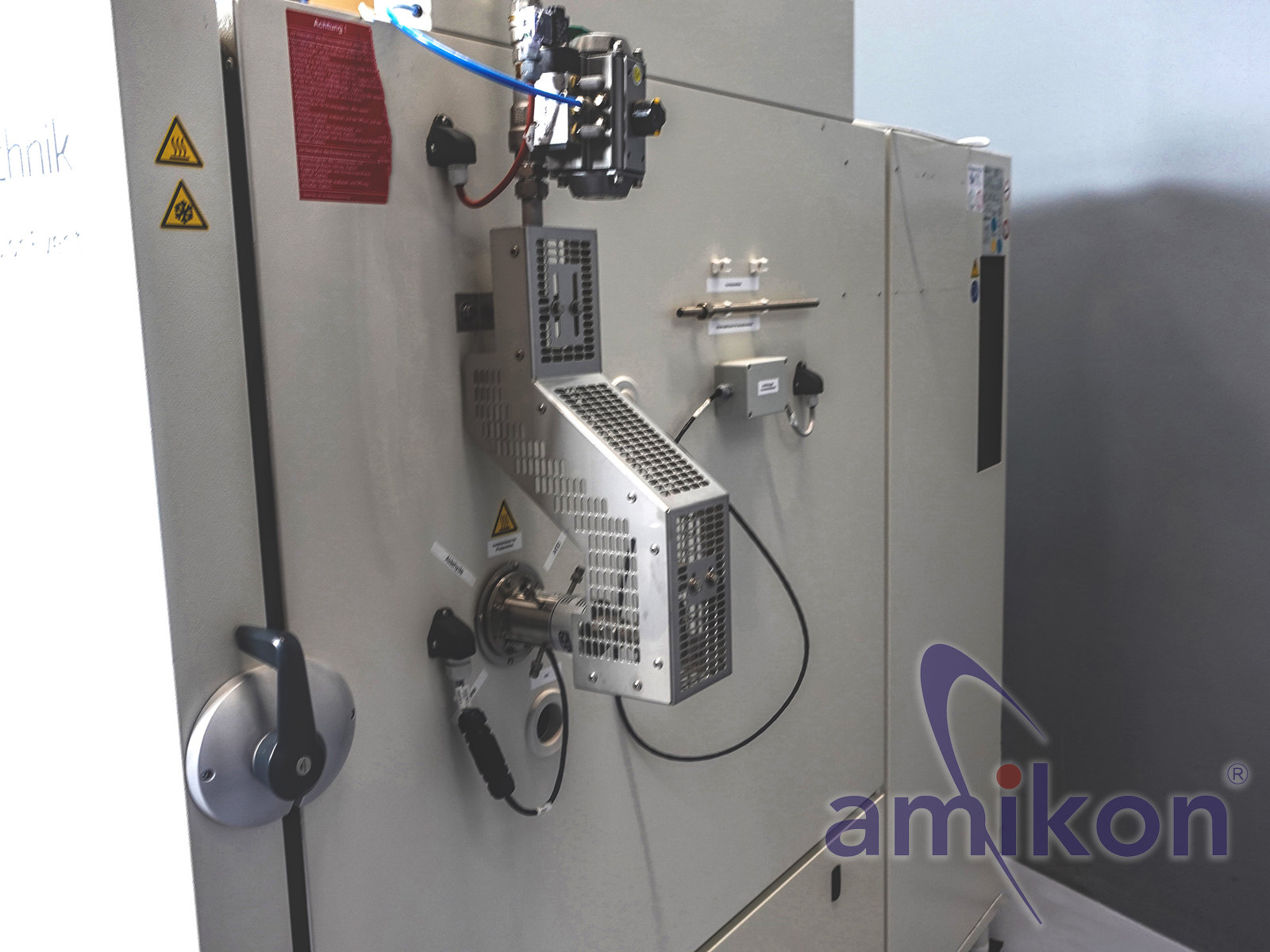

Scope of delivery: (see pictures)
(Subject to changes and errors in technical data, specifications without guarantee)
Further questions can be answered by phone.
