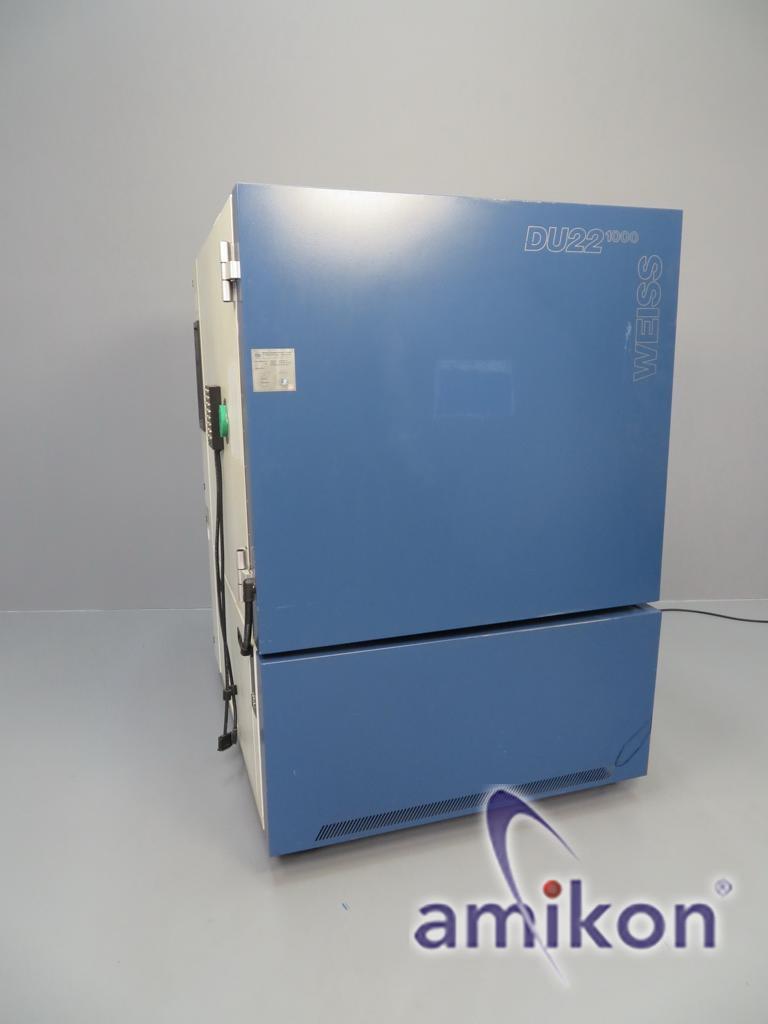

Weiss Temperature Test Chamber DU22/1000/40 Temperature -40 to +180°C 221/20148

Weiss Temperature Test Chamber

Here we offer a Weiss temperature test chamber.

Technical Data:

Cooling / Heating Operation Min –40°C Max +180°C

Temperature change per time Cooling 1.7 K/min approx.

Temperature change per time Heating 1.9 K/min approx.

External dimensions: Height 1980mm, Width 1470mm, Depth 1675mm

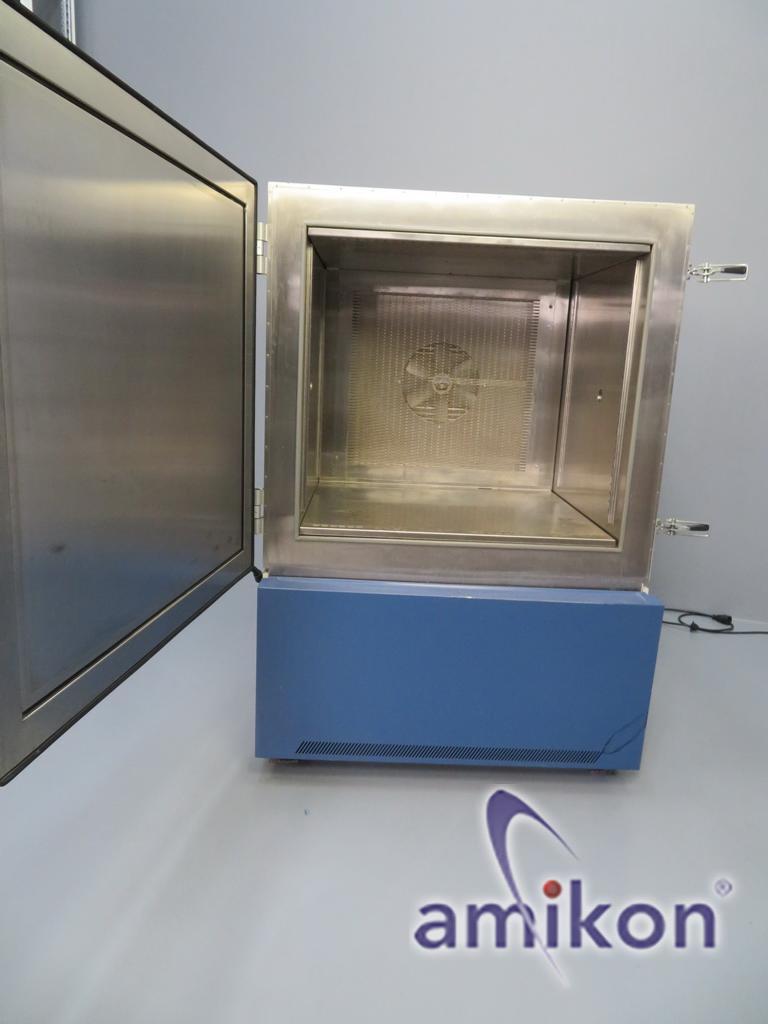

Internal dimensions: Height 950mm, Width 1050mm, Depth 950mm

Test chamber volume: 1000 liters

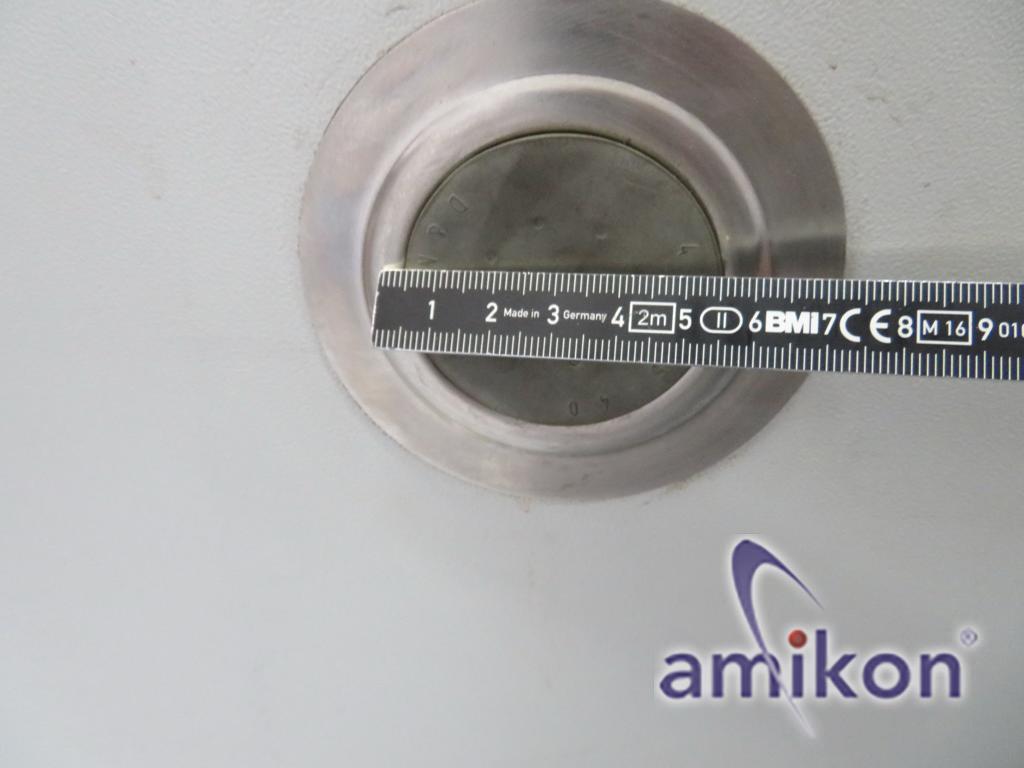

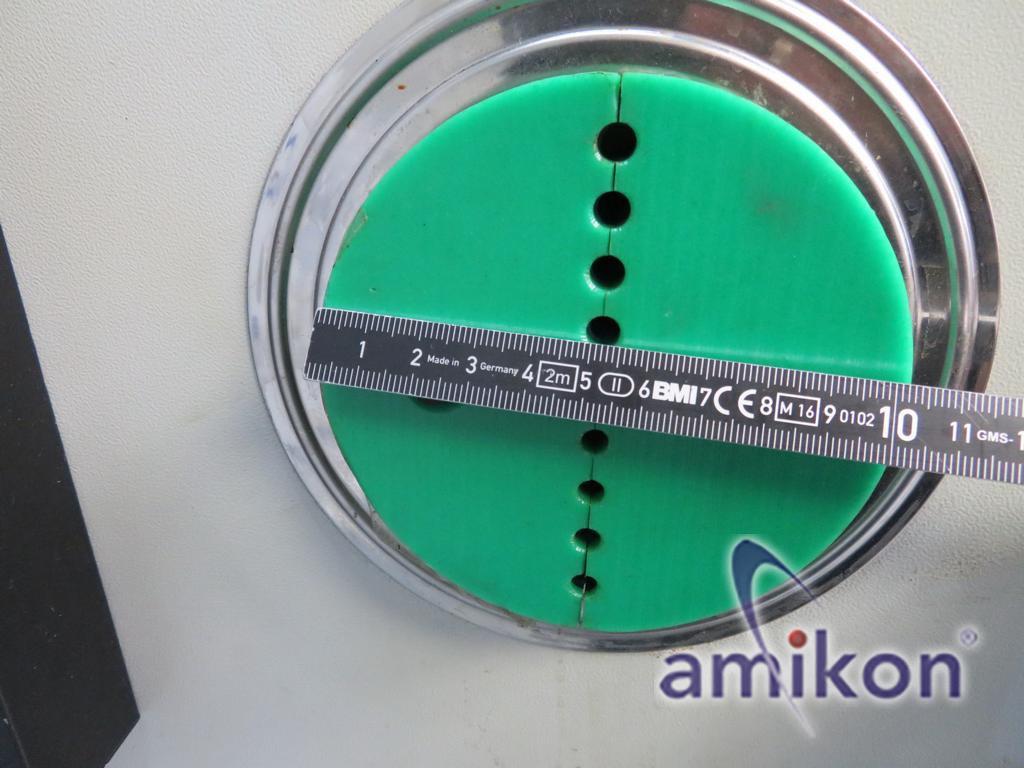

Pass-throughs:

−    left side: ∅ 100 mm
−    right side: ∅ 50 mm

Weight 770 kg

Electrical connection: Plug type CEE 32 A

Connection value: 7.9[kVA]

Average heat output to the environment 4.5kW

Maximum heat output to the environment 7.3kW

Mains voltage: 400V 3Ph+N+PE/50 Hz (+6/-10%)

Refrigerant R404A

Type: DU22/1000/40

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
Function check and replacement of necessary components
New filling with legally compliant refrigerant
After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

If you have further questions, we would be happy to answer them by phone.
