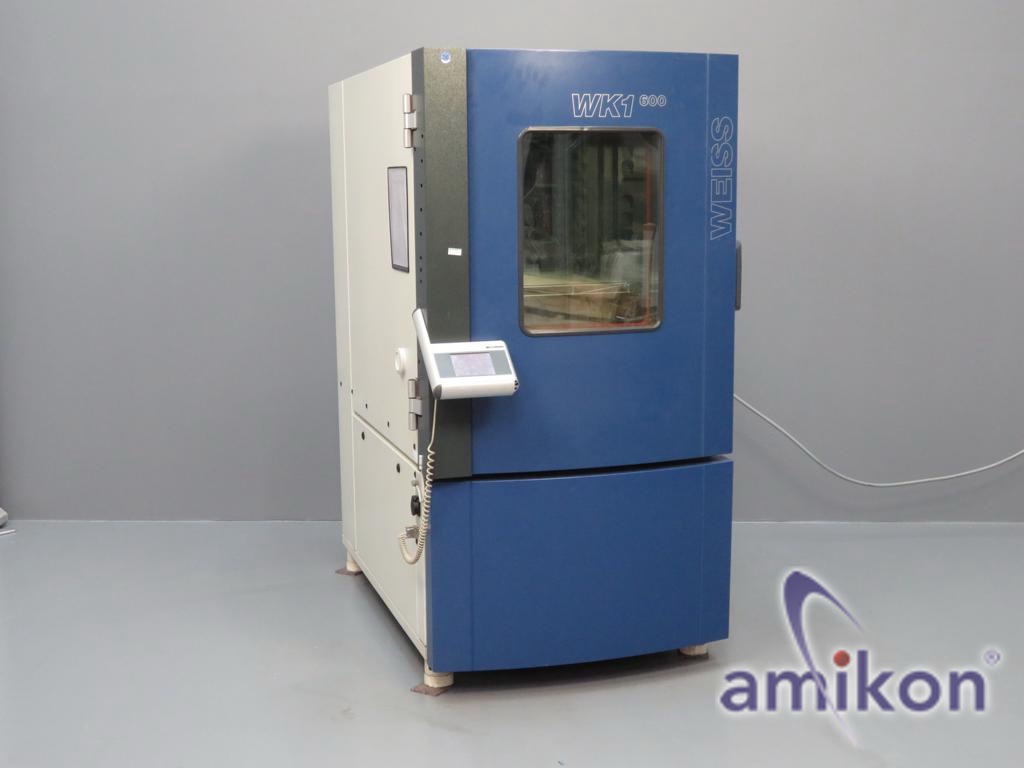

Weiss Climate Test Chamber 600 Liters WK1-600/40 -40°C to +180°C with Humidity 22602294

Weiss Climate Chamber Climate Testing Cabinet

Here we offer a climate cabinet.

Weiss Climate Chamber Climate Testing Cabinet

Technical Data:
Testing Cabinet Designation: WK1-600/40

External Dimensions with Hinges and Door Lock
Height 1995 mm, Width 1090 mm, Depth 1660 mm

External Dimensions without Hinges and Door Lock
Height 1995 mm, Width 1000 mm, Depth 1660 mm

Test Chamber Volume: approx. 600 liters

Cooling / Heating Operation -40 to 180°C

Climate Operation 10 – 95°C
Humidity 10...98 % r. H.
Temperature Change per Time
Cooling down approx. 3 K/min
Heating up approx. 4 K/min

3/N/PE AC 400V ±10% 50Hz
Rated Power: 7.8 kW
Rated Current: 15 A
Fuse on site: 16 A slow
Permissible Test Load Weight
Total Load of the Shelf Supports 80kg

Test Chamber Floor 80kg, Insert Shelf 40kg

Refrigerant: R 404A

Weight: 600 kg

Type: WK1-600/40

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of Delivery: (See Image)

(Changes and errors in the technical data, specifications are reserved!)
