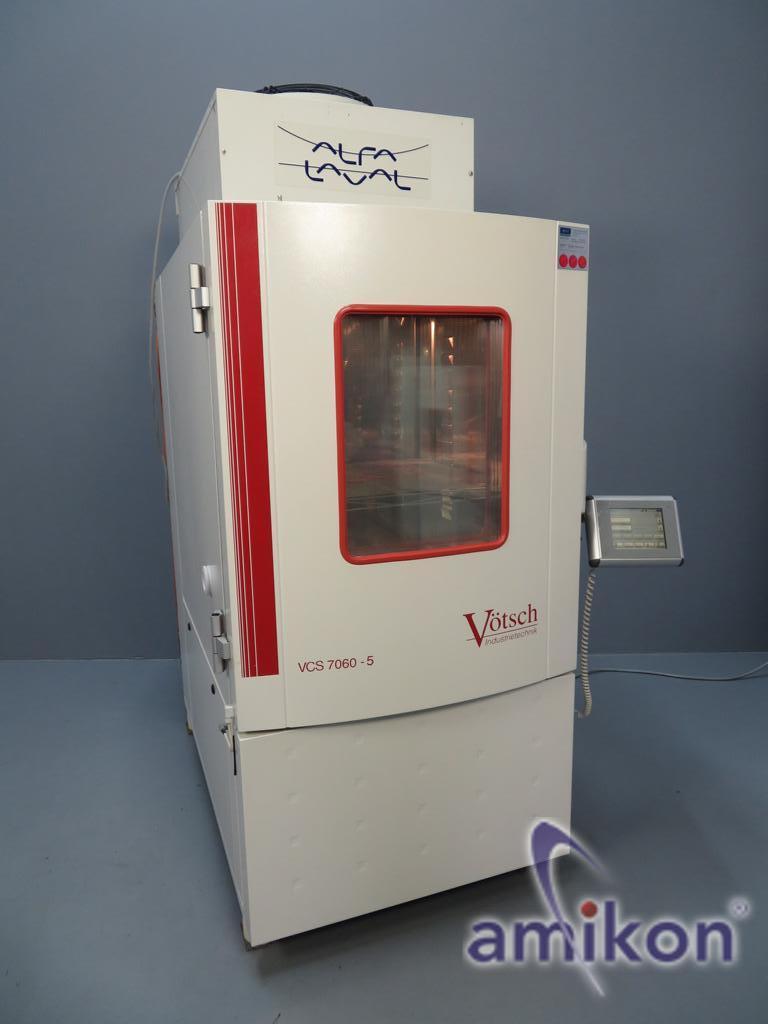

Vötsch Climate Test Chamber with Humidity 600 Liters VCS 7060-5 / 56611367

Vötsch Climate Chamber

Here we offer a Vötsch climate testing chamber.

Vötsch Climate Chamber

600 liters - Testing space

External dimensions: W x D x H (mm) 1000 x 1660 x 1995

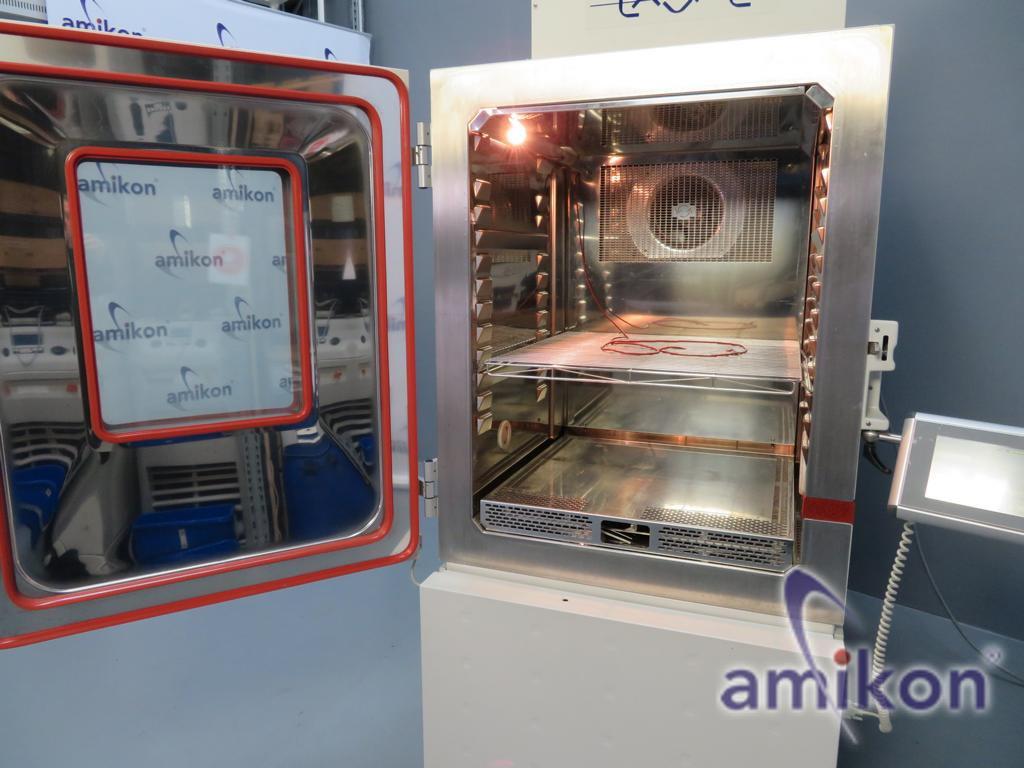

Internal dimensions: W x D x H (mm) 800 x 800 x 950

Specifications for temperature tests

Temperature range -70°C to +180°C

Temporal temperature deviation: ± 0.1 to ± 0.5 K

Spatial temperature deviation: ± 0.5 to ± 2 K

Heating rate 6 K/min

Cooling rate 6 K/min

Heat compensation
at 20°C: 5000W
at -20°C: 5000 W

Specifications for climate tests

Temperature range: +10°C to +95°C

Temporal temperature deviation: ± 0.1 to ± 0.3 K

Spatial temperature deviation: ± 0.5 to ± 1 K

Humidity range: 10% to 98% r.H.

Temporal humidity deviation: ± 1 to 3% r.H.

Heat compensation
in the range of +25°C to +90°C
at a relative humidity of > 90%: 500W

Weight: approx. 675 kg

Nominal voltage: 3/N/PE AC 400V ±10% 50Hz

Nominal power: 16 kW

Nominal current: 29 A

Fusing on site: 32 A slow

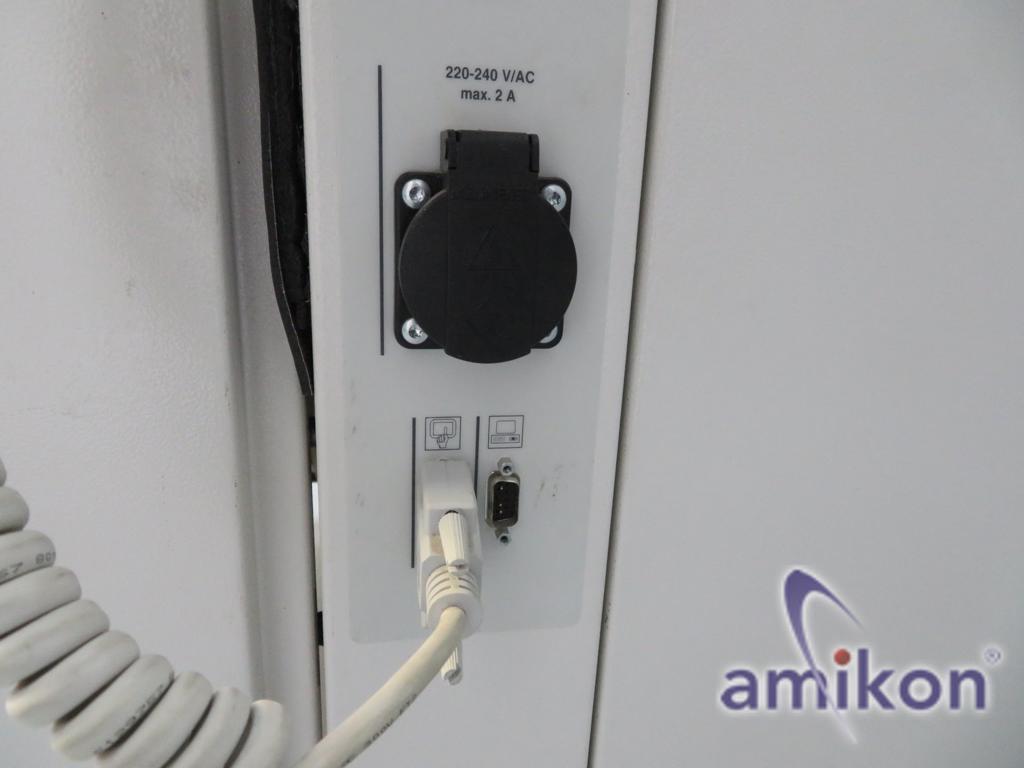

RS232

Refrigerant R-404A

Type: VCS 7060-5 / 56611367

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

If you have further questions, we would be happy to answer them by phone.
