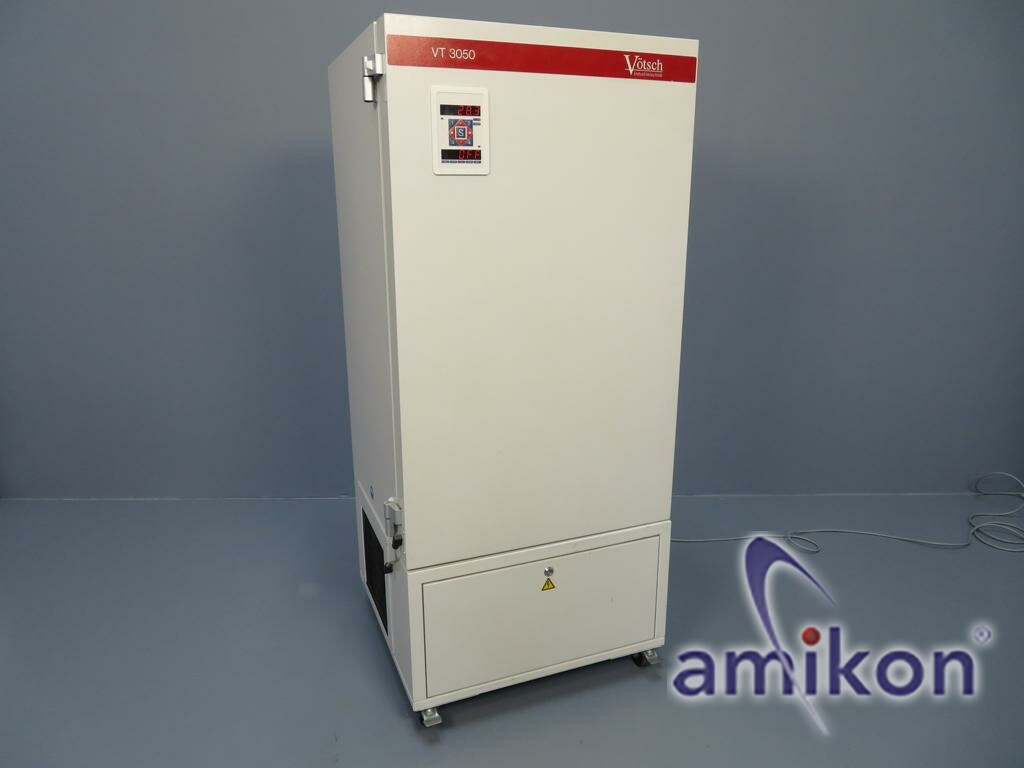

Vötsch Assembly Test Chamber Temperature Chamber VT 3050 -30°C / +100°C 56601654

Vötsch

Here we offer a temperature chamber.

Air-cooled

Vötsch Temperature Chamber

Test chamber volume 500 liters

Temperature range -30°C / +100°C

Temporal temperature fluctuation K ±0.5

Spatial temperature fluctuation K ±1.5

Temperature gradient K 3

Rate of change

Heating K/min 2.0

Cooling K/min 1.4

Heat compensation max. W 650

Calibration values +23°C +80°C

Test chamber dimensions Width 710 mm Depth 590 mm Height 1250 mm

External dimensions Width 940 mm Depth 1030 mm Height 1955 mm

Sound pressure level db(A) <60

Rated power 1.9 kW

Electrical connection 1/N/PE AC 230 V±10%, 50Hz

For you as a buyer, the following information for your safety!

The following points will be carried out on our offered chambers in advance:
Function check and replacement of necessary components
New filling with legally compliant refrigerant

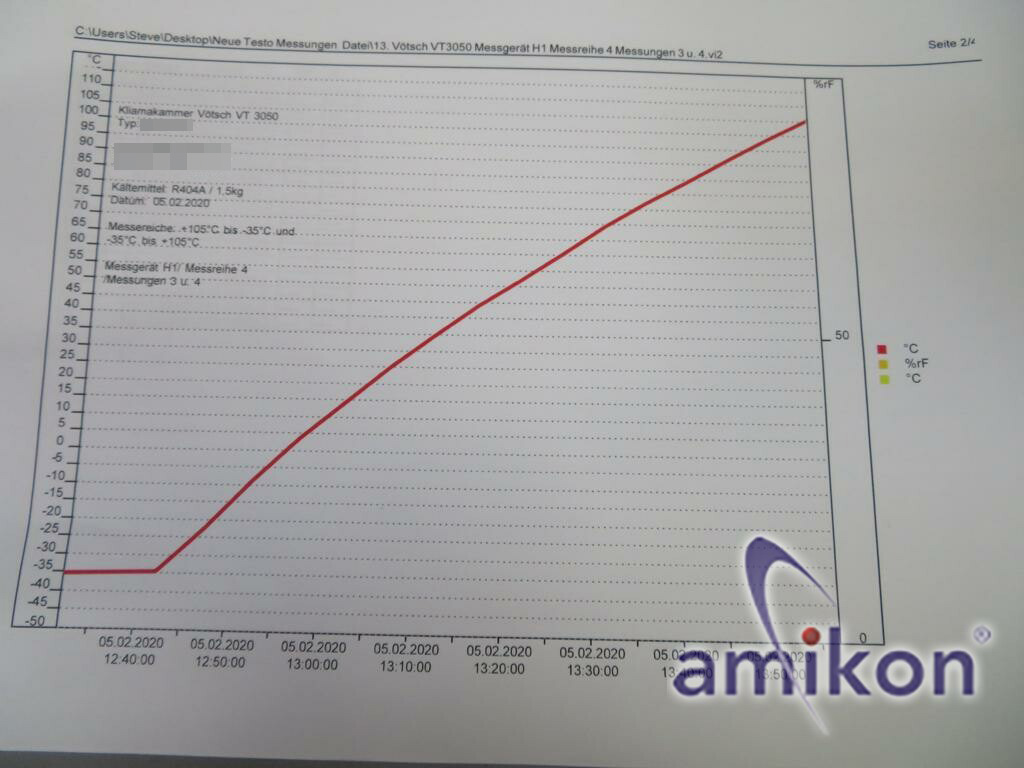

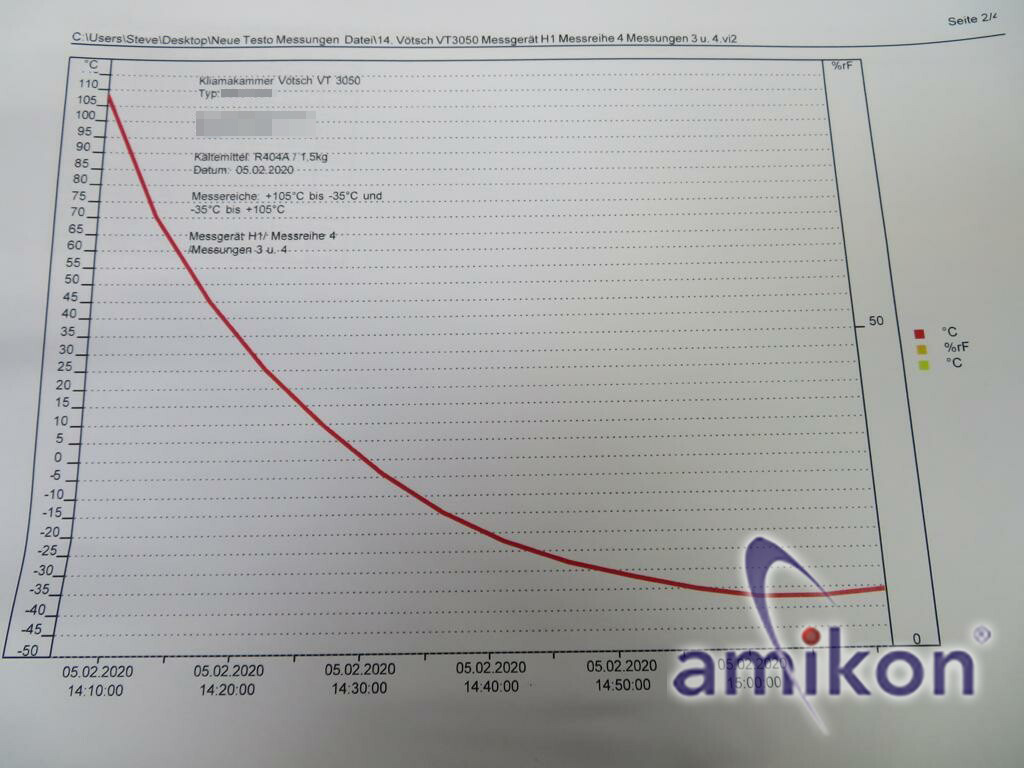

After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Type: VT 3050

Condition: used

Scope of delivery: (See pictures)

(Changes and errors in the technical data are reserved!)

We are happy to answer any further questions by phone.
