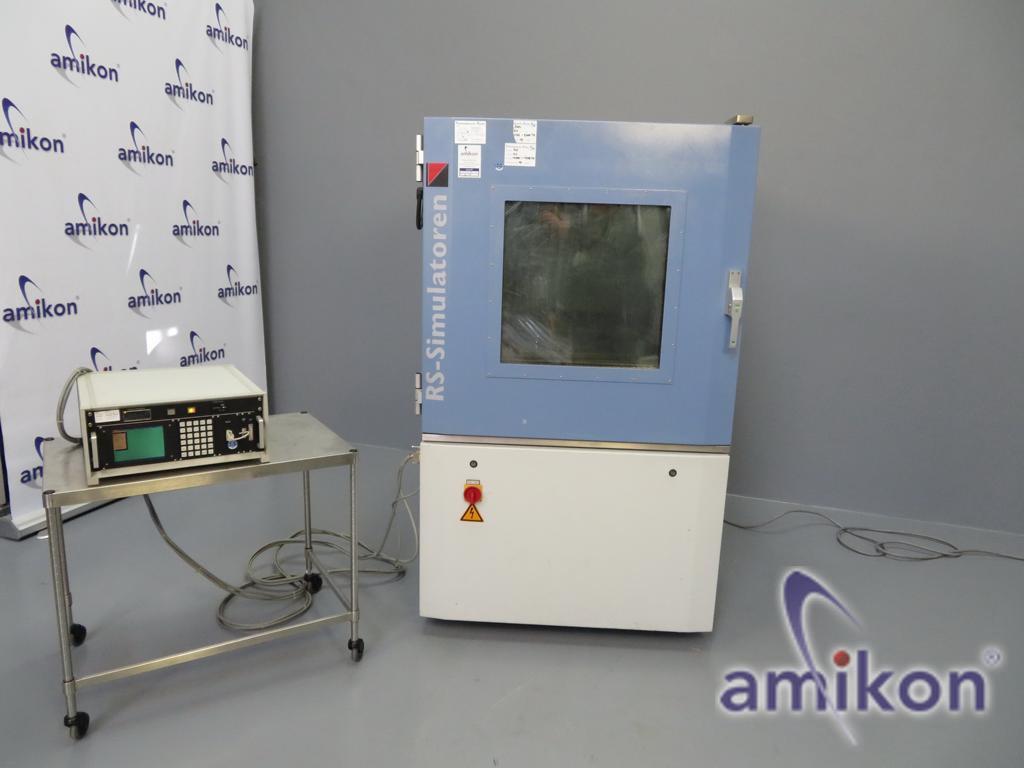

RS-Simulators KS600/75 Climate Test Chamber -75°C to +180°C without Humidity 21003601

RS Simulators

Here we offer a climate testing chamber.

External dimensions: Width 1200 x Depth 1600 x Height 1995 (mm)

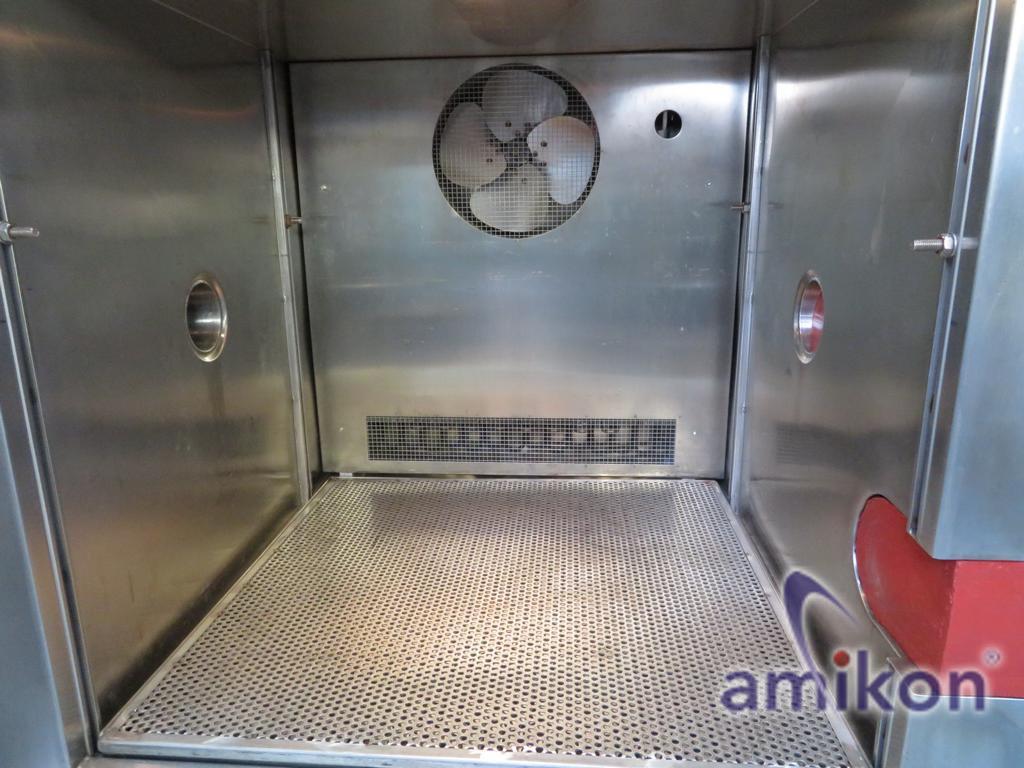

Test chamber dimensions: Width 840 x Depth 840 x Height 840 (mm)

Nominal voltage: 3/N/PE AC, 400 V, 50 Hz

Nominal power: 7.5 KVA Nominal current: 16 A

Fuse, site-specific: 16 A slow-blow

Temperature range: -75°C to +180°C

Time deviations +/- 0.5 K with empty test chamber

Average heating and cooling time approx. 2 K / min

Side entry

Cabinet is water-cooled

Refrigerant R 404A

Weight approx. 600 kg

Type: KS 600/75

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
Function check and replacement of necessary components
New filling with legally compliant refrigerant
After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See pictures)

(Changes and errors in the technical data, specifications are reserved!)

We would be happy to answer any further questions by phone.
