Heraeus Vötsch Test Chamber VEM 03/2240 L/S -30°C to +100°C 60872463

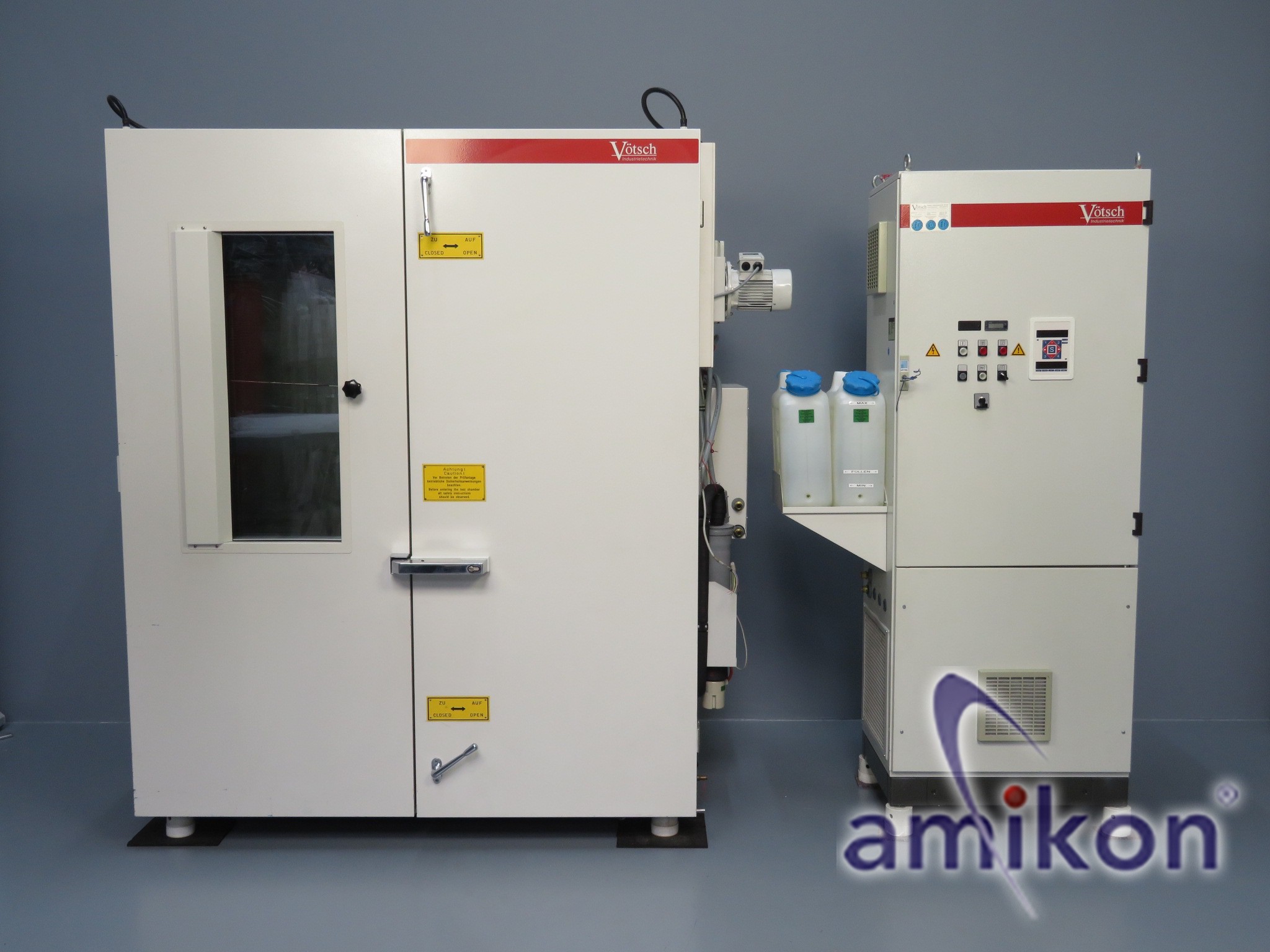

Heraeus Vötsch Temperature Test Chamber

Here we offer a Heraeus Vötsch temperature test chamber.

Temperature range: -30°C / 100°C Climate operation/humidity 10% to 95%
Interior dimensions W x D x H: 1480 x 780 x 2000 mm
Heat compensation at 20°C approx.: 1500 W
10°C: 1300 W
0°C: 1100 W
-10°C: 900 W
-20°C: 600 W
Temperature deviations: +/- 10°C
Connection power: 400 +6/-10% 3/N 50Hz, 7.7kW 13.5A
Protection class: IP 20
Weight approx.: 510 kg
Weight of control cabinet approx.: 310 kg
Oven dimensions: 2200 x 1000 x 2300 mm
Control cabinet dimensions: 800 x 600 x 2200 mm

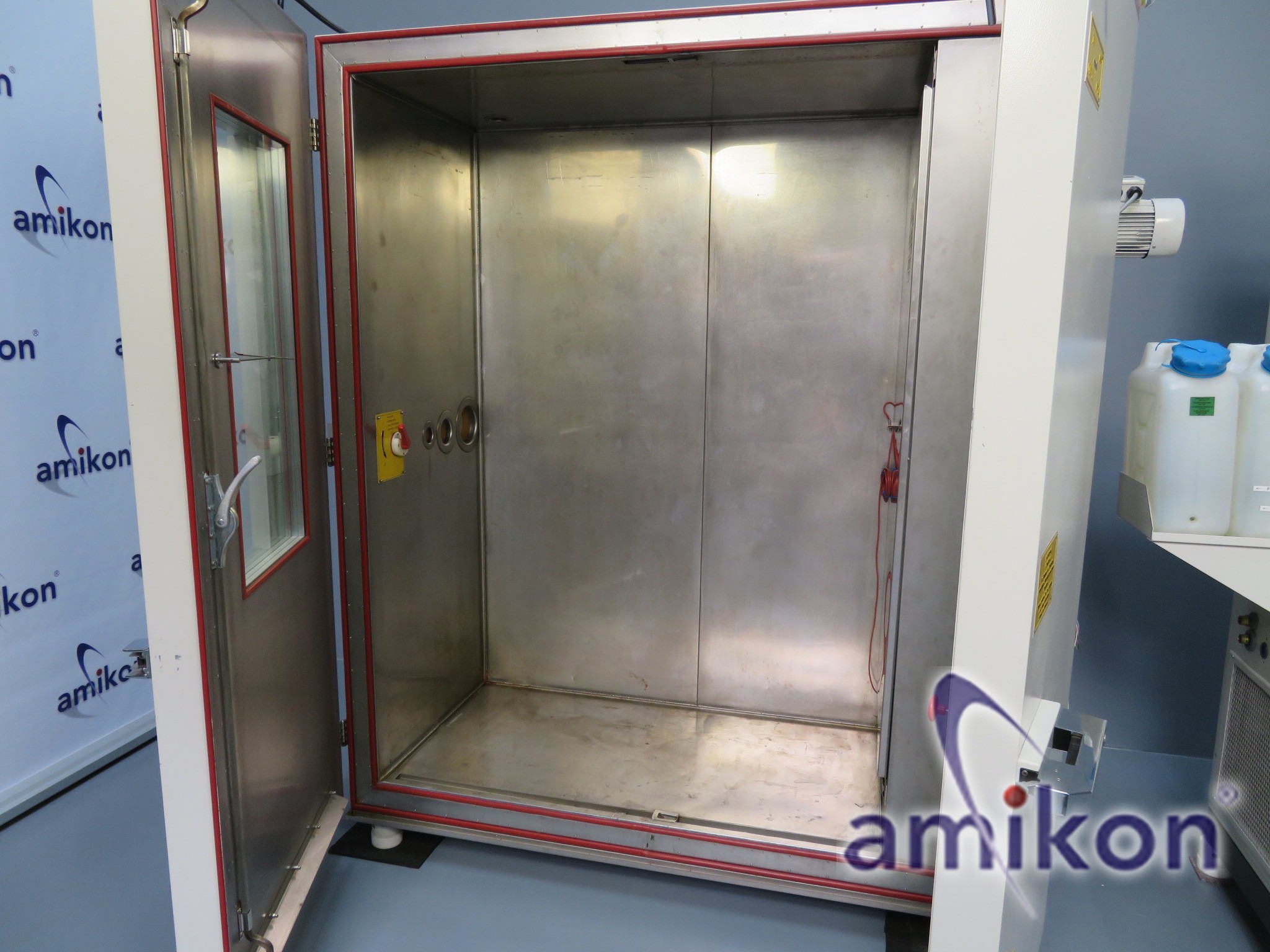

Test chamber made of stainless steel

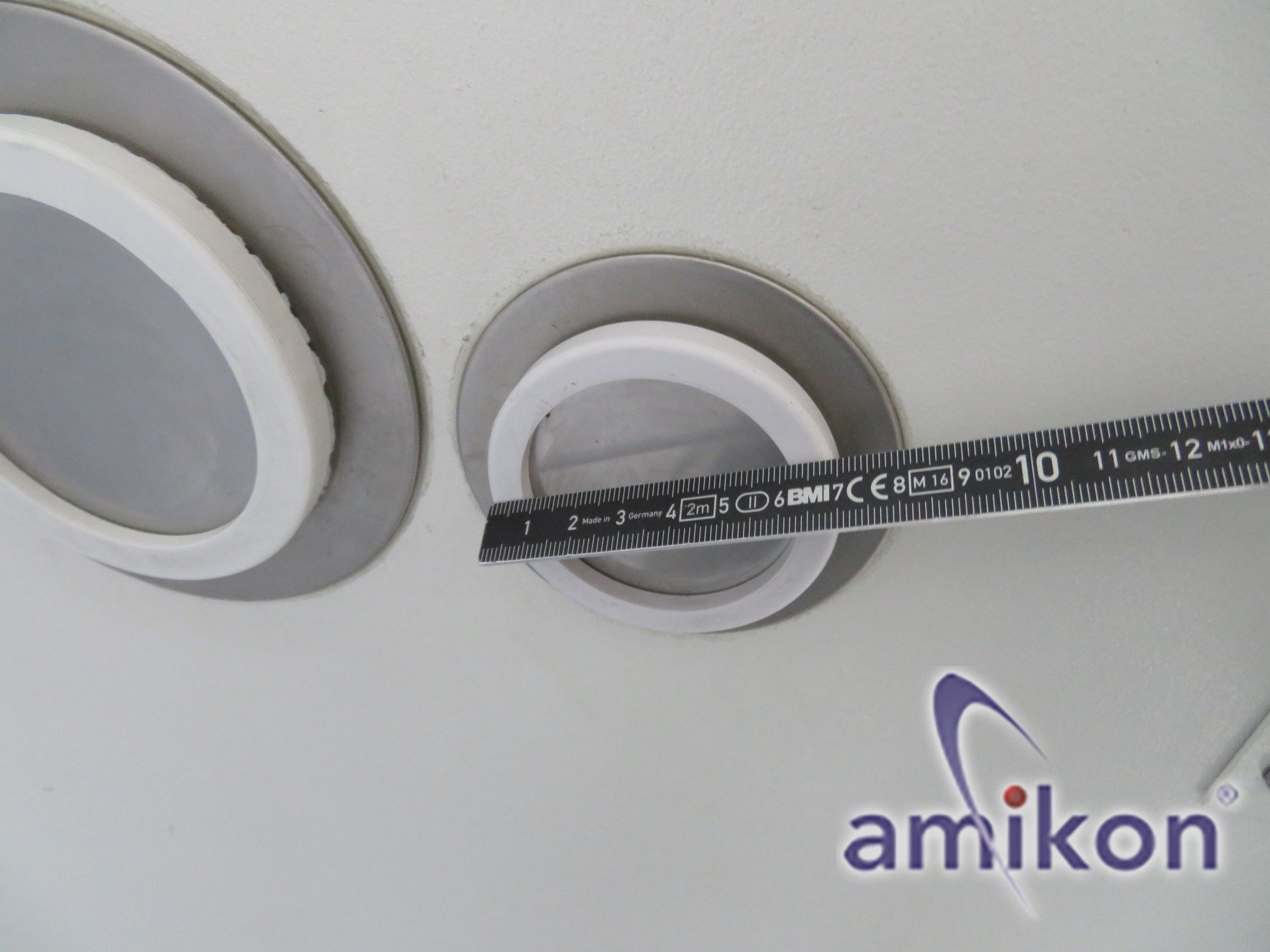

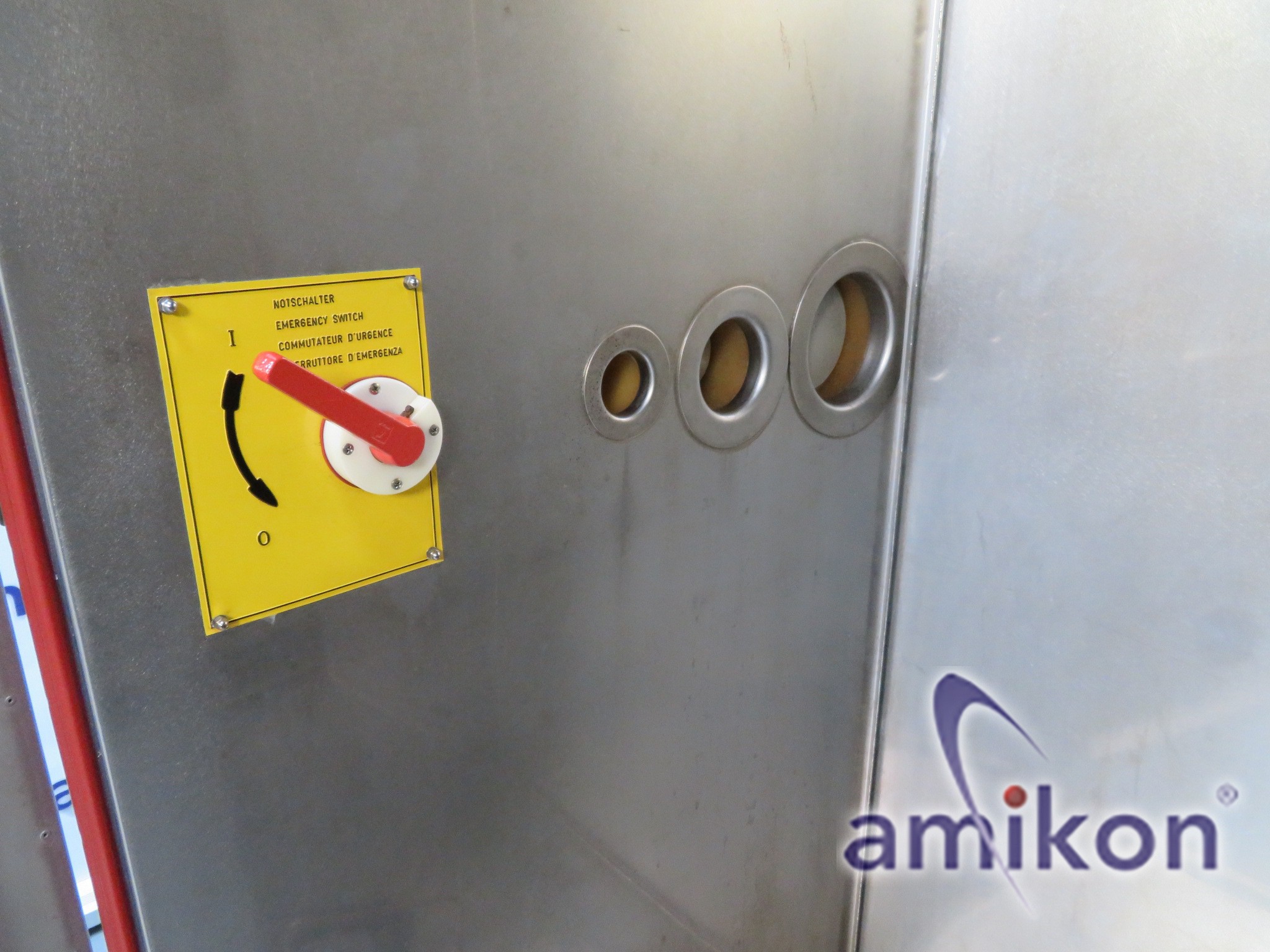

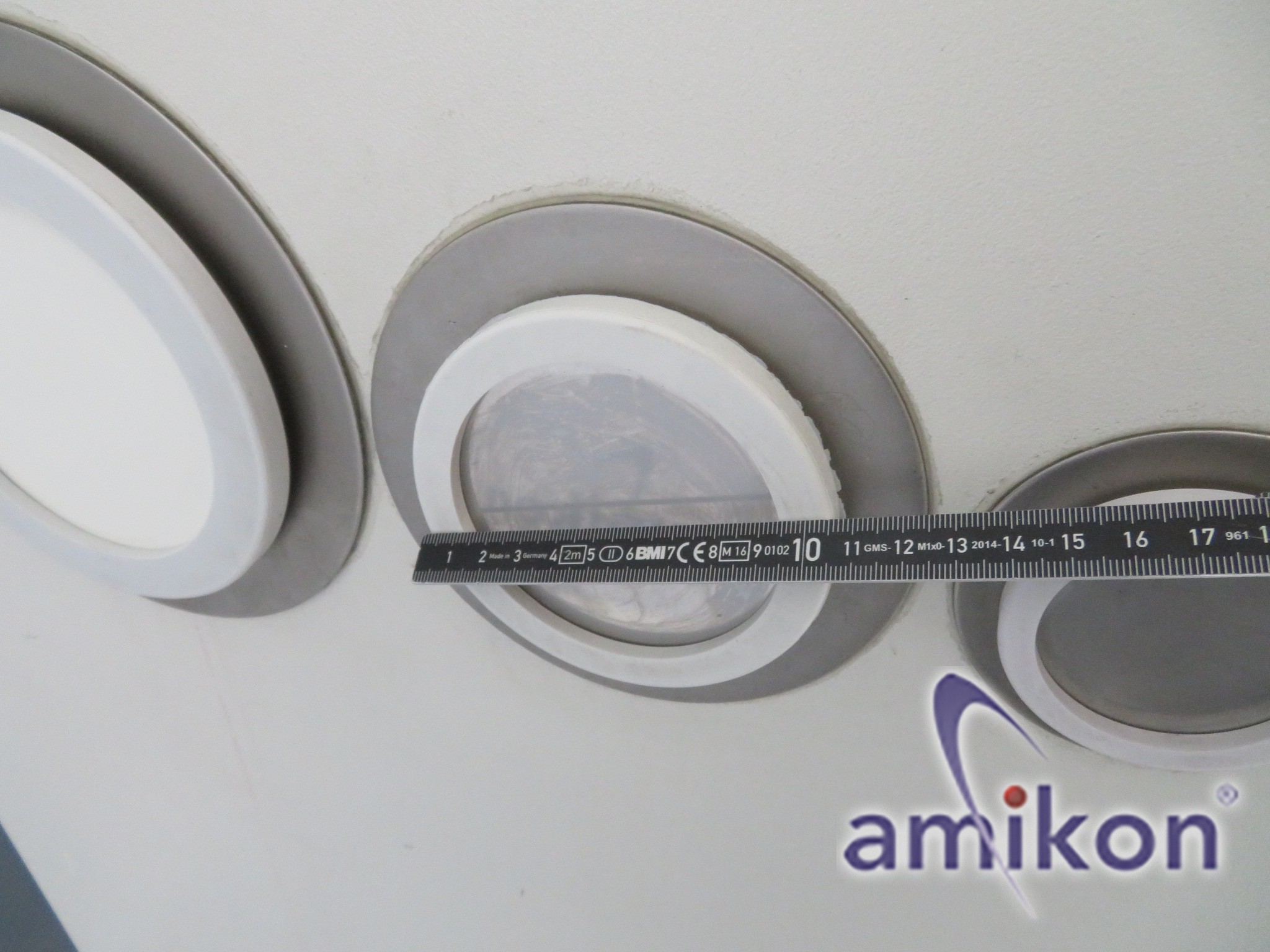

Pipe penetration 50 mm
Pipe penetration 80 mm

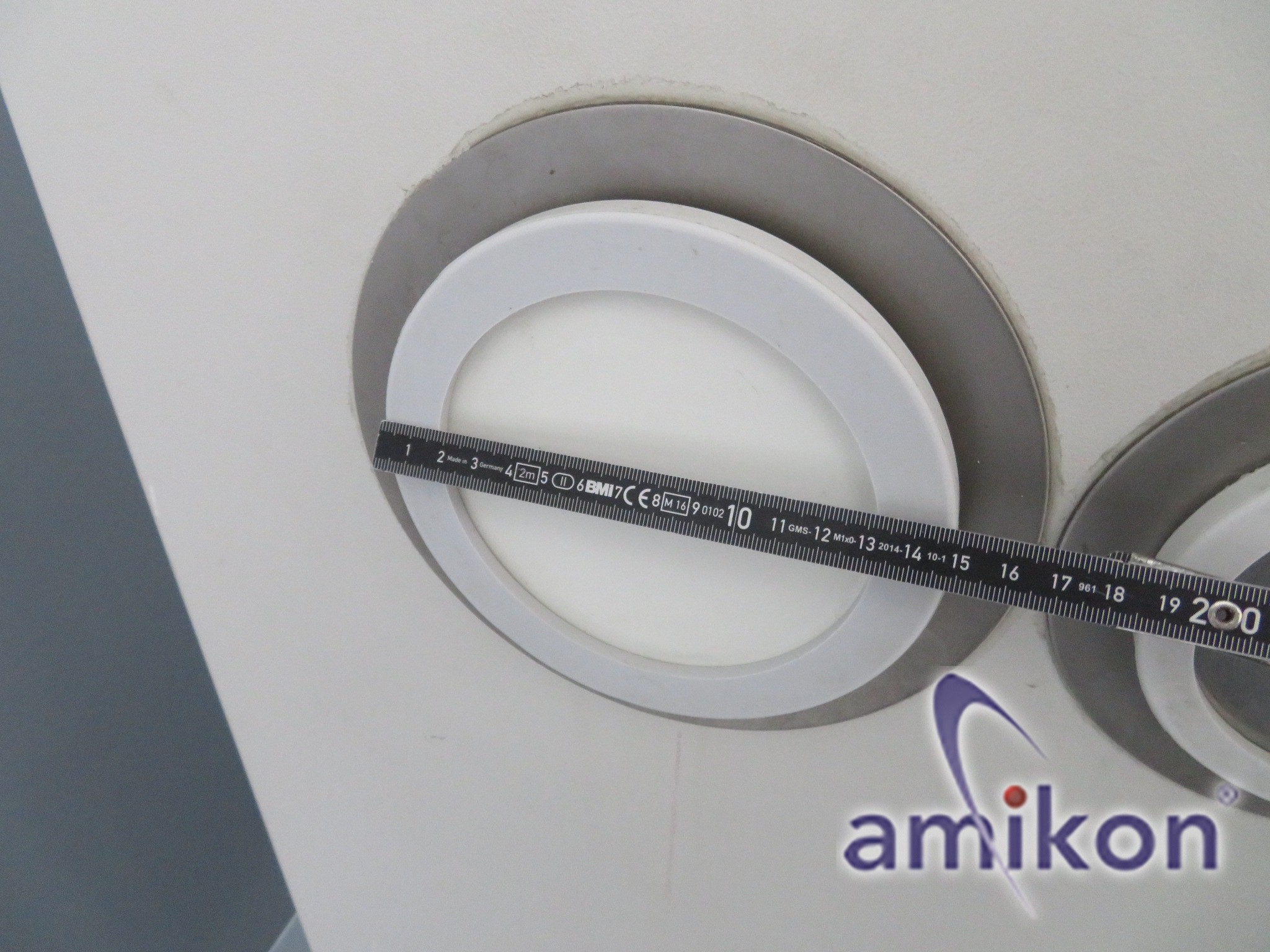

Pipe penetration 120 mm
Door double-leaf, door dimensions 1430 x 2000 mm
- Observation window 500 x 1000 mm
- separate electrical, aggregate, and control cabinet

Refrigerant: R 404A

Type: VEM 03/2240 L/S

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
Function check and replacement of necessary components
New filling with legally compliant refrigerant
After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are subject to change!)

We would be happy to answer any further questions by phone.
