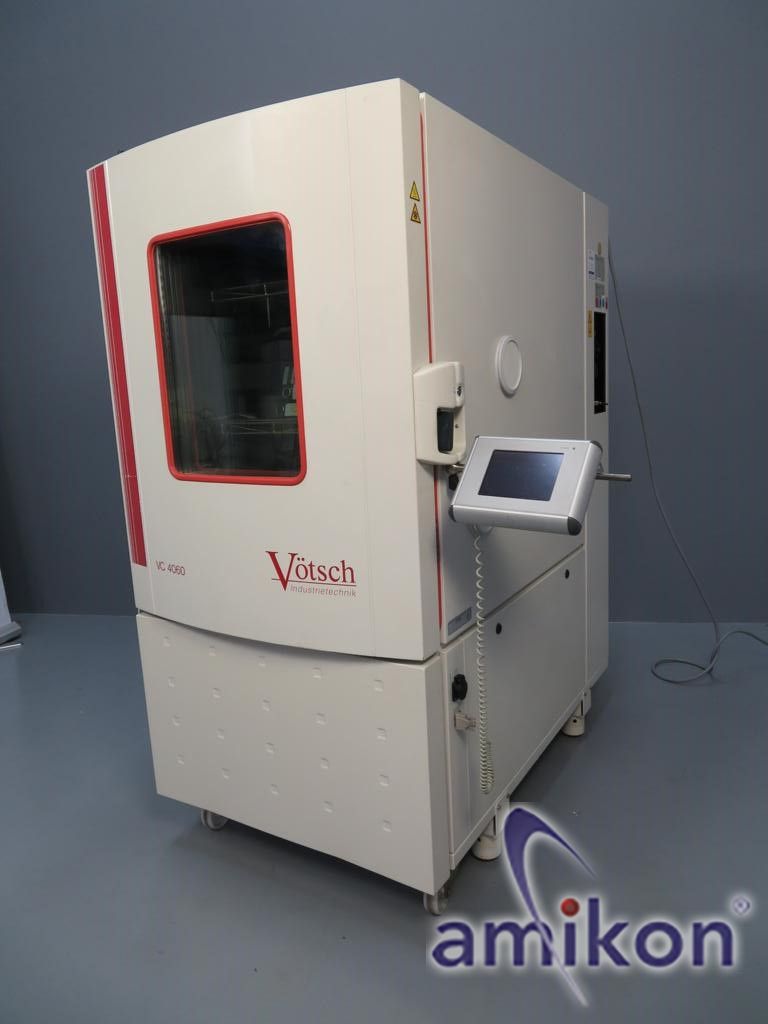

Heraeus Vötsch Climate Test Chamber VC 4060 -42°C to +180°C + ultrapac 2000

Heraeus Vötsch

Here we offer you a climate testing chamber.

Air-cooled

Nominal voltage: 400V, +-10%, 3/N, 50Hz

Nominal power: 4.2 kW Nominal current: 9.8 A

Temperature testing

Temperature range: -42°C to +180°C

Climate testing:

+10 to +95

Humidity range: 10% to 98% r.H.

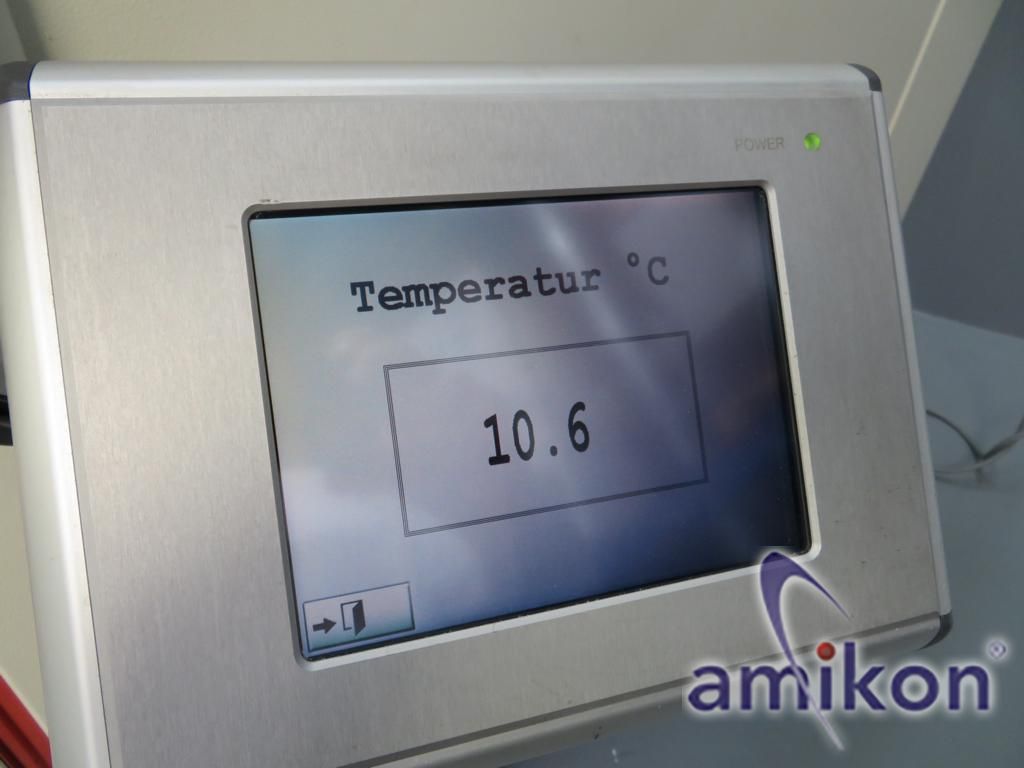

Temperature and humidity control

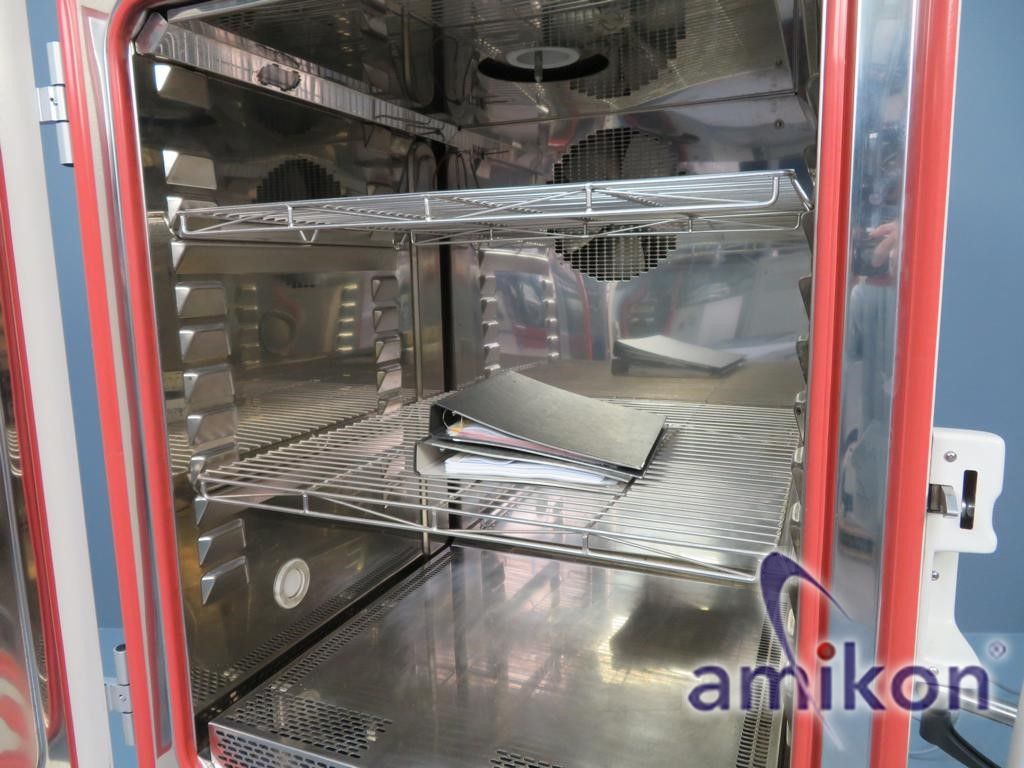

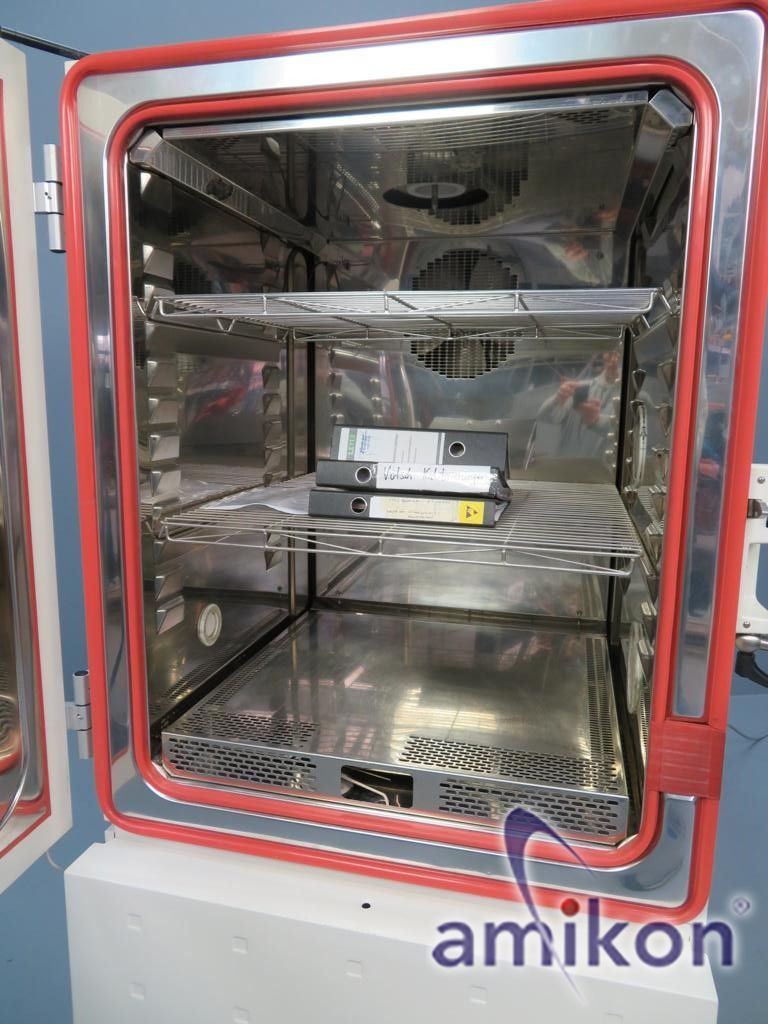

Test chamber volume / dimensions 608 L/

L x W x H approx. 950 x 800 x 800mm

External dimensions

W x D x H approx. 110 (115 with air connections) x 170 x 208 cm

Refrigerant R404a 3.5kg

Weight approx. 620 kg

Type: VC 4060

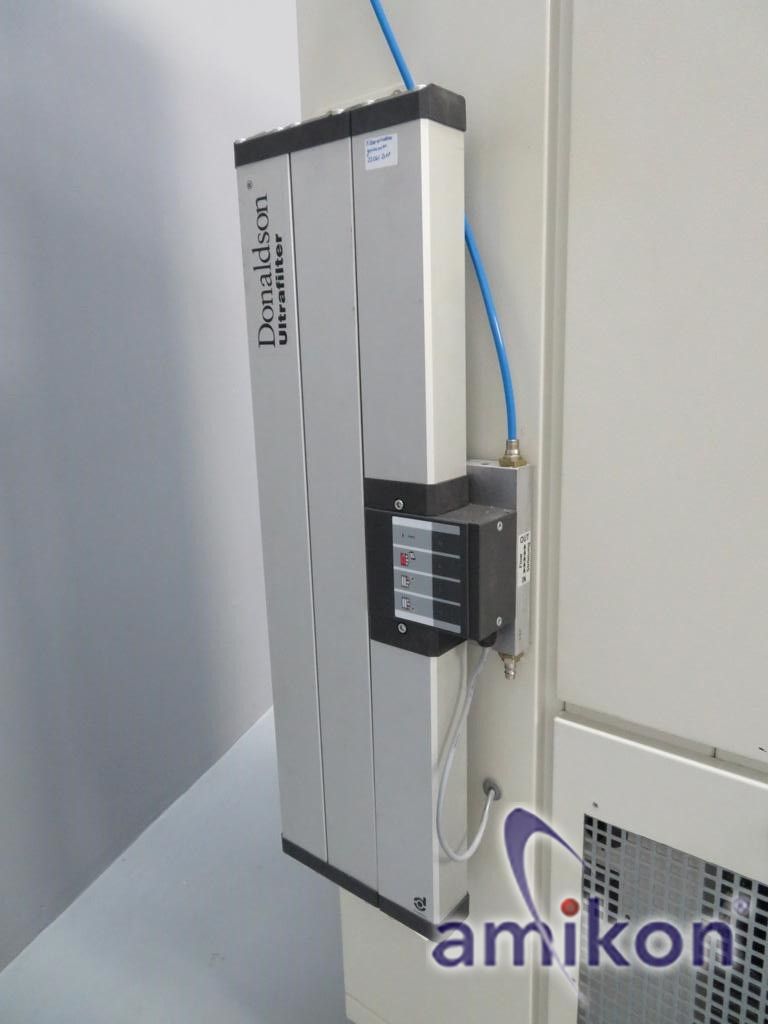

Including ultrapac 2000 from Donaldson Filtration solutions
Compressed air dryer

For you as a buyer, the following information for your safety!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Upon request, we can send you the test protocols!

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are subject to change!)

We would be happy to answer any further questions by phone.
