Heraeus Vötsch Climate Test Chamber VC 4034 Temperature Range -45°C to +180°C 56609662

Heraeus Vötsch Climate Test Chamber

Here we offer you the Heraeus Vötsch Climate Test Chamber.

Heraeus Vötsch Climate Test Chamber

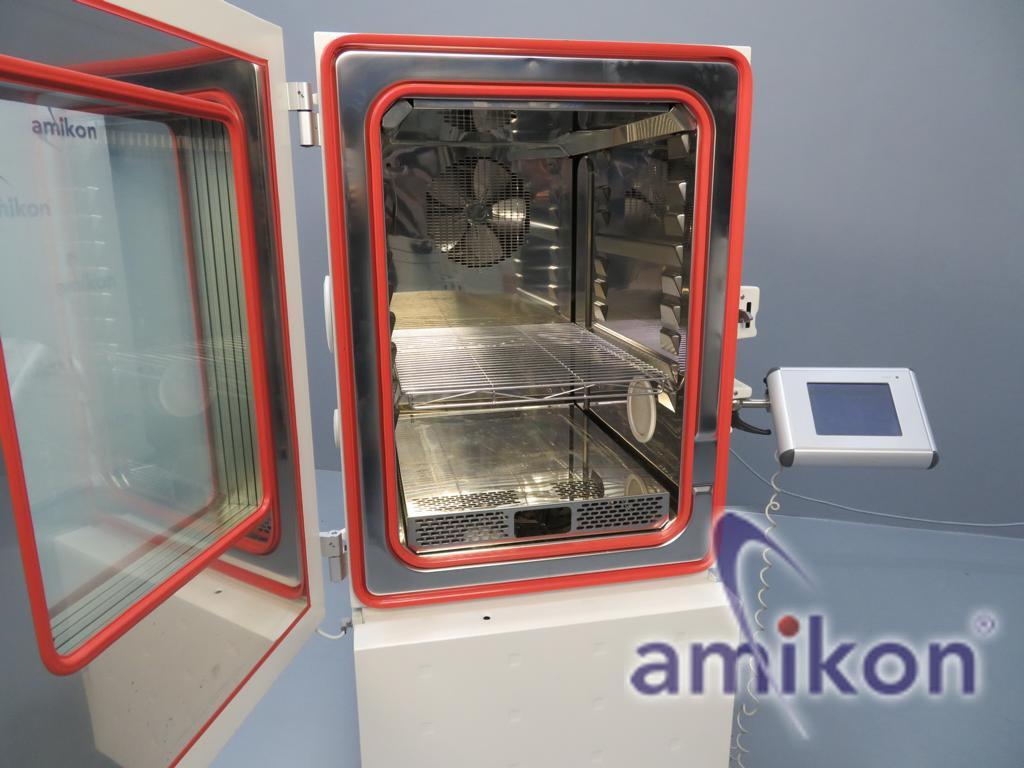

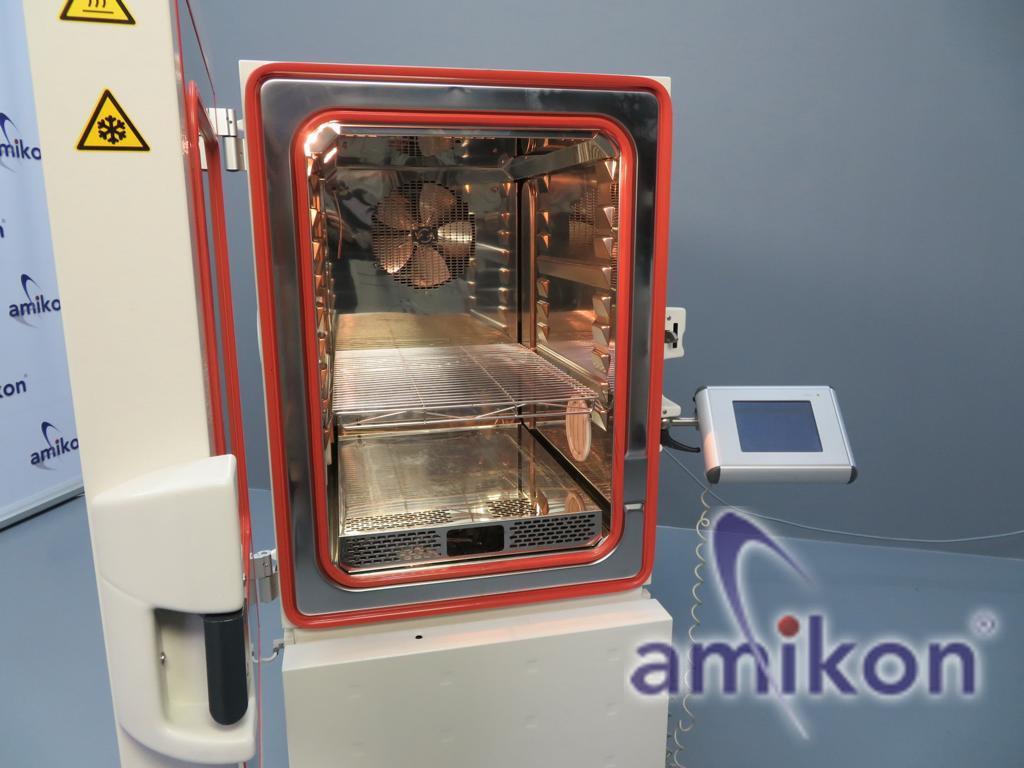

Test chamber dimensions: Width 580 x Depth 765 x Height 750 mm

Housing dimensions: Width 780 x Depth 1758 x Height 1800 mm

Temperature range: -45 °C to +180 °C

temporal ±0.1 to ±0.5 K

spatial ±0.5 to ±1.5 K

Rate of temperature change according to IEC 60068-3-5

Heating: 3.2 K/min.

Cooling: 3.5 K/min.

Key values for climate tests:

Temperature range: -45 °C to +180 °C

Temperature deviation in steady state, according to IEC 60068-3-5

depending on the test chamber temperature

temporal ±0.1 to ±0.3 K

spatial ±0.5 to ±1 K

Humidity range: 10 % to 98 % r. H.

Electrical connection:

Nominal voltage: 3/N/PE AC 400V ±10% 50Hz

Nominal power: 4.1 kW

Nominal current: 12.5 A

Protection: 16A slow, site-specific

Refrigerant: R-404A

Test chamber volume: approx. 335 liters

Weight: approx. 490 kg net

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
Function check and replacement of necessary components
New filling with legally compliant refrigerant
After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

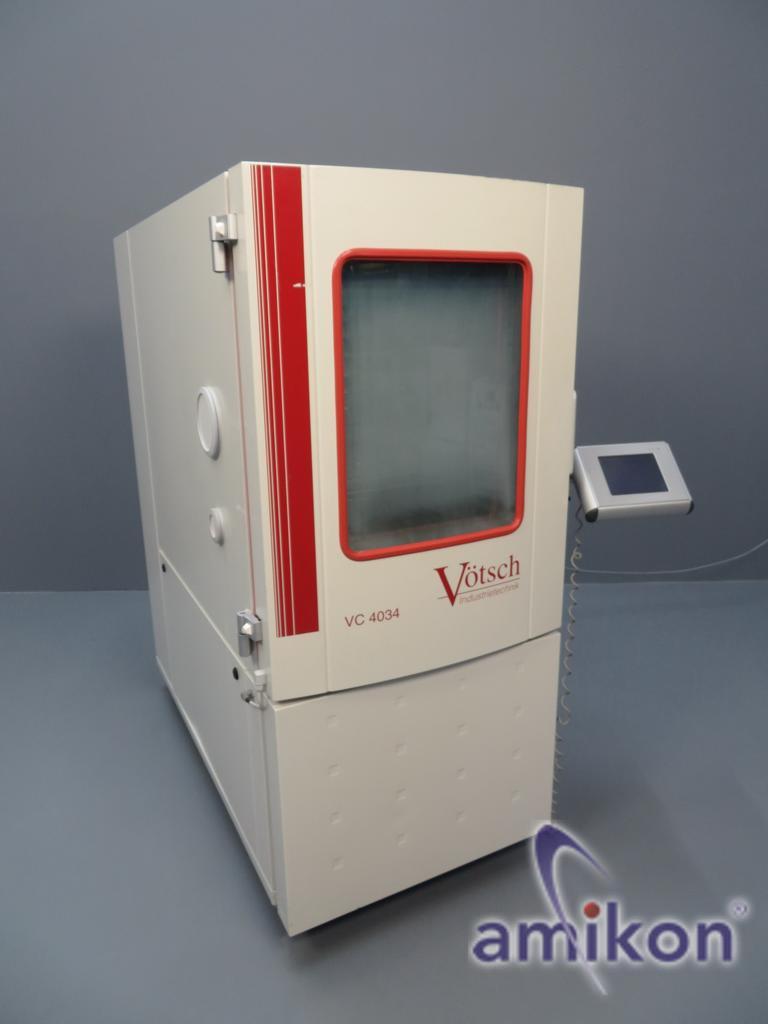

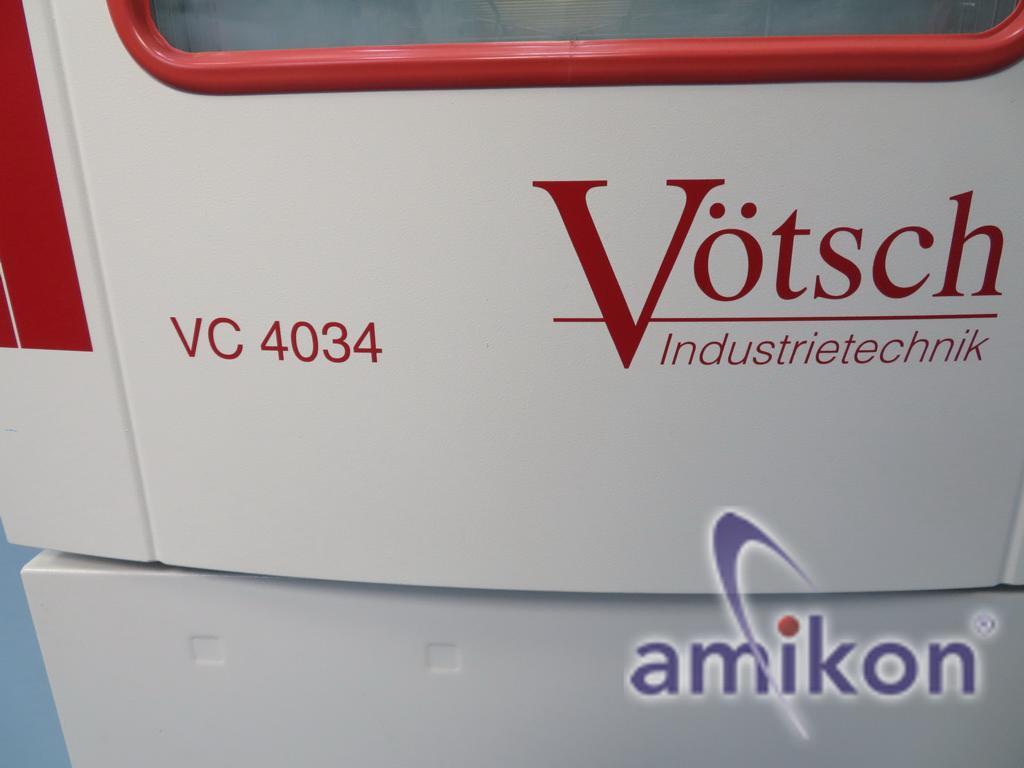

Type: VC 4034

Condition: used

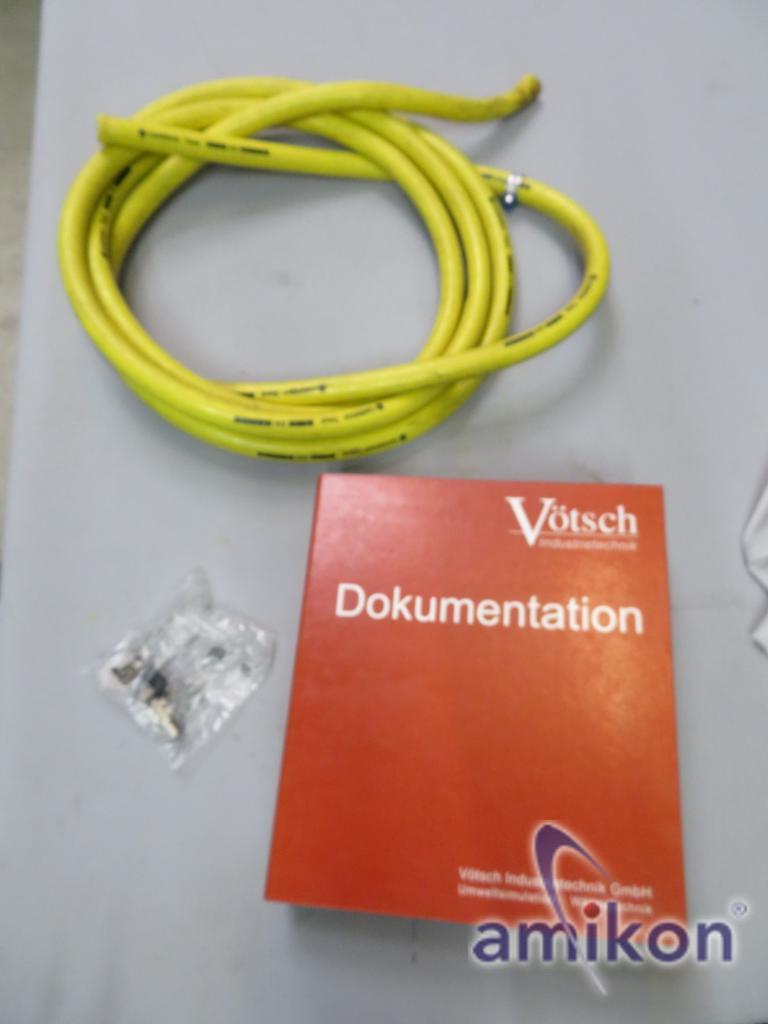

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We are happy to answer any further questions by phone.
