Weiss Temperature Test Chamber WT-600/70/5 -70°C to +180°C 600 liters

Weiss

Weiss Umwelttechnik WT-600/70/5
Temperature Test Chamber -70°C to +180°C
Water-Cooled

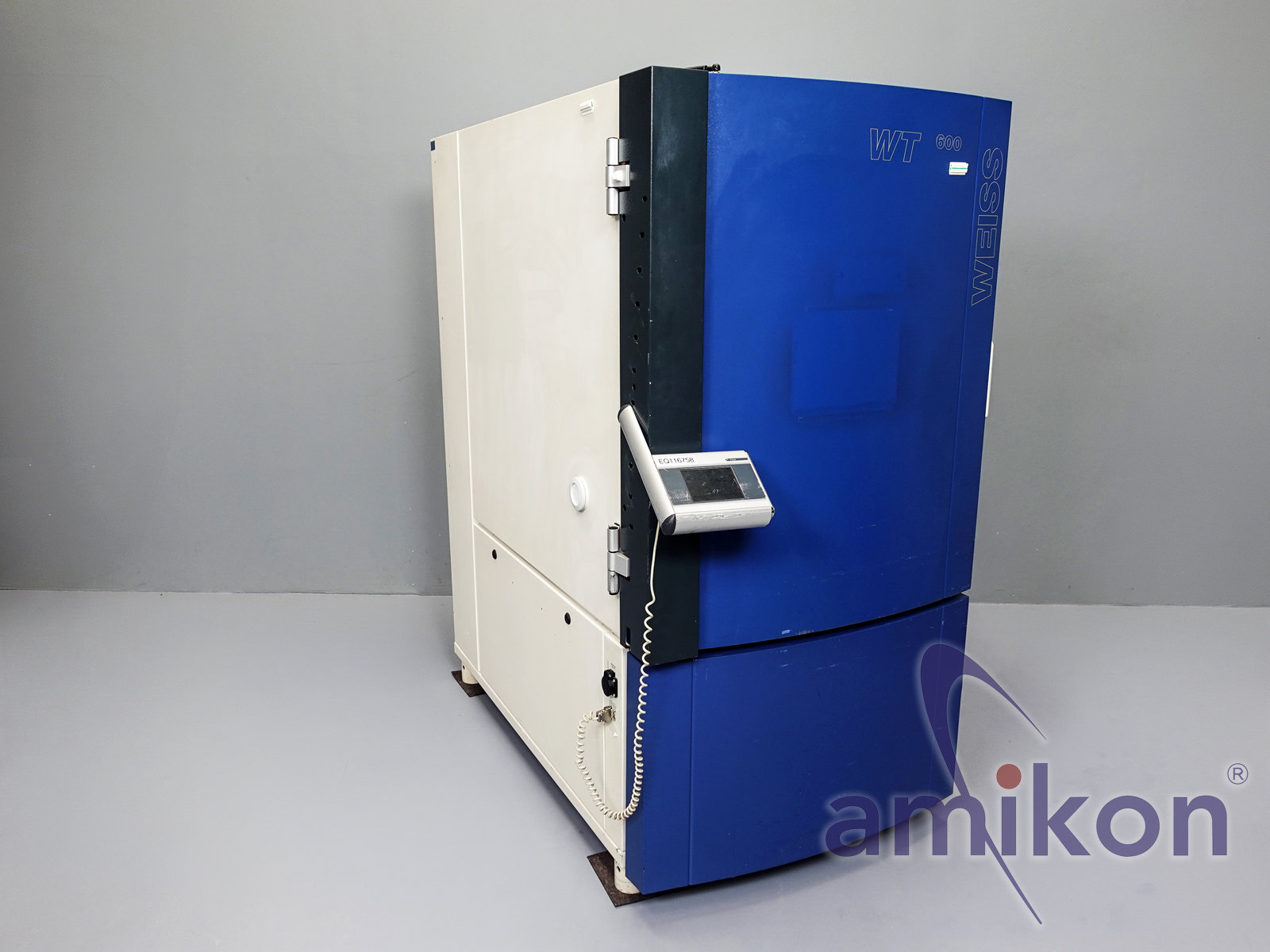

For sale is a used temperature test chamber from Weiss Umwelttechnik.
The device is functional and has been tested.

This is a pure temperature testing device without humidity function.
The chamber is suitable for testing components, electronics, and materials
under extreme temperature conditions.
It is frequently used in industry, development, and quality assurance.

The temperature range is from -70°C to +180°C.

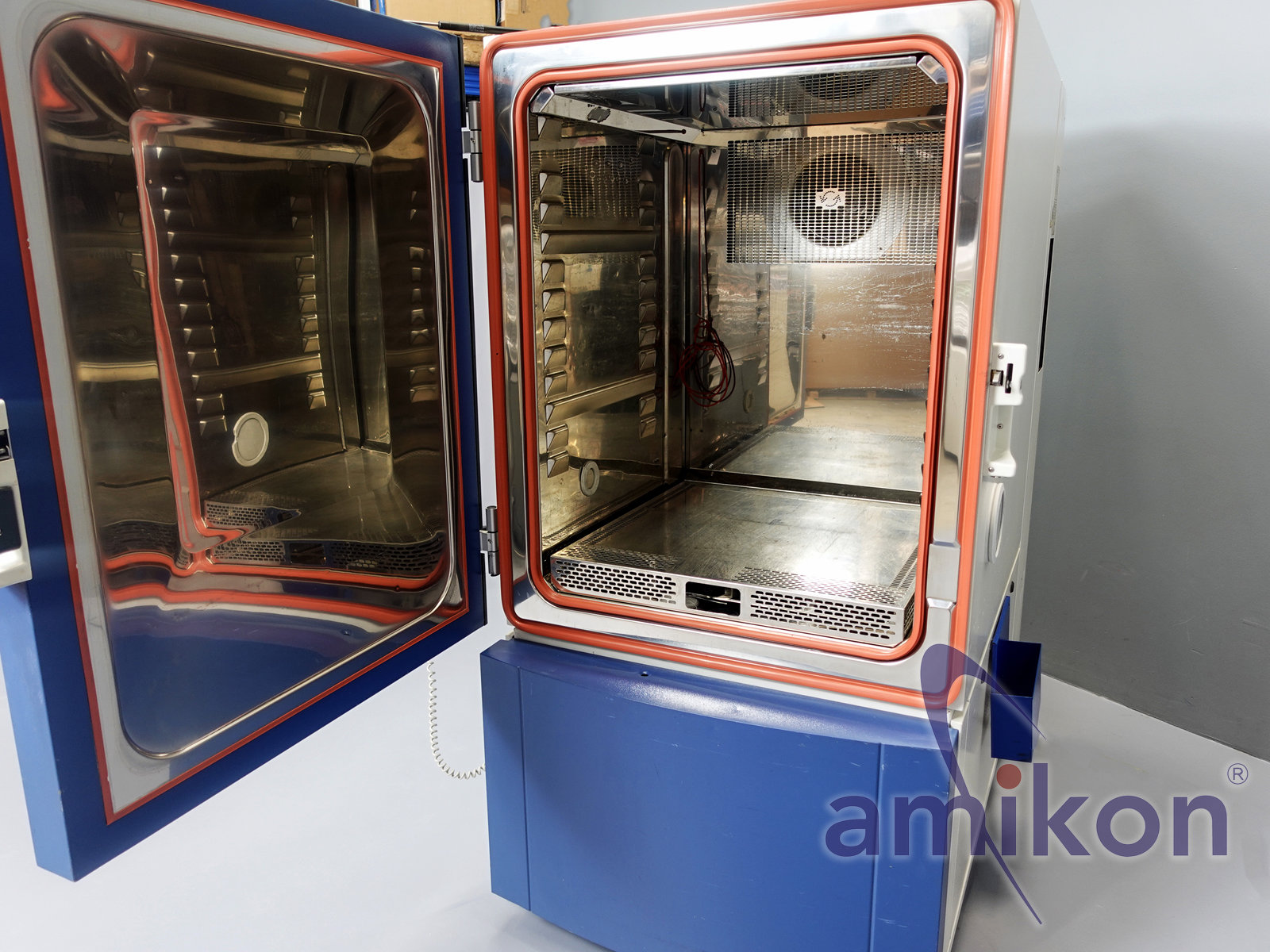

The device can heat up and cool down quickly and operates with circulating air
for uniform temperature distribution inside.

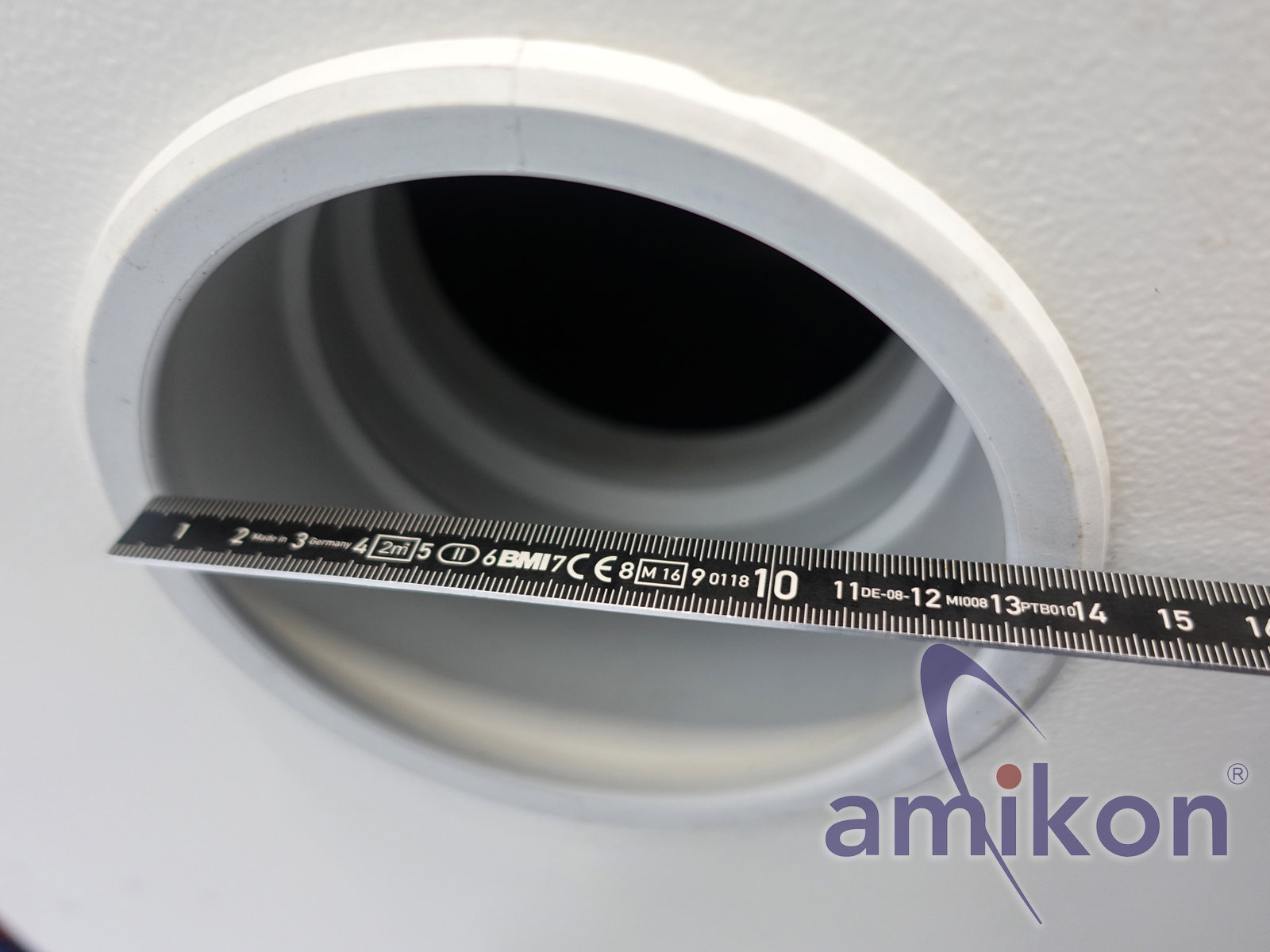

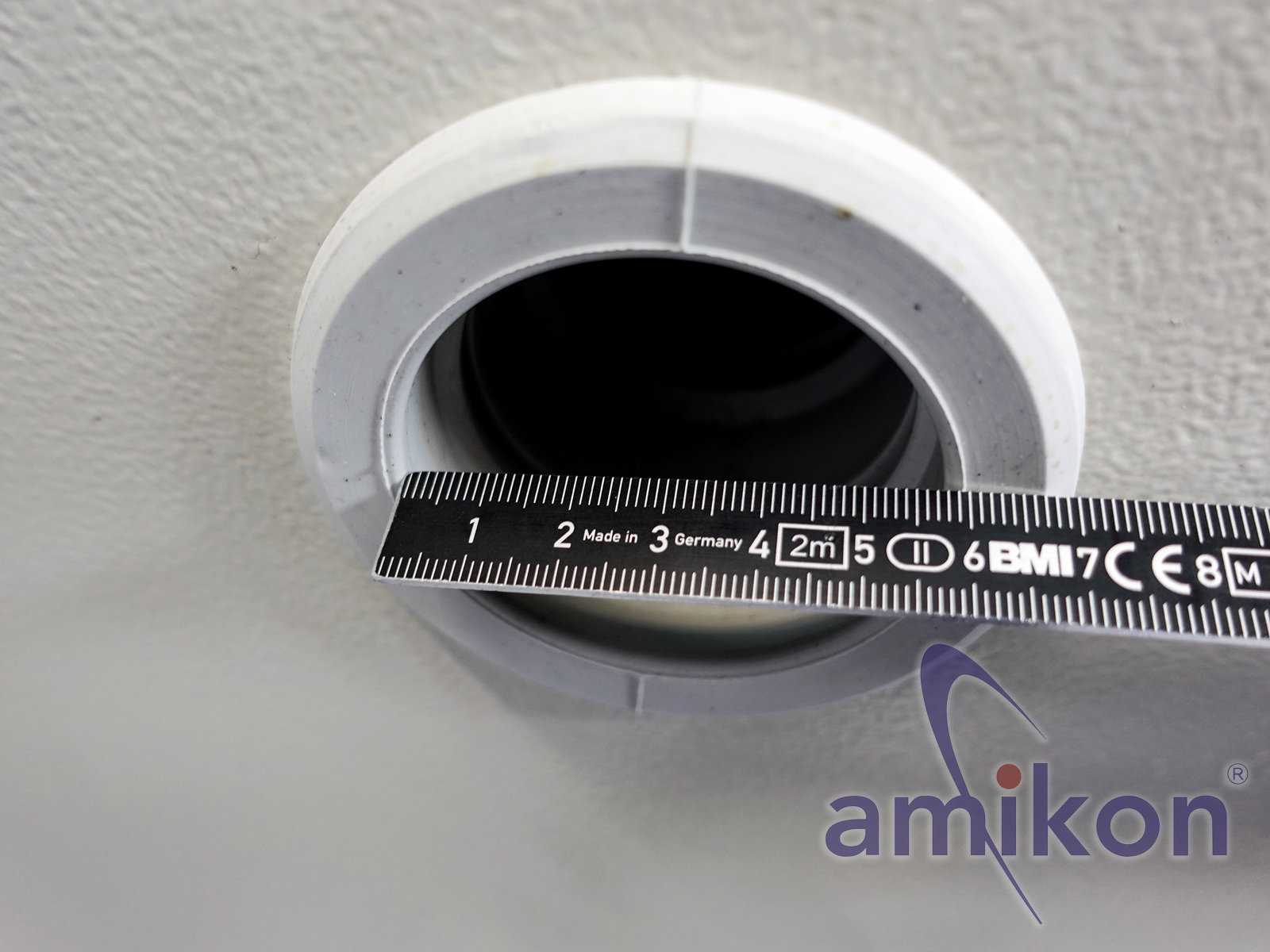

Cable entries with 125 mm and 50 mm are available.

Technical Data:
Test Chamber Designation: WT-600/70/5

Cooling / Heating Operation -70°C to 180°C

Temperature Change per Time
Cooling approx. 6 K/min
Heating approx. 6 K/min

External Dimensions with Hinges and Door Lock
Height 1995 mm, Width 1090 mm, Depth 1660 mm

External Dimensions without Hinges and Door Lock
Height 1995 mm, Width 1000 mm, Depth 1660 mm

Internal Dimensions:
Height 950 mm, Width 800 mm, Depth 800 mm

Test Chamber Volume: approx. 600 liters

3/N/PE AC 400V ±10% 50Hz
Rated Power: 16 kW
Rated Current: 19 A
Fuse on site: 29 A slow
Permissible Test Load Weight
Total Load of the Shelf Supports 80 kg

Test Chamber Floor 80 kg, Insert Shelf 40 kg

Refrigerant: R 404A/R23

Weight: 675 kg

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. After successful inspection, the chambers will undergo a test run, monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

Further questions can be answered by phone.
