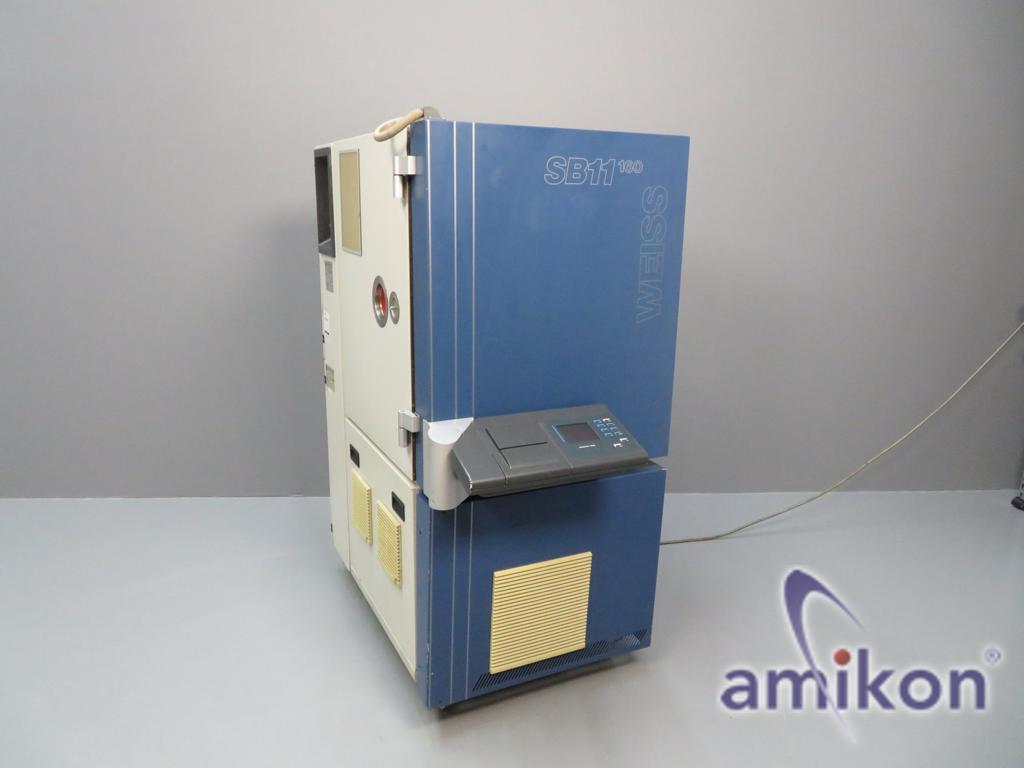

Weiss Temperature Test Chamber SB11/160/40 -40°C to +180°C 161 Liters

Weiss Temperature Test Chamber

Here we offer a temperature test chamber.

Dimensions and design of the test chamber

Interior dimensions of the test chamber H = 680 mm W = 540 mm D = 440 mm

External dimensions H = 1700 mm W = 800 mm D = 1380 mm

approx. 161 liters

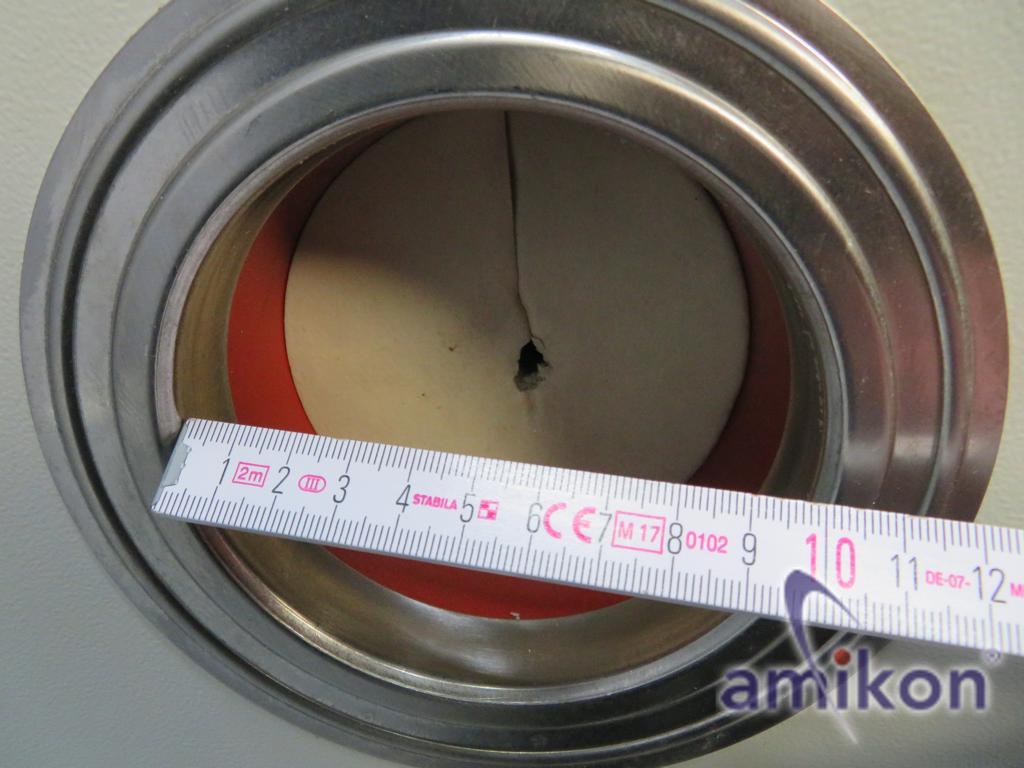

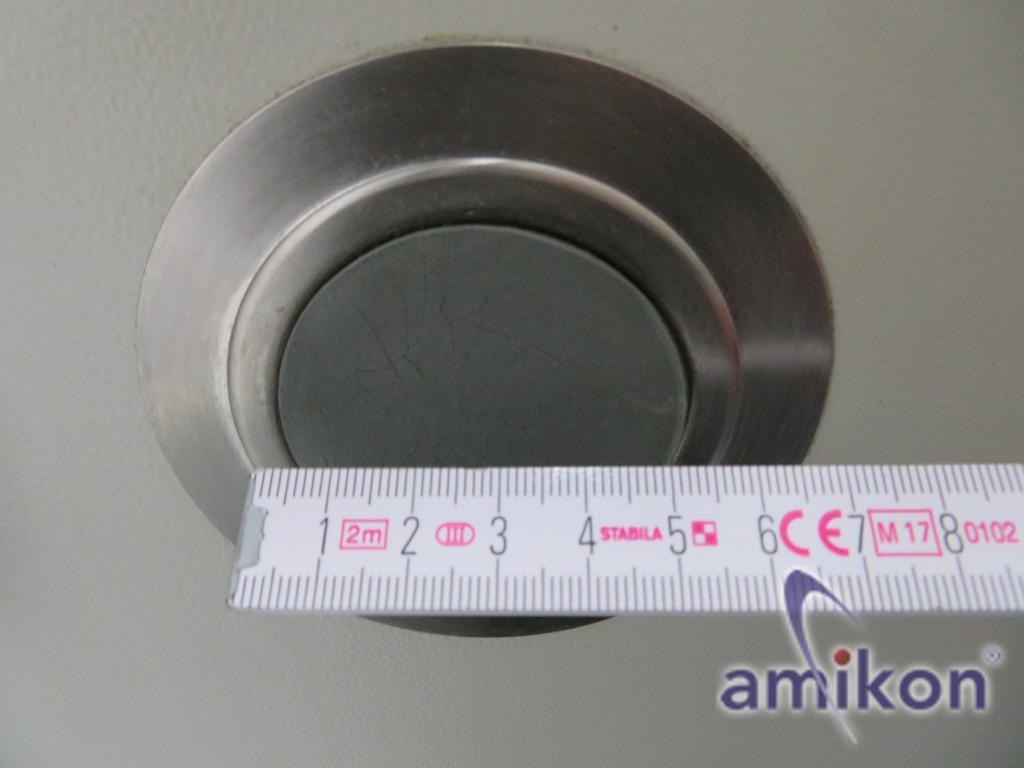

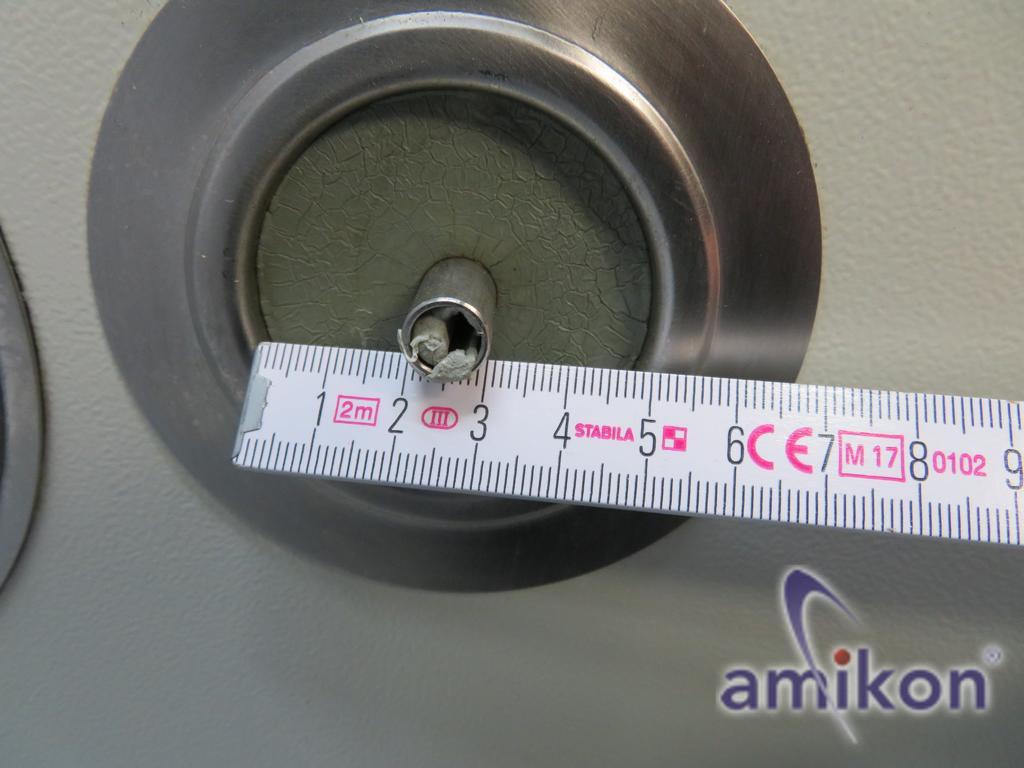

Pass-throughs in the side walls:

2 pcs., NW 50 mm 1 pc., NW 100 mm

permissible load or shelf and floor load

max. total load 150 kg

max. intermediate shelf 35 kg

max. insert shelf 35 kg

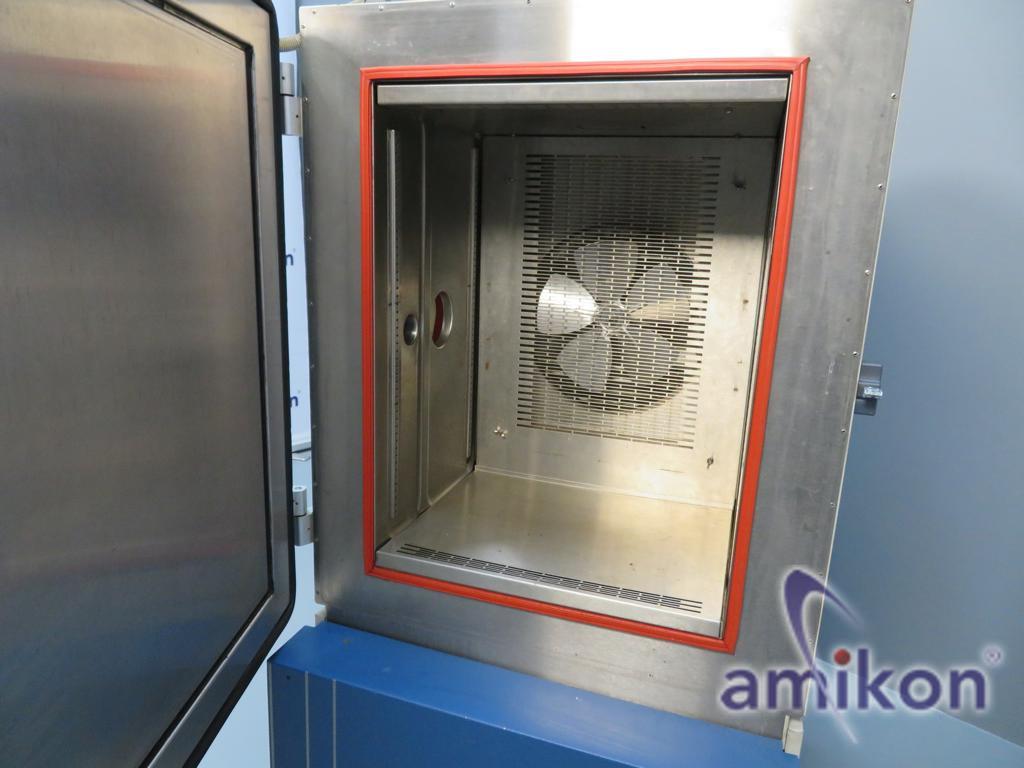

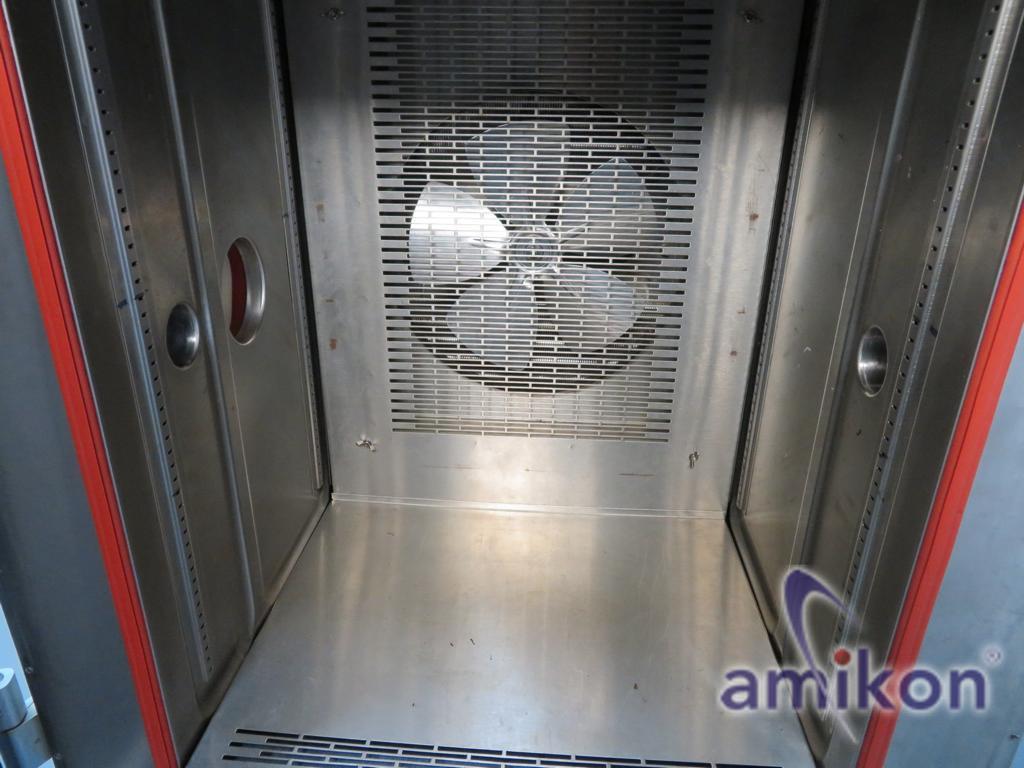

Interior surface of the chamber:

Stainless steel, steam-tight welded

Technical data:

No moisture!

Temperature range -40°C to +180°C

Temperature - change rate

Cooling: 3.0 K/min
Heating: 3.0 K/min

Electrical connection: 400/3PH+N+PE/50

Connection value: 4.8 kVA

Weight: 320 kg

Type: SB11/160/40

For you as a buyer, the following information for safety!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

We are happy to answer any further questions by phone.
