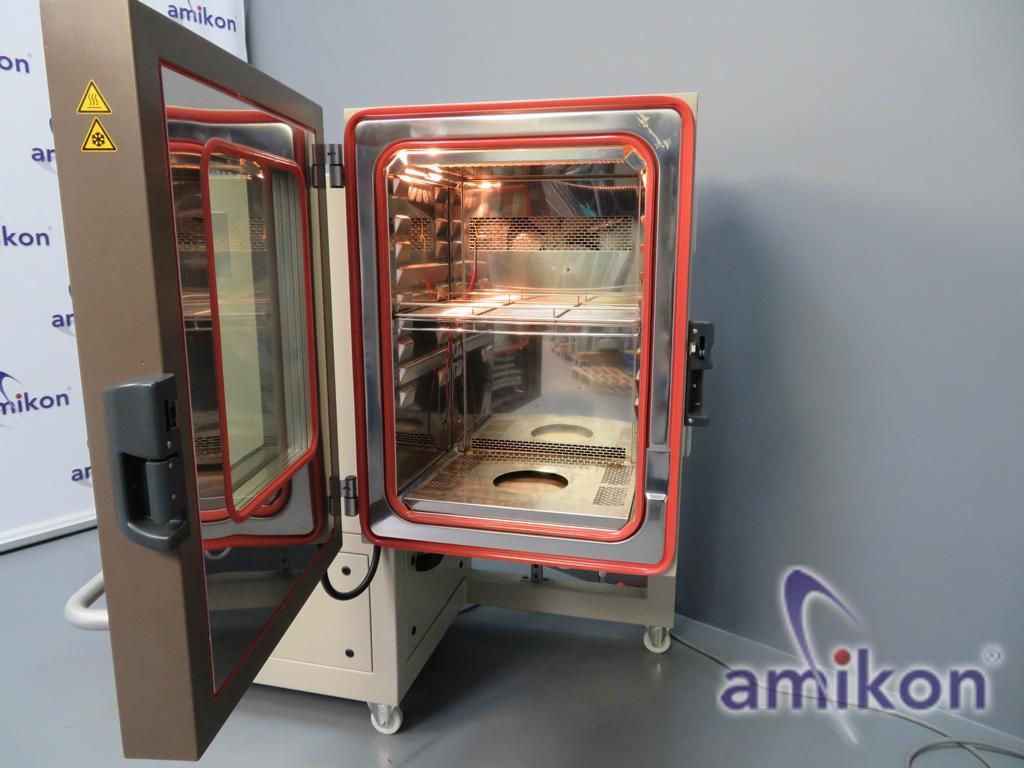

Weiss Temperature and Climate Test Chamber for Vibration Testing Type WK-180/70/5/V

Weiss Temperature and Climate Test Chamber

Here we offer a Weiss Temperature and Climate Test Chamber.

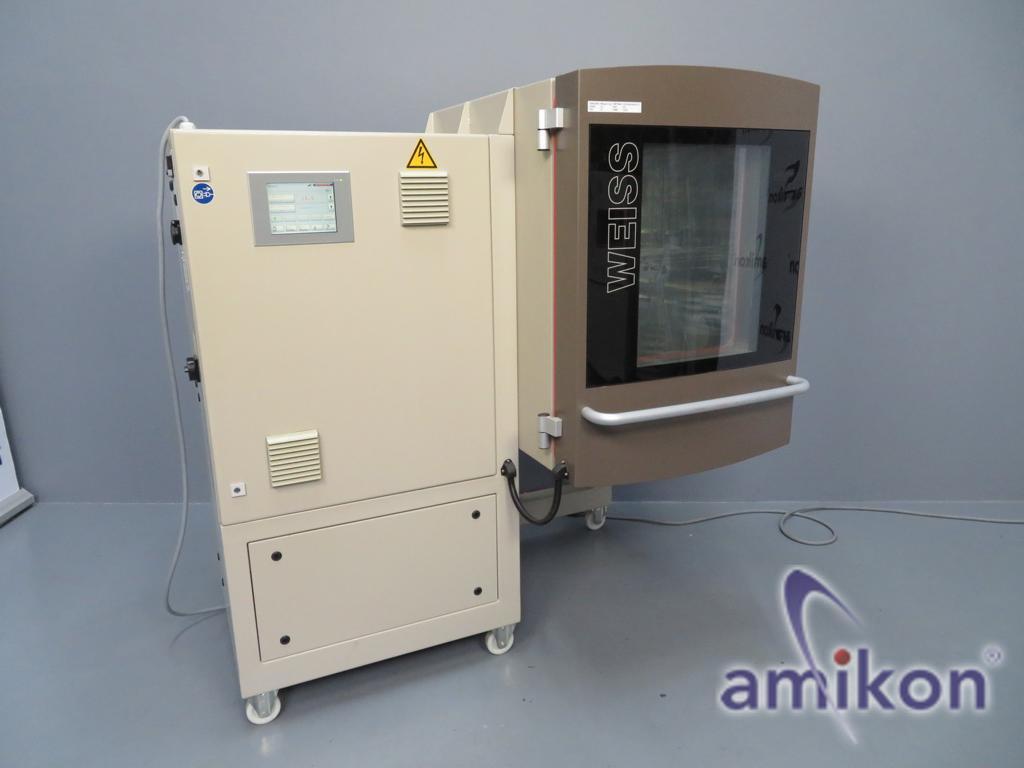

Temperature Test Chamber WK-180/70/5/V

Data for Temperature Testing:

Temperature range -70 to +180°C
Temperature differences (in steady state, according to IEC 60068-3-5)
Temperature fluctuation over time in the center of the usable space ± 0.8 K
Spatial temperature deviation ± 2.0 K

Rate of temperature change (according to IEC 60068-3-5)
Heating 5 K/min
Cooling 5 K/min
Heat compensation at +20°C 3000 W
Heat compensation at -20°C 3000 W

Data for Climate Testing:
Temperature range +10 to +95°C
Humidity range r.H.: relative humidity 10 to 95 %r.H.
Temperature and humidity differences (in steady state, according to
IEC 60068-3-5)
Temperature fluctuation over time in the center of the usable space ± 0.3 K
Spatial temperature deviation ±1 K
Humidity fluctuation over time in the center of the usable space ±3 %r.H.

Heat compensation in the range of +25°C to +95°C
at a relative humidity of up to 90% 400 W

Test chamber dimensions: Width 580 mm Depth 450 mm Height 750 mm

Test chamber volume 190 liters

Data for Mechanical Load:

Maximum load of the test chamber floor 50 kg
per shelf 30 kg
Total load of the shelf supports 80 kg

Data for Operation:

Test chamber lighting Halogen bulb 1 x 24V, 50W
Nominal voltage 3/N / PE AC 400 V ± 10% 50 Hz
Nominal power 9.1 kW
Nominal current 19 A
Fuse on site 35A slow
Protection class test chamber IP 22

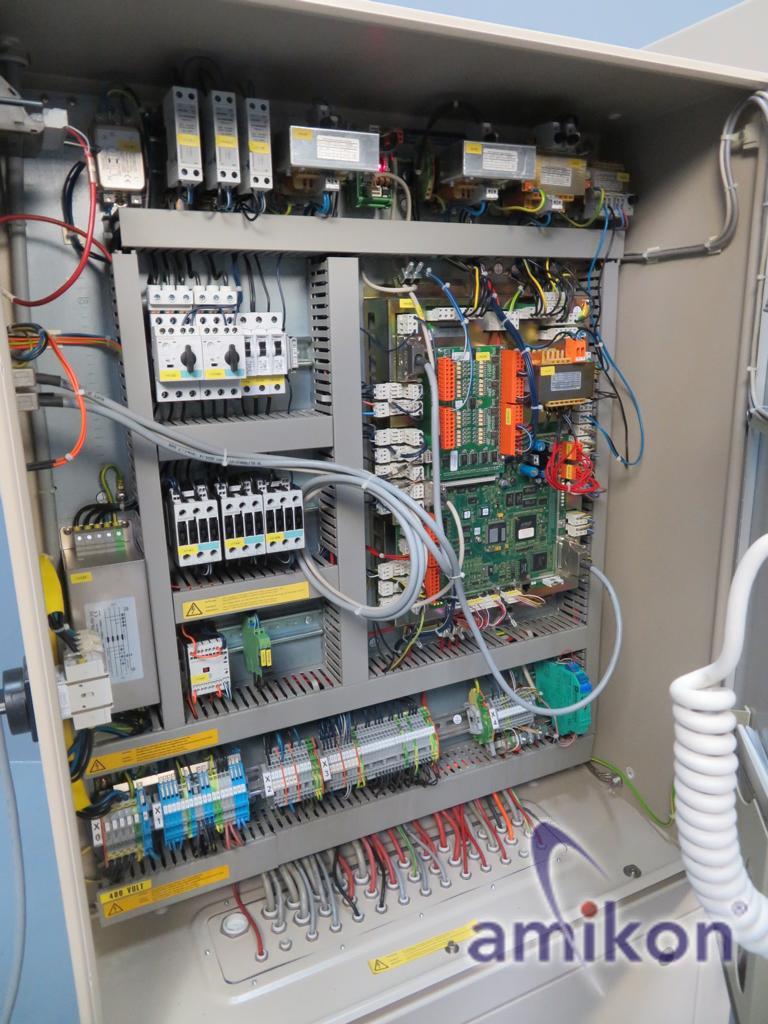

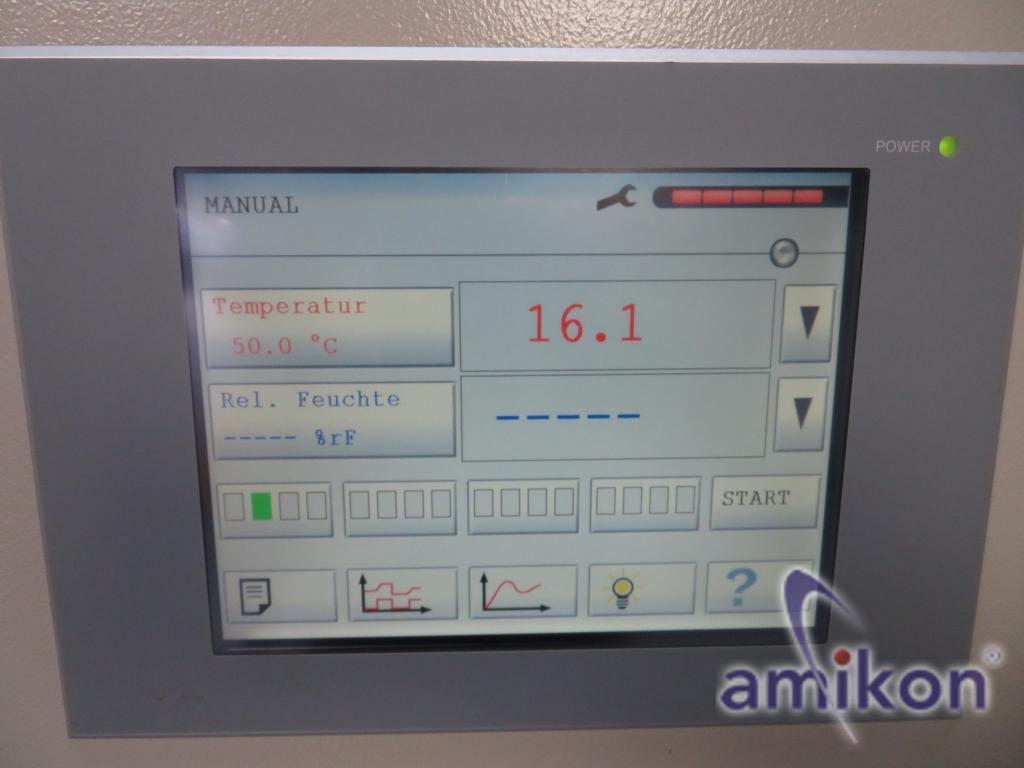

Control cabinet and operating panel IP 54

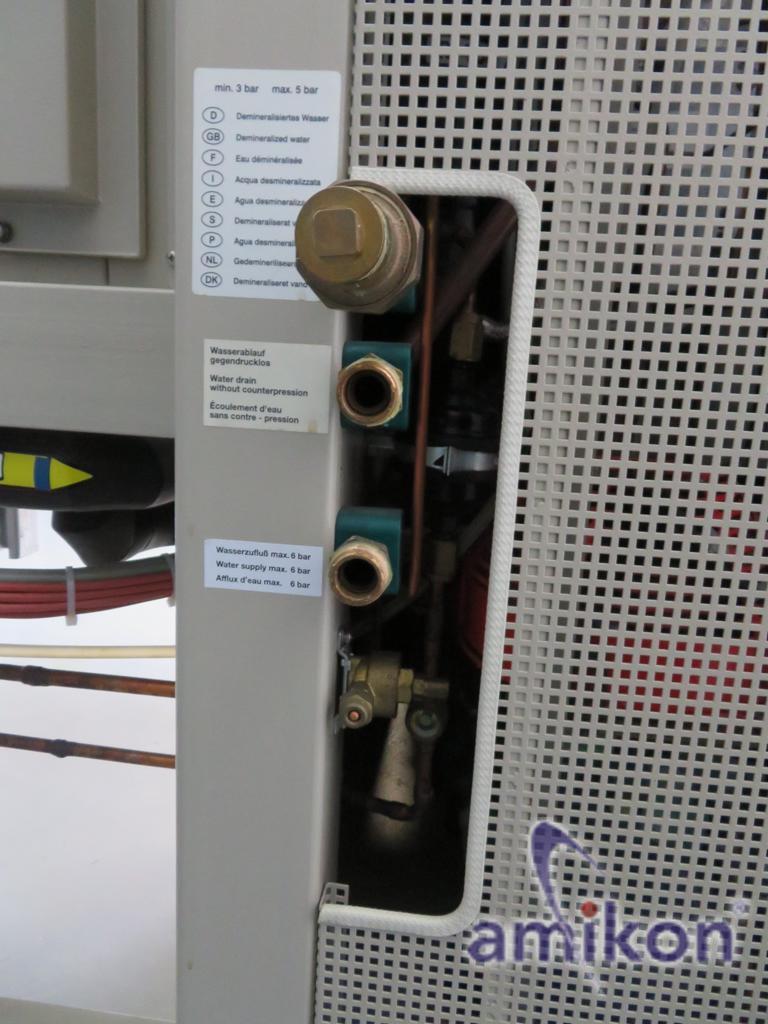

Heat output water-cooled test chambers:
max. heat output to the environment 1 KW

Noise Measurement:

Sound pressure level approx.
measured at 1m distance from the front, 1m height and free field measurement 64 dB

Weight 630 kg

Type: WK-180/70/5/V / 22607257

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

We would be happy to answer any further questions by phone.
