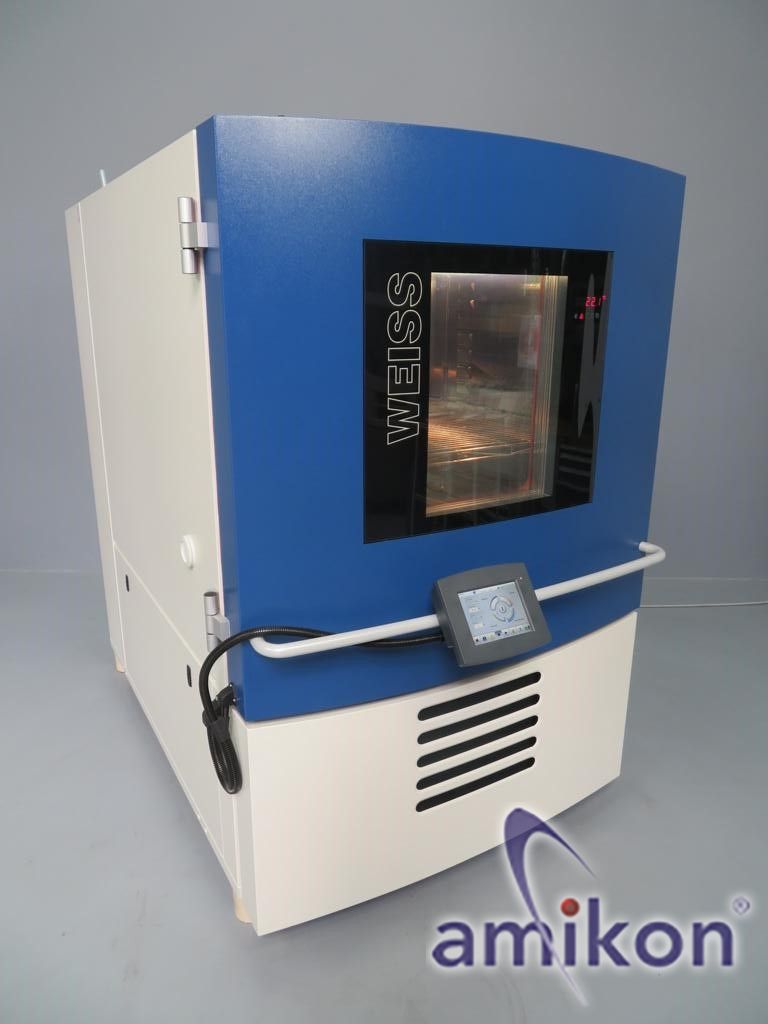

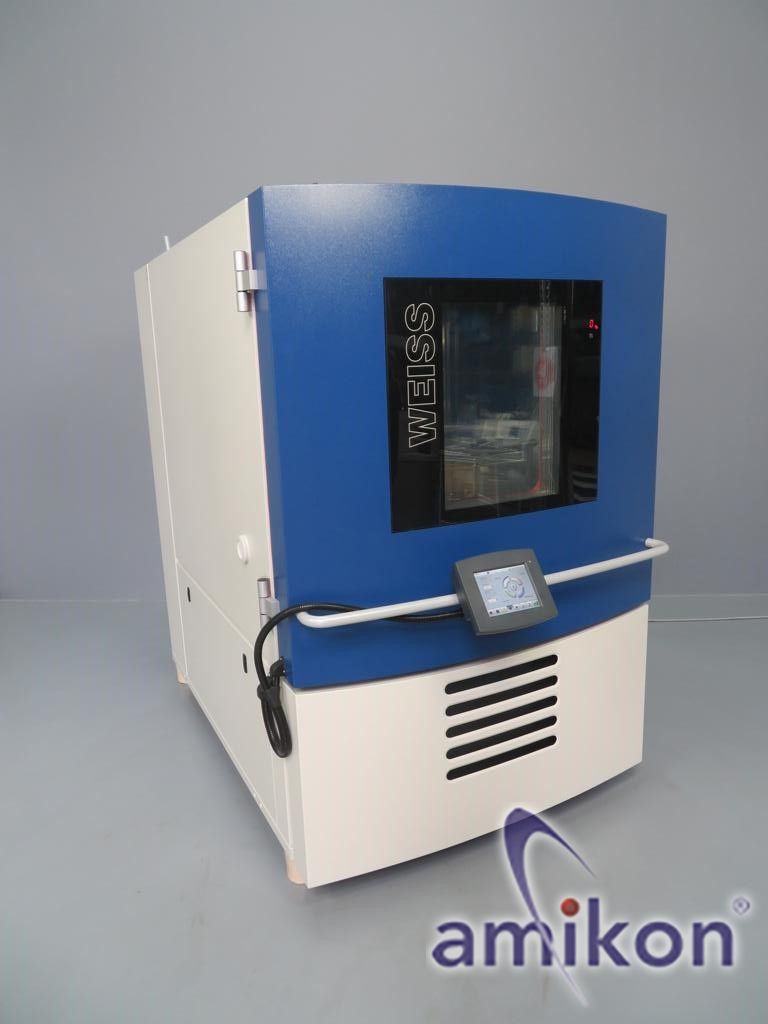

Weiss climate testing chamber WK-1000/40 990 liters temperature -42 to +180 °C

Weiss

Here we offer a Weiss climate testing chamber.

Air-cooled

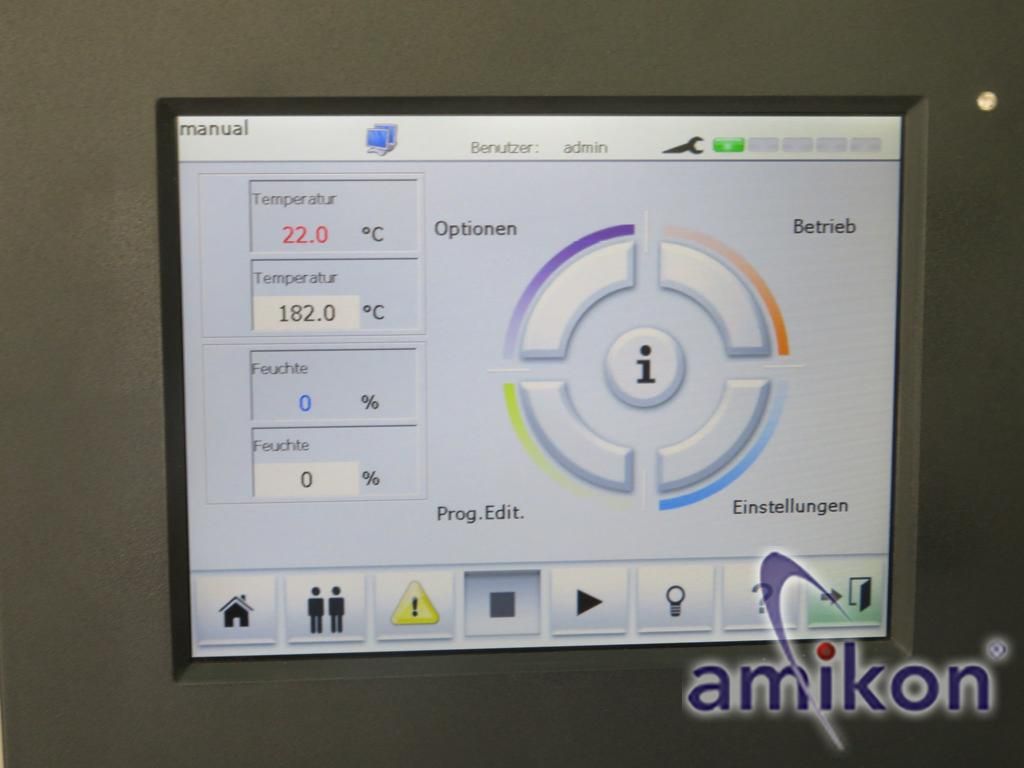

Simpac control

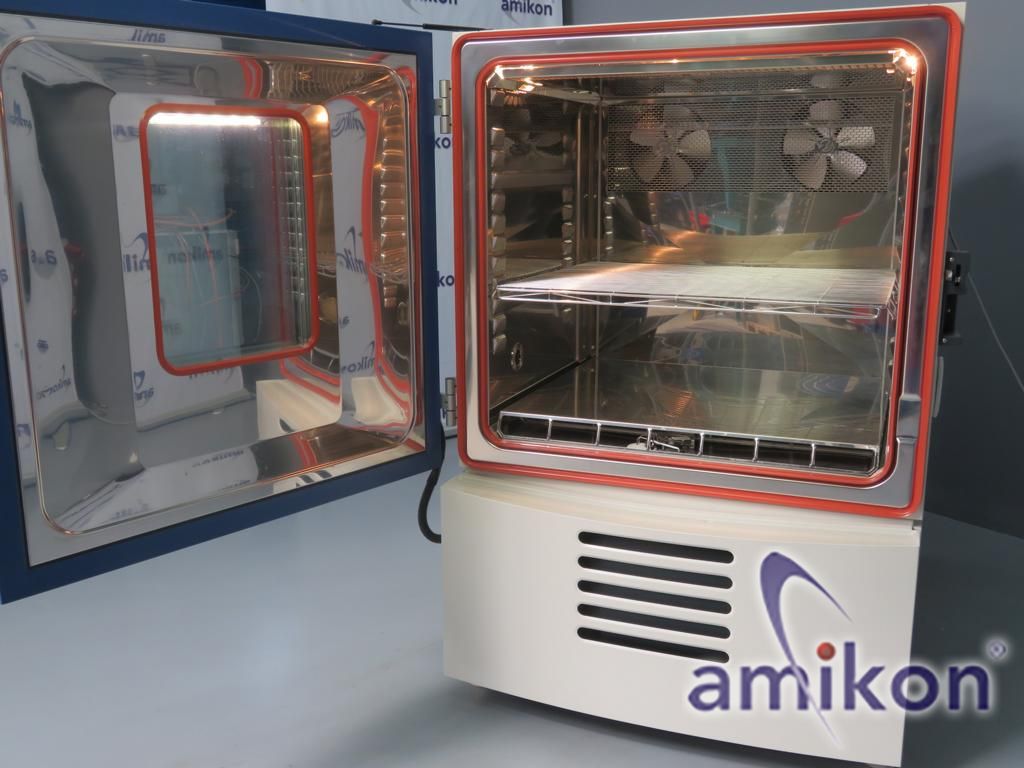

Test chamber volume: approx. 990 liters

Test chamber dimensions: Height 950 mm, Width 1100 mm, Depth 950 mm,

Operating data:

Nominal voltage: 3/N / PE AC 400 V ± 10% 50 Hz

Nominal current: 22 A

Data for temperature tests:

Temperature range: -42 to +180 °C

Temperature deviation over time in the center of the usable space: ± 0.1 to ± 0.5 K
Temperature homogeneity spatially: ± 0.5 to ± 1.5 K

Rate of temperature change
Heating: 4 K/min
Cooling: 3 K/min
Heat compensation max. 4500 W

Data for climate tests

Temperature range: +10 to +95 °C

Humidity range: 10 to 98 % r.H.

Temperature deviation over time in the center of the usable space: ± 0.1 to ± 0.3 K
Temperature homogeneity spatially: ± 0.5 to ± 1 K

Humidity fluctuation over time in the center of the usable space: ± 1 to ± 3 % r.H.

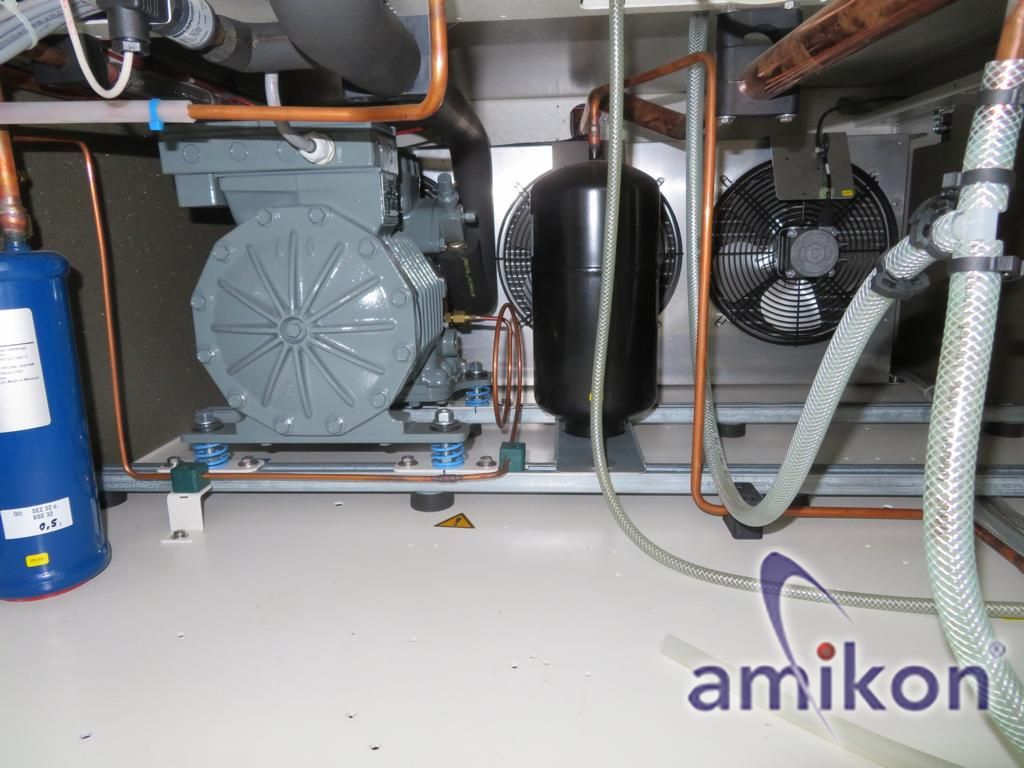

Refrigerant: R404 A 4.2 kg

Weight: approx. 840 kg

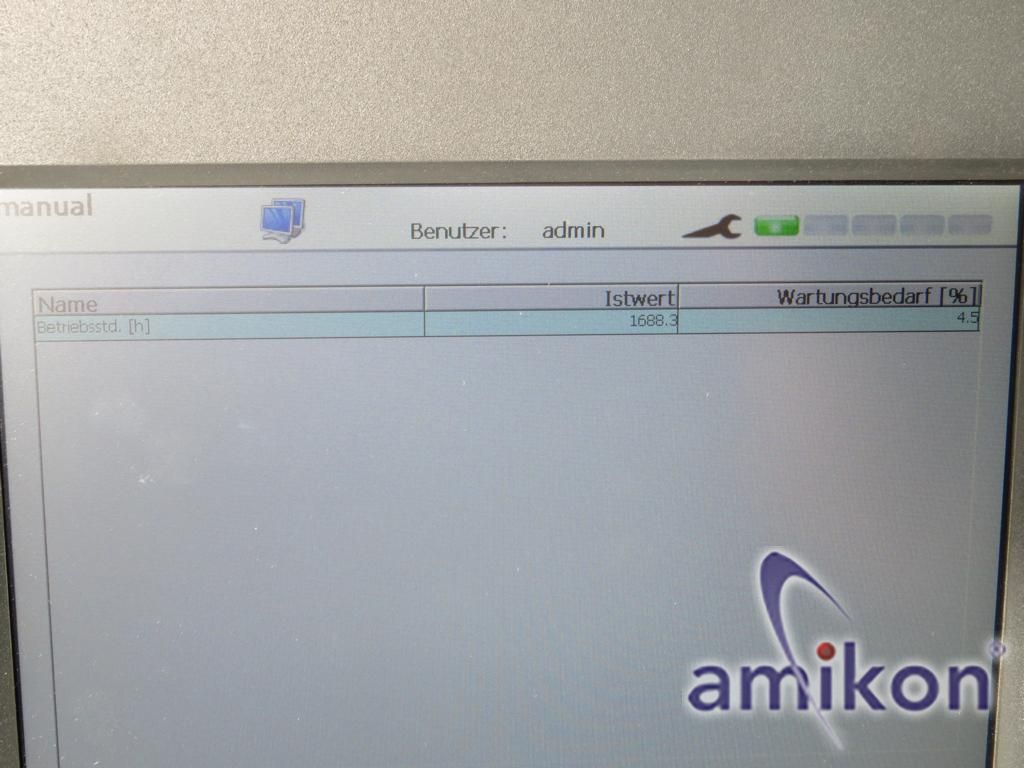

The chamber has only 1,188 operating hours!

Type: WK3-1000/40

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant

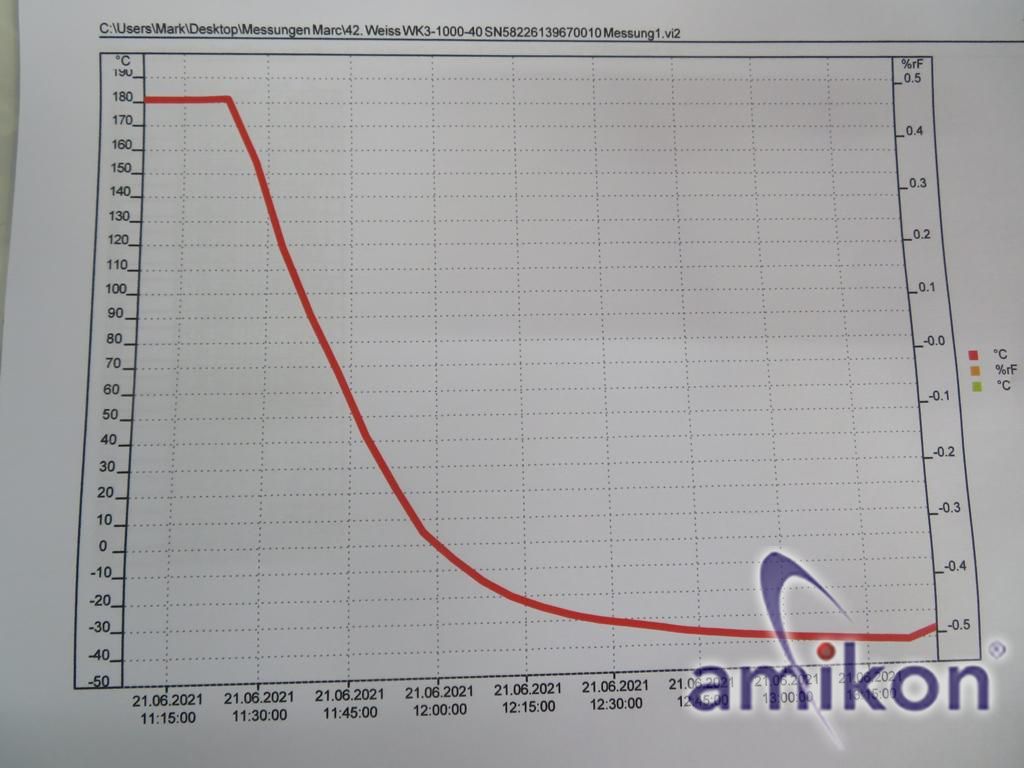

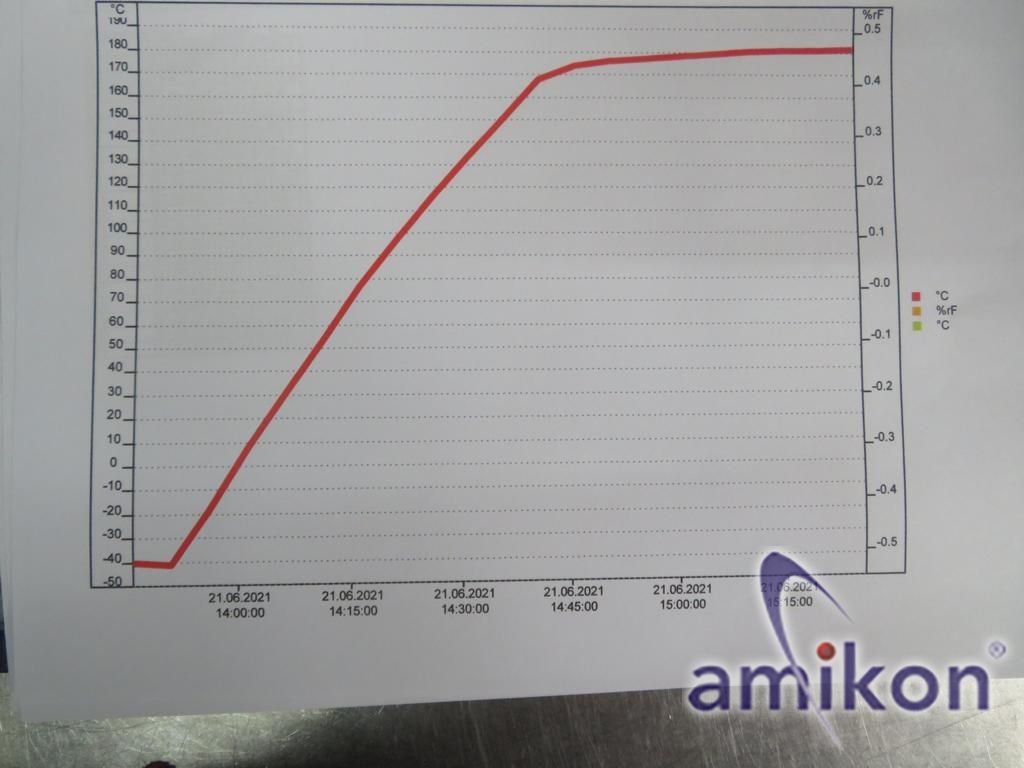

3. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

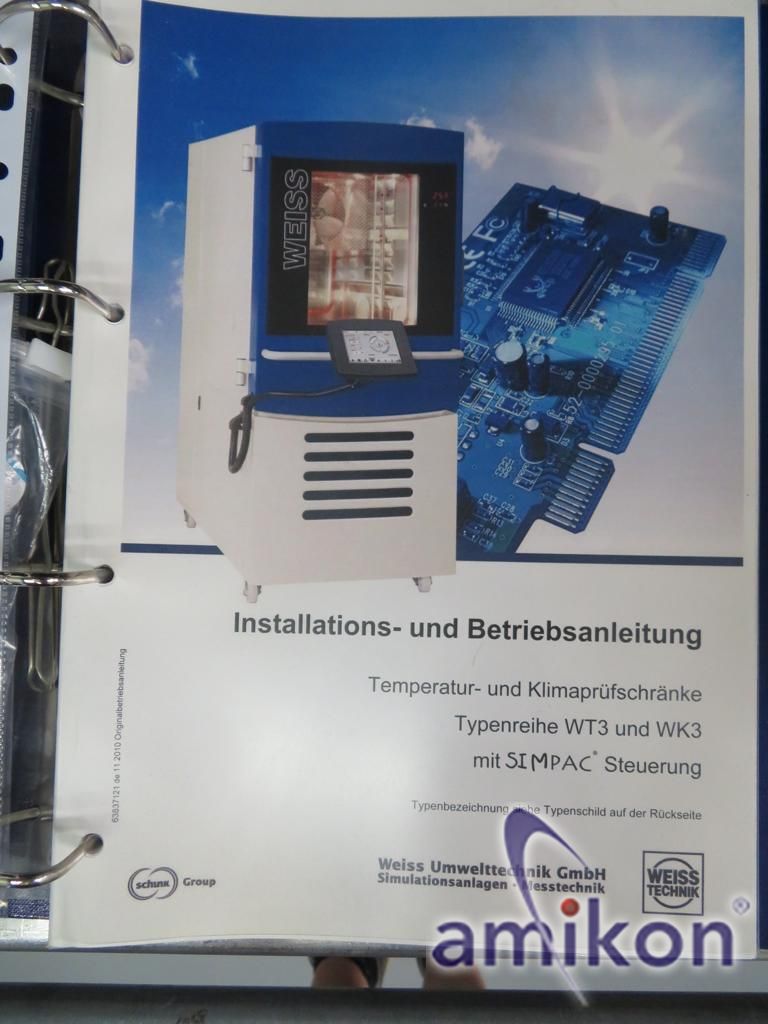

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)
