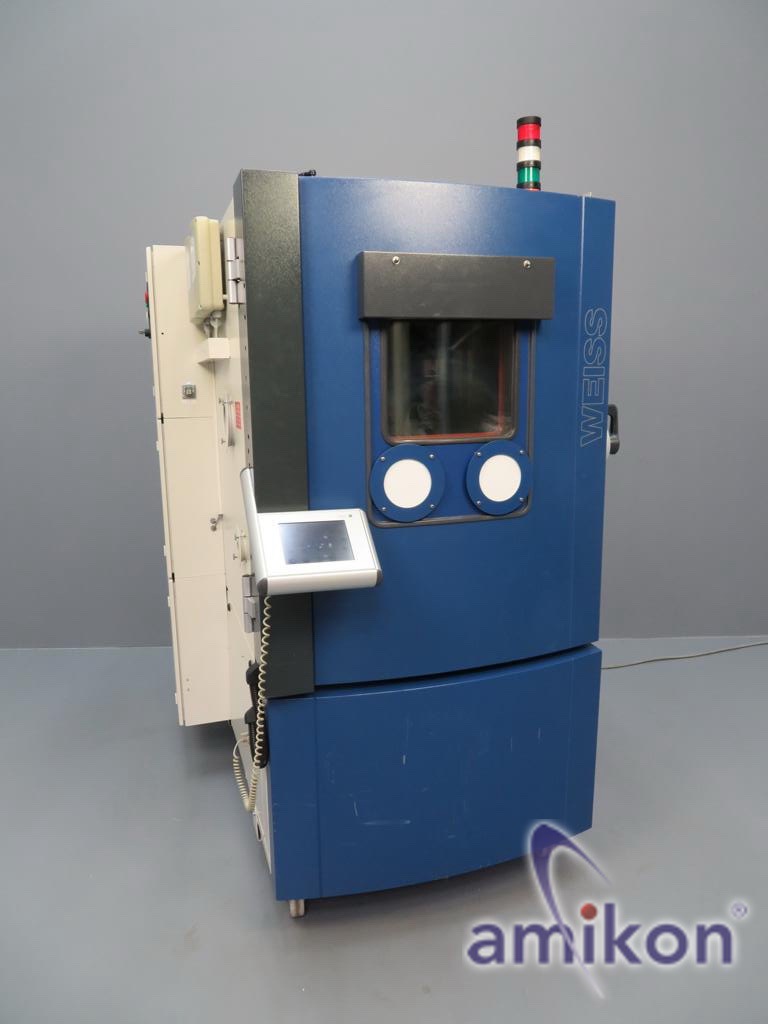

Weiss Climate Cabinet WK-600/70 (I)-(II) 2 G EEx Temp. -70 to 180°C (explosion-proof)

Weiss

Type: WK-600/70 (I)-(II) 2 G EEx /22605147

Weiss Climate ChamberWater-Cooled

(Test chamber explosion-proof)

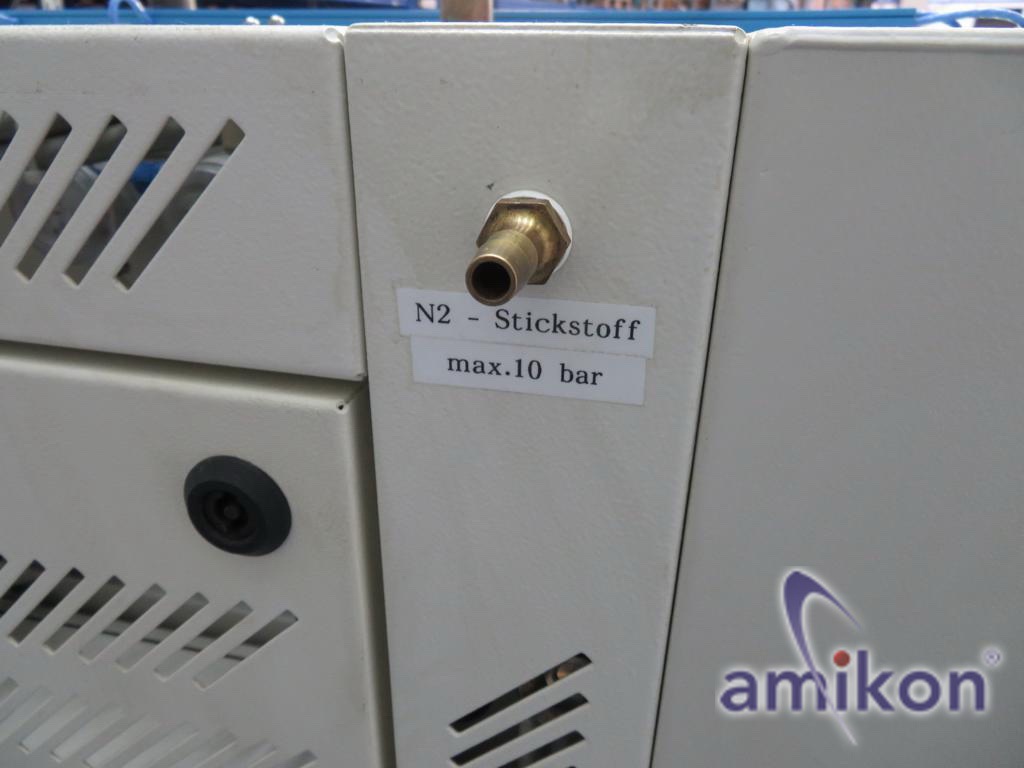

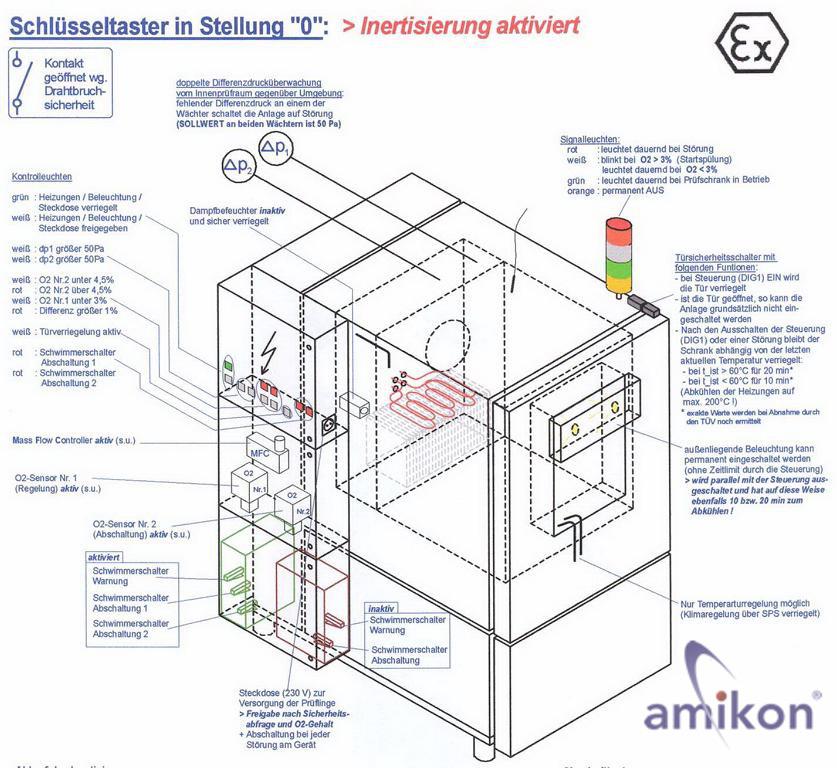

INERTING WITH NITROGEN / EXPLOSION-PROOF TEST CHAMBER

Technical Data:
Test Chamber Designation: WK-600/70 (I)-(II) 2 G EEx

External Dimensions with Hinges and Door Lock
Height 1995 mm, Width 1090 mm, Depth 1660 mm

External Dimensions without Hinges and Door Lock
Height 1995 mm, Width 1000 mm, Depth 1660 mm

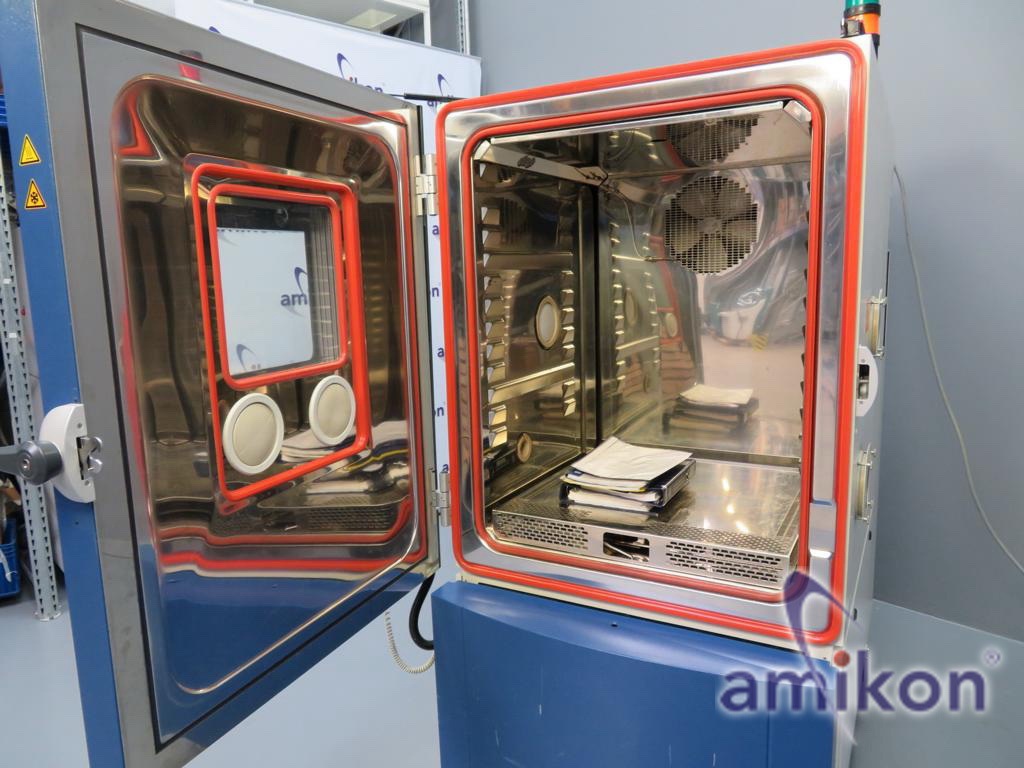

Test Chamber Volume: approx. 600 liters

Cooling / Heating Operation -70 to 180°C

Climate Operation 10 – 95°C
Humidity 10...98 % r. H.
Temperature Change per Time
Cooling approx. 2.5 K/min
Heating approx. 4 K/min

3/N/PE AC 400V ±10% 50Hz
Rated Power: 14 kW
Rated Current: 25 A
On-site Fuse: 32 A slow
Permissible Test Load Weight
Total Load of the Grate Supports 80 kg

Test Chamber Floor 80 kg, Insert Grate 40 kg

Weight: 800 kg

Refrigerant: R 404A/R 23

(Evaporator of the air conditioning system has been renewed)

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. If necessary, new filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a documented test run.

Condition: used

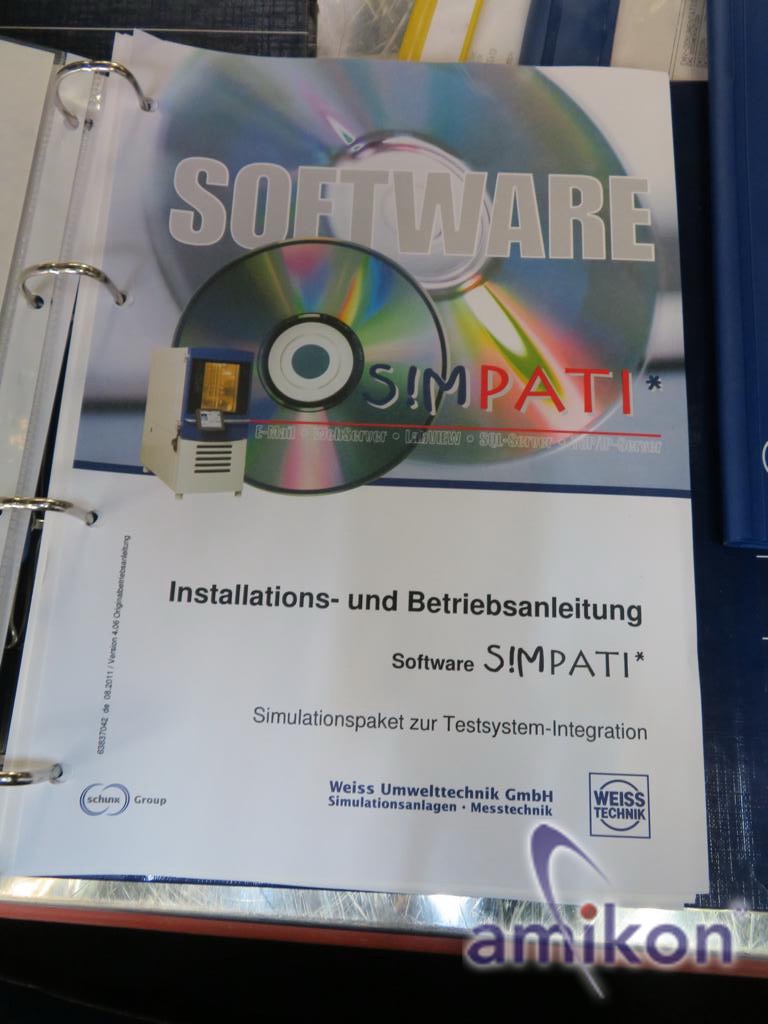

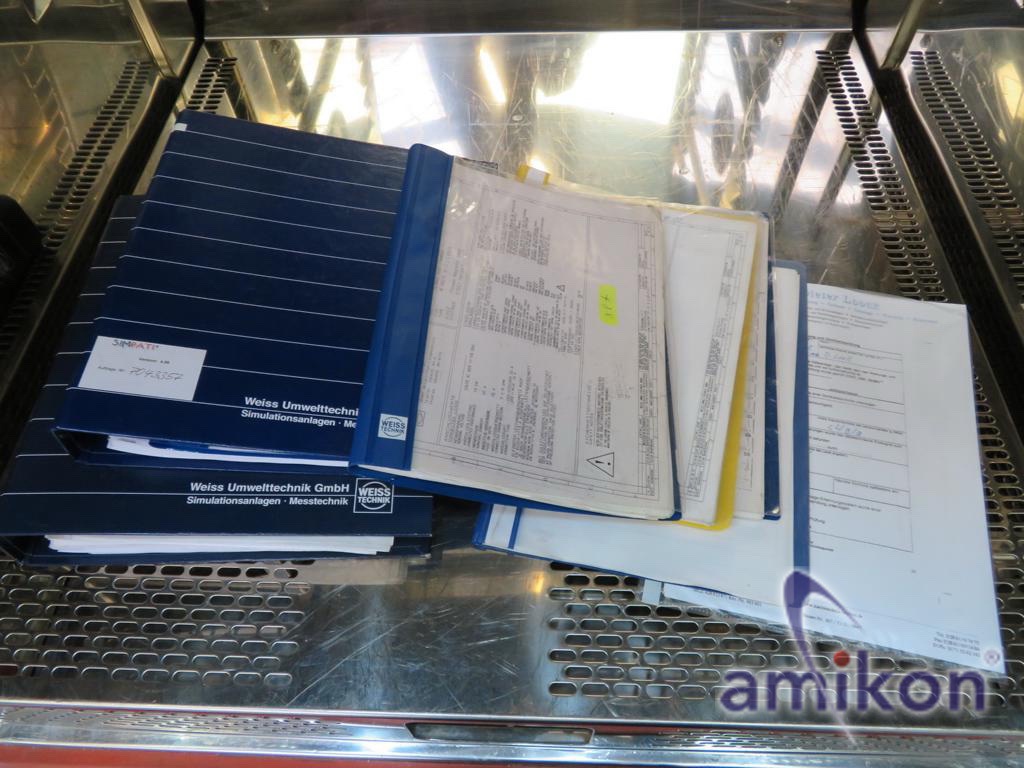

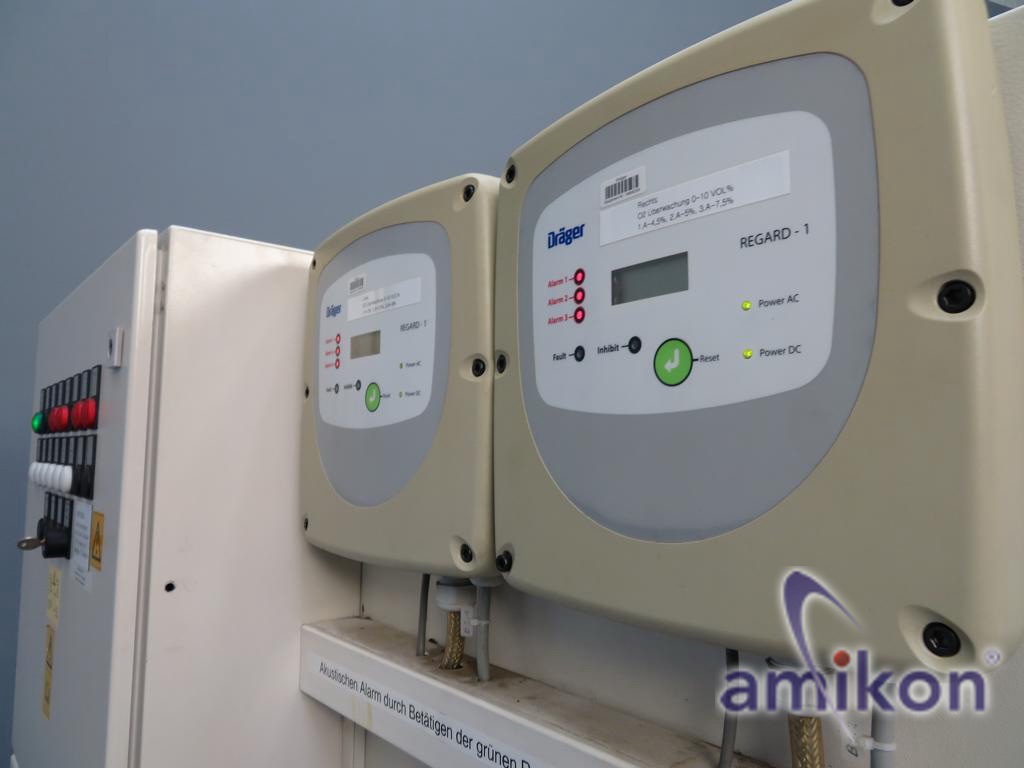

Scope of Delivery: (See Image)

(Changes and errors in the technical data, specifications are reserved!)

We are happy to answer any further questions by phone.
