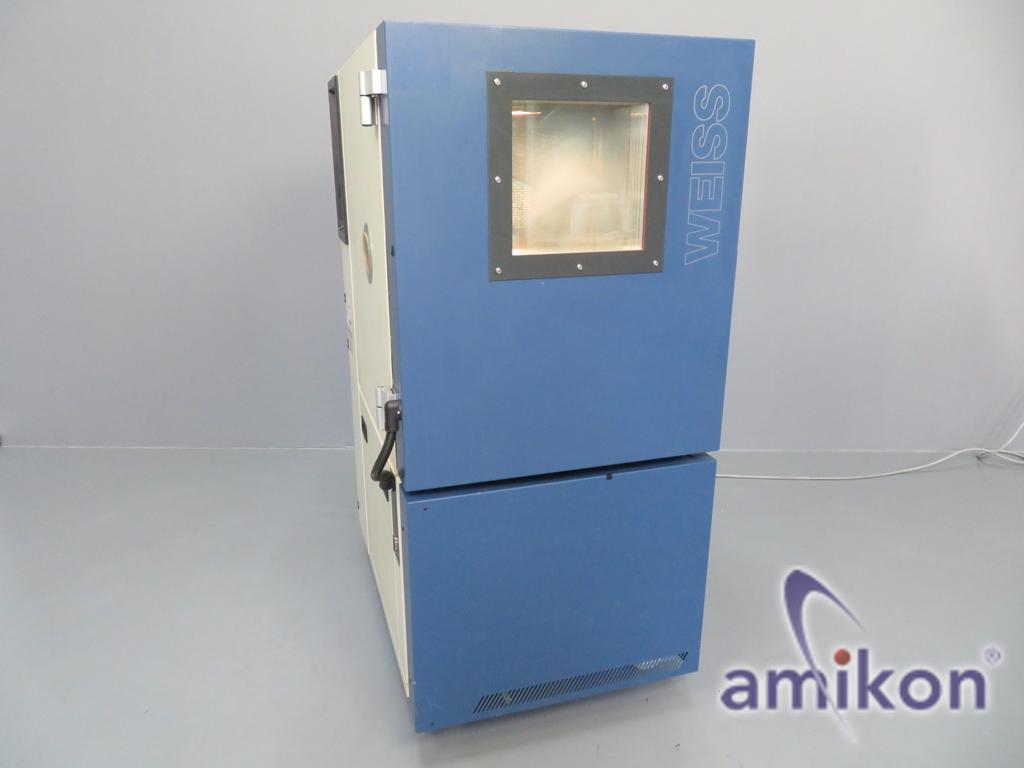

Weiss Climate Cabinet SB22/160/40 160 Liters -40°C to 180°C with Humidity

Weiss Climate Chamber

Here we offer a Weiss climate chamber.

Air-cooled

Technical Data:
Test Chamber Designation: SB22/160/40

External dimensions with hinges and door lock
Height 1670 mm, Width 870 mm, Depth 1135 mm

External dimensions without hinges and door lock
without hinges and door lock
Height 1670 mm, Width 800 mm, Depth 1135 mm

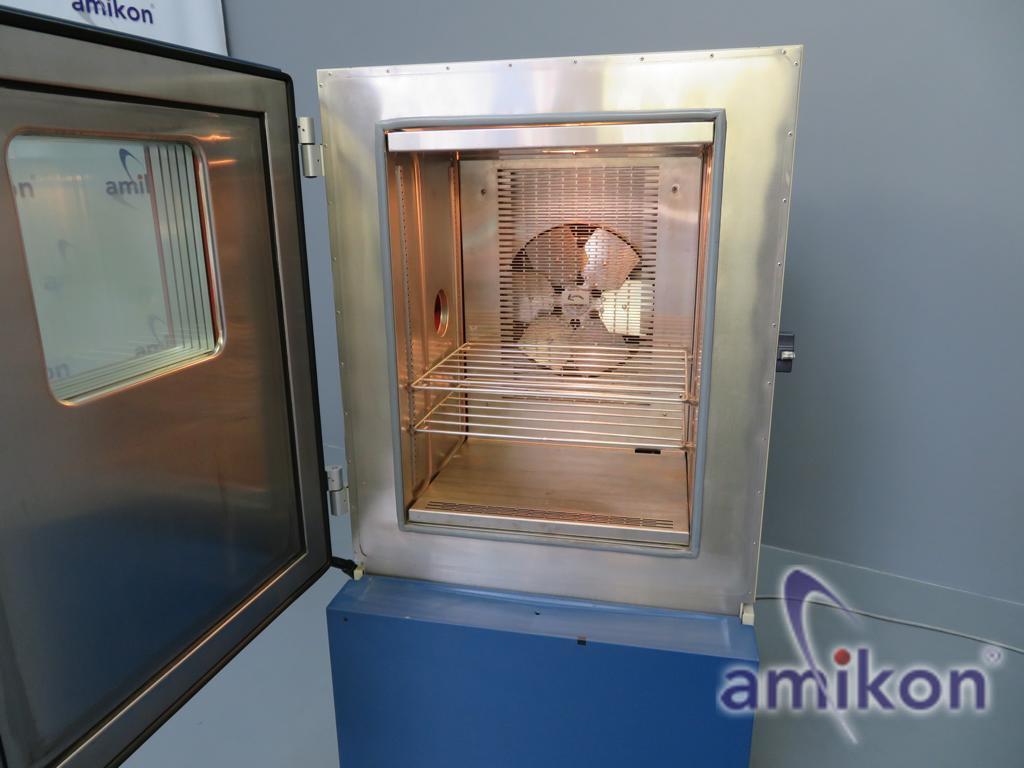

Test chamber dimensions Height 670 mm, Width 540 mm, Depth 430 mm

Cooling / Heating Operation -40°C to 180°C

Climate operation 10°C – 95°C
Humidity 10...98 % r. H.
Temperature change per time
Cooling down approx. 3.1 K/min
Heating up approx. 3.3 K/min

Connection value 4.8 kVA
Plug type CEE 16A
Heat output to the environment average 1.8 kW
Heat output to the environment maximum 3.3 kW

400V/3 Ph + N + PE / 50 Hz (+6% / -10%)
Sound pressure level 58 dB(A)

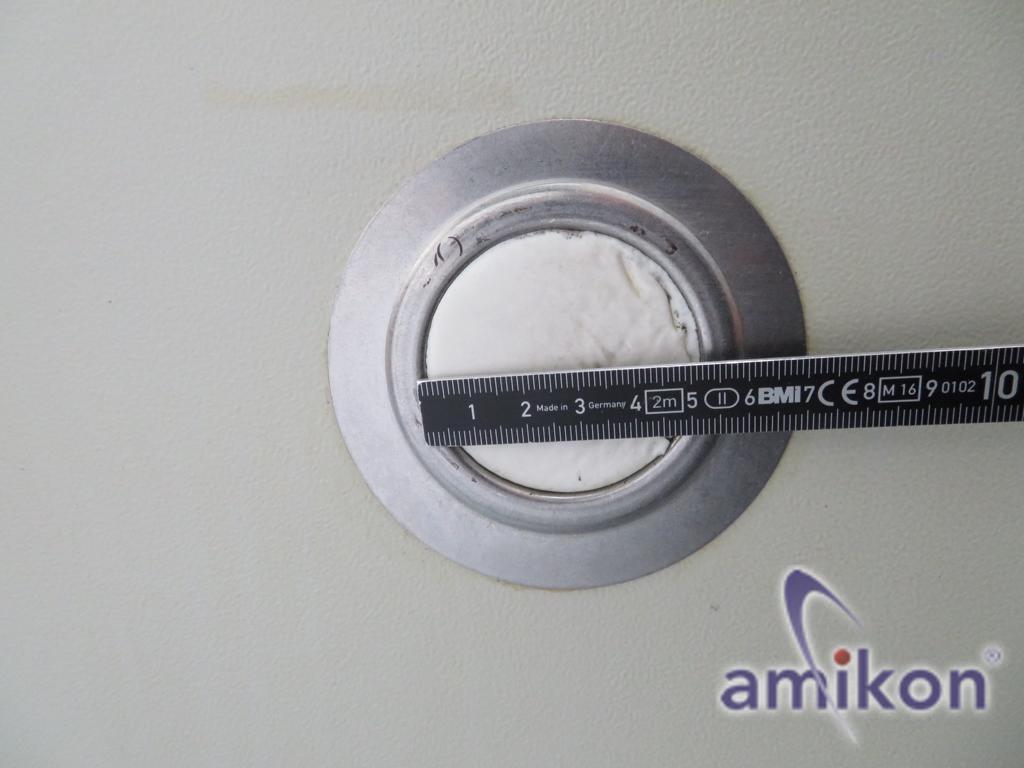

Pass-through 50 mm
Permissible test load weight
Total 150kg, Base plate 35kg, Insert rack 35kg

Weight: 320 kg

Type: SB22/160/40

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

We would be happy to answer any further questions by phone.
