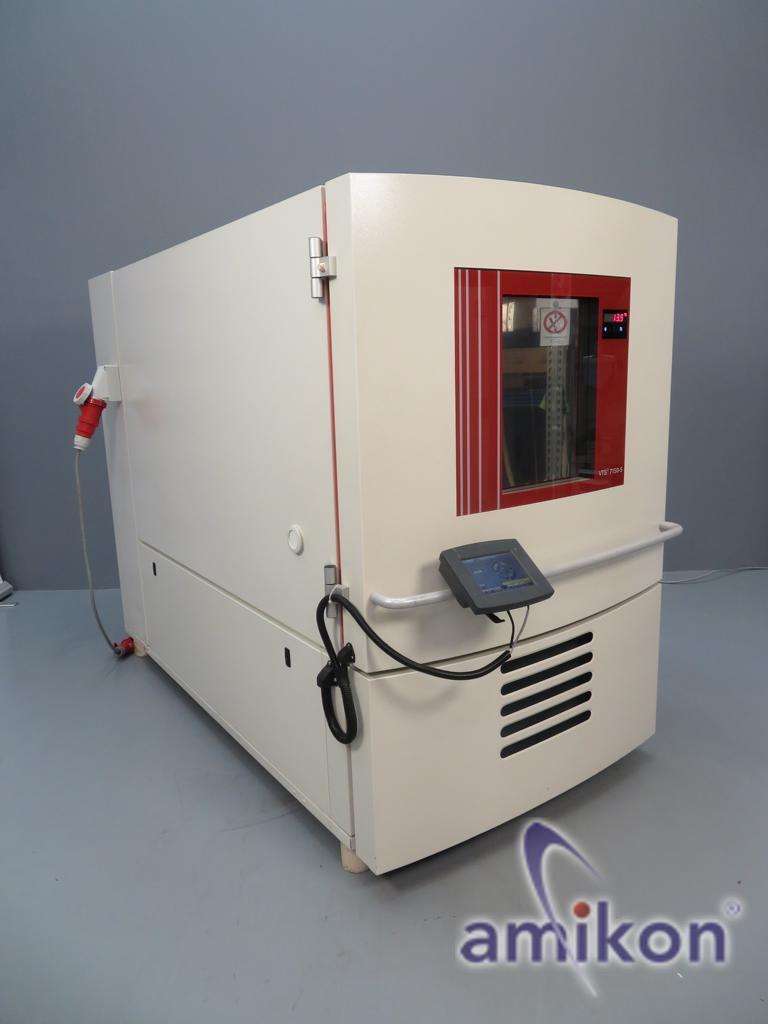

Vötsch Temperature Testing Chamber 1540 Liters Temp. -72°C to + 180°C VTS³ 7150-5-S

Heraeus Vötsch Temperature Test Chamber

Here we offer you a Heraeus Vötsch temperature test chamber.

Heraeus Vötsch Temperature Test Chamber Water-Cooled

Designation VTS³ 7150-5-S

Performance Data:

With temperature change rate of 5 K/min

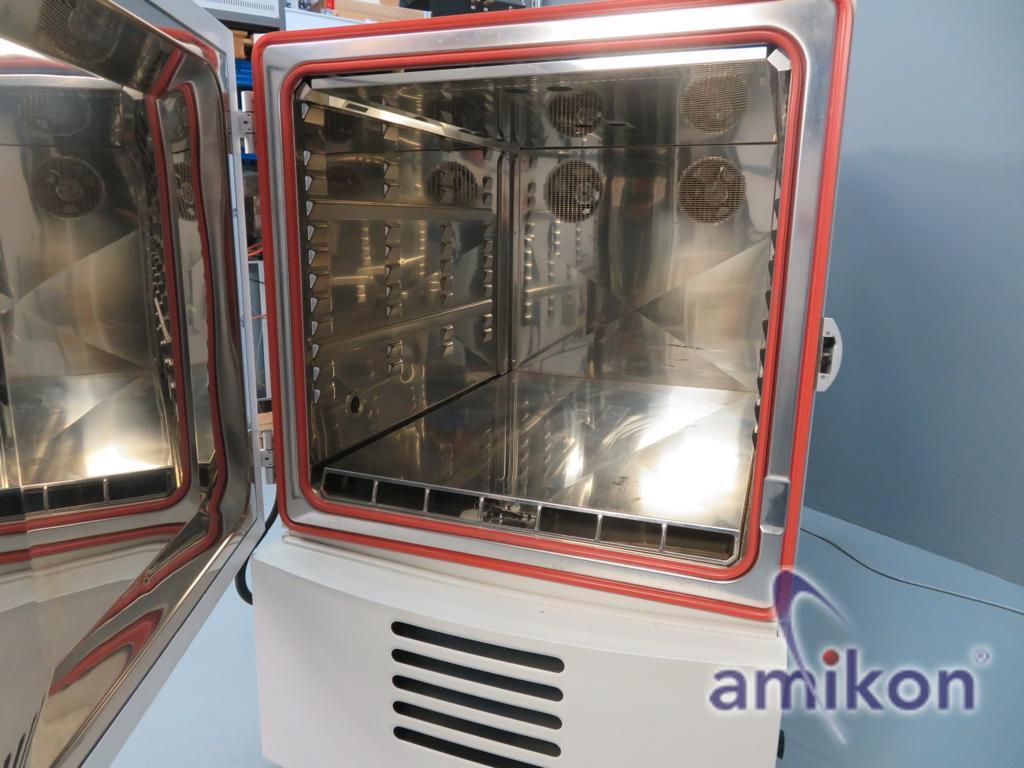

Test chamber dimensions Height 950 mm Width 1100 mm Depth 1475 mm

External dimensions Height 2000 mm Width 1415 mm Depth 2566 mm

Temperature range -72°C to +180°C

Temperature deviation over time ± 0.1 to ± 0.5

Temperature homogeneity spatially ± 0.5 to ± 2.0

Temperature change rate Cooling 5.0 K/min

Temperature change rate Heating 6.0 K/min

Heat compensation 5000 W

Test volume: 1540 liters

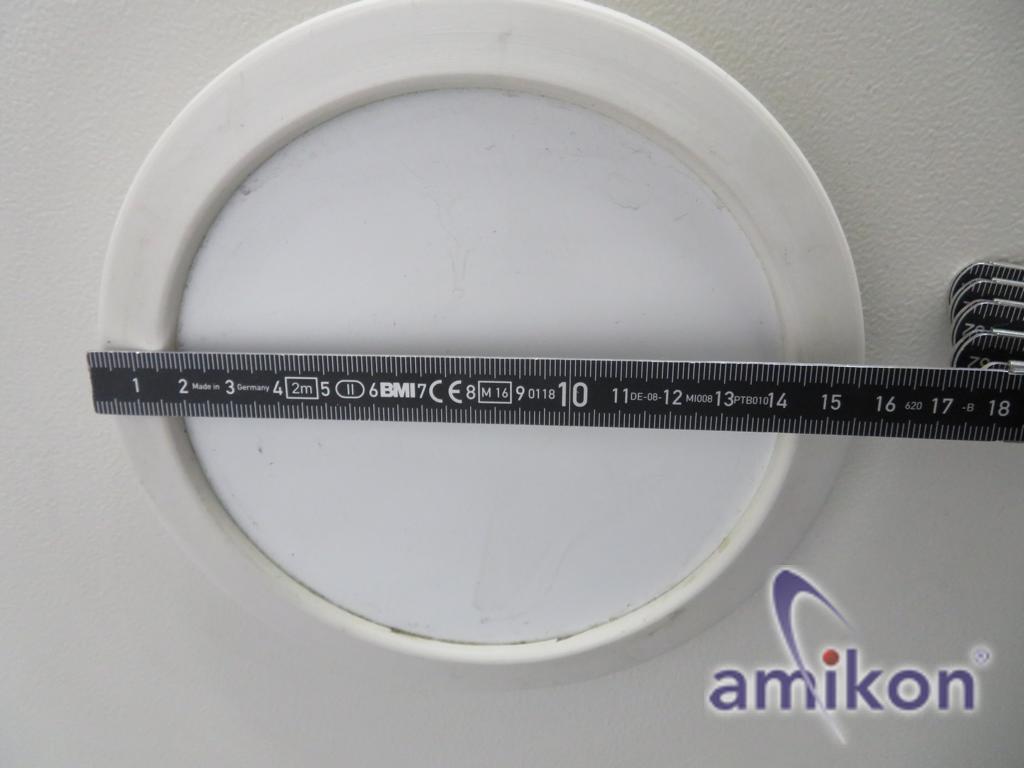

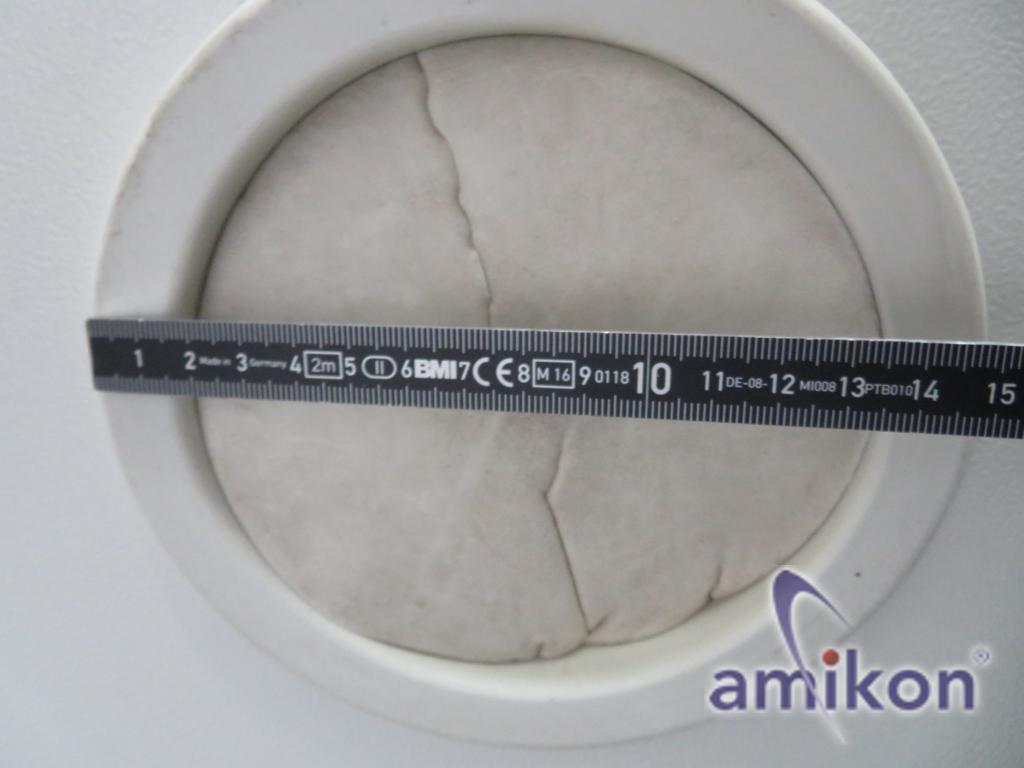

2x side openings ∅ 125 cm

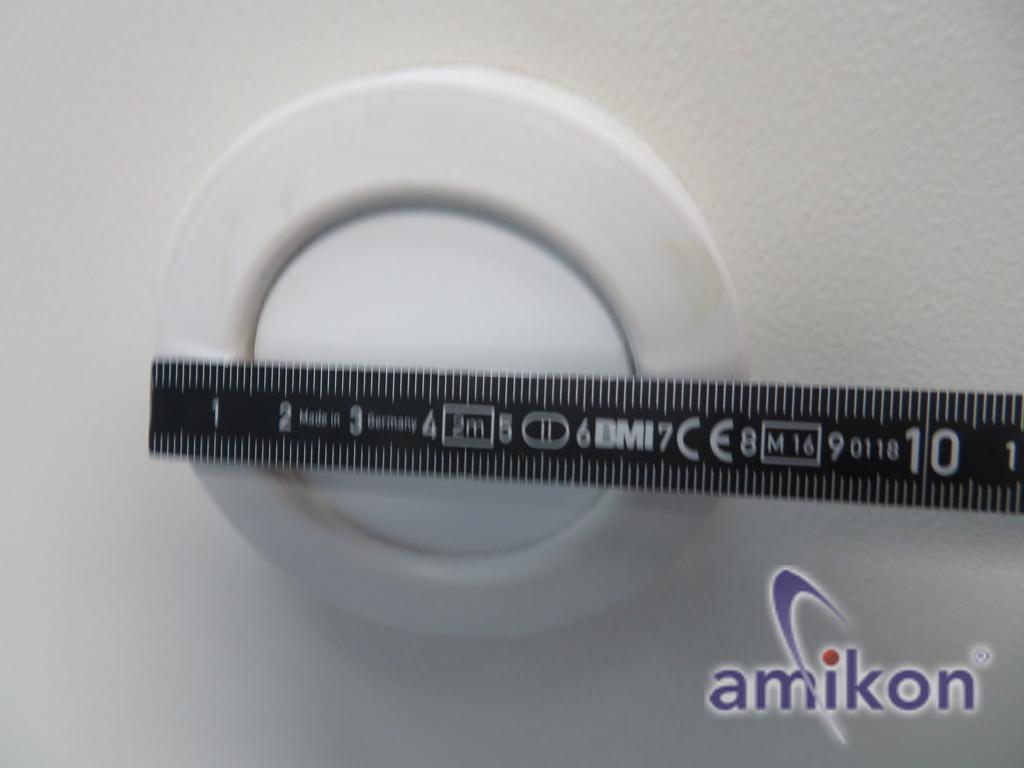

1x side opening ∅ 50 cm

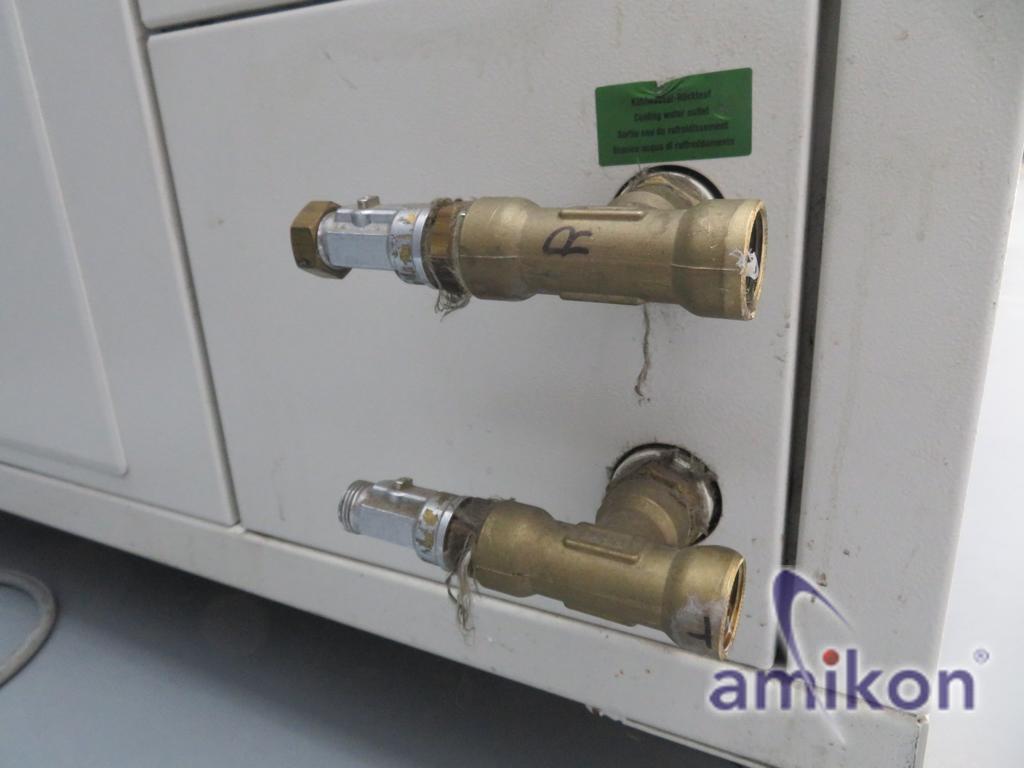

Chamber is water-cooled

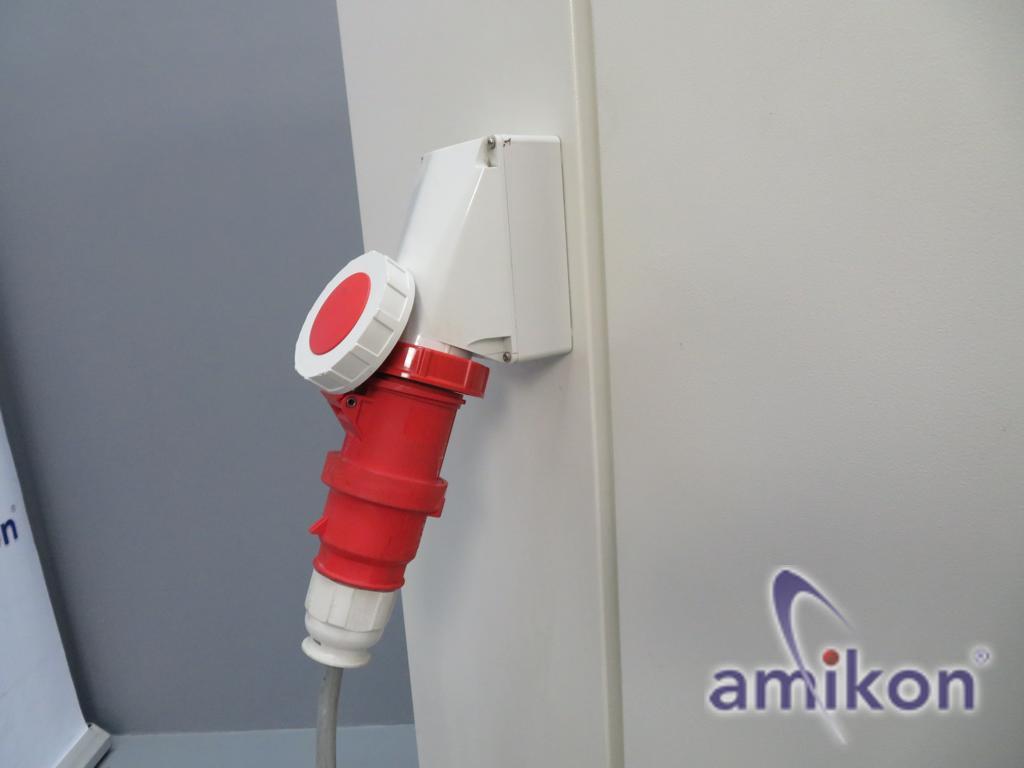

Electrical connection:

Nominal voltage: 3/N/PE AC 400V ±10% 50Hz

Nominal power: 28 KW

Nominal current: 49 A

Refrigerant: R 404A and R 23

Weight: approx. 1300 kg net

Type: VTS³ 7150-5-S / 10010

For you as a buyer, the following information for your safety!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

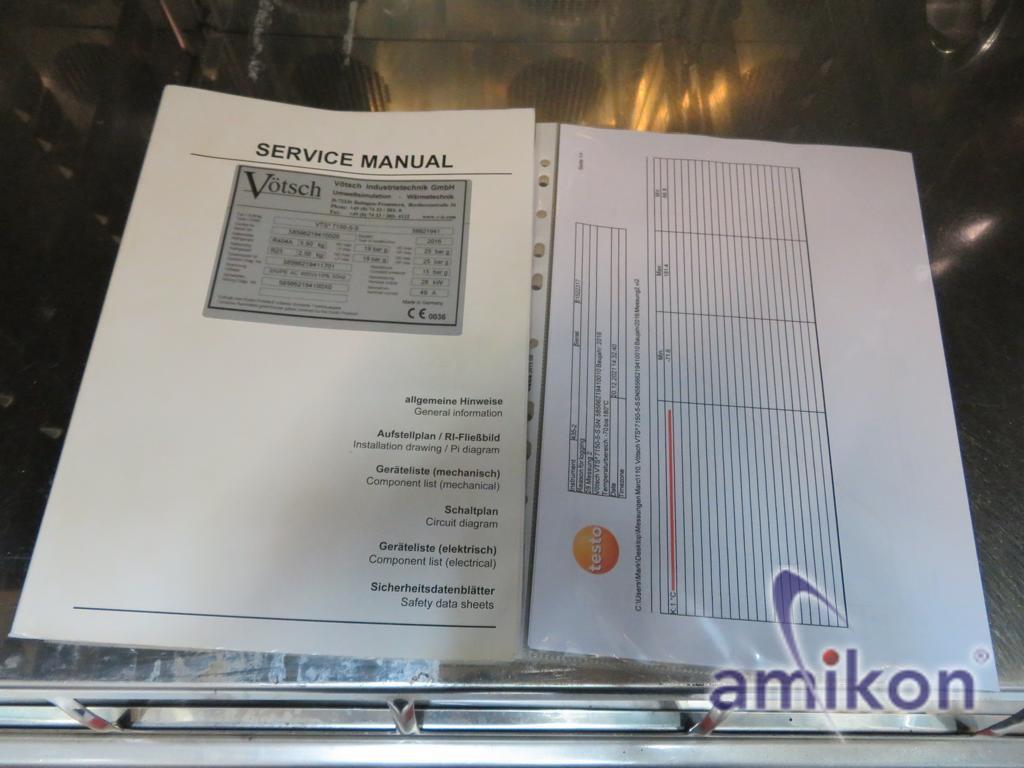

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We would be happy to answer any further questions by phone.
