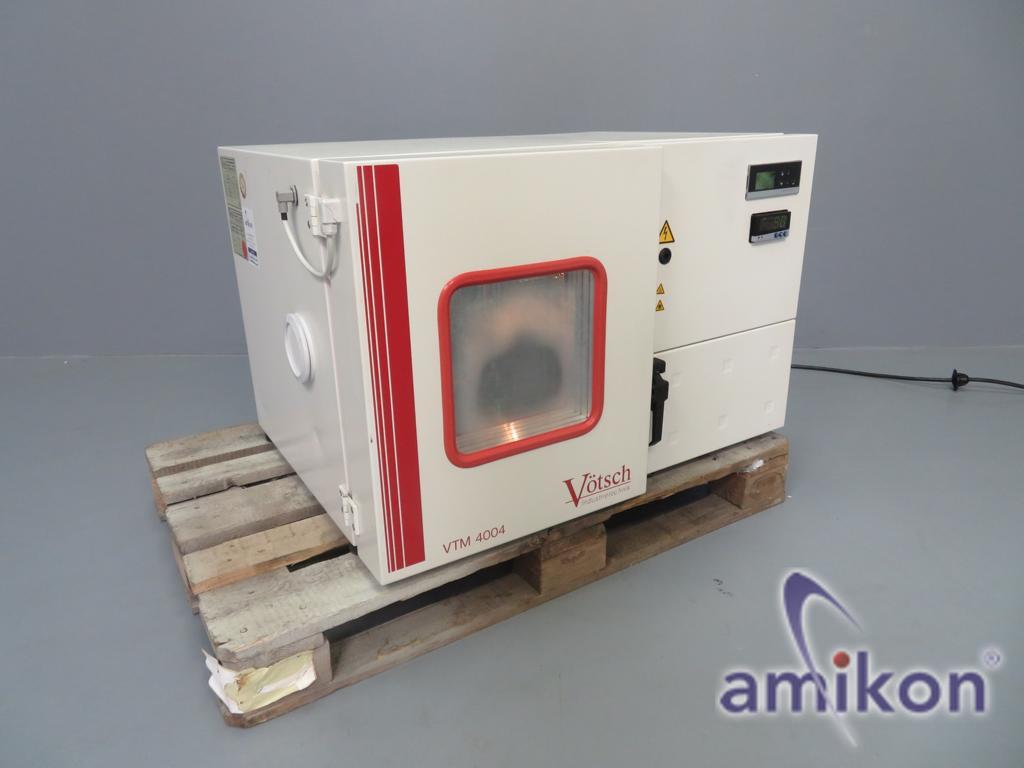

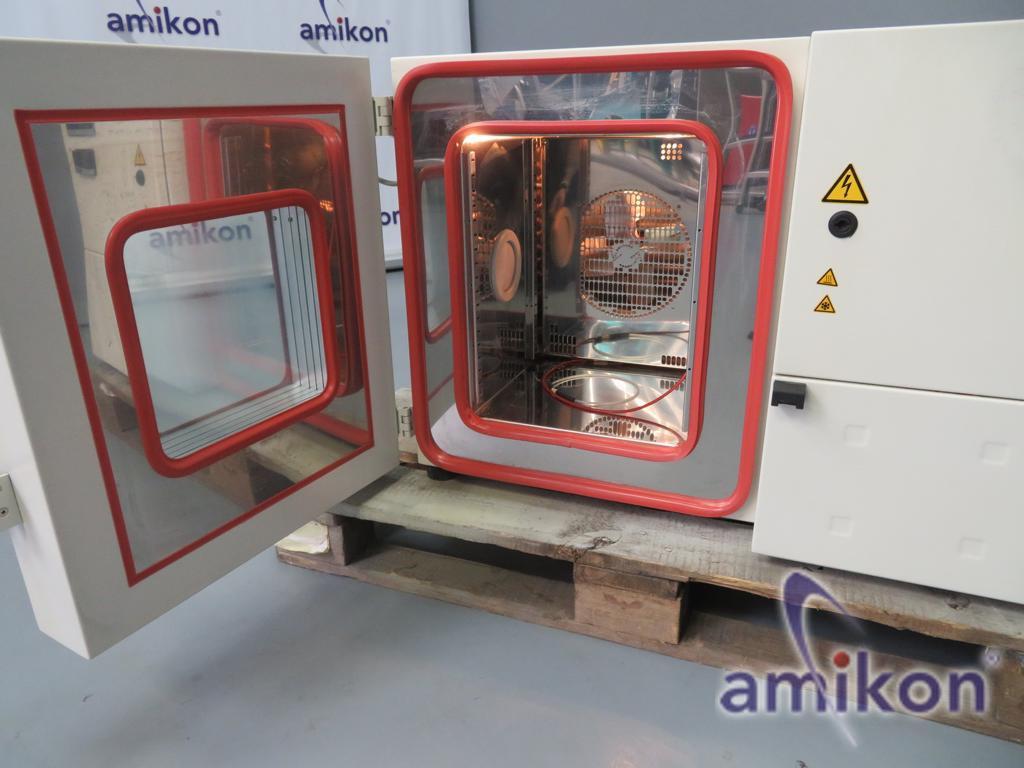

Vötsch Temperature Test Chamber 37 Liters Temperature Range -40°C to +180°C VTM 4004

Vötsch Temperature Test Chamber

Here we offer you a Vötsch Temperature Test Chamber .

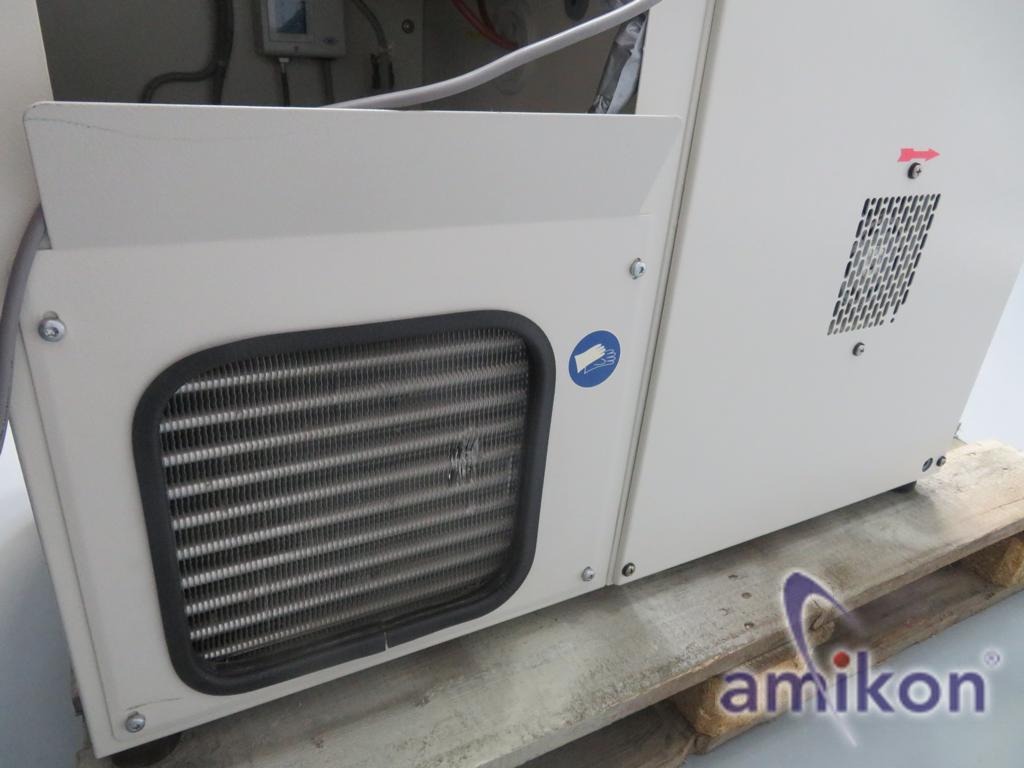

Air-cooled

Test chamber volume 37 liters

External dimensions: Width 1000 mm x Depth 780 mm x Height 630 mm

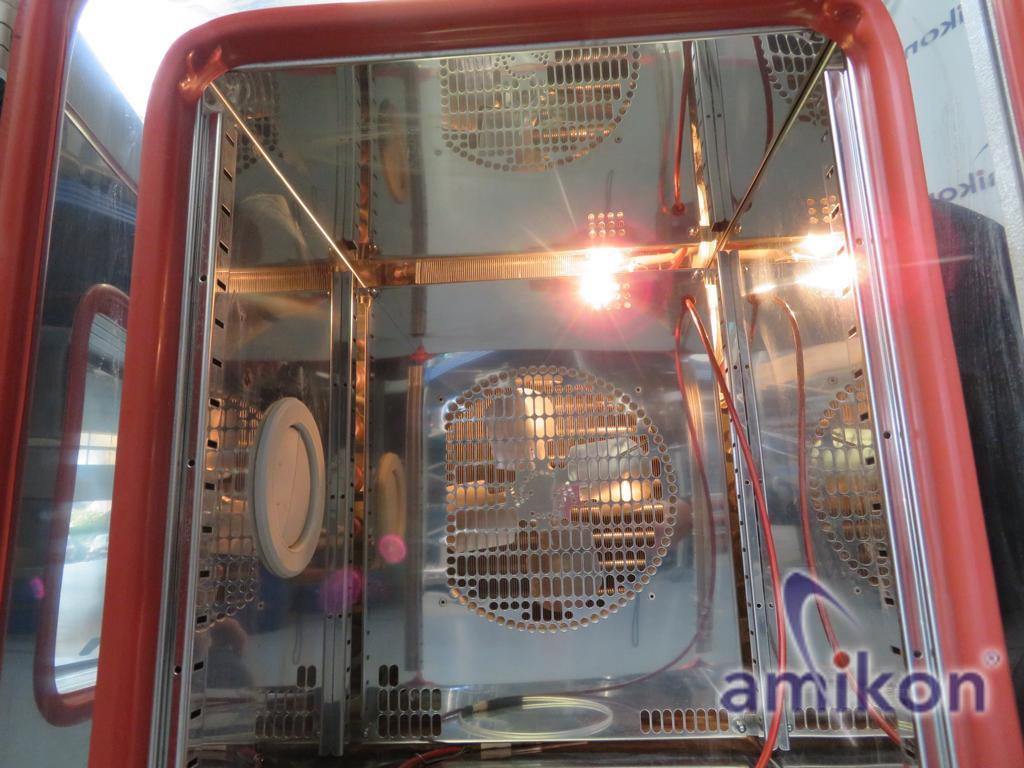

Internal dimensions: Width 320 mm x Depth 290 mm x Height 400 mm

Temperature range -40°C to +180°C

Temperature fluctuations over time in the center of the usable space ± 0.2 to ± 0.5 K

Spatial temperature deviation ± 0.5 to ± 1.5 K

Nominal voltage: 1N/PE AC 230 V ±10% 50 Hz

(corresponds to temperature gradient) (1 to 3)

Rate of temperature change

Heating 5.3 K/min

Cooling 6 K/min

Nominal power 0.7 kW Nominal current 4 A

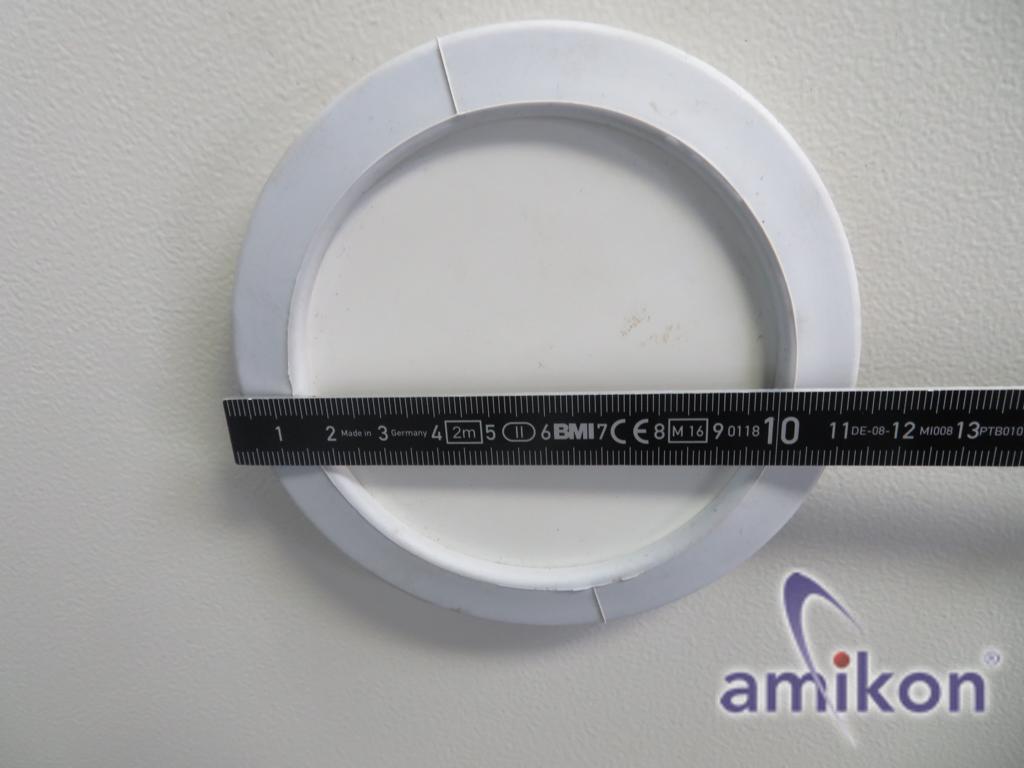

Pass-through Ø80mm

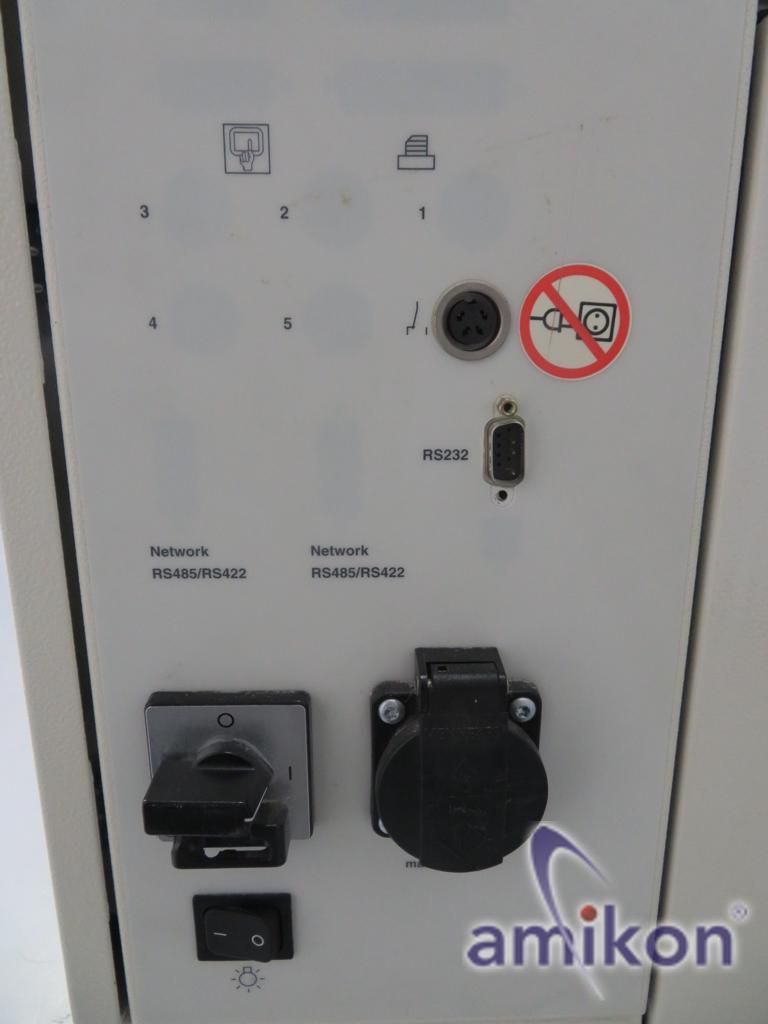

Interface: RS232

Refrigerant R404A

Weight 115 kg

For you as a buyer, the following information for your safety!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Type: VTM 4004 / 58566070420010

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We would be happy to answer any further questions by phone.
