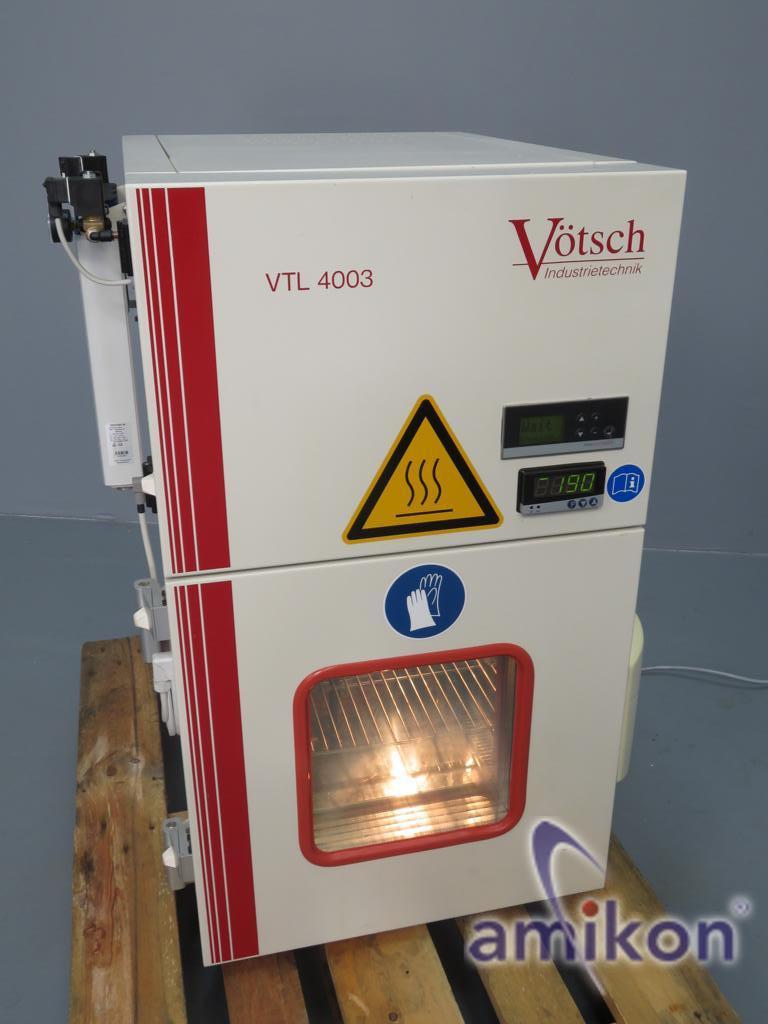

Vötsch Temperature Chamber VTL 4003 -40°C to +180°C 34 Liters

Vötsch Temperature Chamber

Here we offer you a Vötsch temperature chamber.

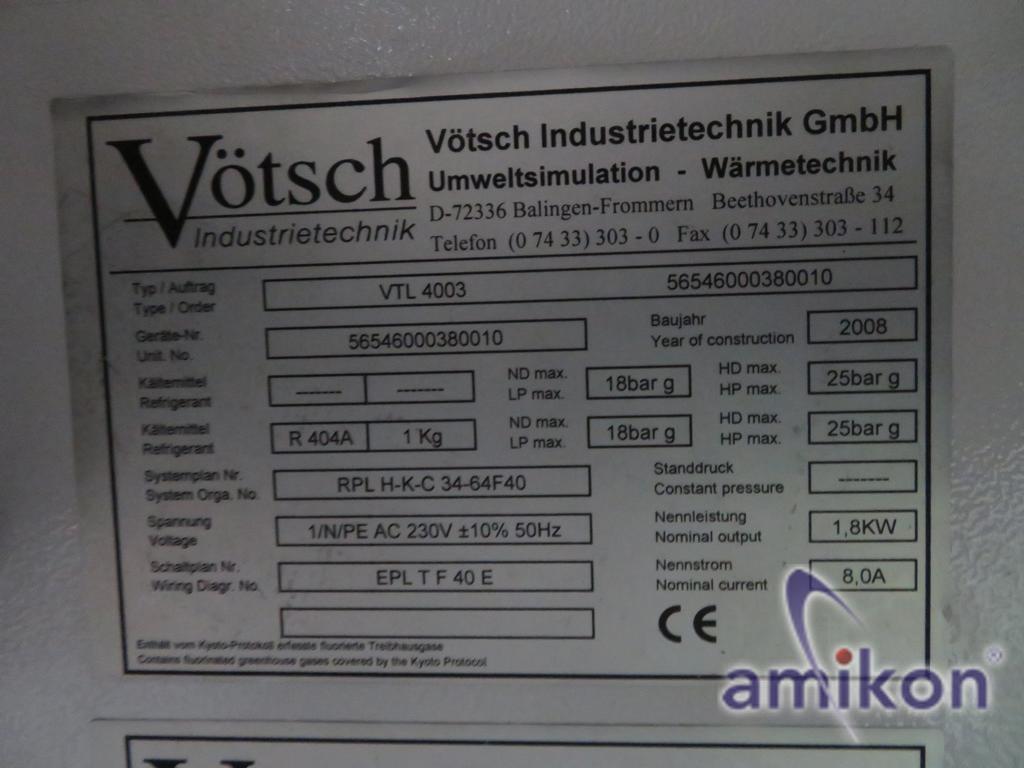

Technical Data:

General Data:
Temperature Testing Chamber VTL 4003
Test chamber volume approx. 34 liters
Weight 110 kg

Data for Mechanical Load
Maximum load (evenly distributed over the surface)
of the test chamber floor 10 kg
per shelf 10 kg
Total load of the shelf supports 50 kg

Operating Data
Test chamber lighting Halogen bulb 12V, 20W
Nominal voltage 1/N / PE AC 230 V ± 10 % 50 Hz
Nominal power 1.8 kW
Nominal current 8.0 A

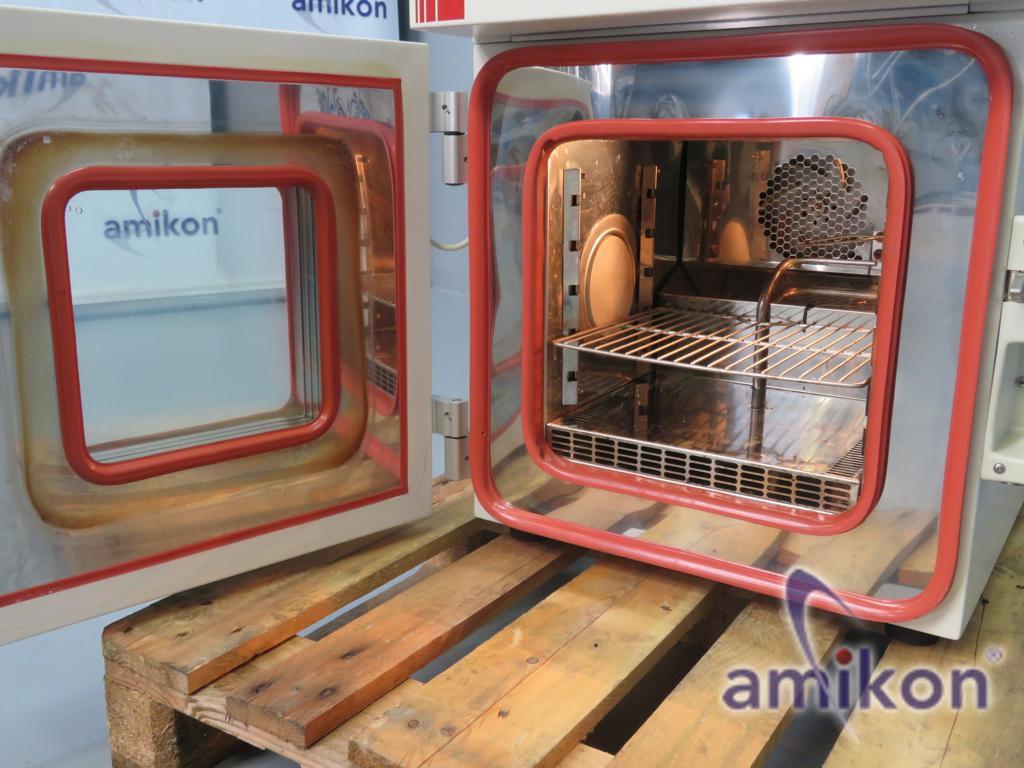

Internal dimensions (D x W x H) 300 x 350 x 310 mm
Dimensions (L x W x H) 640 x 930 x 980 mm

Weight: 110 kg

Refrigerant: R 404A

Type: VTL 4003

For your safety as a buyer, the following information!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

We are happy to answer any further questions by phone.
