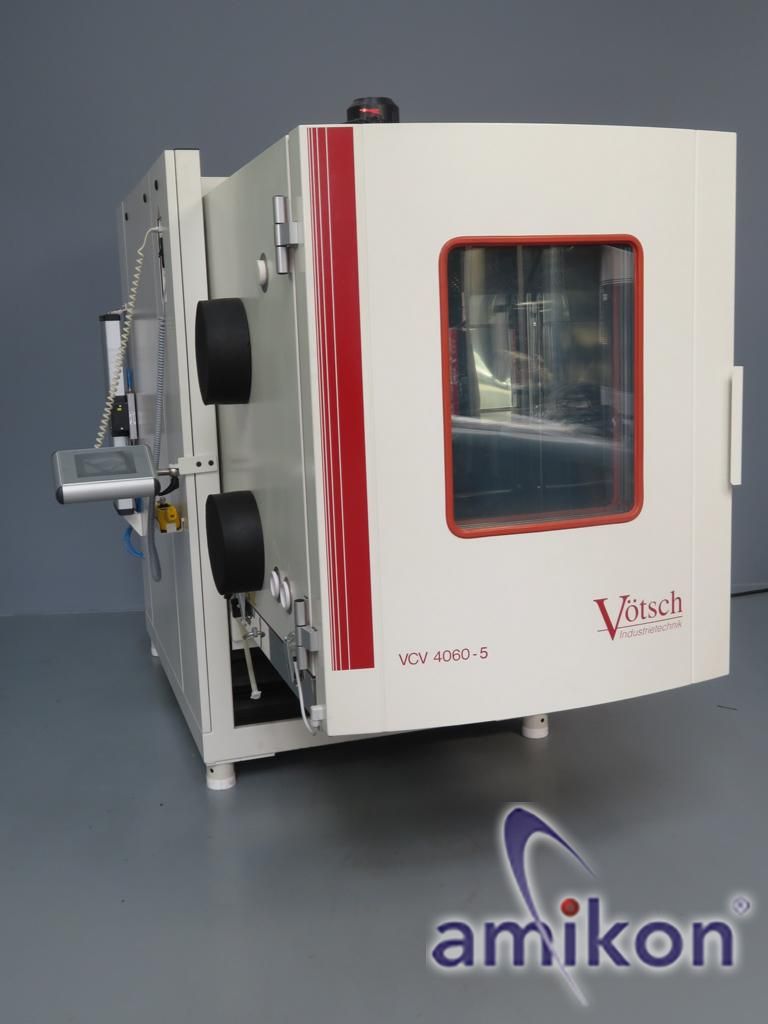

Vötsch Climate Test Chamber for Vibration Testing VCV 4060-5/S -40°C to +180°C

Vötsch Climate Test Chamber

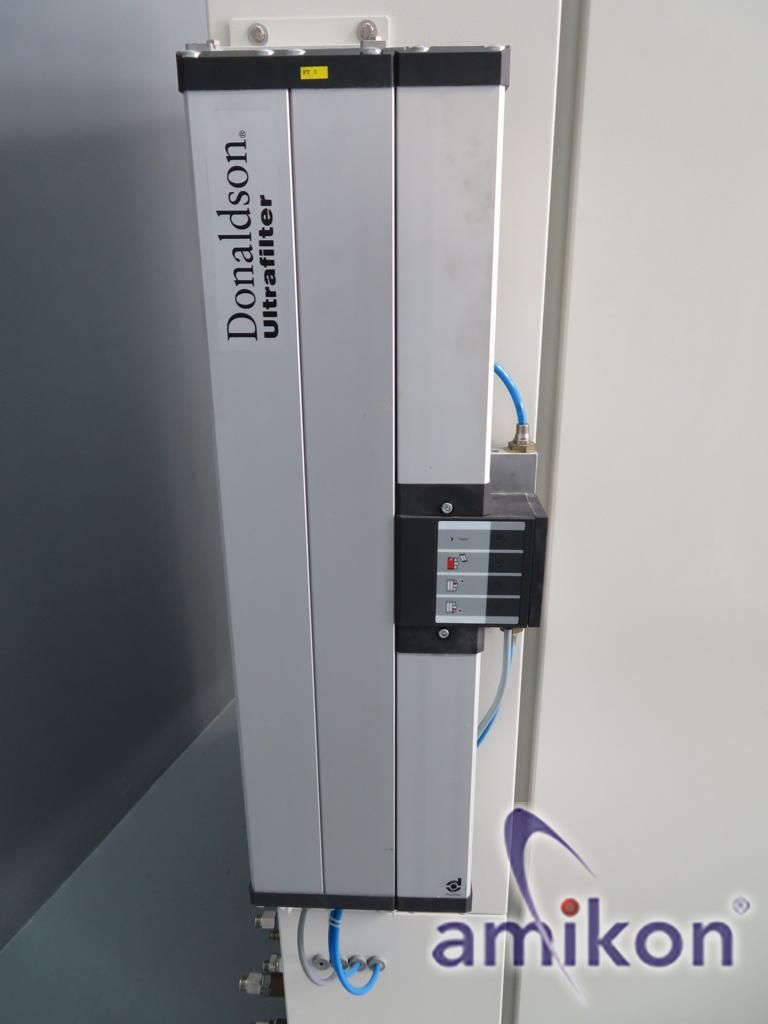

Here we offer you Vötsch Climate Test Chamber + Donaldson Ultrafilter.

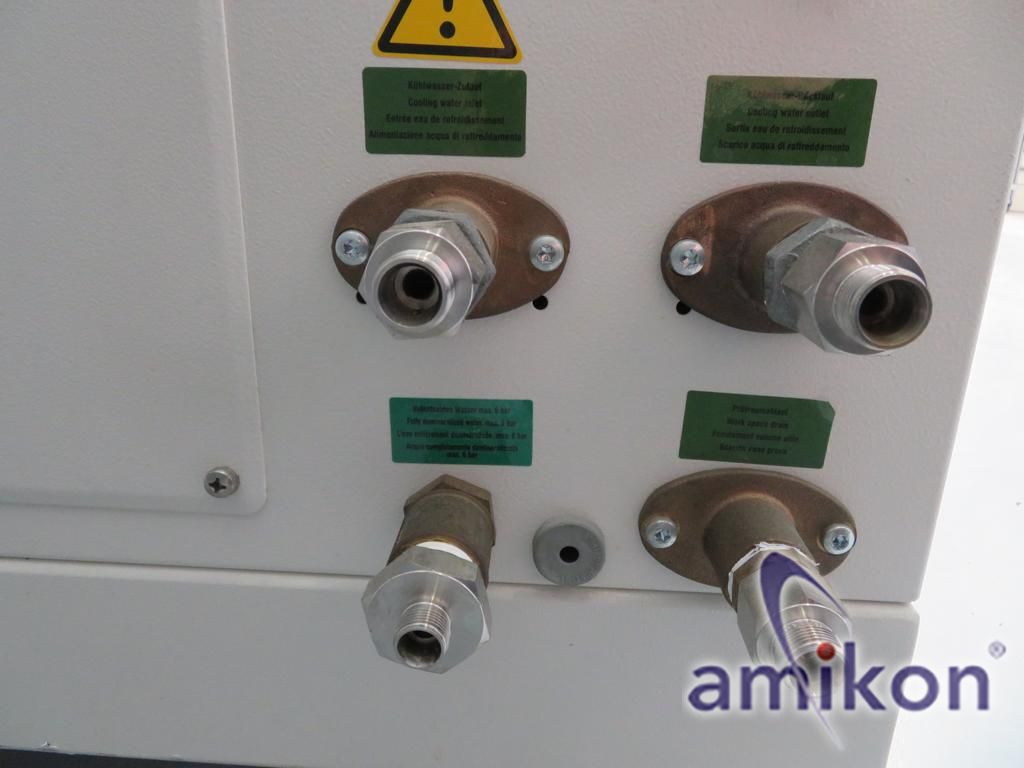

Water-cooled

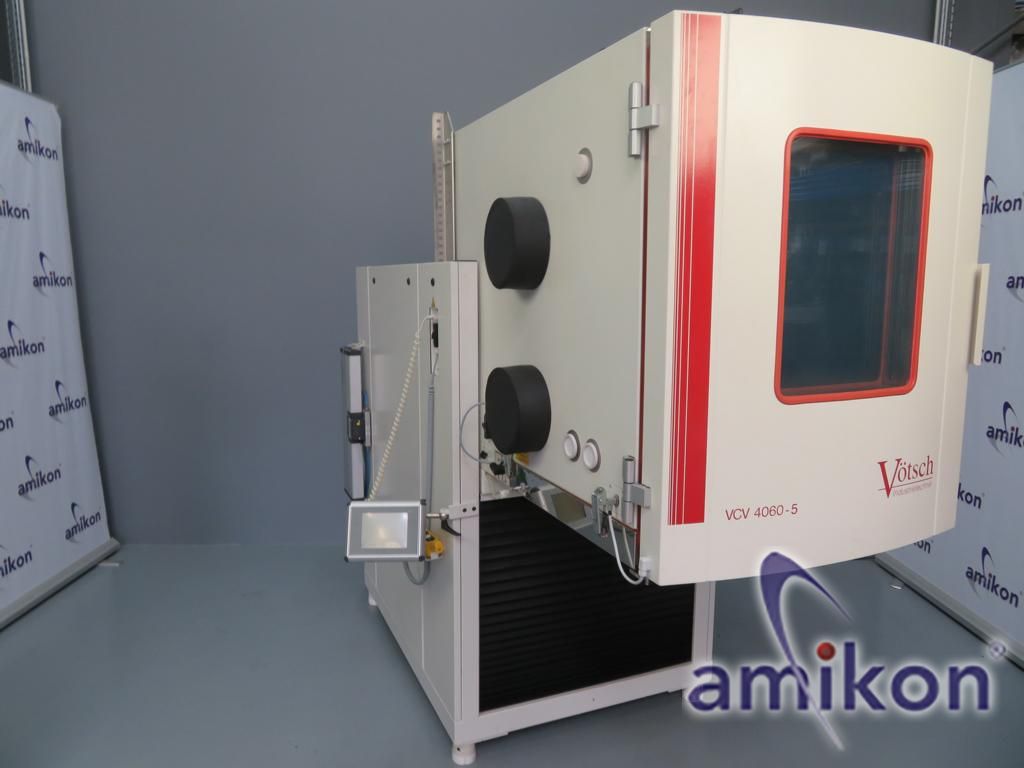

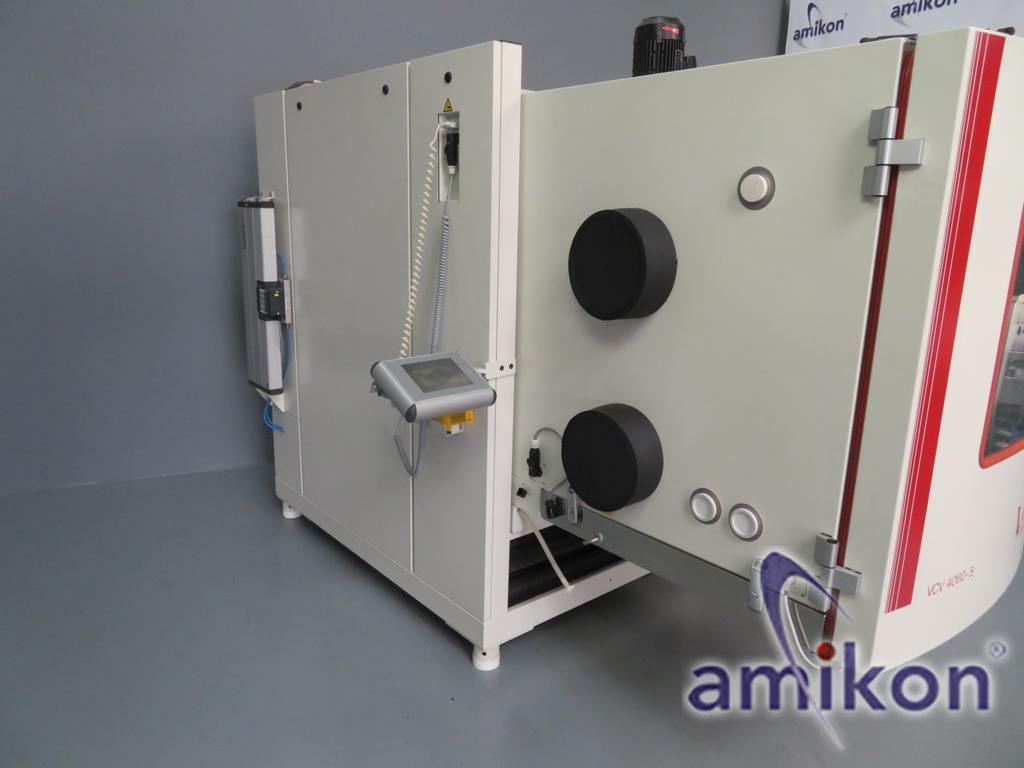

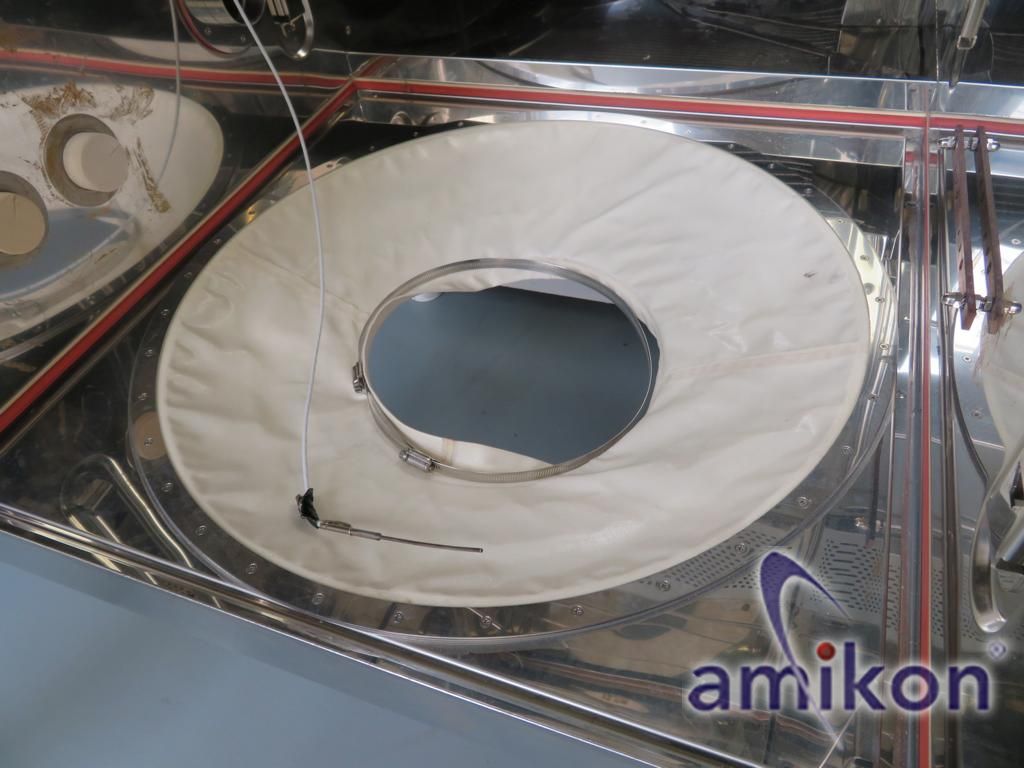

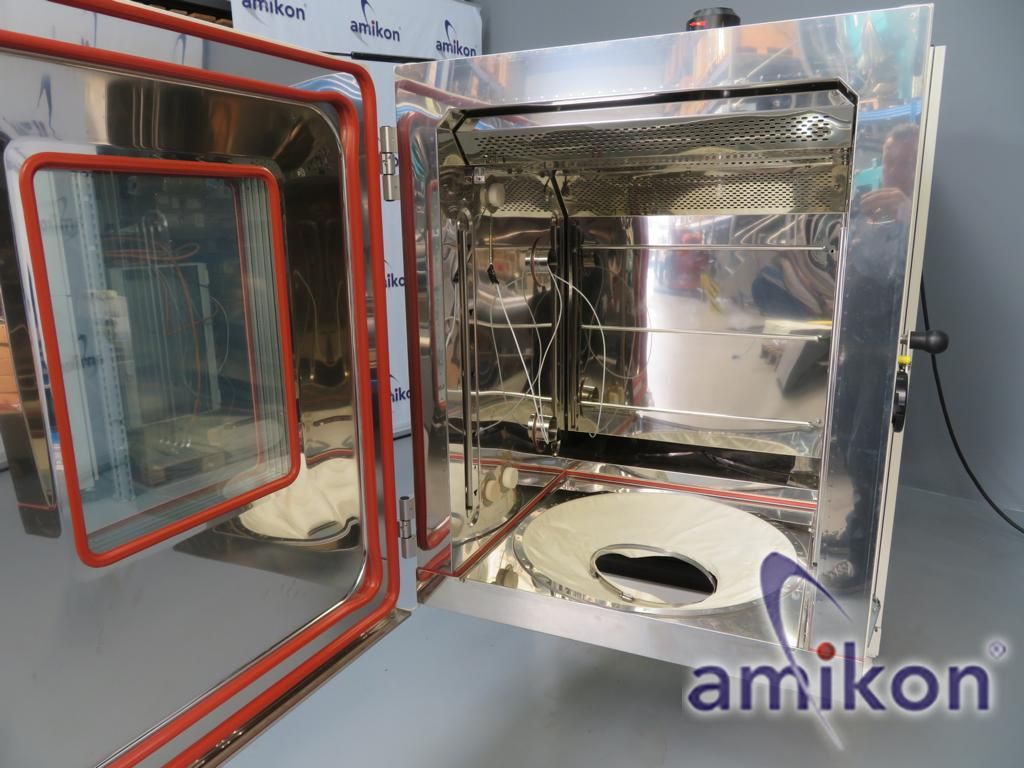

 Vötsch Climate Test Chamber with chamber pass-through

for shakers for vibration testing and adjustable height

Water-cooled

Max total height: 2850mm
Min total height: 2130mm

Max height under the test chamber: 1340mm
Min height under the test chamber: 620mm

Total length of the system: 2691mm
Total width: 1223mm

Installation length: 4740mm

Nominal voltage: 3/N/PE AC 400V+- 10% 50Hz

Nominal power: 11 kW

Nominal current: 18 A

Temperature testing:

Temperature range: -40°C to + 180°C

Heating 5K/min
Cooling 5.5K/min

Climate simulation:

Temperature range 10°C - 95°C

Humidity range: 10% to 95% r.H.

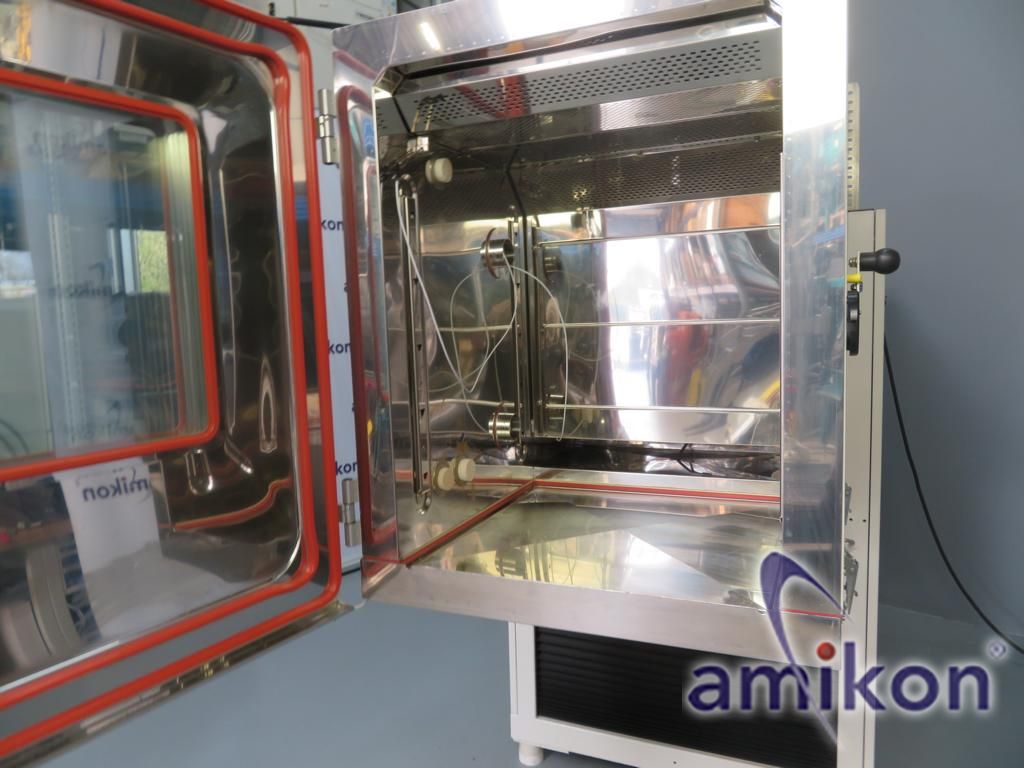

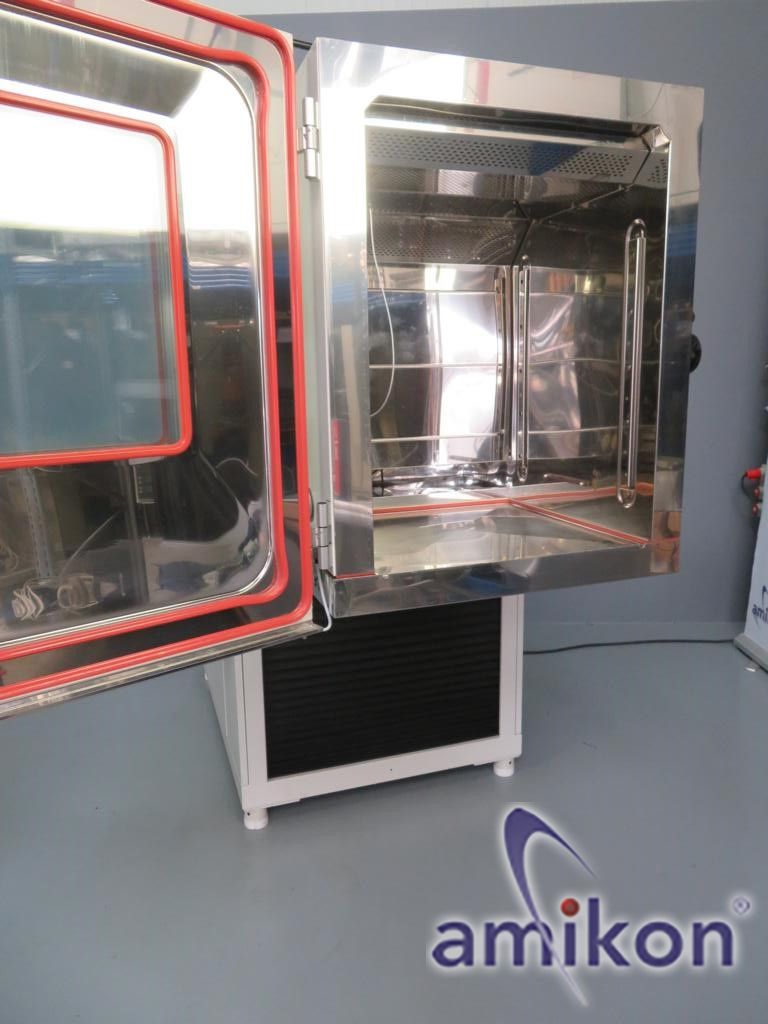

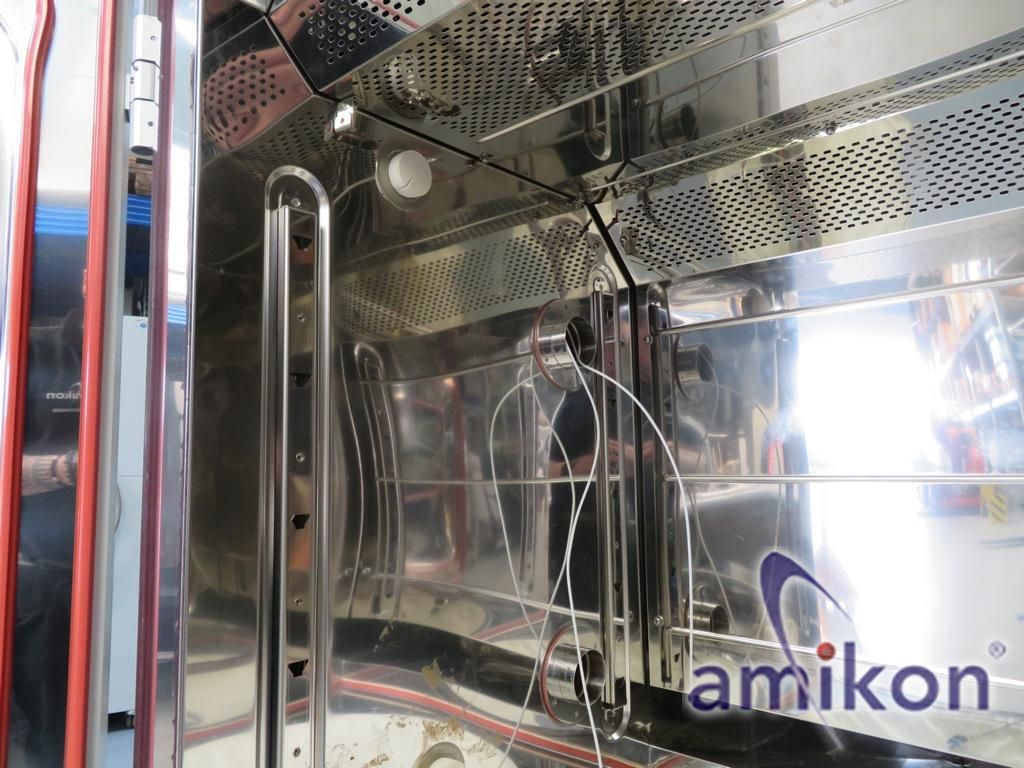

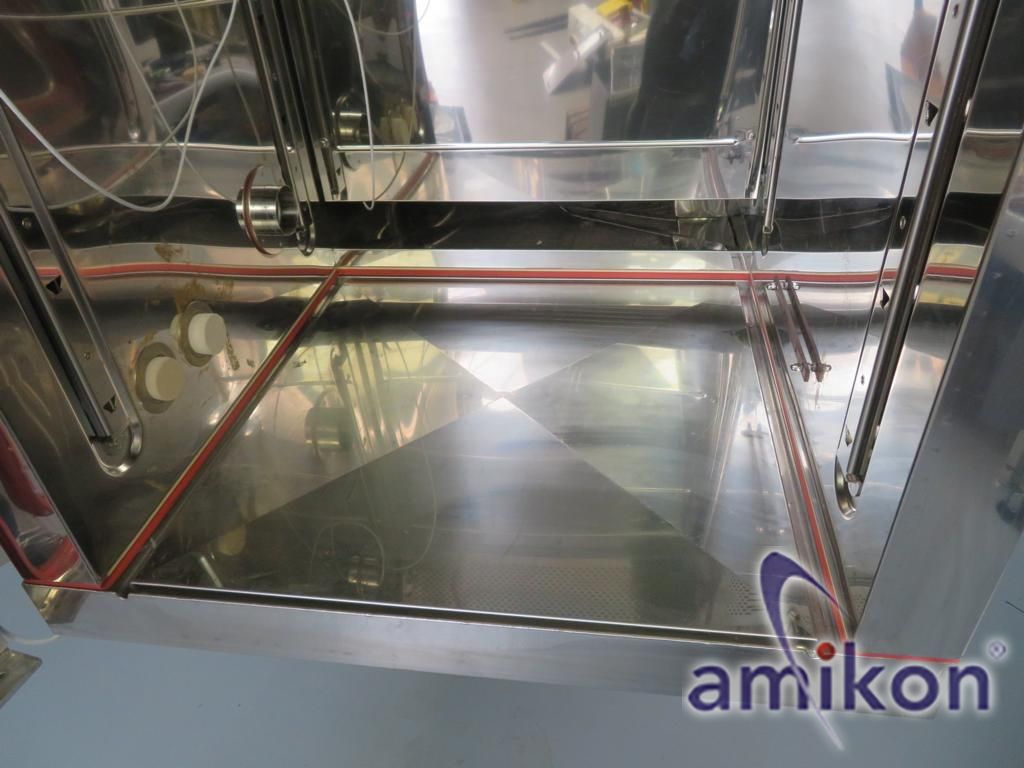

Test chamber volume approx. 600 l

Test chamber dimensions: W 800 x D 800 x H 950 approx. mm,

Dimensions for connection hoses:
Inner diameter 80 mm
Outer diameter 180 mm

Refrigerant: R-404A

Weight approx. 1000 kg

Type: VCV 4060-5/S

For you as a buyer, the following information for your safety!

The following points will be carried out in advance on our offered chambers:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

Upon request, we can send you the test protocols!

(Changes and errors in the technical data are reserved!)

We are happy to answer any further questions by phone.

Written orders possible via email or fax
