Thermotron AST-18 AST 8800 HALT HASS Test Chamber Temperature Vibration Testing System

Thermotron

HALT/HASS Chamber / Temperature and Vibration Testing System

Thermotron AST-18 with AST 8800 Control
Combined testing system for temperature and vibration tests
With Thermotron VibControl, PC control, and extensive accessories

For sale is a used HALT/HASS chamber
from the manufacturer Thermotron Industries.

The system is suitable for Highly Accelerated Life Testing (HALT),
Highly Accelerated Stress Screening (HASS), temperature tests,
vibration tests, environmental simulation, quality assurance,
electronics and component testing
as well as development, load, and lifetime tests.

The Thermotron AST-18 system combines rapid temperature changes
with a Repetitive-Shock vibration system.
The AST 8800 control allows for the joint control and monitoring
of temperature and vibration as well as the display and analysis of vibration data.

Technical Data:

Manufacturer: Thermotron Industries
Type: AST-18
Device Type: HALT/HASS Chamber / Temperature and Vibration Testing System
Control: Thermotron AST 8800

Temperature Range: -100 °C to +200 °C
Temperature Change Rate: > 50 °C/min at the test specimen
Vibration System: Repetitive Shock
Frequency Range: 0 to > 10,000 Hz
Excited Axes: 3 linear / 3 rotational

Maximum Load: 135 kg

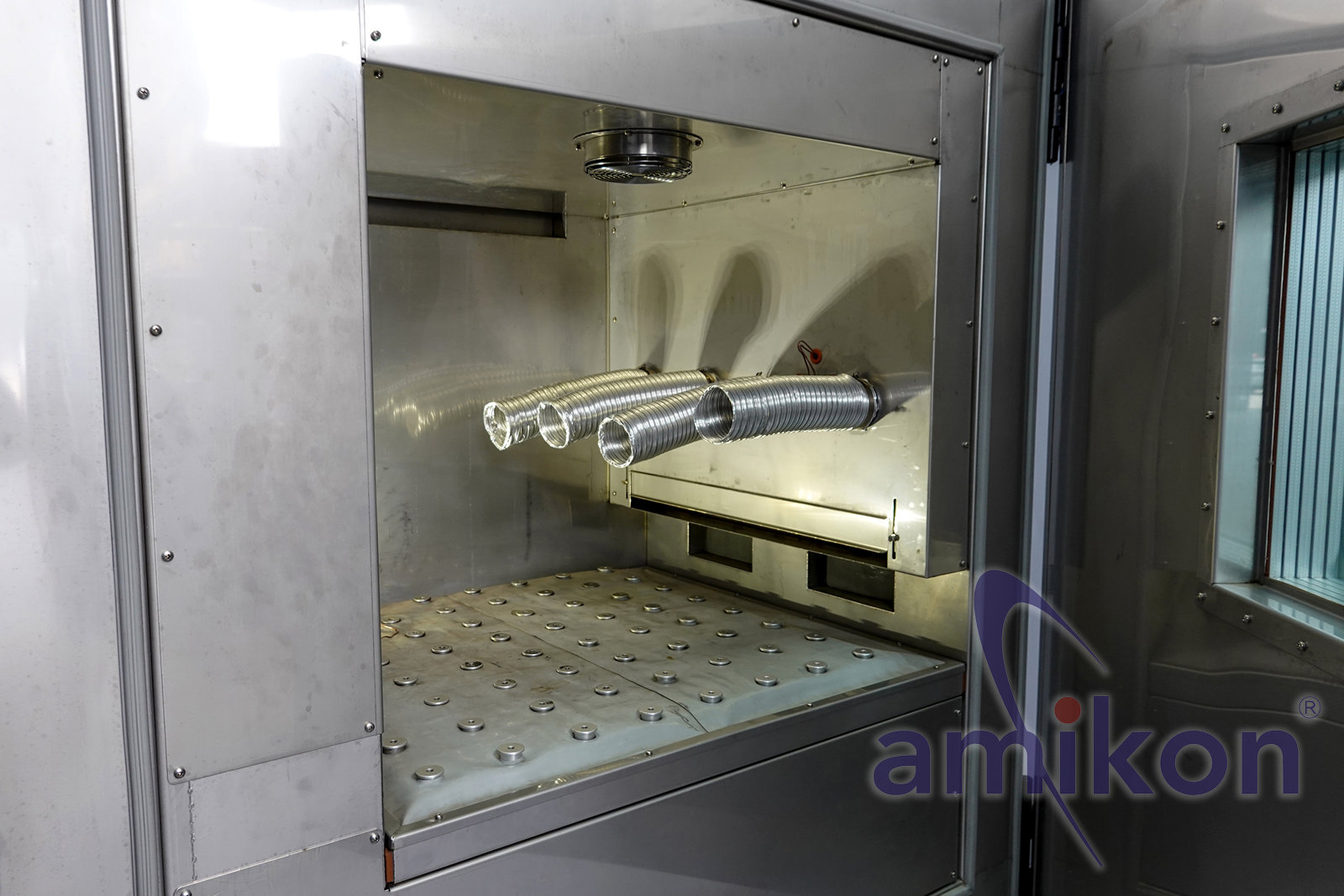

Test Table Size Depending on Configuration: 610 × 610 mm to 711 × 711 mm
Grid Size Test Table: approx. 102 × 102 mm
Number of Impactors Depending on Configuration: 4 or 5

Test Chamber Dimensions (W × D × H): approx. 838 × 864 × 762 mm
Air Flow Rate: approx. 2,379 m³/h
Blower Motor: 3 HP

Power Connection: 400 V / 3 Ph / 50 Hz
Max. Connection Current According to Nameplate: 65.3 A
Largest Motor According to Nameplate: 3 HP / 4.8 A
Largest Heating Load According to Nameplate: 20 kW / 29 A
Other Loads According to Nameplate: 60.5 A

AST 8800 Control:

Windows-based control software
Joint display of temperature and vibration
Display of Power Spectral Density (PSD)
Vibration analysis and monitoring
Data recording and data storage
Activity Log / Event Log
Password-based user management
Vibration alarm and cutoff limits

Operating times shown in the existing system images:
Air Temp: approx. 2,027 h
Vibration: approx. 1,235 h

Calibration:

Thermotron calibration performed on 30.11.2022
Next calibration date indicated on the existing calibration sticker: 30.11.2024

Equipment:

Thermotron AST 8800 Control
Thermotron VibControl
8-channel VibControl connection unit
PC system
ViewSonic flat screen
Keyboard and mouse
Repetitive-Shock vibration system
Temperature control
Vibration control and vibration analysis
Observation window
Test chamber lighting

AST 8800 Software
PSD display
Data recording
Event logging
Manual operation and programmable test operation
Accessories, connection cables, and sensors as per images
Thermotron Instruction Manual and documentation as per images

Areas of Application:

HALT – Highly Accelerated Life Testing
HASS – Highly Accelerated Stress Screening
Temperature testing
Vibration testing
Repetitive-Shock testing
Environmental simulation
Electronics testing
Component testing
Assembly testing
Product development
Quality assurance
Early fault detection
Load testing
Lifetime testing
Research and development

Condition:

Used
Optical condition according to images

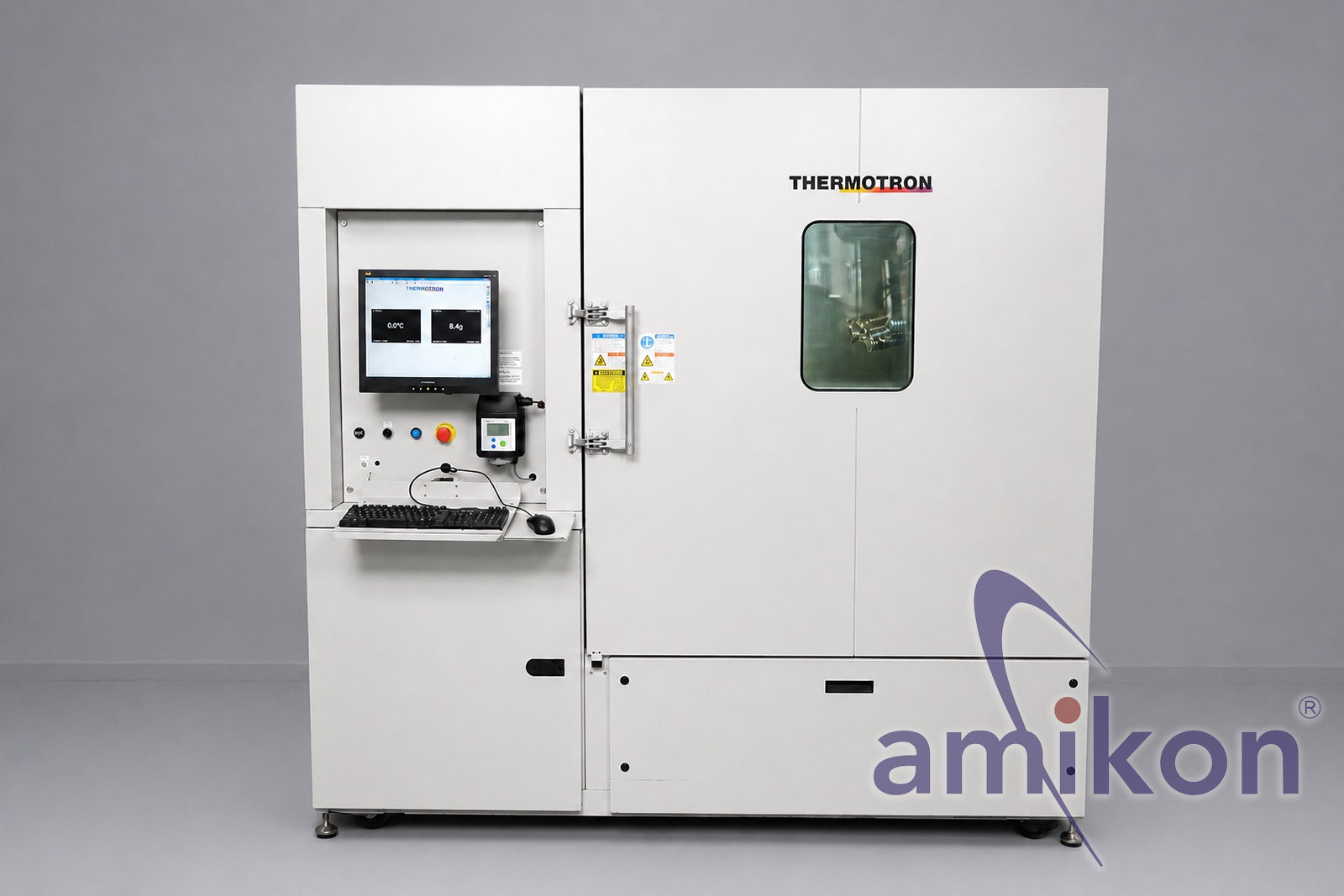

Thermotron AST-18 HALT/HASS Testing System
External/Installation Dimensions W × D × H: approx. 2,286 × 1,448 × 2,210 mm
Footprint: approx. 2.29 × 1.45 m
Weight: approx. 1000 kg

Scope of Delivery:

1x Thermotron AST-18 HALT/HASS Testing System
Thermotron AST 8800 Control
Thermotron VibControl
8-channel VibControl connection unit
PC system with ViewSonic monitor
Keyboard and mouse
Thermotron Instruction Manual / documentation as per images
Connection cables, sensors, and accessories as per images

Other items depicted in the photos that are not explicitly
mentioned in the scope of delivery are not part of the sale.

Shipping via UPS or freight shipping is possible.
Changes, errors, and prior sale reserved.

Further questions can be answered by phone.
