S & A Test Chamber for parametric testing -55°C to +200°C 4365A #0032

S & A

Type: 4365A

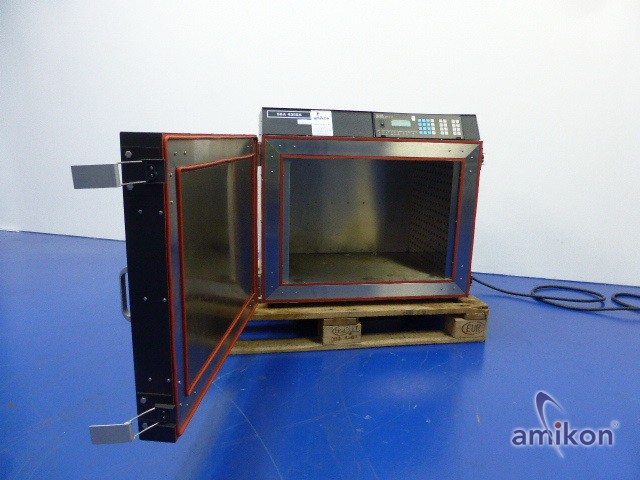

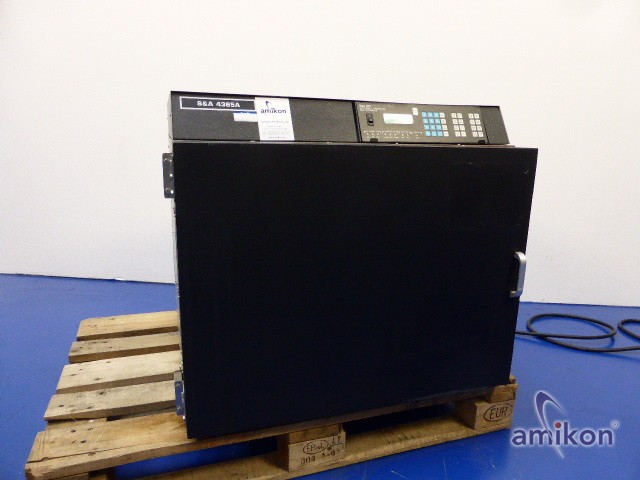

S & A Test Chamber for Parametric Testing

Temperature Range
-55 °C to 200 °C (LCO2)
-65 °C to 200 °C (LN2)
Temperature Change Rate
15° C / min (Standard Option)
60° C / min (Fast Option)
Stability
± 0.2 °C (including effects of mains voltage, ambient temperature
between 15° and 45° C and aging)
Uniformity
± 1.0 °C Max from -65 °C to -55 °C
± 0.5 °C Max from -55 °C to + 125 °C
± 1.0 °C Max from + 125 °C to + 200 °C

Refrigerant: LCO2

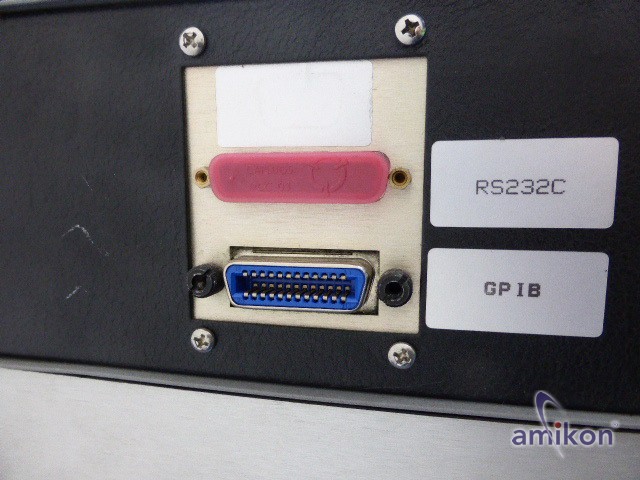

Chamber can be controlled remotely via IEEE bus or
RS232C interface

Weight approx. 61 kg

Condition: used

Scope of delivery: (See image)

(Changes and errors in technical data, specifications are subject to change!)
