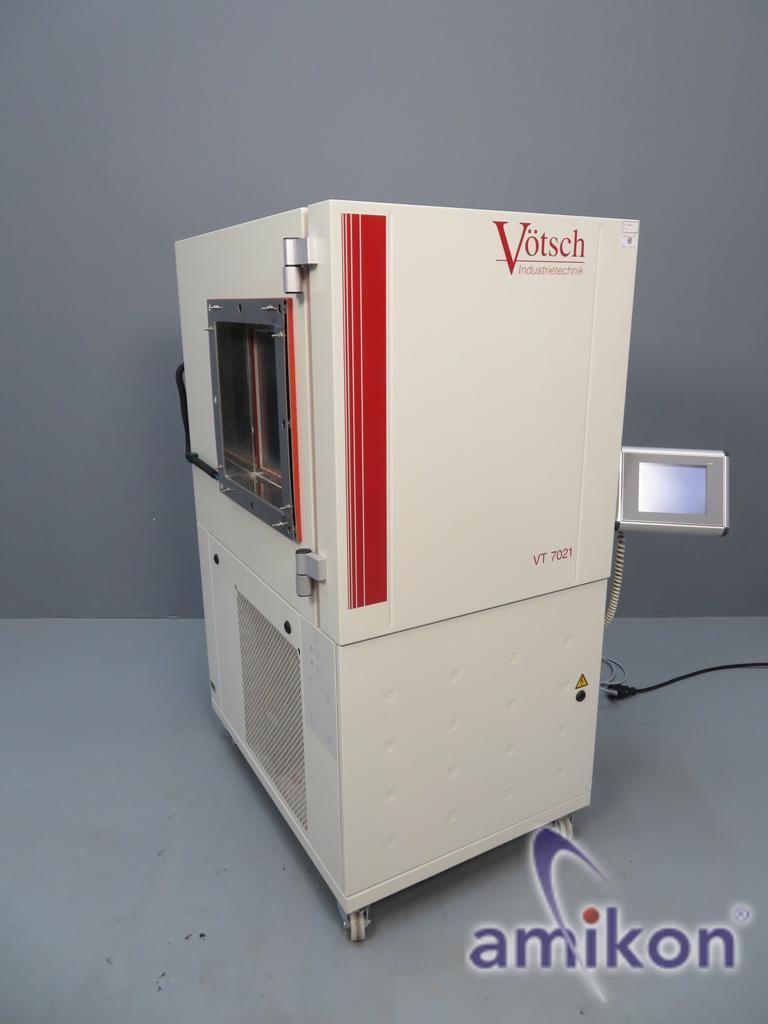

Heraeus Vötsch Temperature Testing Chamber VT 7021 -70°C to +180°C 210 Liters
Item ID: 22416
Condition: Used
Stock: Only ${ $store.getters['22416/currentItemVariation'].stock.net } in stock
PAYMENT METHODS:
²
* Excl. VAT excl. Shipping
Heraeus Vötsch
Type: VT 7021

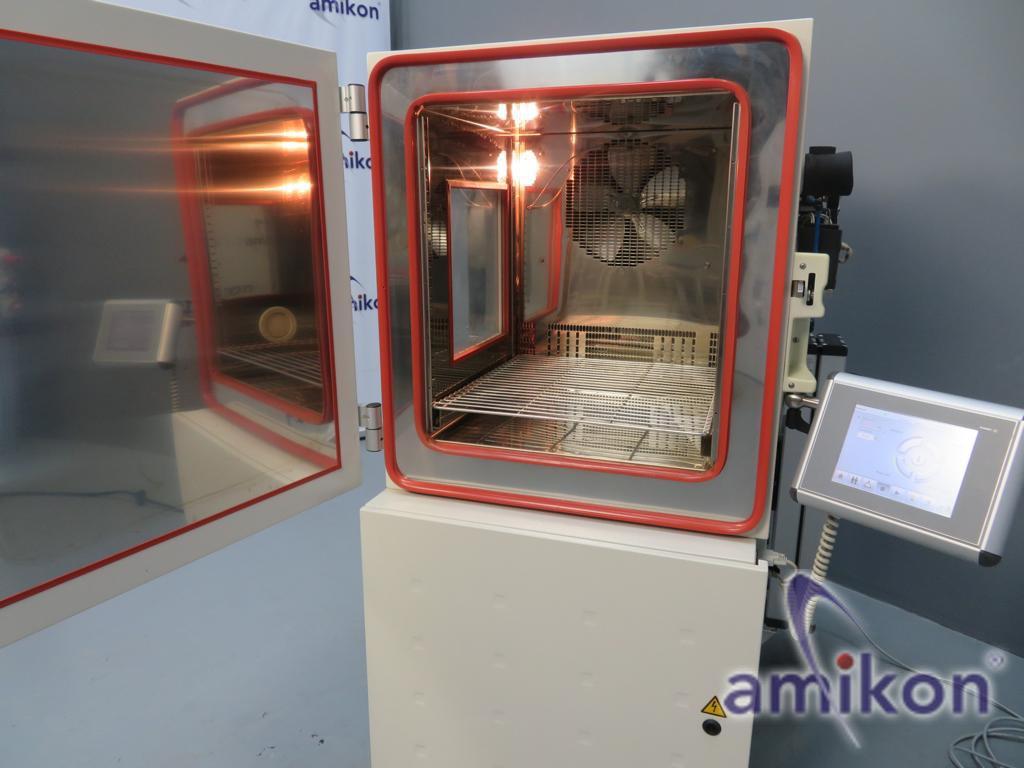

Heraeus Vötsch Temperature Test Chamber Air-Cooled
Base Unit Type VT 7021

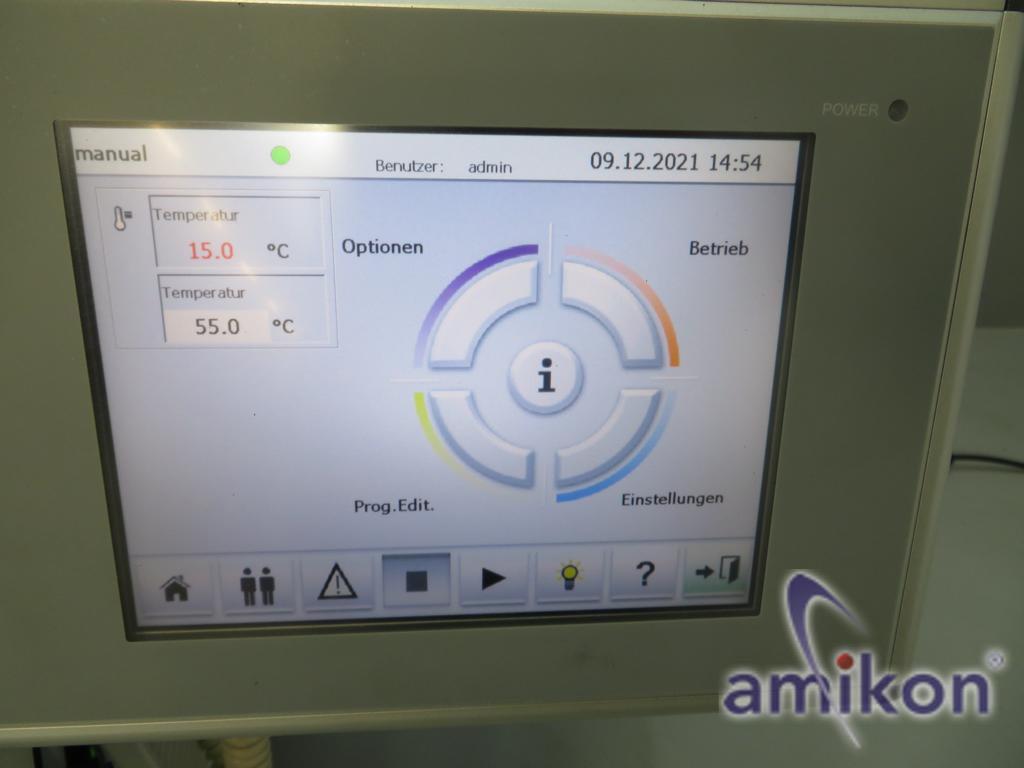

Control Terminal Color Touch Panel
Microprocessor Monitoring and Control MINCON/32
independent adjustable temperature limiter tmin / tmax
adjustable software temperature selection limiter min./max.

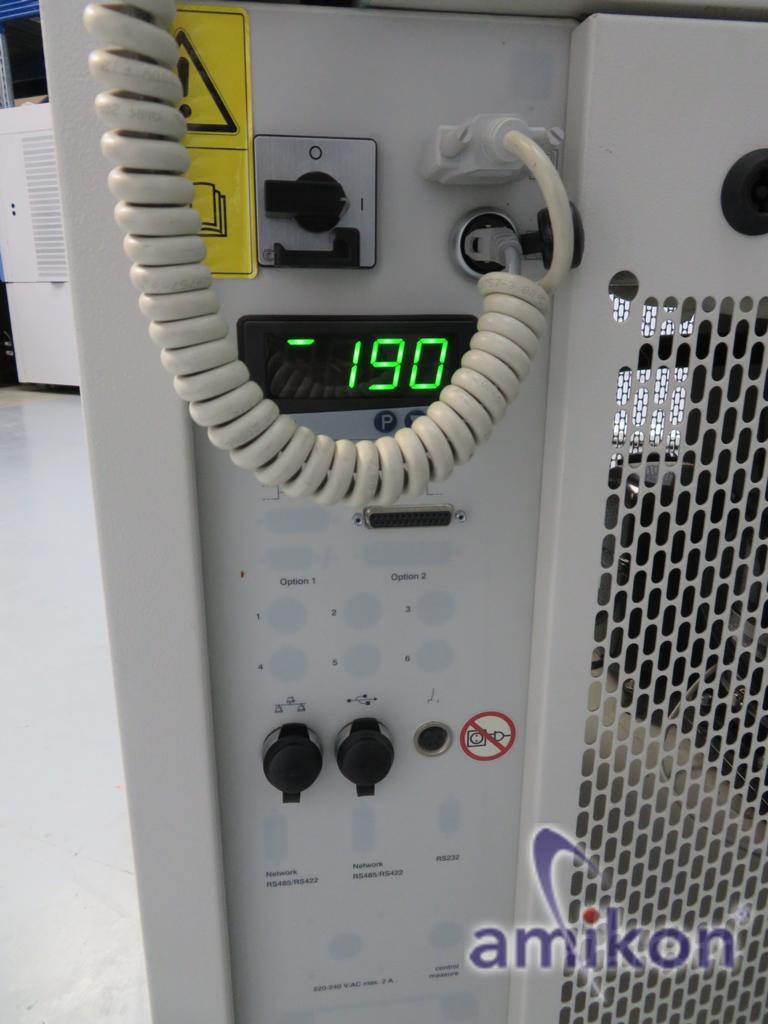

Interface RJ 45
Schuko Socket
Potential-free contact for test specimen shutdown
Air-cooled refrigeration unit
1 lockable door, one-hand operation
Calibration of 2 temperature values
Mobile version

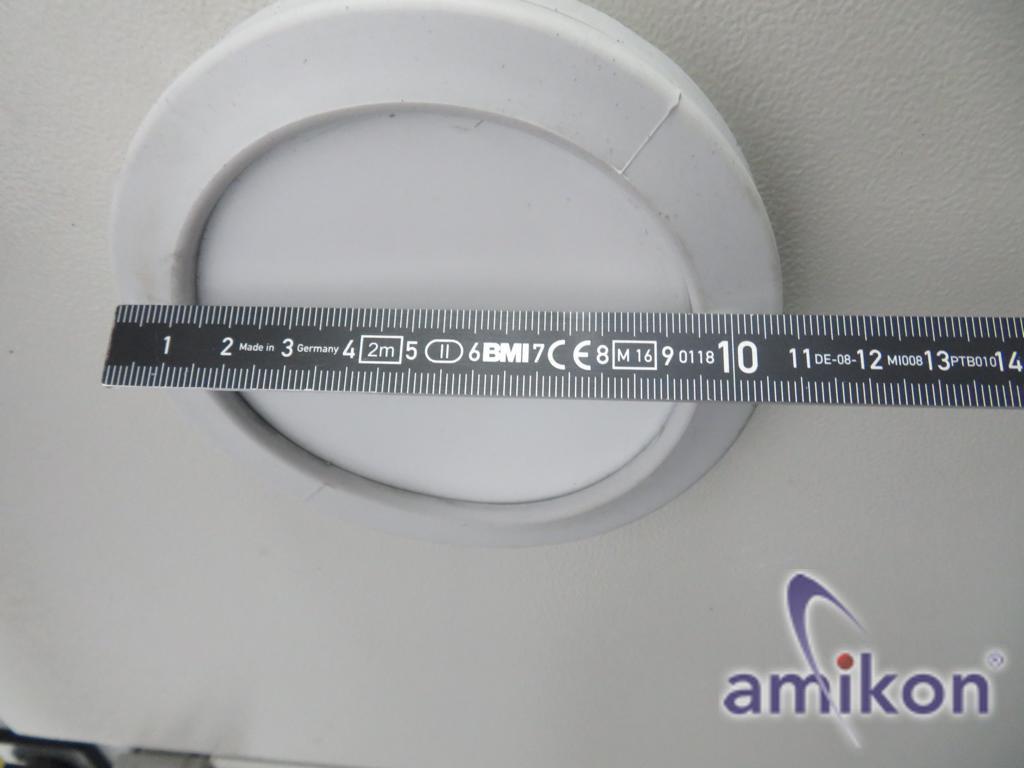

1 pass-through, NW 80 mm, right
Test chamber volume 210 liters
Option:

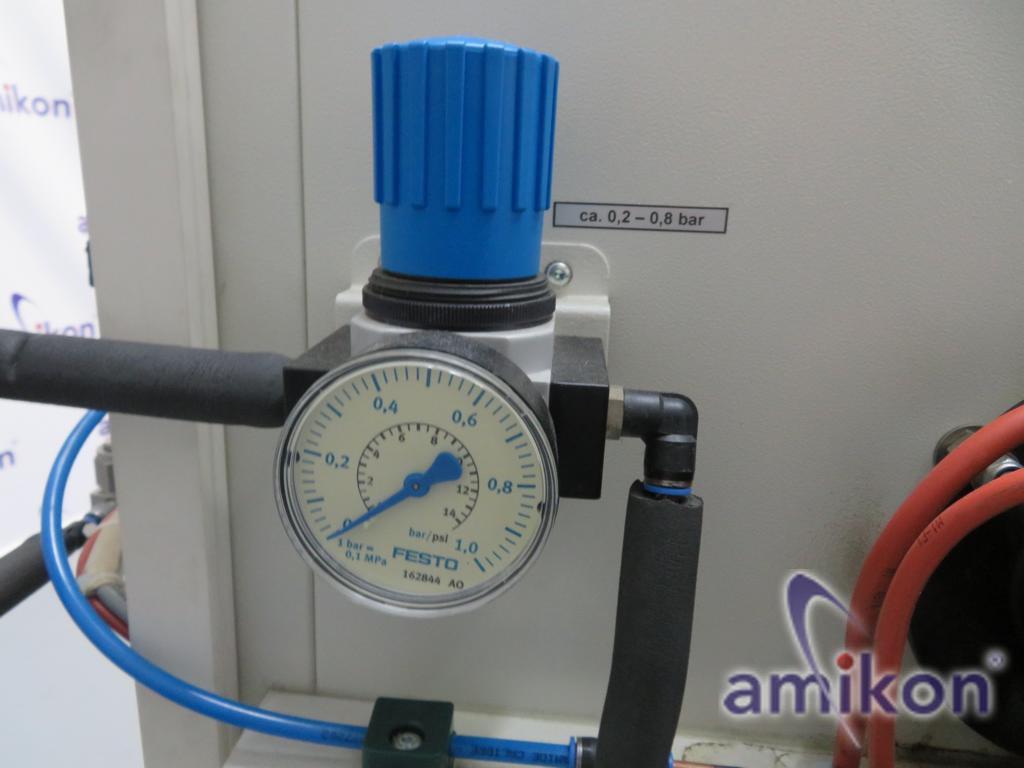

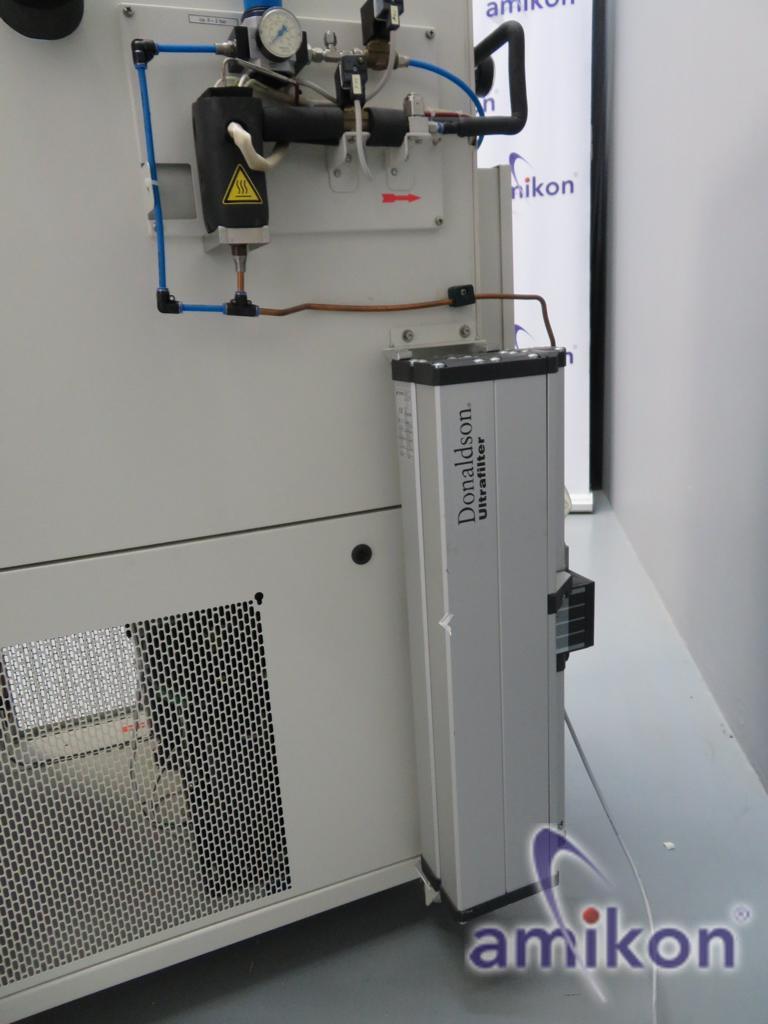

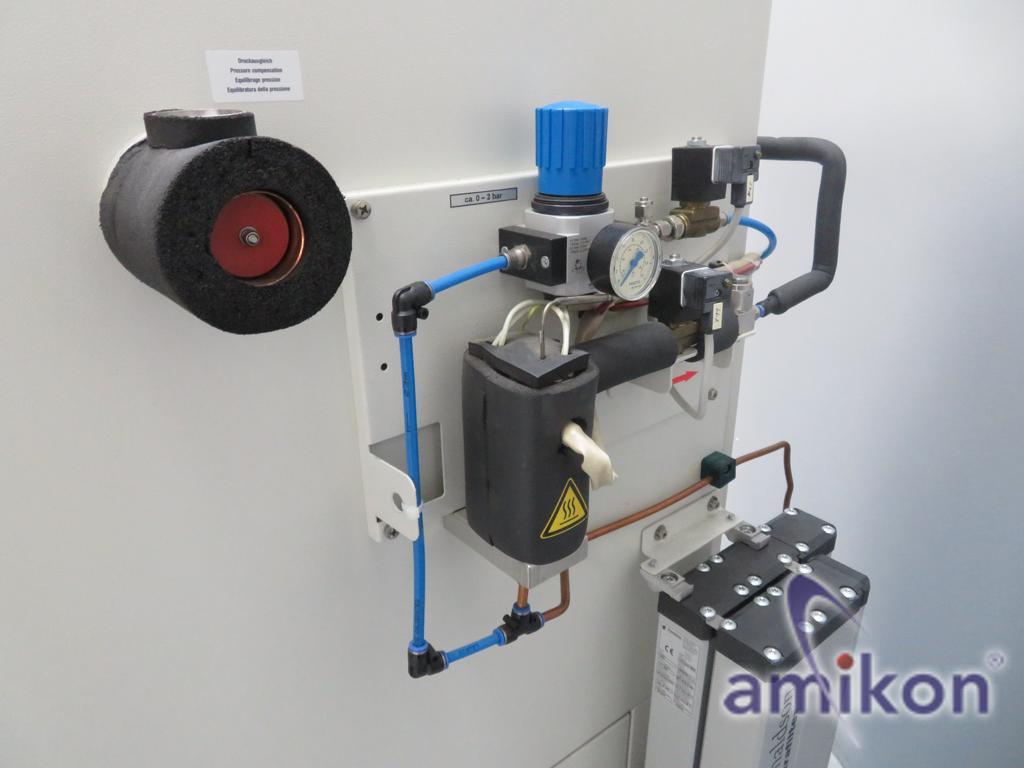

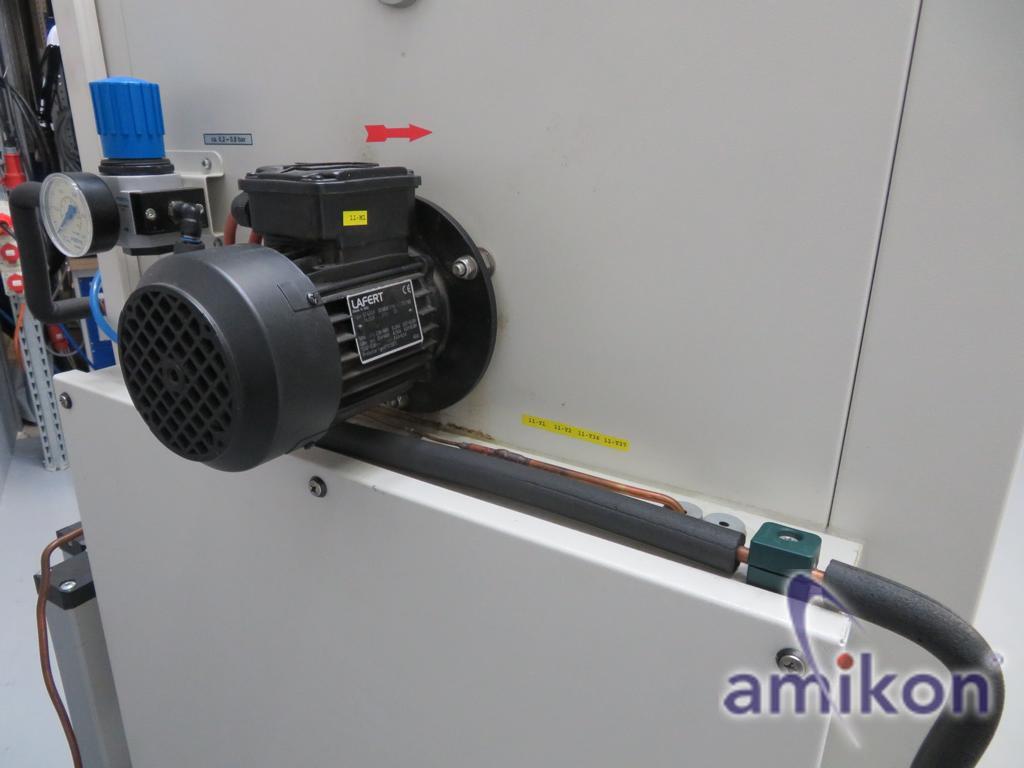

Compressed Air Dryer Donaldson
Dehumidification during the heating phase as condensation protection
Dew points up to -30°C unregulated
Temperature range -70°C to +180°C
Temperature deviation over time ± 0.2 to ± 0.5 K
Temperature deviation spatially ± 0.5 to ± 1.5 K
Rate of temperature change Heating 2.5 K/min
Rate of temperature change Cooling 2.5 K/min
max. Heat compensation 800 W

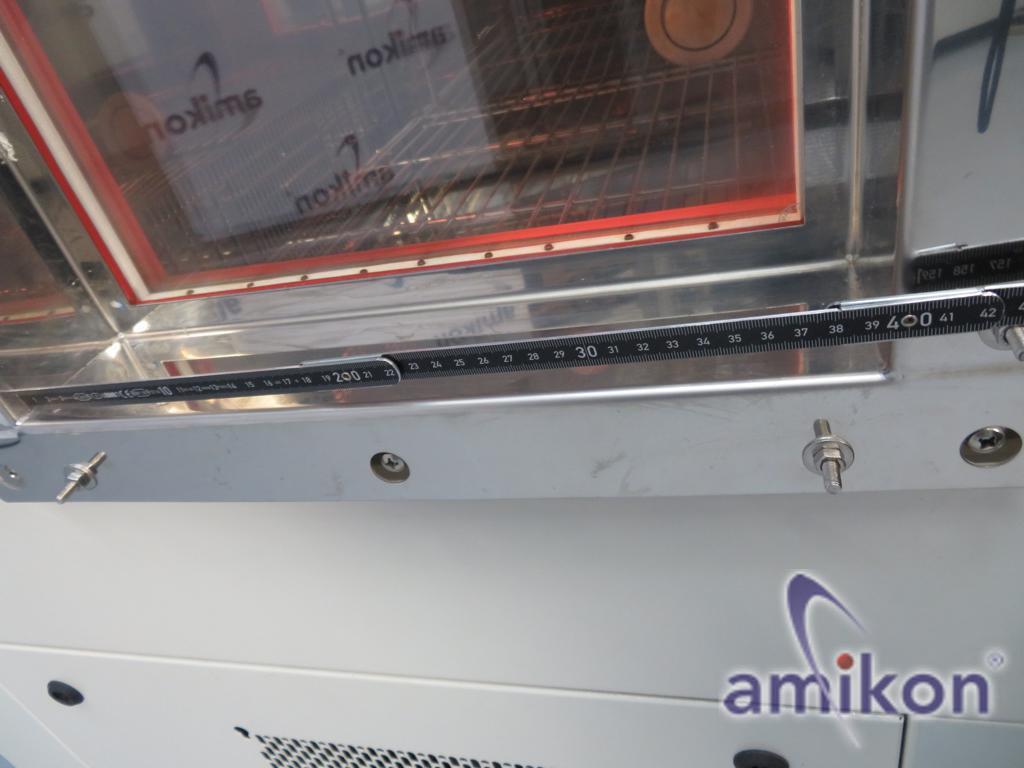

Test chamber dimensions: Width 560 mm Depth 570 mm Height 630 mm
External dimensions: Width 850 mm Depth 1250 mm Height 1640 mm
Electrical connection: 1/NPE AC 230 V ± 10% 50Hz
Rated power approx. 1.5 kW Rated current 7 A
Refrigerant: R404A and R23
Weight: 355 kg
For your safety as a buyer, the following information!
The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. If necessary, new filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a documented test run.
Condition: used
Scope of delivery: (See image)
(Changes and errors in the technical data are reserved!)
Further questions can be answered by phone.
Switch to environmentally friendly refrigerant
The following work can be performed on climate chambers. Please contact us if you are interested.
- Extraction and proper disposal of the previous refrigerant
- Replacement of necessary components, if unavoidable
- Evacuate the circuit and refill it with R 452A, for example.
- Checking / adjusting overheating in expansion valves
- Leak test
- Test run of the system
