Heraeus Vötsch Temperature Testing Chamber -40°C to +180°C 600 Liters VTV 4060-5

Heraeus Vötsch Temperature Test Chamber

Here we offer you a Heraeus Vötsch temperature test chamber.

Heraeus Vötsch temperature test chamber with chamber feedthrough

for shakers for vibration testing

The basic equipment, perfect down to the detail:

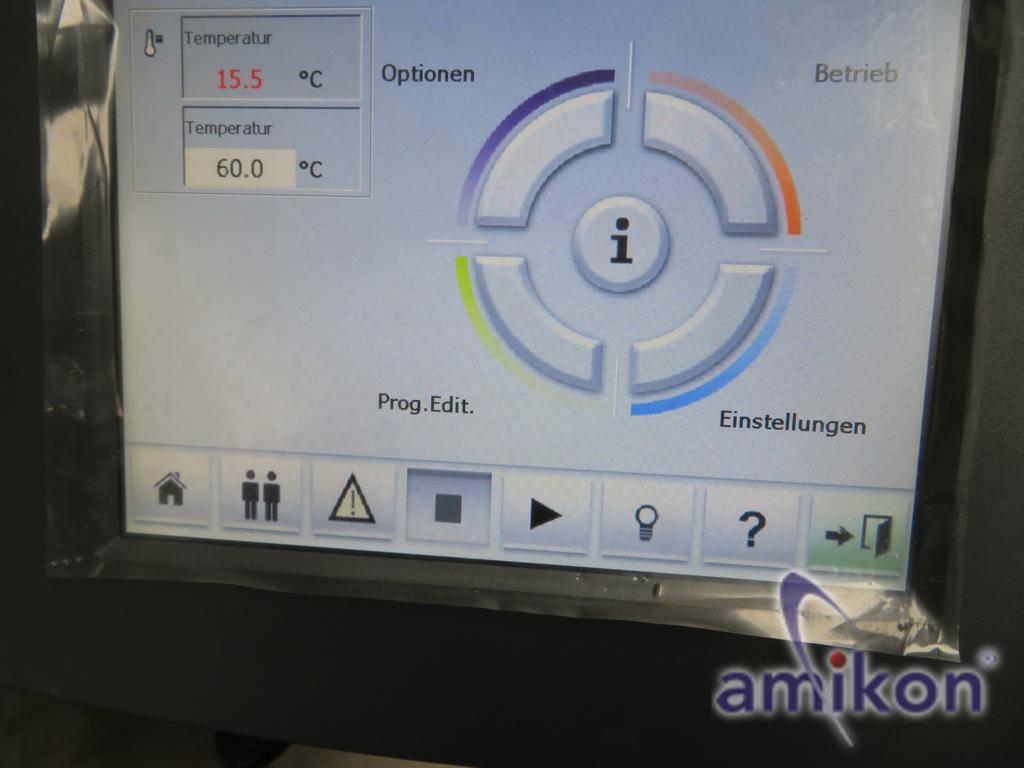

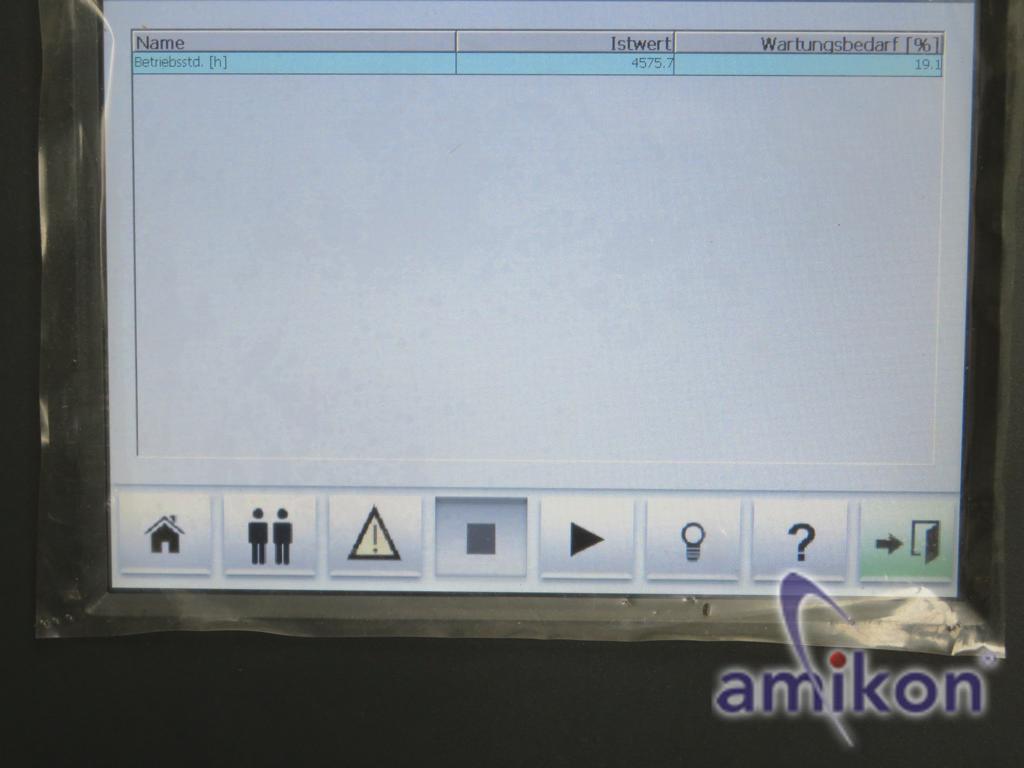

Control terminal color touch panel
Microprocessor monitoring and control S!MCON/32*-NET

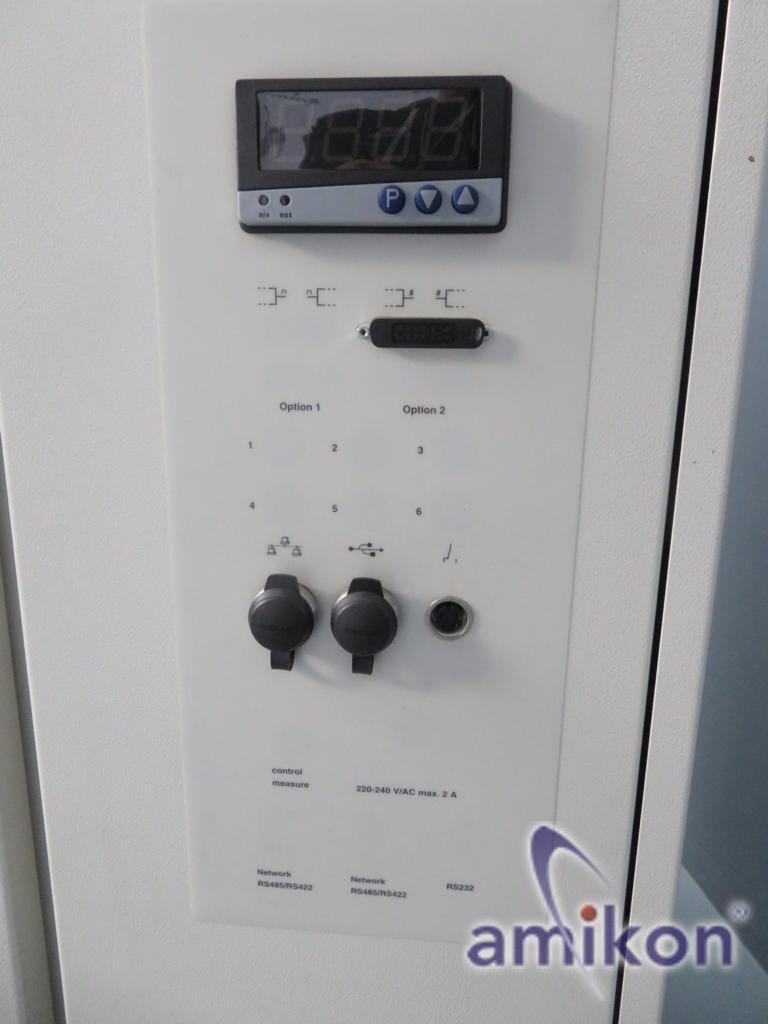

Digital I/O, potential-free
Independent, adjustable temperature limiter tmin/tmax
Adjustable software temperature limiter min./max.
Serial interface RS 232

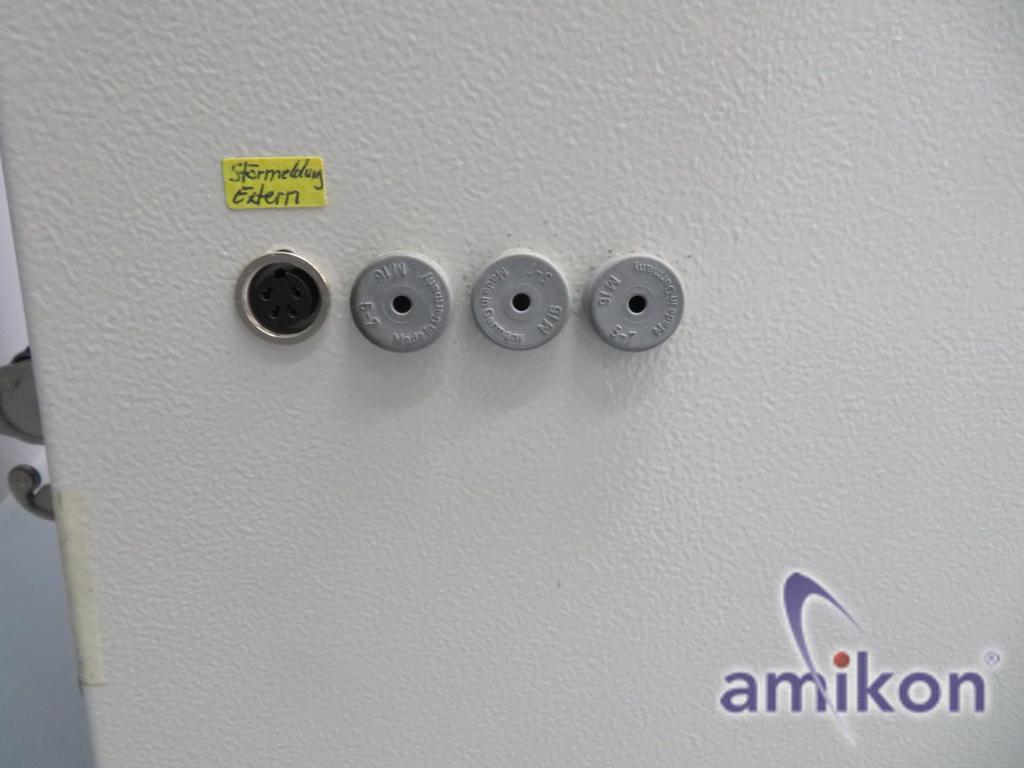

Potential-free contact for test specimen shutdown

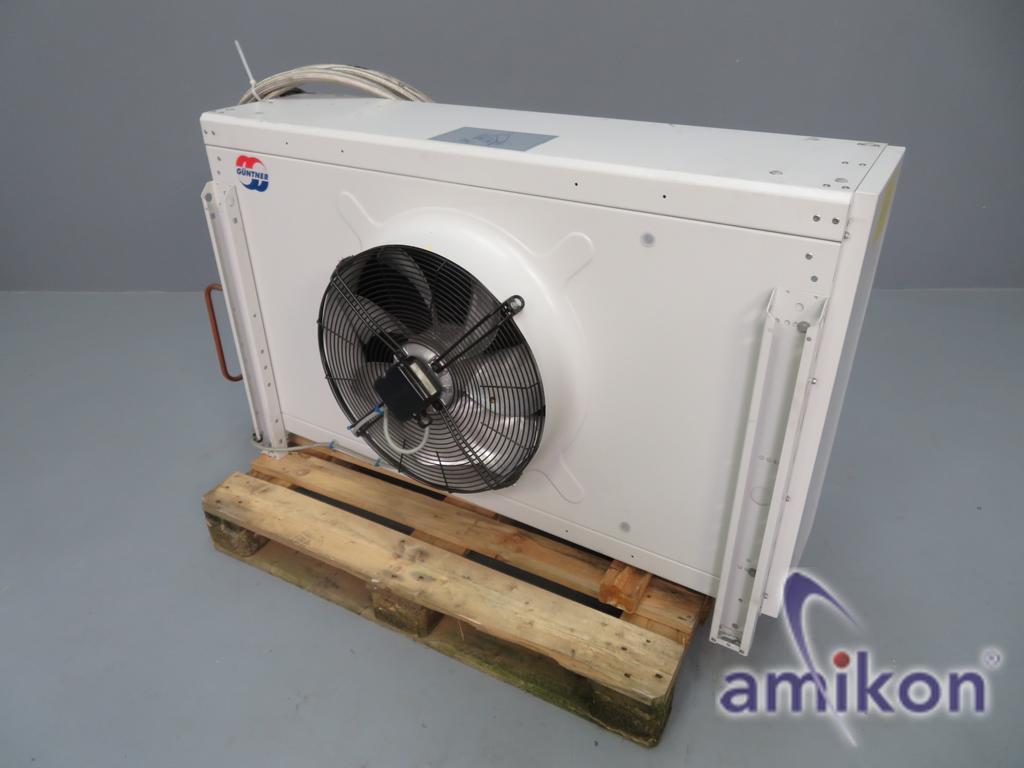

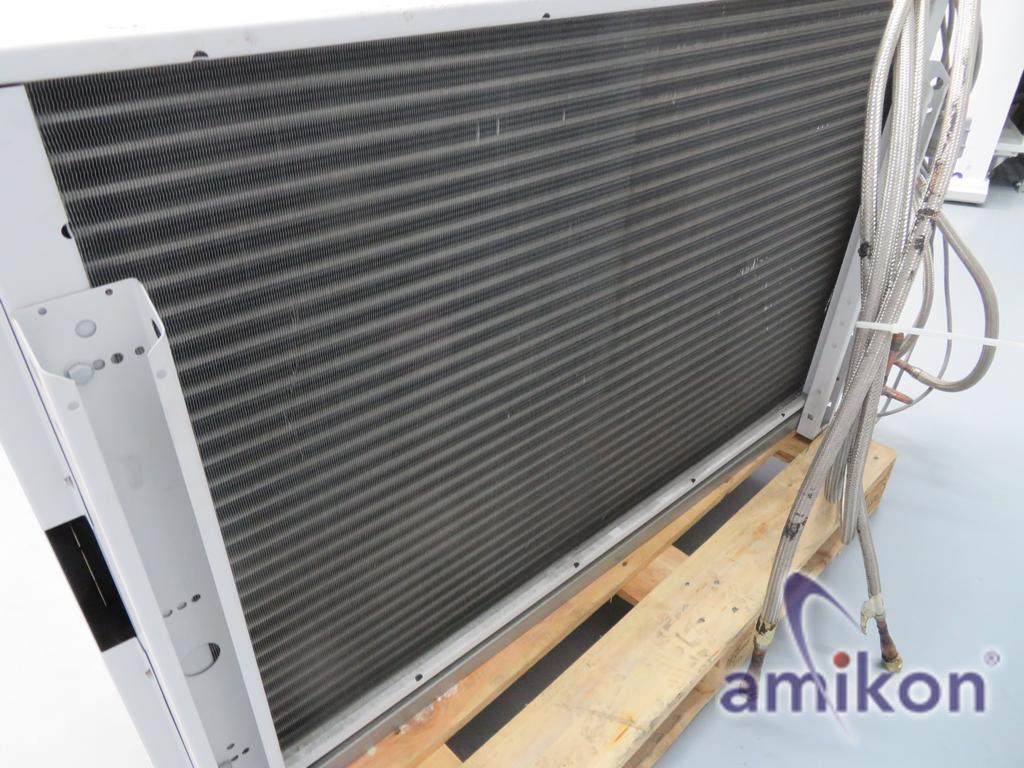

Water-cooled refrigeration unit
Calibration of 2 temperature values

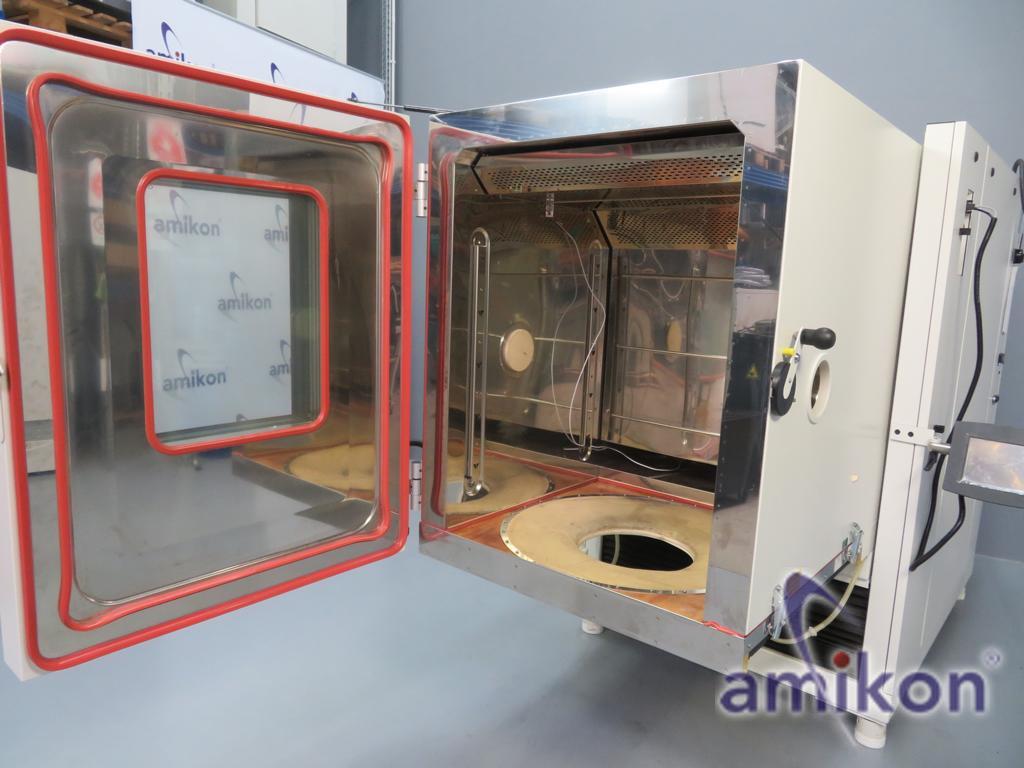

Removable floor with feedthrough

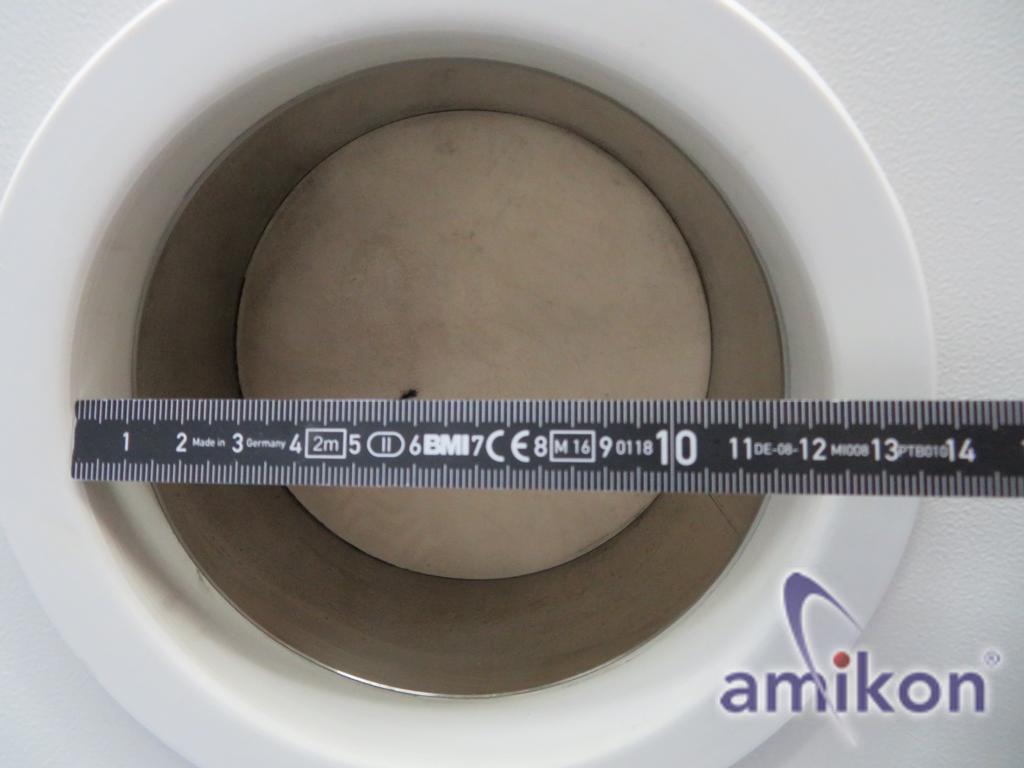

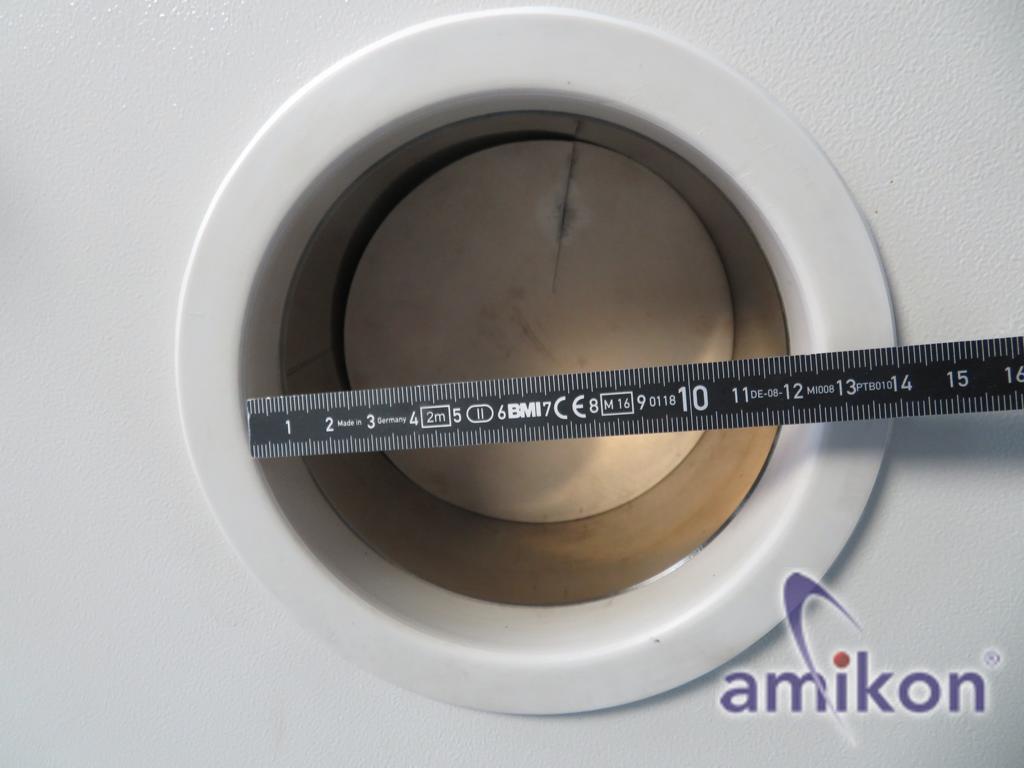

2 pipe feedthroughs Ø 50 mm and Ø 125 mm

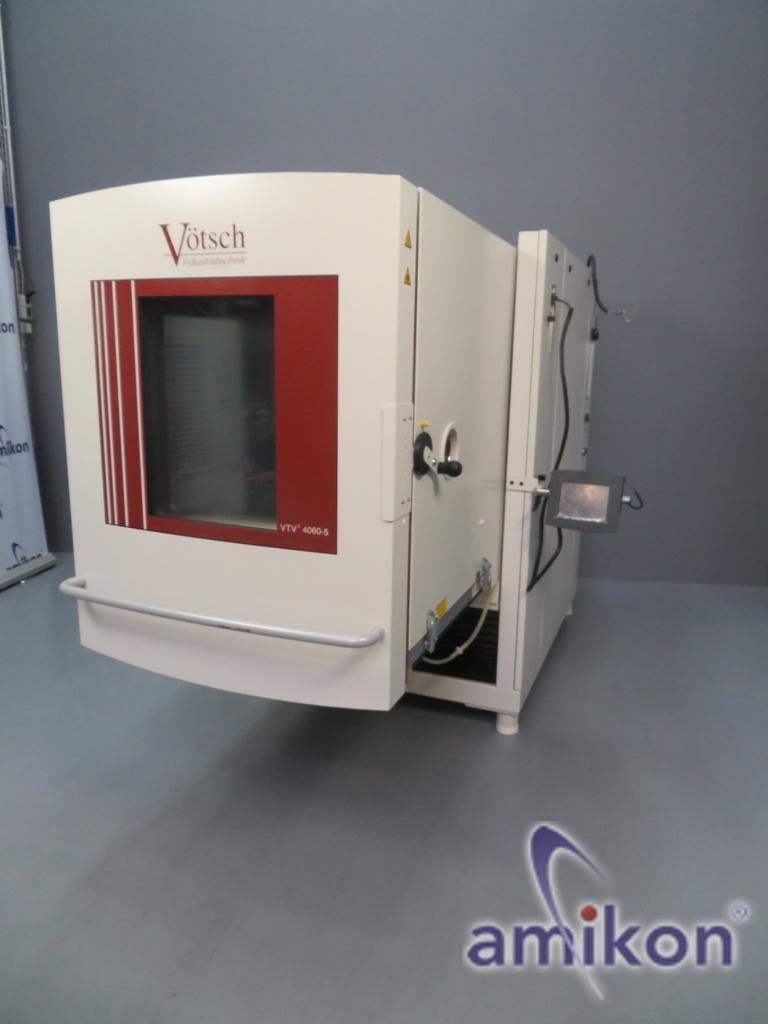

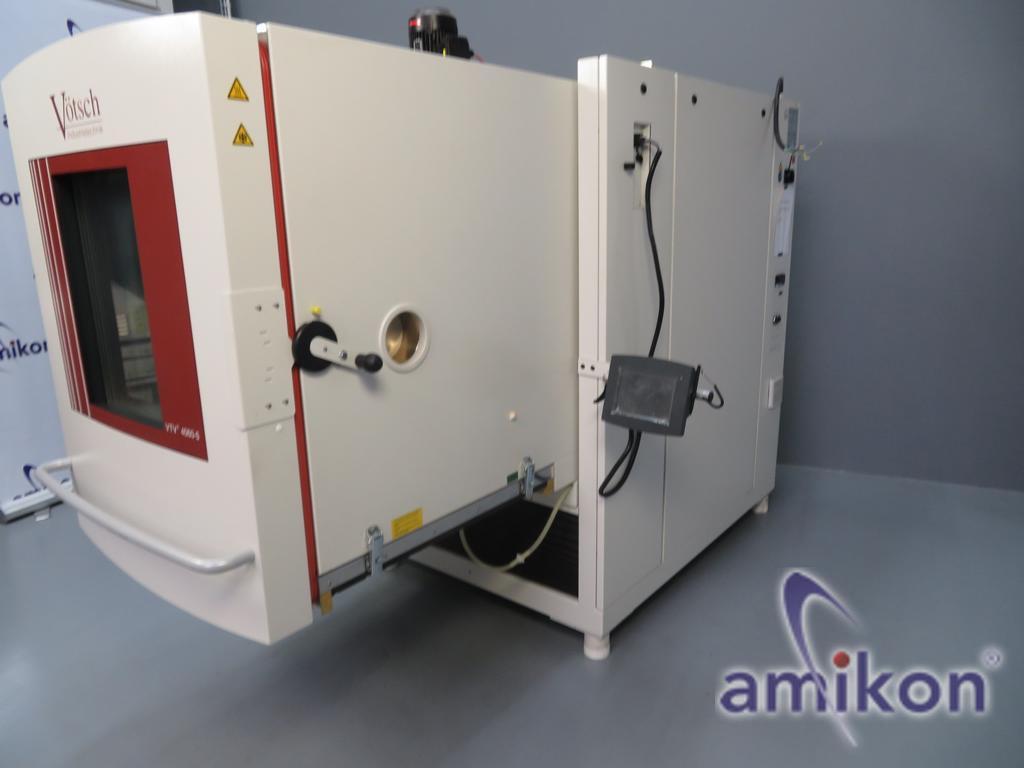

Vötsch temperature chamber VTV 4060-5

Test chamber volume 600 liters

Performance for temperature tests

Temperature range -40/+180 °C
Temperature deviation over time ±0.1 to ±0.5 K
Temperature deviation spatially ±0.5 to ±2.0 K

Temperature gradient 1 to 4 K
Temperature change rate cooling 5.5 K/min
Temperature change rate heating 5.0 K/min

Heat compensation at +20 °C 5000W
Heat compensation at -20 °C 2000W

Test chamber dimensions width 800 mm depth 800 mm height 950 mm
External dimensions width 1225 mm depth 2890 mm height 2150 mm
Height to lower edge of test chamber floor min/max 660/1380 mm

Feedthrough for vibrator 710 mm Ø
Feedthrough for vibrator 700/700 mm

Sound pressure level - 1 m from front 68 dB(A)

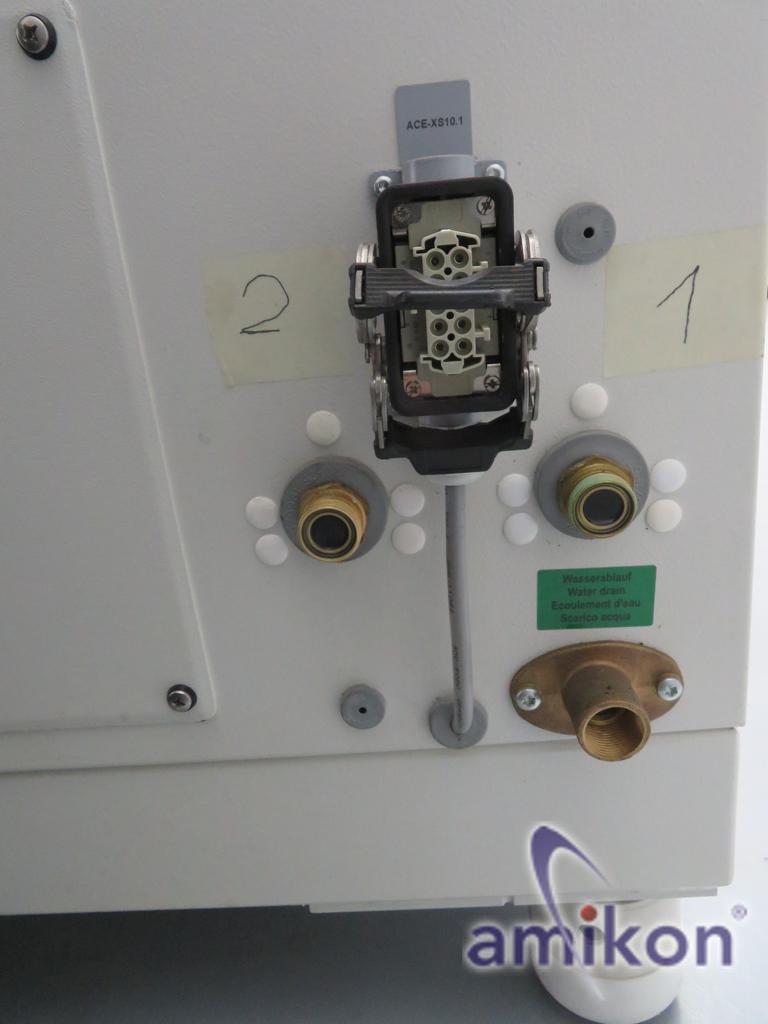

Electrical connection 3/N/PE AC, 400 V ±10 %, 50 Hz
Rated power 11 kW

Cooling water consumption, tw = +28 °C, Δt = 5 K 2.2 m³/h

Refrigerant: R-404A

Weight approx. 1000 kg

Type: VTV 4060-5

For you as a buyer, the following information for your safety!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

We would be happy to answer any further questions by phone.
