Heraeus Vötsch Shock Test Chamber VT 7012 S2 +50°C to +220°C -80°C to +70°C

Heraeus Vötsch Shock Test Chamber

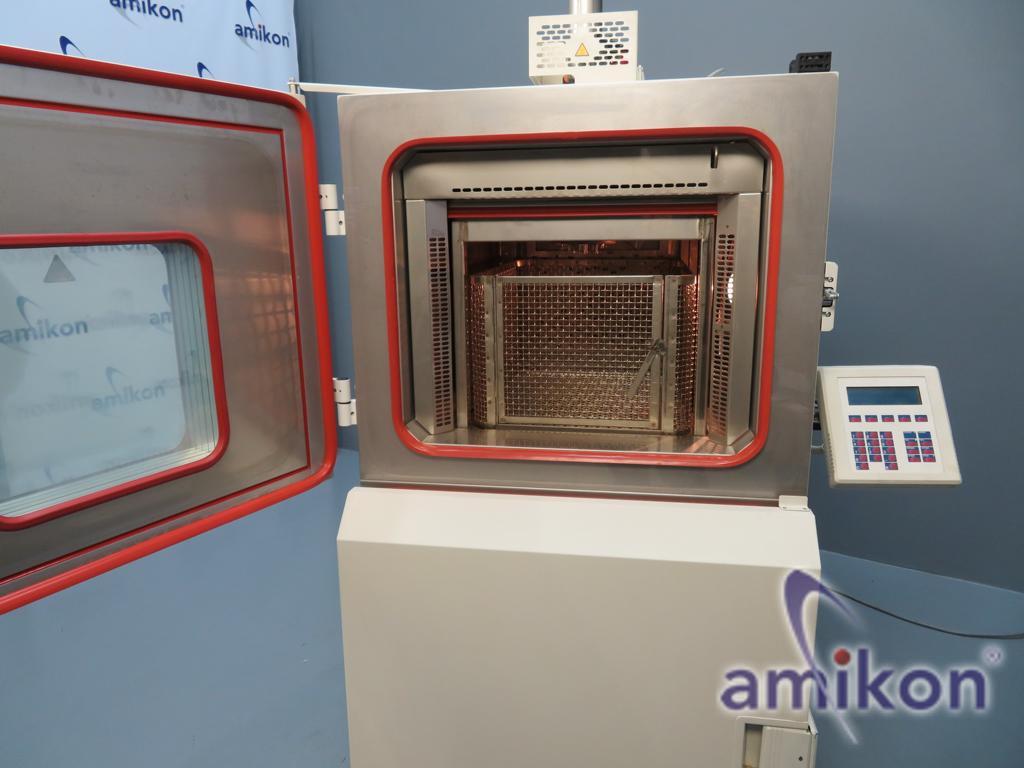

Here we offer a Heraeus Vötsch shock test chamber.

Temperature Shock Test Chamber

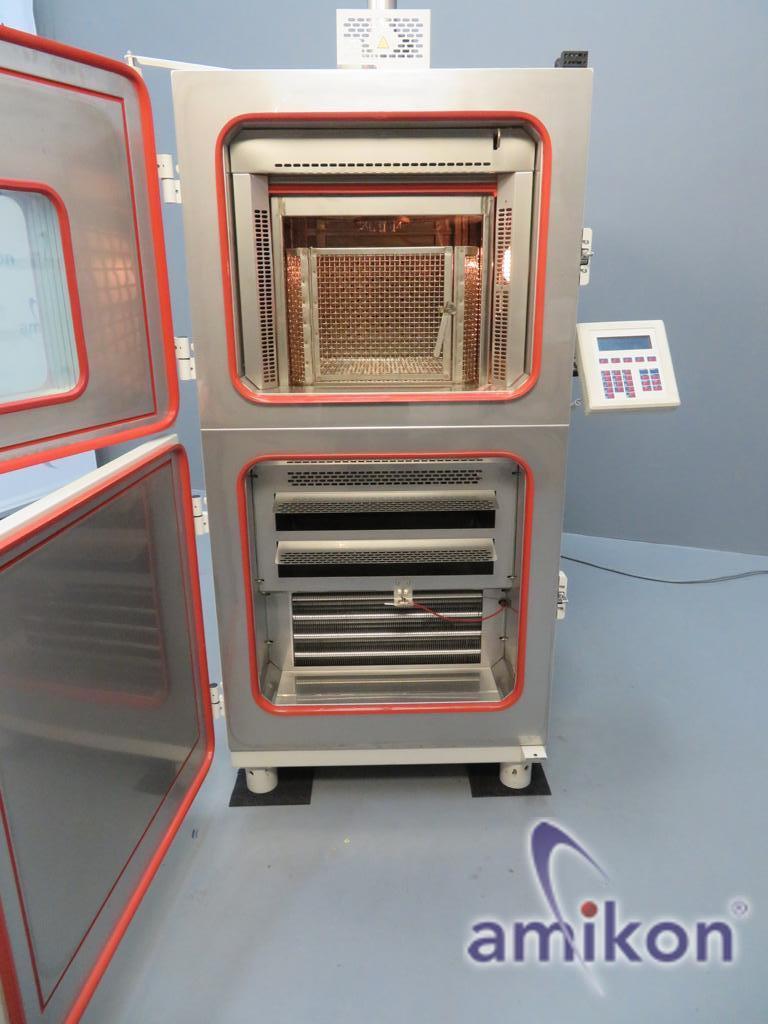

Two-chamber design

The temperature range of the warm chamber is from +50°C to +220°C

and that of the cold chamber from -80°C to +70°C

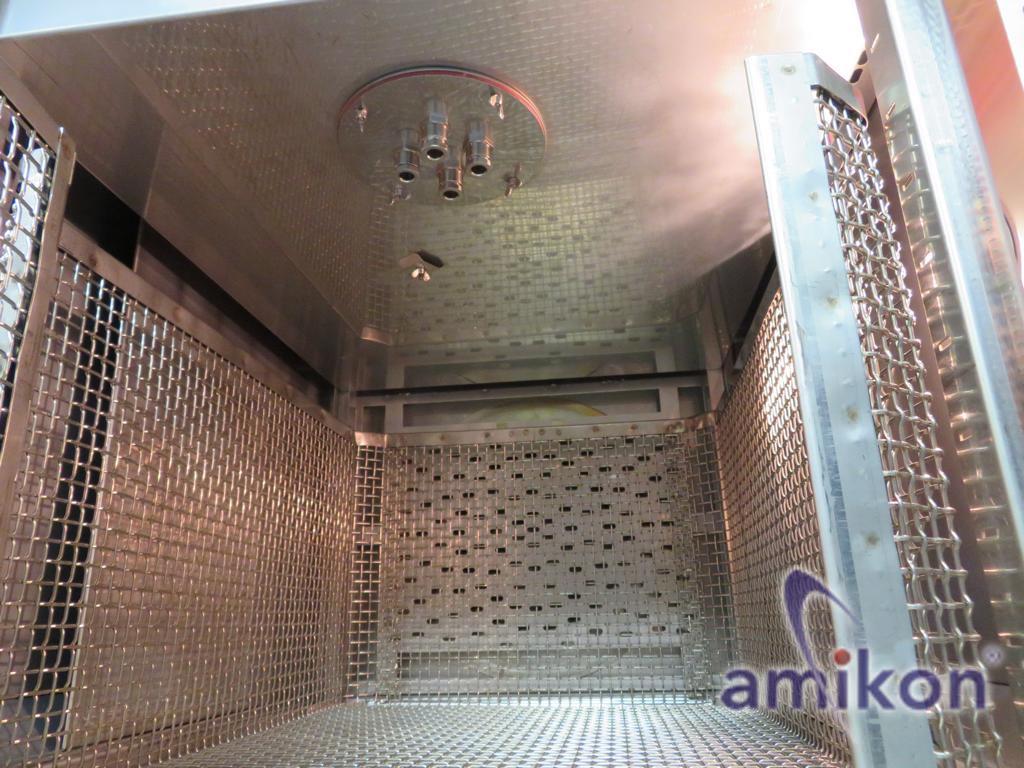

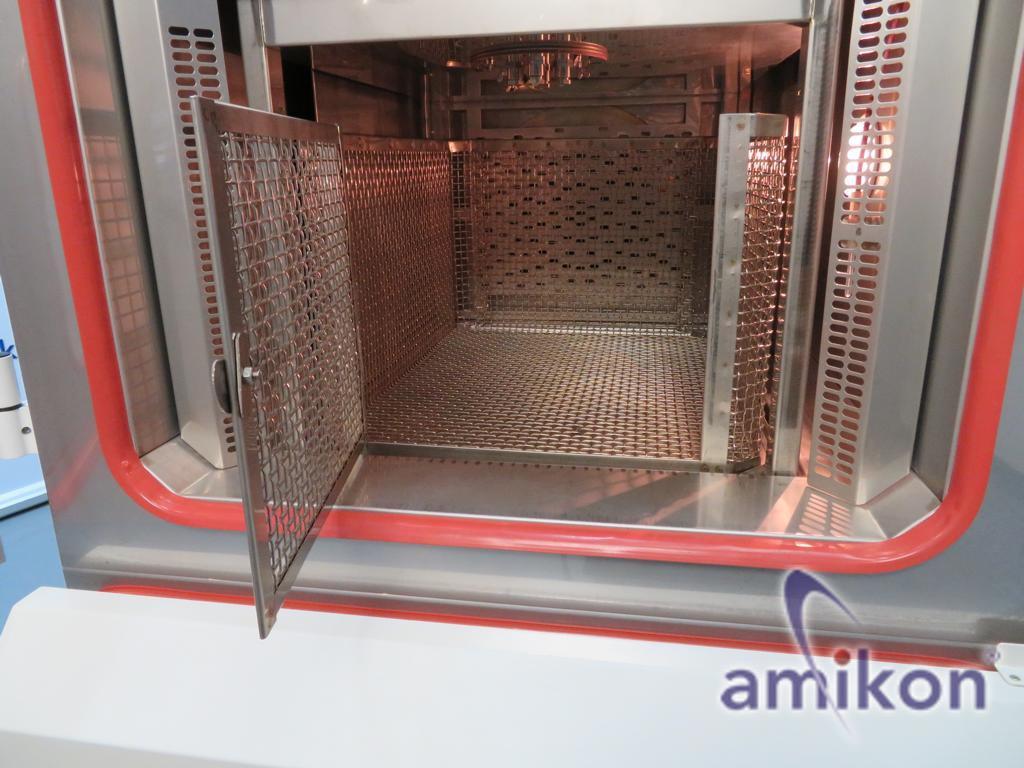

Test chamber volume 125 liters
Temperature range warm chamber +50°C to +220°C
Temperature range cold chamber -80°C to +70°C

Temperature deviation spatially ±0.3 to ±1.0 K

Temperature homogeneity spatially ±0.5 to ±2.0 K

Test chamber dimensions width 470mm depth 650mm height 410mm

External dimensions width 970mm depth 2350mm height 1985mm

Nominal power 10 kW

Nominal current 25 A

400V +6/-10% 3/N 50Hz

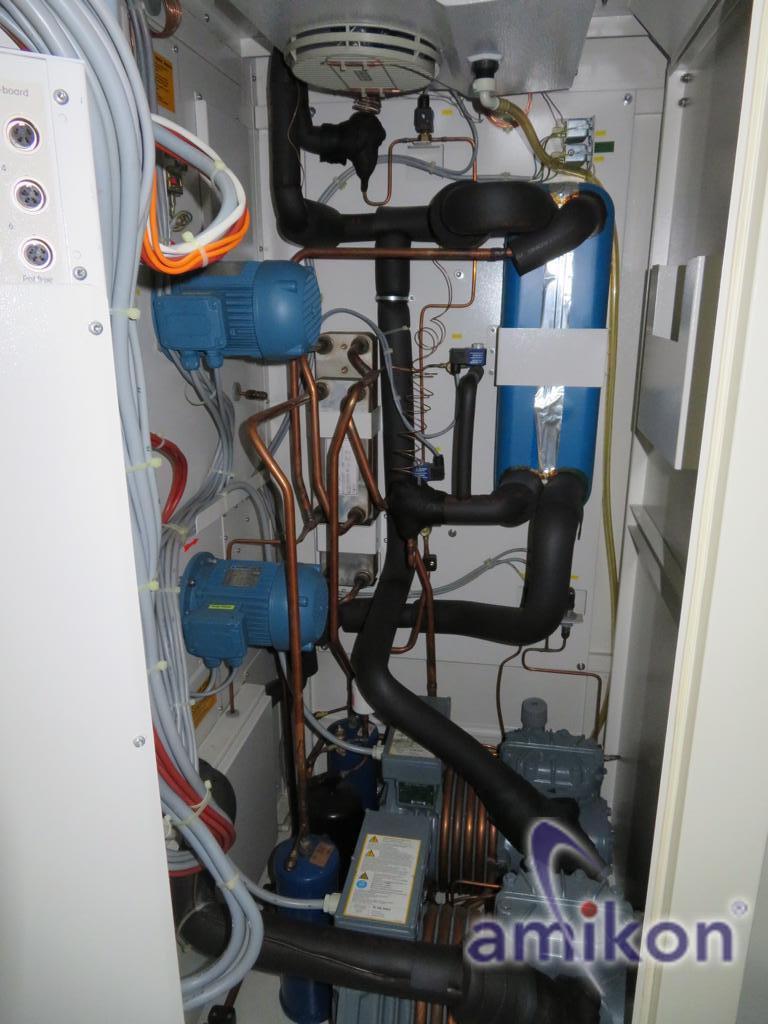

Refrigerant R404A / R23

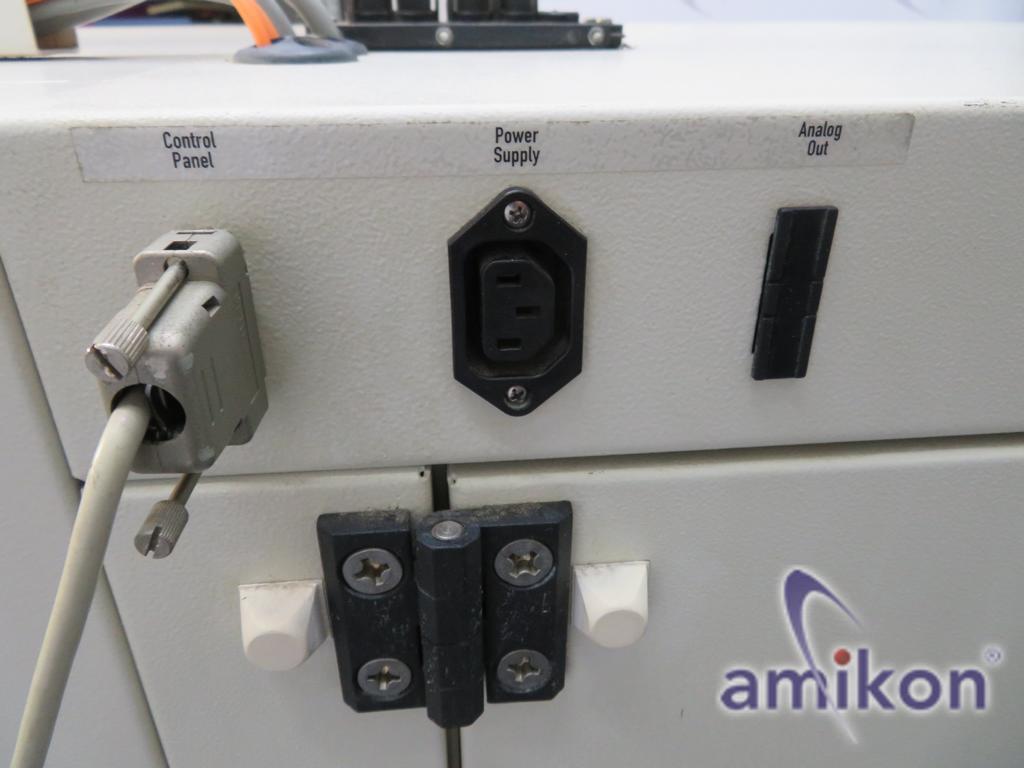

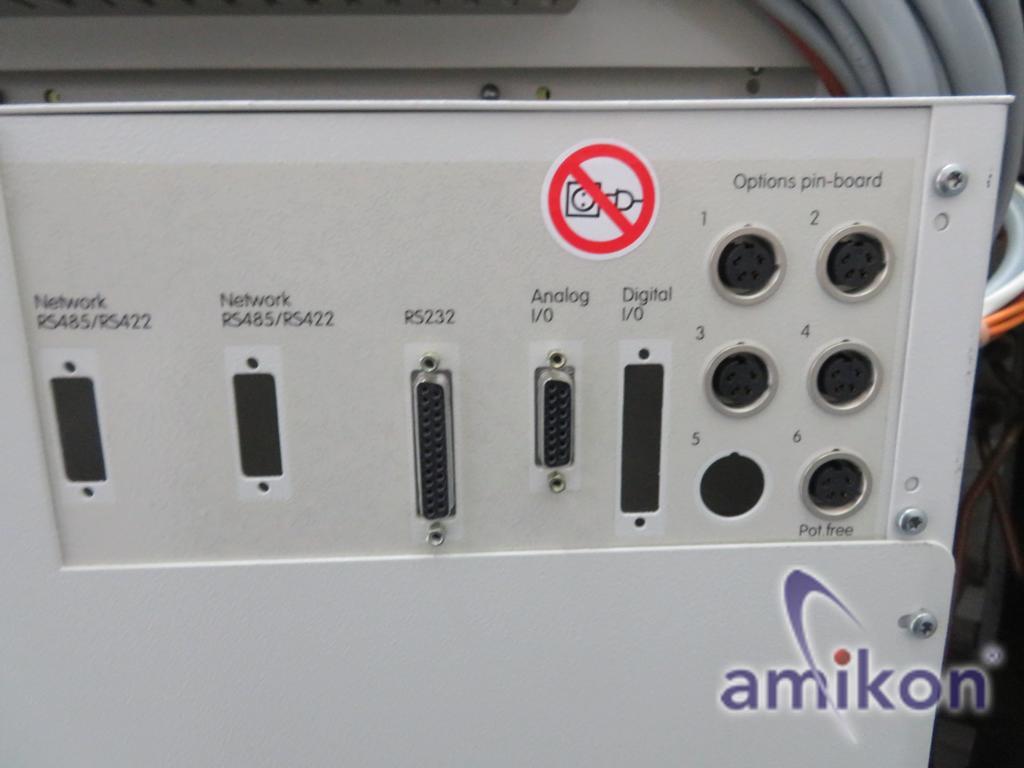

Control and regulation:

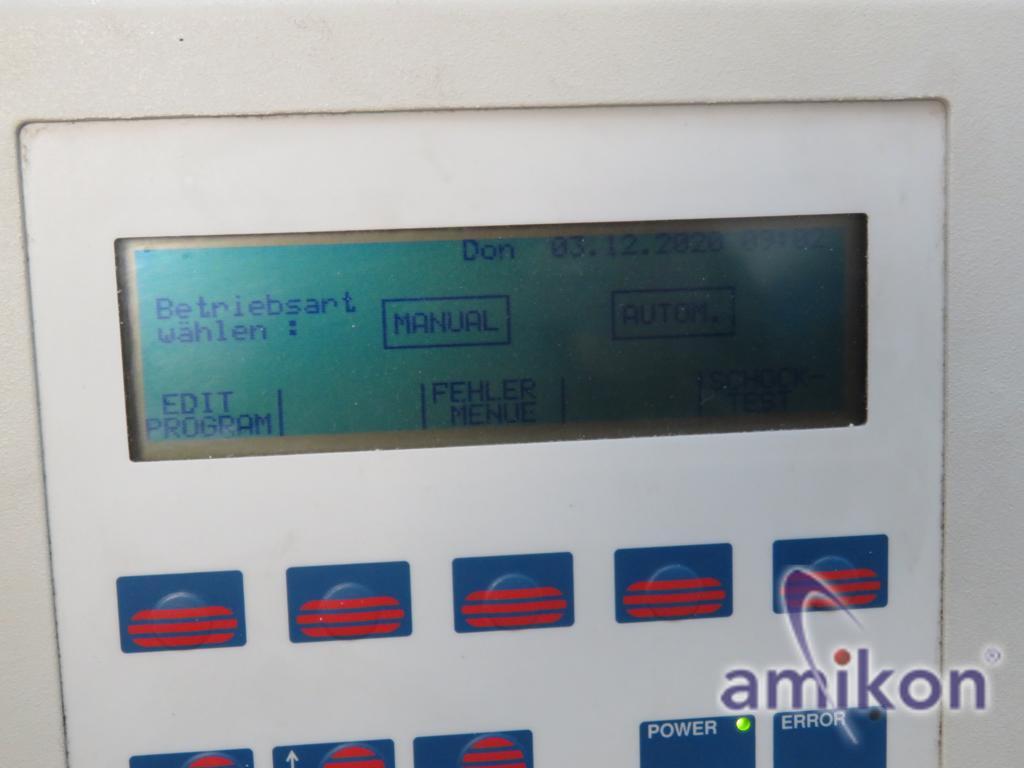

Controller board with detachable color panel

For you as a buyer, the following information for safety!

The following points will be carried out on our offered chambers in advance:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

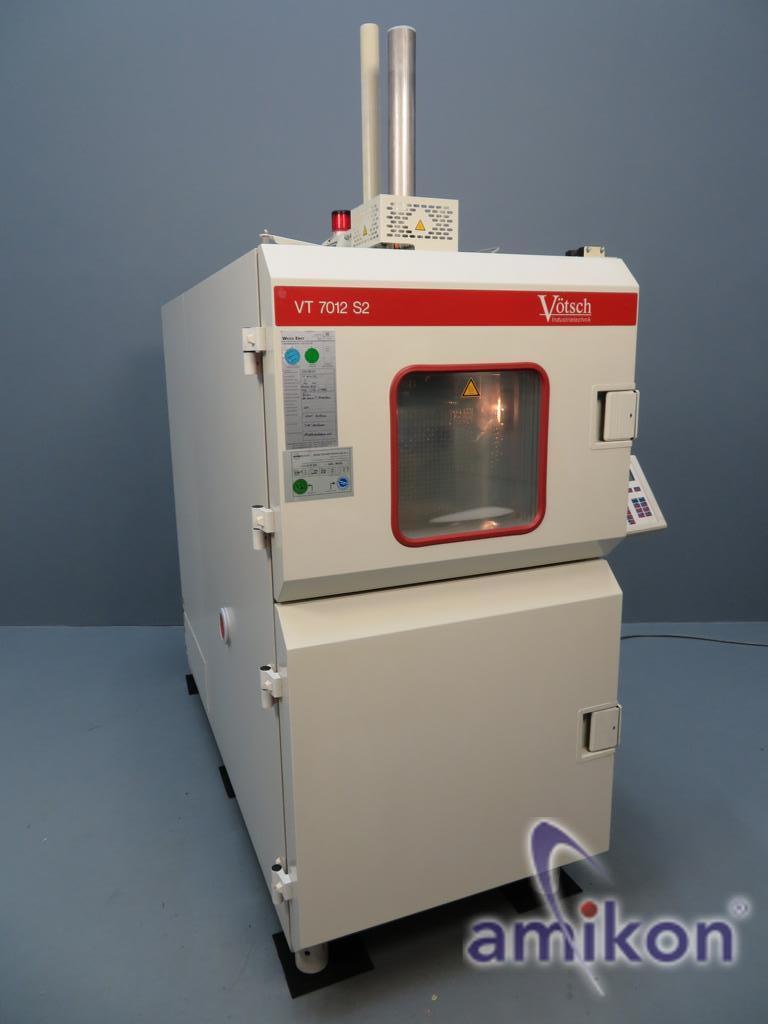

Type: VT 7012 S2

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

We would be happy to answer any further questions by phone.
