Heraeus Vötsch Climate Test Chamber -42°C to +180°C and Humidity VC³ 4018 56611511

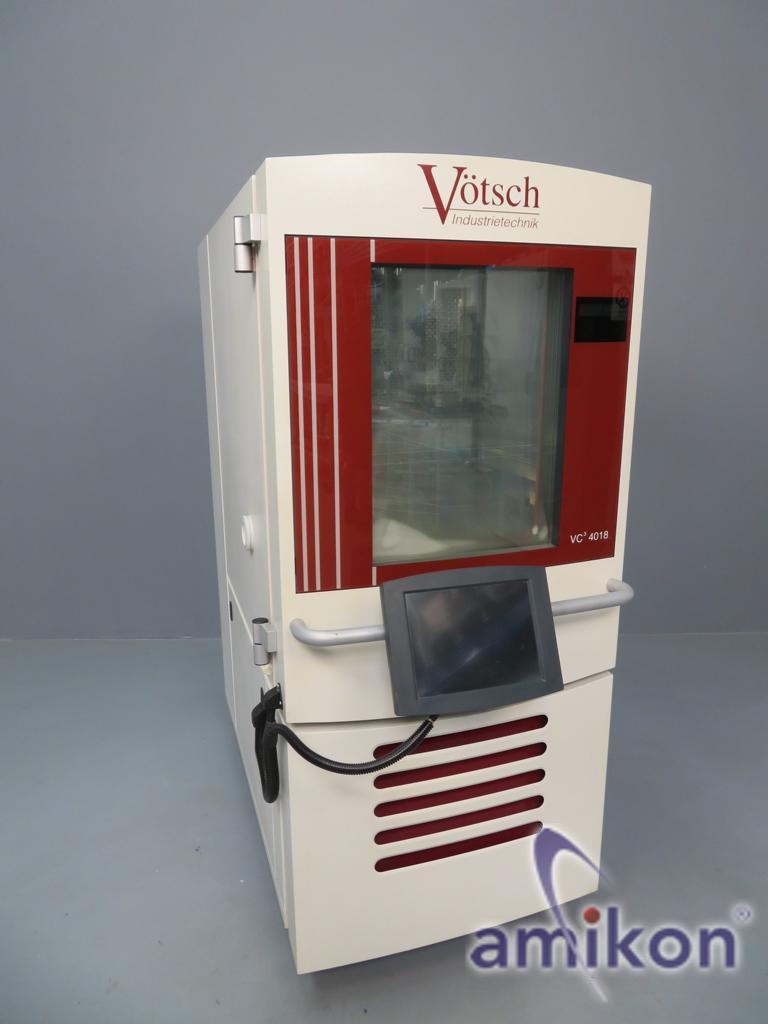

Heraeus Vötsch Climate Test Chamber

Here we offer you a Heraeus Vötsch climate test chamber.

Vötsch Climate Test Chamber Air-Cooled

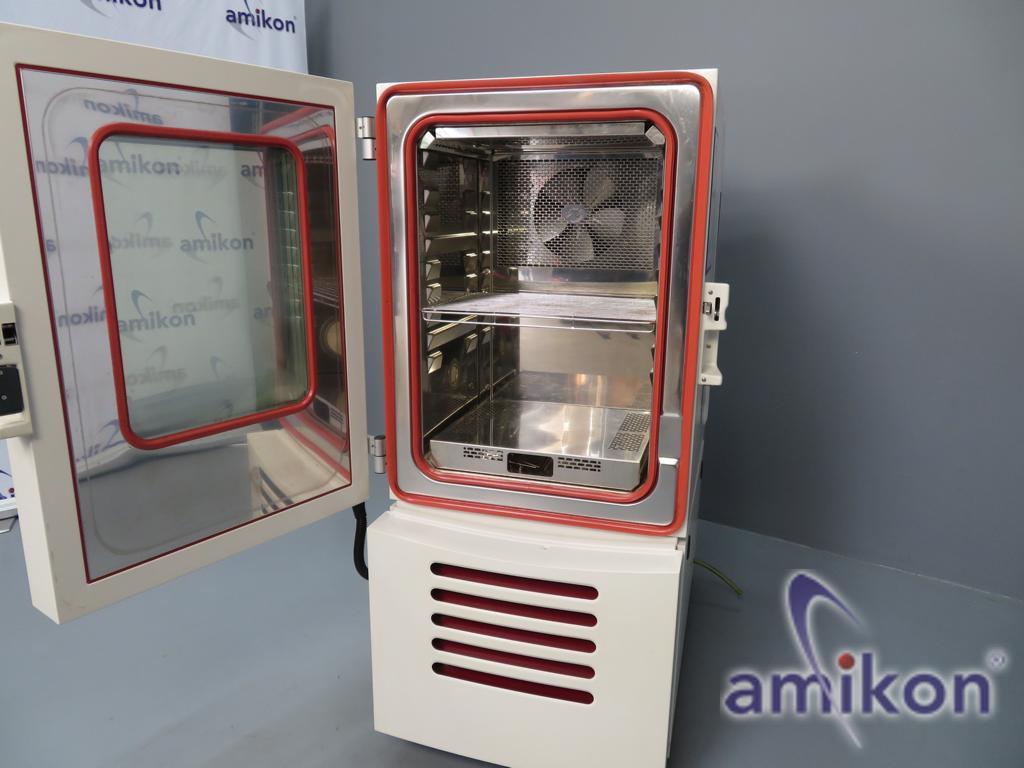

Test chamber dimensions: Width 580 x Depth 450 x Height 750 mm

Housing dimensions: Width 870 x Depth 1550 x Height 1800 mm

Temperature range: -42°C to +180°C

End value -45°C

Temperature deviation over time in the center of the usable space ± 0.1 to ± 0.5 K

Spatial temperature deviation ± 0.5 to ± 1.5 K

Temperature gradient 1 to 3 K

Rate of temperature change according to IEC 60068-3-5

Heating: 4 K/min.

Cooling: 4 K/min.

Heat compensation max. 2800 W

Key values for climate tests:

Temperature range: +10°C to +95°C

Dew point range -3 to +94°C

Humidity range: 10% to 98% r. H.

Temporal temperature deviation in the usable space ± 0.1 to ± 0.3 K

Spatial temperature deviation ± 0.5 to ± 1 K

Temperature gradient 1 to 2 K

Temporal humidity deviation in the center of the usable space ± 1 to ± 3 % r. H.

Heat compensation in the range of +25°C to +95°C, up to 90% r. H. 400 W

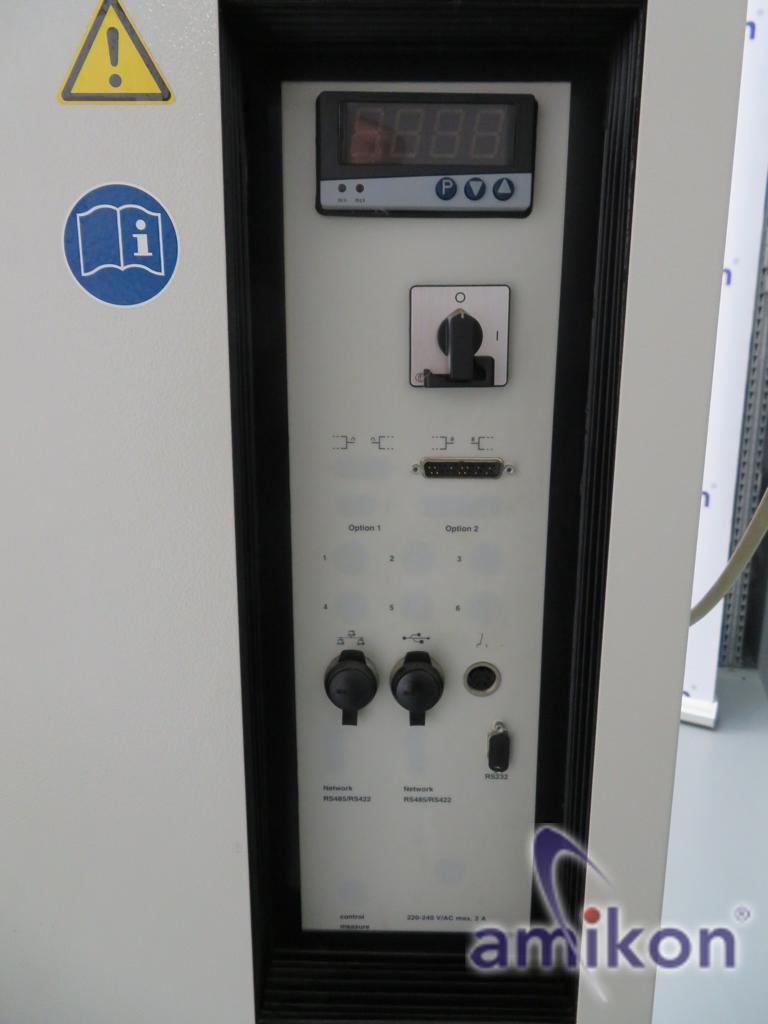

Electrical connection:

Nominal voltage: 3/N/PE AC 400V ±10% 50Hz

Nominal power: 4.1 kW

Nominal current: 12.5 A

Protection: 16A slow, site-specific

Refrigerant: R-404A

Test chamber volume: approx. 190 liters

Weight: approx. 470 kg net

Type: VC³ 4018 / 56611511

For you as a buyer, the following information for your safety!

The following points will be carried out in advance on our offered chambers:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Condition: used

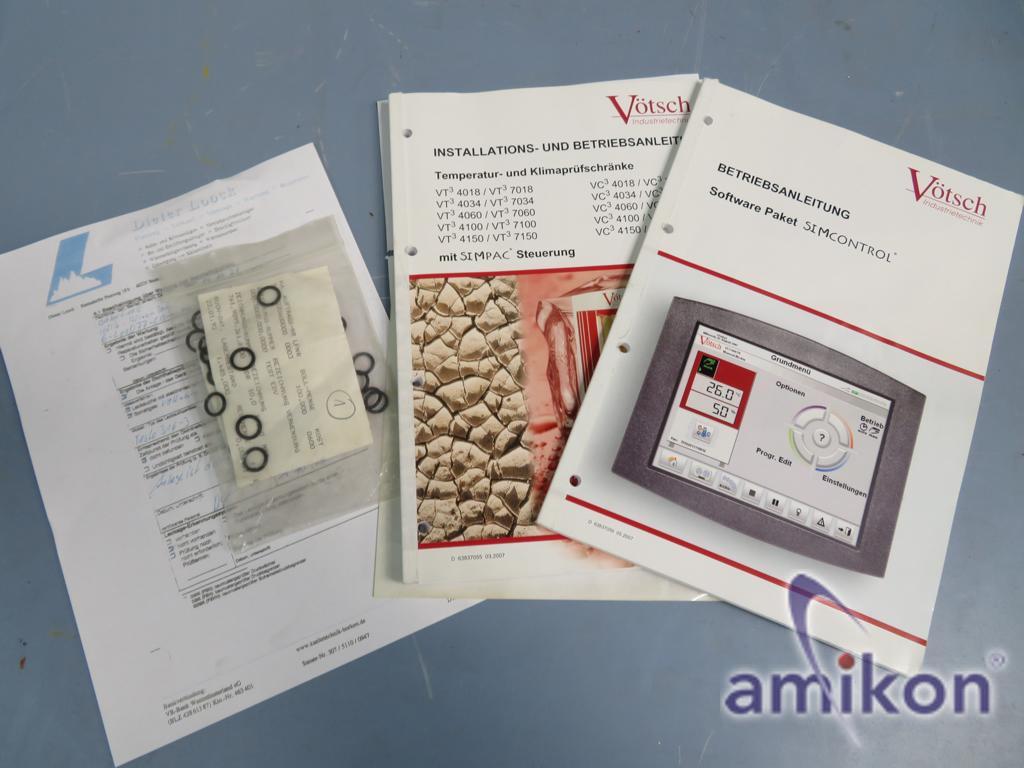

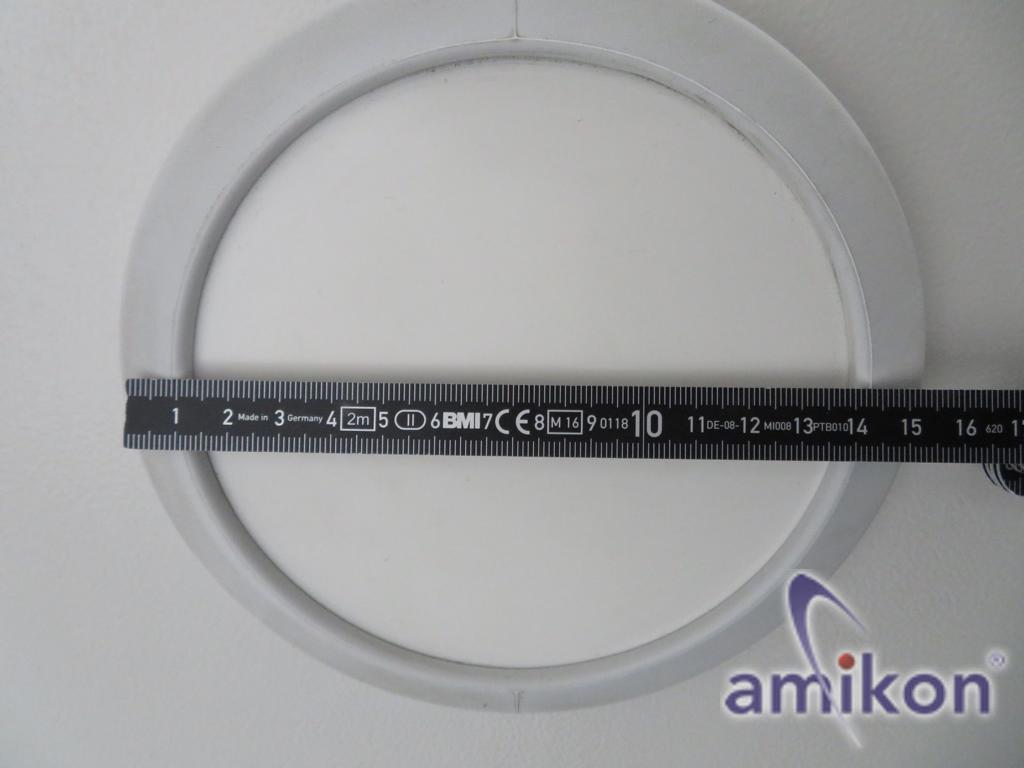

Scope of delivery: (See image)

(Changes and errors in the technical data are reserved!)

We are happy to answer any further questions by phone.
