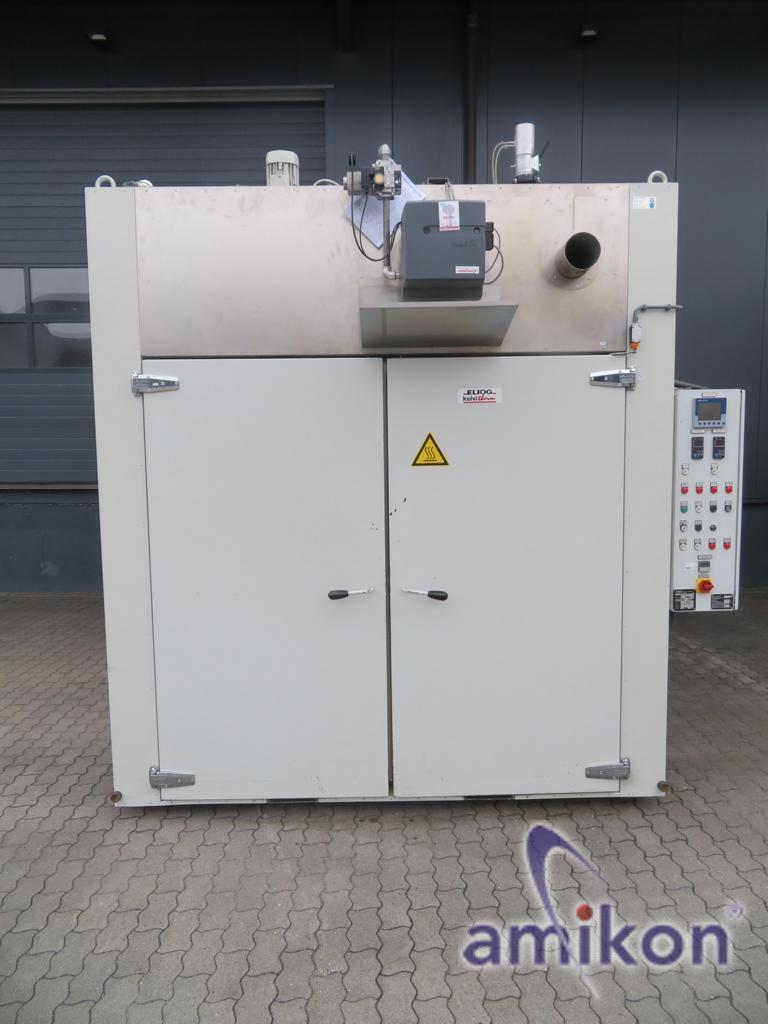

Eliog Chamber Air Dryer - gas heated - KUV 200/19-20-27 D/GAS 70 to 200°C

Eliog

Type: KUV 200/19-20-27 D/GAS

Kelvitherm industrial oven chamber recirculation dryer - gas heated

Description:

Temperature range: 70…200°C
Airflow: horizontal

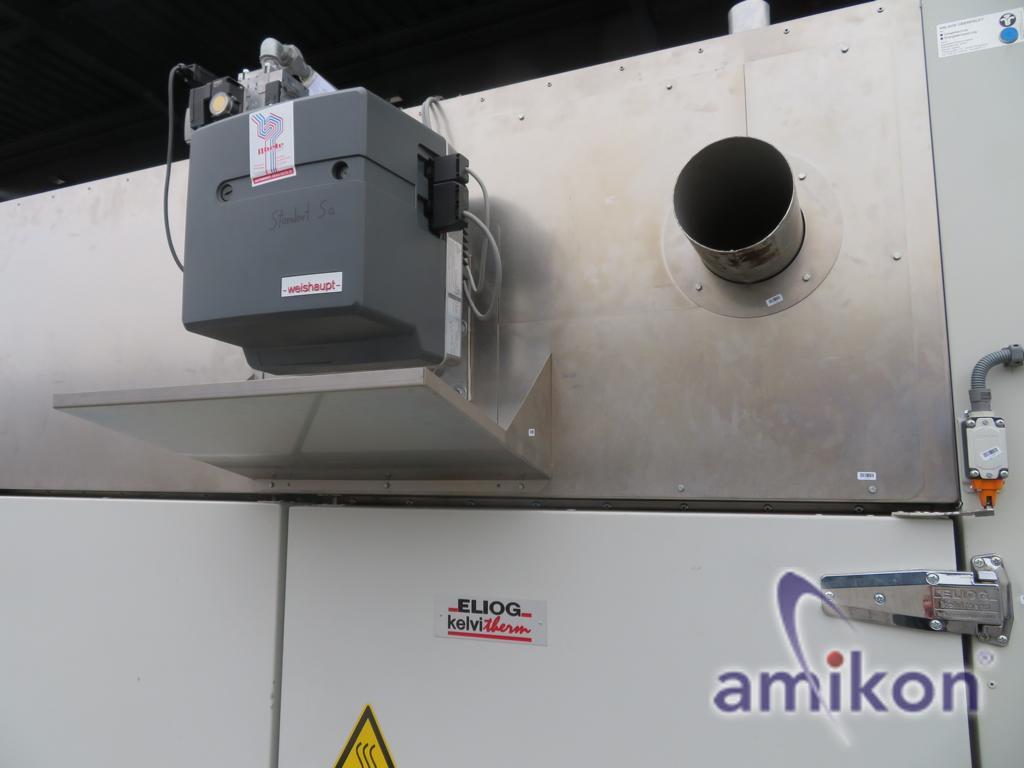

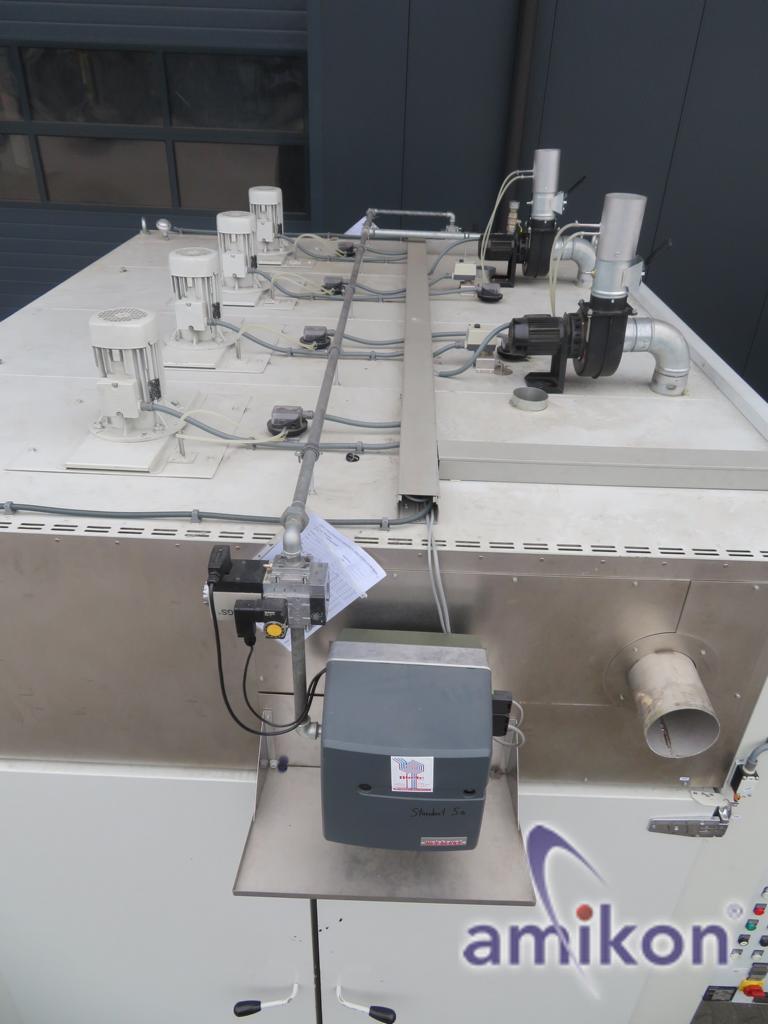

Heating power (Gas) 2 x 43 kW
Connection value (Gas) 15 m³/h
Gas type: Natural gas H
Connection value (Electric): 10 kVA
Nominal voltage: 3 x 400 V, 50Hz, PE,
Protection class: IP 54 / IP 20 (Heating)
Noise emission dB (A): <70

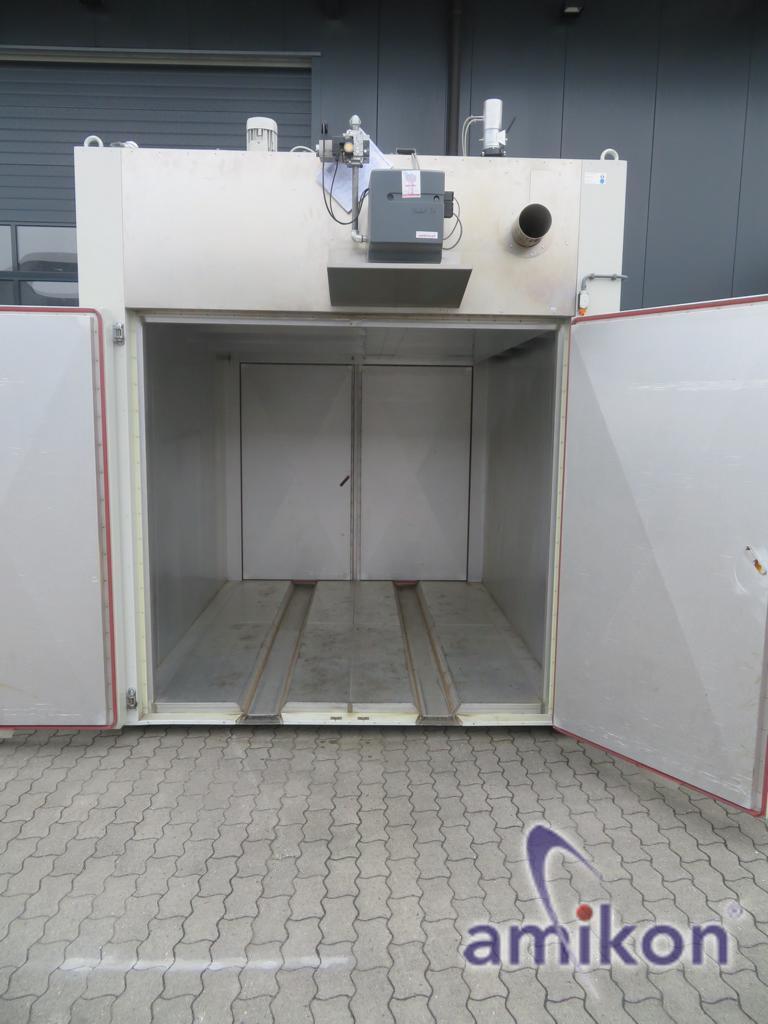

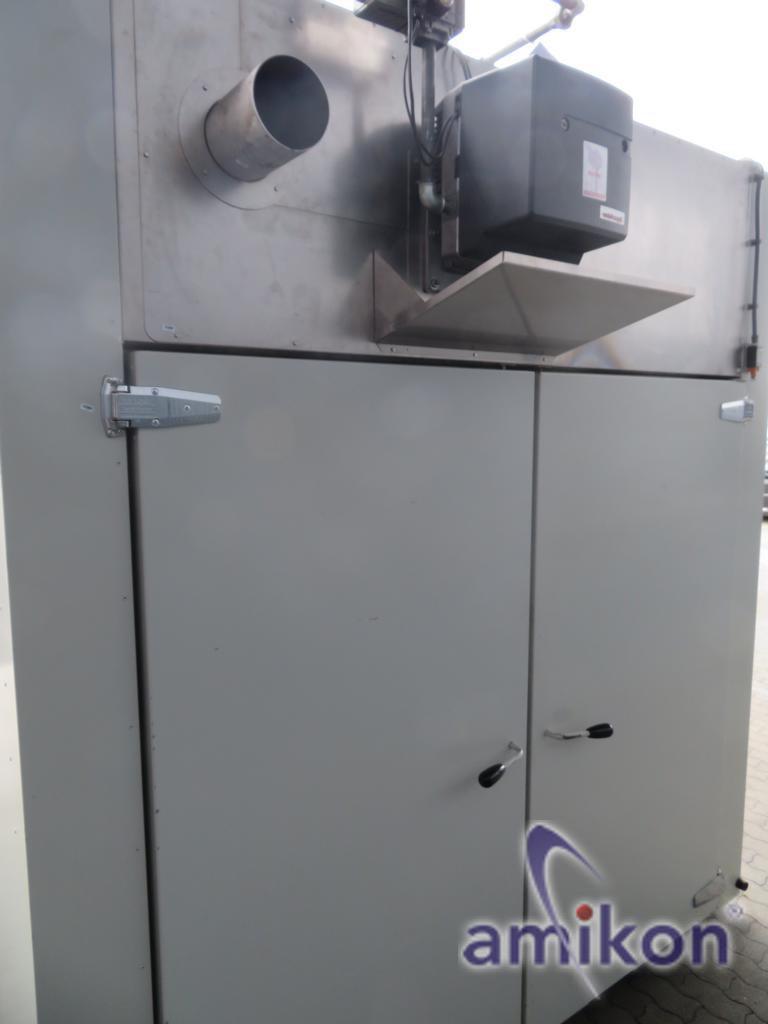

Door (pass-through design): 2 double-wing hinged doors
Average air speed in the usable space (m/s): 0.5…0.75
Weight: approx. 2300 kg
Outer wall temperature: at usable space temperature 200°C and ambient temperature 20°C

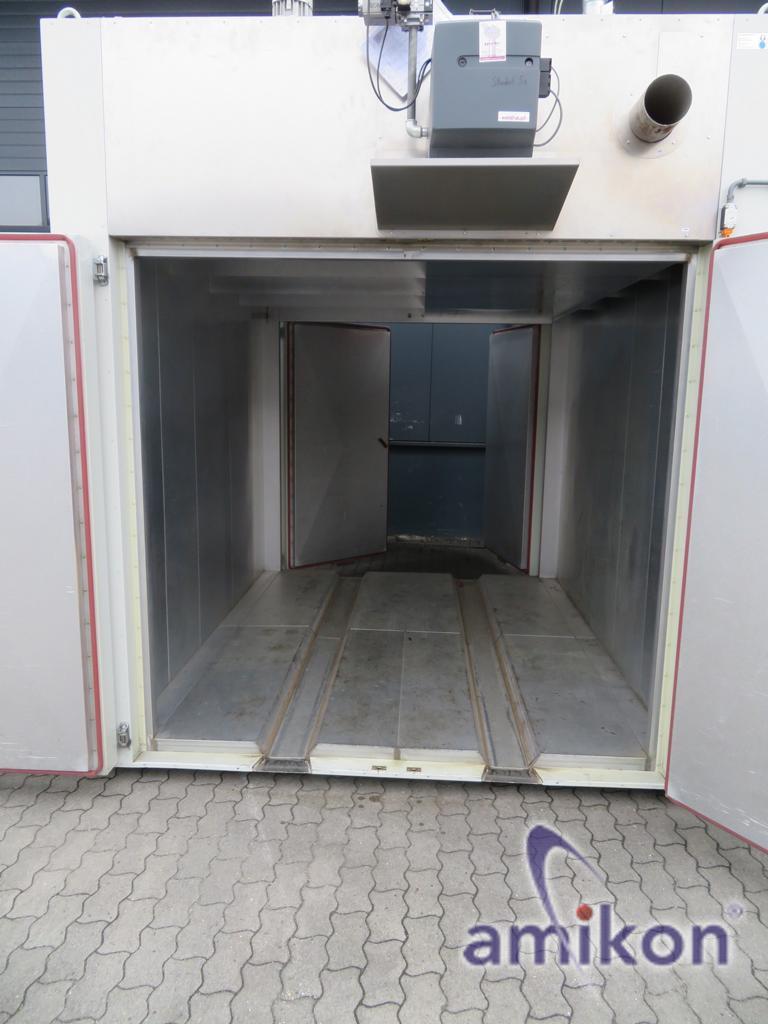

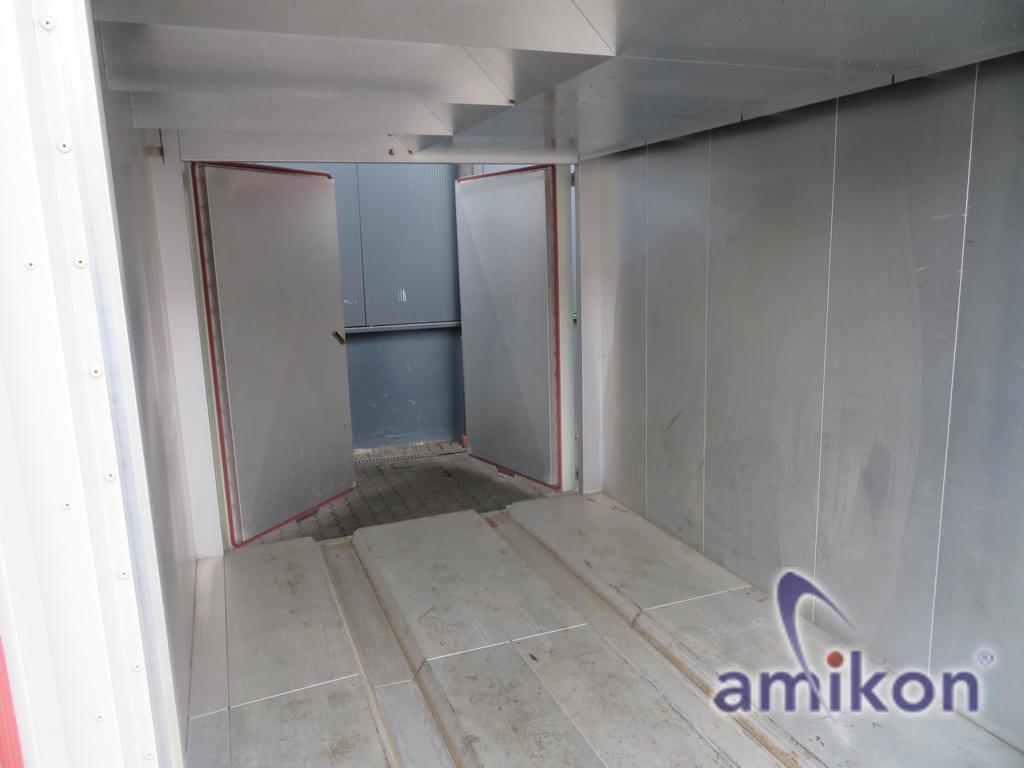

Usable space equipment: 1 pair of recessed rail tracks, average track width 900 mm

External dimensions: Height 3380 mm Width 2850 mm Depth 3650 mm

Usable space dimensions: Height 1900 mm Width 2000 mm Depth 2700 mm

Usable space volume: 10260 liters
Total steam space: 15560 liters
Exhaust air volume flow, fresh air full operation: approx. 12 m³/min
max. radiator temperature: <750 °C

For your safety as a buyer, the following information!

Due to the size of the chamber, a special transport with the necessary permits is required.
This takes some time.

Condition: used

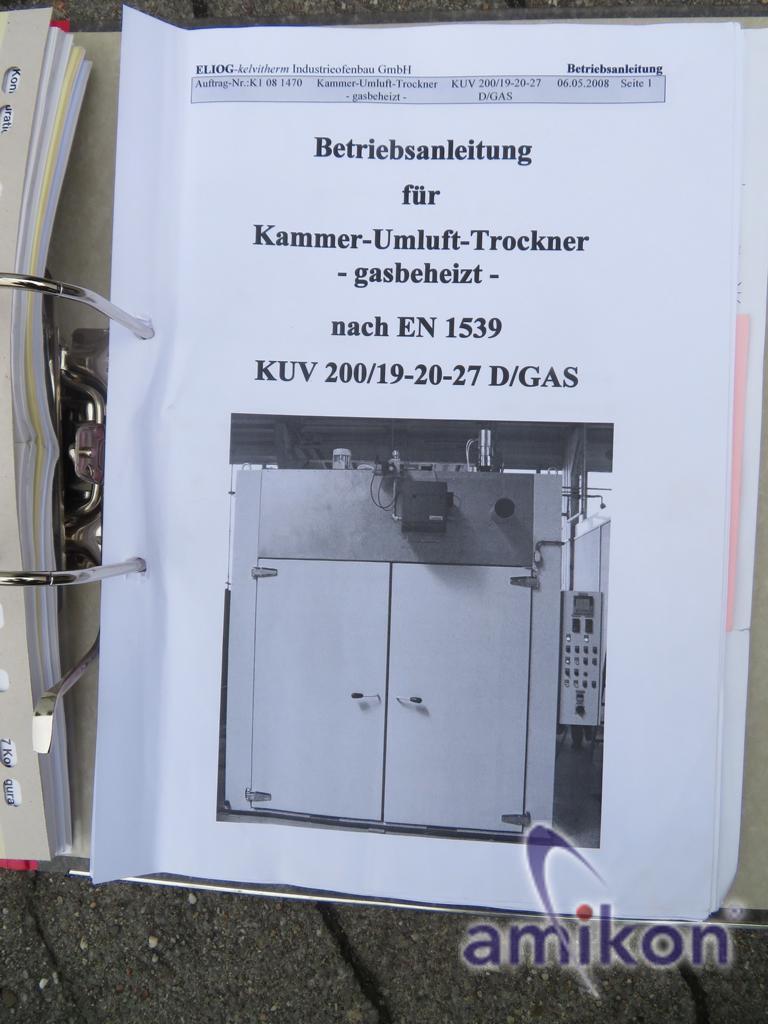

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We would be happy to answer any further questions by phone.
