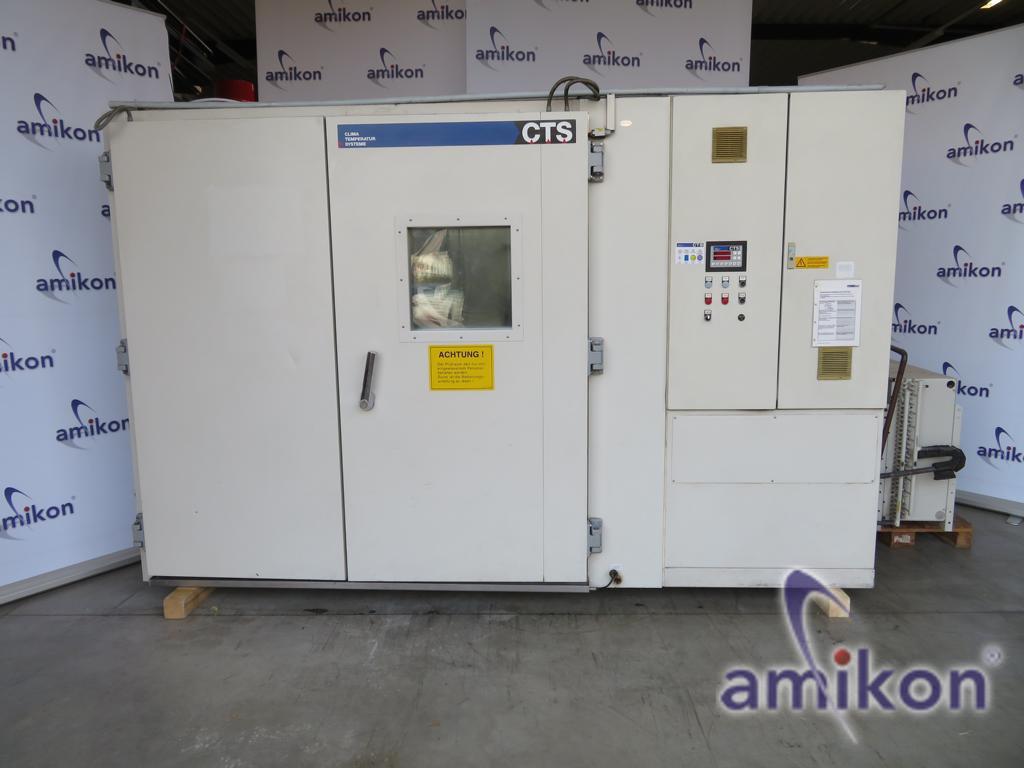

CTS Temperature Testing Cell Walk-in Test Facility TW -60/7 -60°C to +90°C 7m³ 022069

CTS

Type: TW -60/7

CTS Temperature Test Chamber Type TW -60/7

T means: Temperature
W means: Walk in
-60 means: lower temperature -60°C
7 means: 7 m³ test chamber volume

Technical Specifications:

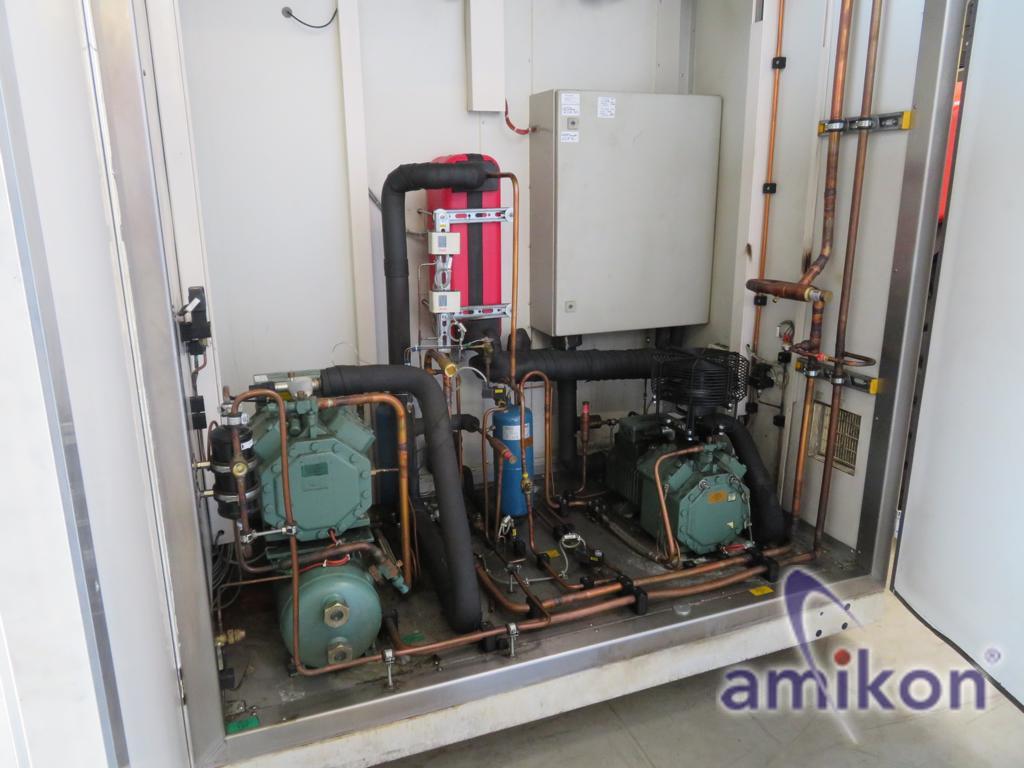

Cooling Unit:
water-cooled, low noise, semi-hermetic,
infinitely variable power adjustment through electronic
monitoring and control system,
environmentally friendly refrigerant R23 / R404 A

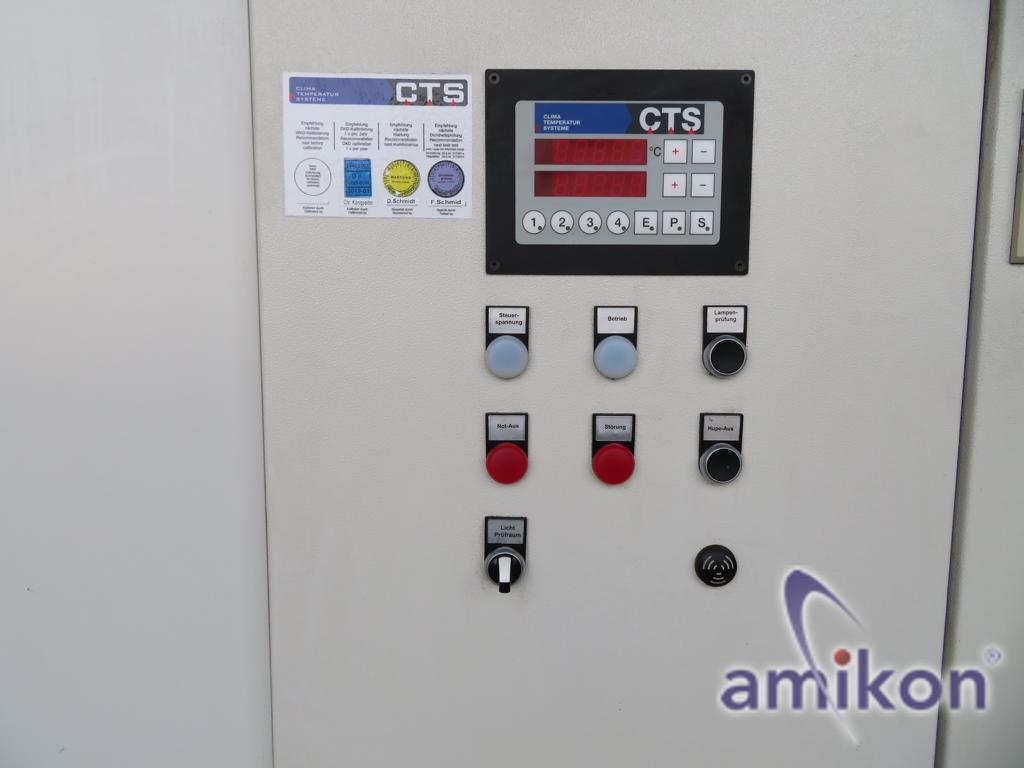

Control:
32 Bit - Controller
LCD Control Panel
Digital display of set and actual values
Numerical input of set values
Error messages in plain text
RS 232 interface

Technical Performance Data:

Temperature Tests:

Temperature range -60°C to +90°C

Temperature deviation

±1 K over time

±2 K spatially

at 100mm wall distance

Rate of temperature change on average without test goods and

without heat radiation measured in the supply air.

Heating: 1 K/min

Cooling: 1 K/min

from +80°C to -30°C

Heat radiation 1000 Watts at -40°C

Dimensions:

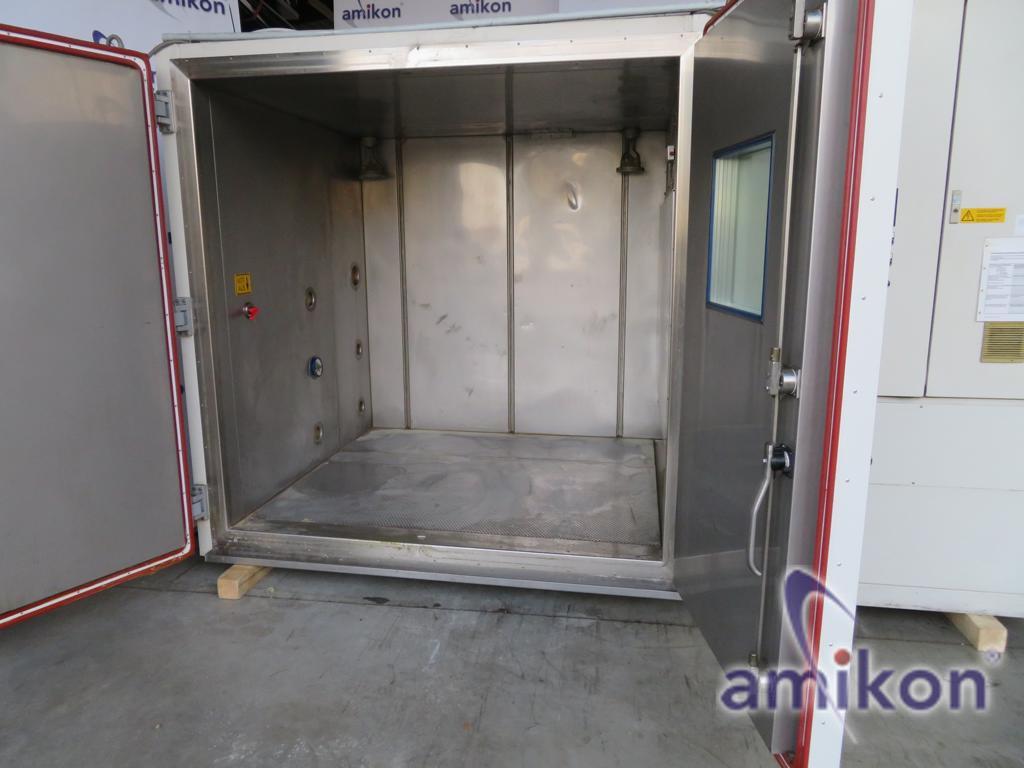

Test volume 7 m³

External dimensions:

Length 3900 mm, Width 2300 mm, Height 2450 mm

Test chamber dimensions see installation plan

Operating Data:

Electrical connection 400 V 3/N PE 50 Hz

Rated power 15.4 kW Rated current: 27.7 A

Protection class IP 54

Cooling water connections Cooling water supply/return R2“, internal thread

Condensate drain pressureless R1“ internal thread

Condition: used

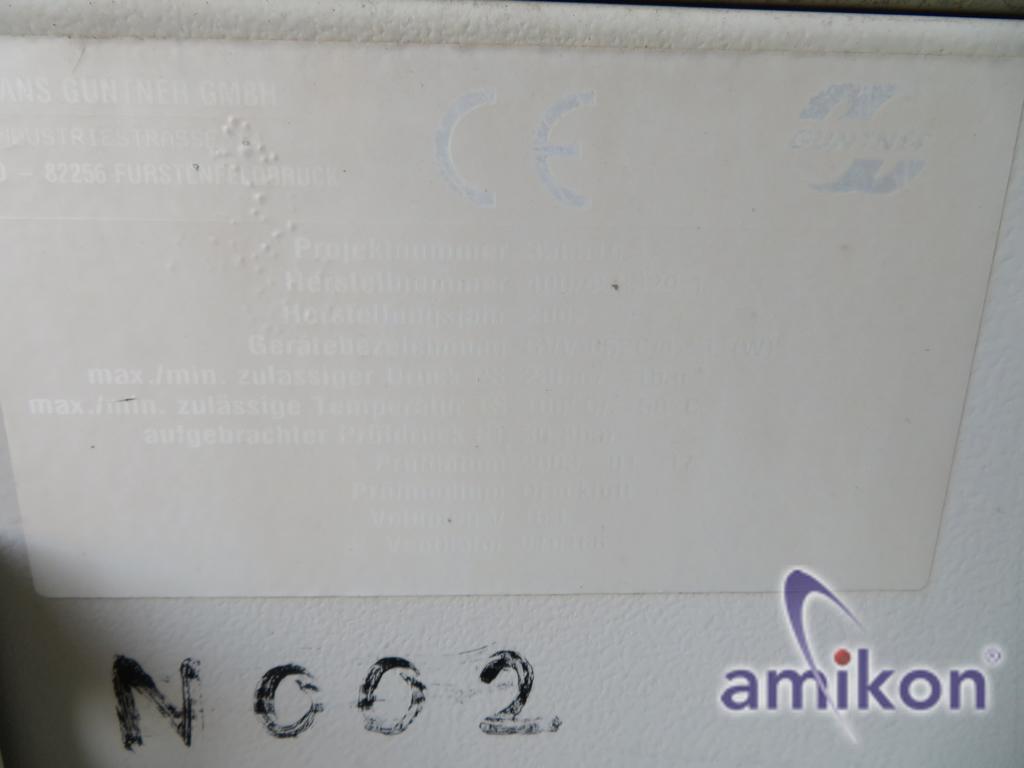

Scope of delivery: (See image)

(Changes and errors in technical data are reserved!)
