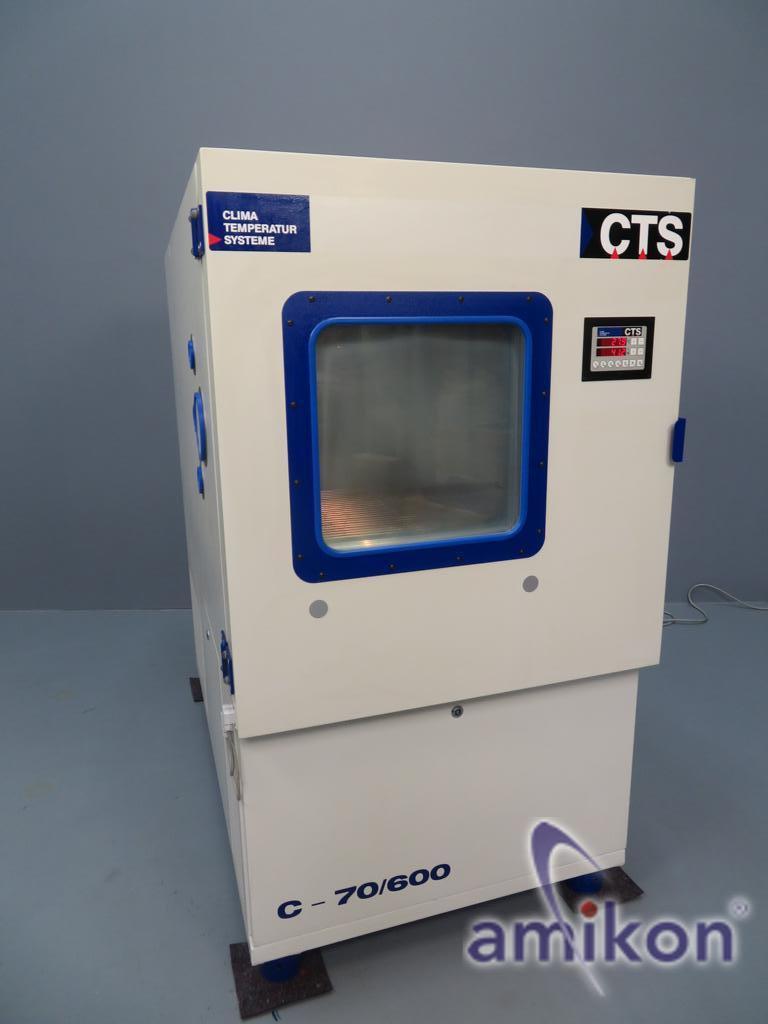

CTS Climate Test Chamber C-70/600 -70 to +180°C with Humidity 600 Liters 98368

CTS Climate Test Chamber

Here we offer you a CTS Climate Test Chamber.

CTS Climate Test Chamber

e.g. Type C -70/600

1) C  means: Climate

2) -70 means: lower temperature -70 °C

3) 600 means: 600 liters test chamber volume

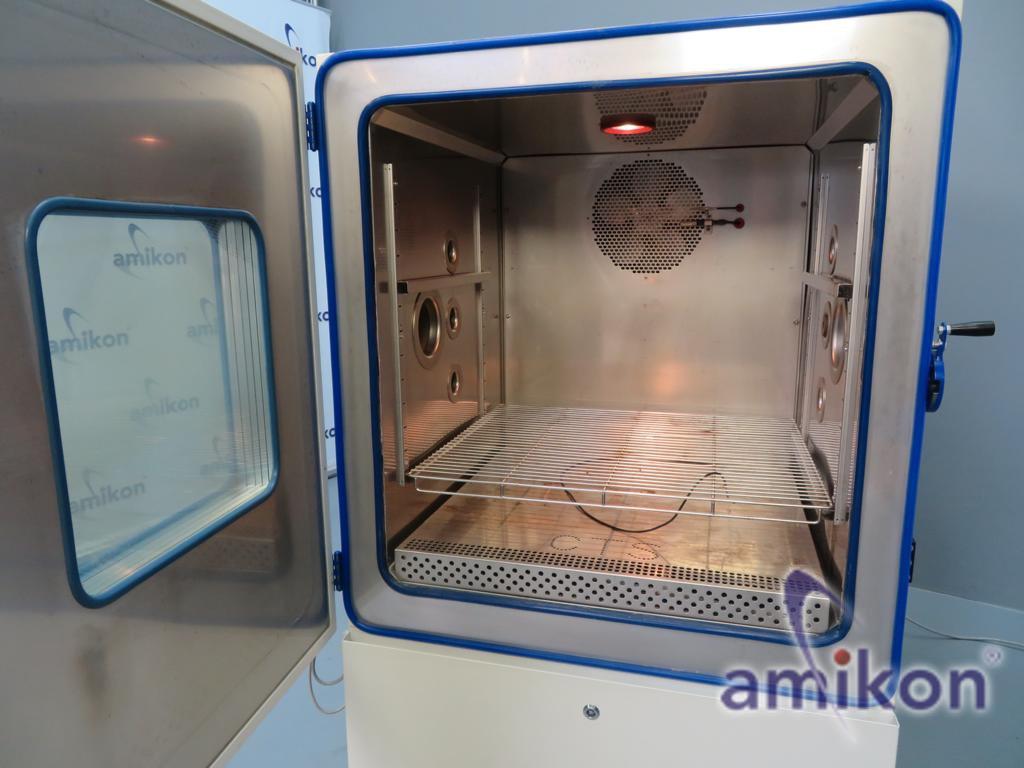

Test chamber dimensions height, approx. 850 mm, width, approx. 850 mm, depth, approx. 830 mm

External dimensions height, approx. 1900 mm, width, approx. 1115 mm, depth, approx. 1850 mm

Test chamber volume 600 liters

Temperature tests:

Temperature range -70 °C to +180 °C

Temperature deviation 0.1 K to 0.3 K over time
in steady state

Rate of temperature change on average, without test goods and without heat radiation,

Heating: 2.5 K/min
measured in the supply air

Cooling: 2.0 K/min

in the range of +180 to -65°C

Heat radiation max 1500 W at +20°C

Climate tests:

Temperature range +10°C  to +90°C

Humidity range 10%  to 98% relative humidity

Dew point range +5°C  to +89.5°C

Temperature deviation 0.1 to 0.3 K over time

Humidity deviation 1 - 2 % r.H. over time up to 90 % r.H.
                        max. 1 - 3 % r.H. over time above 90 % r.H.

Electrical connection: 400V 3/N 50Hz

Power rating: 6.35 kW, rated current: 12.7 A

Climate test chamber weight: 700 Kg

Refrigerant R404A / R23

For your safety as a buyer, the following information!

The following points will be carried out in advance on our offered chambers:
1. Function check and replacement of necessary components
2. New filling with legally compliant refrigerant
3. Leak test with certificate
4. After successful inspection, the chambers will undergo a test run monitored with calibrated devices.

Type: C-70/600 / 98368

Condition: used

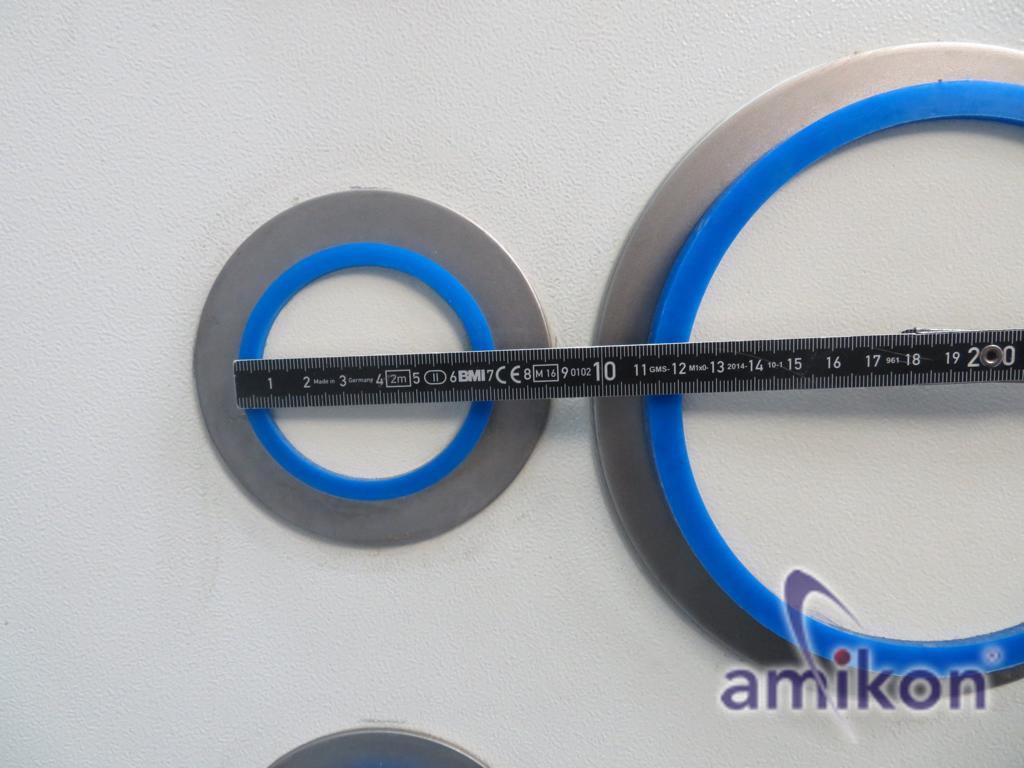

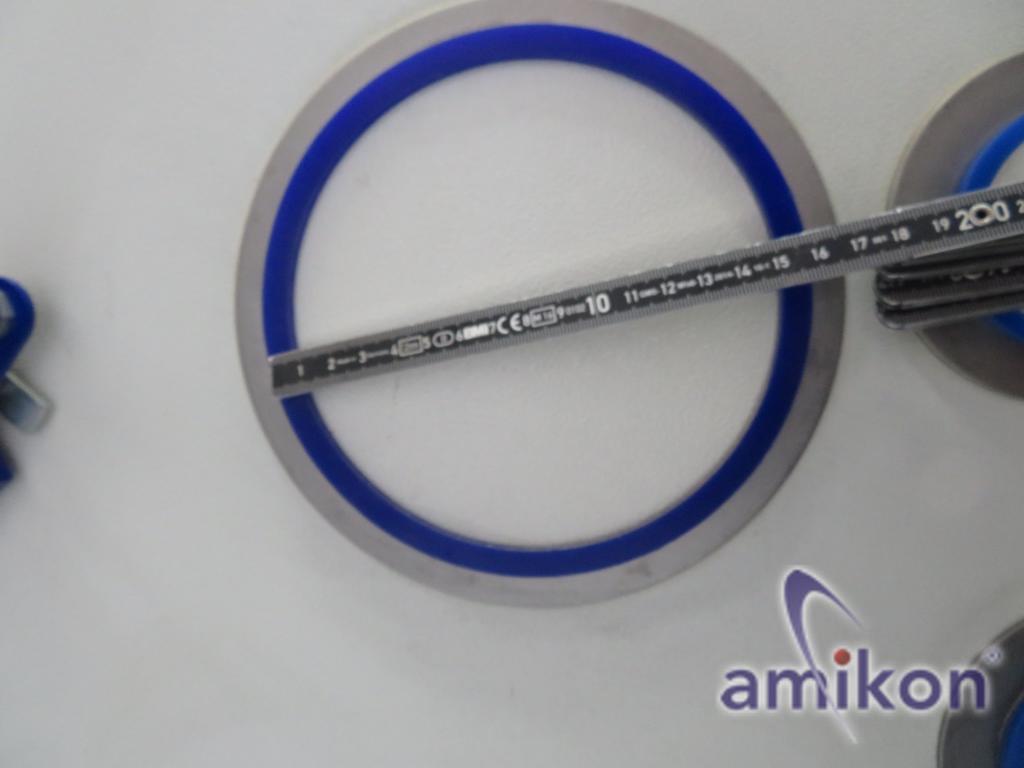

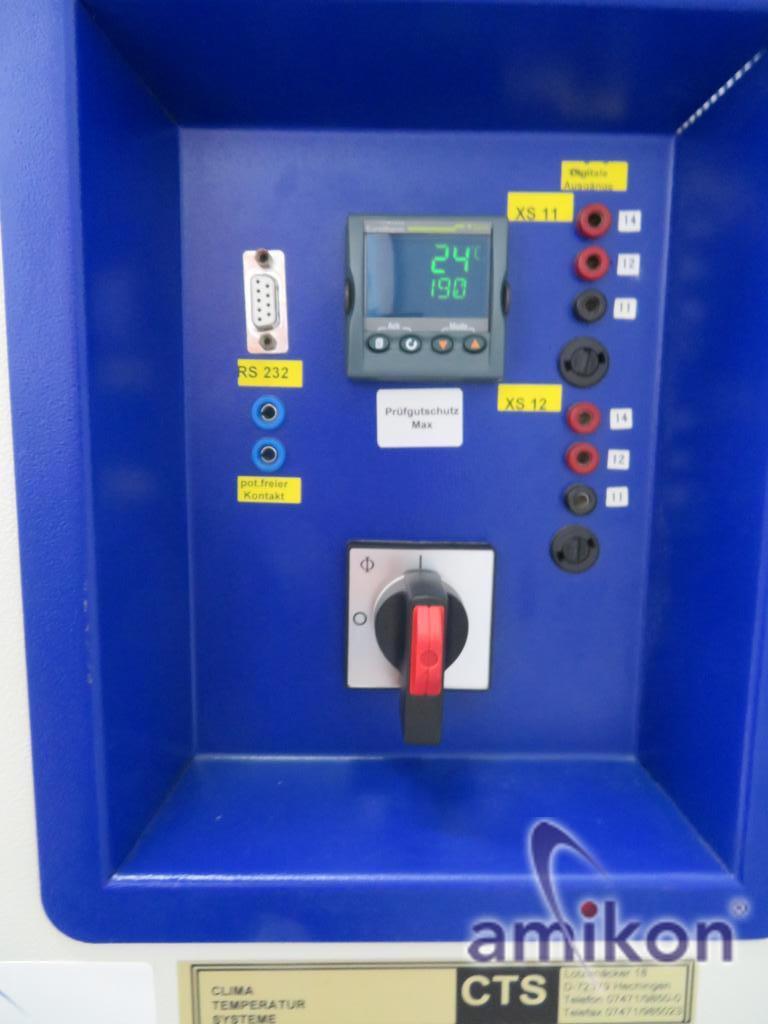

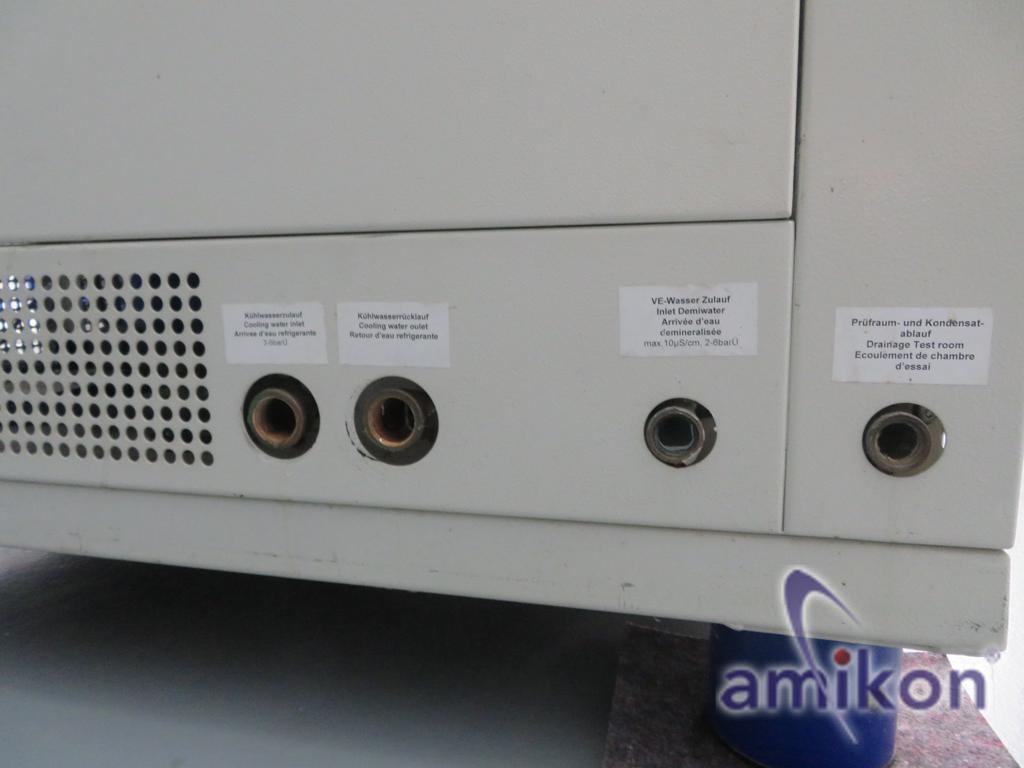

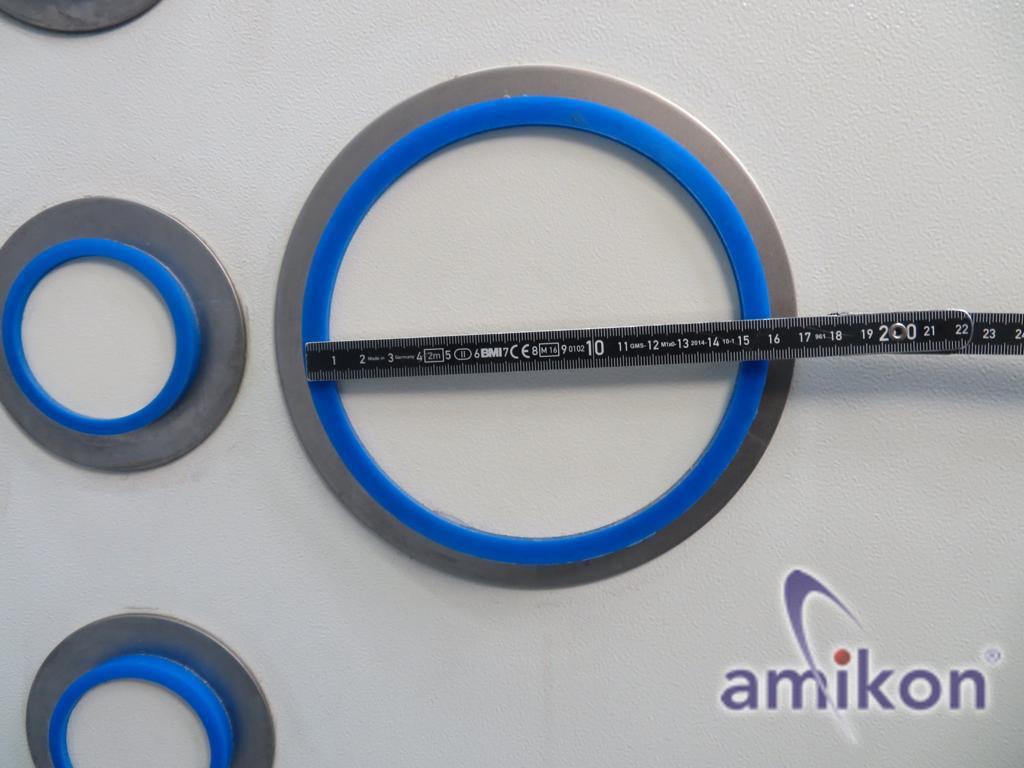

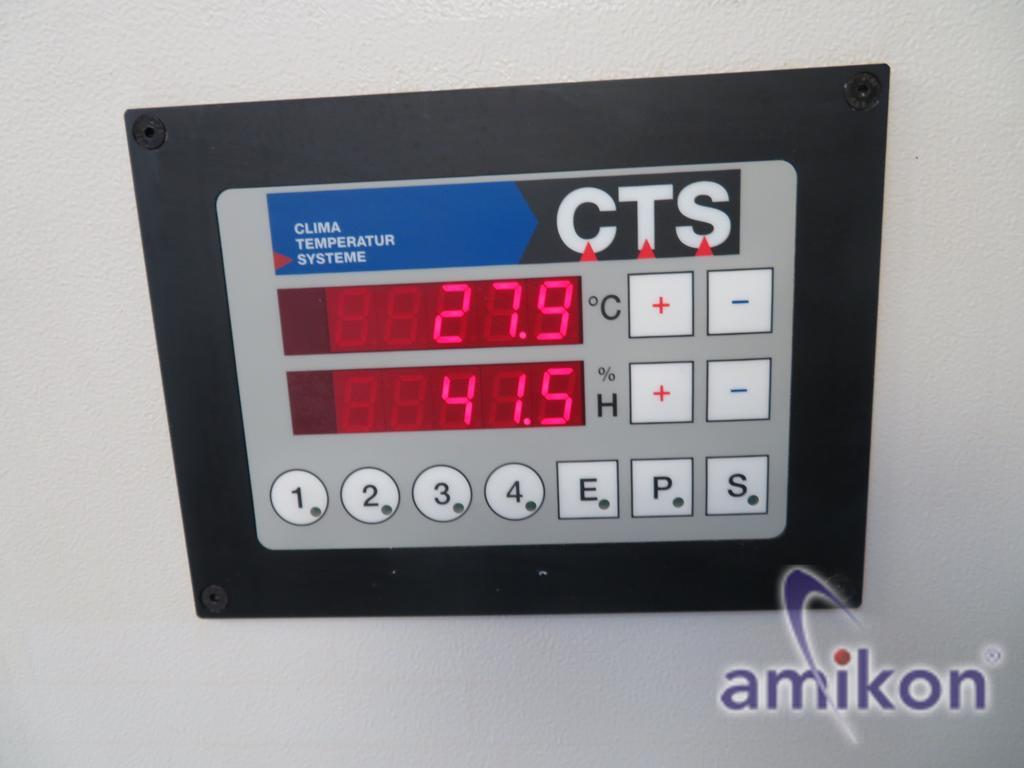

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We would be happy to answer any further questions by phone.
