Angelantoni Walk-In Climate Chamber ACS WZH10-4080-2 BT – Optimized for Battery Testing (Li-Ion)

ACS Angelantoni

Type: ACS WZH10-4080-2 BT

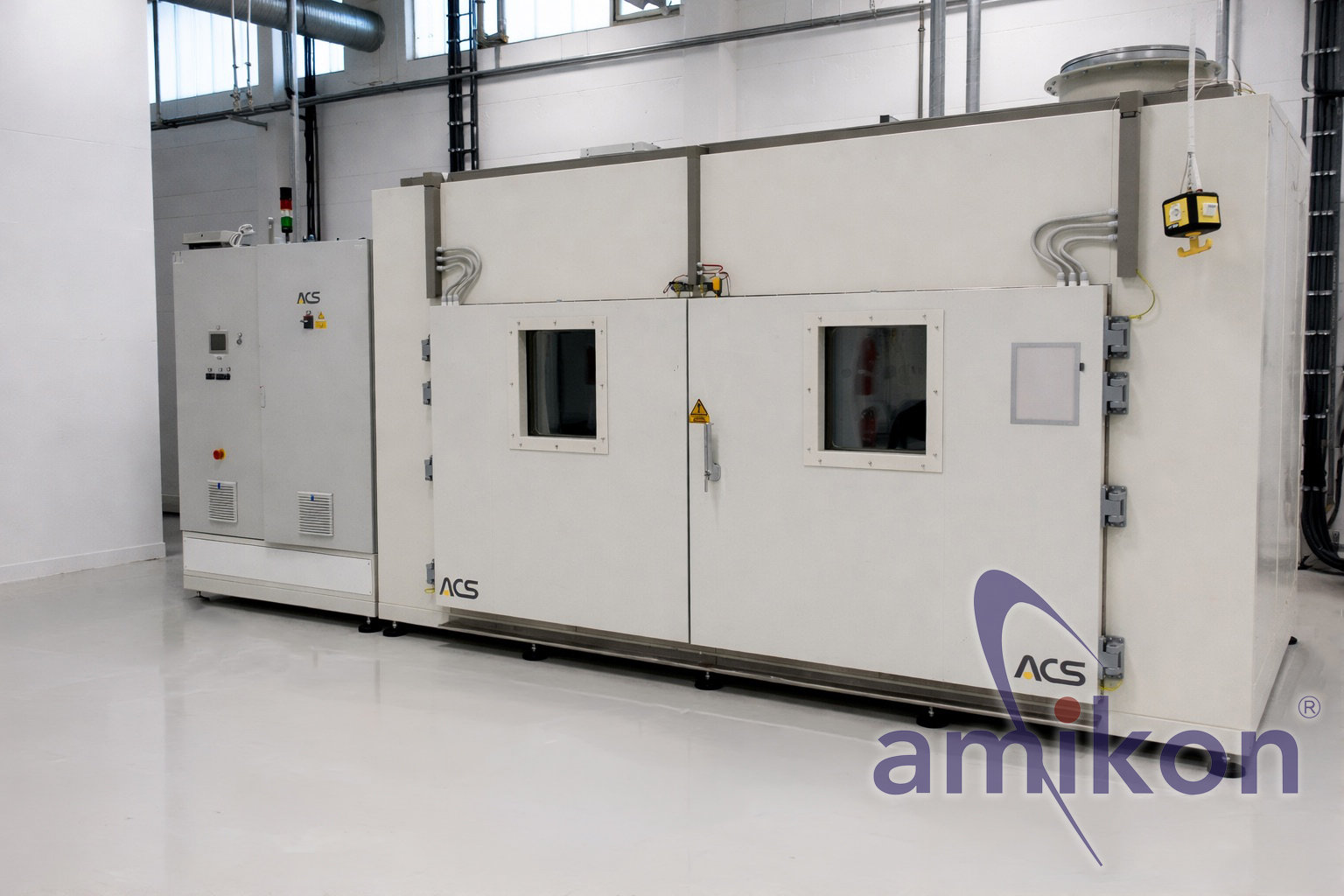

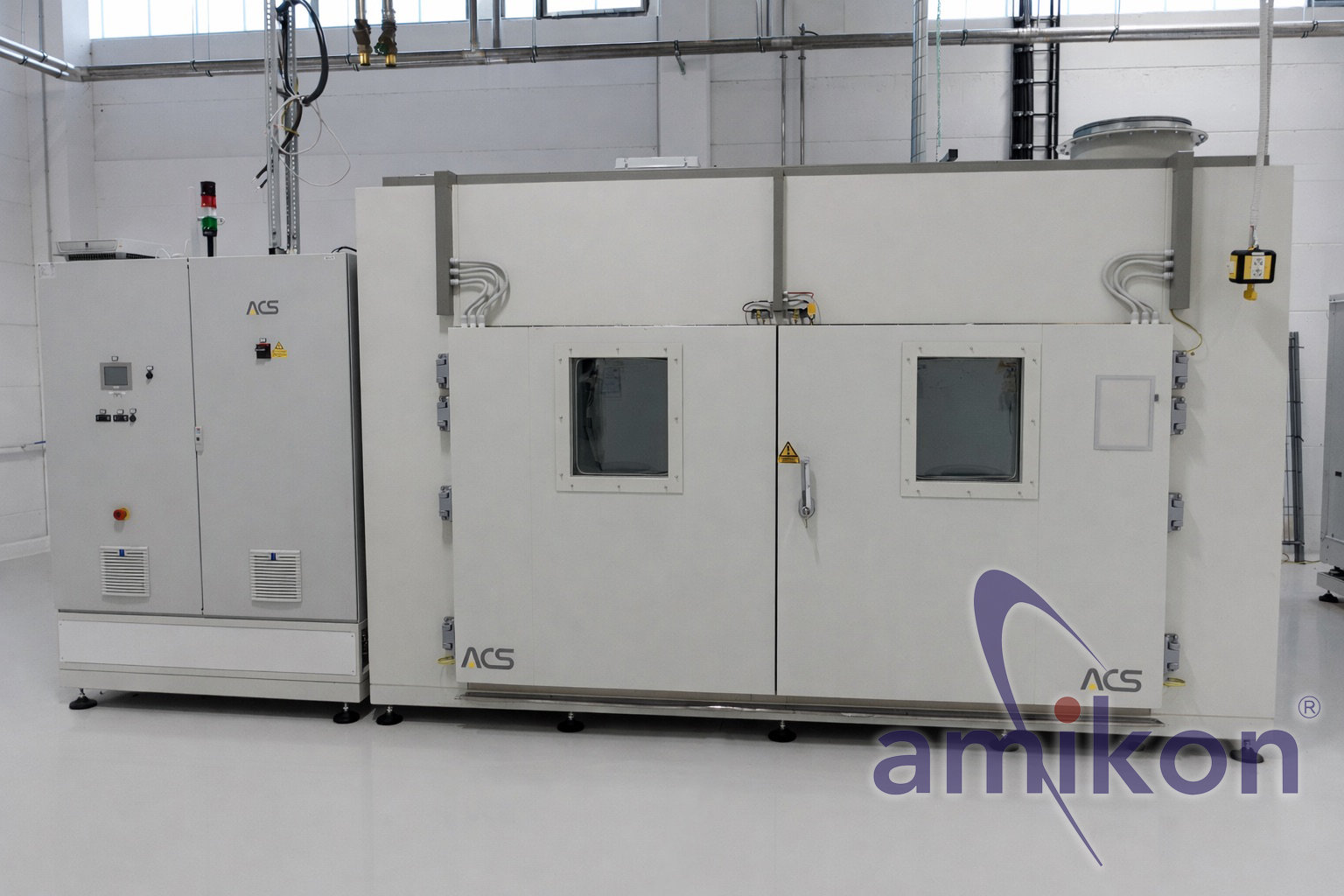

Angelantoni Walk-in Climate Chamber
ACS WZH10-4080-2 BT
Optimized for battery testing (Li-Ion)
-40°C to +80°C

Description:
For sale is a walk-in climate and environmental testing chamber from the renowned manufacturer Angelantoni
Test Technologies (ACS), model WZH10-4080-2 BT, year of manufacture 2019.

The system is designed for demanding industrial, development, and research tests and features
an advanced safety equipment specifically for battery and accumulator tests (e.g., lithium-ion).

Special feature: Safety equipment for battery testing:
The system is specifically equipped for battery and accumulator tests, including:

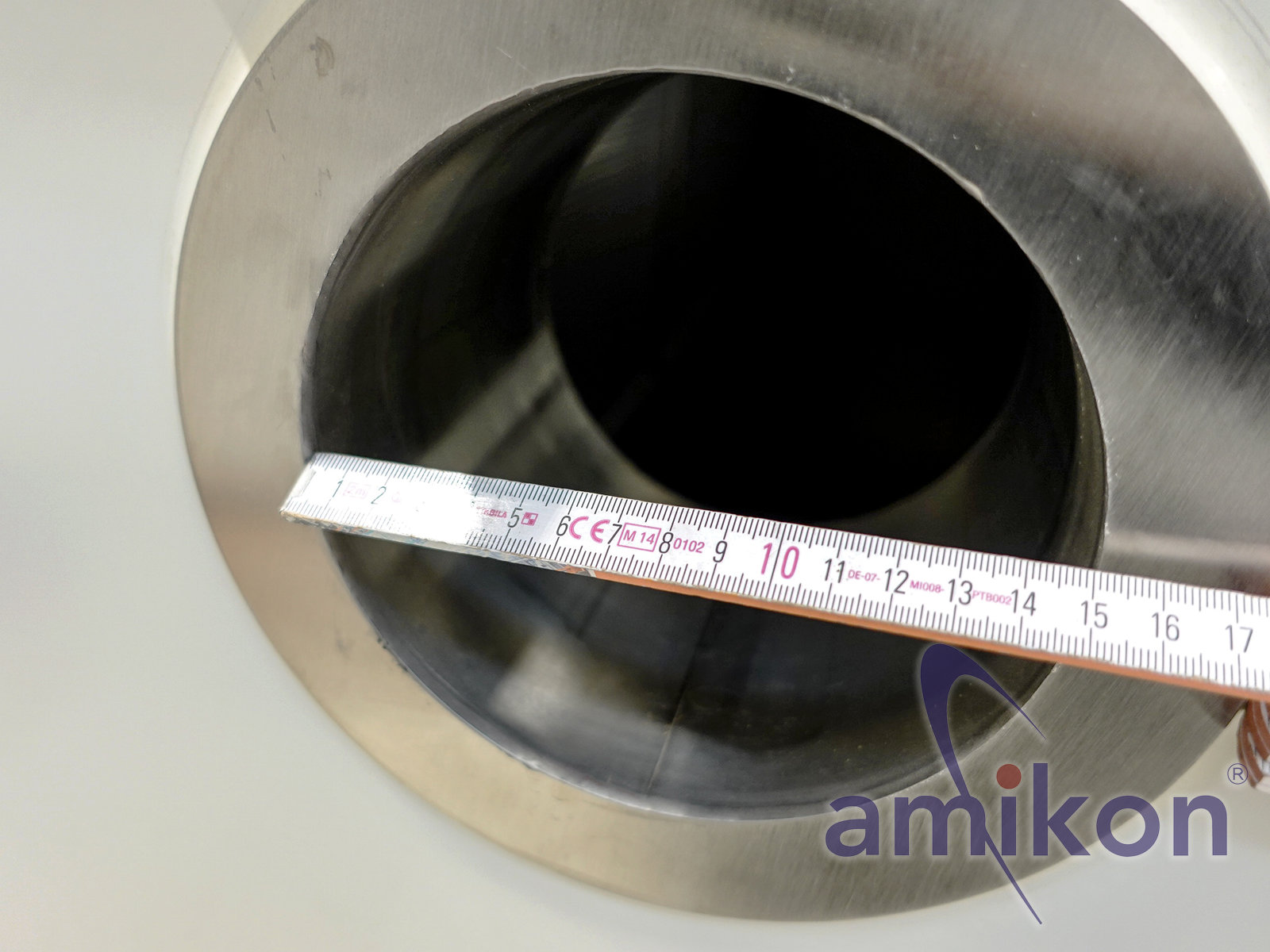

Pressure relief valve for controlled pressure release in case of emergency
Gas warning system for early detection of critical gas concentrations
Aerosol fire extinguishing system (SalgroMAG)
→ ideal for lithium-ion tests

Suitable for:
Batteries & accumulators (including lithium-ion)
Electronics & control devices
Automotive components
Industrial & research tests
Endurance, aging, and load tests

Technical data (from nameplates & documents)

General:
Model: WZH10-4080-2 BT
Year of manufacture: 2019
Standards: CE, IEC/EN 60204-1

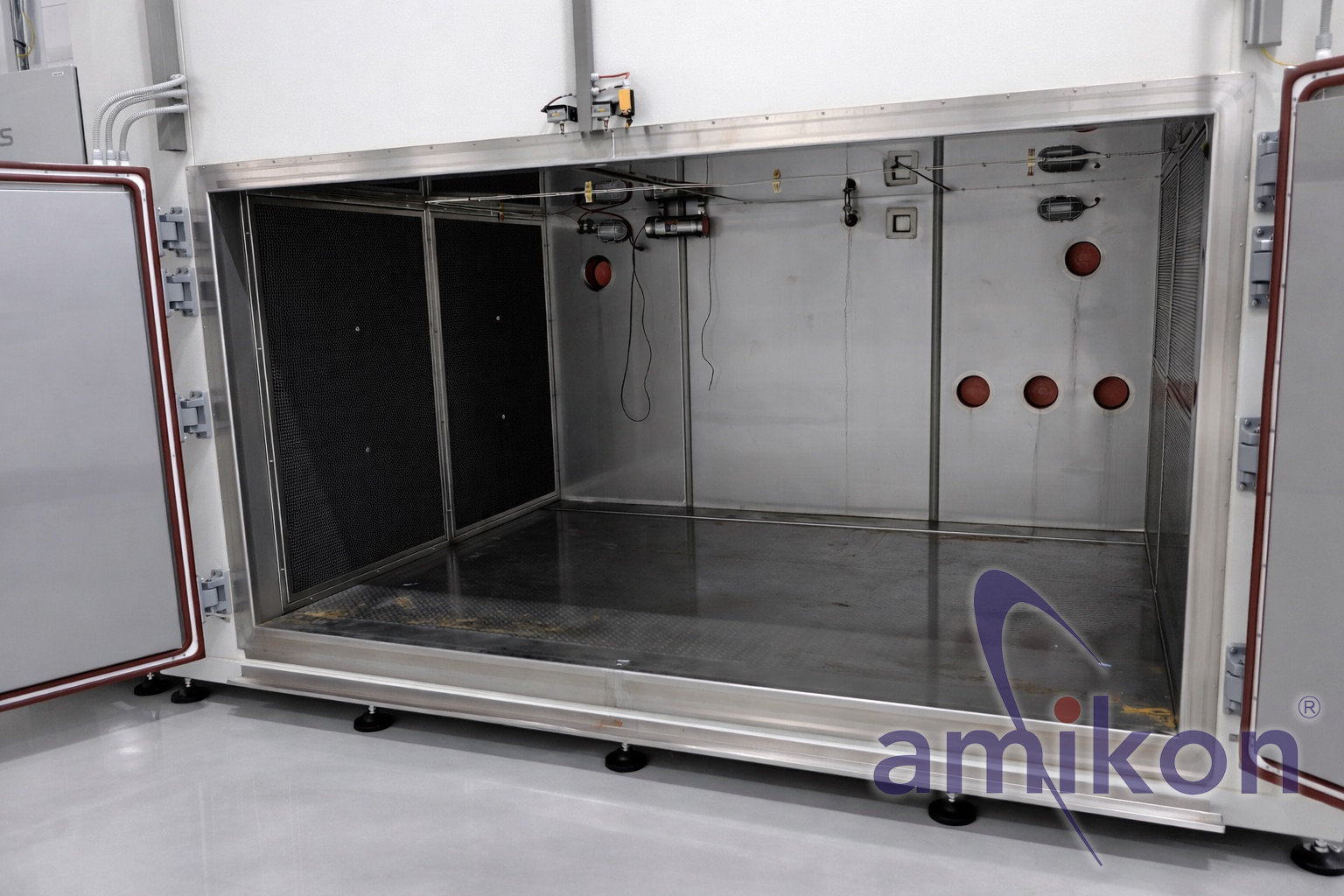

Design: Walk-in climate chamber, 2-door

Testing range:
Temperature: –40 °C to +80 °C
Humidity: 10 % to 95 % r.H.

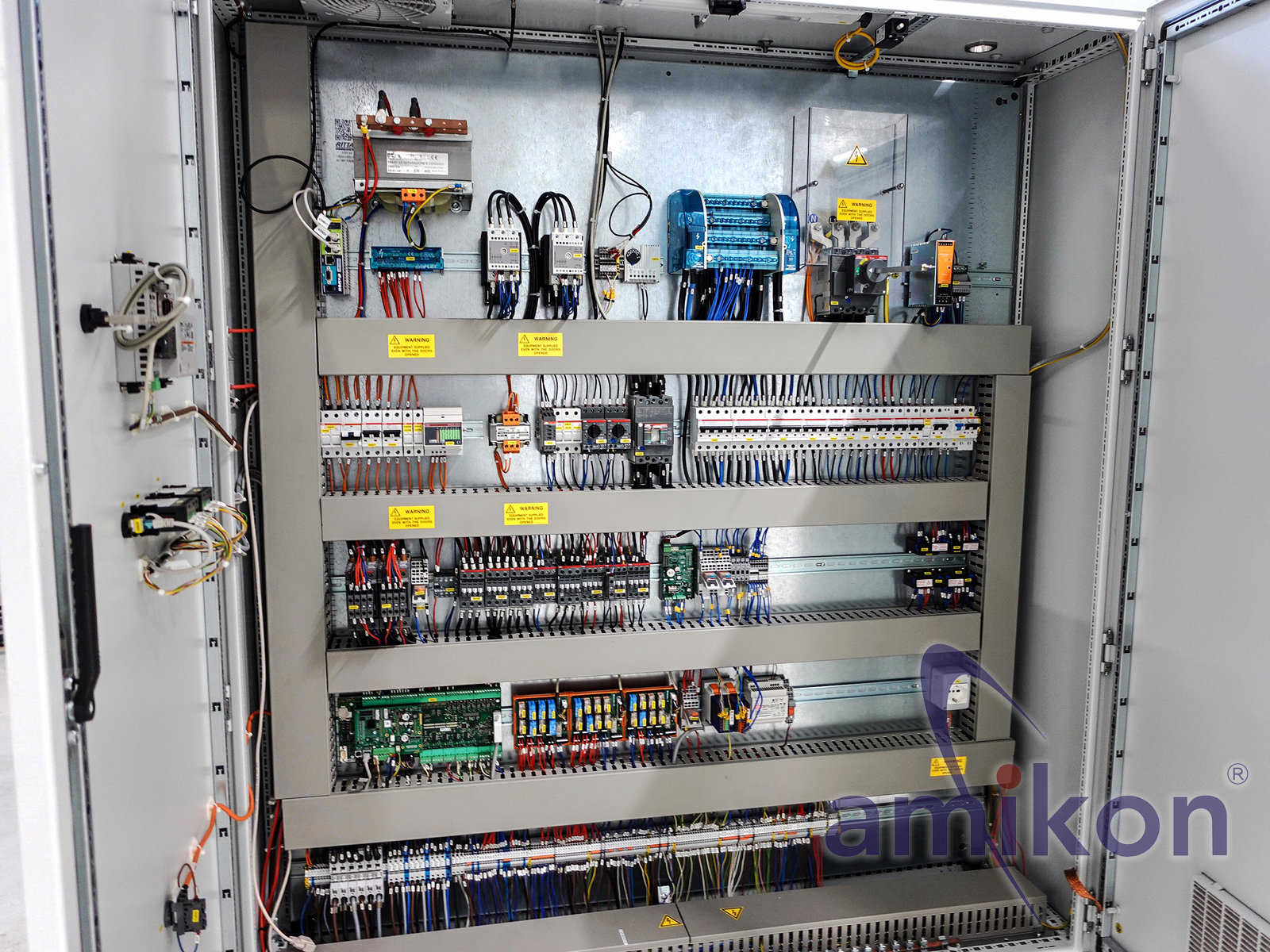

Electrical data:
Power supply:
400 V 3-phase + N + PE 50 Hz
Rated power: approx. 37 kW
Full load current: approx. 115 A
Protection class: IP54
Short-circuit strength: 10 kA

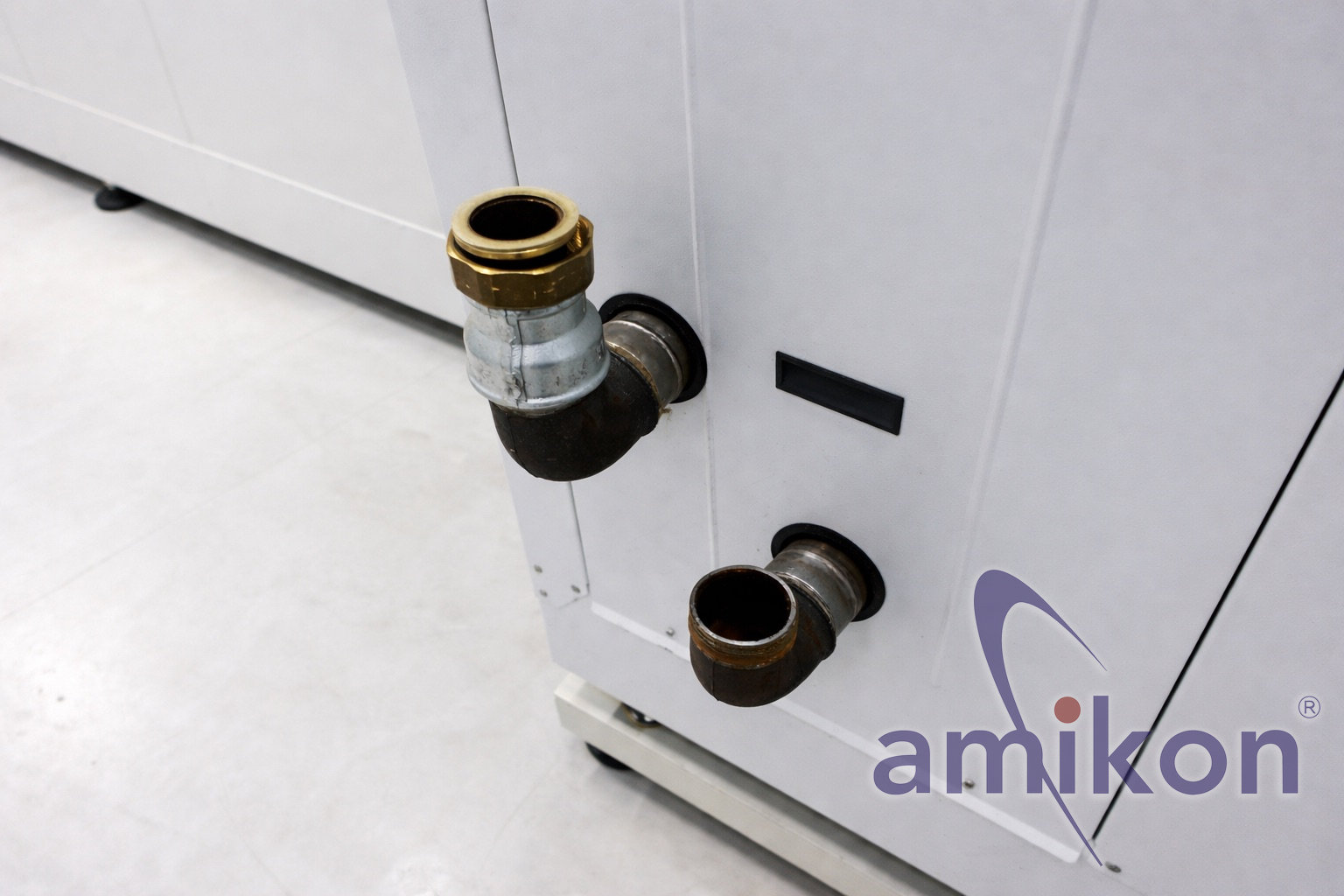

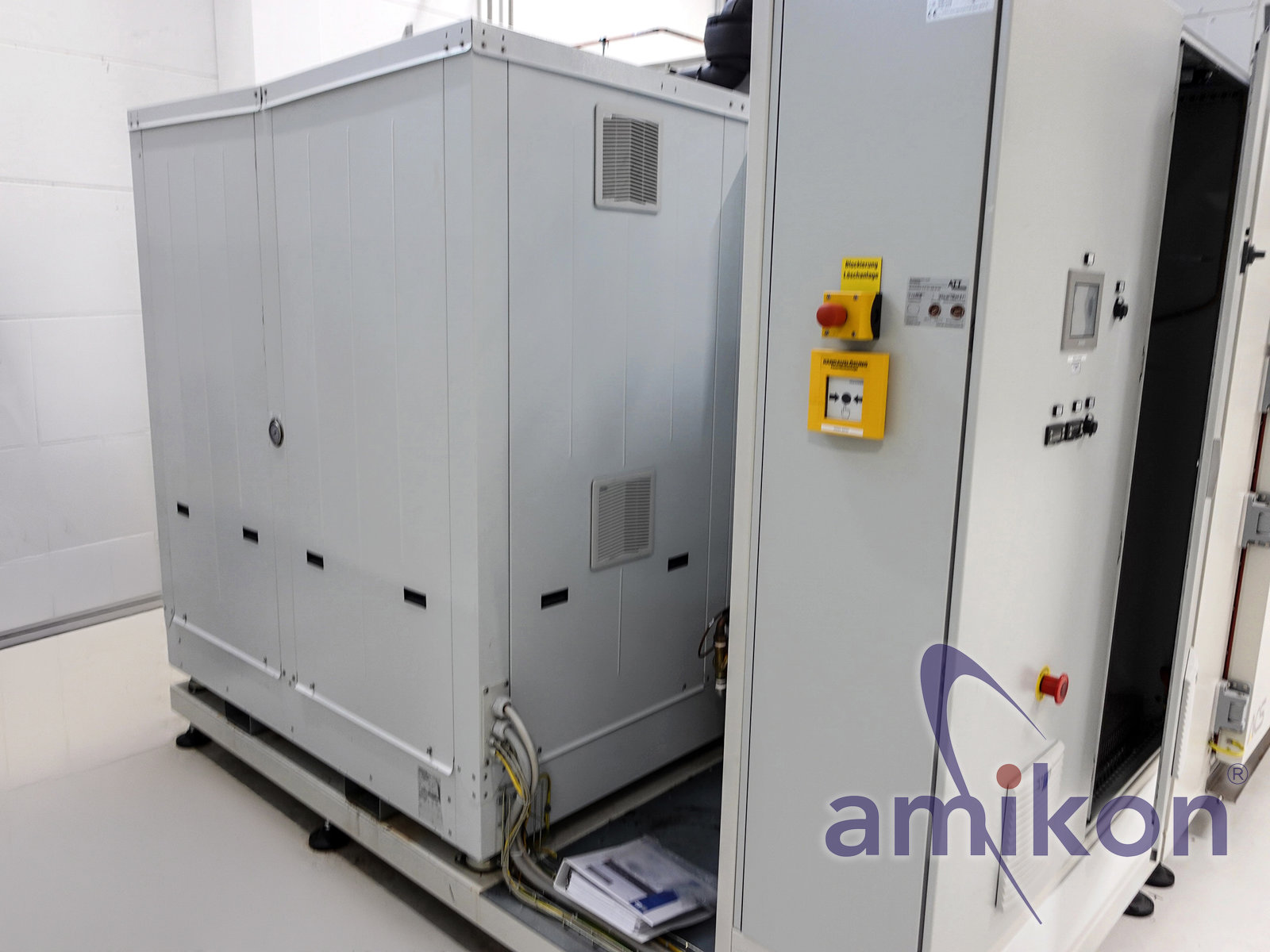

Cooling system
Refrigerant: R452A
Charge: approx. 50 kg
CO₂ equivalent: approx. 107 t

Dimensions:
Dimensions (external, approx.):
Length: ~ 4.5 m
Width: ~ 2.2 m
Height: ~ 2.4 m

Weight: approx. 3,800 kg

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are subject to change!)

Further questions can be answered by phone.
