Angel Portal Handling Viper 40 Faster positioning for shorter cycle times

Engel Viper 40

Here we offer you an Engel Viper 40.

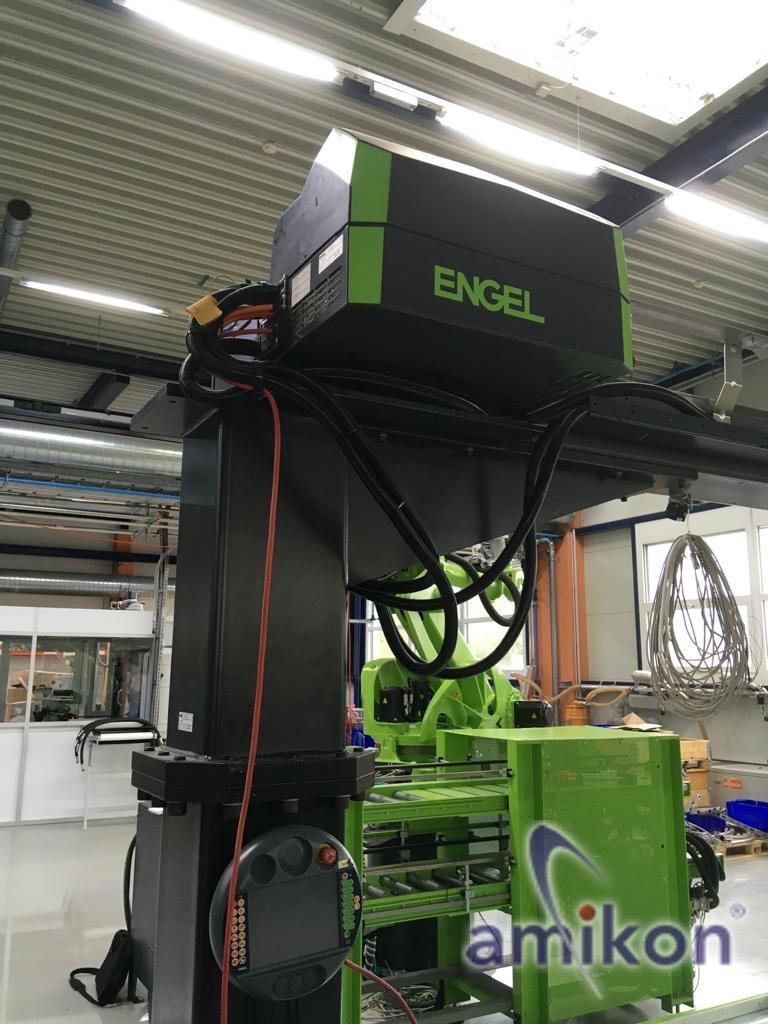

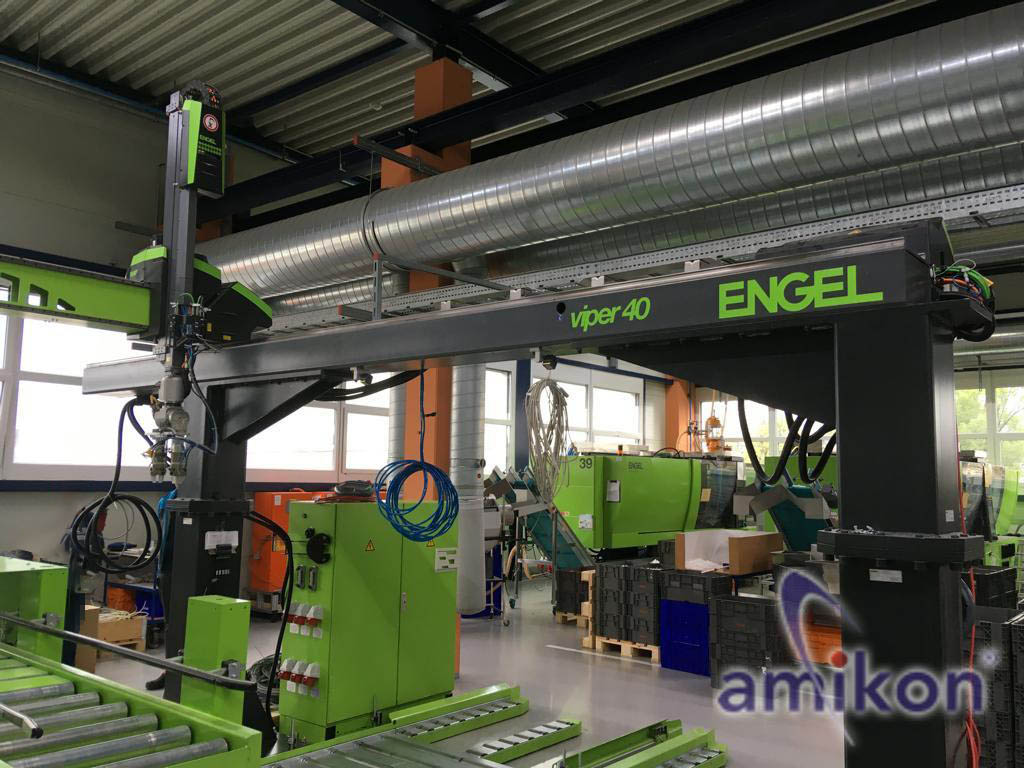

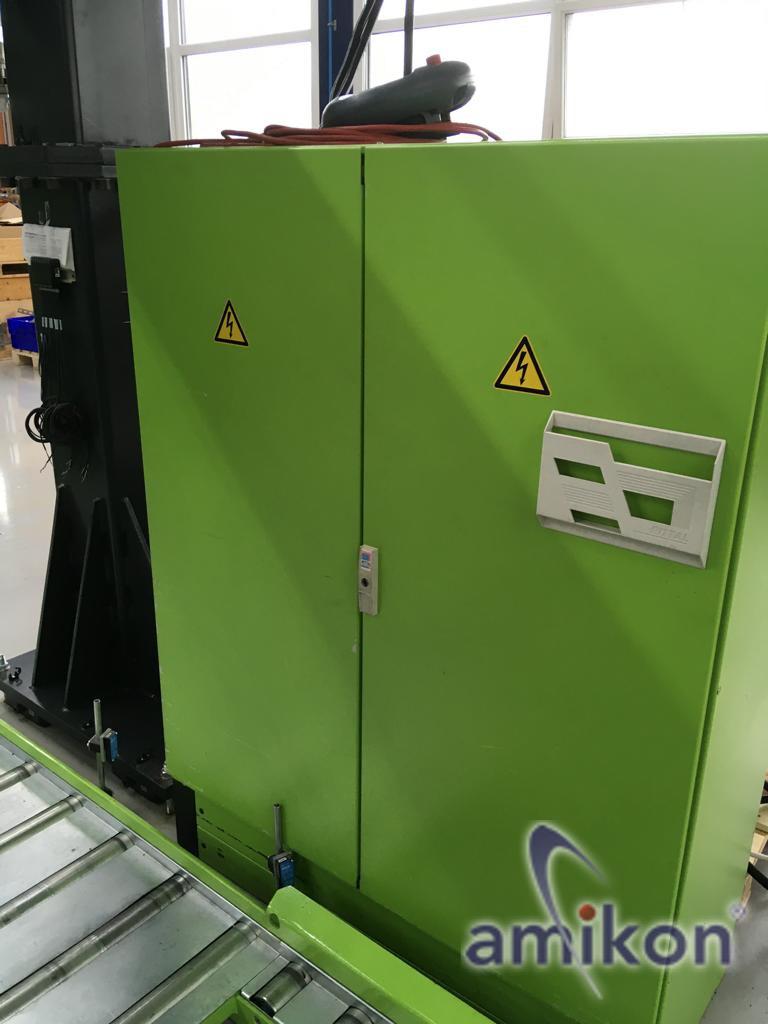

Engel Viper 40 from an injection molding automation by Engel (injection molding machine is not part of the advertisement)

The system was only used very occasionally for trials and sample productions.

Accordingly, the device is still in very good condition.

Maximum stability, impressive dynamics, and highest operating comfort.

The new ENGEL Viper combines these effortlessly:

Thanks to the innovative construction of laser-welded steel profiles, it saves weight while significantly increasing the handling weight.

The peripheral equipment for the plastic processor

More efficiency through intelligence.

Thanks to clever software such as vibration control or mass identification, it reduces self-oscillations even with long axis dimensions and optimizes its movements and dynamic values in the name of efficiency.

The impressive result: fastest cycle times and maximum productivity with simultaneously low energy consumption.

Light yet strong: highest stability and best dynamic values with simultaneously low self-weight and significantly increased handling weight.

The innovative construction of laser-welded steel profiles makes this possible.

The economic advantage: smaller robot and lower investment with high handling weight.

Engel Portal Handling Viper 40
Faster positioning for shorter cycle times
Type Viper 40
De-molding stroke X 1200 mm
De-molding stroke X reach X+318 mm
Vertical stroke Y single 1500 mm
Vertical stroke Y tandem 1500 mm
Cross transport Z approx. 5300 mm
SGM closing force 2200-15000 kN
Nominal load 40 kg
Maximum load 55 kg

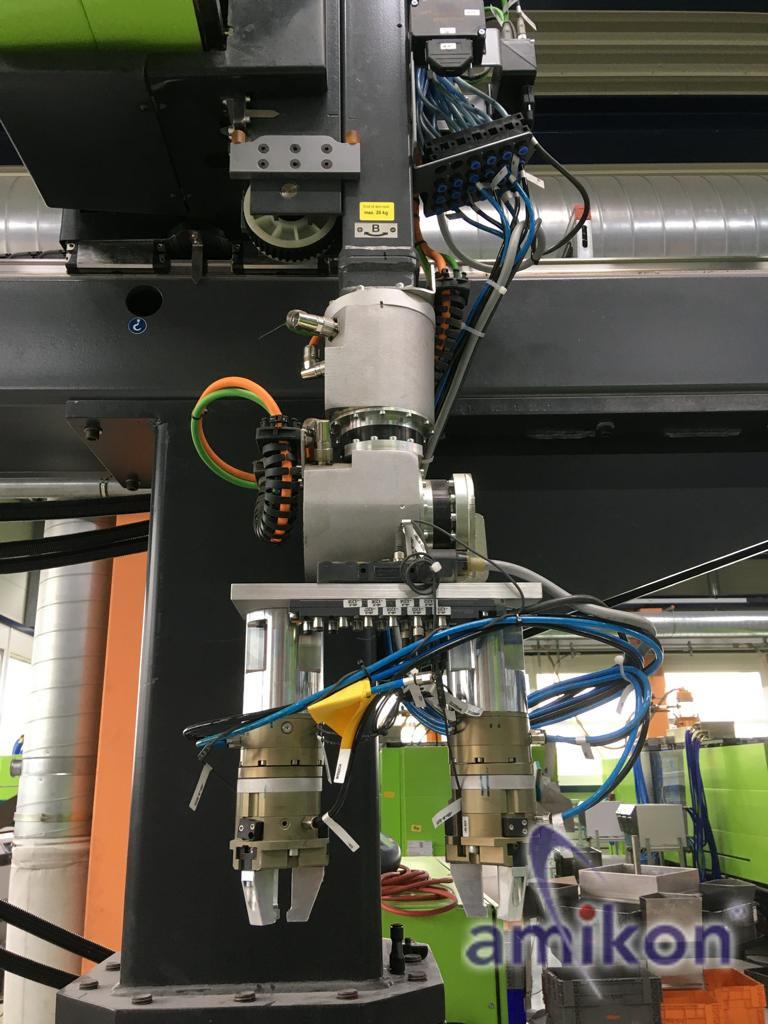

Servo motor rotary axes A 70/210 Nm B 70/210 Nm C 70/210 Nm
Pneumatic rotary axes C 75/150 Nm

Technical data Viper 40

Viper 40 (speed)
max. manipulable mass (at 6 bar) 20 kg
max. manipulable mass (at 6 bar) 25 kg
Repeat accuracy ± 0.05 mm
X-axis (de-molding stroke) 1200 mm
X-speed max. 2.5 m/s
Y-axis (single) 1500 mm
Y-axis (tandem) / mm
Y-speed max. 4 m/s
Z-axis (cross transport) approx. 5300 mm
Z-speed max. 3.5 m/s
C-axis (0-90°) pneu. 60, 75, 120, 150
C-axis (0-180°) servo 45, 125
B-axis (0-90°/180°) pneu. 30
B-axis (0-270°) servo 28, 110
A-axis (0/90°-180°) pneu. Nm
A-axis (0-270°) servo 281 45
Air consumption 0.33 Lis
max. connection value 4 kVA
nominal consumption /

Viper 40 (regular)
max. manipulable mass (at 6 bar) 35 kg
max. manipulable mass (at 6 bar) 40 kg
Repeat accuracy ± 0.05 mm
X-axis (de-molding stroke) 1200 mm
X-speed max. 2.5 m/s
Y-axis (single) 1500 mm
Y-axis (tandem) 1500 mm
Y-speed max. 3 m/s
Z-axis (cross transport) approx. 5300 mm
Z-speed max. 3 m/s
C-axis (0-90°) pneu. 60, 75, 120, 150
C-axis (0-180°) servo 45, 125
B-axis (0-90°/180°) pneu. 30
B-axis (0-270°) servo 28, 110
A-axis (0/90°-180°) pneu. 30 Nm
A-axis (0-270°) servo 28,45
Air consumption 0.33 Lis
max. connection value 4 kVA
nominal consumption /

Viper 40 (load)
max. manipulable mass (at 6 bar) 50 kg
max. manipulable mass (at 6 bar) 55 kg
Repeat accuracy ± 0.05 mm
X-axis (de-molding stroke) 1200 mm
X-speed max. 2 m/s
Y-axis (single) 1500 mm
Y-axis (tandem) / mm
Y-speed max. 2 m/s
Z-axis (cross transport) approx. 5300 mm
Z-speed max. 2 m/s
C-axis (0-90°) pneu. 75, 120, 150
C-axis (0-180°) servo 125
B-axis (0-90°/180°) pneu. 30
B-axis (0-270°) servo 110
A-axis (0/90°-180°) pneu. 30 Nm
A-axis (0-270°) servo 45
Air consumption 0.33 Lis
max. connection value 4 kVA
nominal consumption 0.8

Type: Viper 40

Condition: used

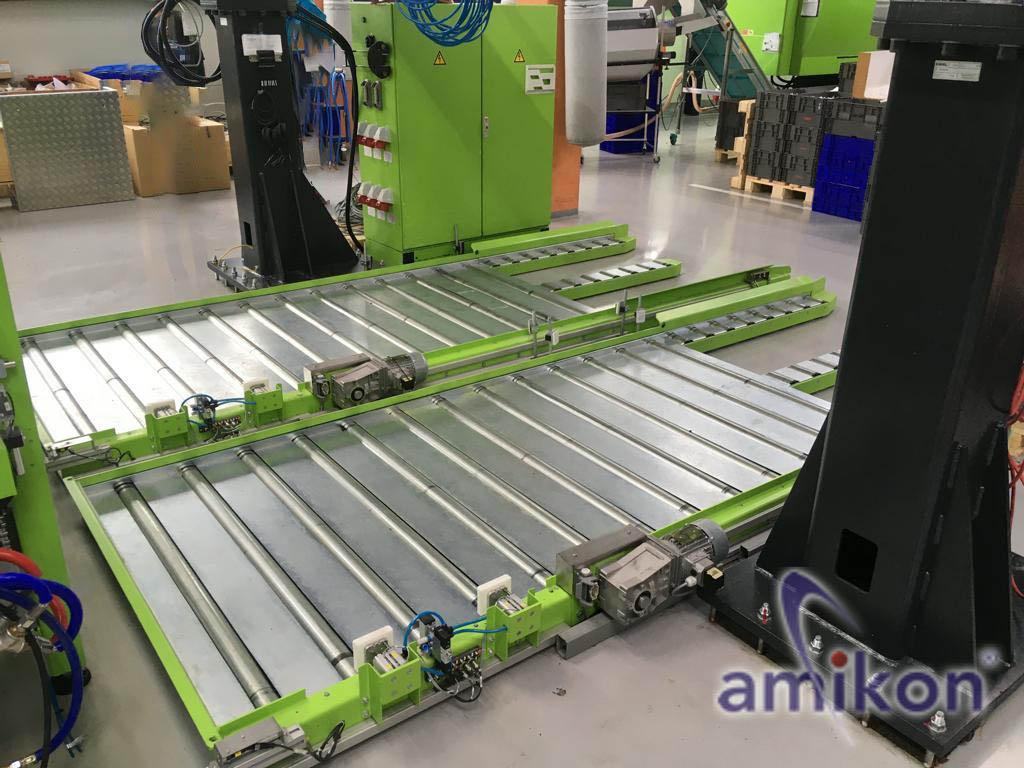

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are subject to change!)

We would be happy to answer any further questions by phone.
