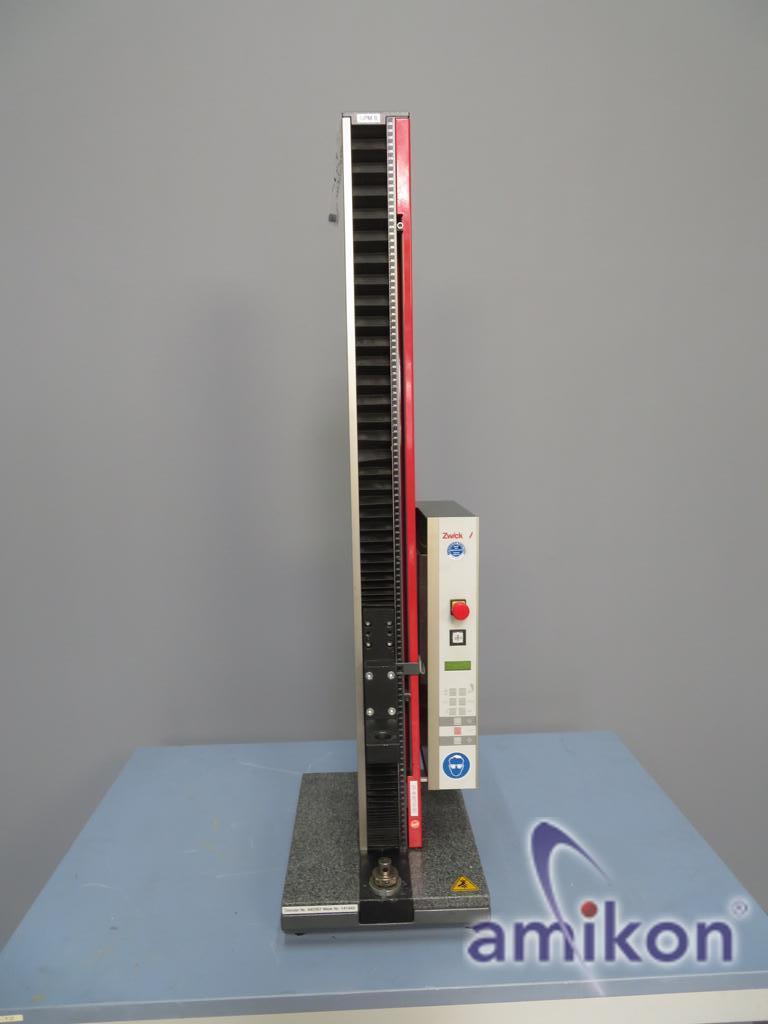

Zwick table testing machines up to 2.5 kN BZ2.5/TN1S

Zwick

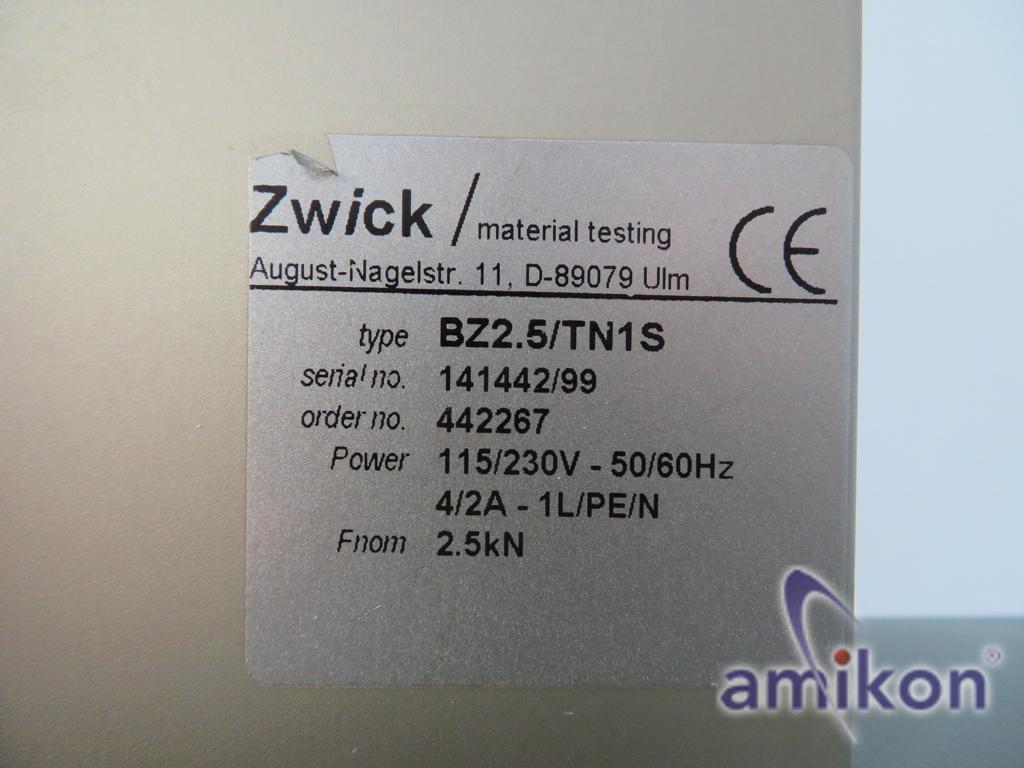

Type: BZ2.5/TN1S

Zwick Table Testing Machines Tensile Strength Testing Machine

Application Area:
 Wide range of applications, from plastic and
elastomer testing to paper, textile, foam, and
wire to component testing.

Load Frame:
Max. Test Force FN in Tension/Compression Direction  2.5 kN
Height (h1) approx.  770 mm
Width with Electronic Unit 320 mm
Depth with Electronic Unit  414 mm
Height of Working Space h min ... h max:
Travel Traverse Angle mounted upwards 227 ... 573 mm
Travel Traverse Angle rotated 180° mounted  57 ... 403 mm
(each without connection bolts)

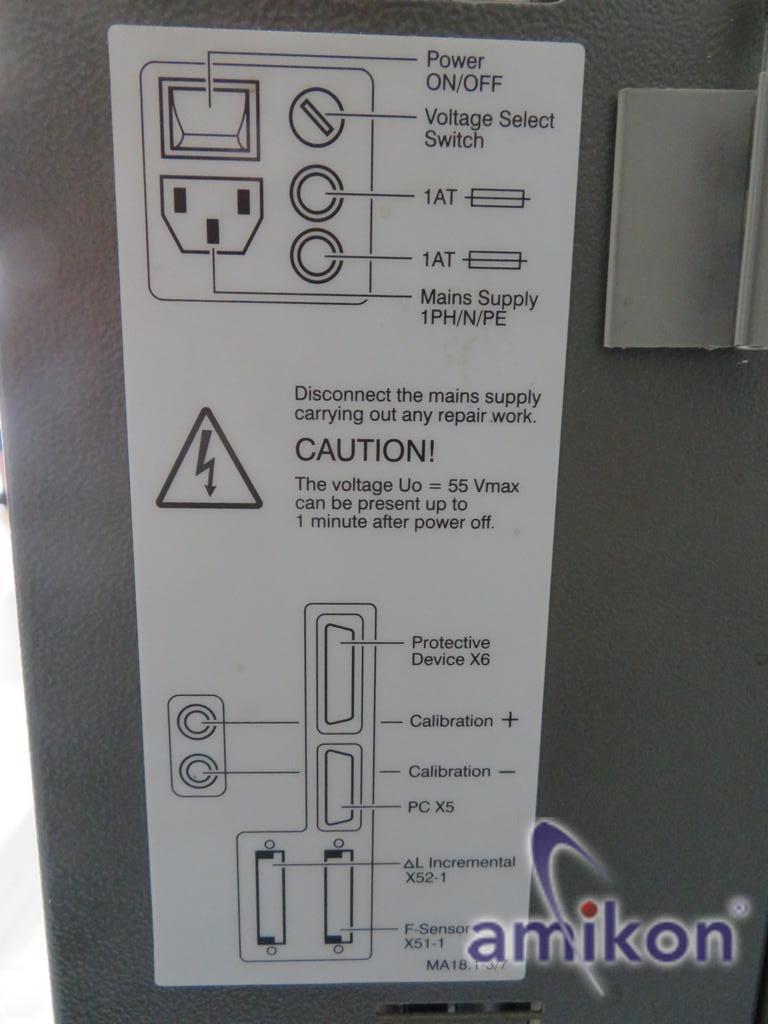

Connection Values:
Electrical Connection  115/230 V 4/2A-1PH/PE/N
Power Consumption  0.4 kVA
Network Frequency 50/60 Hz

2.5 kN

Condition: used

Scope of Delivery: (See Image)

(Changes and errors in technical data are reserved!)

We would be happy to answer any further questions by phone.
