Zwick / Roell Material - Table Testing Machines Z020 Allround-Line BT1-FR020TN.A50

Zwick / Roell

Type: Z020 Allround-Line BT1-FR020TN.A50

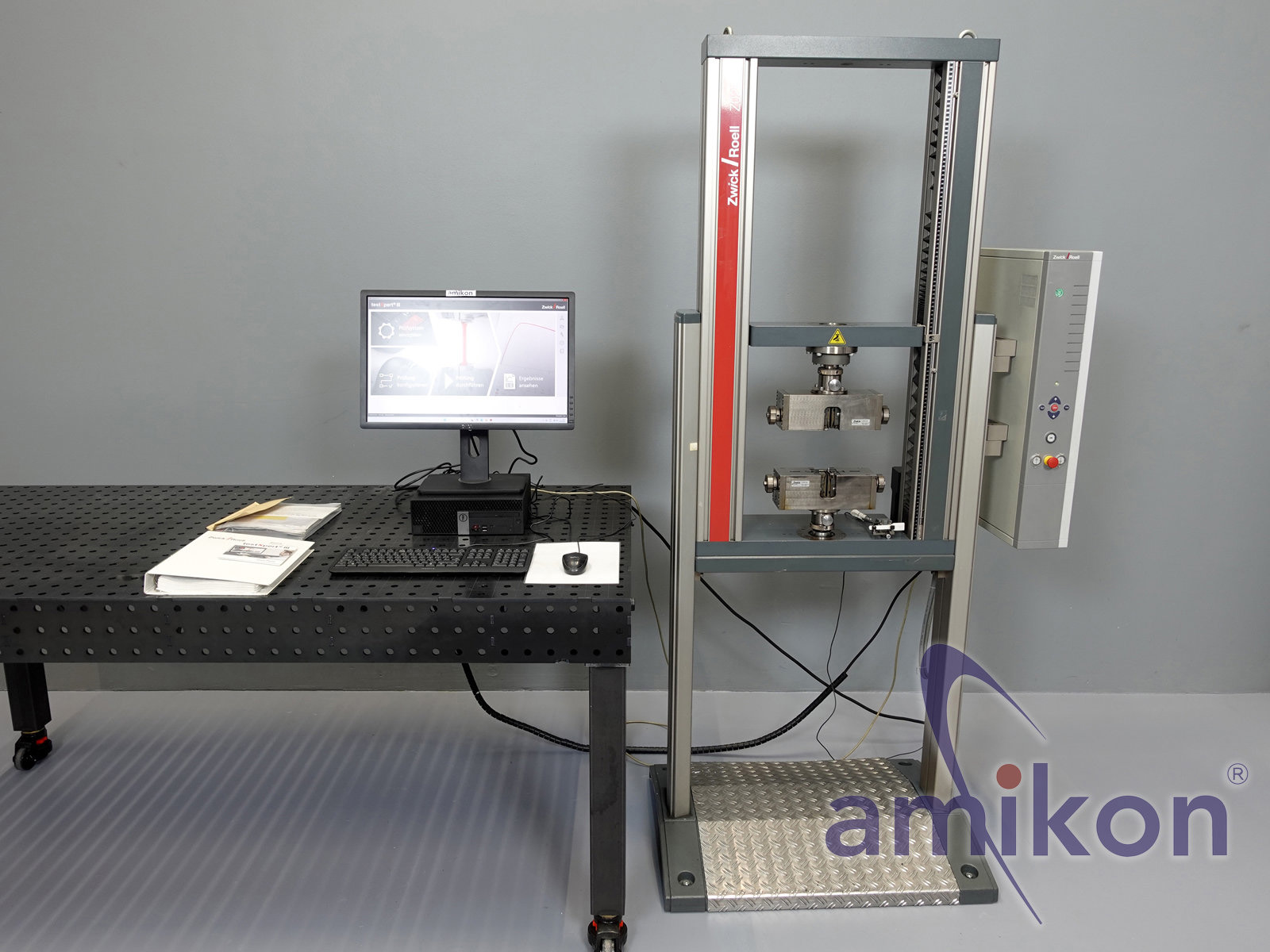

Zwick / Roell Material Testing Machine 20 kN Tensile & Compression Testing testXpert III

For sale is a high-quality Zwick / Roell material testing machine for
professional tensile and compression testing of materials and components.

The machine is suitable for metals, plastics, rubber, and many other
materials and is typically used in laboratories, quality assurance,
research, and training.

Control is via PC with Zwick/Roell testXpert III software
(media & documentation available).

Technical Data:
Nominal test force: 20 kN
Test direction: Tensile & Compression
Power supply: 230 V / 50–60 Hz / single-phase
Power consumption: approx. 2.1 kVA
Weight: approx. 150–180 kg
Dimensions: approx. 856 × 650 × 1,545–2,114 mm

Technical Data (from documents & nameplate)
Mechanics / Testing
Nominal force: 20 kN
Test direction: Tensile & Compression
Max. test frequency: 0.5 Hz
Crosshead: servo-electric
Positioning accuracy: < 1 µm
Speed range: 0.0005 – 1,000 mm/min

Dimensions & Weight
Total height: approx. 1,545 – 2,114 mm
(depending on crosshead position)
Total width: approx. 856 mm
Total depth: approx. 650 mm
Working space width: 440 mm

Weight:
approx. 150 kg (base unit)
approx. 180 kg with typical equipment

Electrical Data
Power supply: 230 V AC
Phases: single-phase (1PH, N, PE)
Power frequency: 50 / 60 Hz
Current consumption: approx. 8–10 A
Power consumption: approx. 2.1 kVA
Socket: Schuko (CEE 7)

Measurement & Control Electronics
Internal measurement rate: 500 Hz
Data transmission to PC: 10–100 Hz adjustable
Interface: RS232 (COM)
Protection class of electronic housing: IP32

Important Note:
“The table shown in the photos is not included in the sale.”

Condition: used

Scope of delivery: (See image)
Zwick / Roell material testing machine (20 kN)
Electronic unit
PC workstation (monitor, PC condition see images)
2 measuring modules (Delock units)
Zwick/Roell testXpert III software (media)
Original operating and technical documentation
Diverse connection and interface cables

(Changes and errors in the technical data, specifications are subject to change!)

Further questions can be answered by phone.
