DYEMANSION POWERSHOT S Spray Booth Cleaning Powder-Based Plastic Components

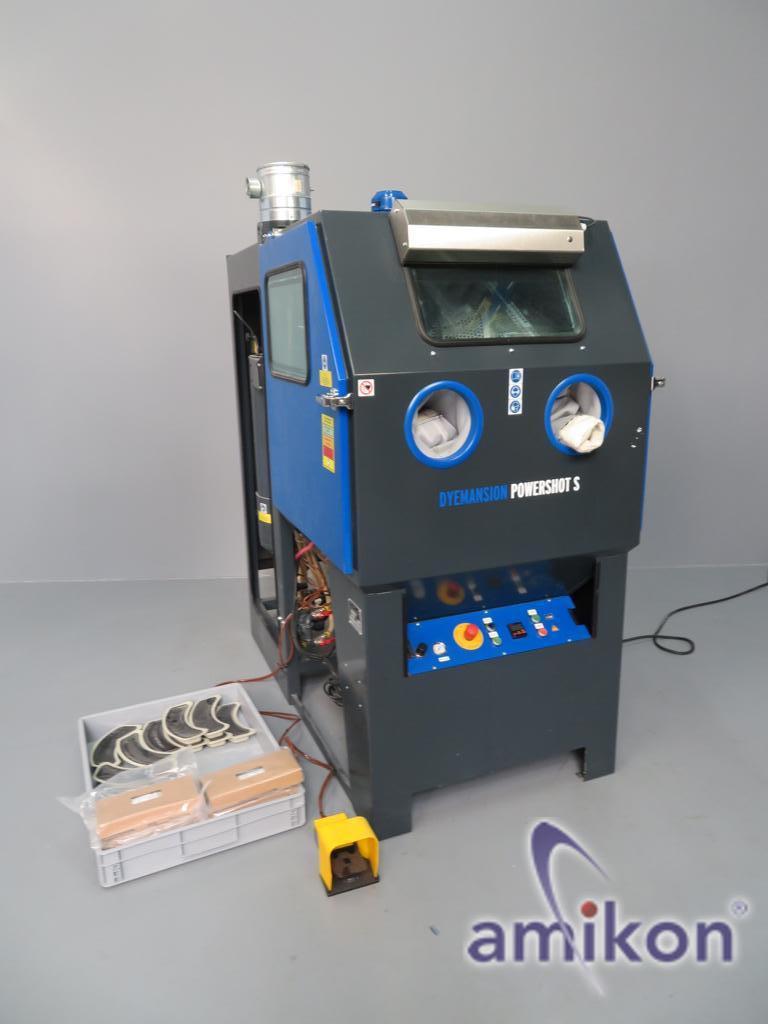

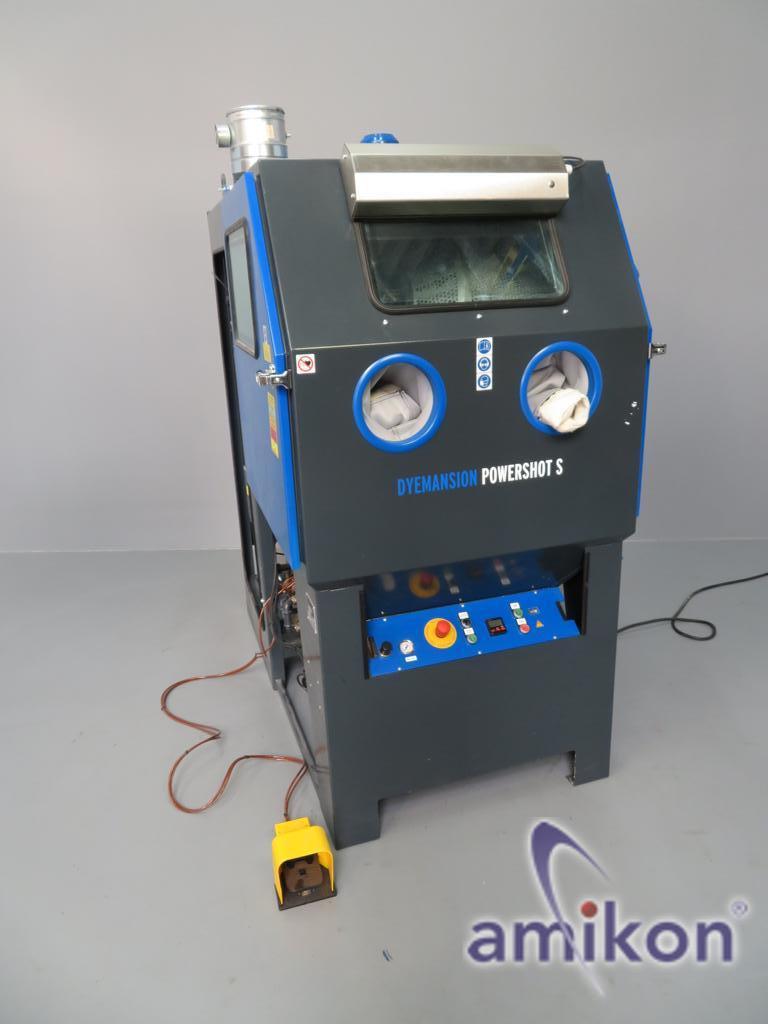

DYEMANSION POWERSHOT S Blasting Cabin

Here we offer you a Dyemansion Powershot S blasting cabin.

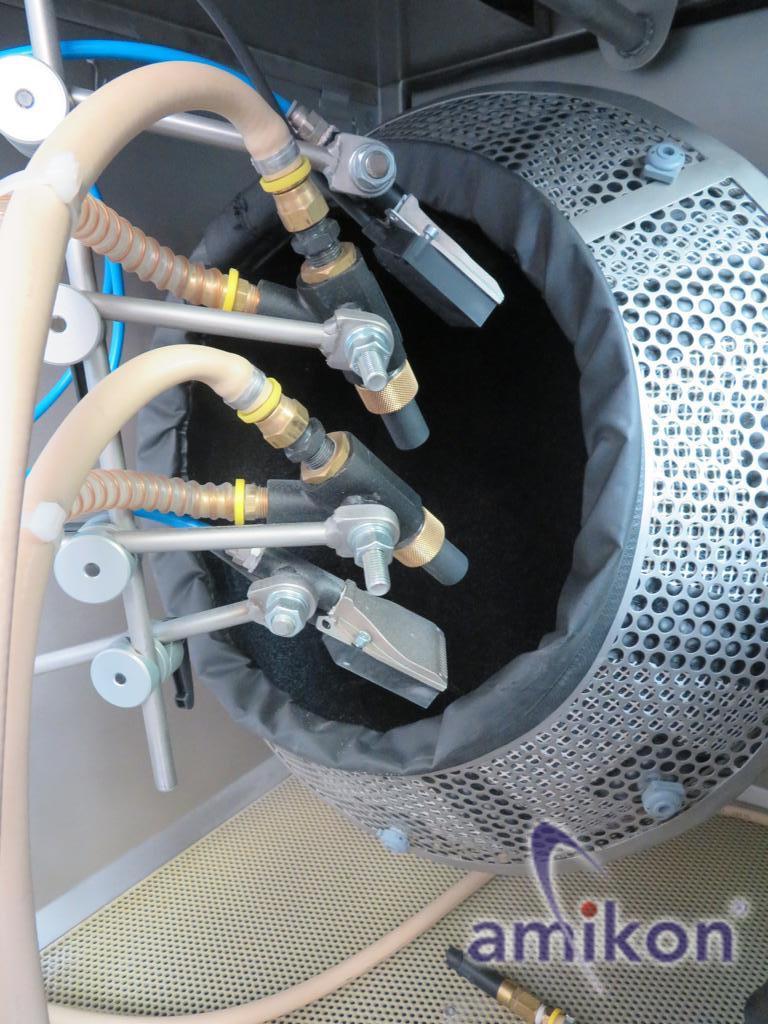

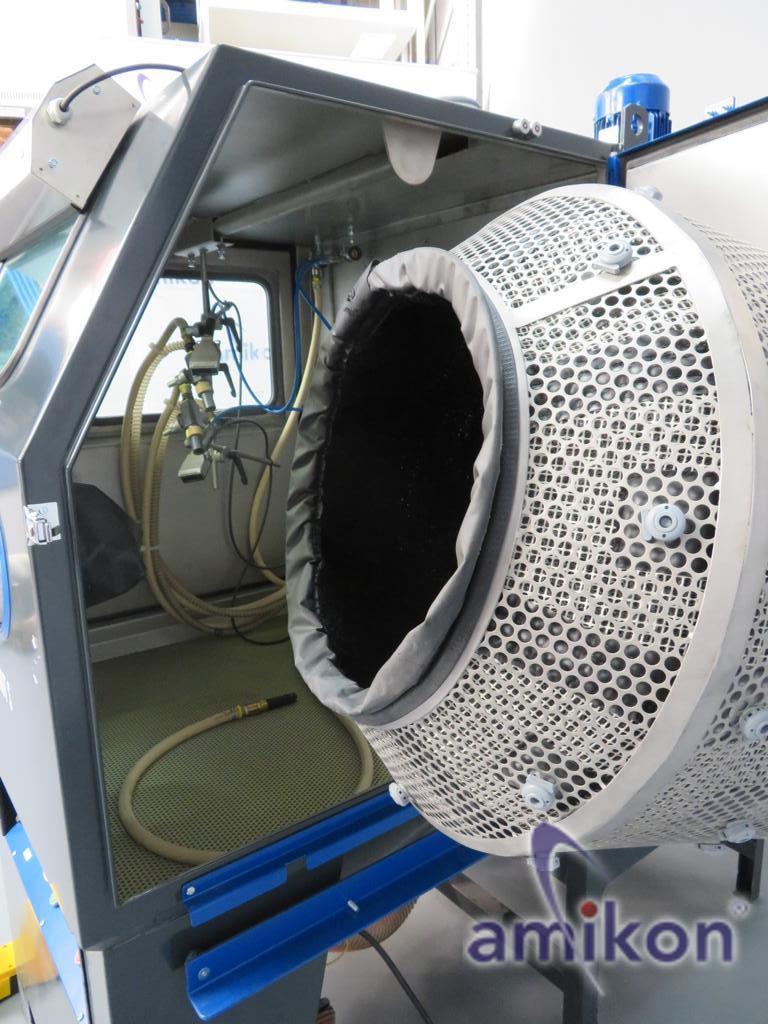

Drum designed for automatic and manual operation,

for automated surface homogenization of powder-based plastic components

DYEMANSION POWERSHOT S

TECHNICAL DATA:
PERFORMANCE
Processing time variable, typical processing time 5 to 15 minutes
Capacity per cycle medium-sized build space (e.g. 3/4 EOS P396 or full HP Jet Fusion 4200/5200 build space)

DIMENSIONS:

System (L x W x H) 1665mm x 1300mm x 2100mm
Recommended space requirement in operation (L x W x H)
2465mm x 2915mm x 2300mm

POWER
Power 1kW
Requirements 3x400V, 50Hz, 2.5A

COMPRESSED AIR
Consumption
Minimum: 1.8m3/min at 5bar
Maximum: 2.5m3/min at 7bar

NOISE EMISSION

Sound level < 85dB(A)

Weight system 520kg

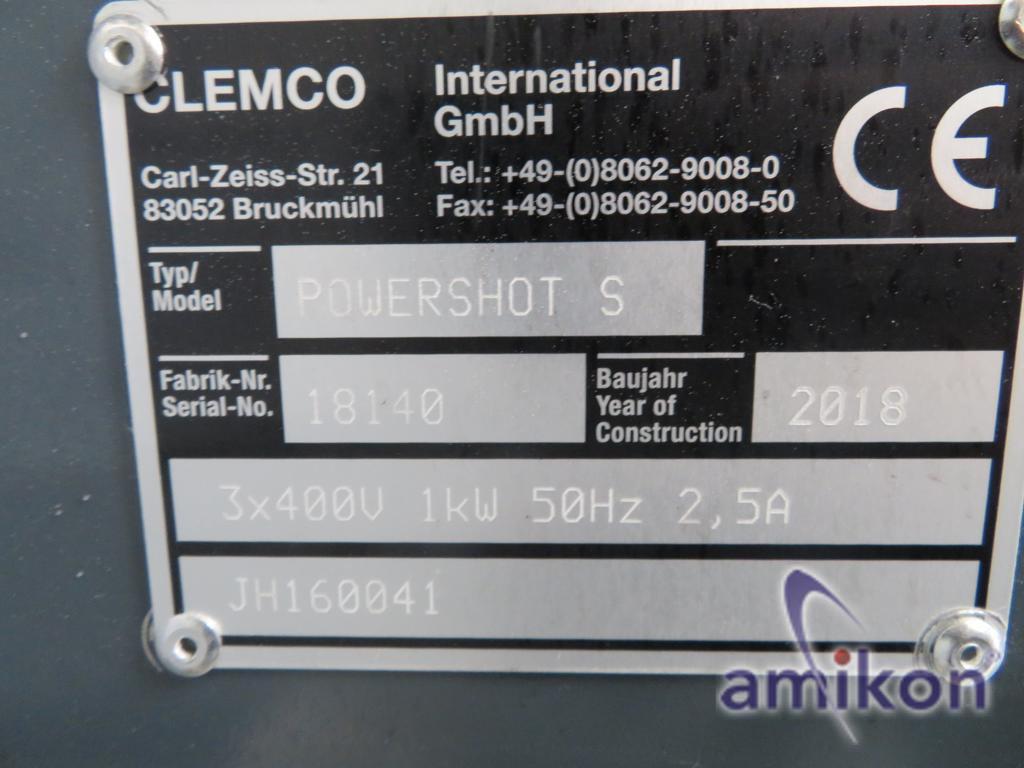

Type: POWERSHOT S 18140

Condition: used

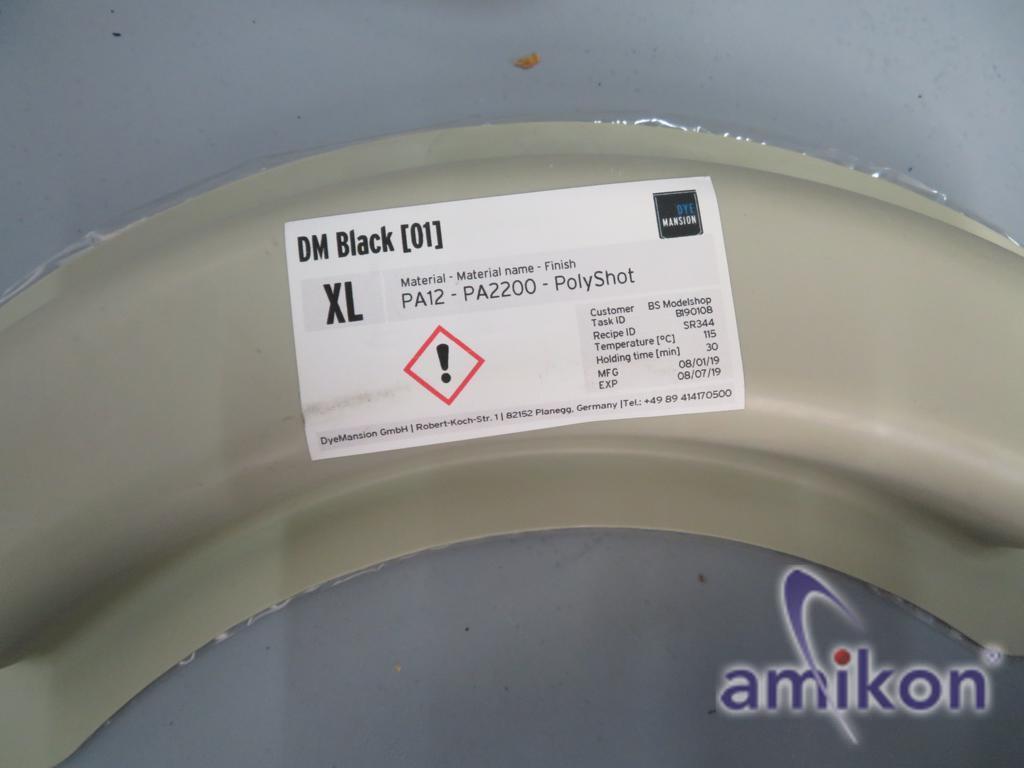

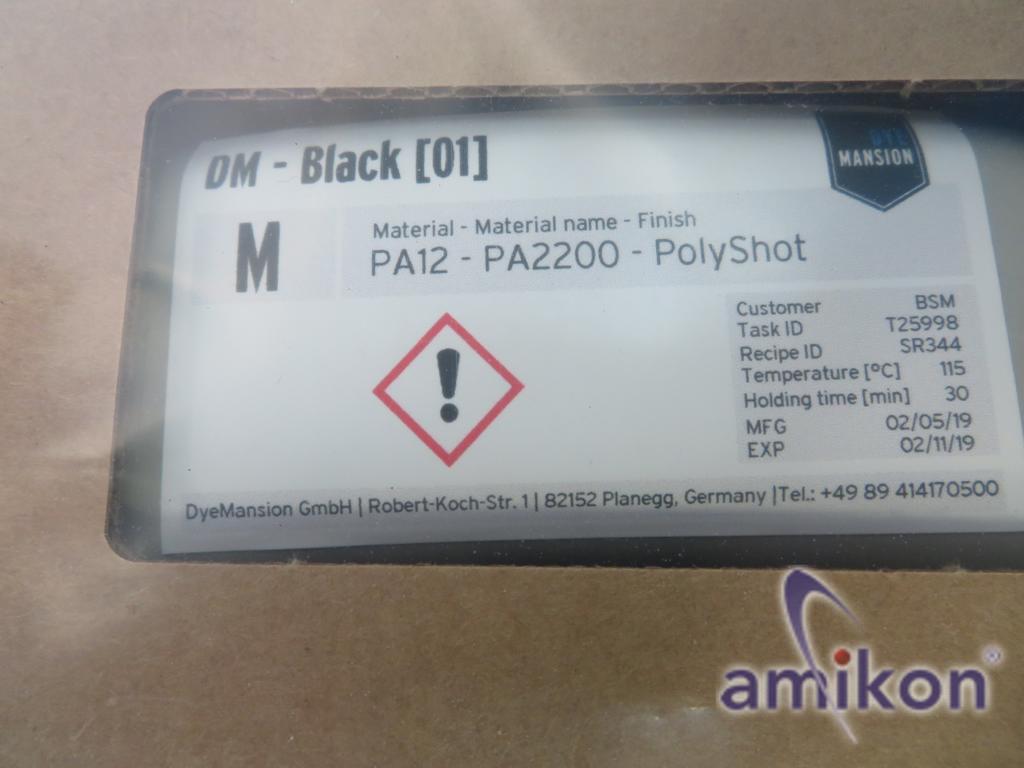

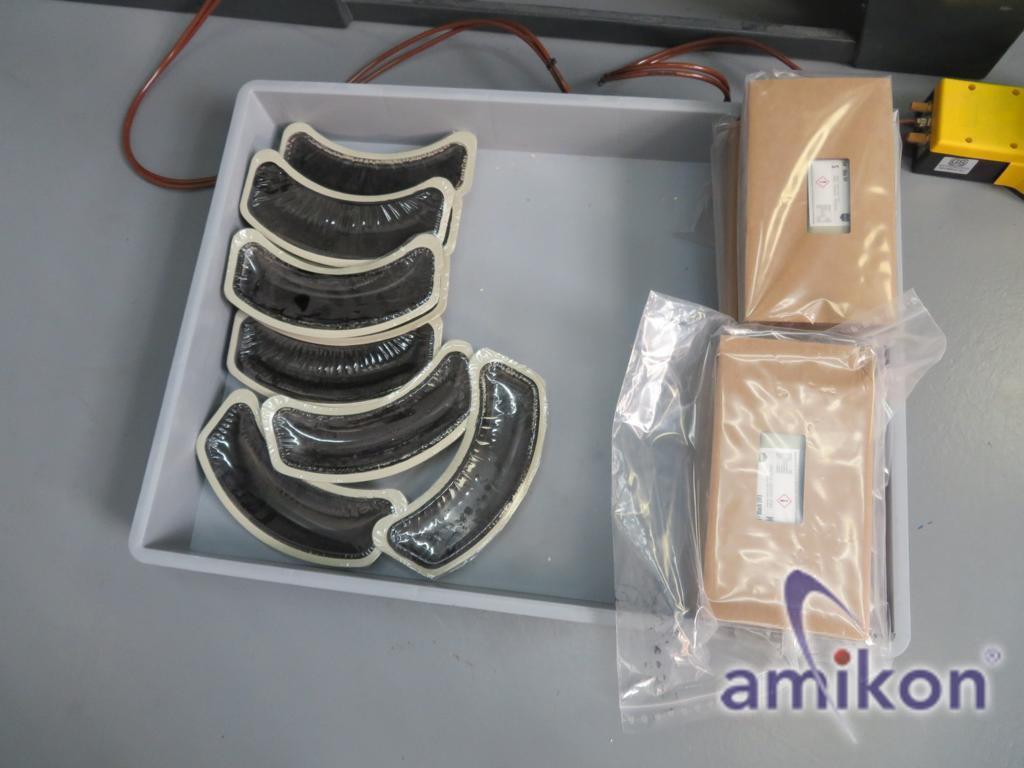

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We would be happy to answer any further questions by phone.
