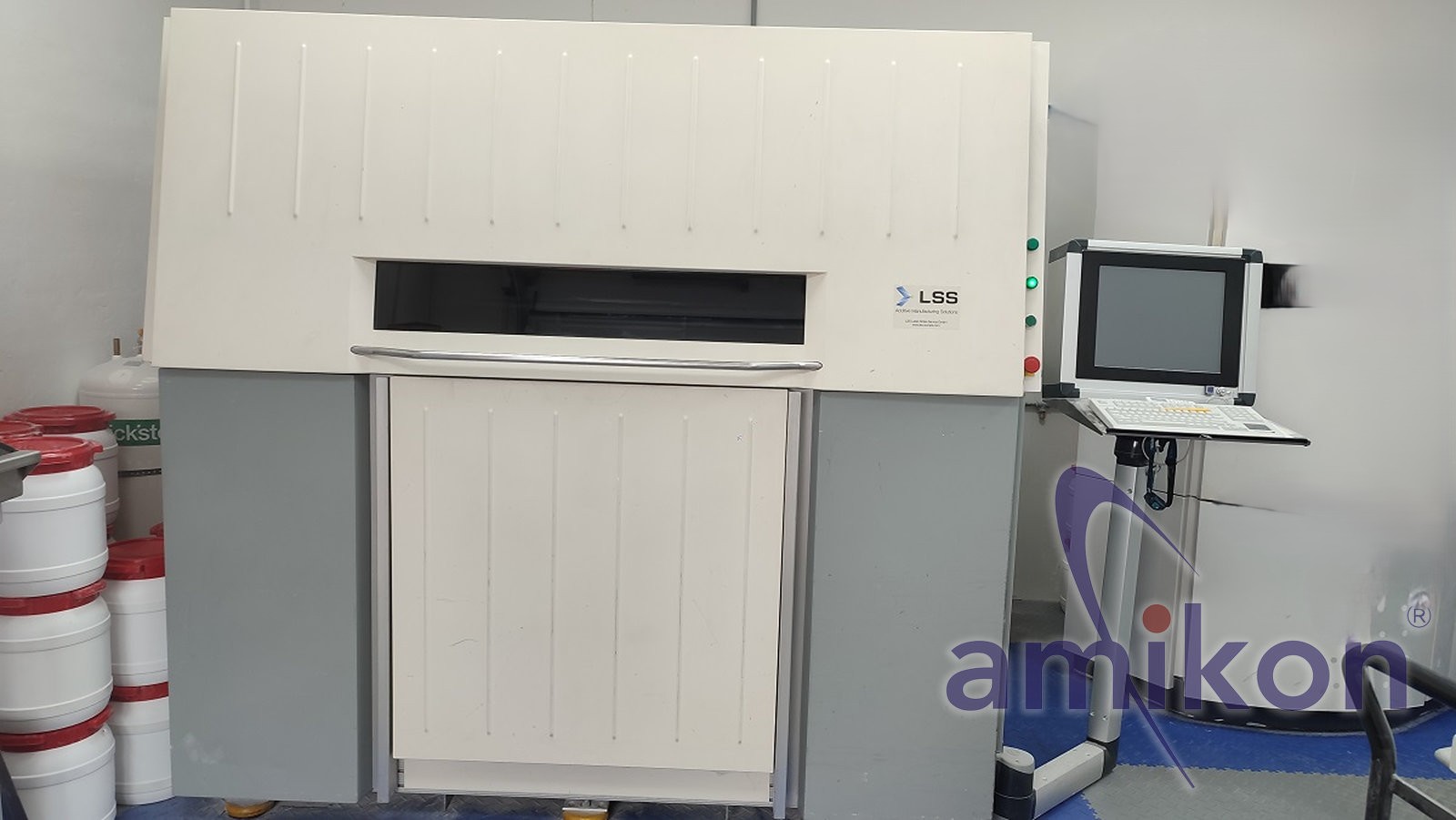

Vanguard Si12 Basic Model / Upgrade 2017 Laser Sintering System

Laser Sintering System

 Vanguardsi2 SLS System  upgraded in 2017 to modern standards

Device dimensions:

Width: approx. 157 cm

Depth: approx. 119 cm

Height: approx. 198 cm

Minimum installation space:

4.57 m × 3.66 m × 3.05 m

Door height:

2.13 – 2.44 m

Floor:

Level (max. 25 mm deviation)

50 psf load capacity

Non-vibrating

Un-tiled / no carpet

  approx. 1,150 kg

Process station:

240 VAC ±5 %

3-phase

12.5 kVA

Dedicated circuit

4-wire cable

Ceiling outlet

If other voltage:

Transformer required:

208→240 V

400→240 V

480→240 V

Upgrade data:

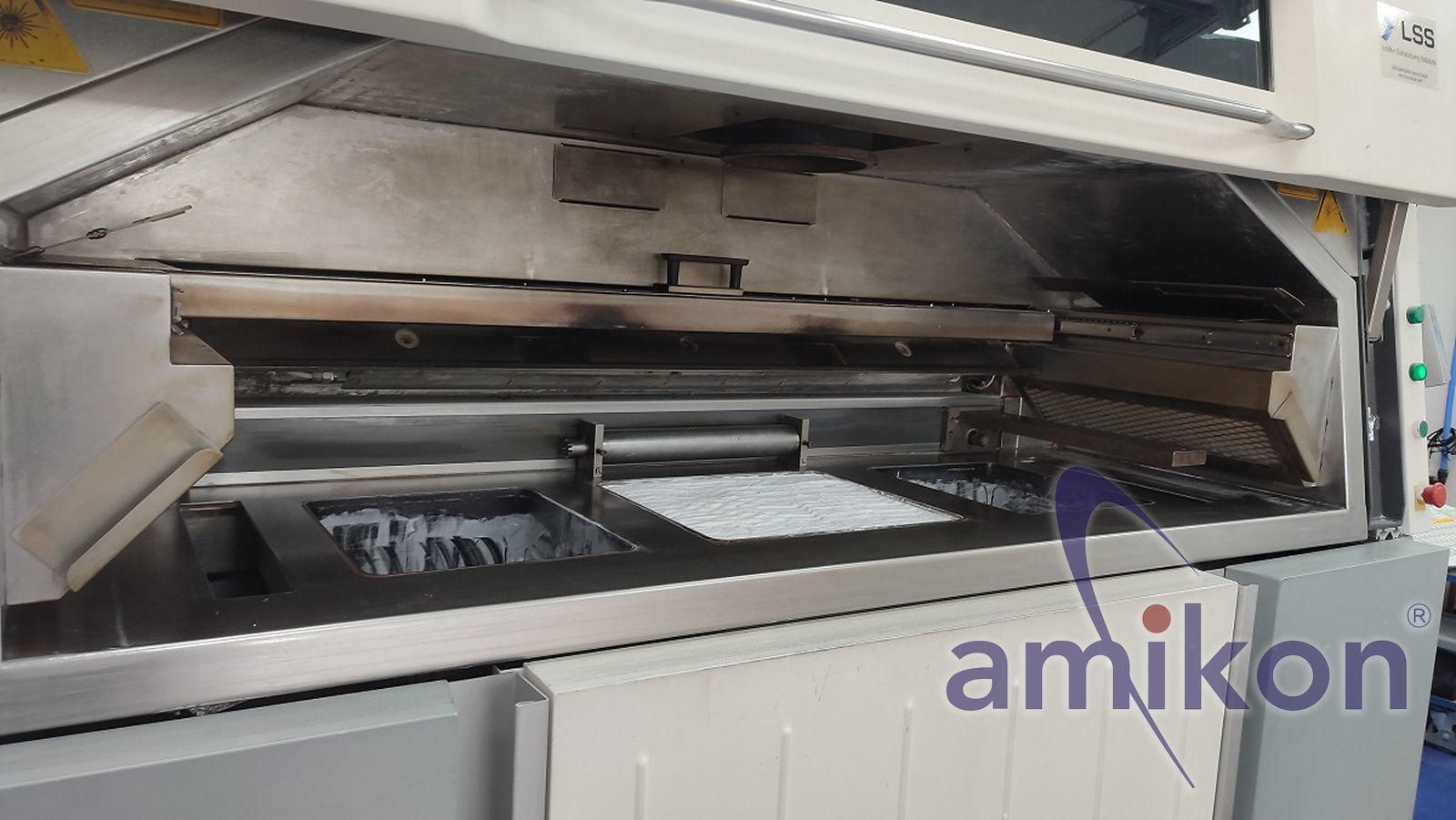

UniHeat V5 / 10-zone build chamber heating

Layer build adjustable via software
all listed materials are parameterized to 0.10mm

70 Watt CO2 laser

fully digital 3-axis high-speed scanning system with scanner control system "XStream BDS"
with scanning speeds of 6-12 m/s

Construction progress at an average packing density of 10-15 mm/h

2x 20KG powder supply within the machine

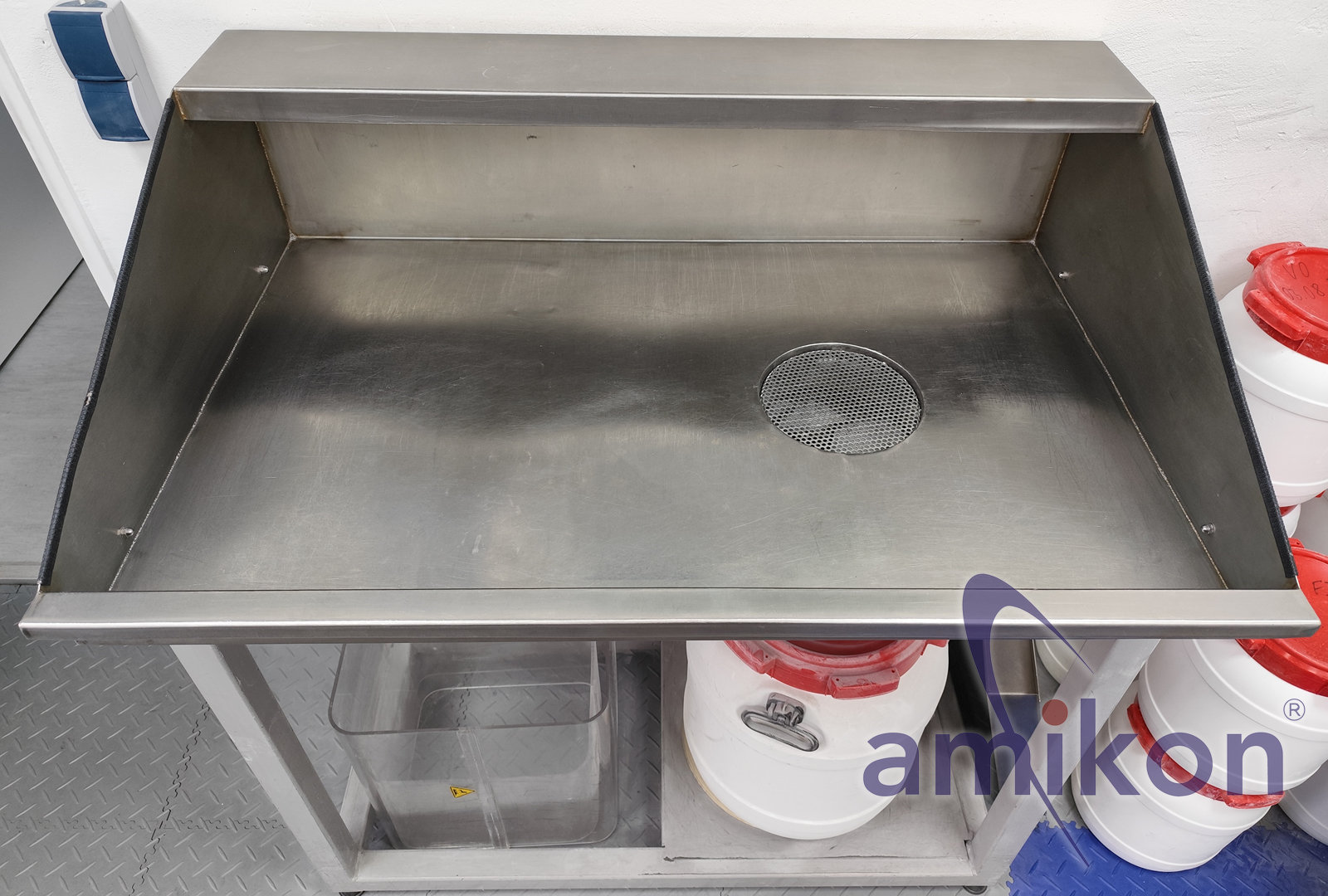

including unpacking container and manual unpacking station (see images in the attachment)

including machine and software documentation in digital form

last maintenance August 2024 (Laser Window + ATC Sensor NEW in 2024)

including 2 x nitrogen generators and 1x cooler included

Operating hours: unknown / average use 2x weekly

the following materials are qualified with a layer build of 0.10mm:
- PA12 - PA2200 / EOS
- TPU - natural / Stratasys
- PP - natural / Lehmann & Voss
- PA12 - PA2210FR / EOS
- PA11 - black / AM Polymers

(Support is secured despite the company's closure of LSS,
through the takeover of service technicians from a Belgian company)

Condition: used

Delivery scope: (See image)

(Changes and errors in the technical data are reserved!)

Further questions can be answered by phone.
