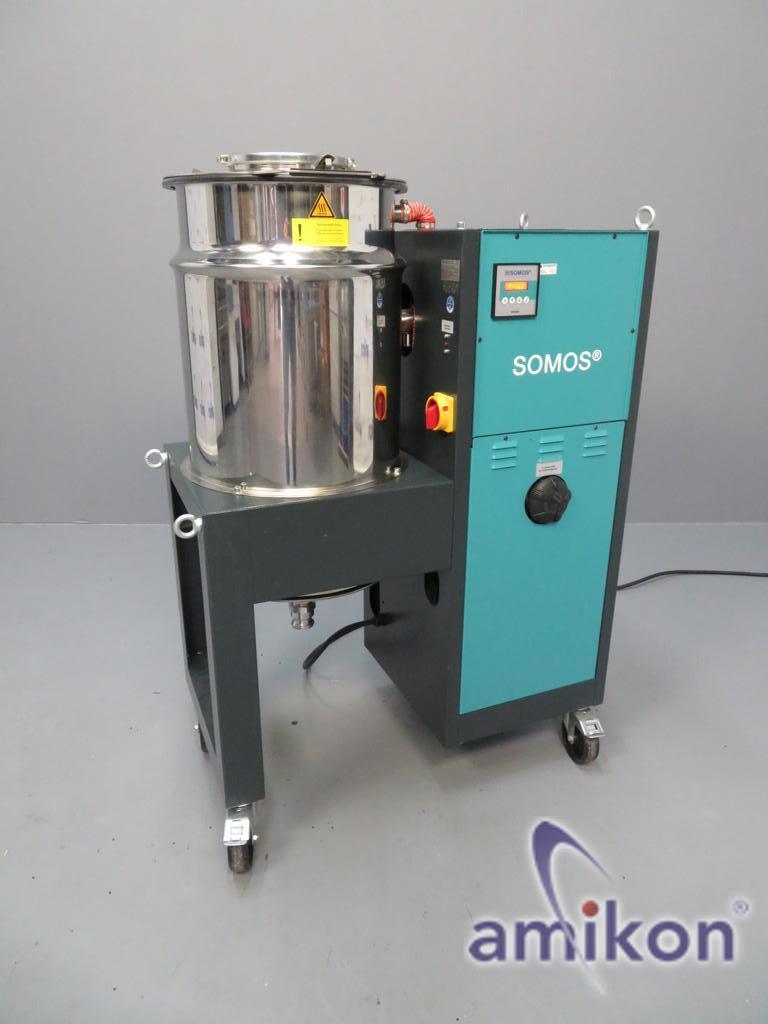

Somos ProTec Drying System Compact Dryer

Here we offer a Somos ProTec Drying System.

Somos ProTec Drying System Compact Dryer

Dry Air Dryer T 20

Drying technology in the
plastic processing industry

Dry air volume 20 m3/h
Connection power 2.5 kW
Heating power 2.0 kW
Drive power 0.4 kW
Compressed air; 4-6 bar 0.1 m3/h
Cooling water consumption 2-4 bar 8-12°C 0.18 m3/h
Length 840 mm x Depth 495 mm x Width 1477 mm
H1 + Feed pipe 2120 to 2600 mm
Weight: 120 kg

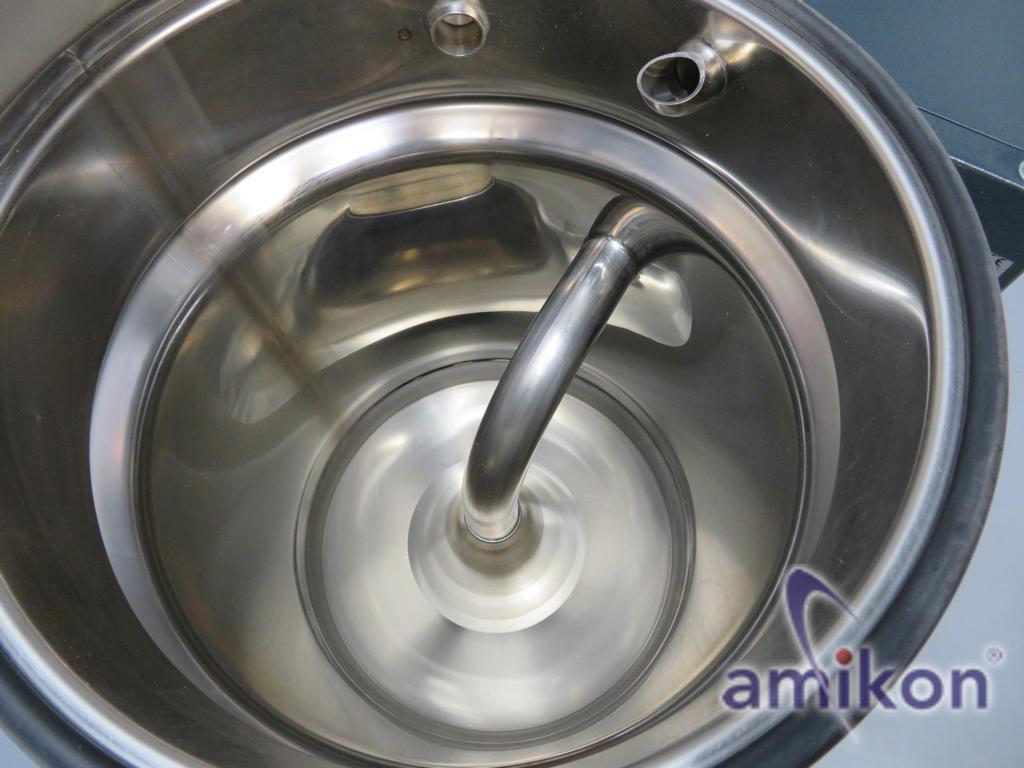

Tank size 50 liters

Type: T 20

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We would be happy to answer any further questions by phone.

Item ID

21563

Condition

Used

Model

Somos ProTec Trocknungsanlage

Manufacturer

Heraeus
