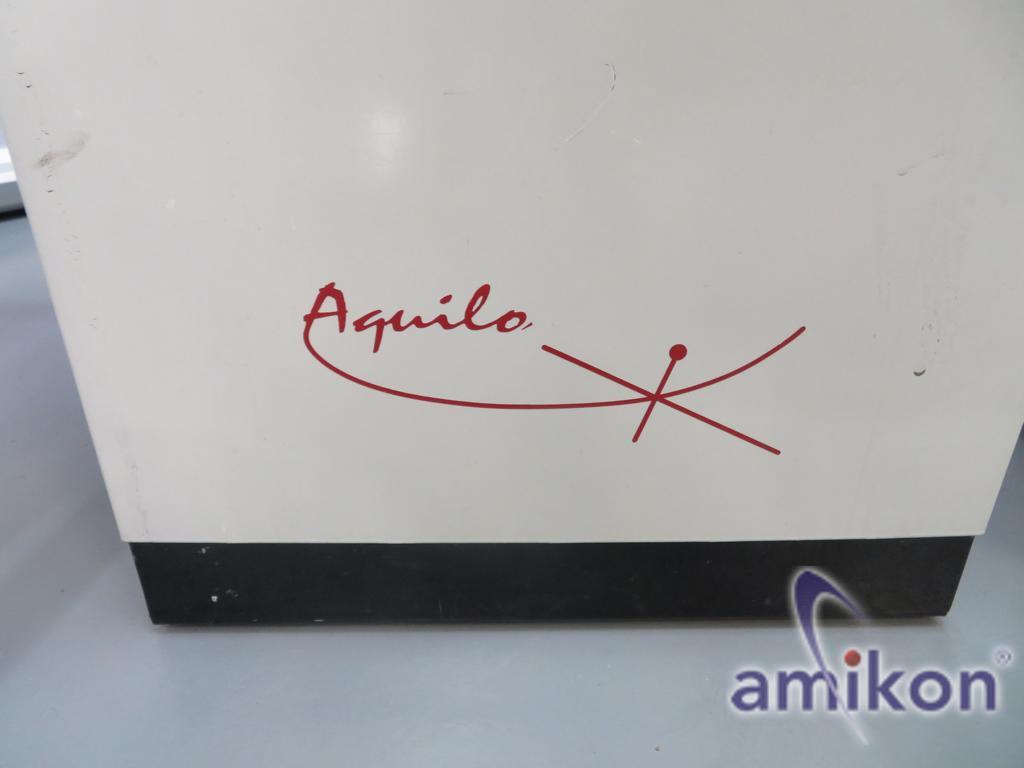

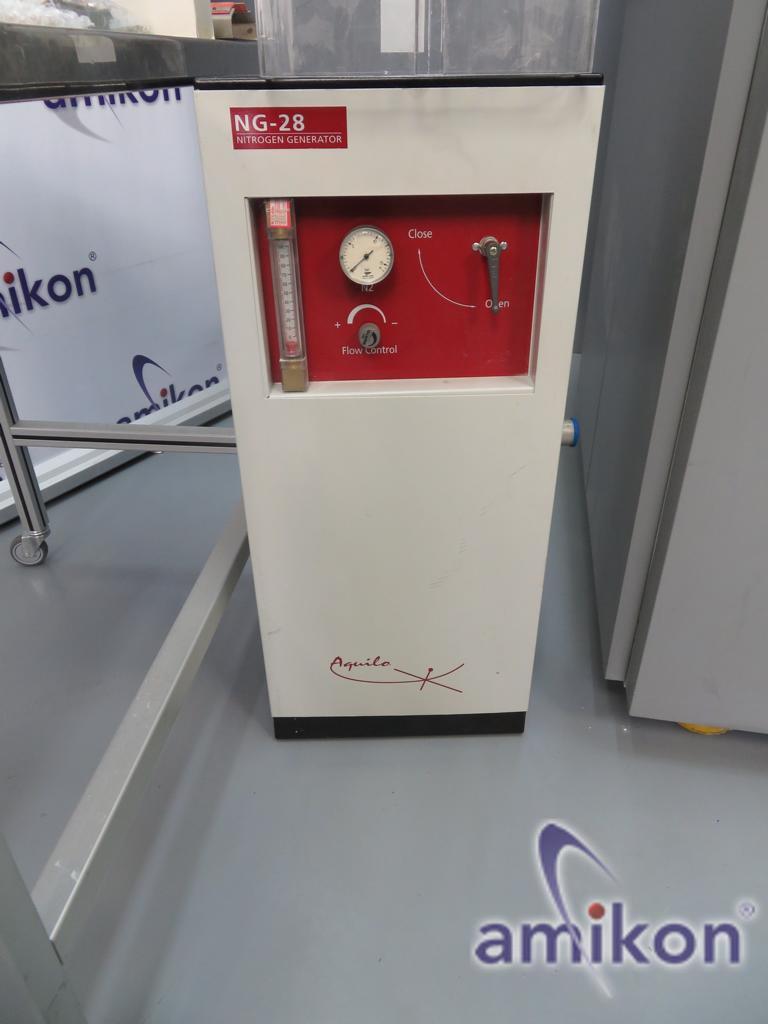

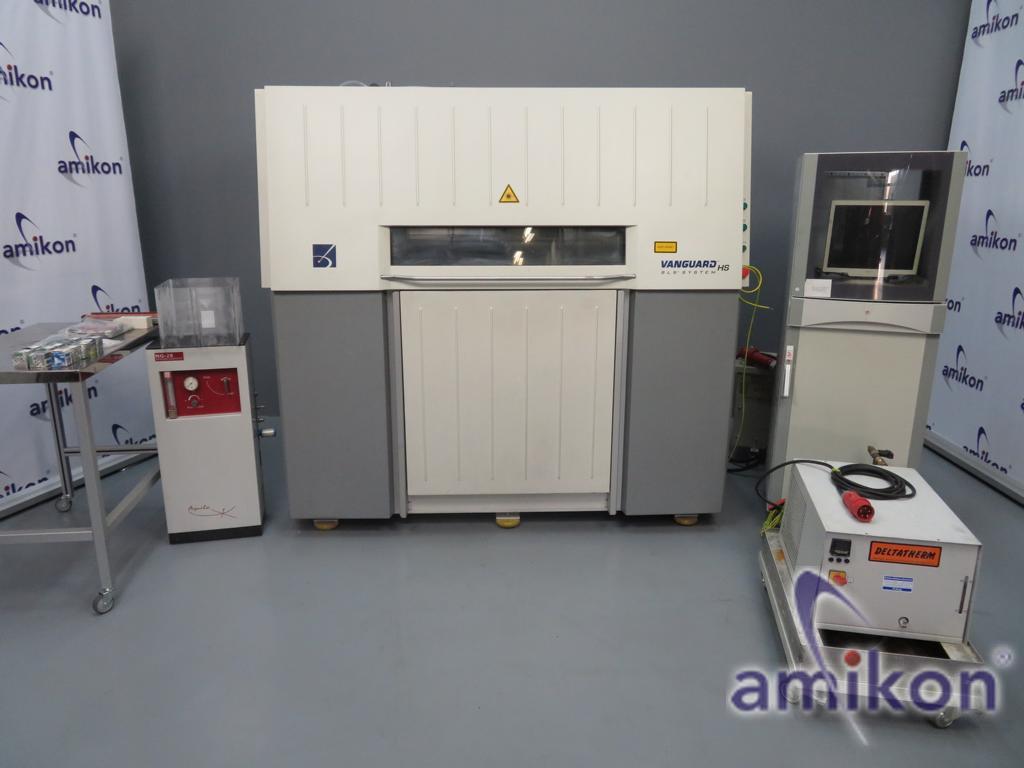

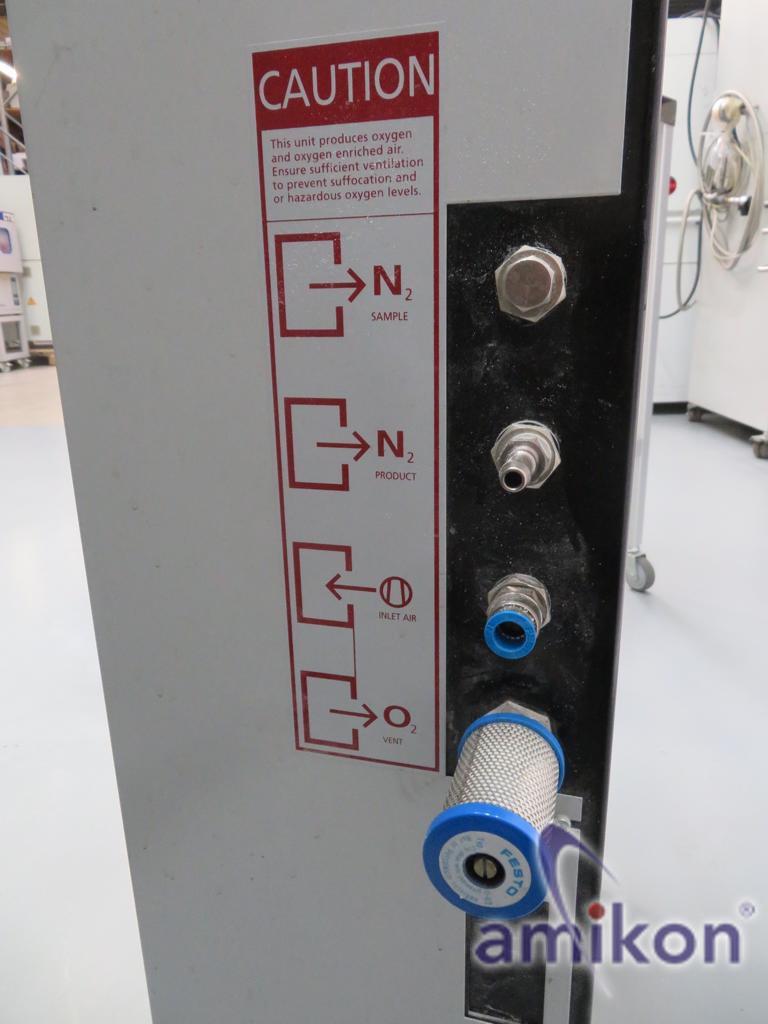

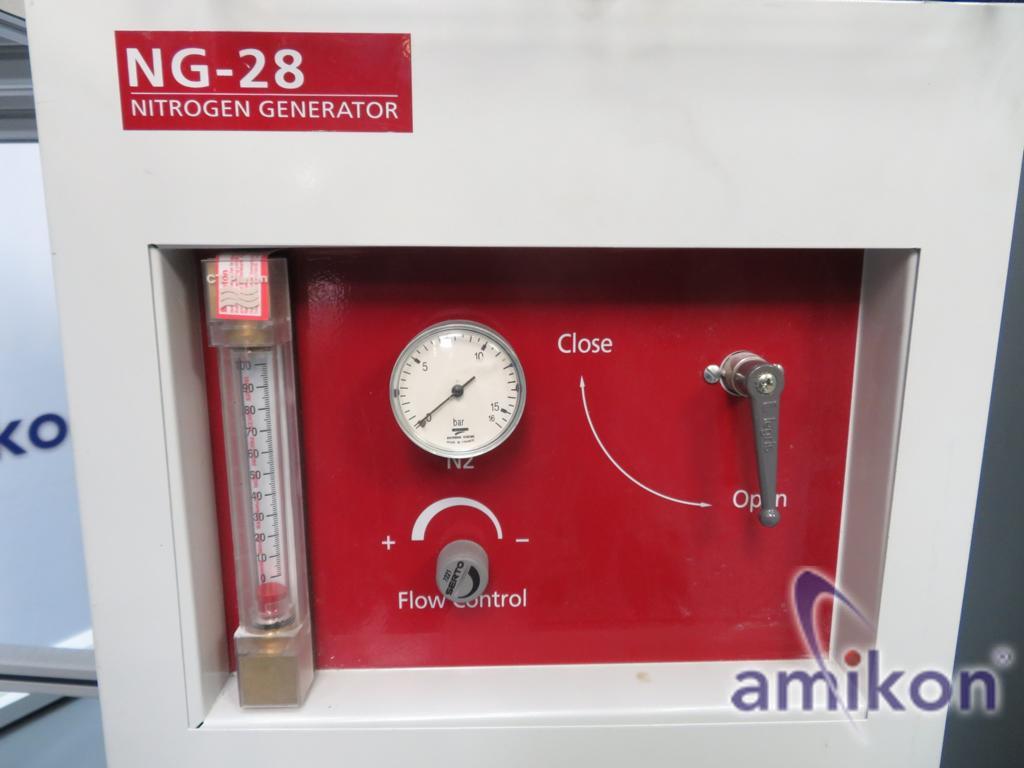

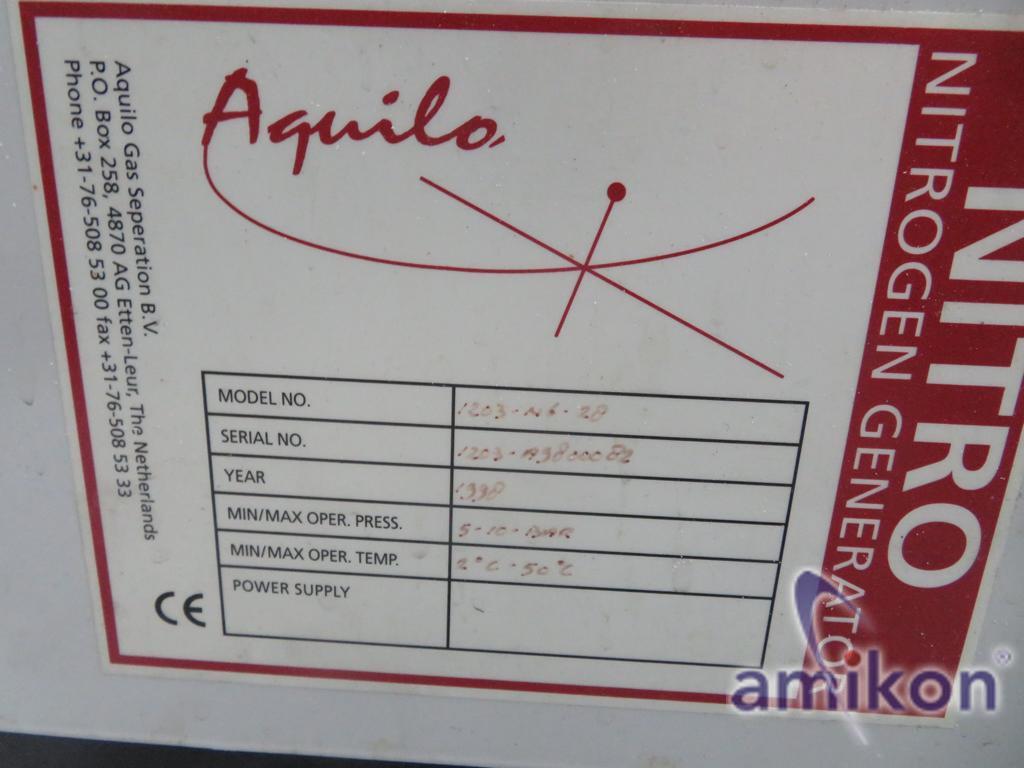

Vanguard HS 3D Systems Laser Sintering System with Nitrogen Generator and Cooler

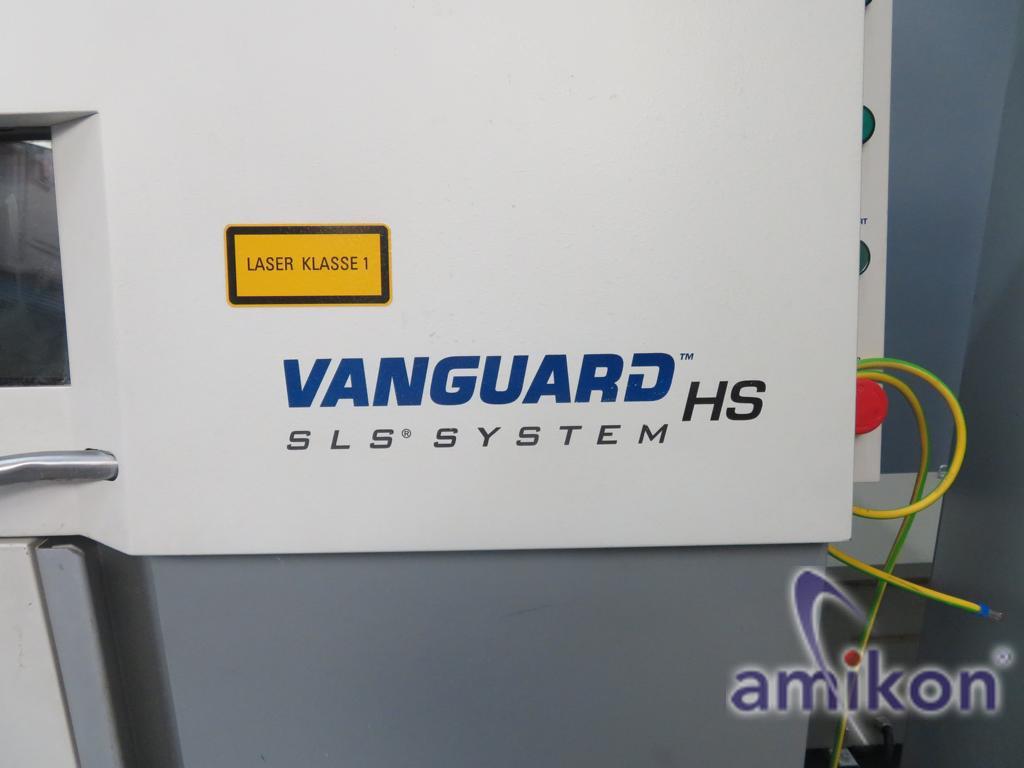

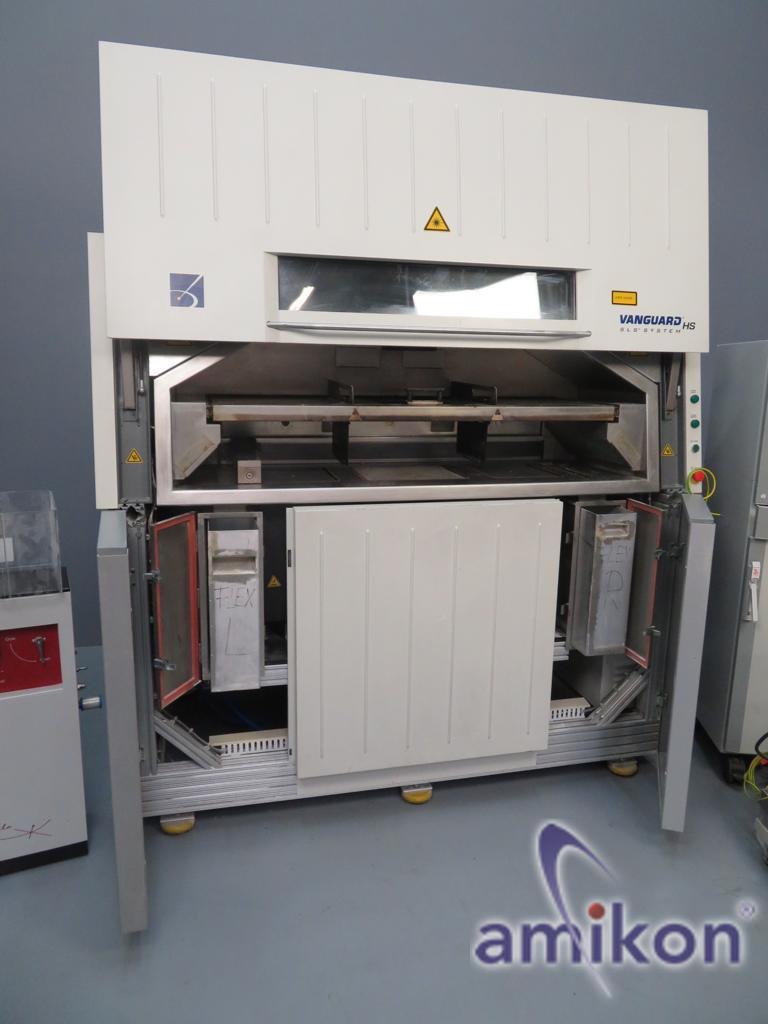

Vanguard HS Laser Sintering System

Here we offer you a Vanguard HS Laser Sintering System.

Selective Laser Sintering System SLS 3D Systems - Vanguard HS

Technology: Selective Laser Sintering, SLS
Material Classes: Powder; Thermoplastic, Thermoplastic Elastomer, Metal, Composite Material Laser and Scanning
Laser 25 or 100 Watt CO2 (depending on material)
Standard Beam Delivery System (BDS) Maximum Scanning Speed = 7,500 mm/s
Maximum Scanning Speed = 10,000 mm/s

Maximum Build Space Width 370 mm x Depth 320 mm x Height 445 mm

System Controller & Software:

Control Software Proprietary SLS System Software
Operating System Windows 2000
Input Data File Format .stl .slc
Network Type and Protocol Ethernet, IEEE 802.3 10/100 Base-T with TCP/IP
System Requirements 933 MHz Pentium III
Power:

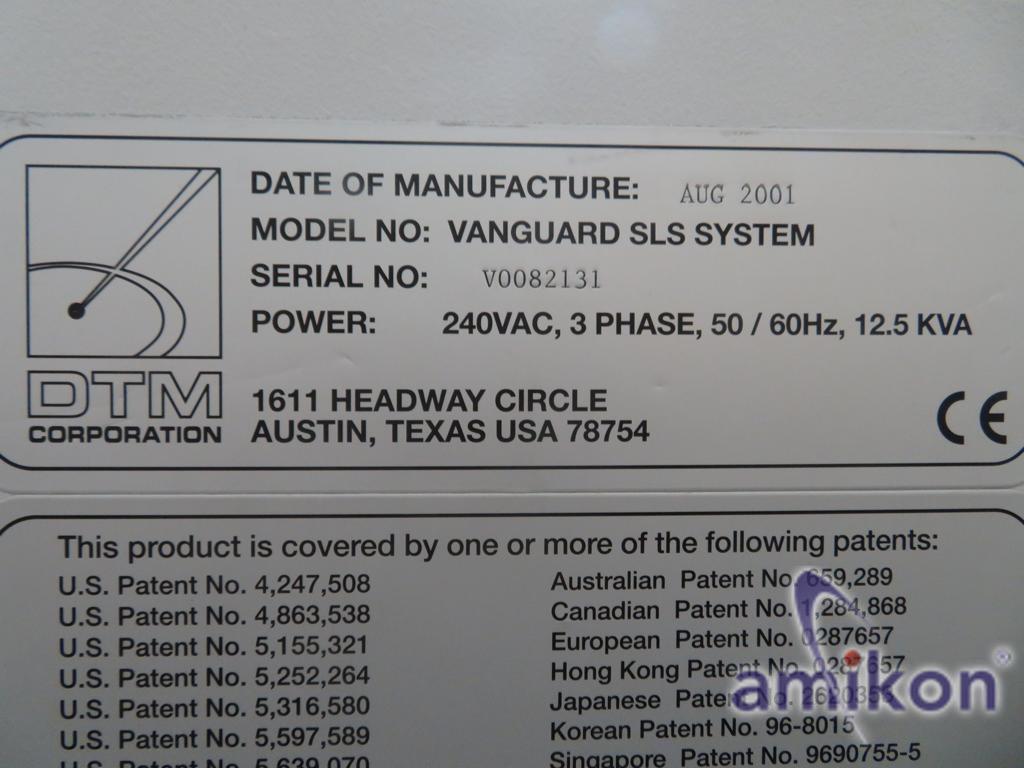

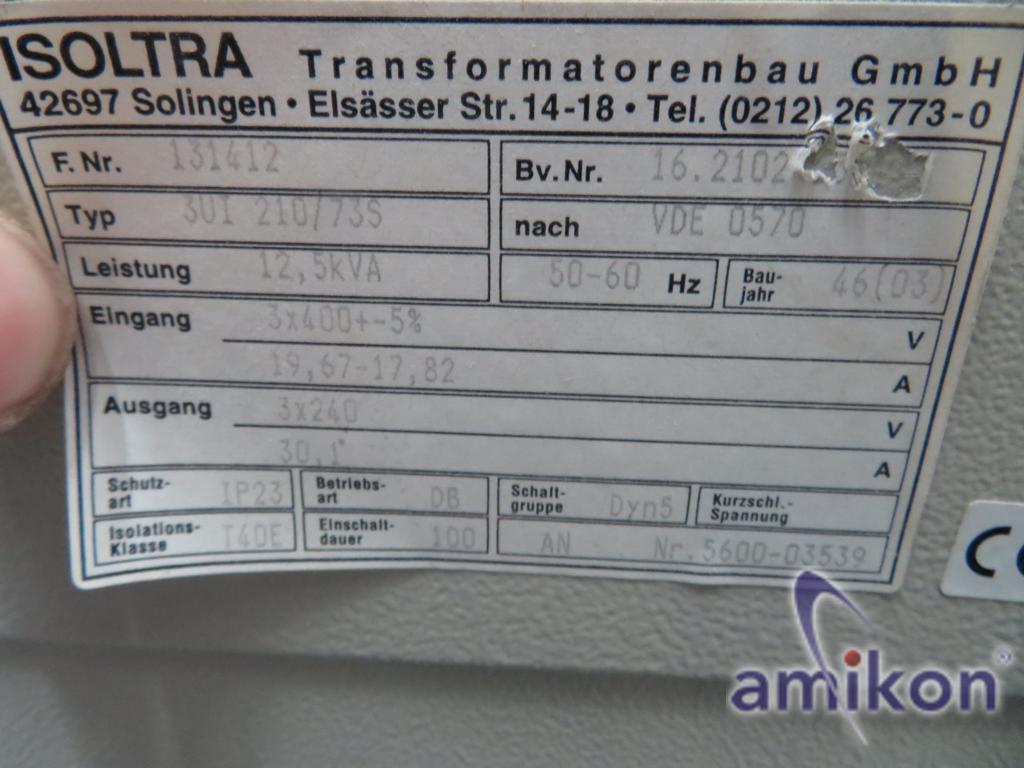

System 240 VAC, 12.5 KVA, 50/60 Hz, 3-phase

Temperatures:

Temperature Range 23°C +/- 3°C (73°F +/- 5°F)
Range of Atmospheric Requirements = 15º to 27ºC
Relative Humidity = <70% non-condensing

Weight:
Process Station 1700 kg
Computer Cabinet 118 kg

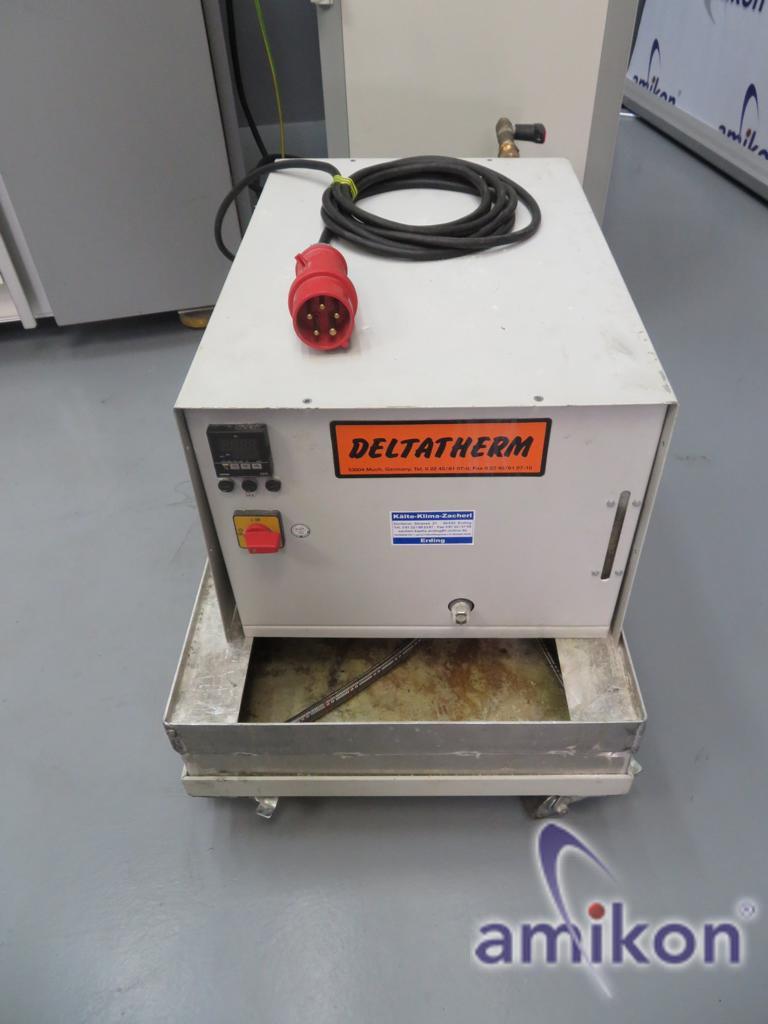

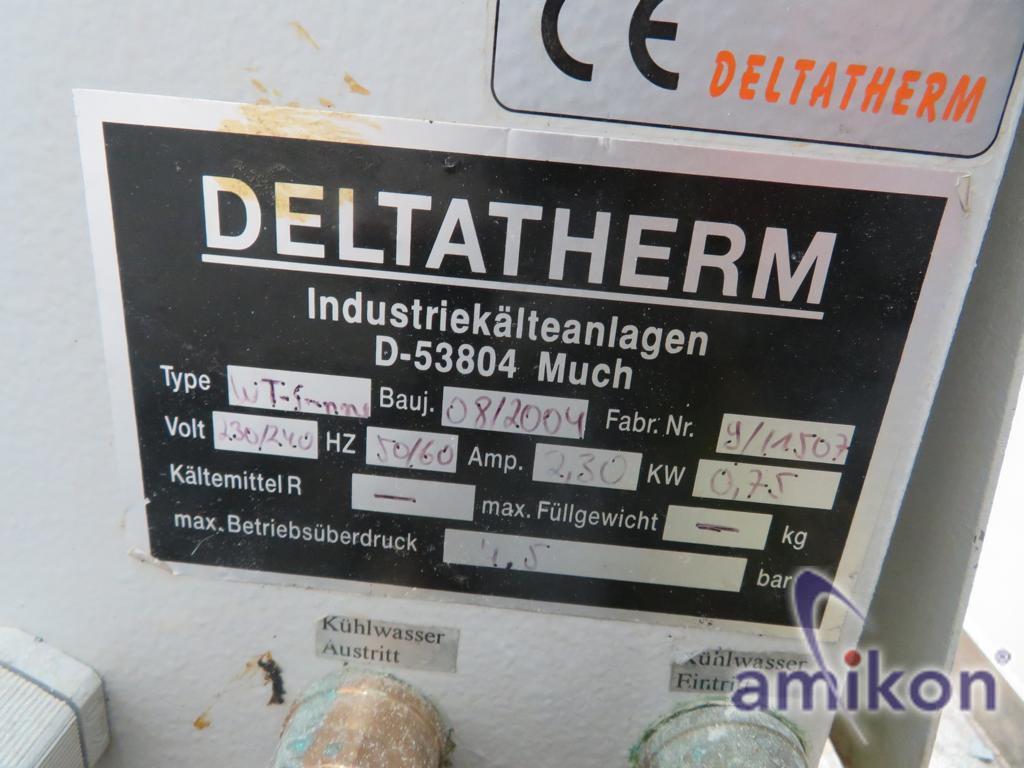

Cooler 113 kg

Type: Vanguard HS 3D Systems

Condition: used

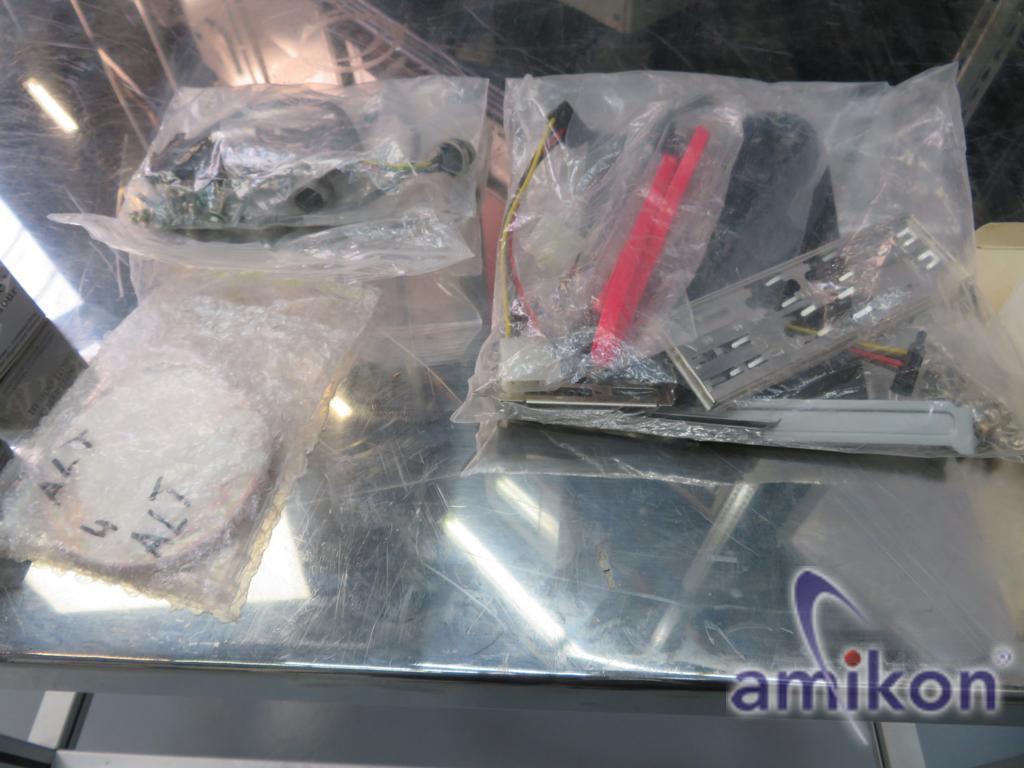

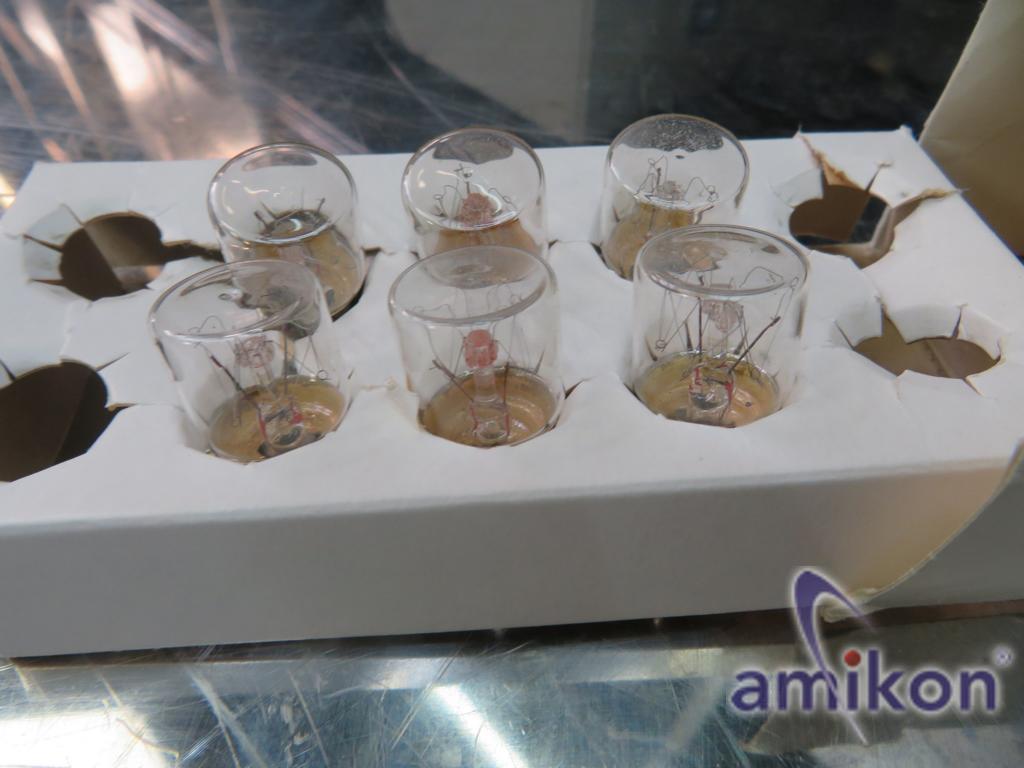

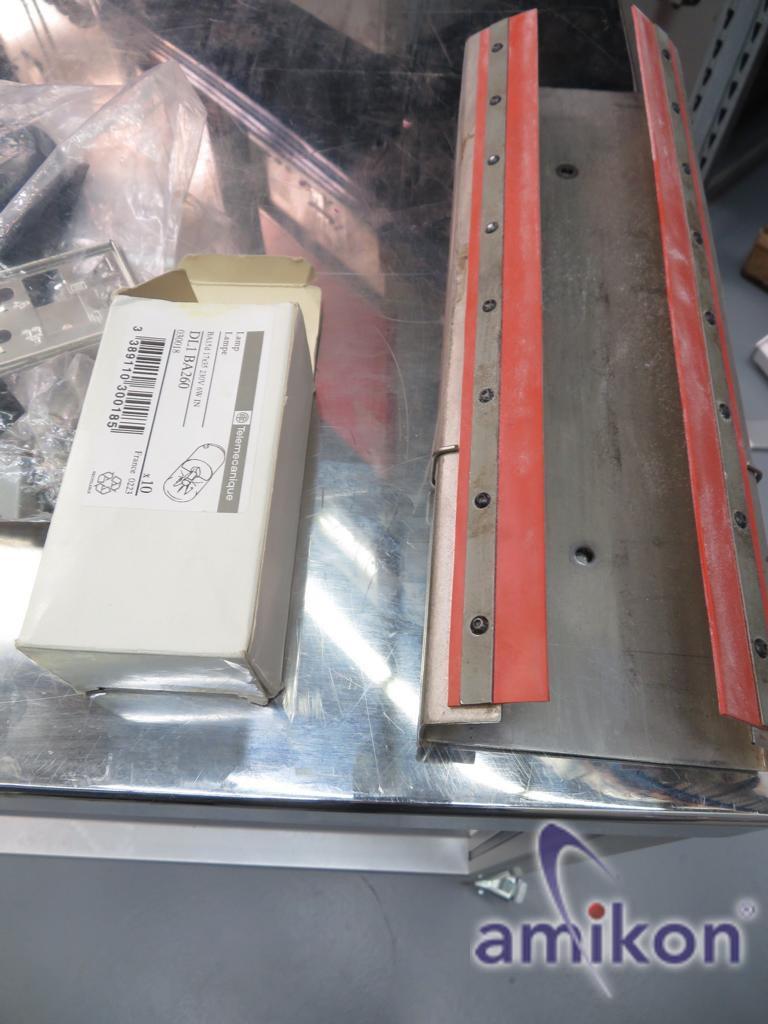

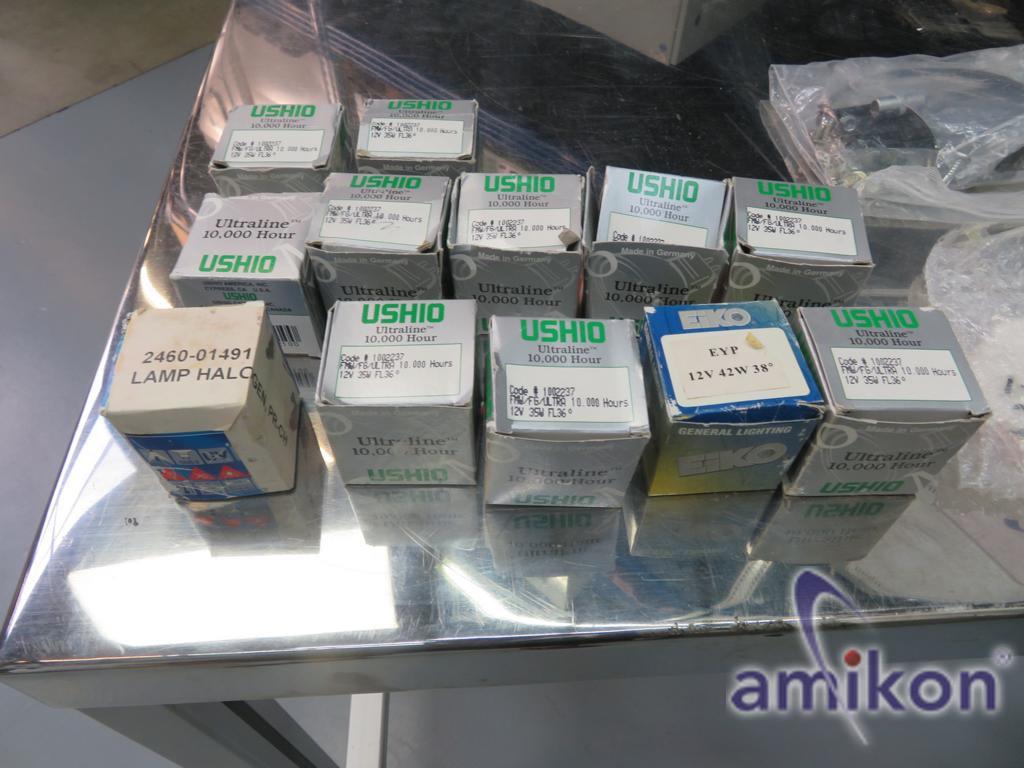

Scope of Delivery: (See Image)

(Changes and errors in technical data, specifications are subject to change!)

We would be happy to answer any further questions by phone.
