Trumpf Hüttinger Induction Generators TruHeat MF 3020 and TruHeat HF 3010

Trumpf Hüttinger Induction Generators

Here we offer you a Trumpf Hüttinger induction generator.

Trumpf Induction Generators

Induction generators from TRUMPF Hüttinger are the ideal solution for inductive heating and heat treatment.

The spectrum ranges from applications of classical induction heating and heat treatment such as hardening, annealing, soldering, melting

and forging to specialized applications such as epitaxy and crystal growth using the Czochralski process.

The TruHeat MF series 3000 / 5000 / 7000 is a family of powerful MF generators in parallel resonant circuit technology.

Available with power ratings from 10 kW to 40 kW and output frequencies from 5 kHz to 200 kHz,

the versatile generators deliver excellent results in both classical heating applications and high-tech processes.

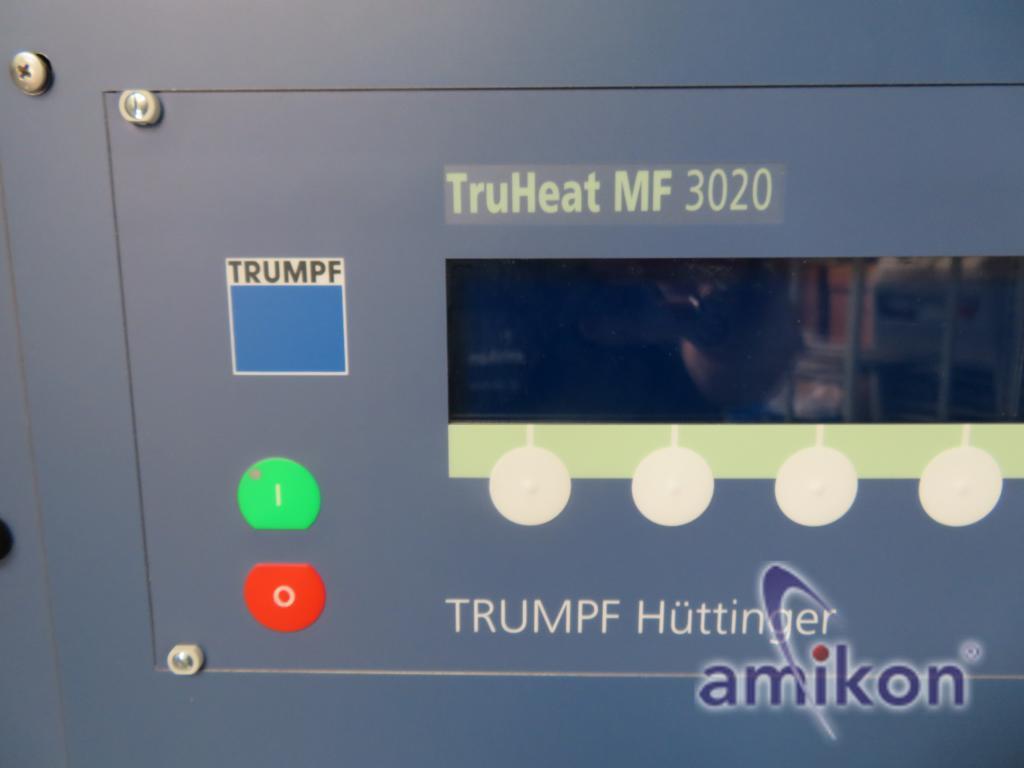

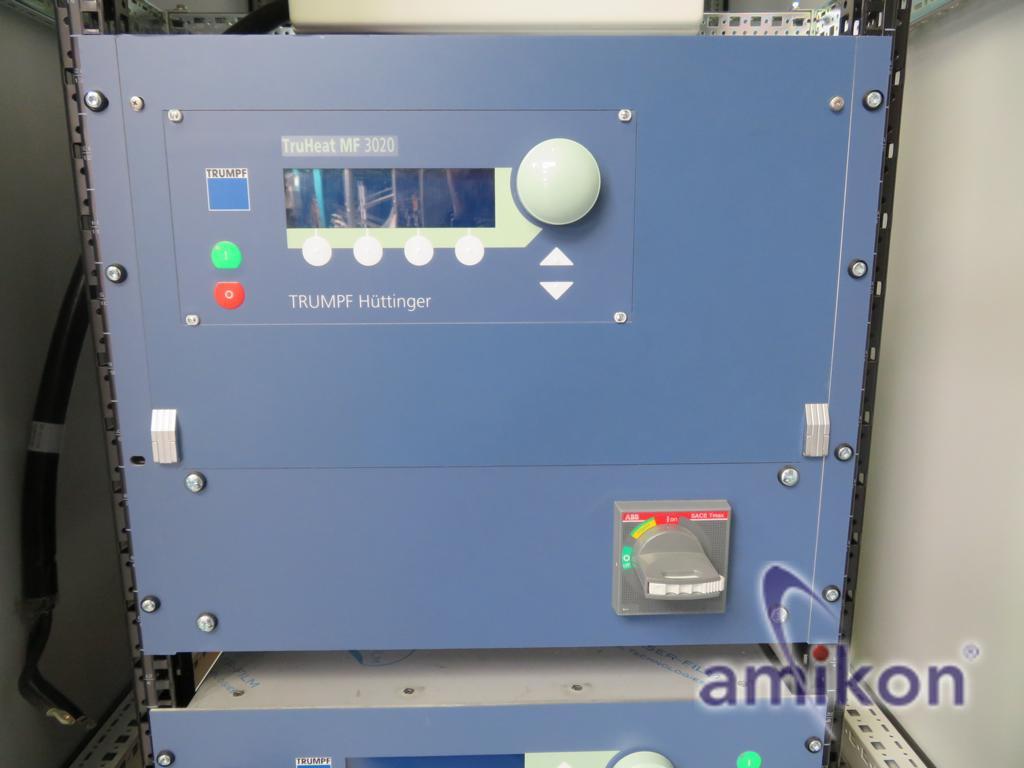

TruHeat MF 3020

Output:
Rated power 20 kW
Maximum output voltage 600 V rms
Rated operating frequency 5 kHz - 200 kHz
Length of power cable 5 m - 25 m

Power supply data:
Supply voltage (±10%) 400 V - 480 V
Supply frequency 50 Hz - 60 Hz
Power consumption 25 kVA
Power factor 0.96

Housing
Weight 87 kg
Protection class IP21

Cooling requirements:
Max. water pressure 6 bar
Min. pressure difference 3 bar
Min. flow rate 16.5 l/min
Temperature of cooling medium - 35 °C

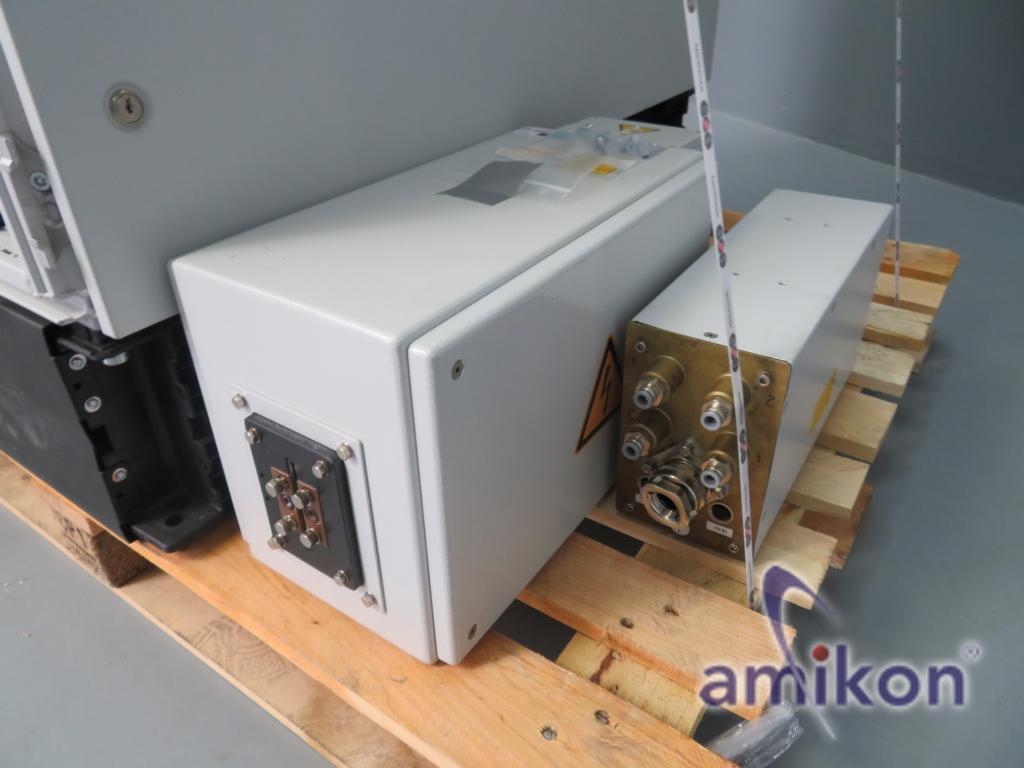

External circuit:
Weight 21 kg
Protection class IP54

General:
Overall efficiency 87 %
Certificates / Standards CE Declaration of Conformity

Ambient conditions:
Outside temperature 10 °C - 45 °C

The TruHeat HF series 1000 / 3000 / 5000 consists of universal generators for use in industrial heating processes of all kinds.

Their compact design and the various available configurations allow for easy integration into both new and existing systems.

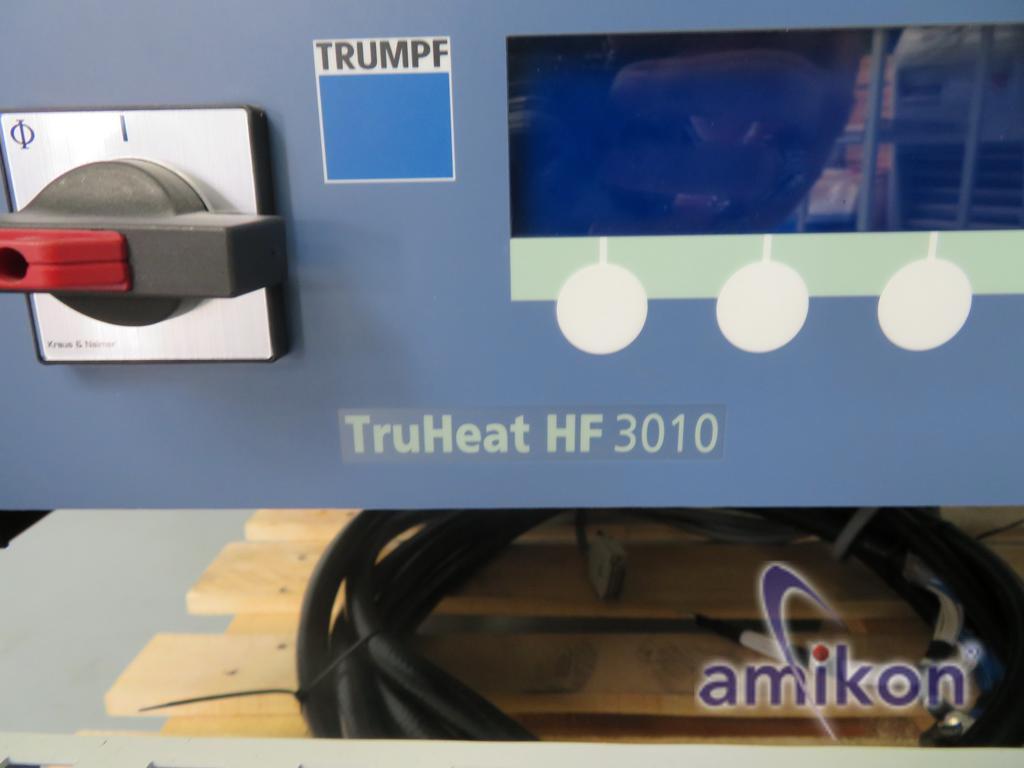

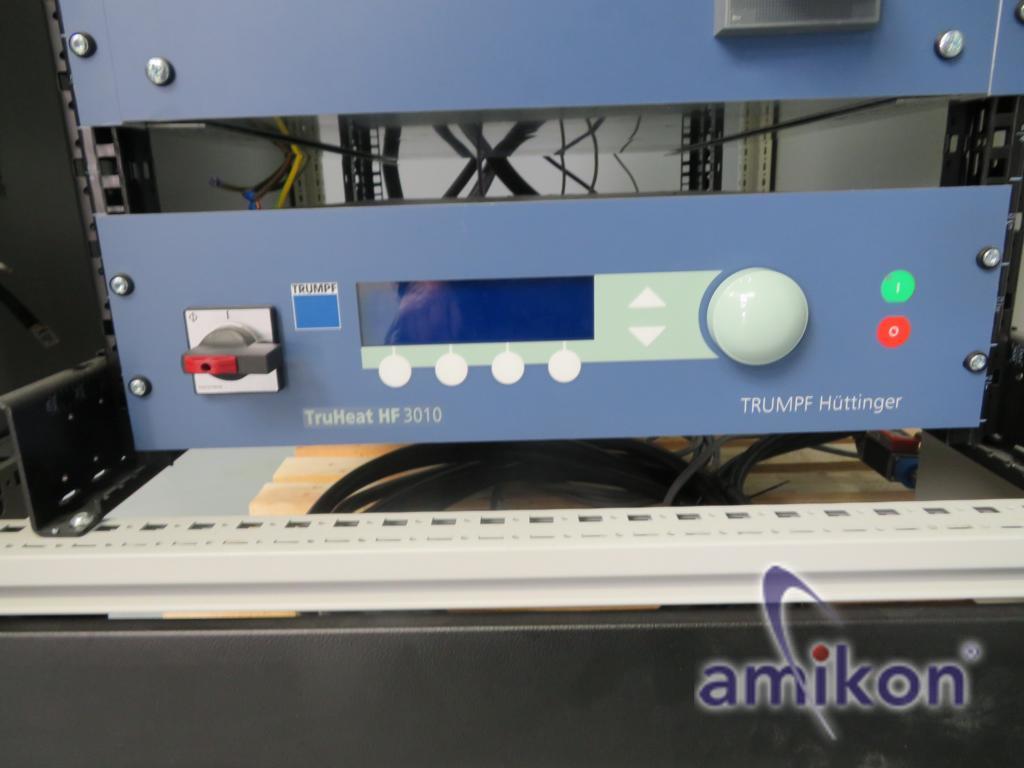

Generator TruHeat HF 3010

Output:
Rated power 10 kW
Maximum output current 560 A rms
Maximum output voltage 1500 V rms
Rated operating frequency 50 kHz - 800 kHz
Length of power cable 0.5 m - 3.0 m

Power supply data:
Supply voltage (±10%) 400 V
Supply frequency 50 Hz - 60 Hz
Power consumption 12.5 kVA
Power factor 0.95

Housing:
Weight 30 kg
Protection class IP54

Cooling requirements:
Max. water pressure 6 bar
Min. pressure difference 3 bar
Min. flow rate 9.5 l/min
Temperature of cooling medium - 35 °C

External circuit:
Weight 12 kg
Protection class IP54

General:
Overall efficiency 90 %
Certificates / Standards CE Declaration of Conformity

Ambient conditions:
Outside temperature 10 °C - 45 °C

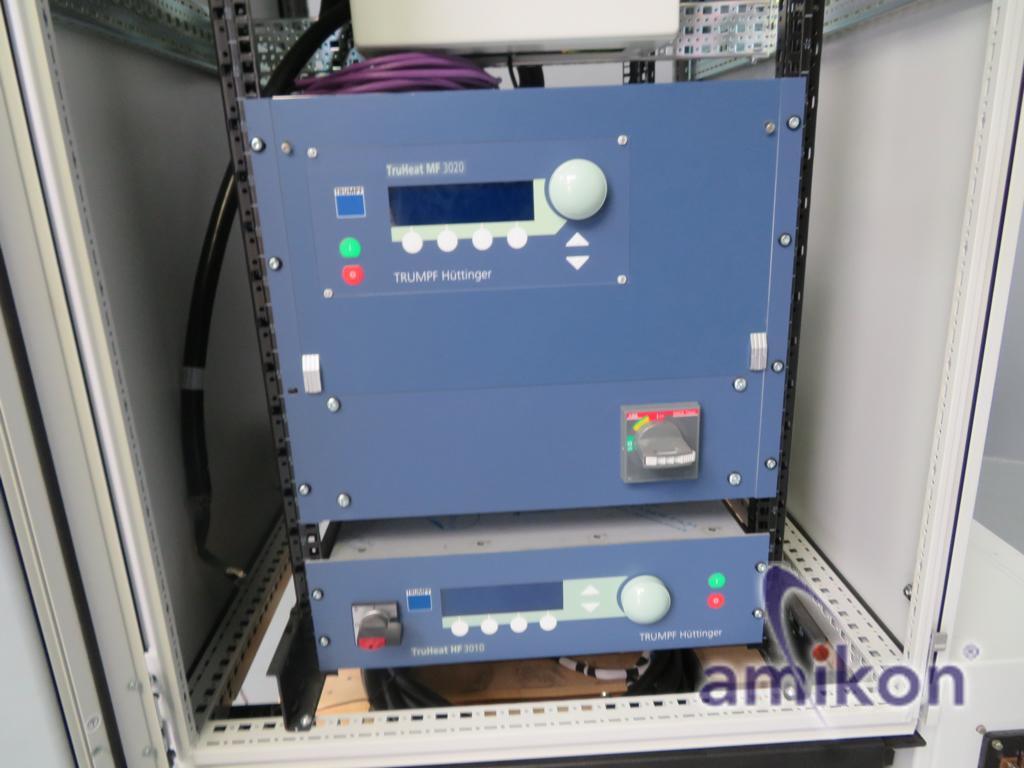

Type: TruHeat MF 3020 / TruHeat HF 3010

Condition: used

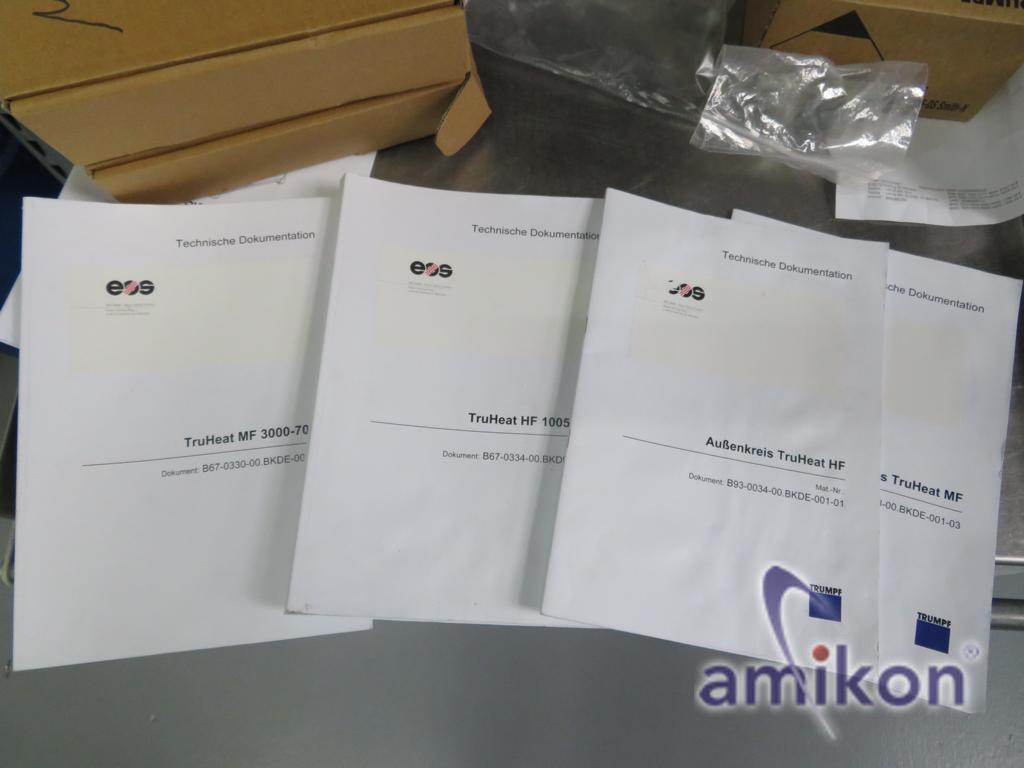

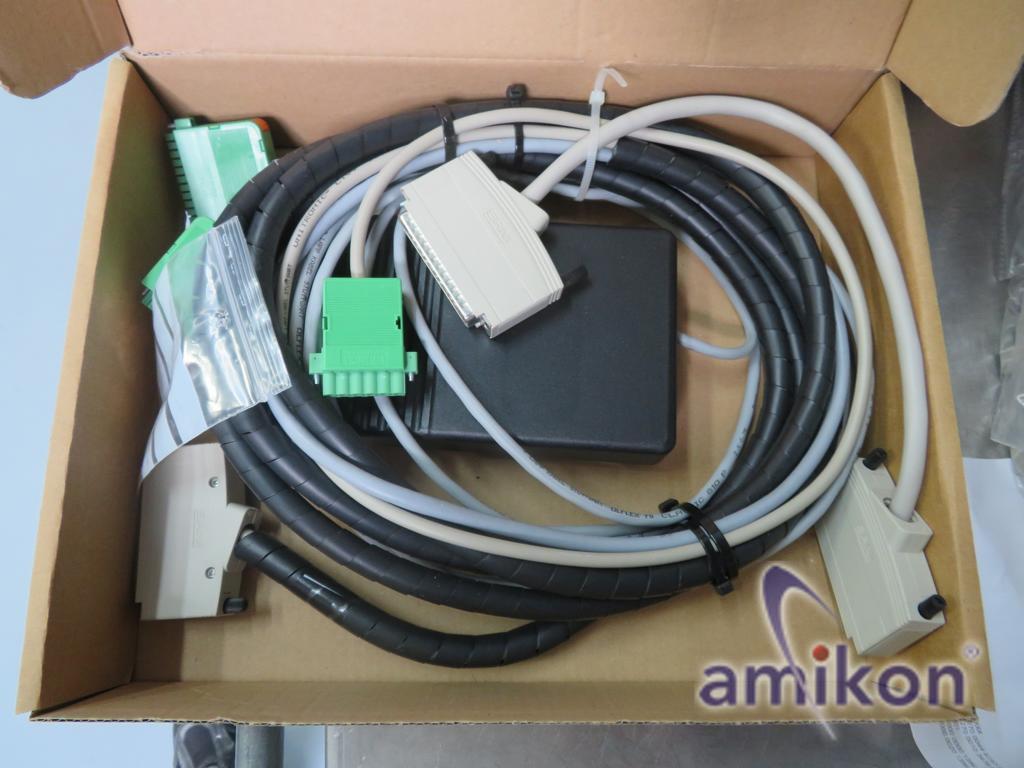

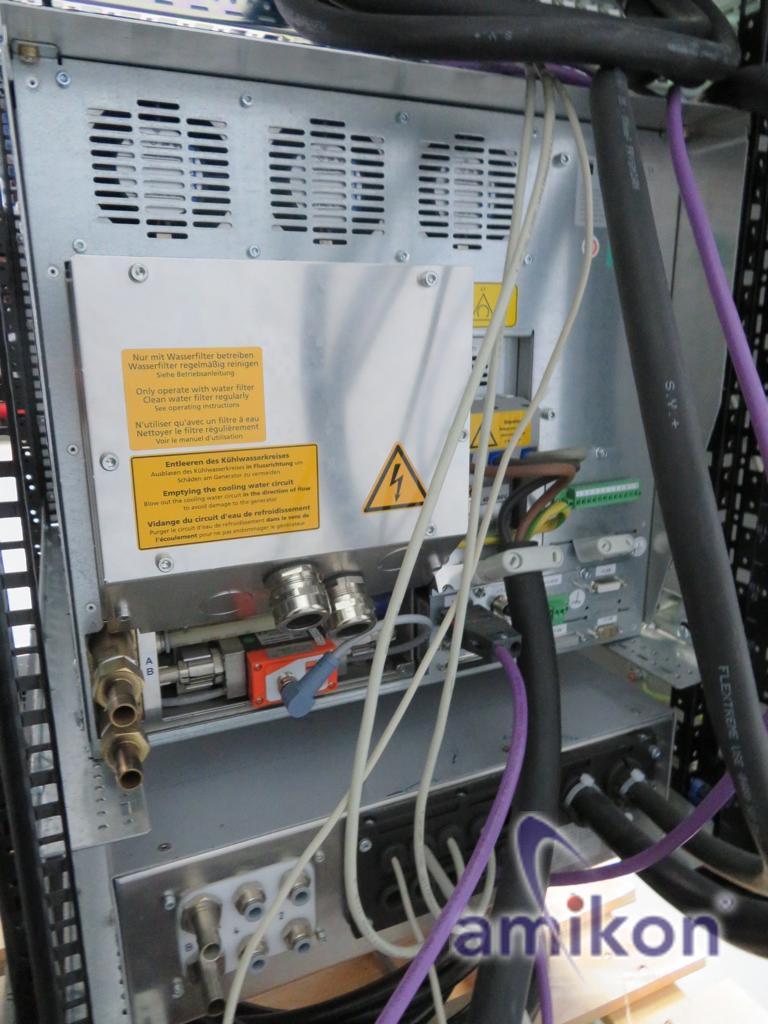

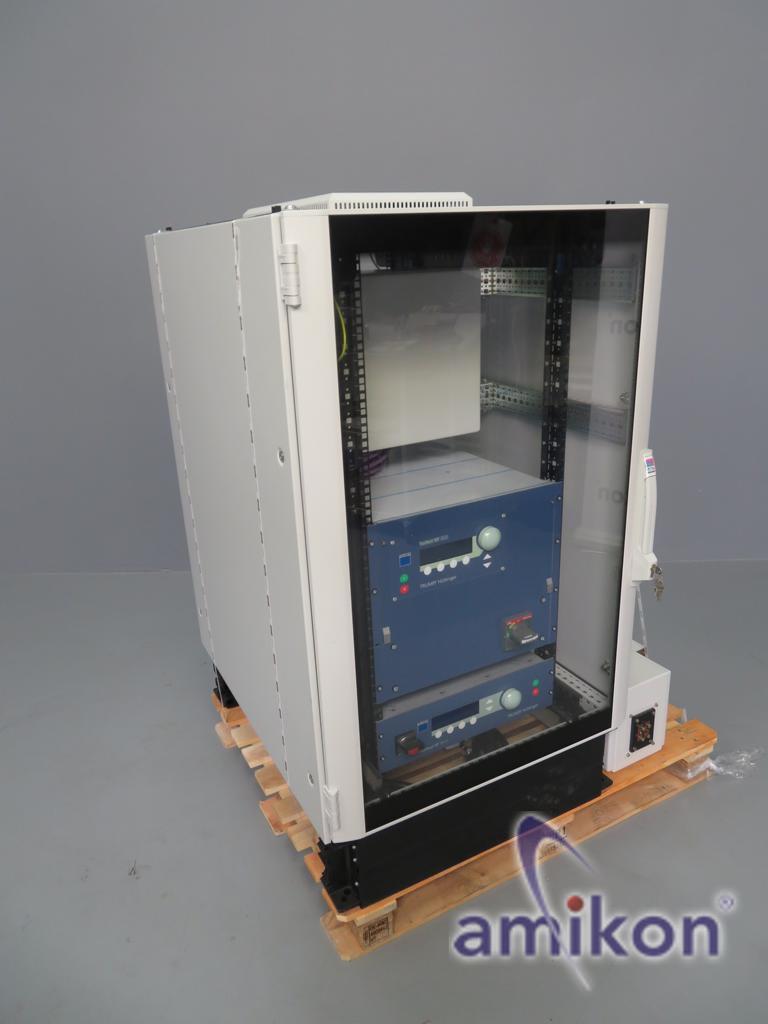

Scope of delivery: (See image)

(Changes and errors in technical data are reserved!)

We would be happy to answer any further questions by phone.
