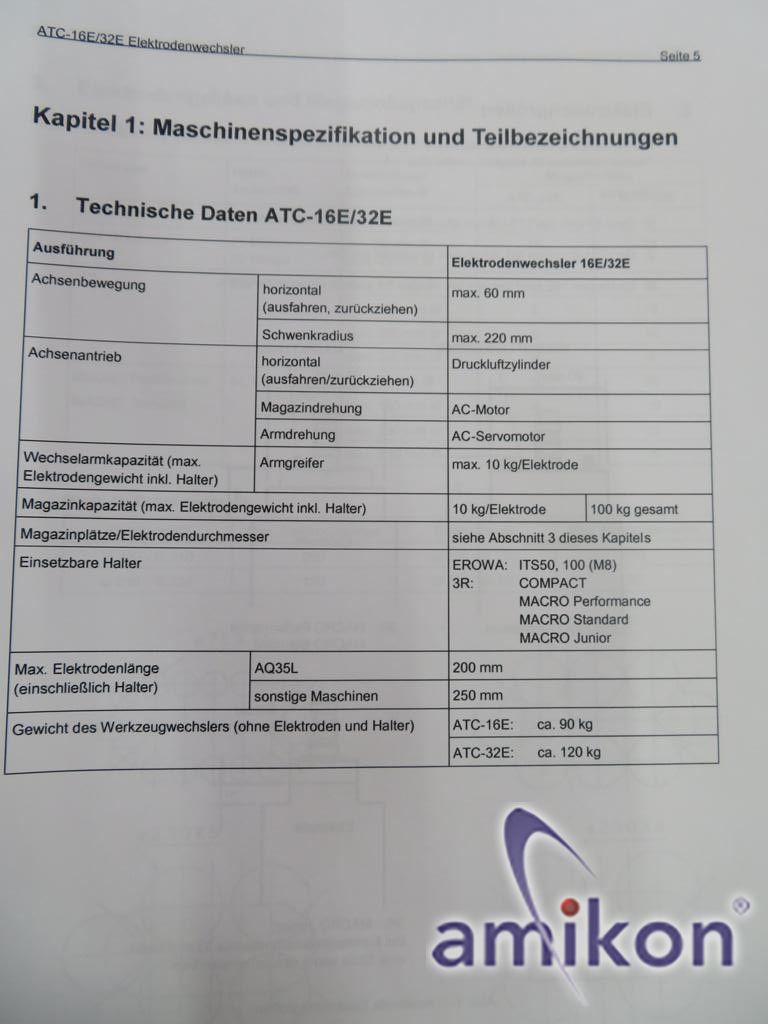

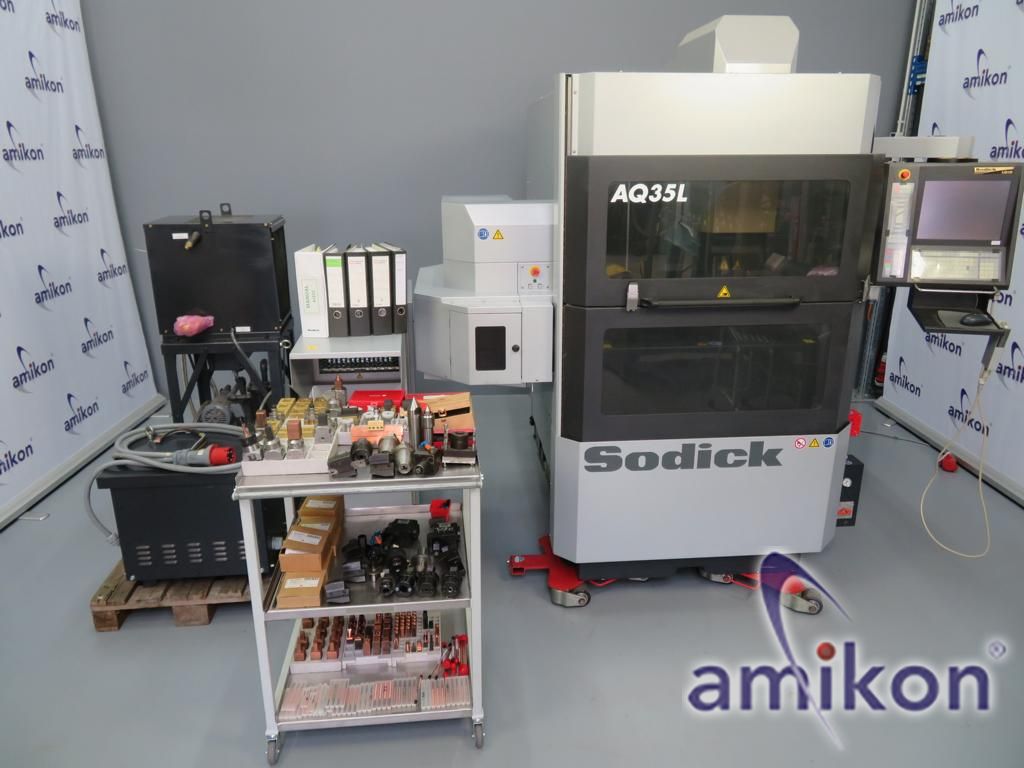

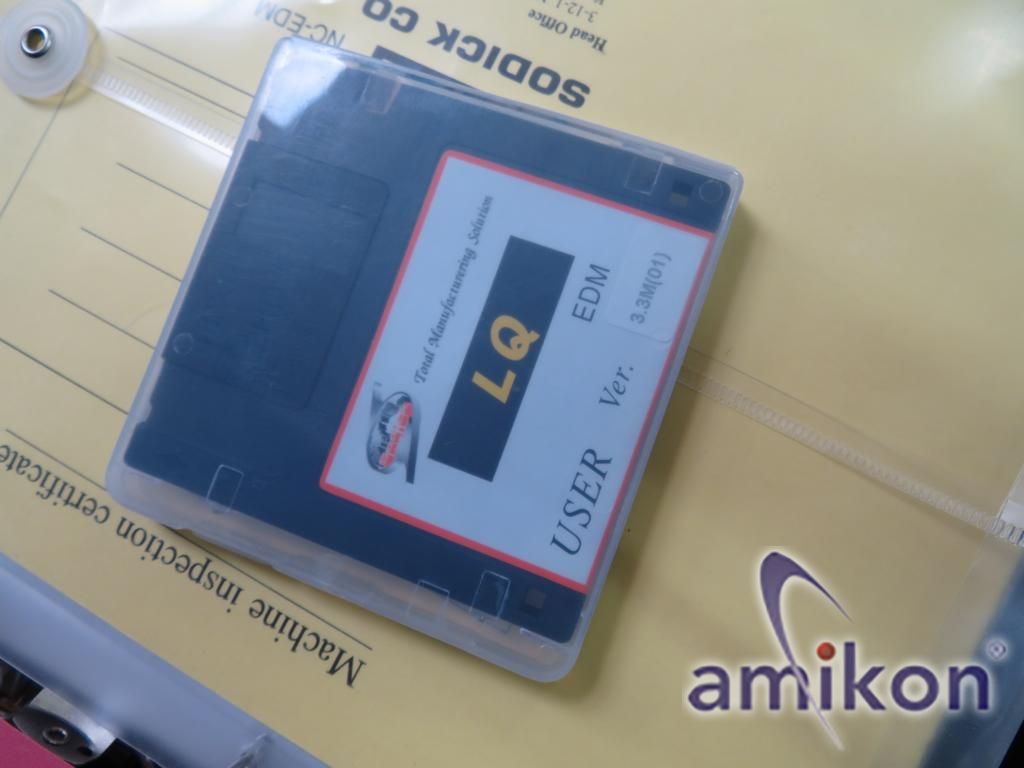

Sinking EDM AQ35L Sodick including accessories and documentation/software
Item ID: 21795
Condition: Used
Stock: Only ${ $store.getters['21795/currentItemVariation'].stock.net } in stock
The item is already sold
* Excl. VAT excl. Shipping
Sodick

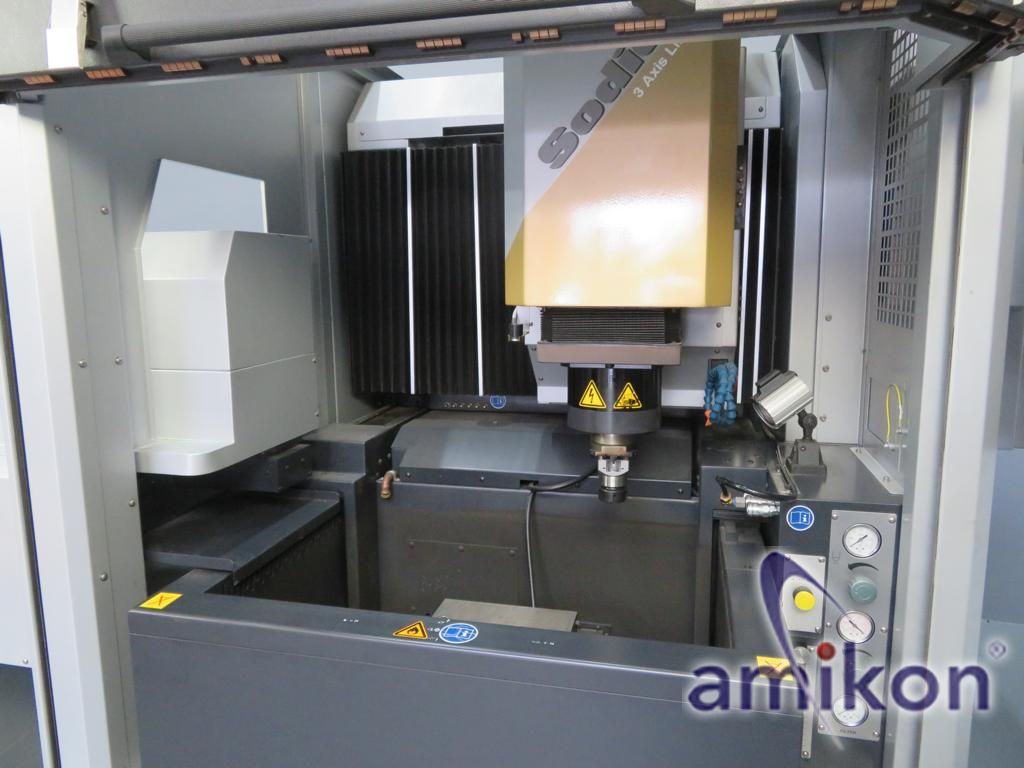

Here we offer a sinker EDM machine.
Technical Data:

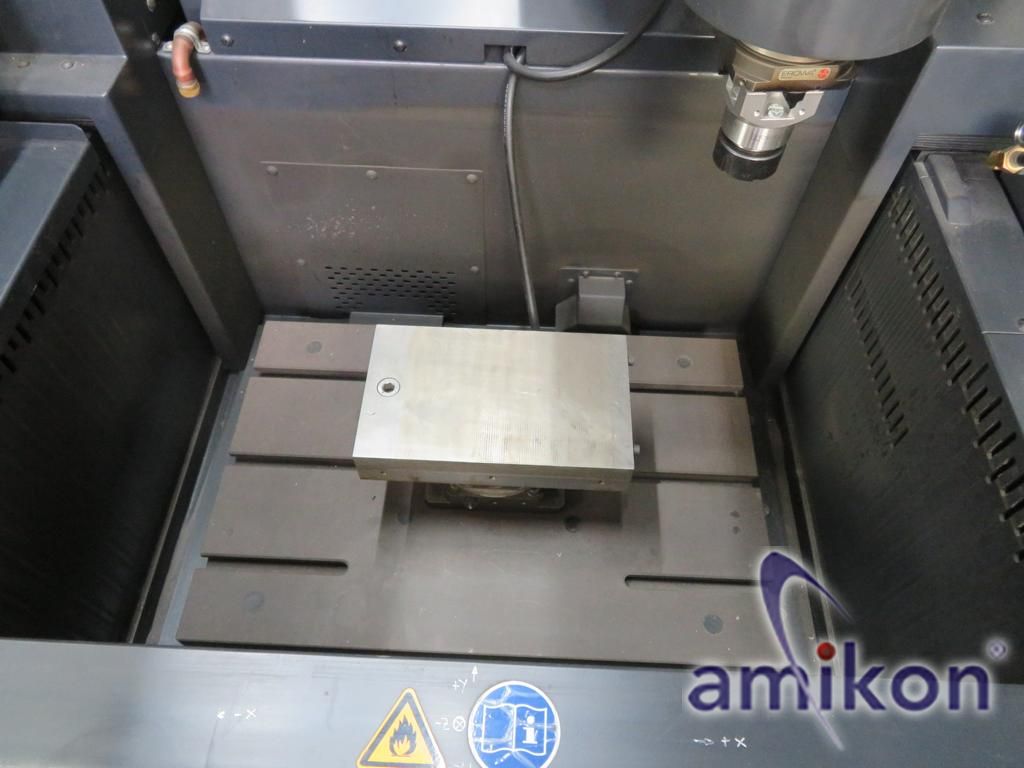

Table Size: 600x400 mm
X-Axis: 350 mm
Y-Axis: 250 mm
Z-Axis: 250 mm
Tank Length: 750 mm
Tank Width: 550 mm
Tank Height: 320 mm

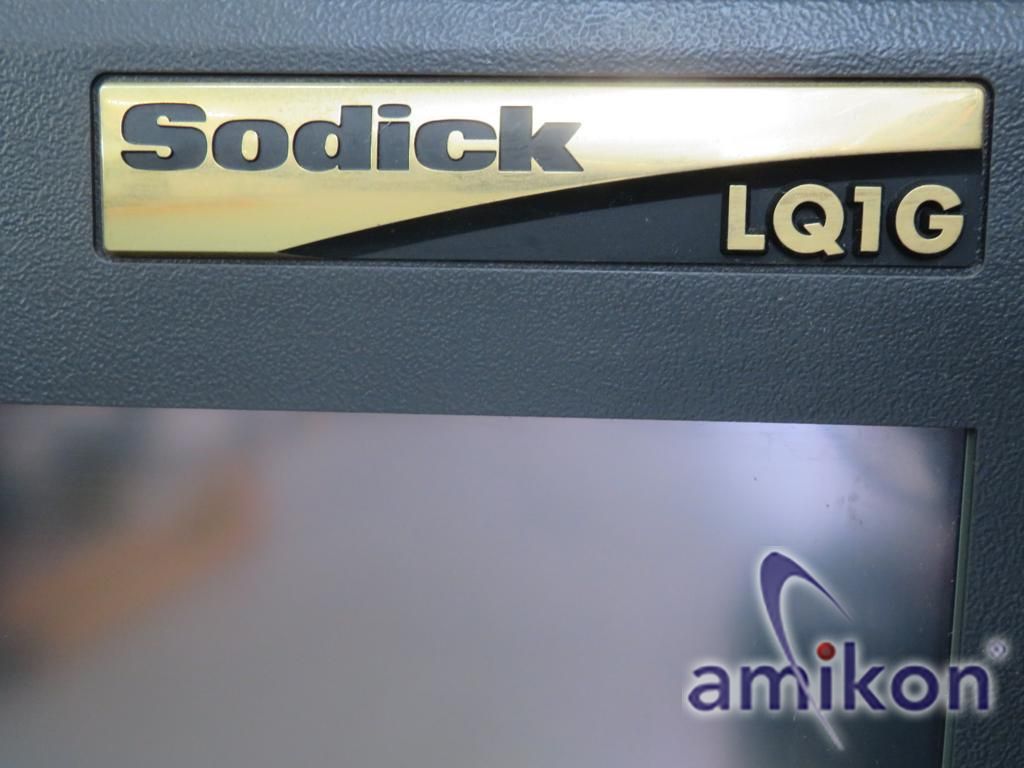

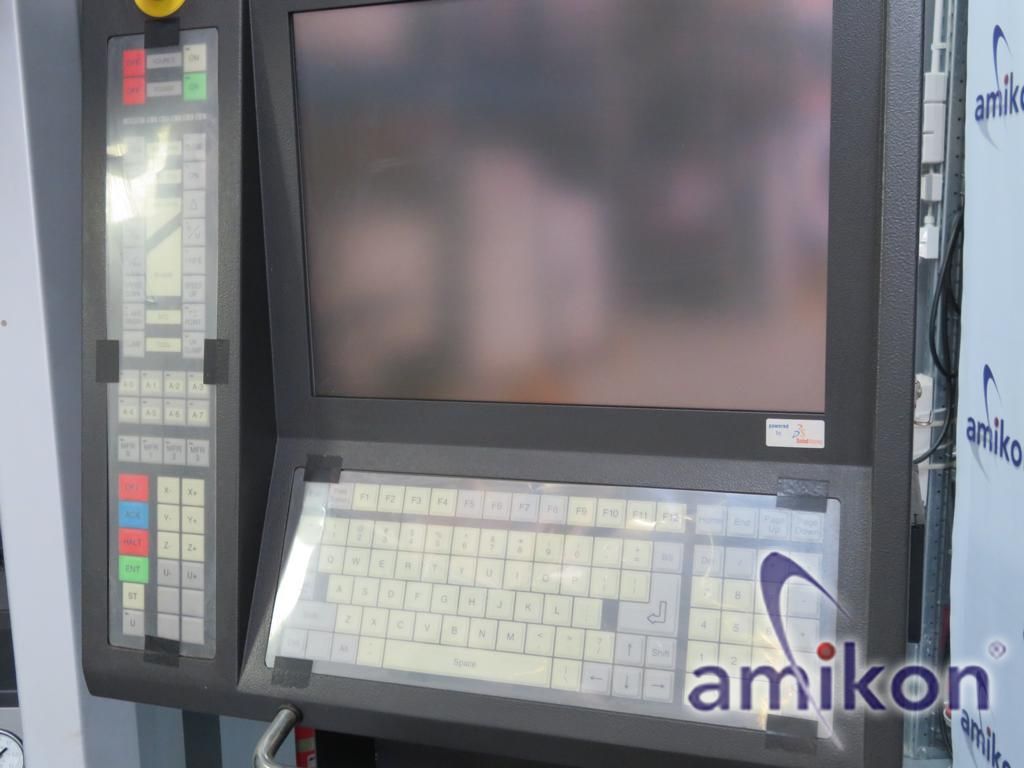

Control Type: LQ1
Total Machine Dimensions: 1535x2210x2395 mm
Footprint: 1655x2210 mm
Compressed Air Requirement: 4.5-6.5 bar

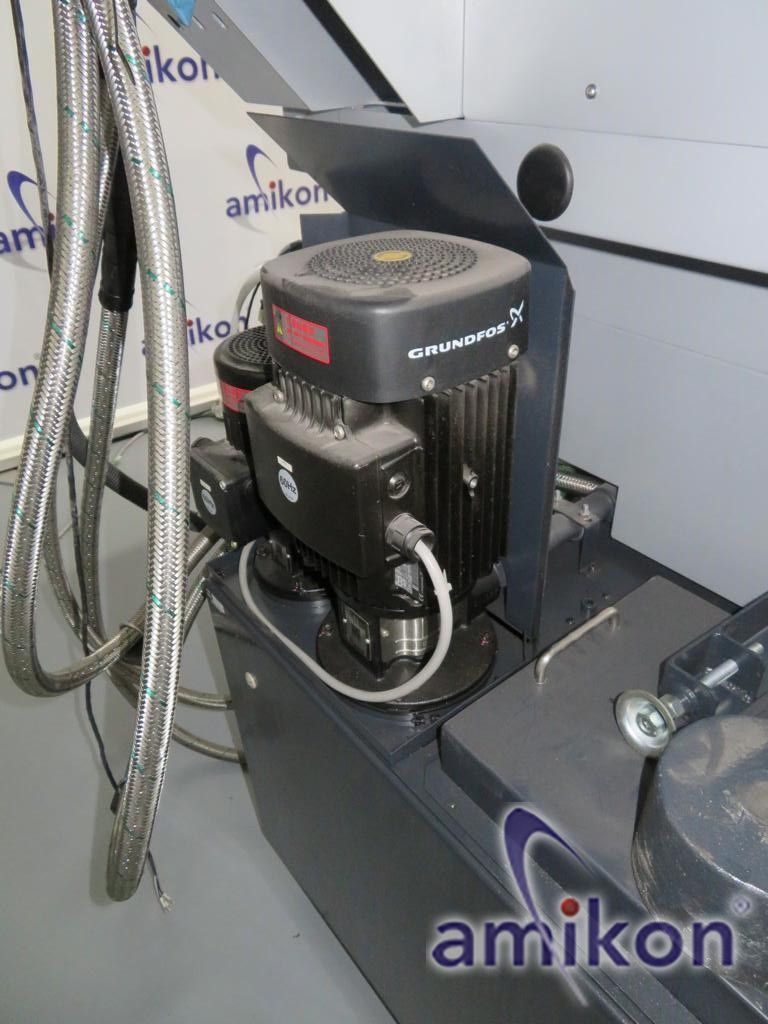

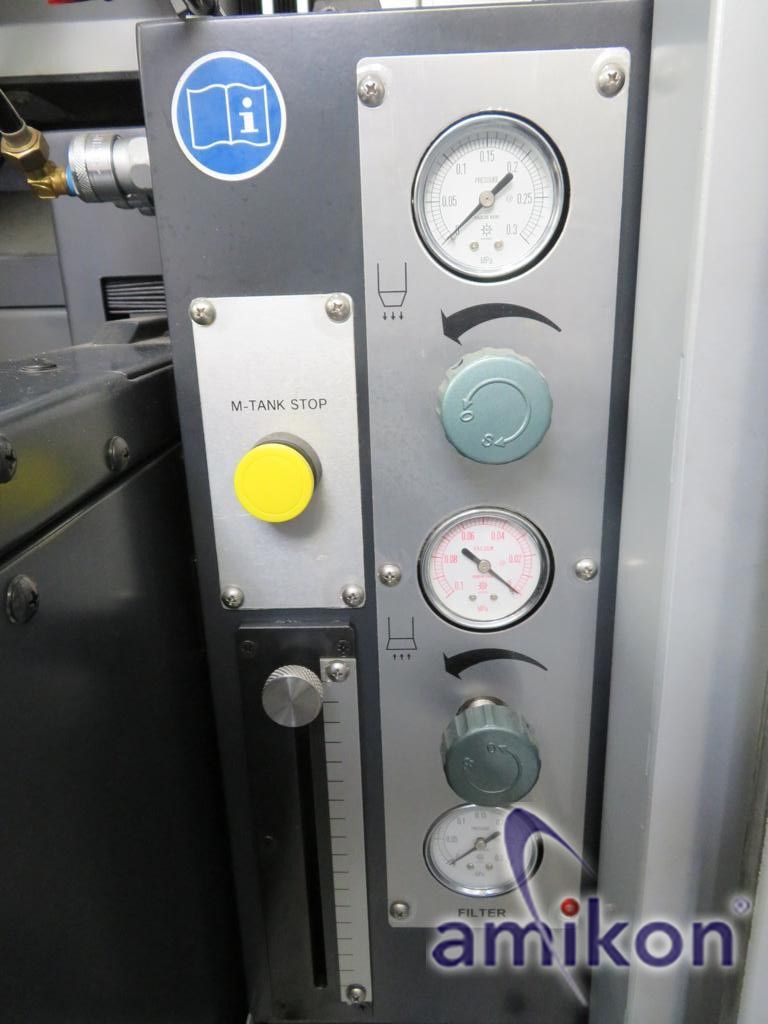

Dielectric Unit:
100 kg Empty Weight
Replaceable Paper Filters
Capacity: 275 Liters
Spool Cooling:
Required Cooling Oil Volume: 20 L
Transformer Type: TET18000D

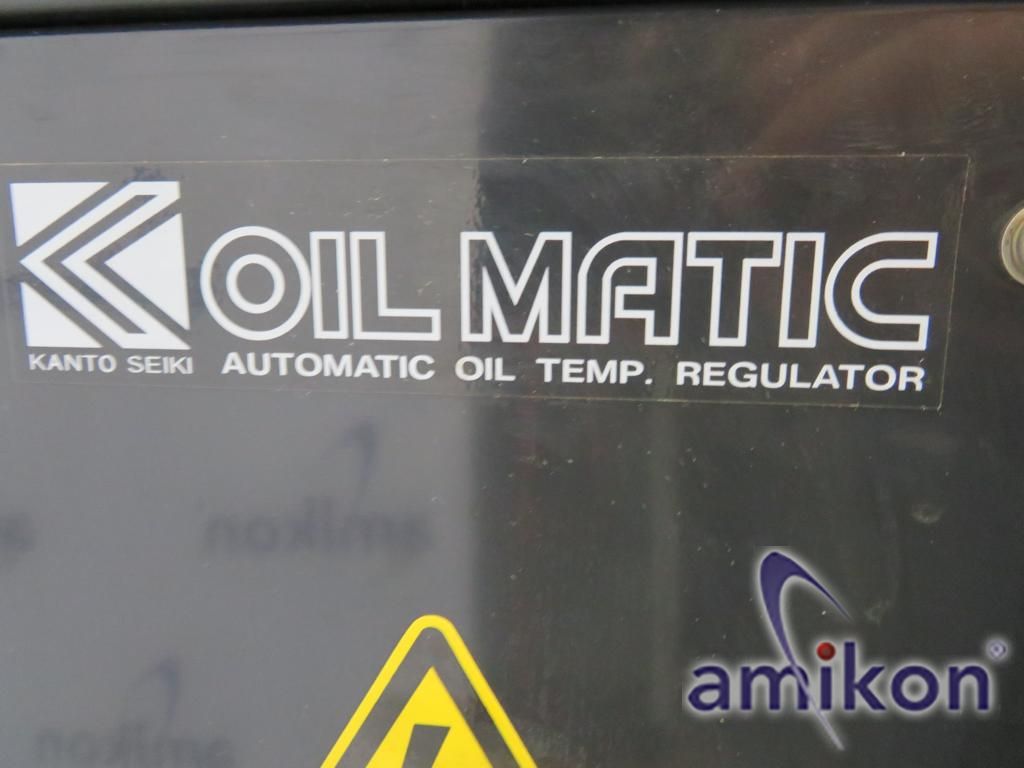

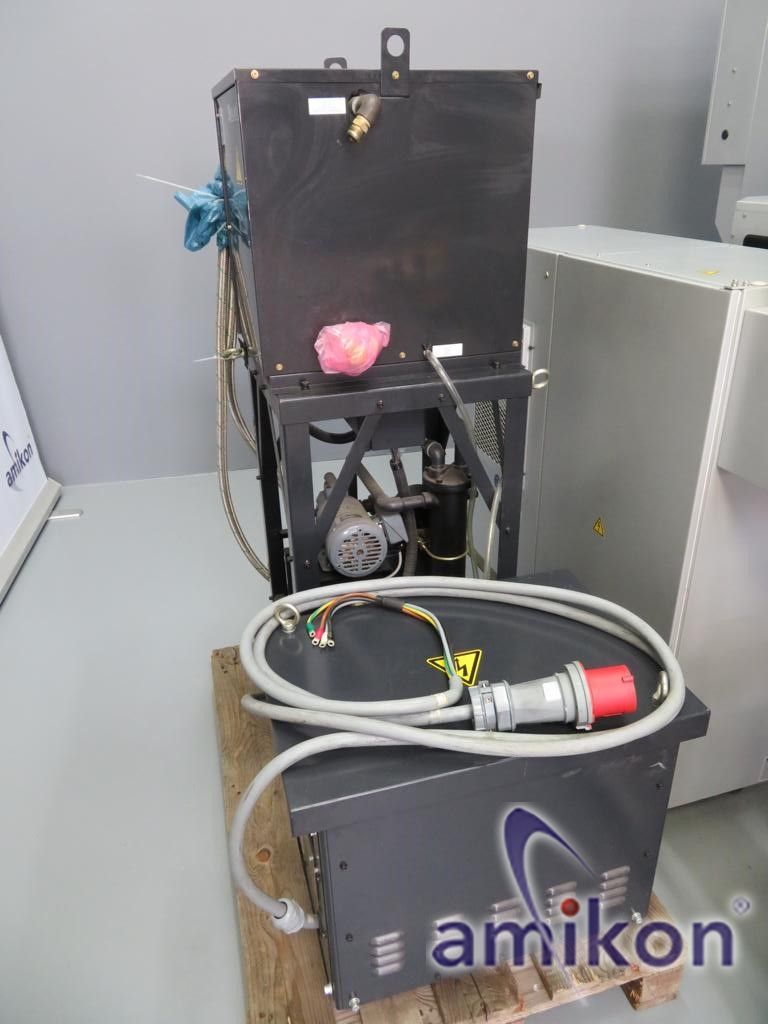

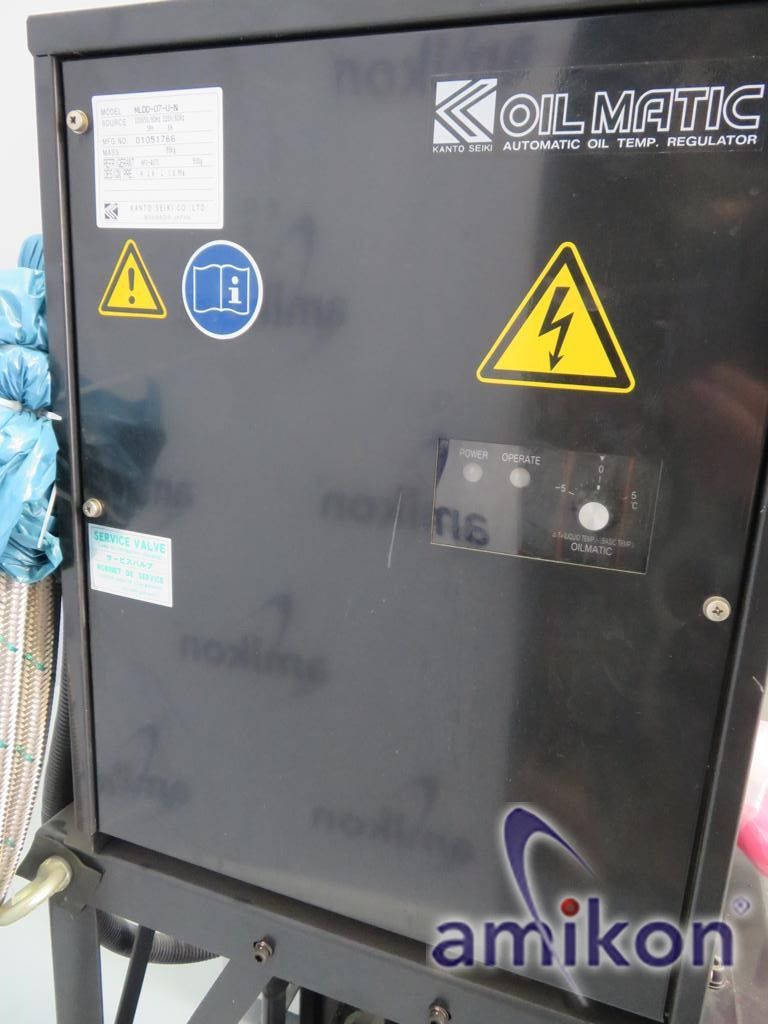

Oil Temperature Regulator: MLDD-07-U-N
Total Weight: 3900 kg + 200 kg Transformer + 55 kg Oil Temperature Regulator
Max Workpiece Weight: 550 kg
Type: AQ35L
Condition: used

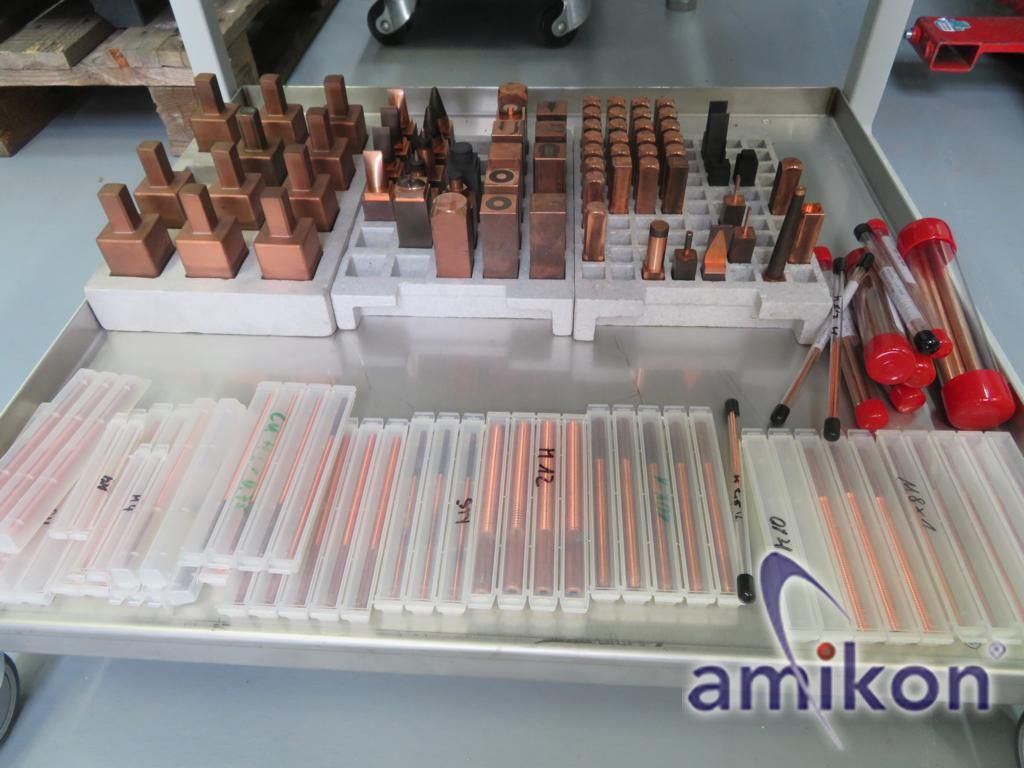

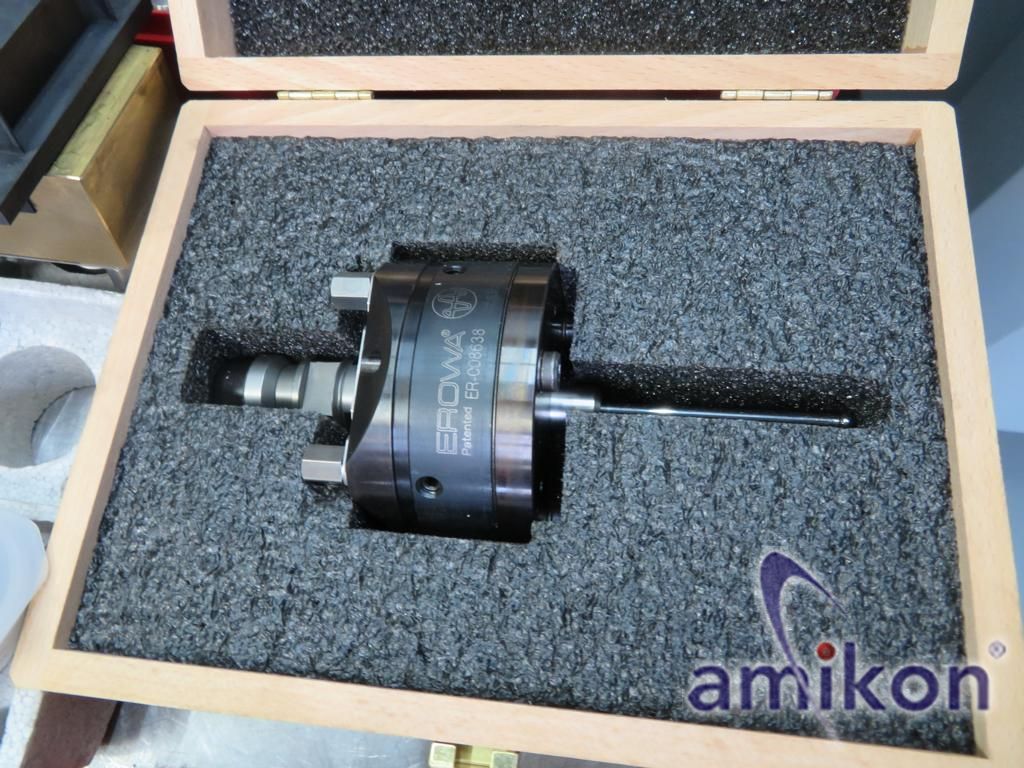

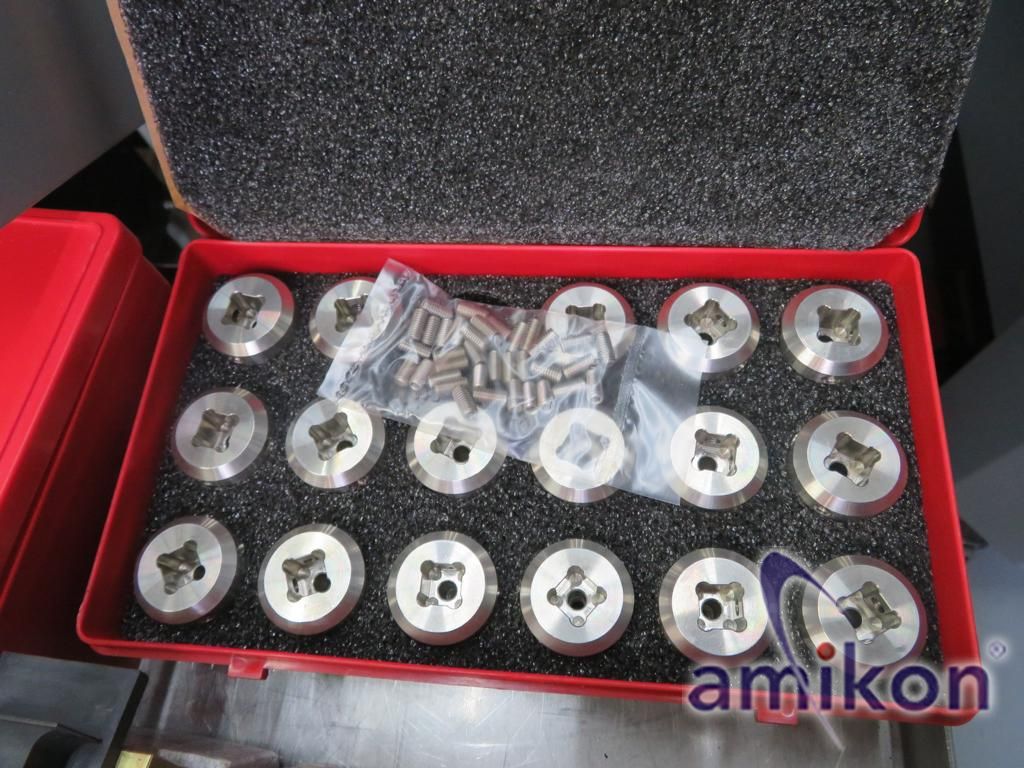

Scope of Delivery: (See Image)
(Changes and errors in the technical data are reserved!)
If you have further questions, we would be happy to answer them by phone.
| Technical characteristic | Value |
|---|---|
| Item ID | 21795 |
| Condition | Used |
| Model | Senkerodiermaschine AQ35L Sodick |
| Manufacturer | Sodick |
| Content | 1 piece |
| Weight | 4200000 g |
