Siemens Simatic S7-400 IM 461-1 6ES7461-1BA01-0AA0 module without cover

Siemens

Siemens SIMATIC S7-400 IM 461-1
6ES7461-1BA01-0AA0
Input Module / Interface Module

For sale is a Siemens SIMATIC S7-400 Input Module IM 461-1
(Receiving module) with the order number 6ES7461-1BA01-0AA0.

The module is used in S7-400 automation systems and serves to couple an expansion rack with the central rack.
The module acts as a receiving module (Receiver) and works together with an IM 460 transmitting module in the central rack.

Through the SV transmission, backplane bus signals and control data are transmitted between the CPU and the expansion rack.
This allows additional input and output modules to be operated in expansion racks.

The module is part of industrial automation systems and is typically used in
machine engineering, process automation, and industrial plants.

Technical Data:

Manufacturer: Siemens
Series: SIMATIC S7-400
Type: IM 461-1
Order Number: 6ES7461-1BA01-0AA0

Function: Receiving input module for expansion racks
System: S7-400 automation system
Transmission Type: SV connection (rack coupling)
Partner Module: IM 460

Power Supply: via S7-400 backplane bus
Power Consumption: approx. 3–5 W

Dimensions (approx.):
Height: 290 mm
Width: 25 mm
Depth: 210 mm

Weight: approx. 400 – 500 g

Condition: used

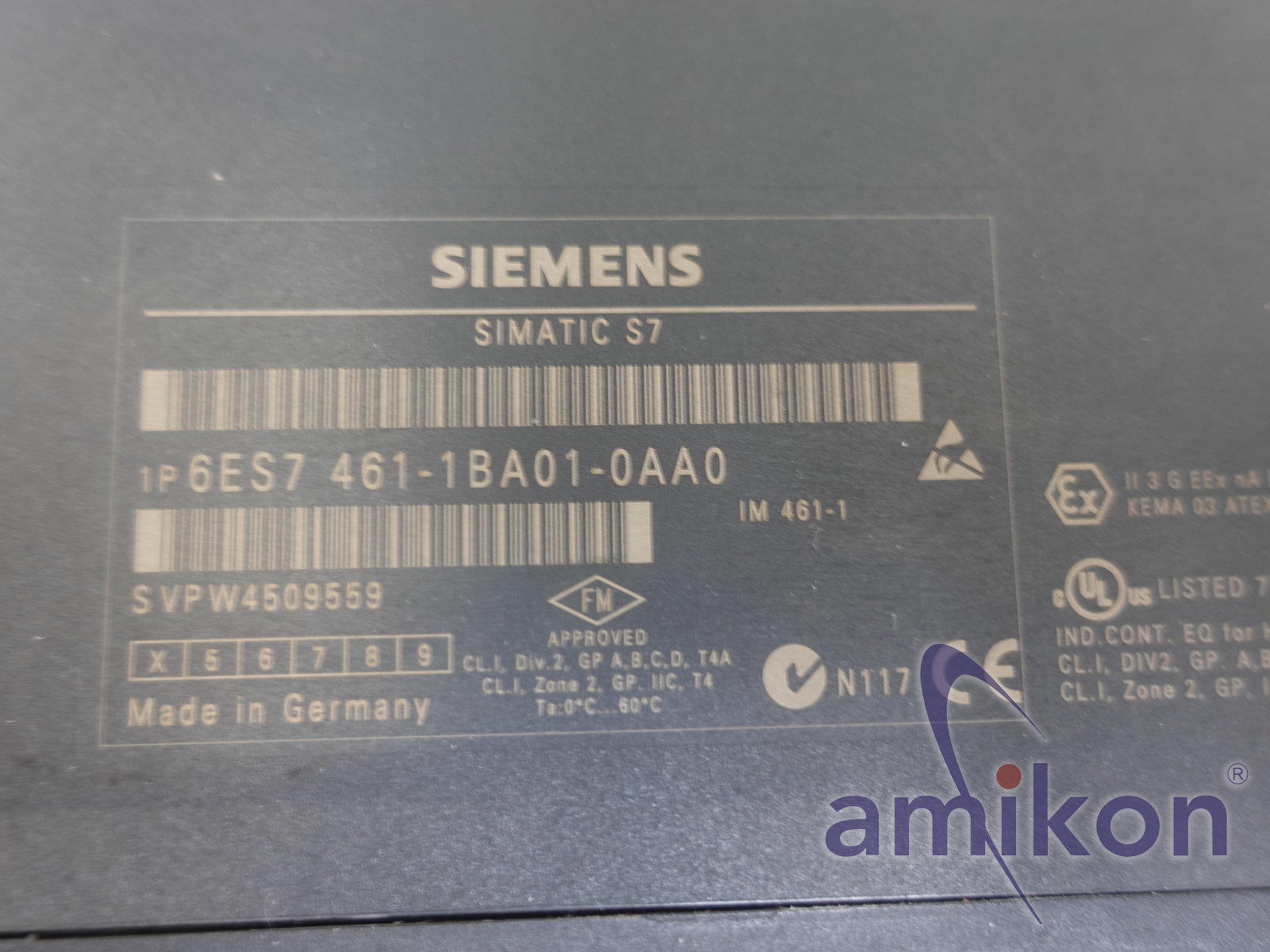

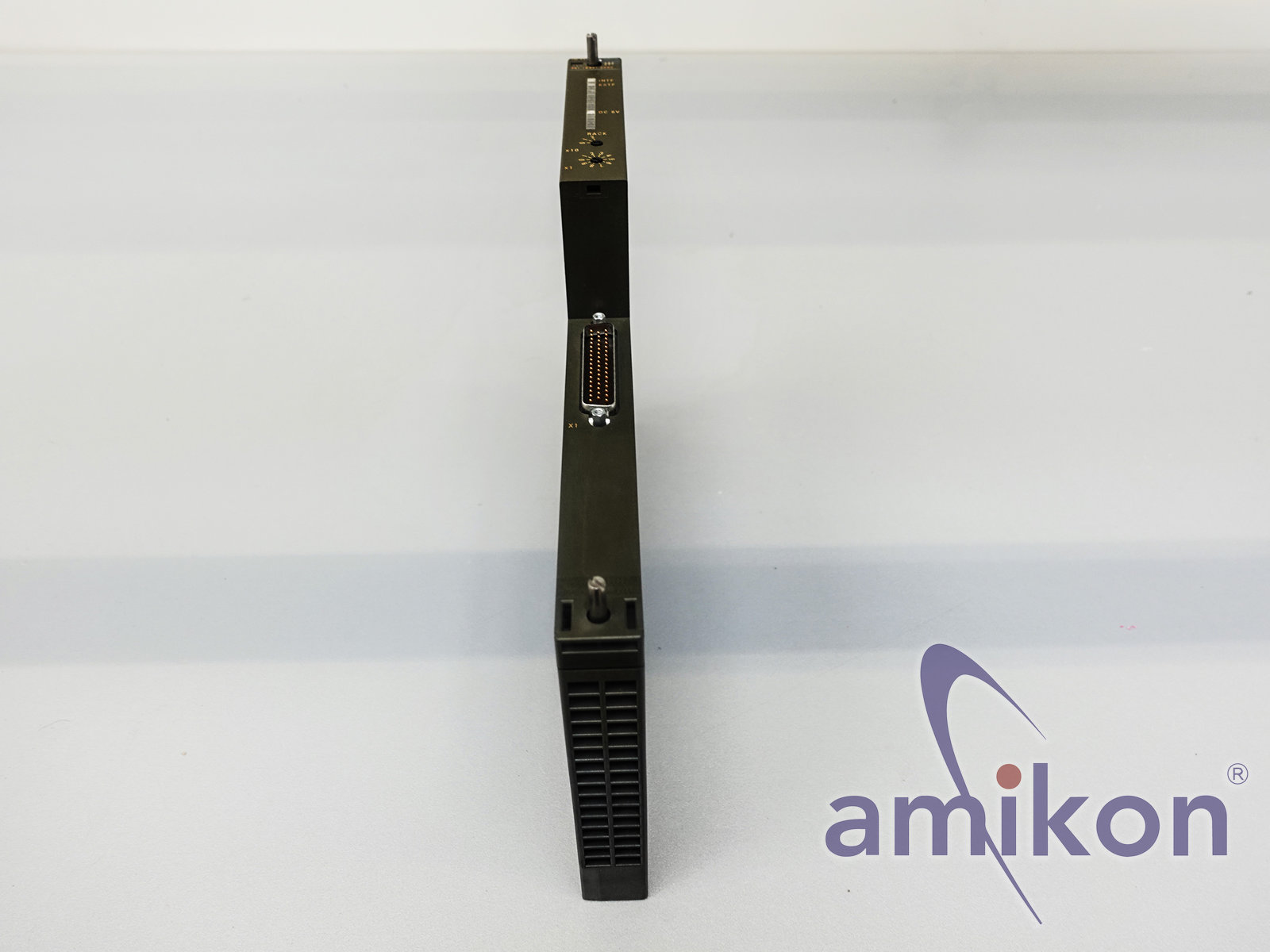

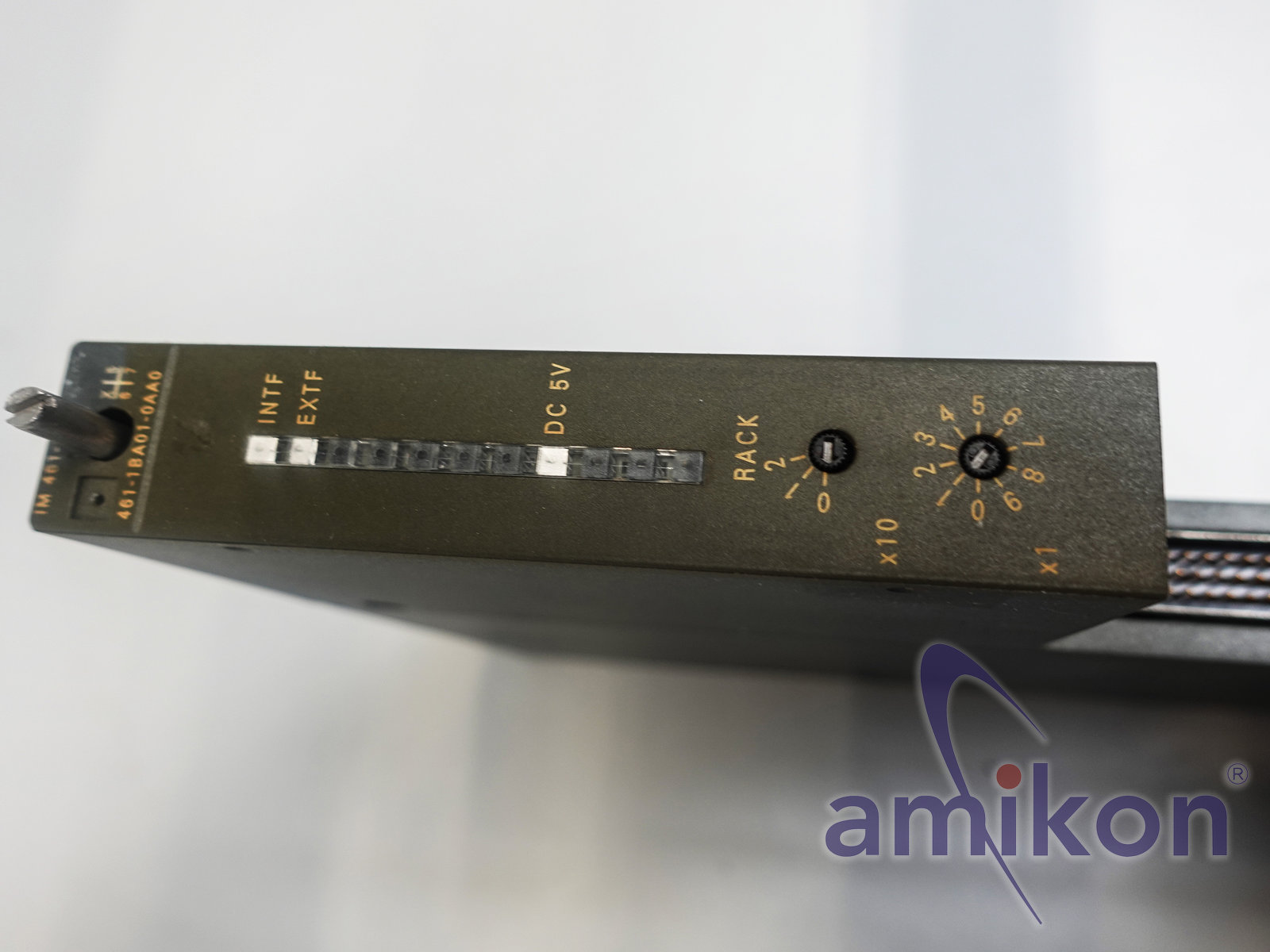

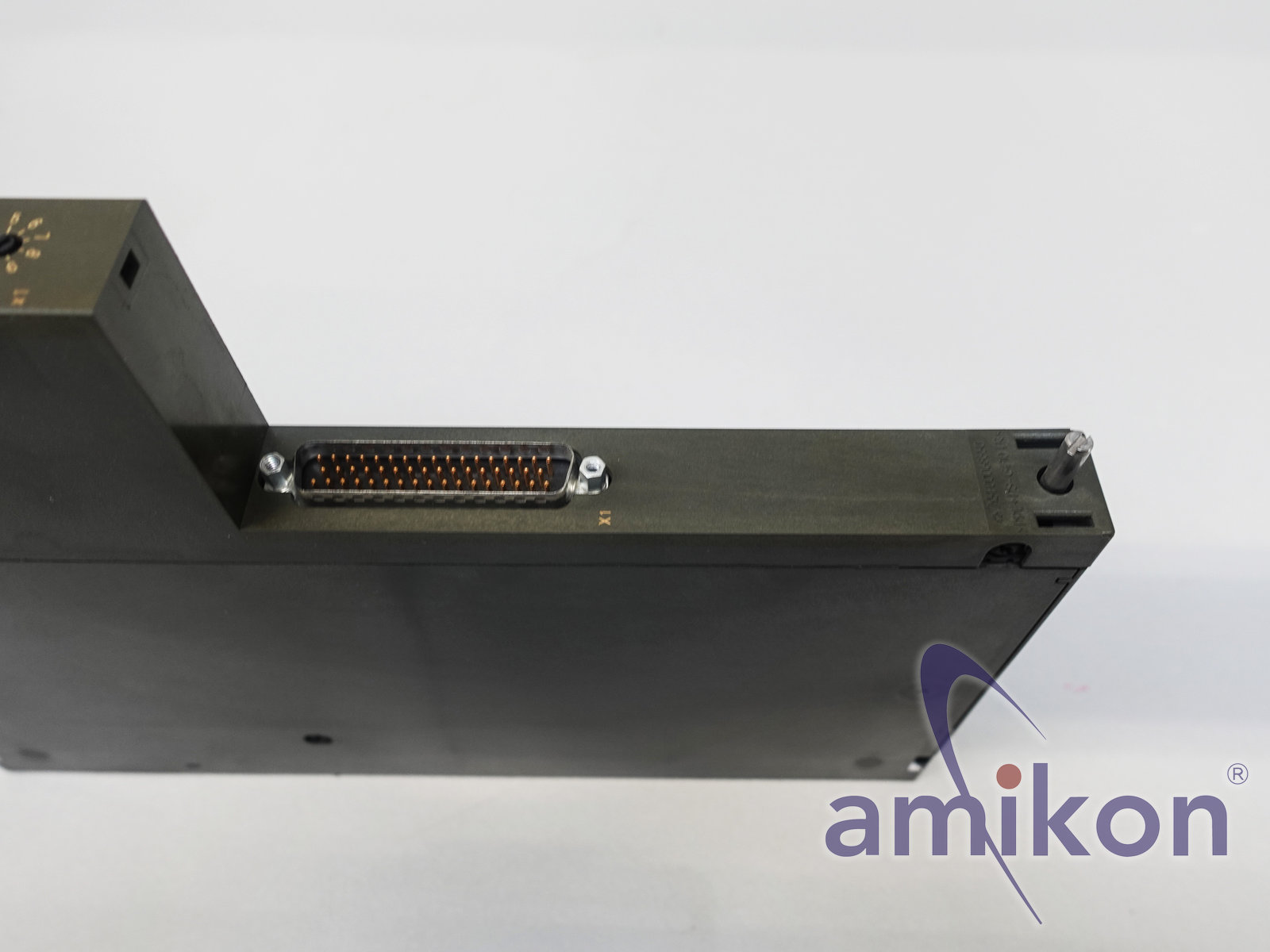

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are reserved!)

We are happy to answer any further questions by phone.
