Siemens 6DD1648‑0AB0 Industrial Electronics Module / Interface Module ES1

Siemens

Type: 6DD1648-0AB0

Siemens 6DD1648‑0AB0 Industrial Electronics Module
Interface Module – ES1

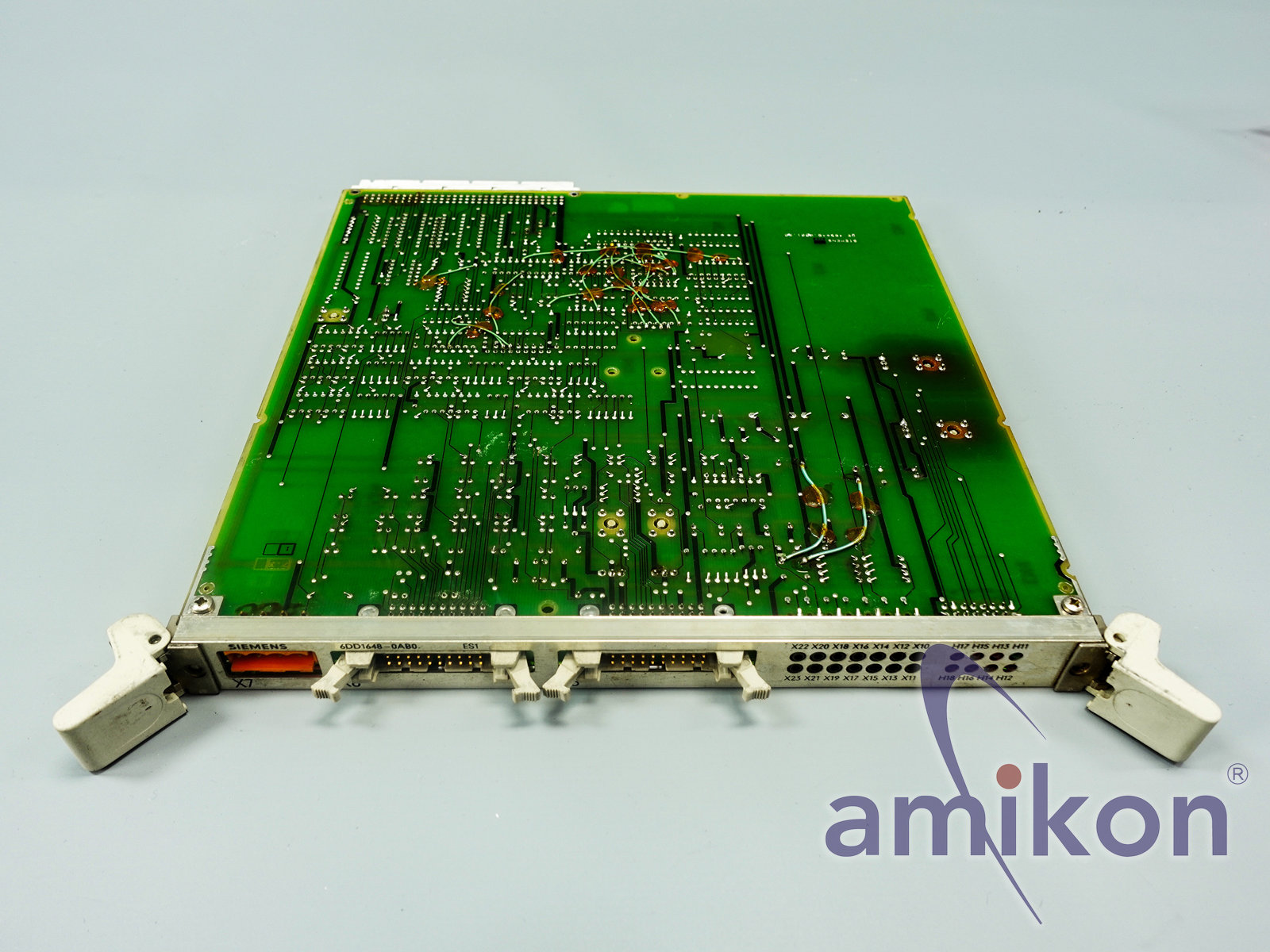

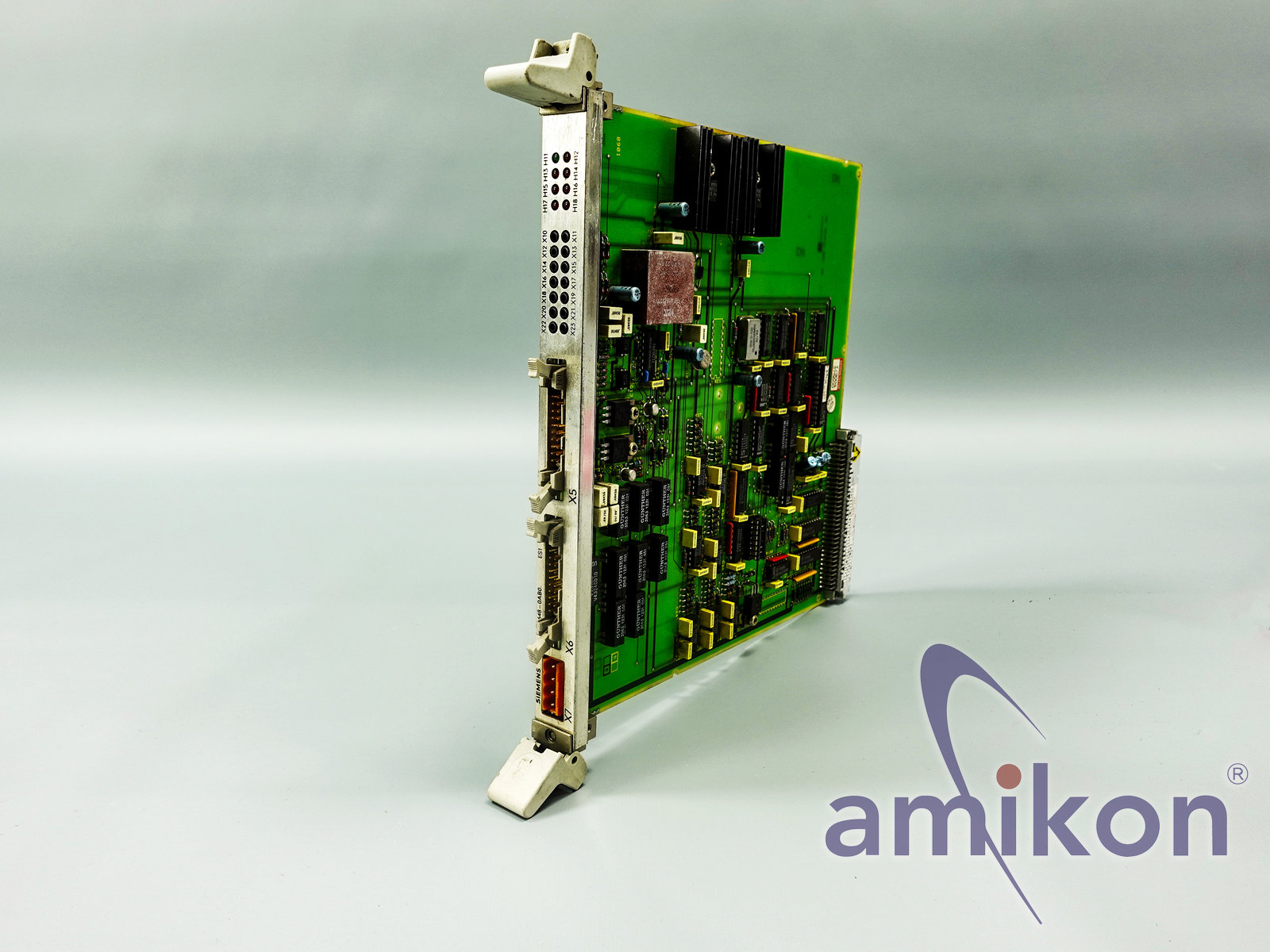

For sale is an original Siemens module 6DD1648‑0AB0 (ES1).
The module comes from an industrial control or automation system
and was properly removed before disassembly.

What does the device do? (Function description)

The Siemens module 6DD1648‑0AB0 is an interface/I/O module,
used in SIMADYN‑D or SIMATIC systems.
It serves for signal processing and communication between higher-level
controllers and connected machine components.

Typical tasks:

Processing of input and output signals
Interface between control and peripherals
Transmission of measurement, control, and status data
Use in automation, drive, and process control systems

The module operates in a rack/carrier frame and is integrated into the system via the
side plug contacts.

Technical data (typical for this module)

Manufacturer: Siemens
Type / Order number: 6DD1648‑0AB0
Version: ES1
Module type: Interface / Communication / I/O Module
Supply voltage: typ. 5 V DC (via backplane)
Power consumption: approx. 5–10 W (system-dependent)

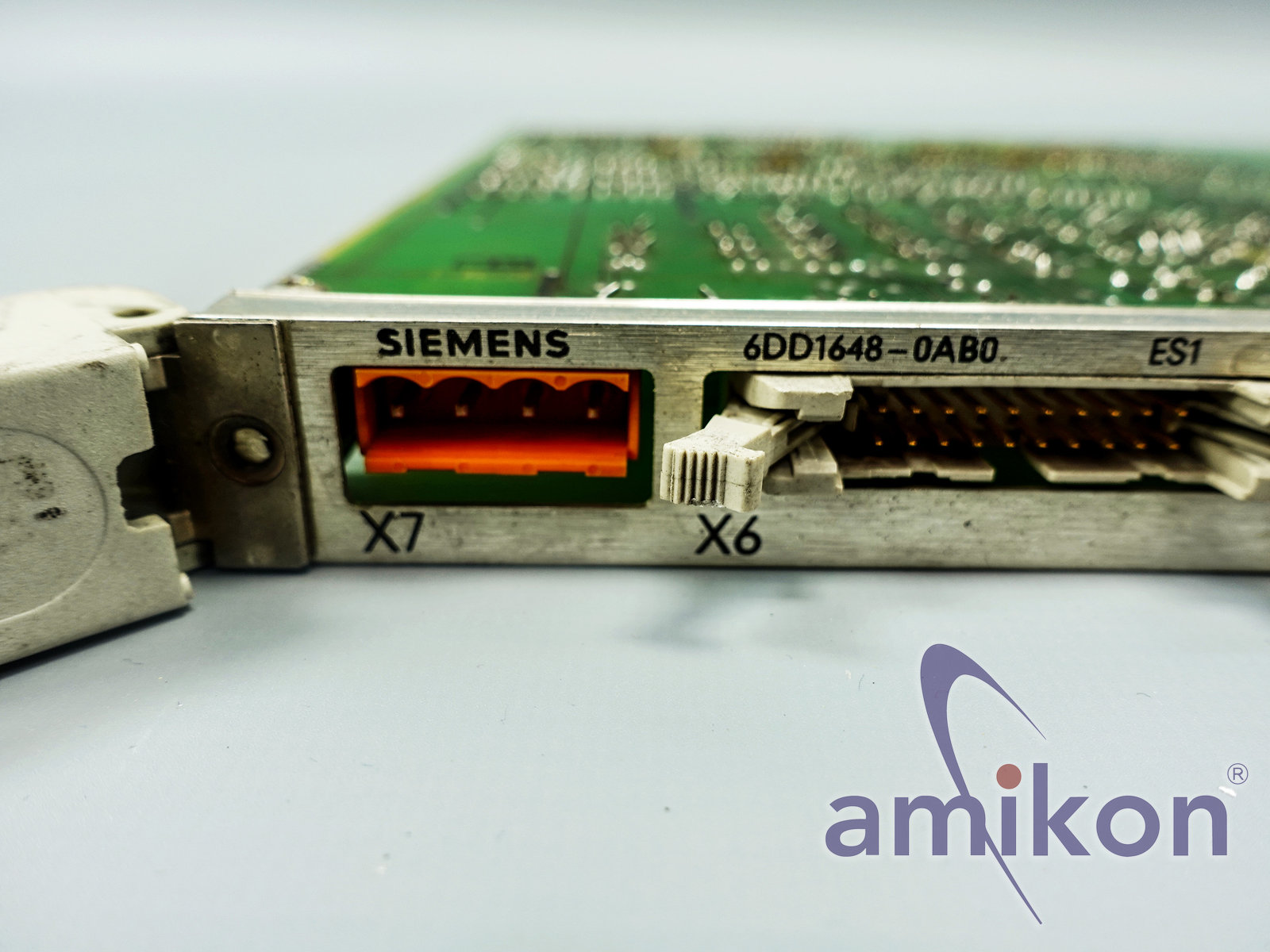

Connections: X6 (multi-pin connector), X7 (orange terminal block)
Dimensions: approx. 160 mm × 100 mm × 25 mm
Mounting: Plug-in module for rack/carrier frame

Weight: approx. 250–350 g

Condition: used

Scope of delivery: (See image)

(Changes and errors in the technical data, specifications are subject to change!)

We are happy to answer any further questions by phone.
