RMS Vibration Measurement Station SW3007-TG E10-1/5 with Temperature Chamber HS 350 T 45V

RMS Vibration Measurement Station with Temperature Chamber

Here we offer an RMS vibration measurement station with a temperature chamber.

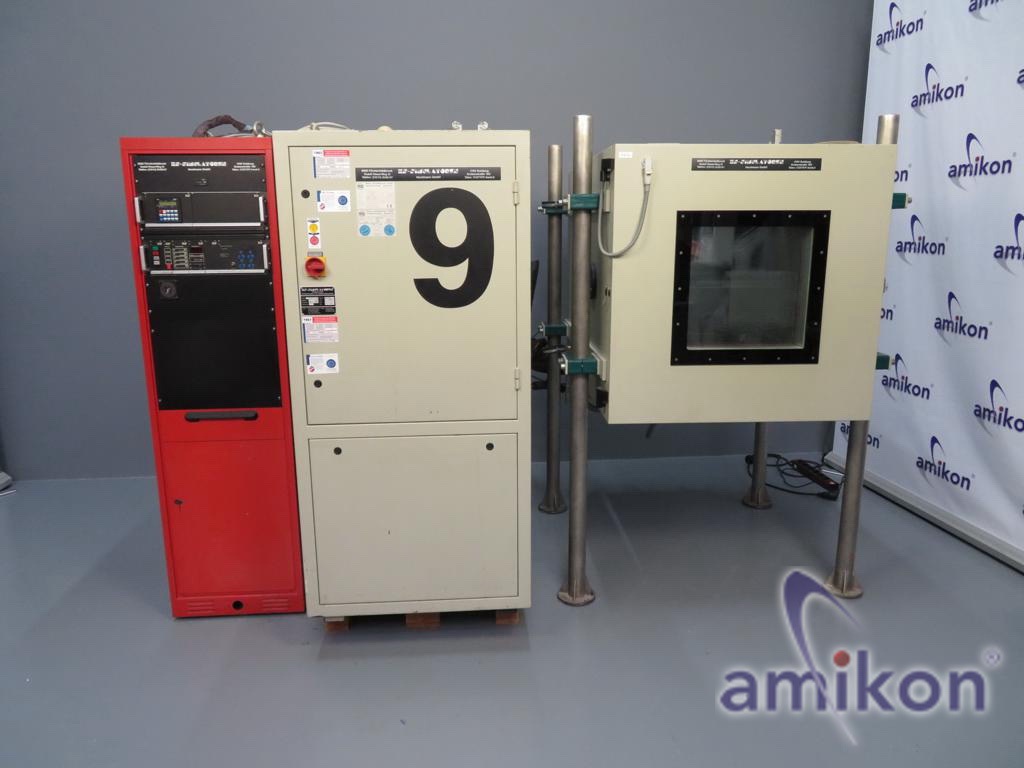

Weiss Temperature Chamber HS 130 K 45 with Vibration Measurement Station

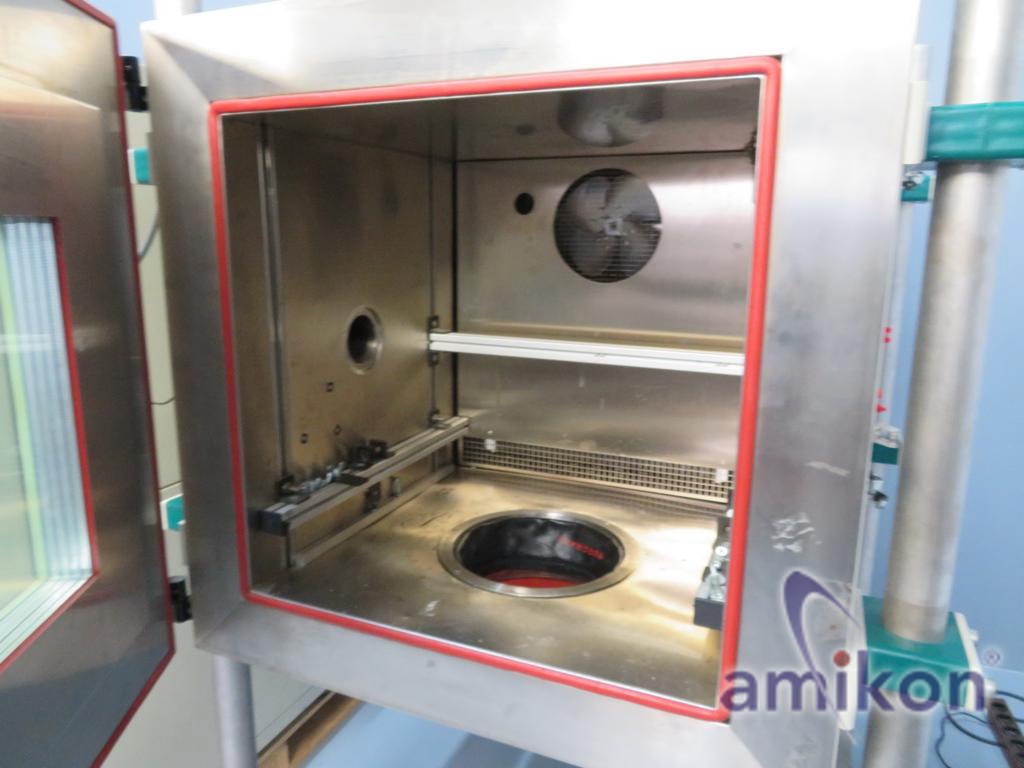

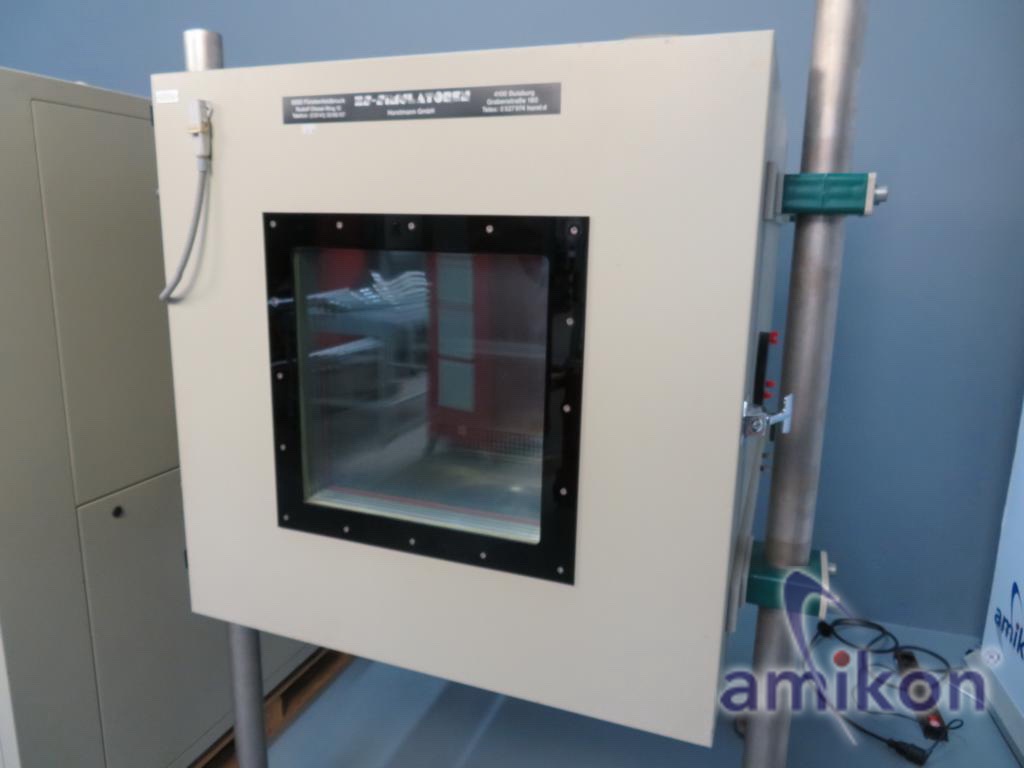

Weiss Temperature Chamber HS 130 K 45
Internal dimensions approx. 75/75/75cm
Temperature -40°C to 100°C

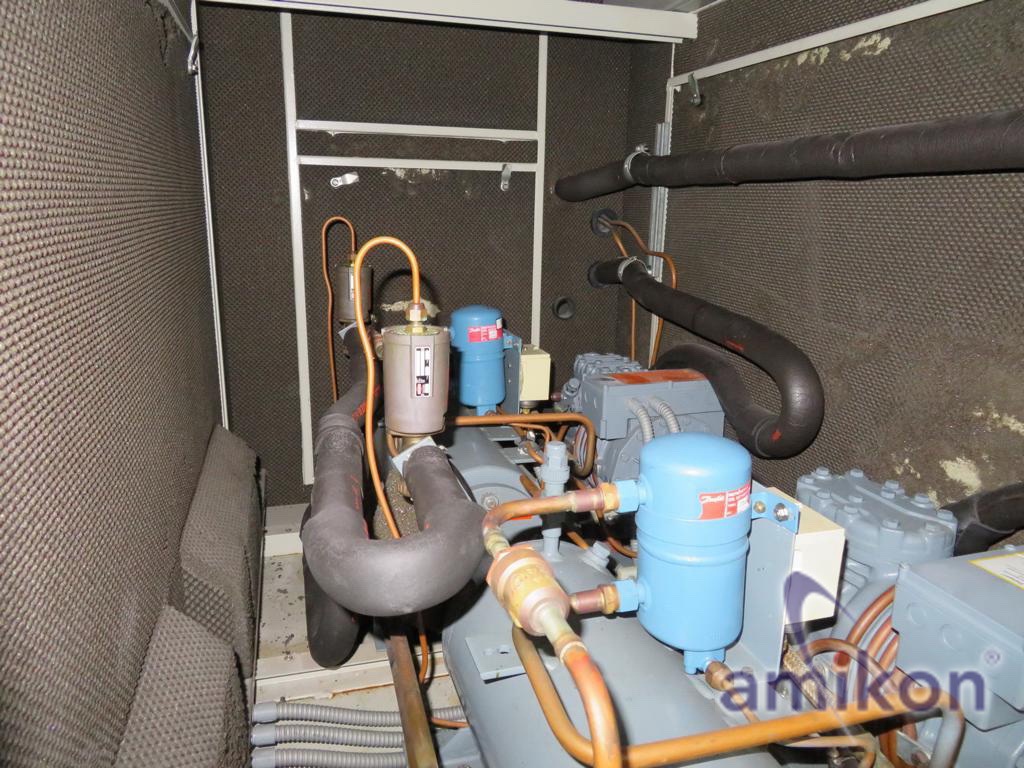

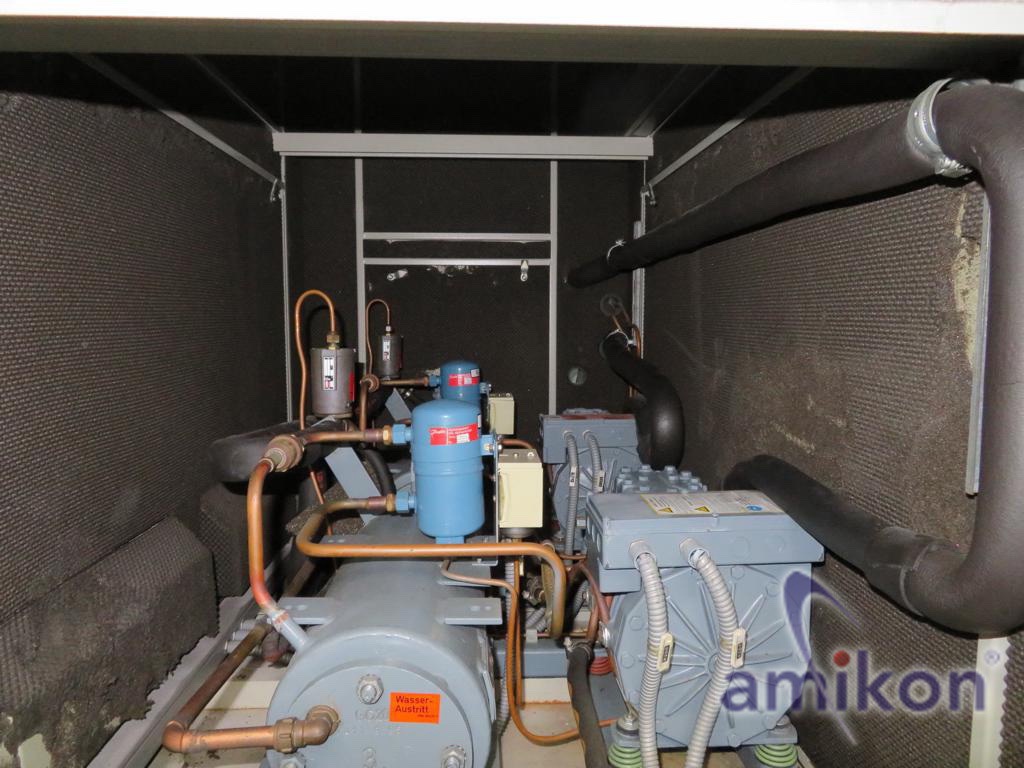

Refrigerant R404a

RMS SW3007-TG E10 -1/5 SW-SYSTEM

Test Manager SWR SWR 1200/SWR1220-V2
Power Amplifier with Field Supply
Vibration Exciter
Accelerometer
Network Connection
Charge Amplifier - required for accelerometer

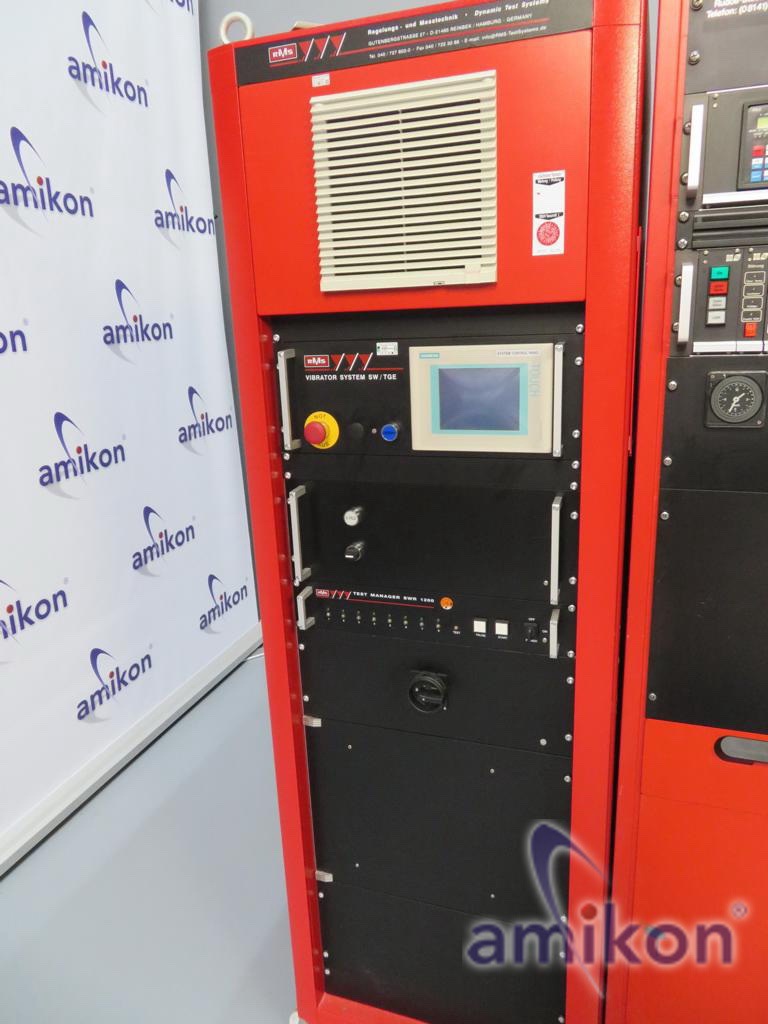

POWER AMPLIFIER TGE10-1/5
POWER MODULE TGE10-400.00

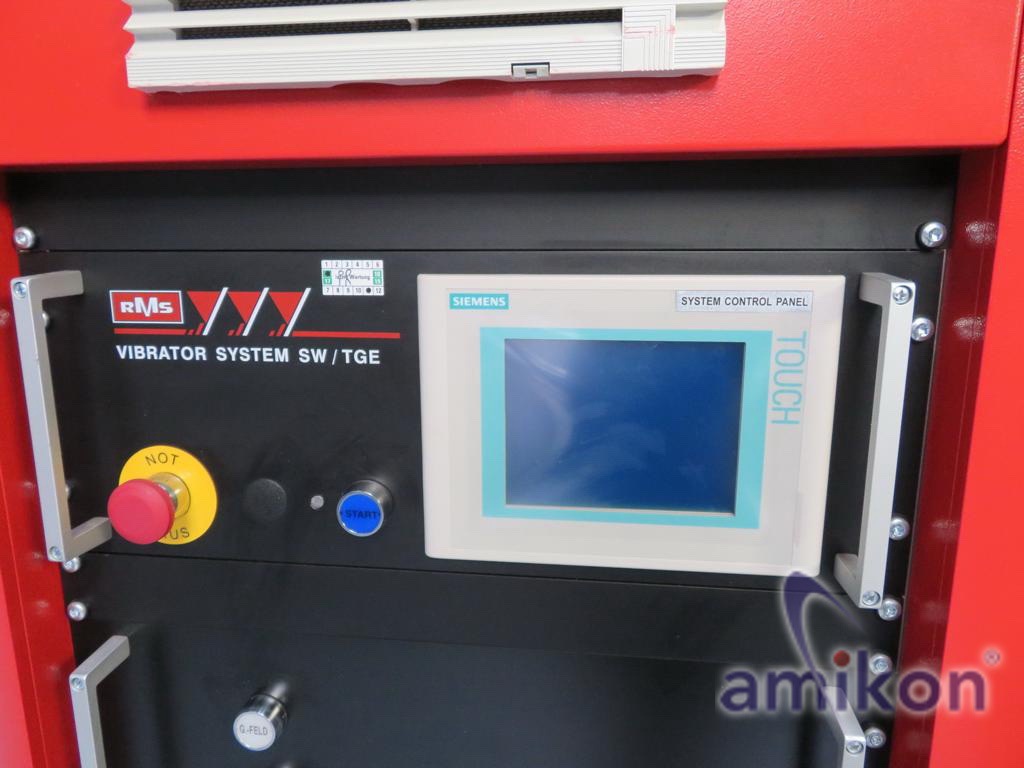

SCP (SYSTEM CONTROL PANEL) TGE10-700.00
FIELD SUPPLY TGE032/4
HYDRAULIC SLIDING TABLE

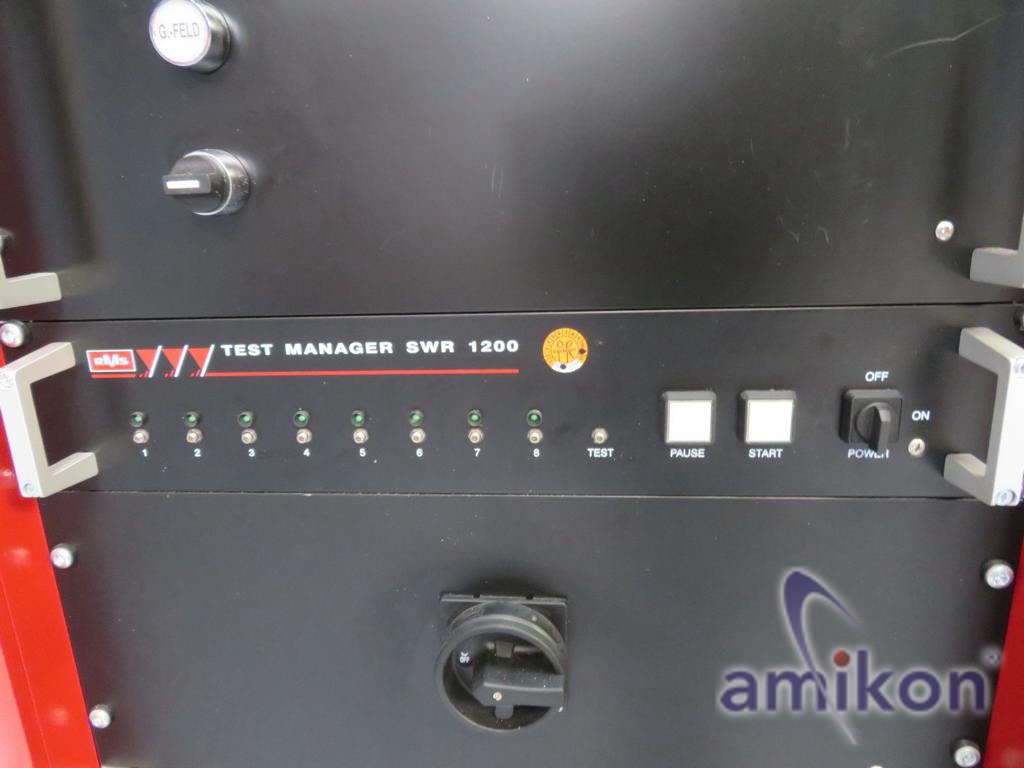

TEST MANAGER SWR1200
MODULATOR TGE10-611.00

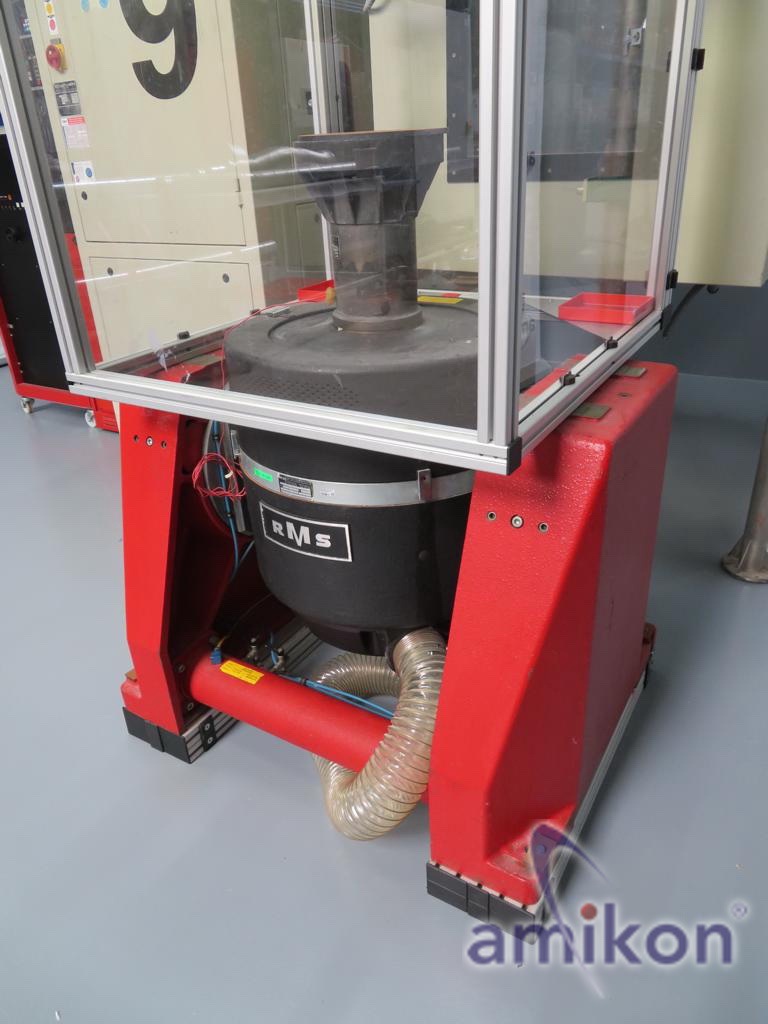

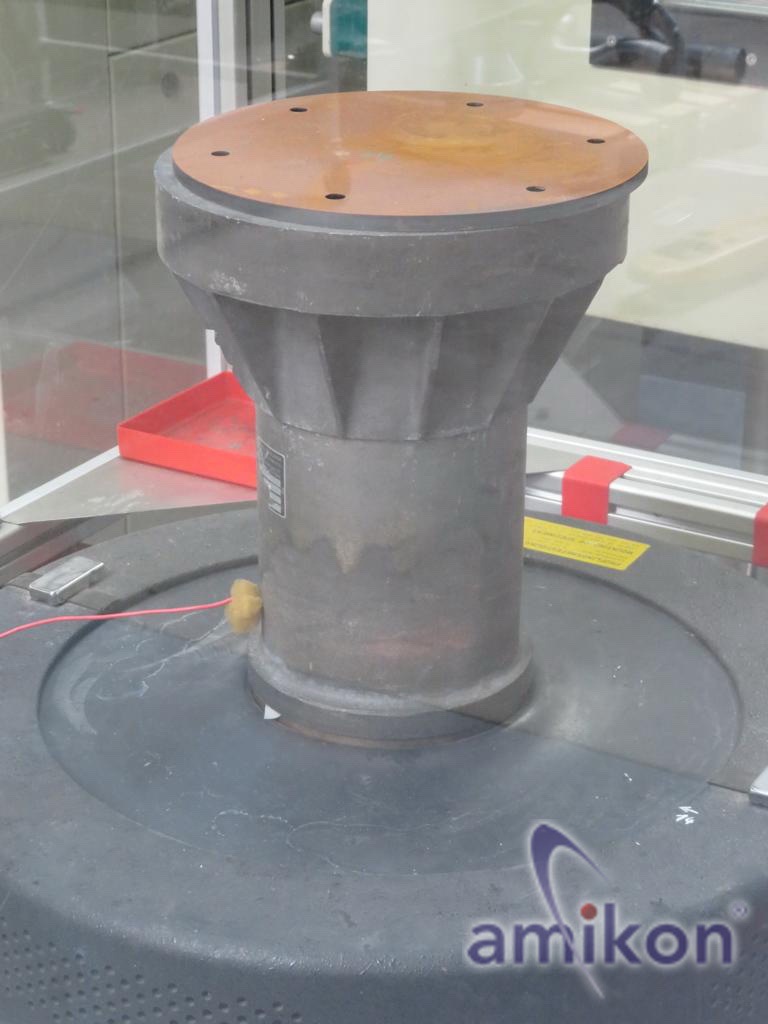

VIBRATION EXCITER SW3007
COOLING MEDIUM: AIR

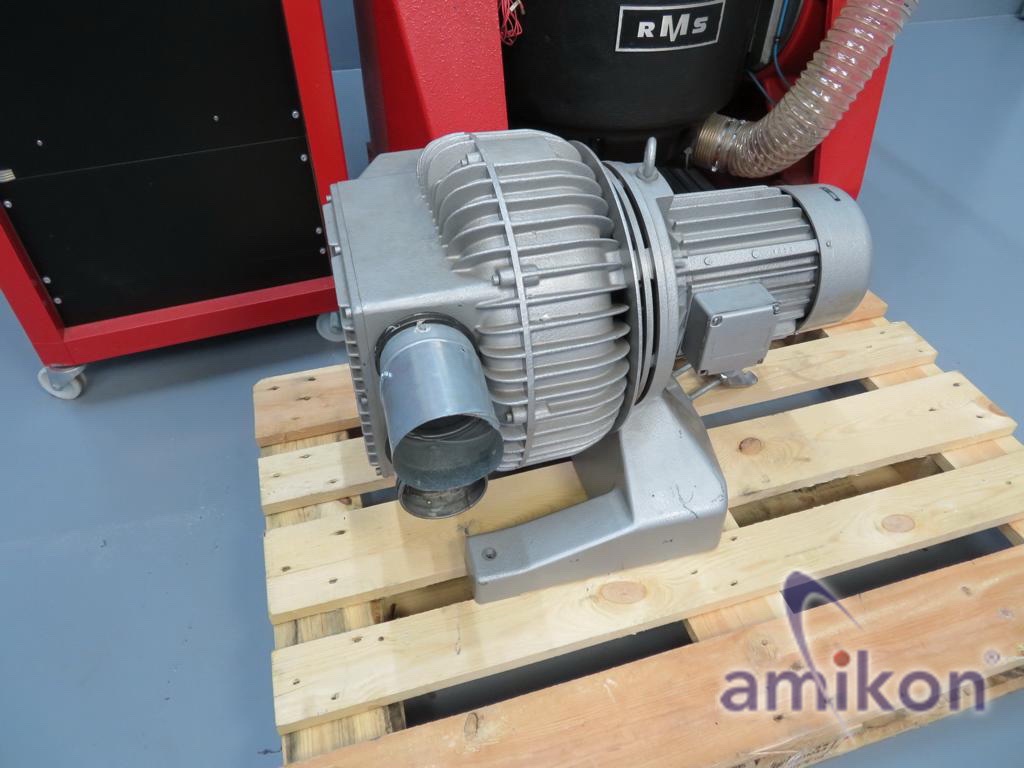

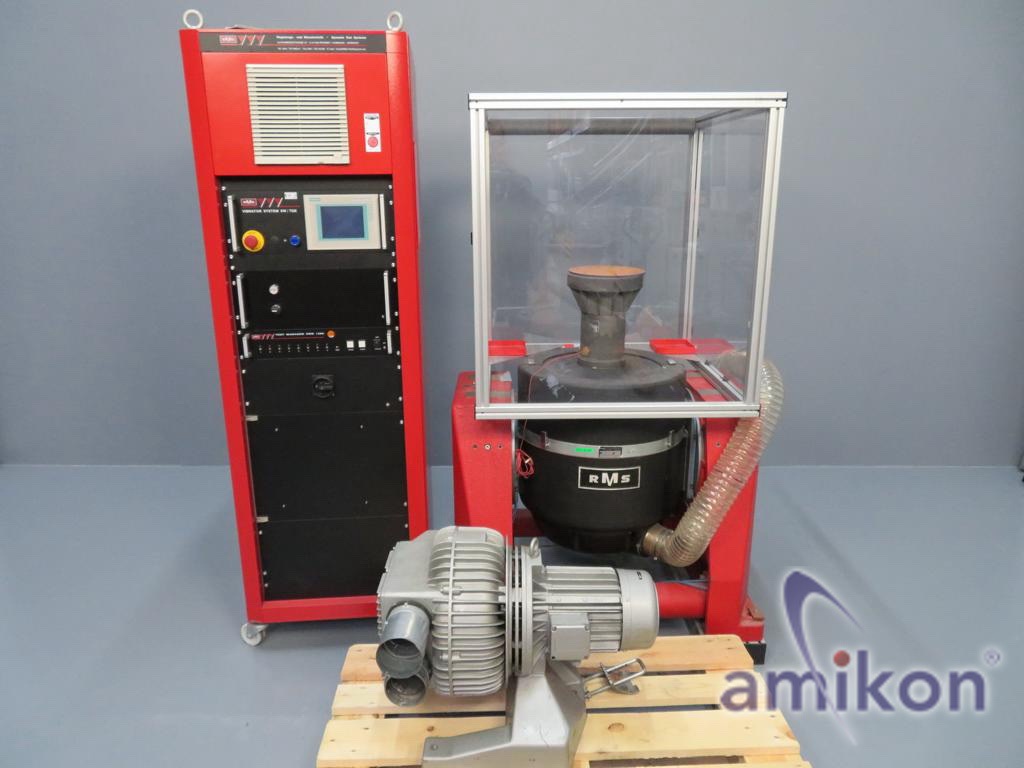

BLOWER SKG334-2 COOLING MEDIUM: AIR OPTIONAL WITH LRRMS PROTECTIVE HOOD

Vibration Testing:

Technical Data:
Power Module
Dimensions Height 88 mm (2HE), Width 480 mm (19") Depth 600 mm
Weight: approx. 20kg
Protection Class IP20
Intermediate Circuit Voltage 260V±5%
Current Consumption 50A
Auxiliary Voltage 24V±10%; 2A
Output Voltage 70V rms: 250V peak
Output Current 90 A rms: 450A peak
Operating Temperature Range 10°C to 60°C
Internal Temperature Monitoring 10°C
Storage Temperature Range -40°C to 80°C
Current Monitoring RMS > 1 s 125A
Current Monitoring Peak > 1 s 450A
Fuses Auxiliary Voltage 1x3.15A F(5x20mm)
Fuses Power Output 36x15A F(6x20mm)
Fuses MOSFET Control 72x0.25A F{TR5)
Air Consumption at 25°C approx. 30m3/h
at 70°C approx. 100m3/h

Power Amplifier TGE 10-1/5
Output:
Nominal Output Voltage 70 V rms
Peak Output Voltage 250V
Nominal Output Current 90...105A rms
Peak Output Current 450A
Frequency Range 0-5000 Hz-dB

Type: HS 130 K 45 with Vibration Measurement Station

Condition: used

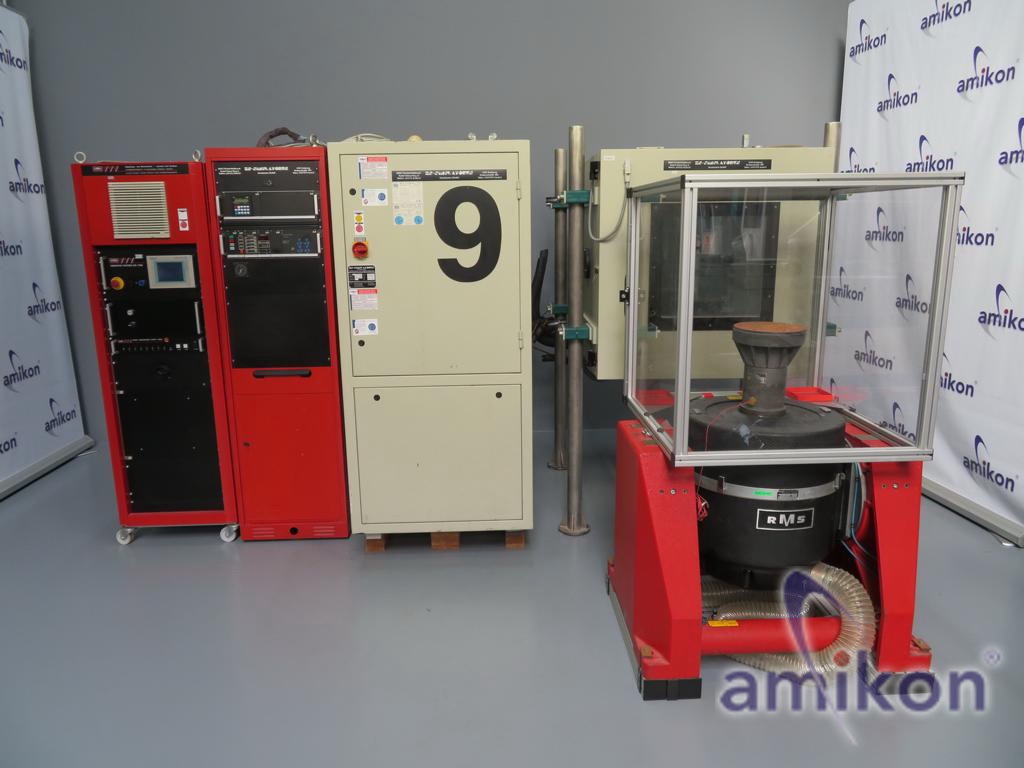

Scope of delivery: (See image)

(Changes and errors in technical data are reserved!)

We would be happy to answer any further questions by phone.
