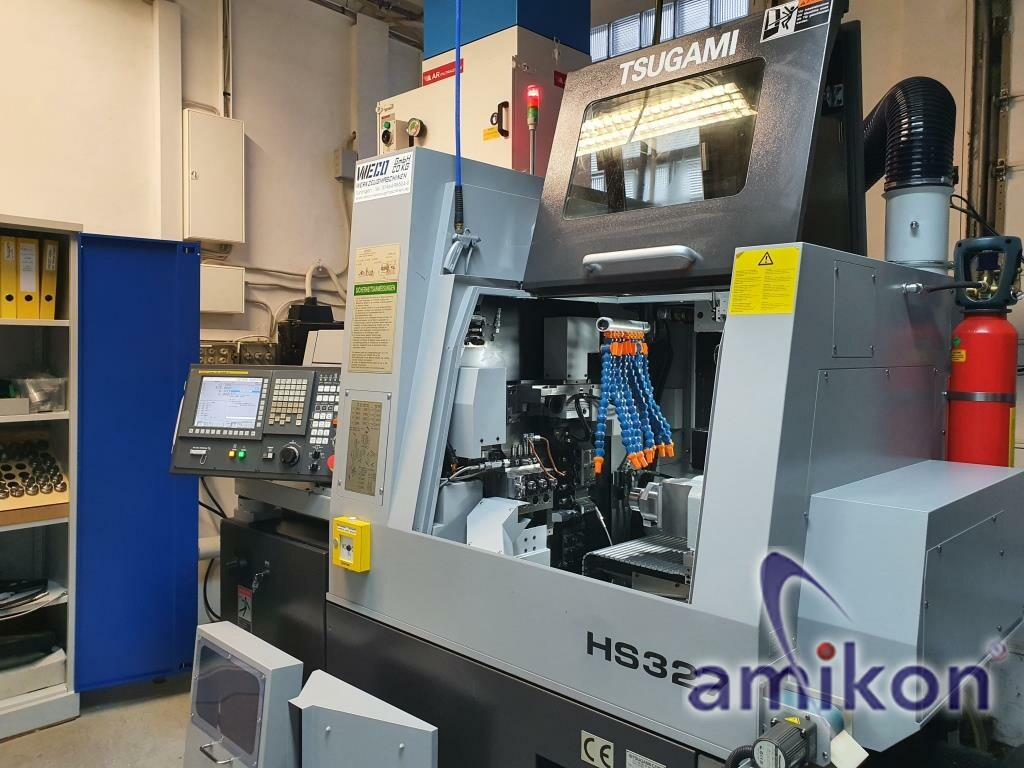

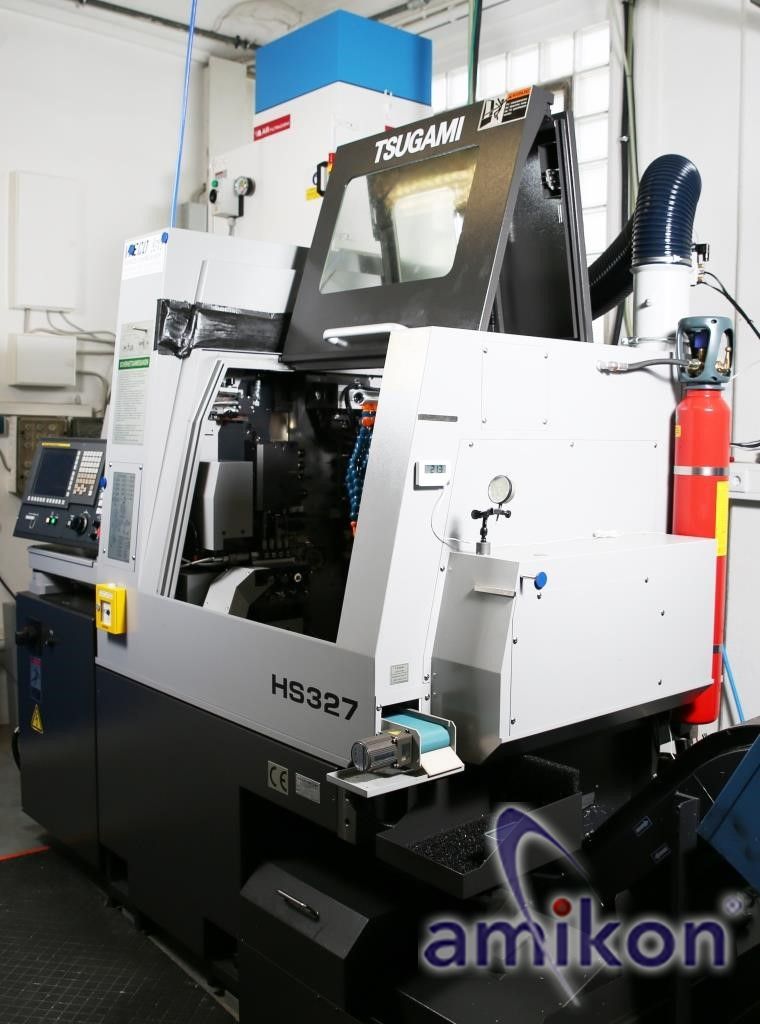

Precision Long and Short Turning Machine TSUGAMI HS 327

Tsugami

Here we offer you a lathe.

9-axis controlled, with fully programmable B-axis

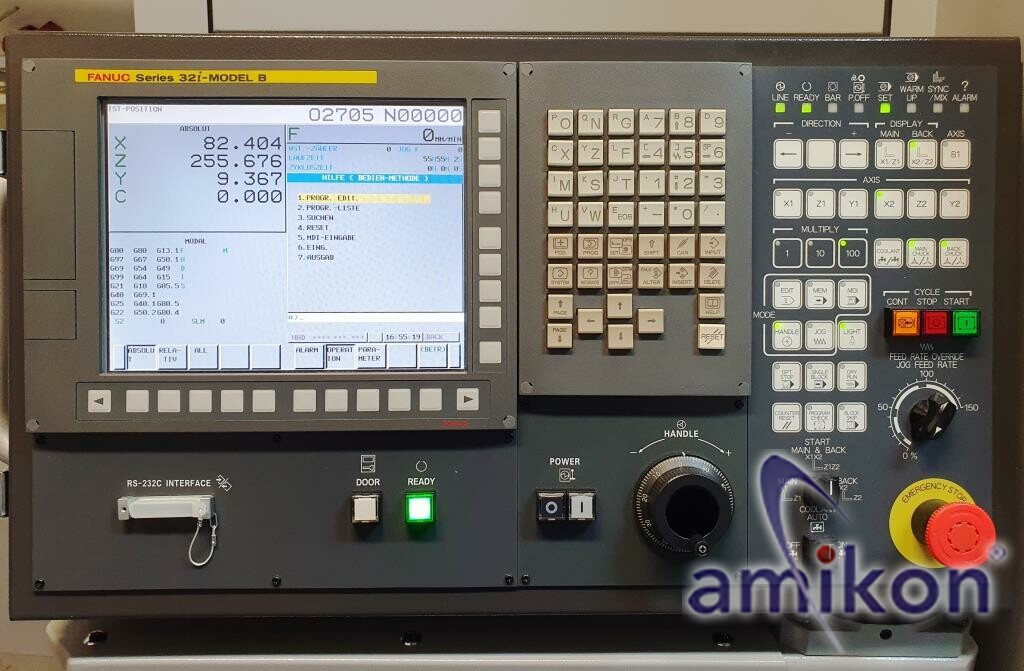

CNC control FANUC System 32i-B

Complete spindle speed and feed synchronization on Z1 and Z2 axes for machining long workpieces, with overlap

Fast synchronous thread drilling with main spindle, counter spindle, and driven longitudinal and cross tools

Driven guide bushing with 320 mm stroke without regripping

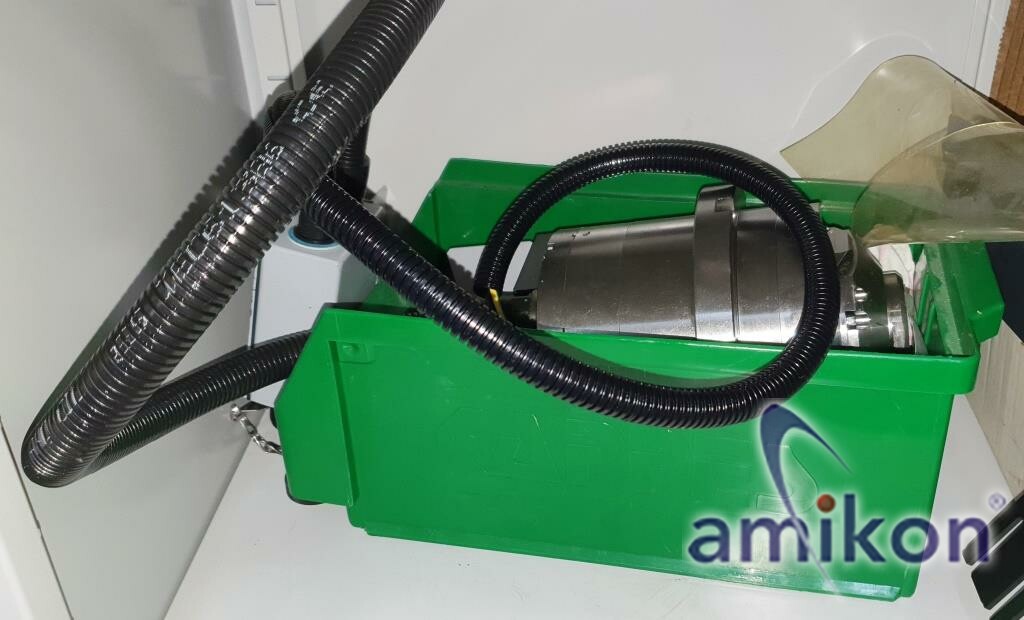

The machine can also be used as a short lathe without a guide bushing

Capacity:
Bar diameter Ø 8 ~ Ø 32 mm
Max. machining length without regripping 320 mm
Main spindle max. drill Ø Ø 12 mm max., thread Ø M10
Counter spindle max. bar Ø Ø 32 mm, max. drill Ø Ø 8 mm, max. thread Ø M8
Driven tools max. drill Ø Ø 8 mm, max. thread Ø M6

Spindle, tools, axes:
Main spindle speed range 200 ~ 8000 min-1
Counter spindle speed range 200 ~ 8000 min-1
Driven guide bushing 200 ~ 8,000 min-1
Driven tools 200 ~ 5,000 min-1
Main spindle positioning C axis 0.001°
Counter spindle positioning C axis 0.001

Drive power:
Main spindle 3.7/5.5 kW
Counter spindle 2.2/3.7 kW
Driven tools 1.0 kW
Speeds main and counter spindle 200 – 8,000 rpm
Coolant pump 0.4 kW
Central lubrication pump 3 W
Speed driven tools 5,000 rpm
B-axis 0° - 135°

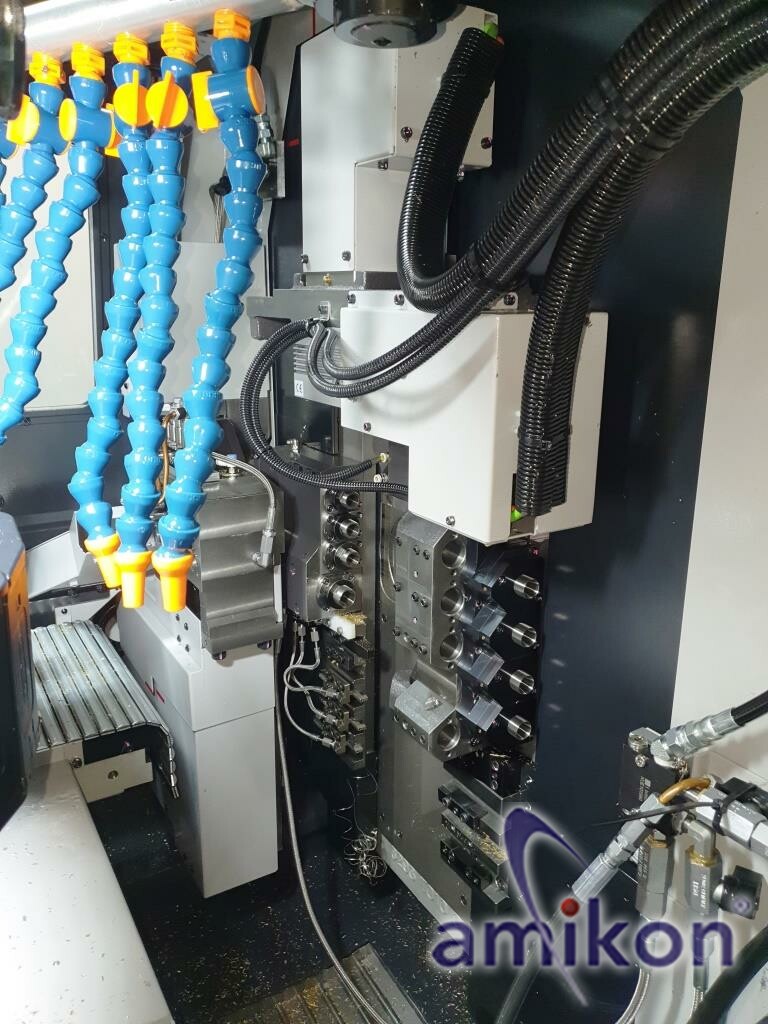

Number of driven tools main side 8 pieces
Number of driven tools back side 8 pieces
Total number of tools 38 pieces
Controlled axes total 9 pieces
C-axis main and counter spindle
Tool size 16 mm x 100 mm

Other data:

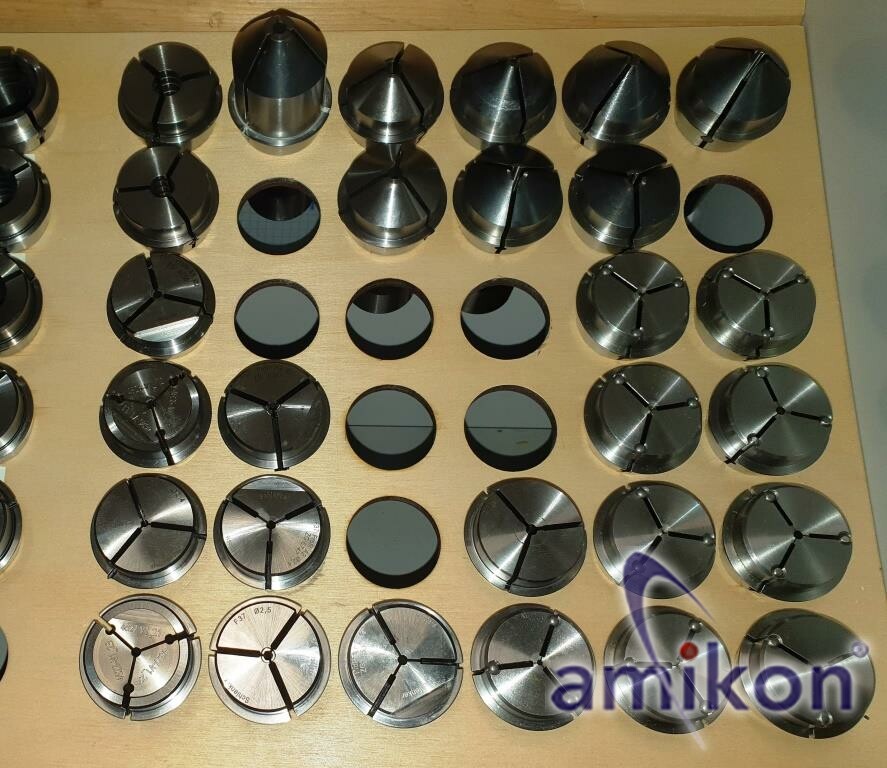

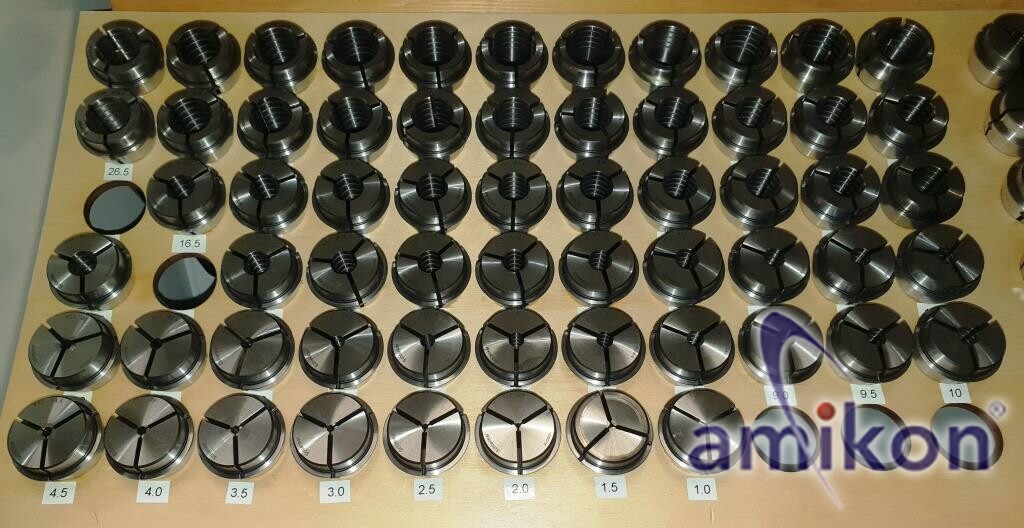

Including various pressure collets
Net weight approx. 3,600 kg
Connected load 21 kVA
Compressed air consumption 40 NL/min
Height 2,010 mm Width 1,280 mm Length 2,150 mm
200 V, 50 Hz, 3 phases

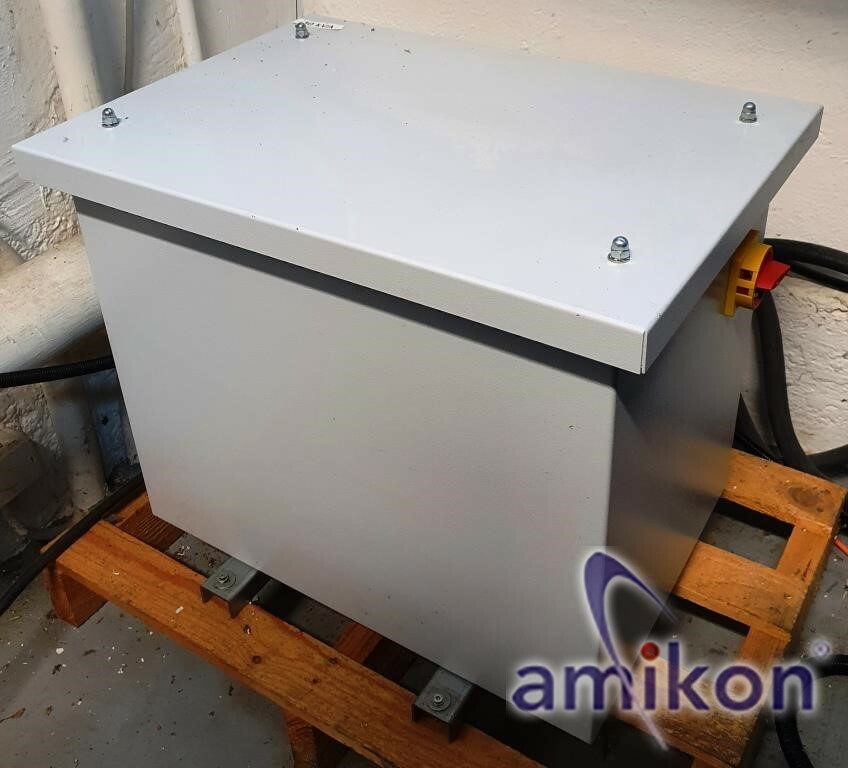

Main transformer, input voltage 400 volts

Type: HS 327

Condition: used

Sale from location

Scope of delivery: as shown

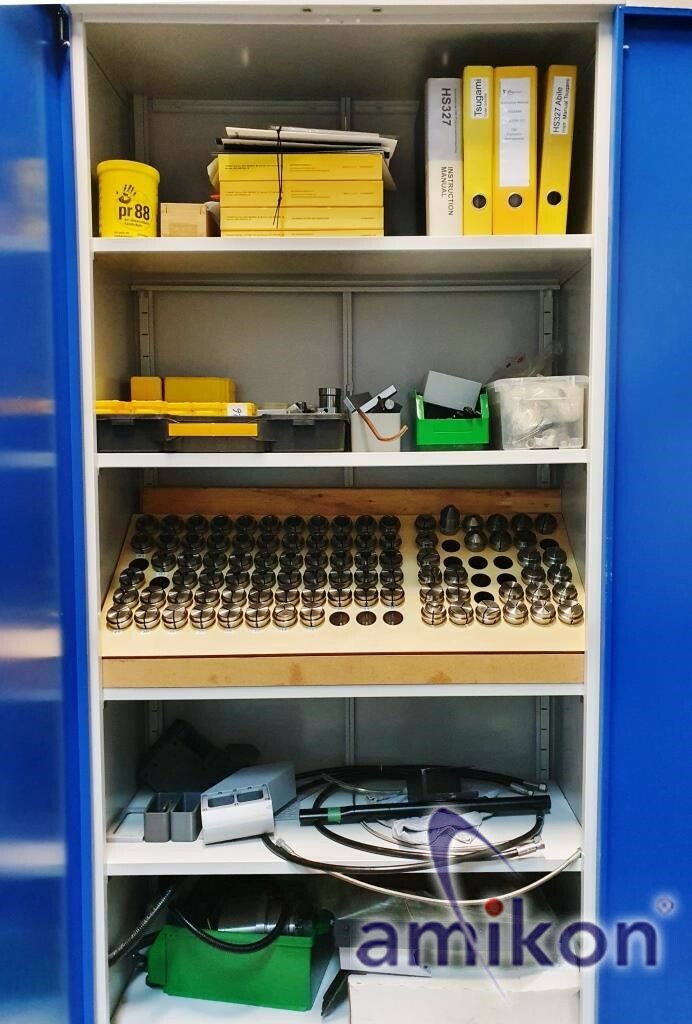

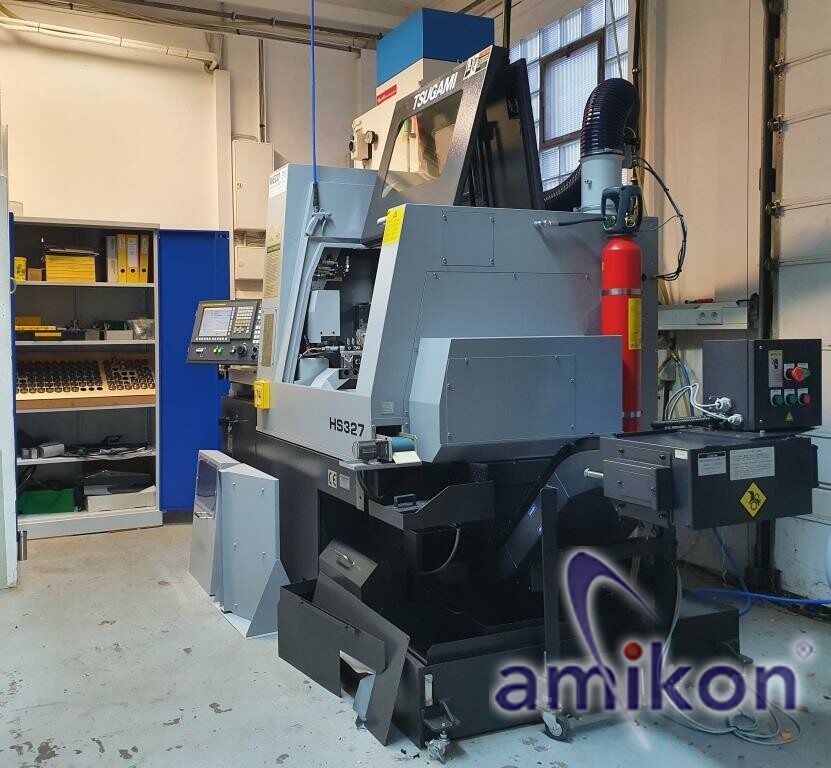

With successful sale, the accessory steel cabinet (blue doors) will be included free of charge – as equipped as shown in the picture.
There are approximately 230 liters of Medicway 15 (medical white oil) in the machine, the oil is still crystal clear.
There is also a full barrel with 200 liters of Medicway 15.
Additionally, a full barrel of Roth CUT PI O 3300 with 208 l and a full barrel of used Roth CUT PI O 3300 (also 200 l)
as well as a barrel with approx. 50 l of Roth CUT PI O 3300. All of this will be included with the machine.


(Changes and errors in the technical data, specifications are subject to change!)

We would be happy to answer any further questions by phone.
