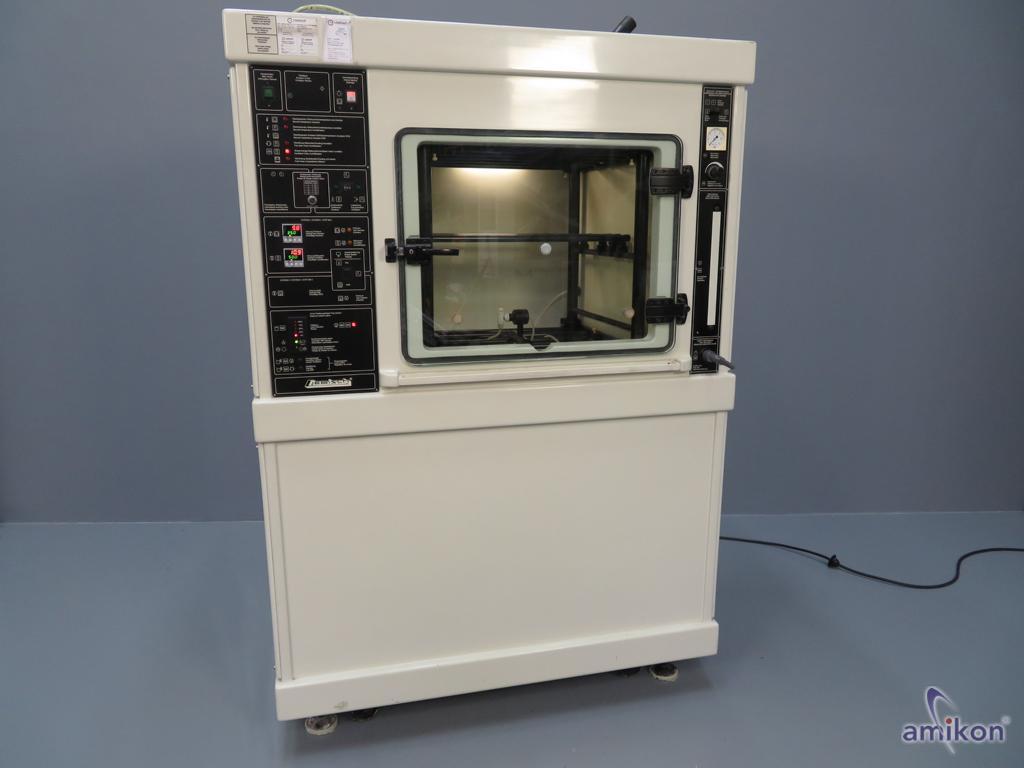

Liebisch Corrosion Testing Device / Salt Spray Fog Device as Cabinet Unit S 400 M-SC Salt Spray Chamber

Liebisch Corrosion Testing Device

Here we offer you a Liebisch corrosion testing device salt spray fog as cabinet devices.

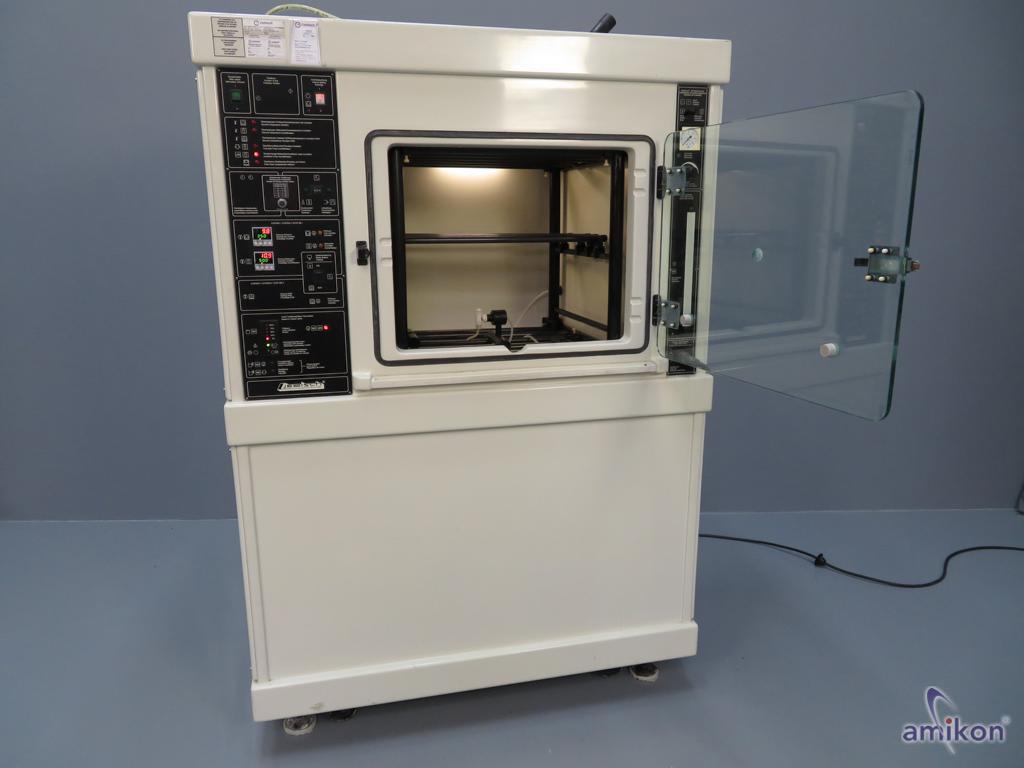

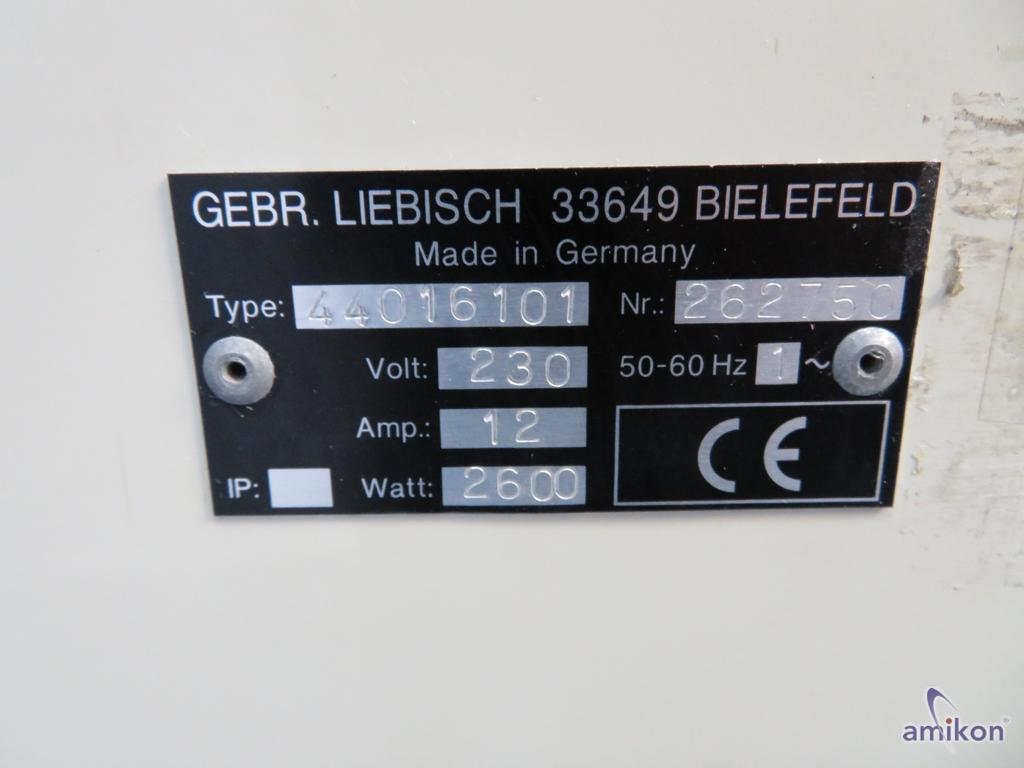

S 400 M-SC Type: 4401 6101

Cabinet devices with 400 liters

Test chamber volume without ventilation

Weight: approx. 380 kg

External dimensions of the housing (WxDxH) [mm] 1550 X 860 X 2100

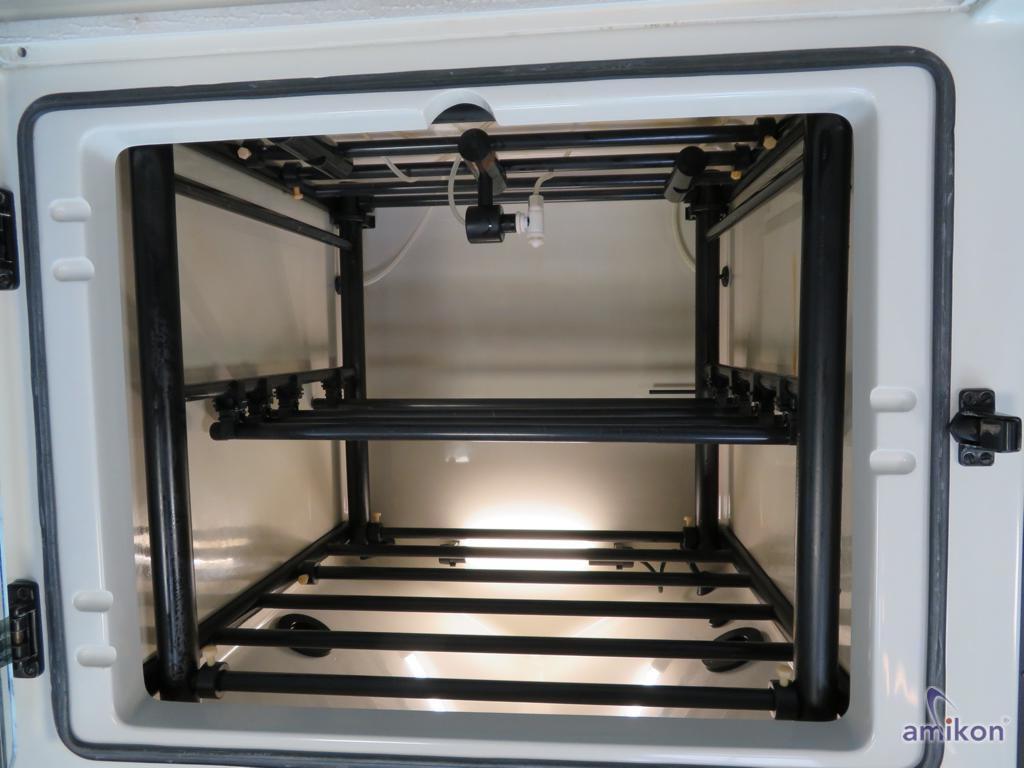

Internal dimensions of the test chamber (WxDxH) 705 X 720 X 730

Door opening (WxDxH) [mm] 680 X 550

Max. load in the test chamber 60 kg

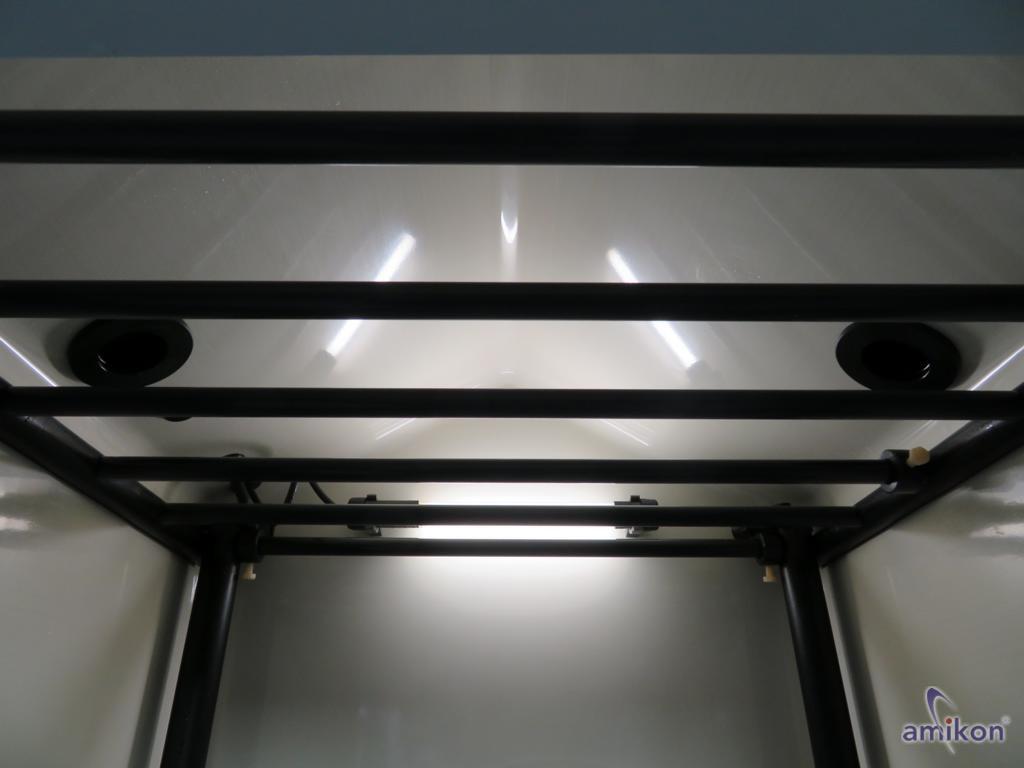

Number and load of sample holders 12 pieces at 5 kg each

Volume of the test chamber [liters] approx. 400

Operating voltage AC 230 V +6/-10%

Connection power SAL 2600 W

Control range test chamber SAL up to 50°C

Control range humidifier SAL up to 70°C

Frequency 50/60 Hz

Device fuse in main switch 12 A

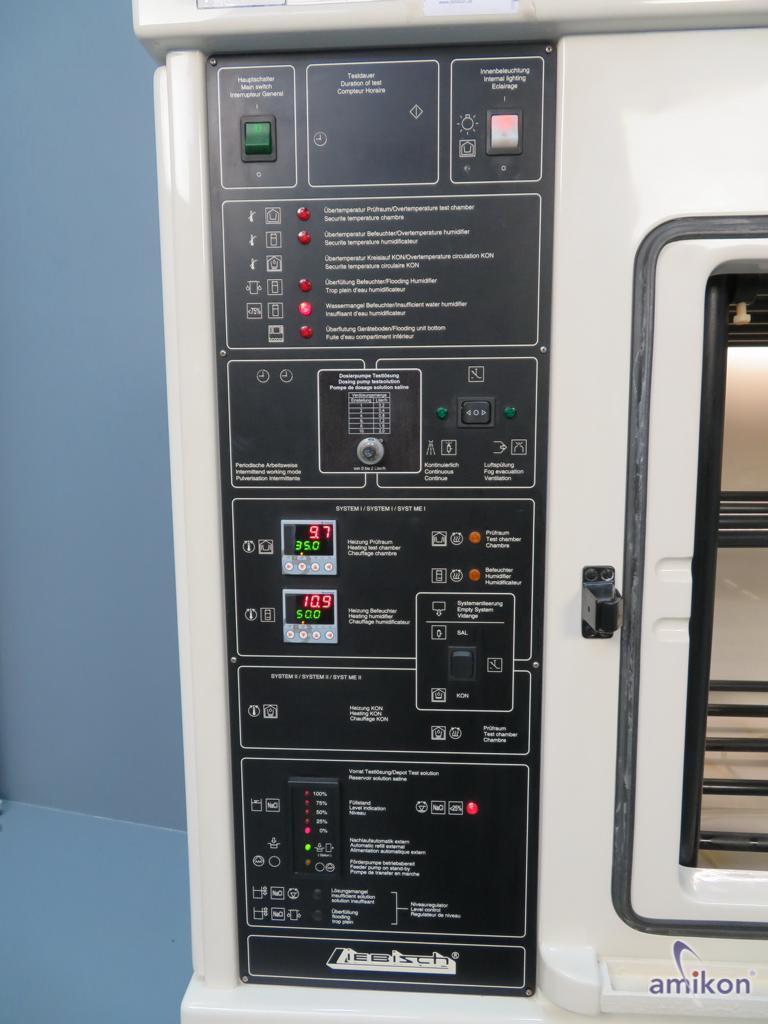

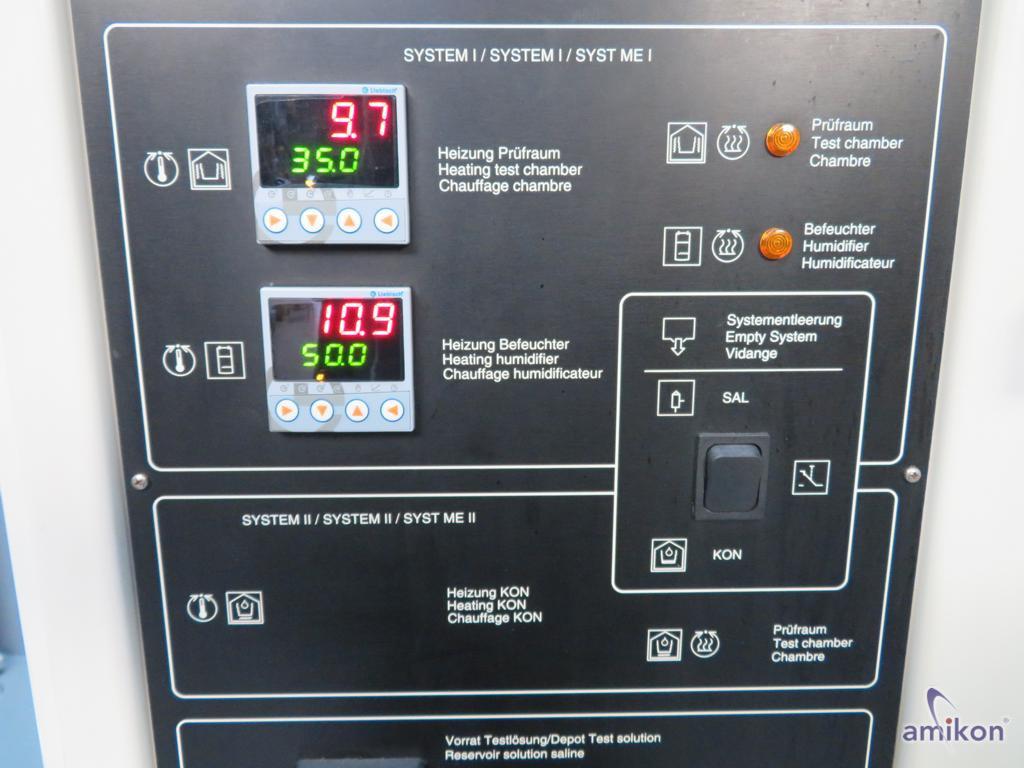

Temperature control electric PID

Interface temperature controller option

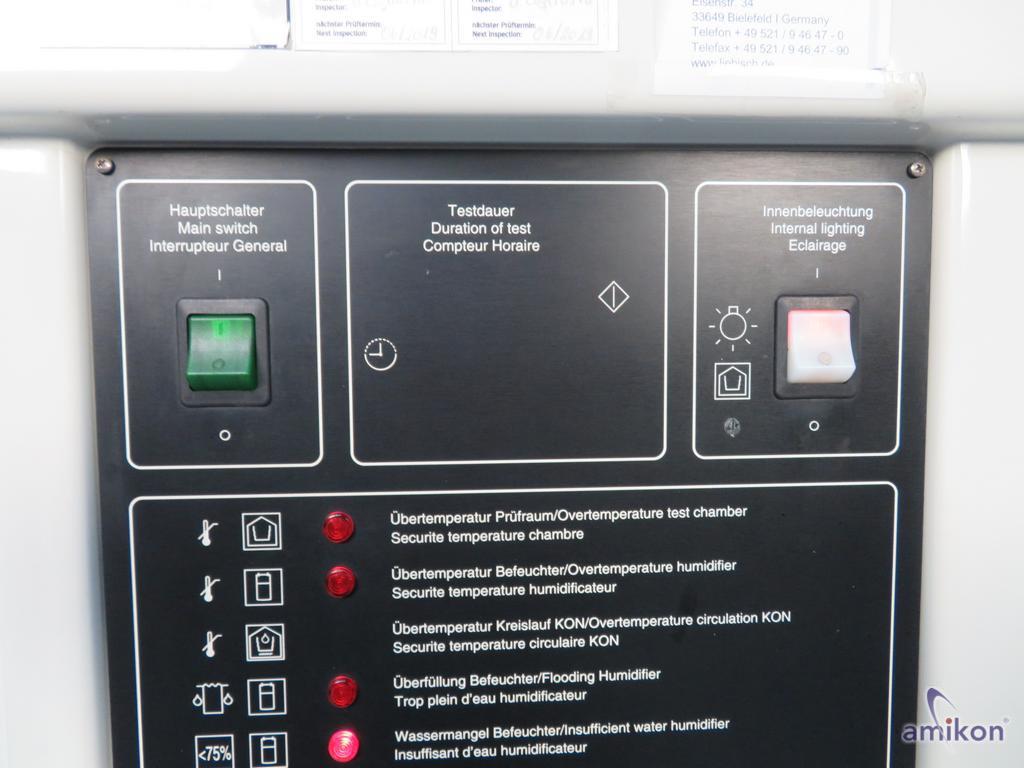

Overtemperature protection for test chamber yes

Overtemperature protection for humidifier yes

Operating materials:

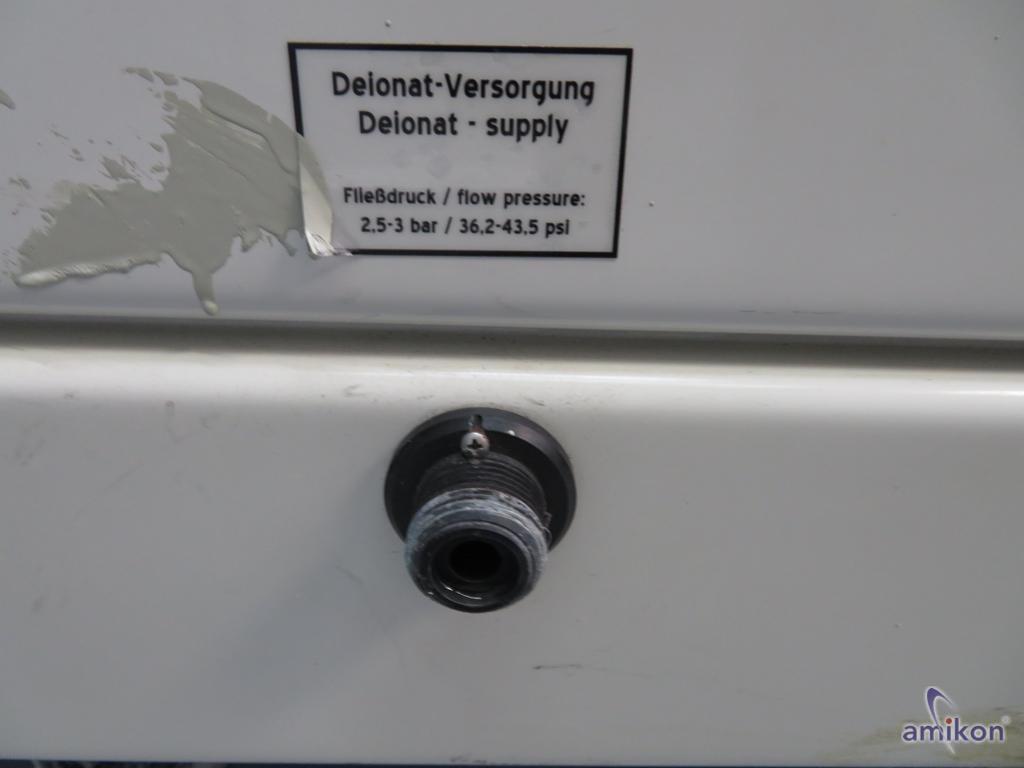

Required pre-pressure of the external deionized water supply 2.5-3.0 bar

Water quality demineralized water according to the relevant standards

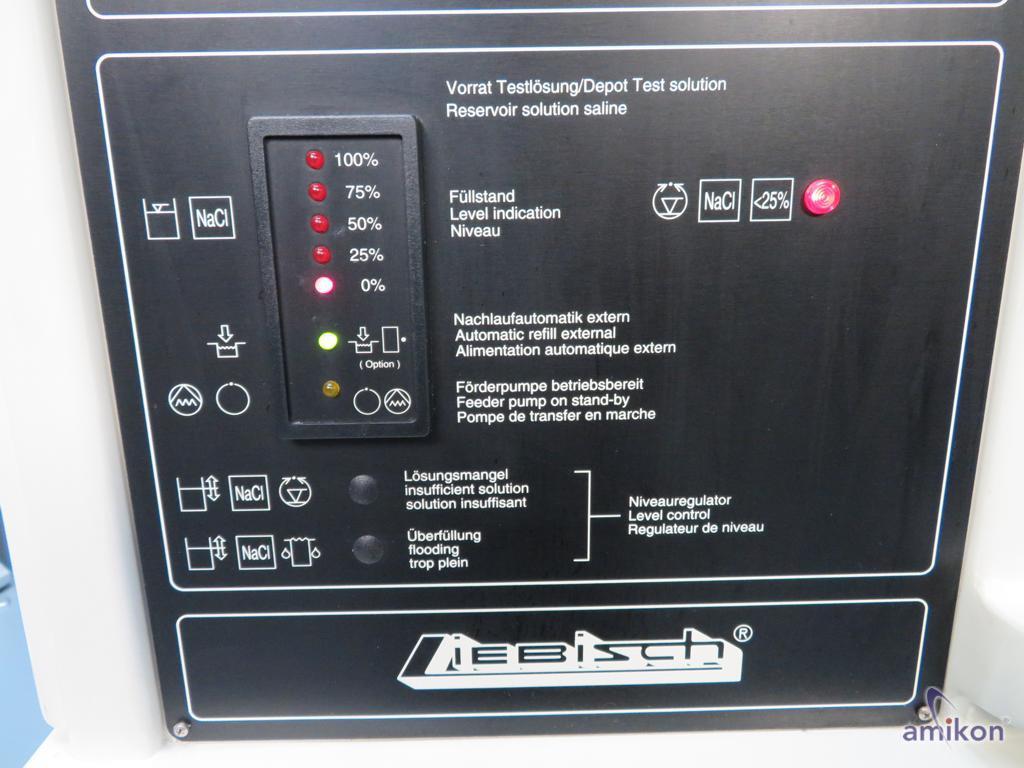

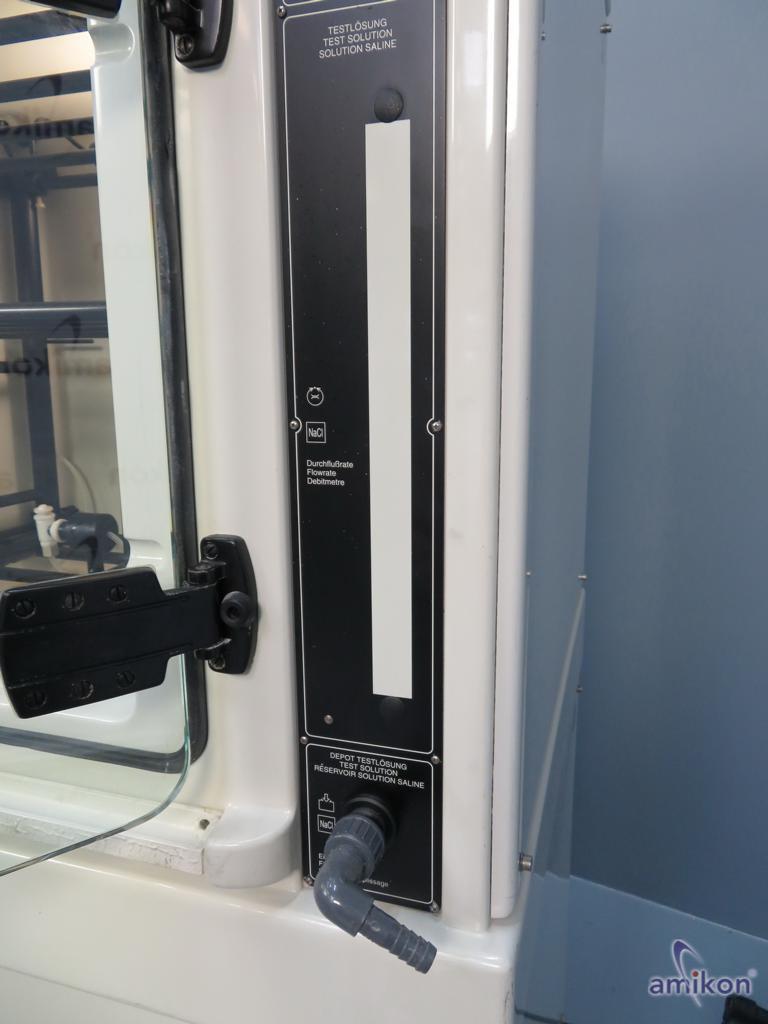

Supply of test solution 100 liters

Average test solution consumption/hour approx. 0.4-0.8 liters

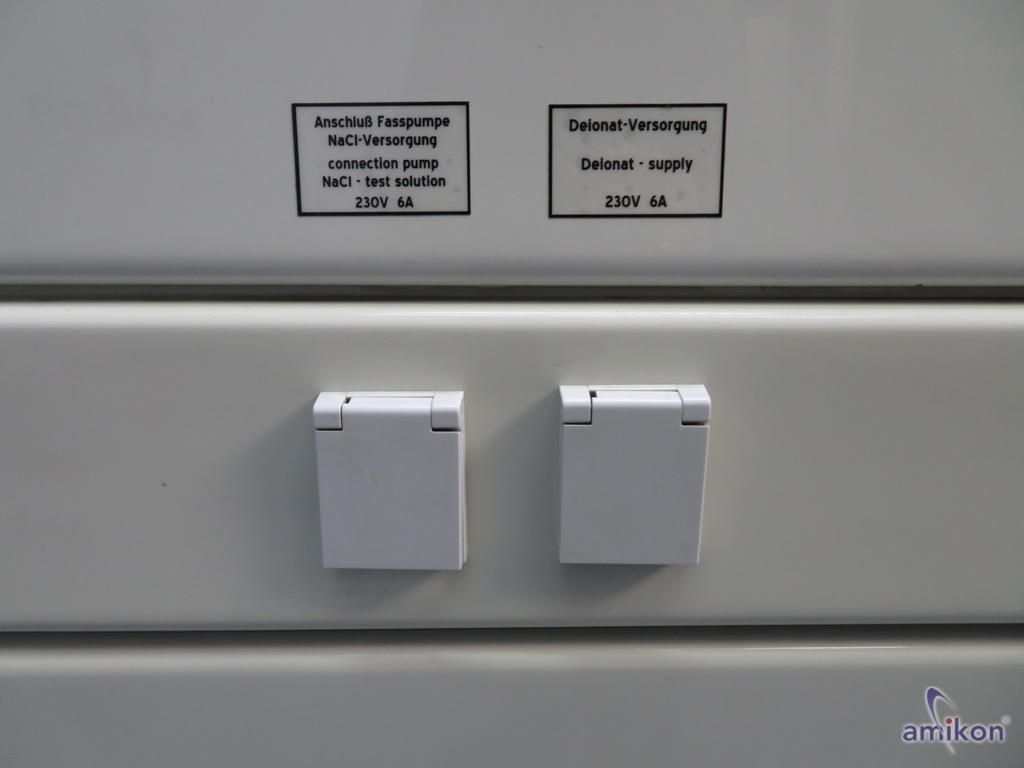

Required pre-pressure of the additional supply NaCl (option) 0.3-1 bar

Average consumption of distilled water humidifier/hour approx. 80-120 ml/hour

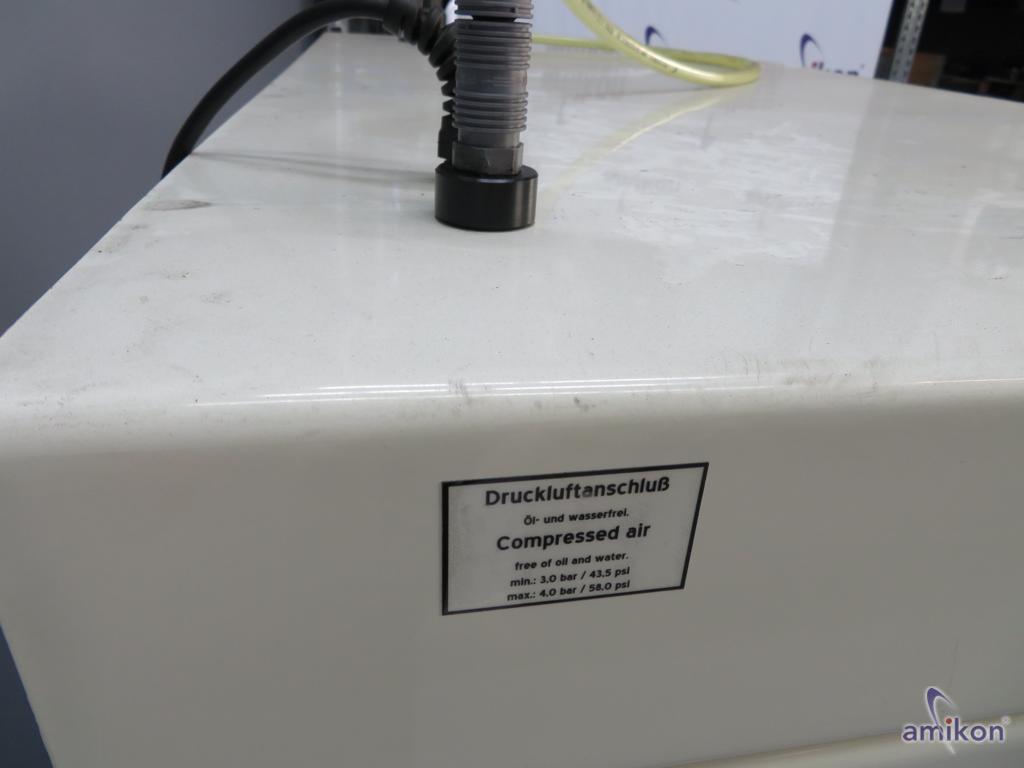

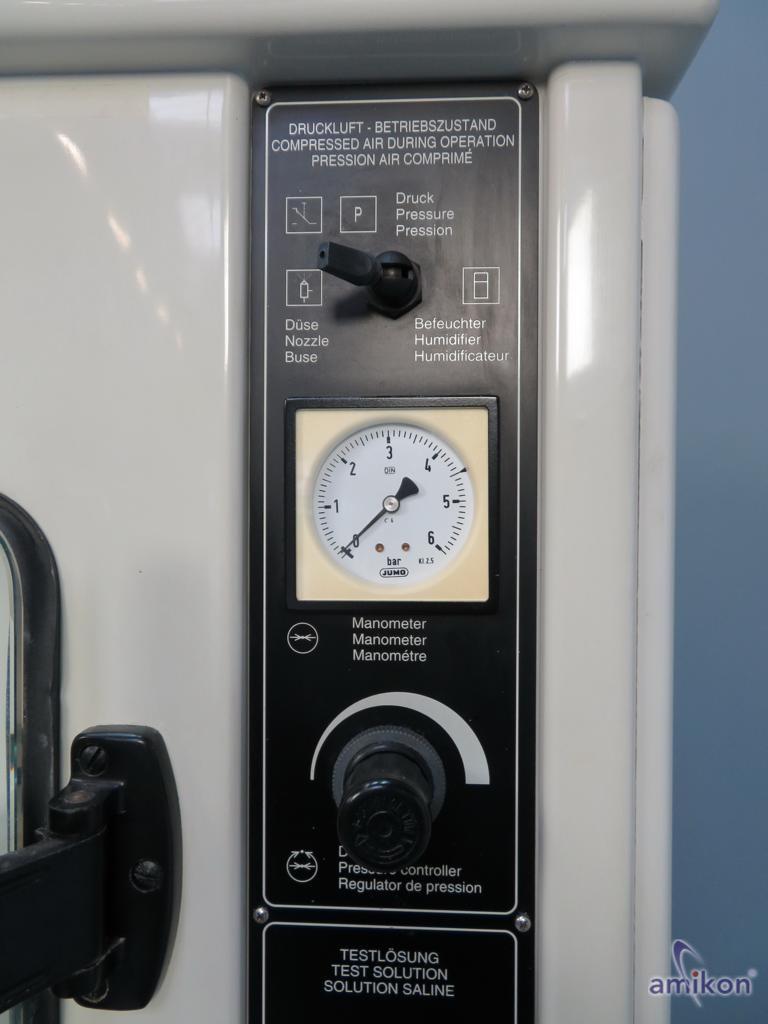

Pre-pressure compressed air 3-4 bar

S 400 M-SC Type: 4401 6101

Condition: used

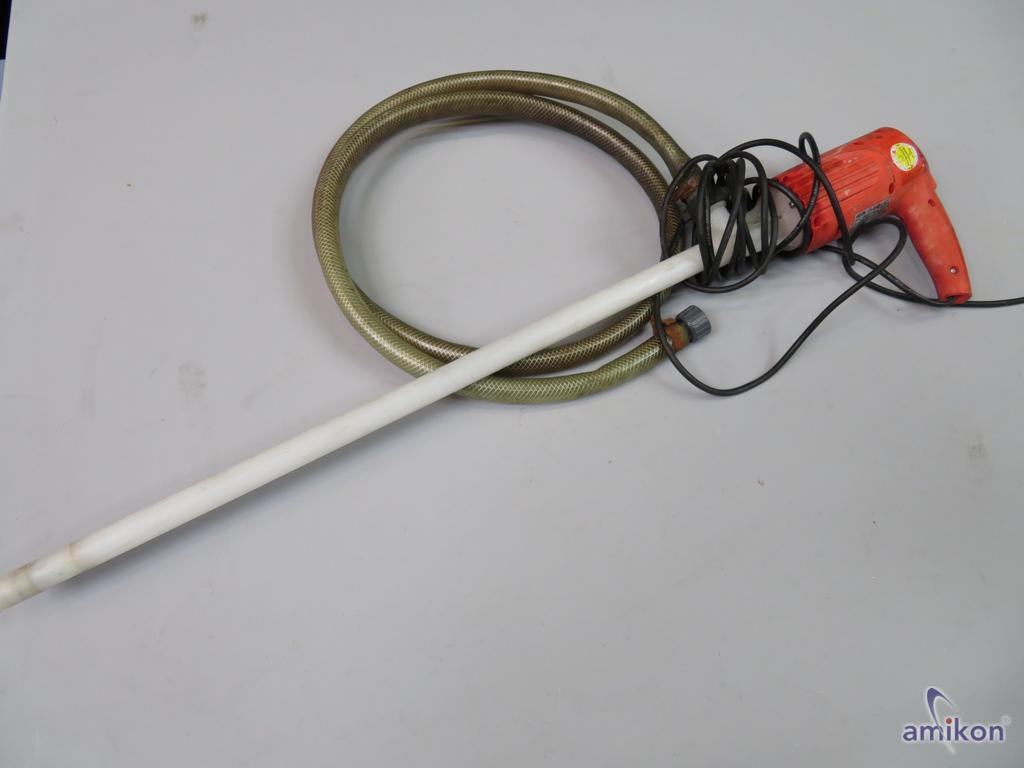

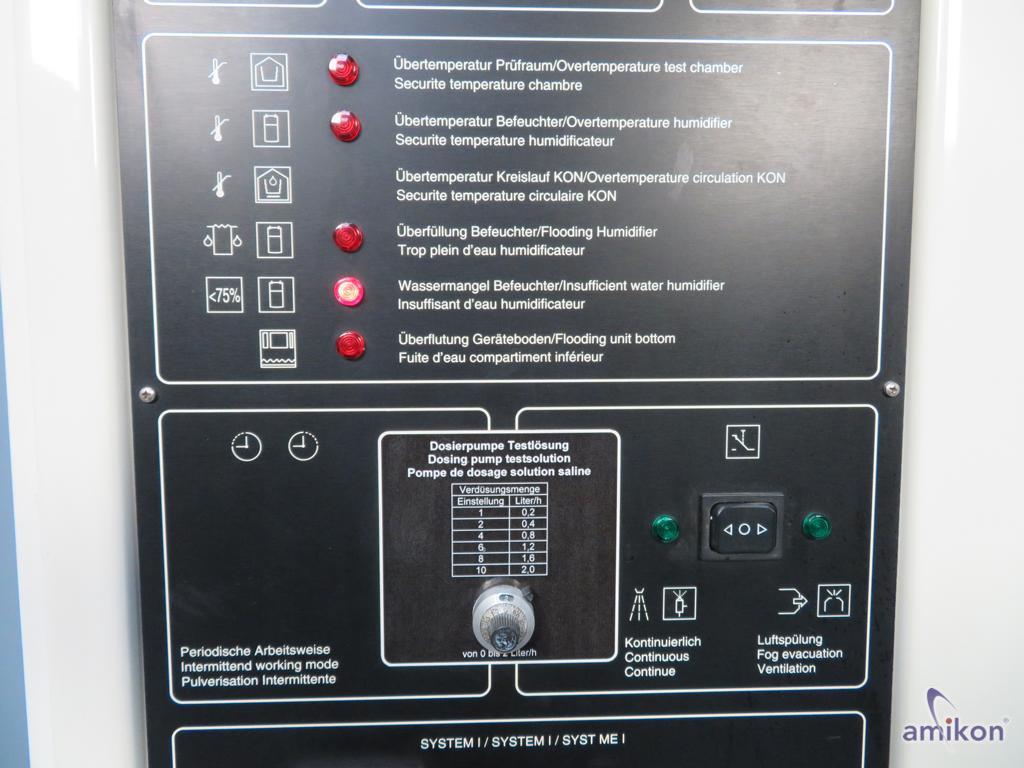

Scope of delivery: (See image)

(Changes and errors in technical data are reserved!)

We would be happy to answer any further questions by phone.
