Lenze L-force Servo Drive 9400 - Multidrive Stateline - E94AMSE0024

Lenze L-force Servo Drive

Type: E94AMSE0024

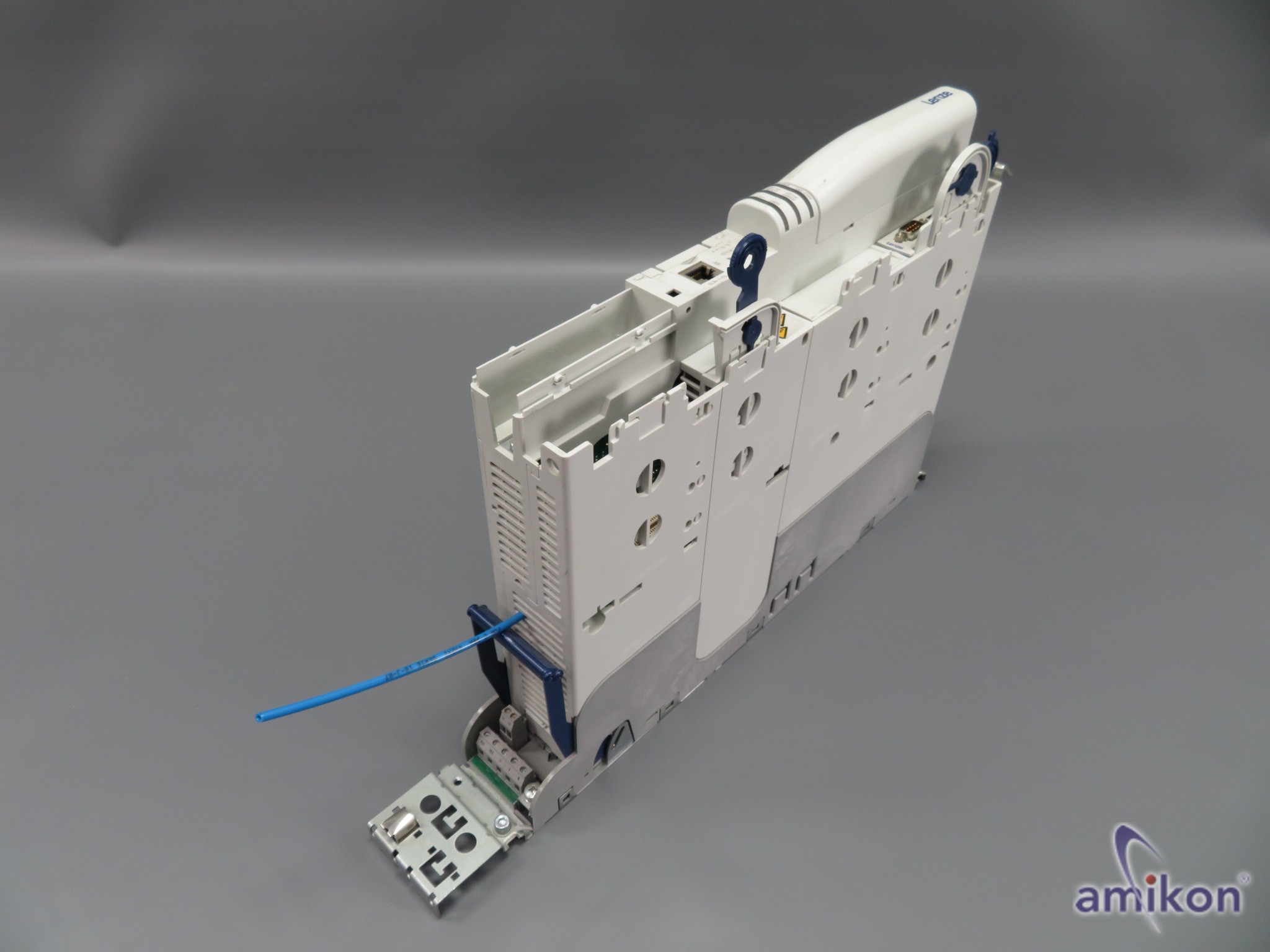

The Lenze L-force Servo Drive 9400 MultiDrive StateLine is a modular servo converter.

Technical Data

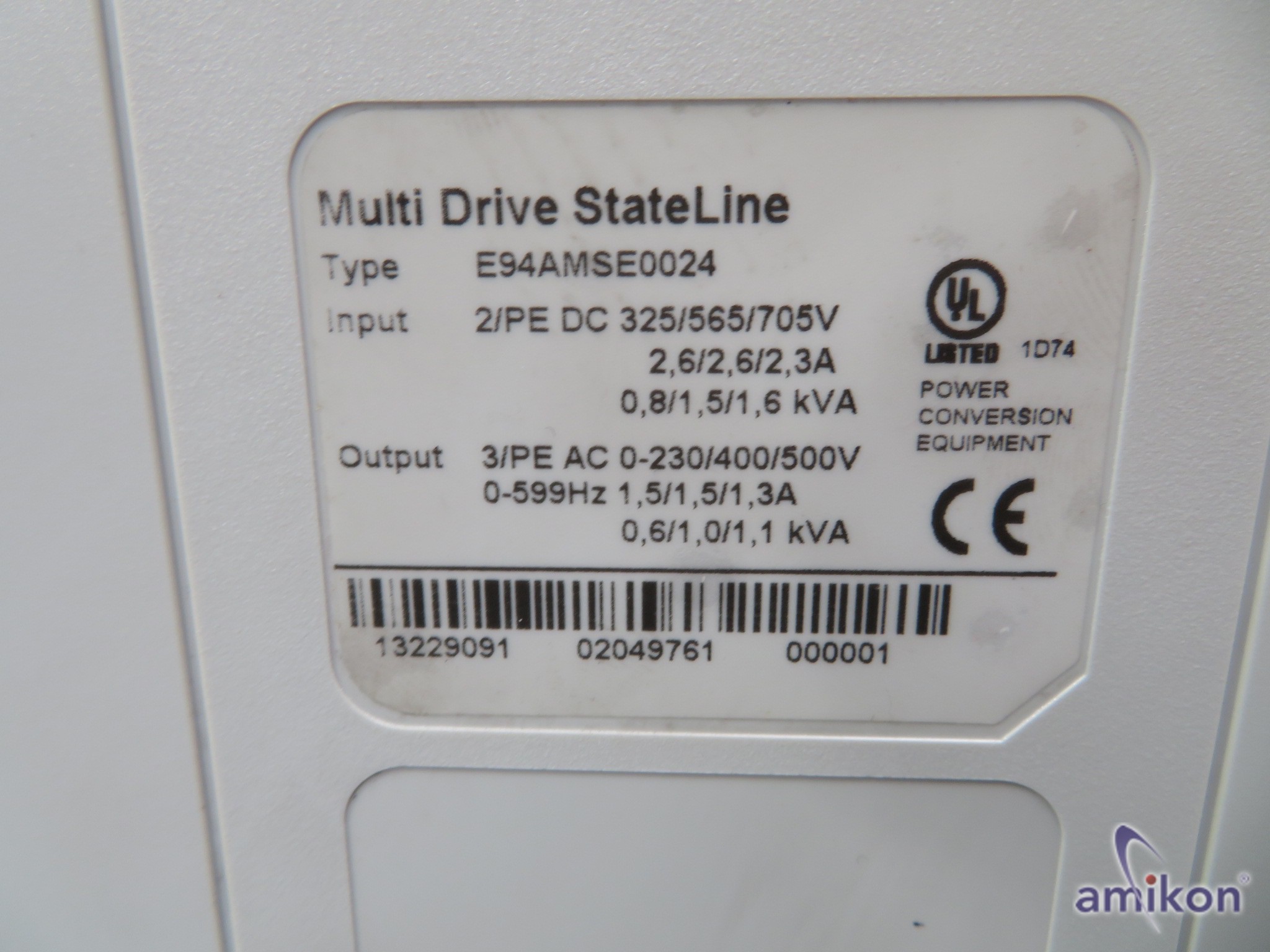

Model Number E94AMSE0024
Series 9400 HighLine MultiDrive StateLine
Rated Current 2.4 A
Input Voltage 3-phase, 400 V AC
Output Voltage 3-phase, 0–400 V AC
Output Frequency 0–599 Hz
Protection Class IP20
Cooling Forced ventilation
Mounting Type Cabinet mounting
Communication Interfaces CANopen, EtherCAT, Profibus (depending on configuration)
Encoder Support Resolver, Incremental encoder, SSI, Hiperface (depending on version)
Certifications CE, UL, cUL
Operating Temperature 0 °C to +55 °C
Dimensions (HxWxD) approx. 350 × 70 × 260 mm
Weight approx. 4.5 kg

Condition: used

Scope of Delivery: (See image)

(Changes and errors in technical data are reserved!)

We would be happy to answer any further questions by phone.
