LDS V850-440 LPT750C Shaker + SPA30KCE + CTS CV-70/1100-5 + IMV K2

LDS / CTS Vibration Testing System

LDS V850-440 LPT 750C Shaker System +
LDS SPA30 KCE Power Amplifier +
CTS Climate Chamber CV-70/1100-5 +
IMV K2+ Vibration Control

Professional Vibration Testing System / Shaker System
Manufacturer: LDS / CTS / IMV
Complete Industrial Testing System

Important Note:

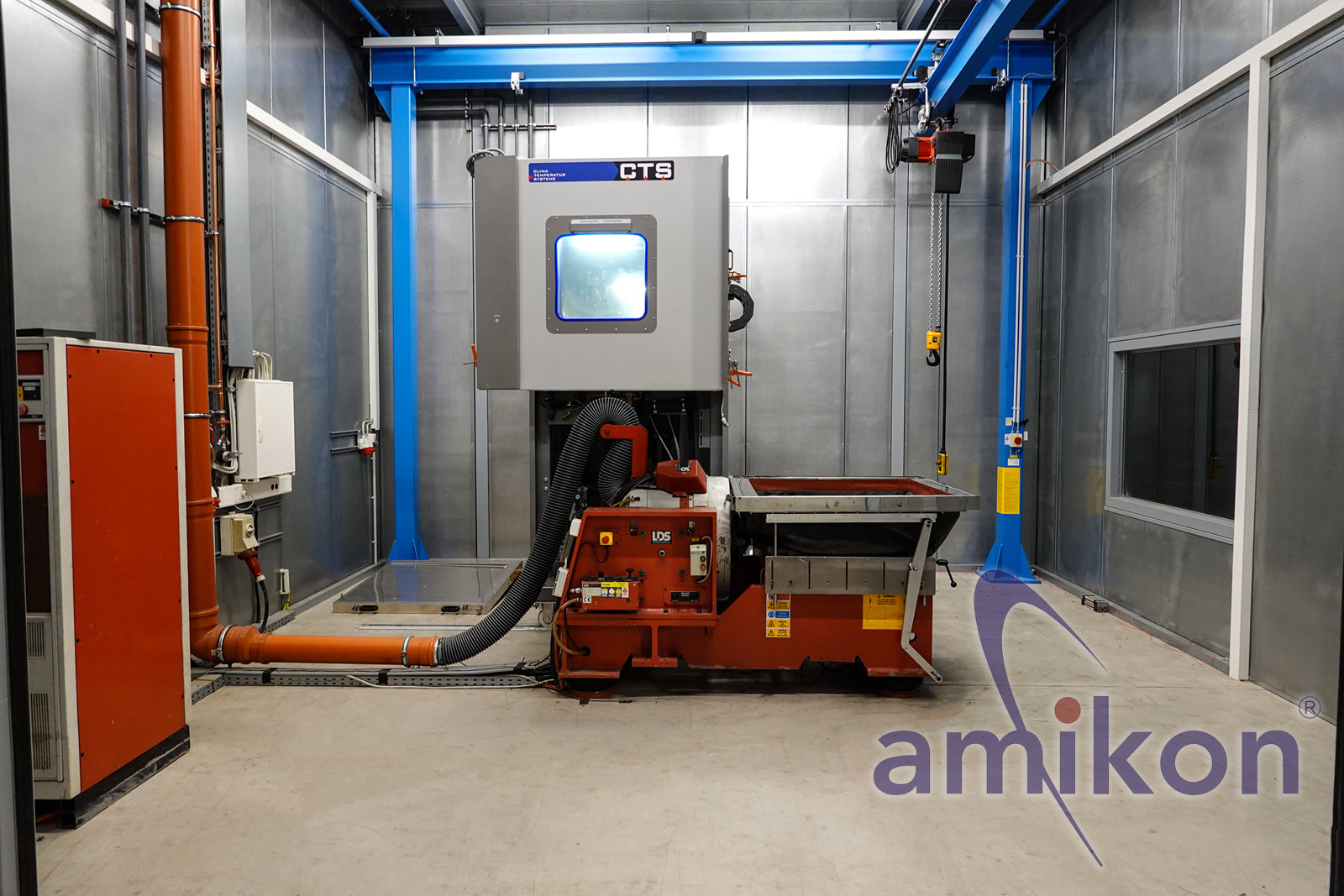

The blue overhead crane / portal crane visible in the pictures
is not included in the auction and is explicitly not part of the sale.

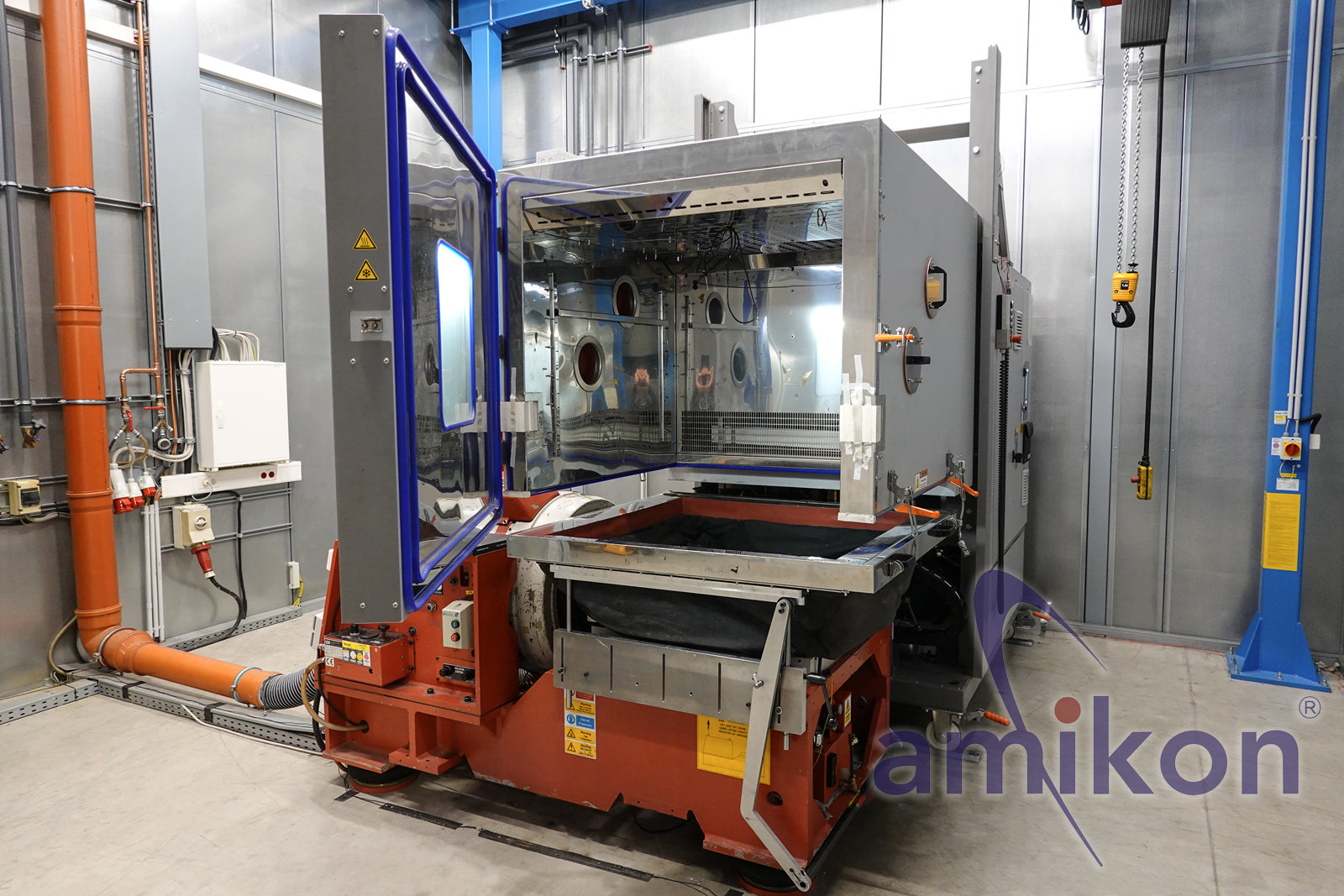

For sale is a complete electrodynamic vibration testing system
consisting of LDS shaker system, power amplifier,
vibration control, PC workstation, and CTS climate chamber.

Ideal for automotive, research & development,
material testing, electronics testing, environmental simulation
as well as quality assurance.

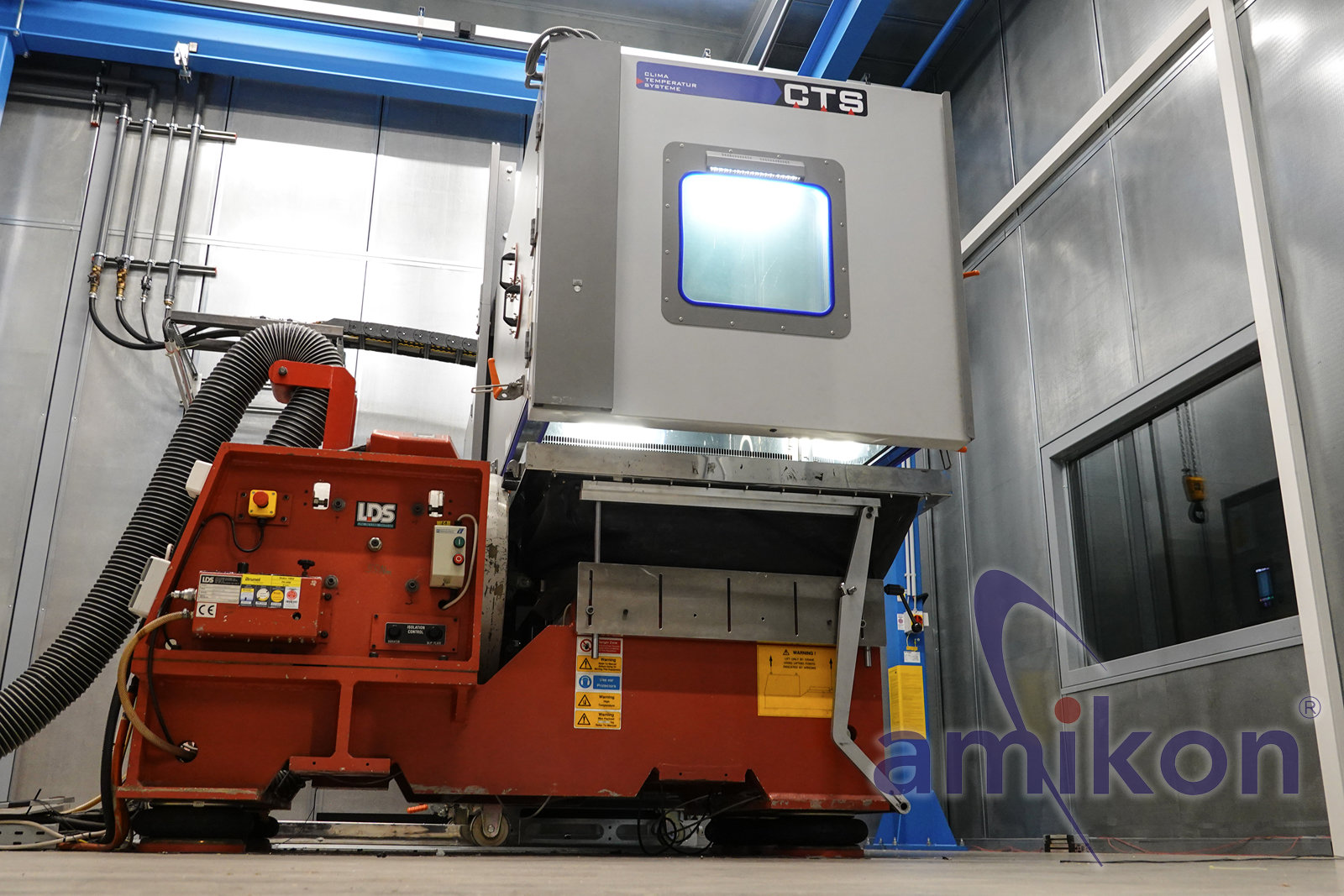

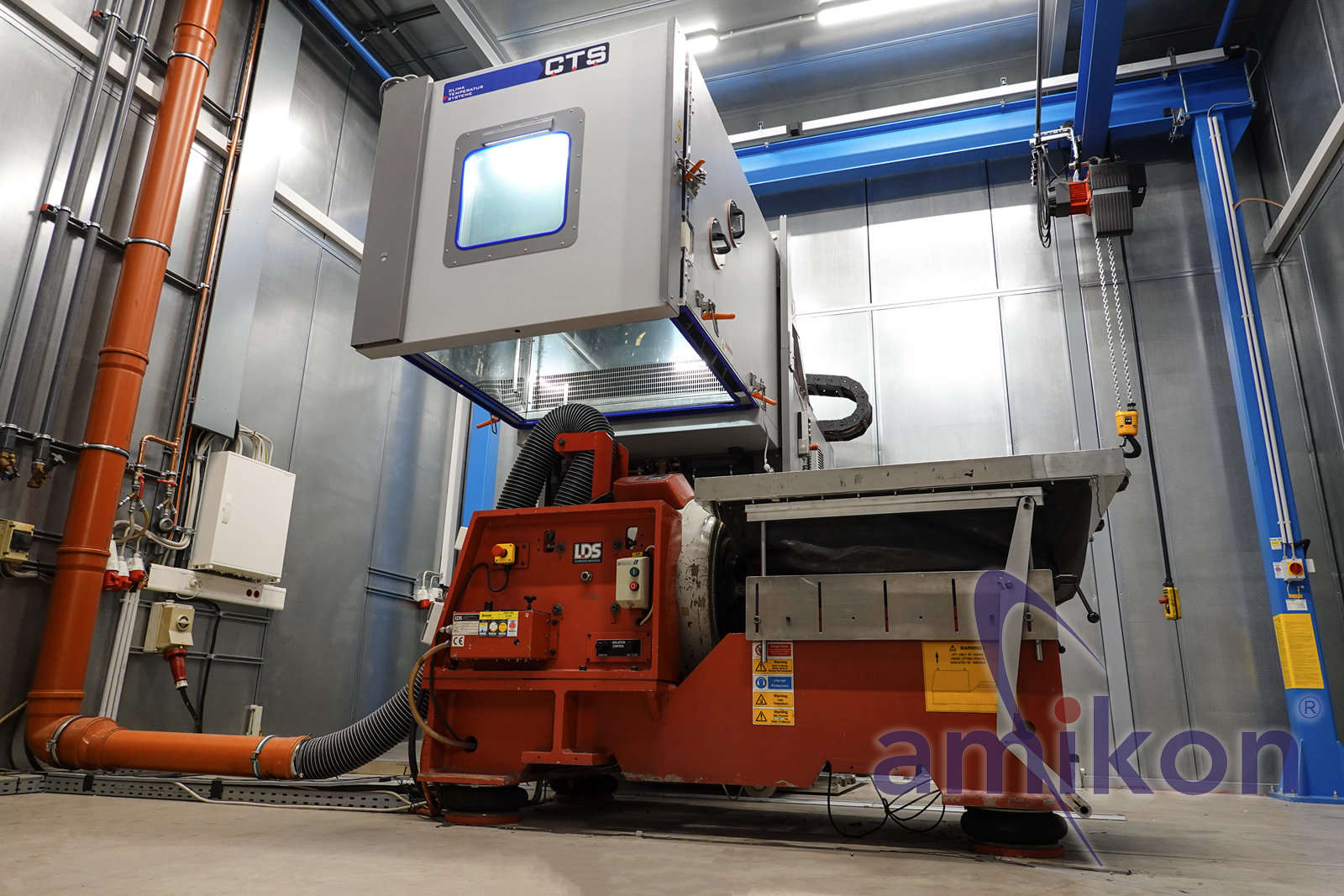

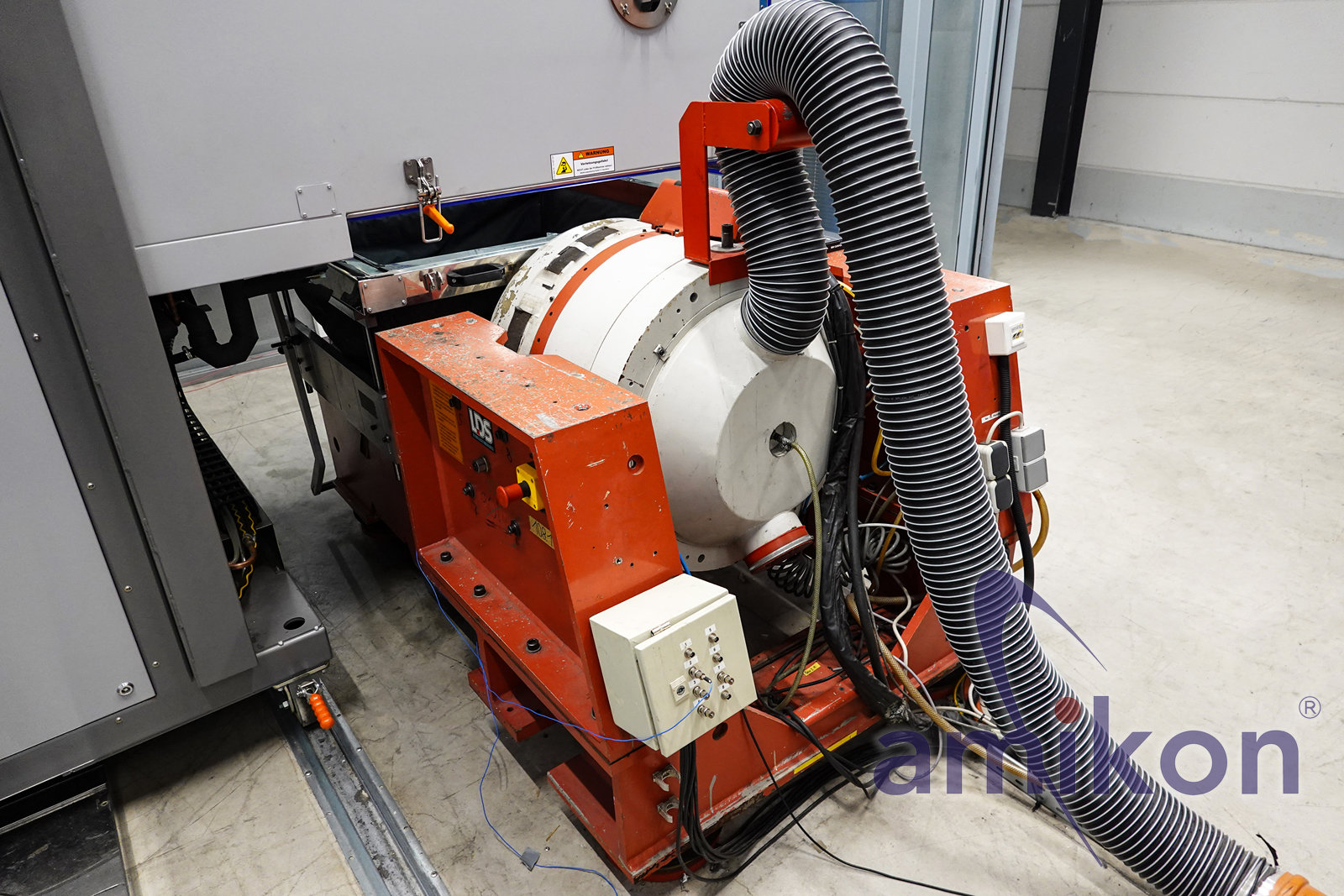

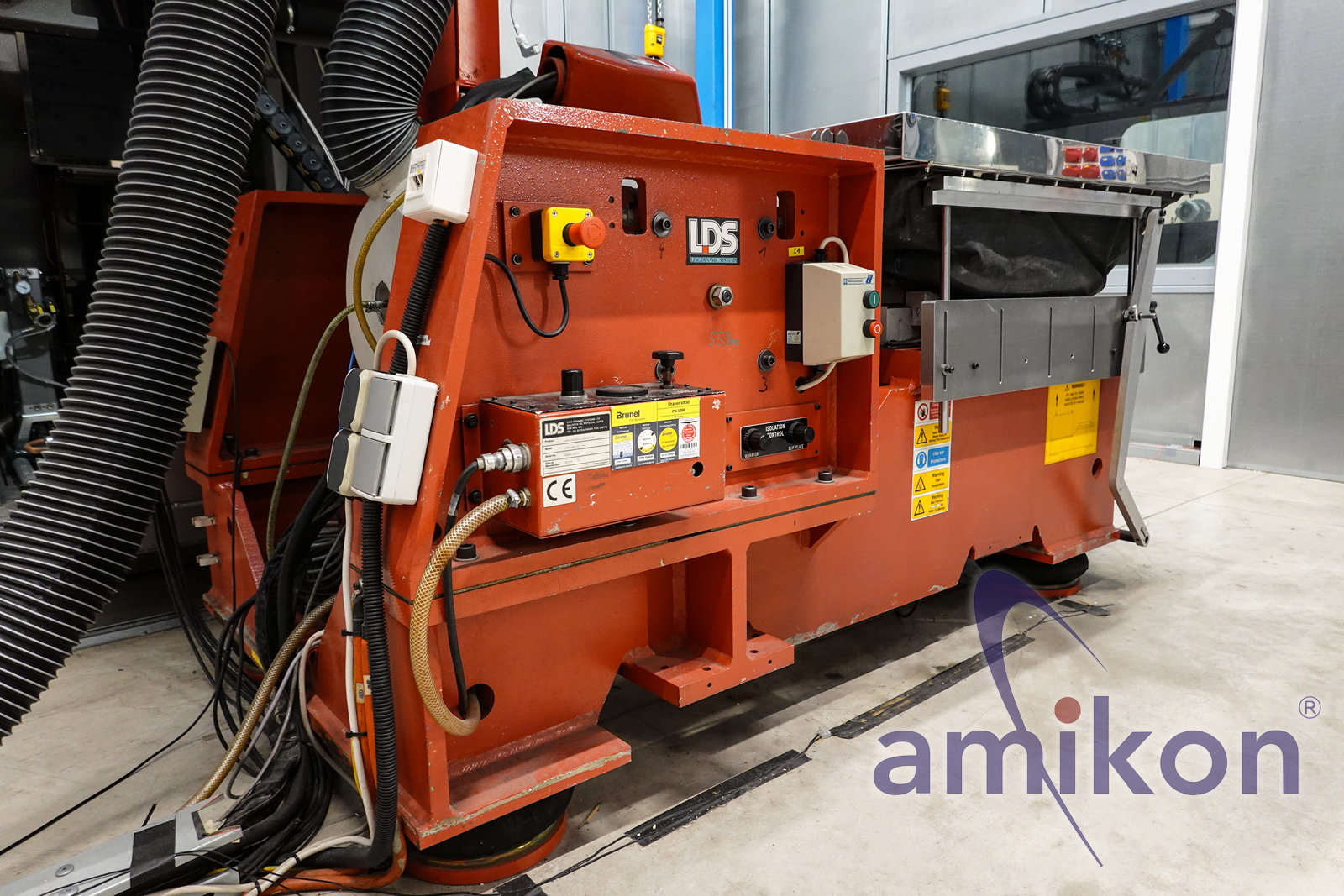

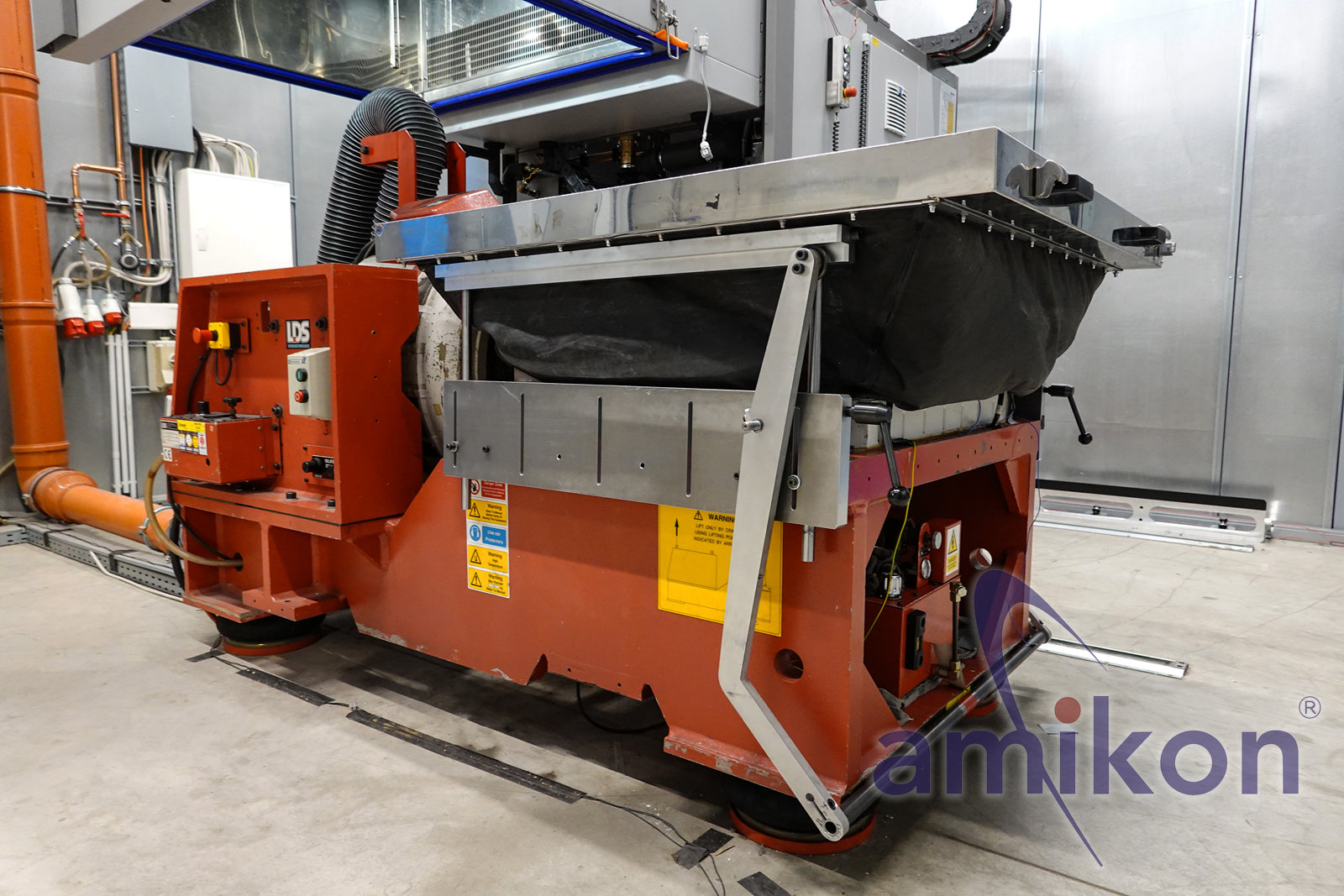

LDS Shaker / Vibrator

Manufacturer: Ling Dynamic Systems Ltd. / LDS
Type: V850-440 LPT 750C
Design: air-cooled electrodynamic vibrator
Armature diameter: 440 mm

Frequency range: DC to 3000 Hz
Resonance frequency armature: approx. 2200 Hz
Max. continuous displacement: 50.8 mm pk-pk
Max. velocity: 2.0 m/s
Max. acceleration sine: approx. 60 g
Max. acceleration random: approx. 50 g

Sine force peak: approx. 22.2 kN
Random force rms: approx. 22.2 kN
Shock force half sine peak: approx. 66.7 kN

Moving mass:
Flush Inserts: approx. 23.84 kg
Hex Inserts: approx. 24.52 kg

Internal load capacity: approx. 350 kg
Weight shaker: approx. 1288 kg
Compressed air supply required:
Load support: approx. 5.5 bar
Air isolation: approx. 6.9 bar

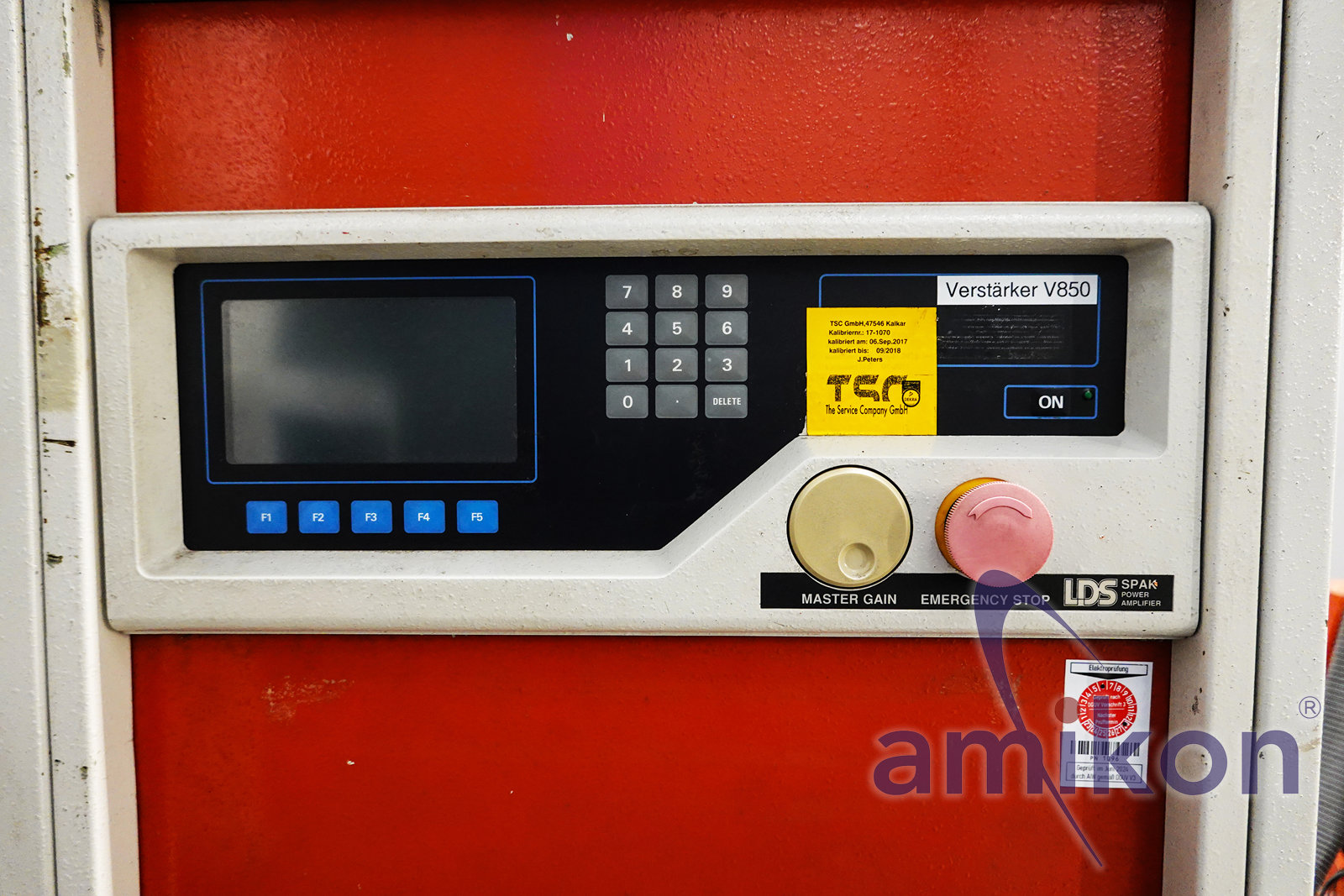

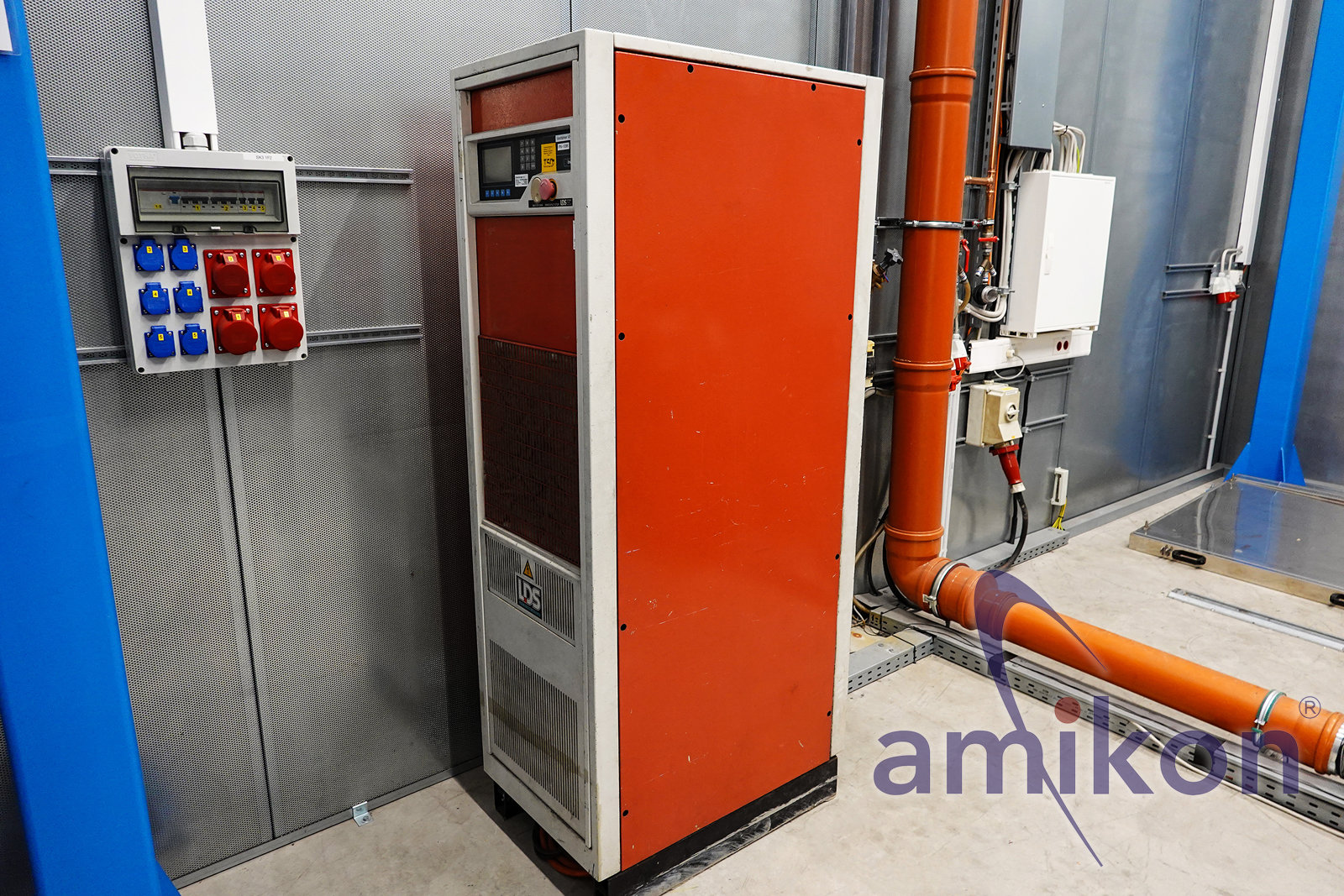

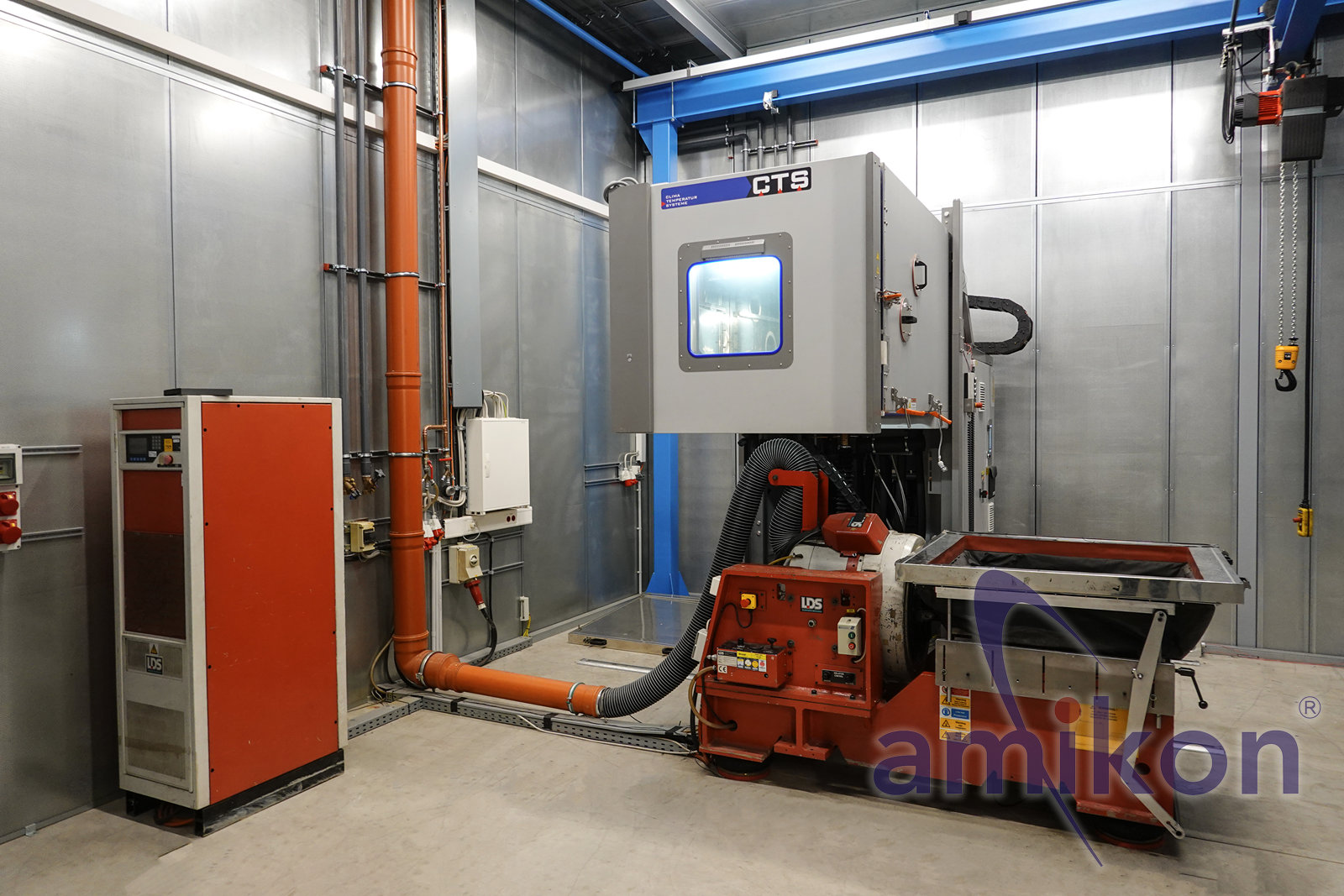

LDS Power Amplifier

Manufacturer: LDS / Ling Dynamic Systems Ltd.
Type: SPA30KCE
Design: Class-D high-performance switching amplifier

Supply voltage:
50 Hz: 380 / 400 / 415 / 440 V
60 Hz: 380 / 400 / 415 / 440 / 460 / 480 / 500 / 520 V
Current setting: 400 V

Maximum connection power: 38.14 kVA
Max. output power sine: 21.0 kW
Sine output current: 300 A RMS
Overload current: 330 A RMS
Peak current random: 900 A

Output voltage: 100 V RMS
No-load voltage max.: 110 V
Switching frequency: 150 kHz
Amplifier efficiency: > 90 %
Module efficiency: approx. 93 %

Weight power amplifier: approx. 550 kg
Dimensions approx.: 1905 x 537 x 895 mm

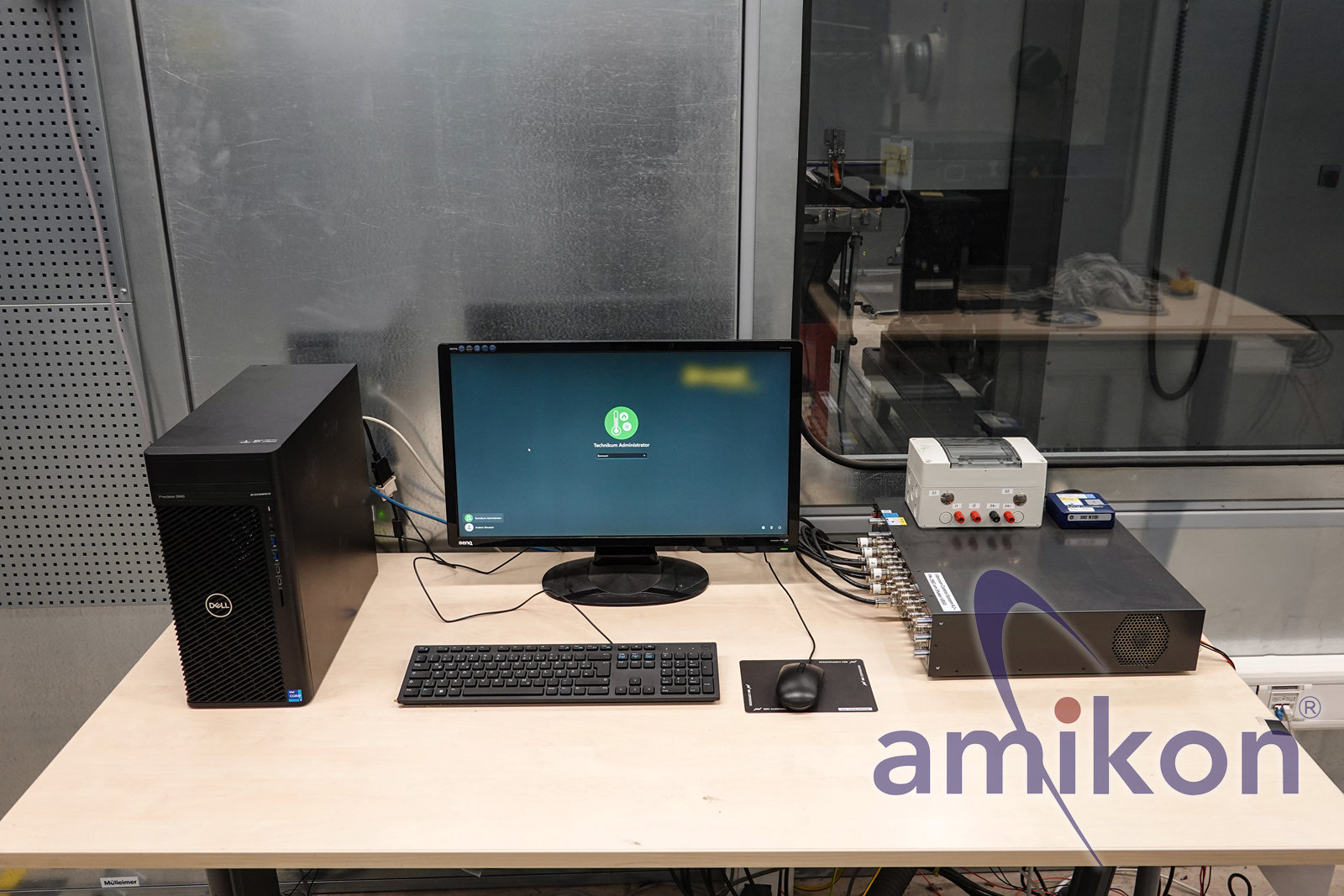

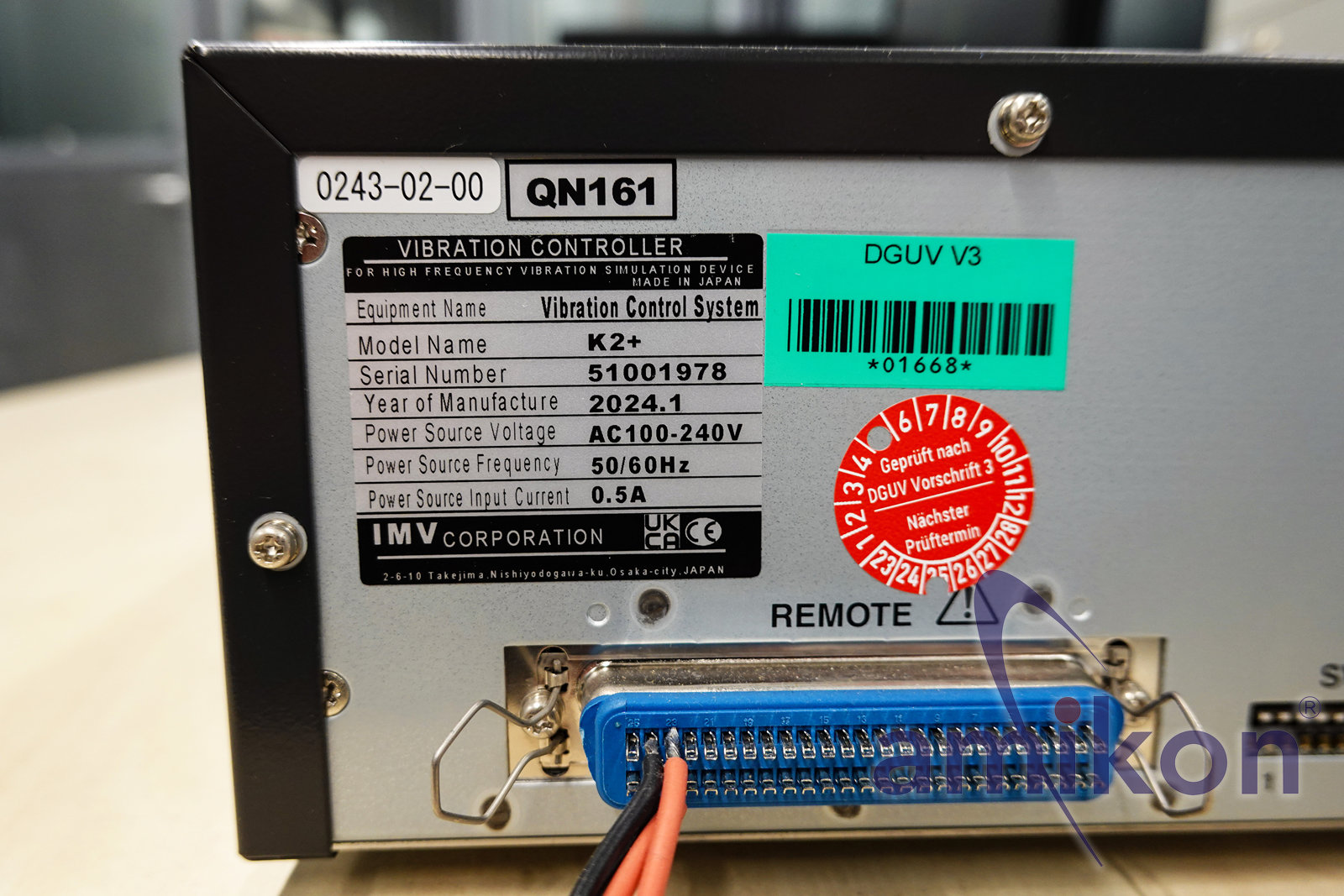

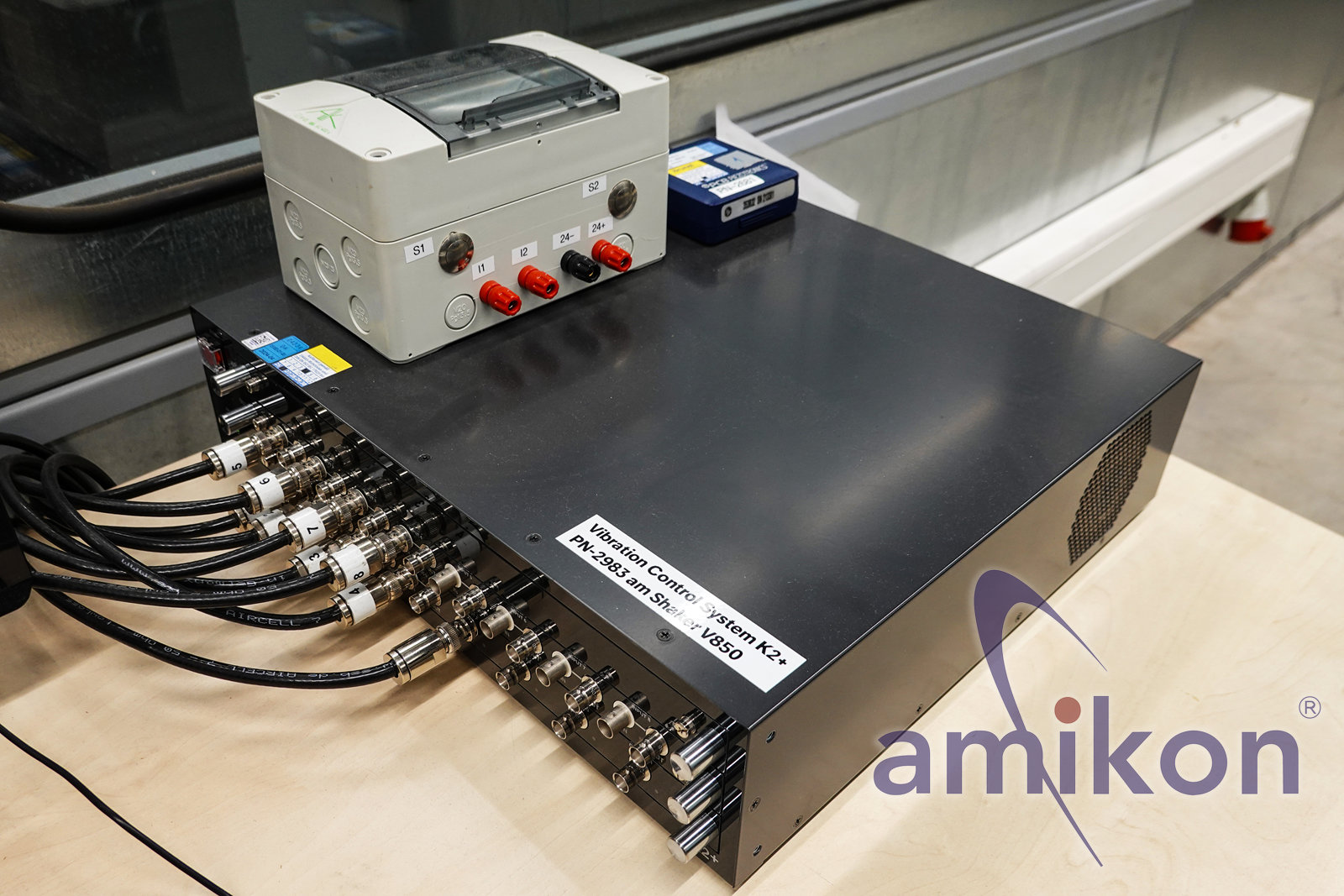

IMV K2+ Vibration Control

Manufacturer: IMV Corporation
Type: K2+ Vibration Control System

Multi-channel vibration control
including PC workstation,
Dell Precision Workstation,
monitor, keyboard, and mouse.

Completely wired control and testing system
for vibration and shock tests.

Activated licenses:

Excitation types:

Sine
Resonance dwell
Limit control
Amplitude dwell
Multi sweep sine
Noise
Soft clipping
Sine-on-random
PSD limit control
Shock

Extensions:

Scheduler
Multi-language
Launcher
System monitor

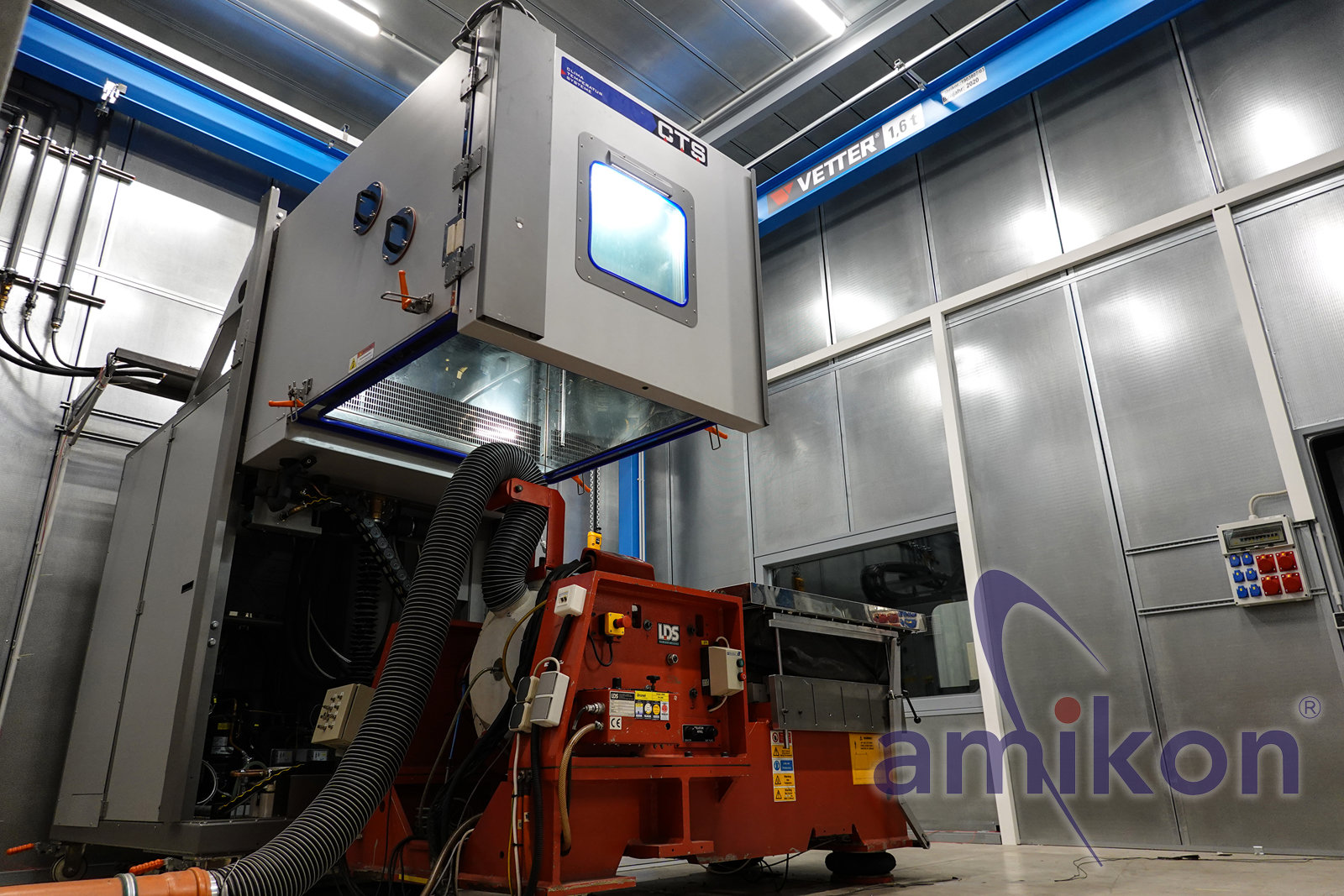

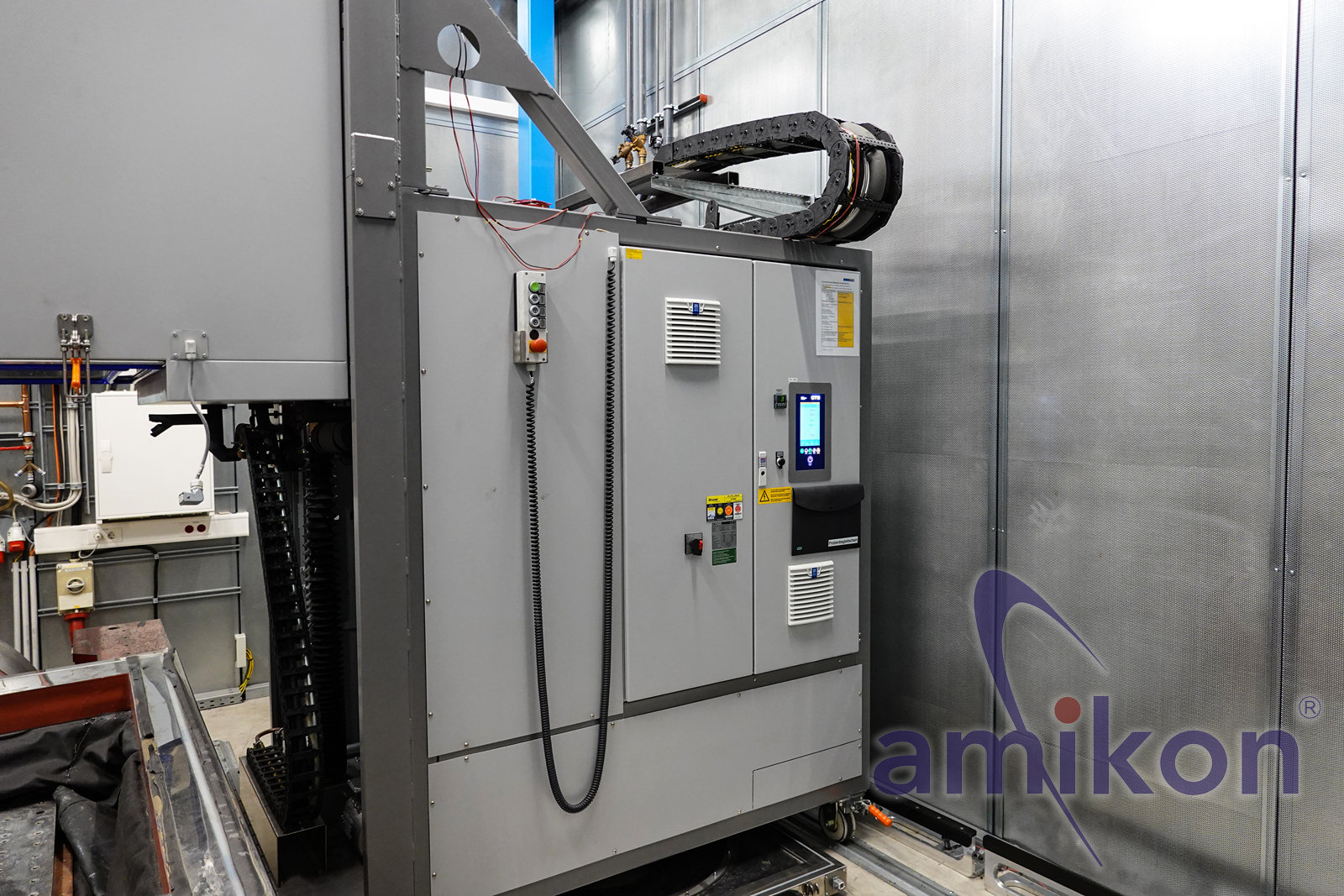

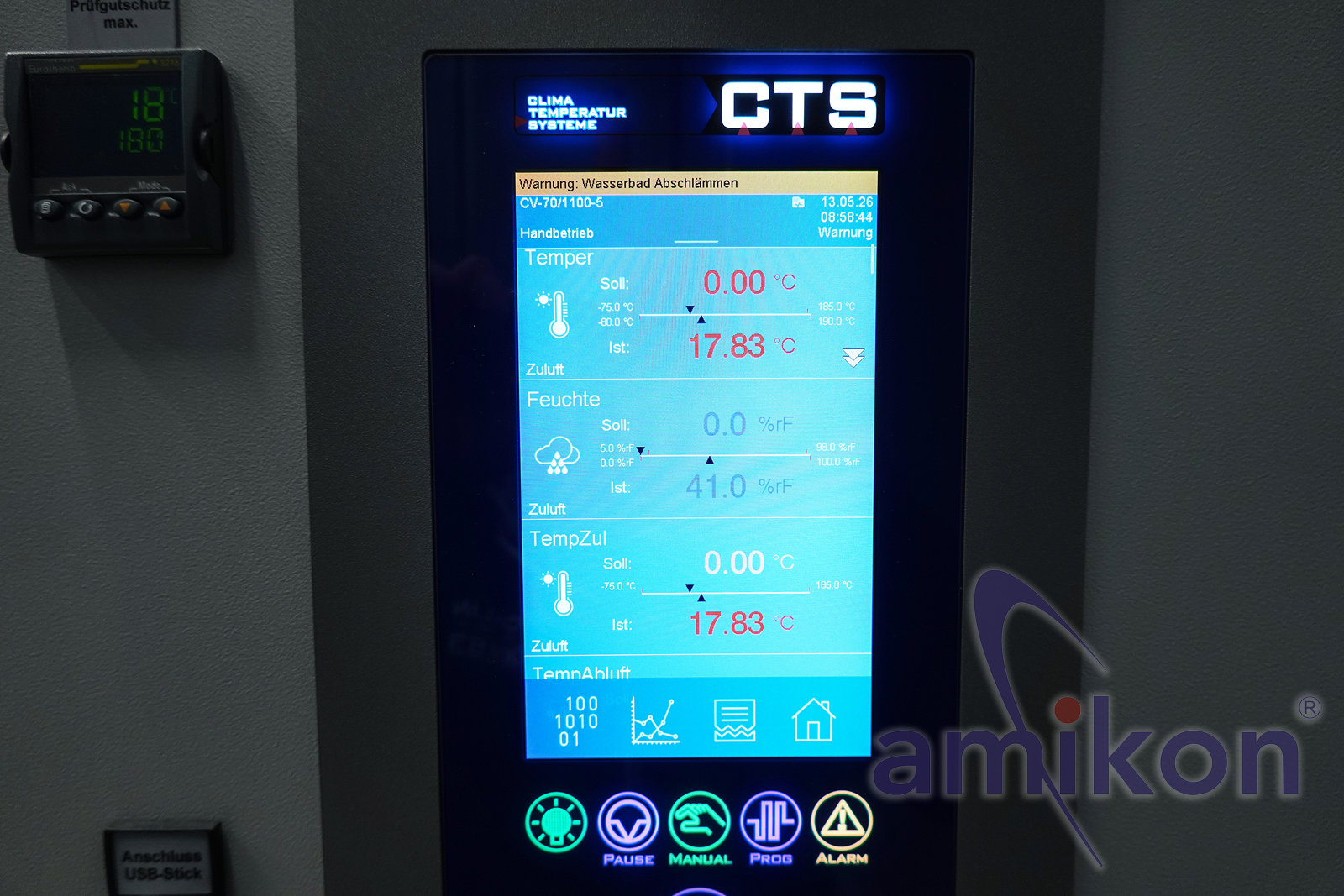

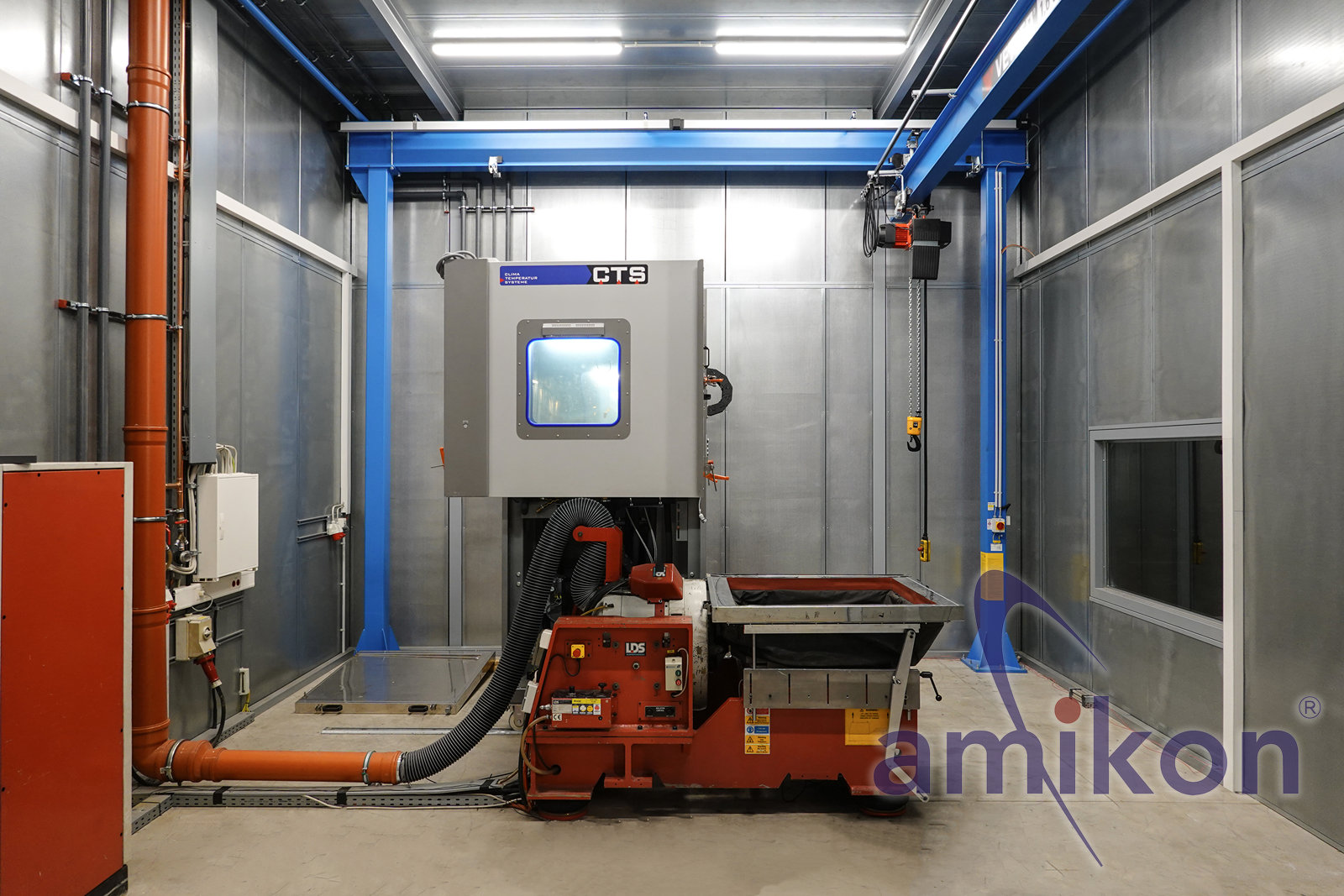

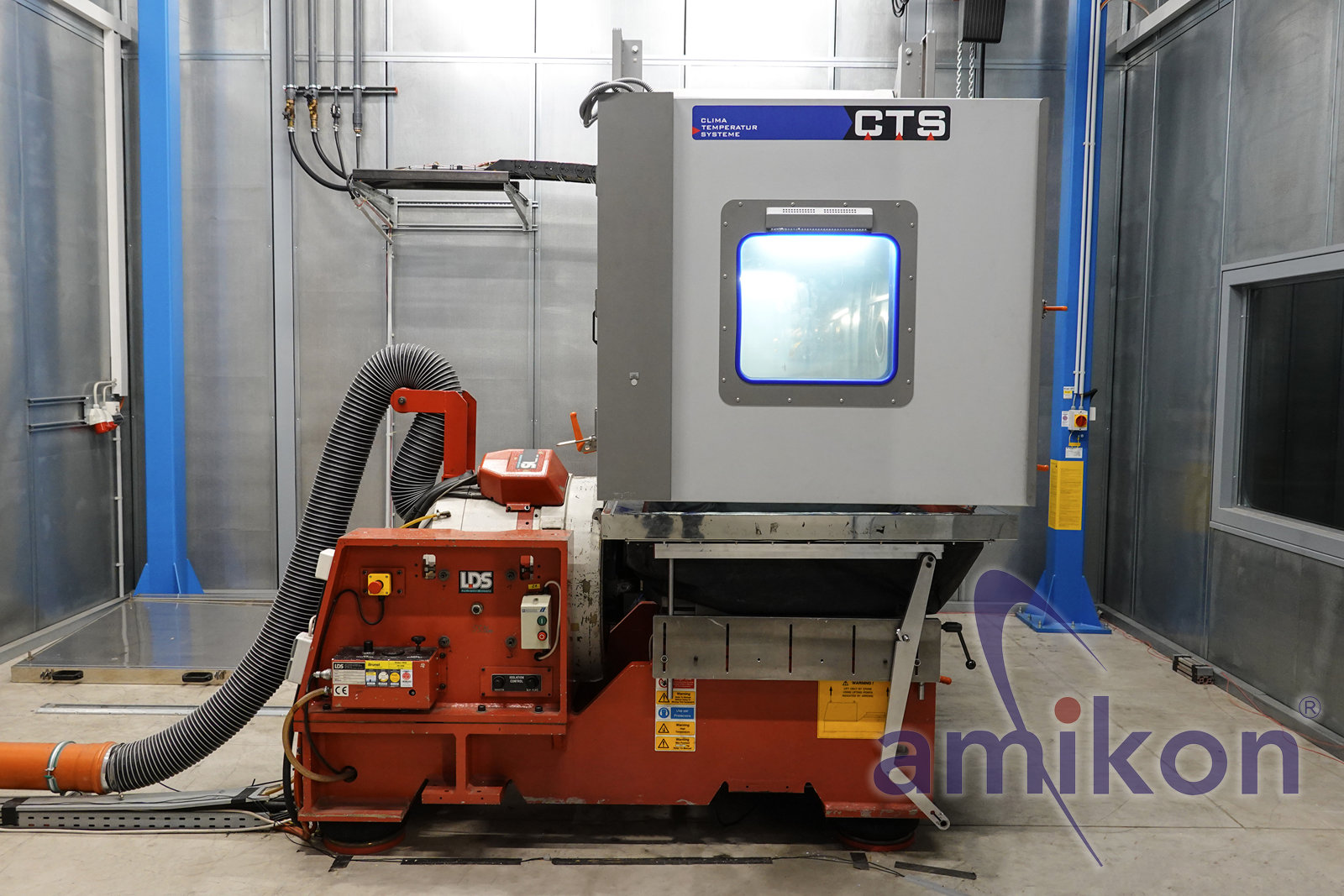

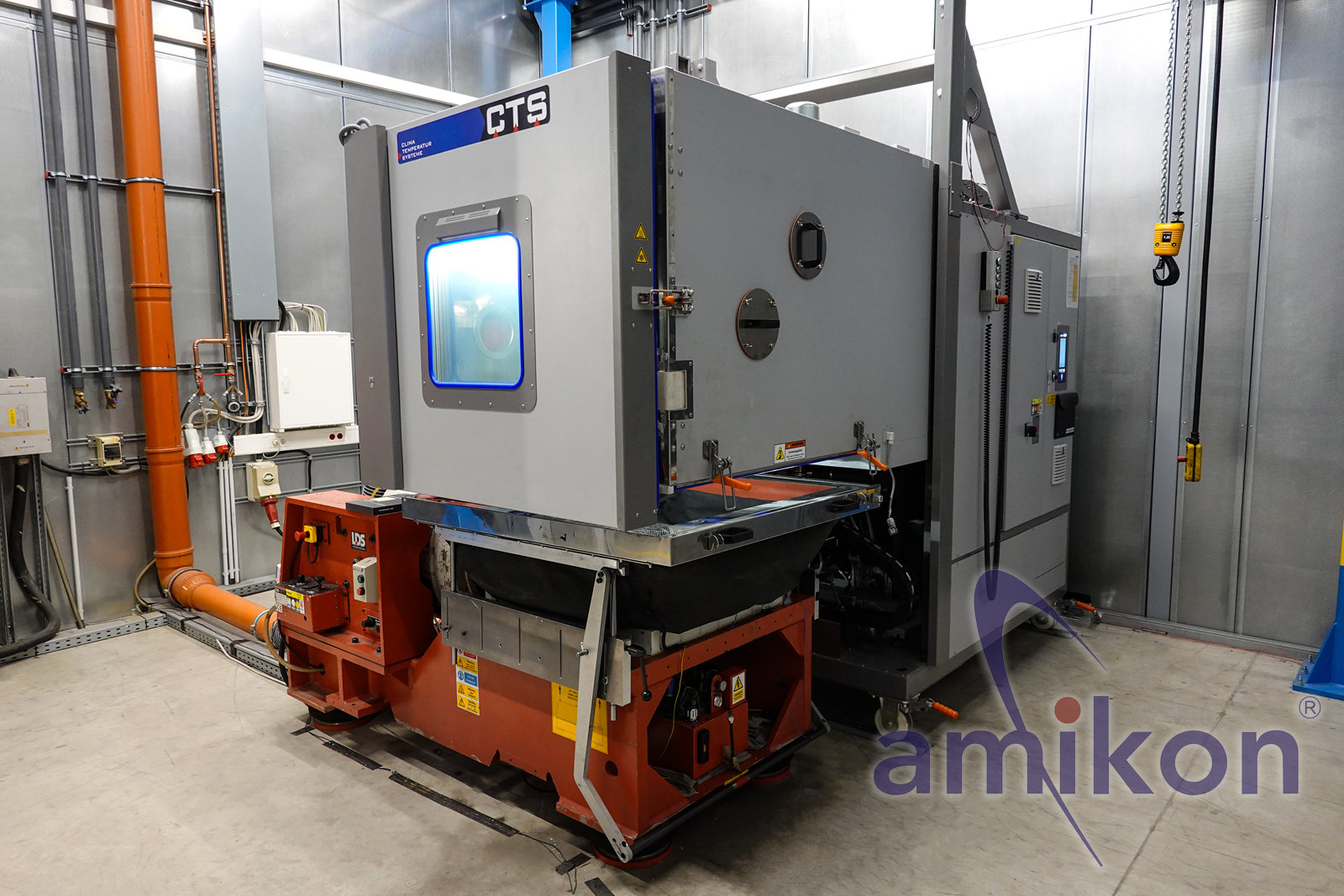

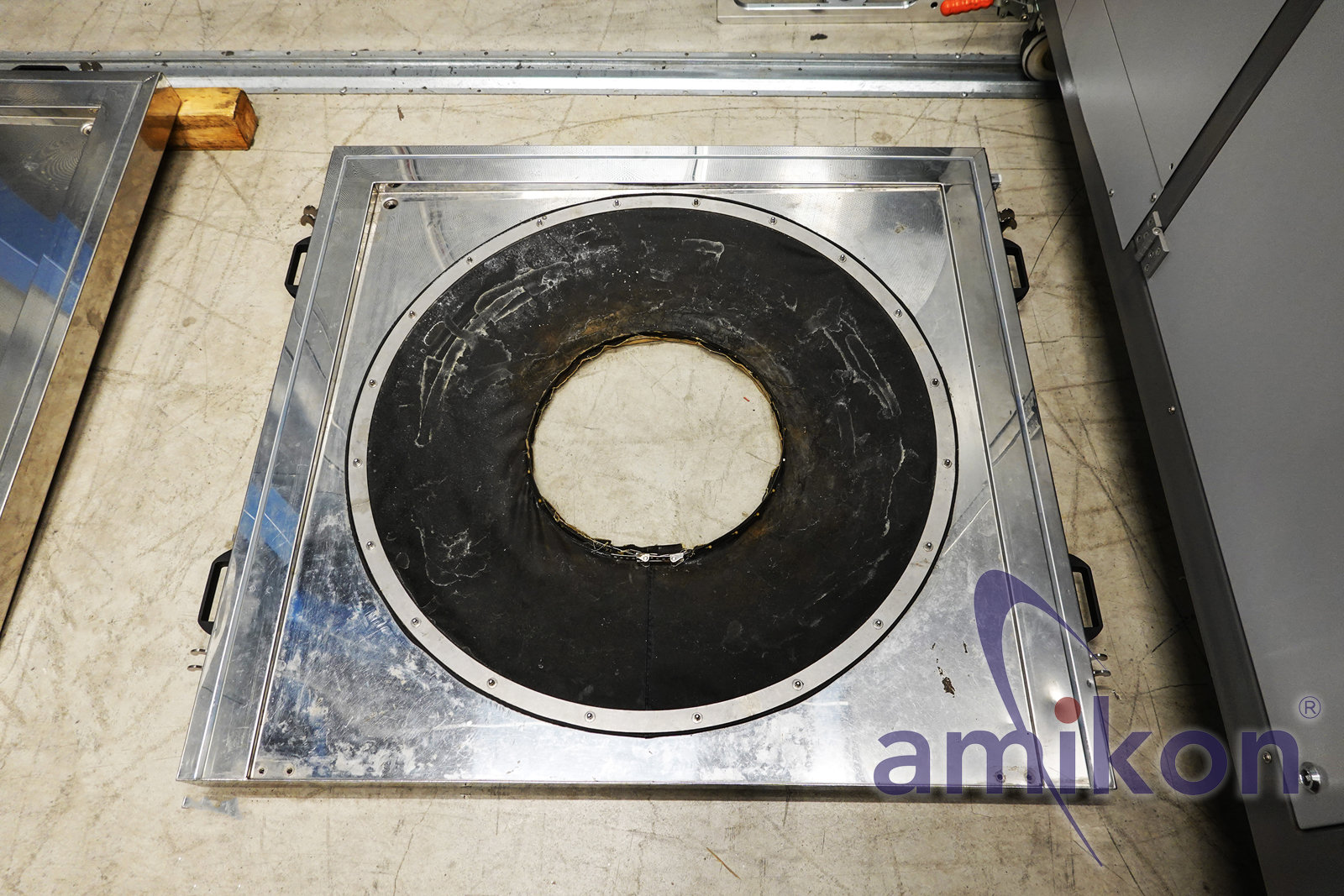

CTS Climate Chamber

Manufacturer: CTS Clima Temperatur Systeme GmbH
Type: CV-70/1100-5
System number: 193073
Year of manufacture: 10/2019

Nominal voltage: 400 V / 3/N / 50 Hz
Power: 15.9 kW
Nominal current: 28.7 A

Temperature range: -70 °C to +180 °C
Humidity range: 10 % to 95 % r.H.
Dew point range: +5 °C to +88 °C
Protection class: IP54

Refrigerant pre-cooling stage: R452A
Filling quantity: 6.8 kg
CO2 equivalent: 14.55 t
GWP: 2140

Refrigerant cooling stage: R23
Filling quantity: 2.1 kg
CO2 equivalent: 31.08 t
GWP: 14800

Service / Maintenance

Service and maintenance documents available.
According to existing service reports, maintenance,
calibrations, and repairs have been carried out.

Dimensions / Weight

Large industrial system / heavy-duty system

Weight LDS vibrator / shaker:
approx. 1,300 kg

Weight power amplifier:
approx. 500 – 600 kg

Total weight of the complete system
including climate chamber, shaker, amplifier,
sliding table, and accessories:
approx. 6,000 – 7,000 kg

Transport only by suitable
heavy-duty freight forwarding required.

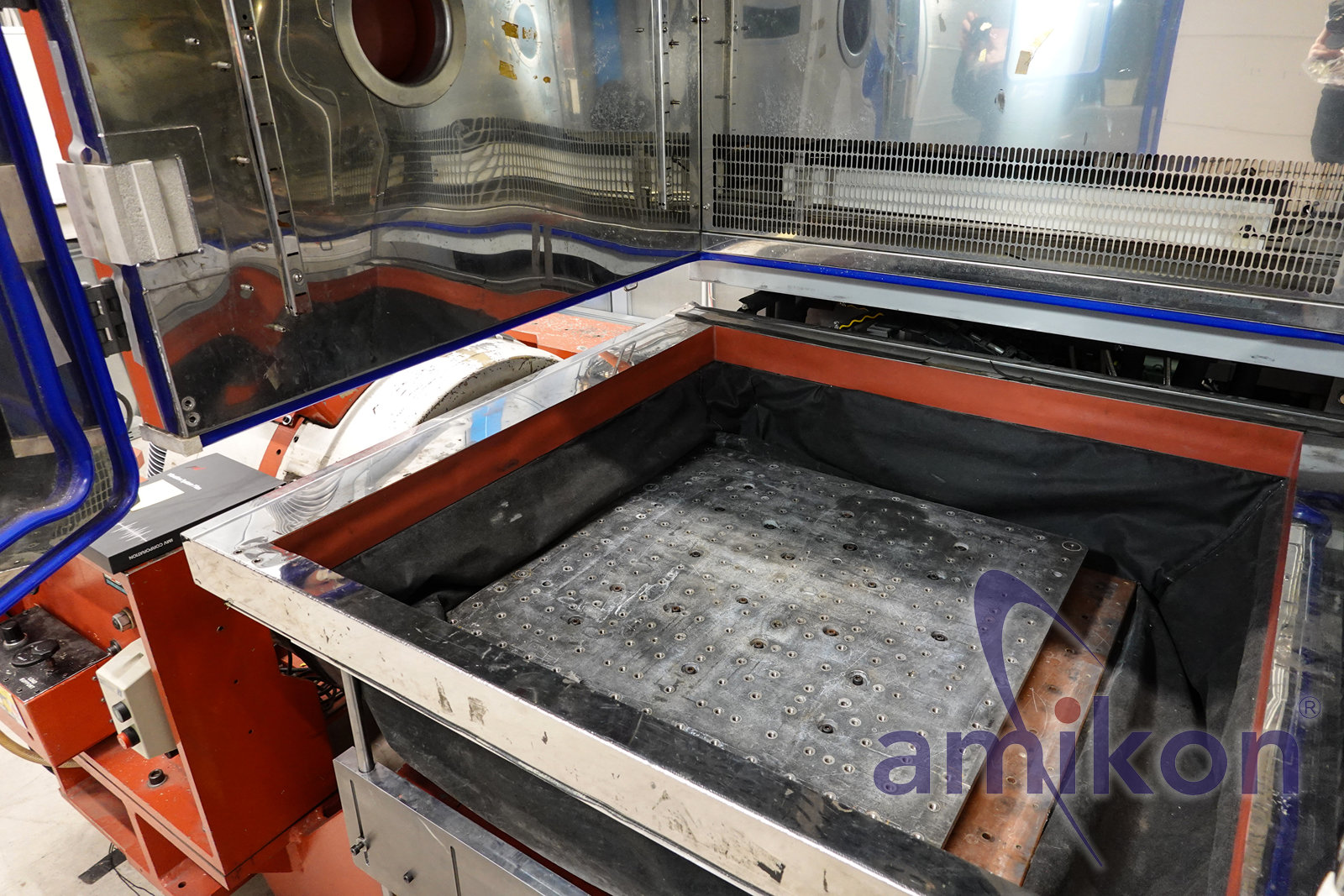

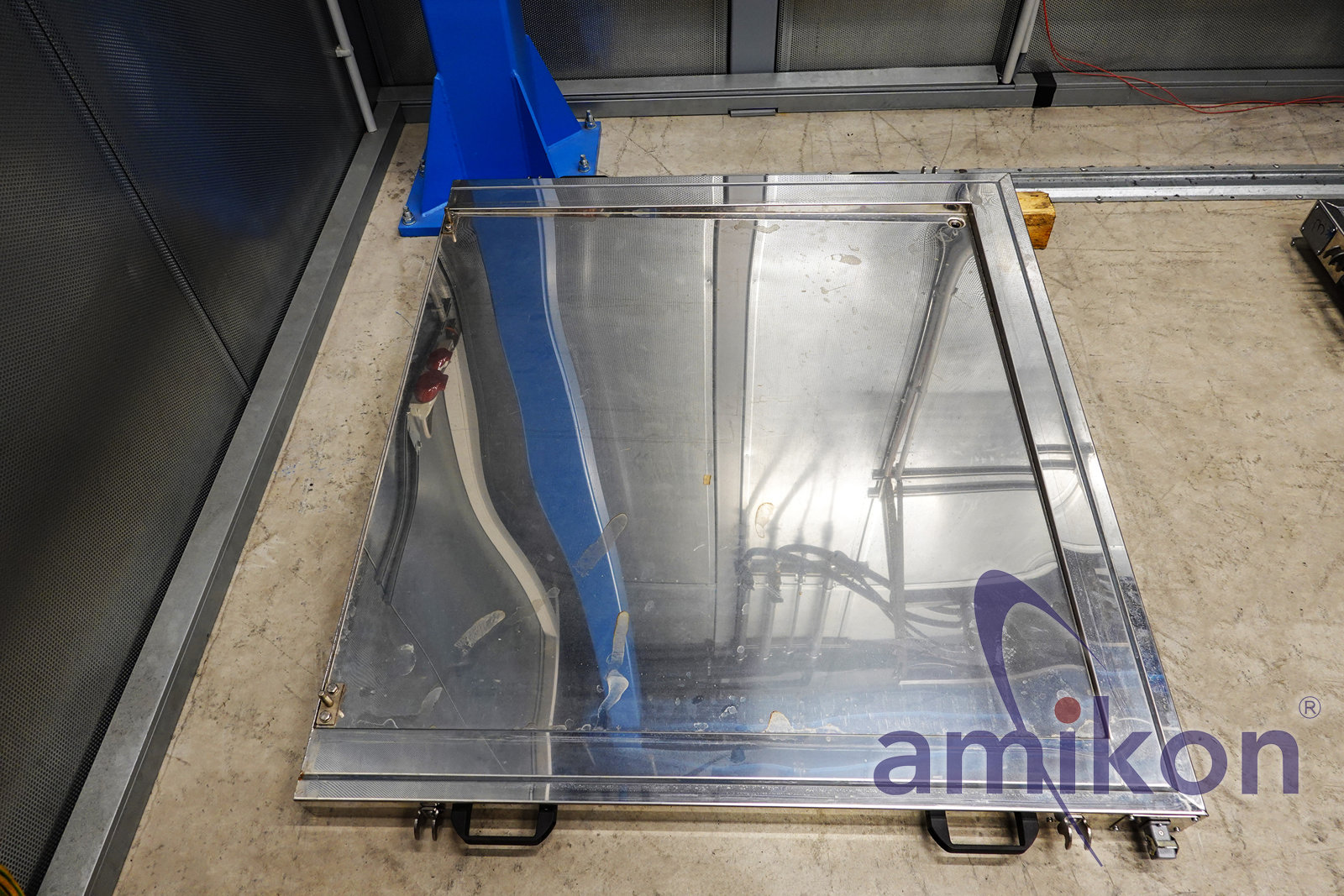

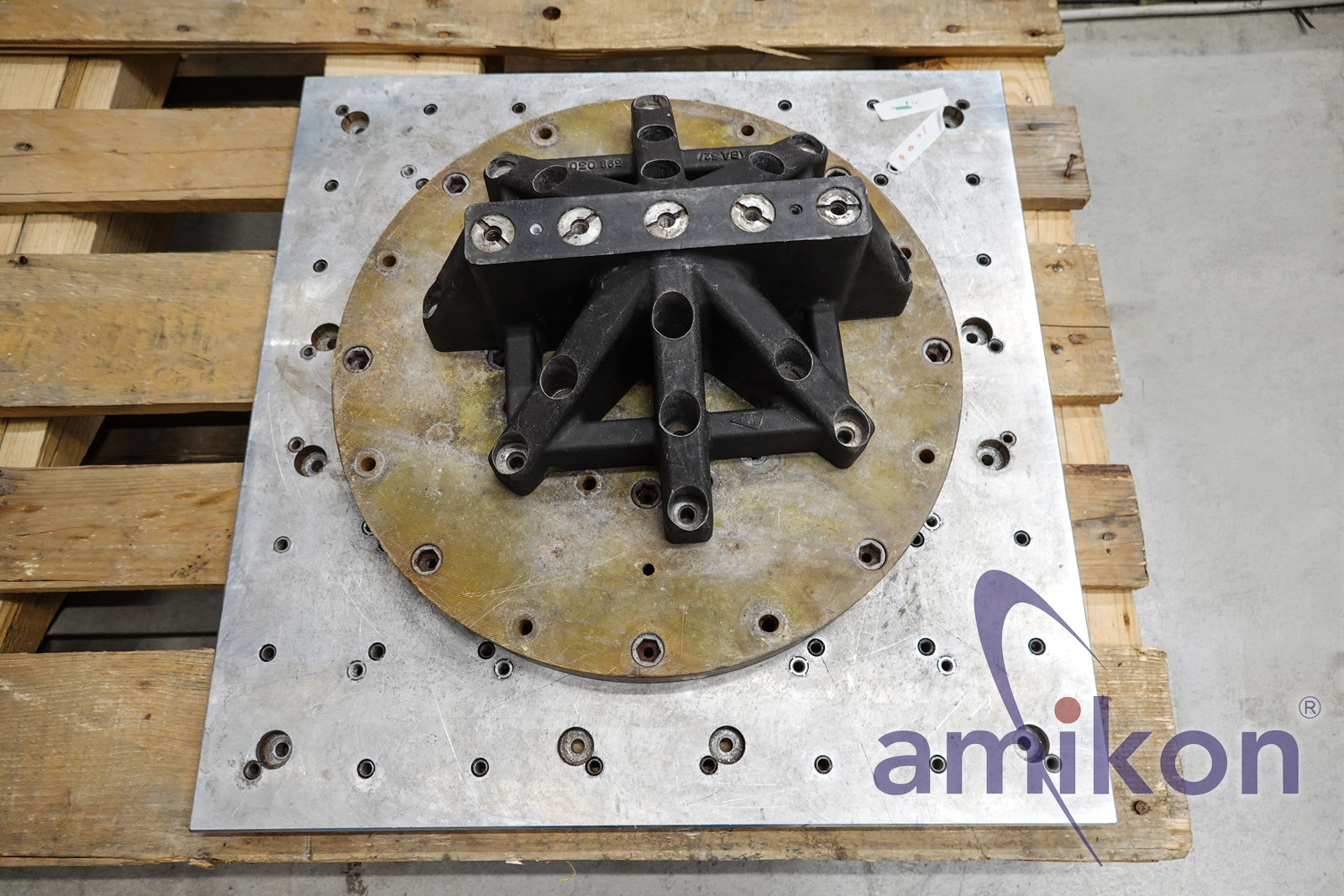

Sliding Table

Mounting area:
approx. 760 mm x 850 mm

Grid dimension / threaded sleeve distance:
approx. 100 mm

Dimensions and weights of individual components
partially estimated or not fully known.

The actual technical data,
dimensions, weights, and the exact scope of delivery
may vary.

Inspection, re-measurement, and testing on-site
by prior arrangement is explicitly possible and desired.

Scope of Delivery

LDS V850-440 LPT 750C Shaker System
LDS SPA30KCE Power Amplifier
IMV K2+ Vibration Control
Complete PC workstation
CTS Climate Chamber CV-70/1100-5
Sliding table / mounting table
Accessories and documents as per pictures

Condition

Used industrial system.
Optical condition see pictures.
The system comes from commercial industrial use.
Inspection is explicitly desired.

Important Note:
All information has been created to the best of our knowledge based on the pictures,
type plates, and manufacturer information.

Transport

Heavy industrial system.
Transport only by suitable heavy-duty freight forwarding.
Loading and pickup possible by prior arrangement.

Scope of delivery and condition see pictures.
We are happy to answer any further questions by phone or message.
